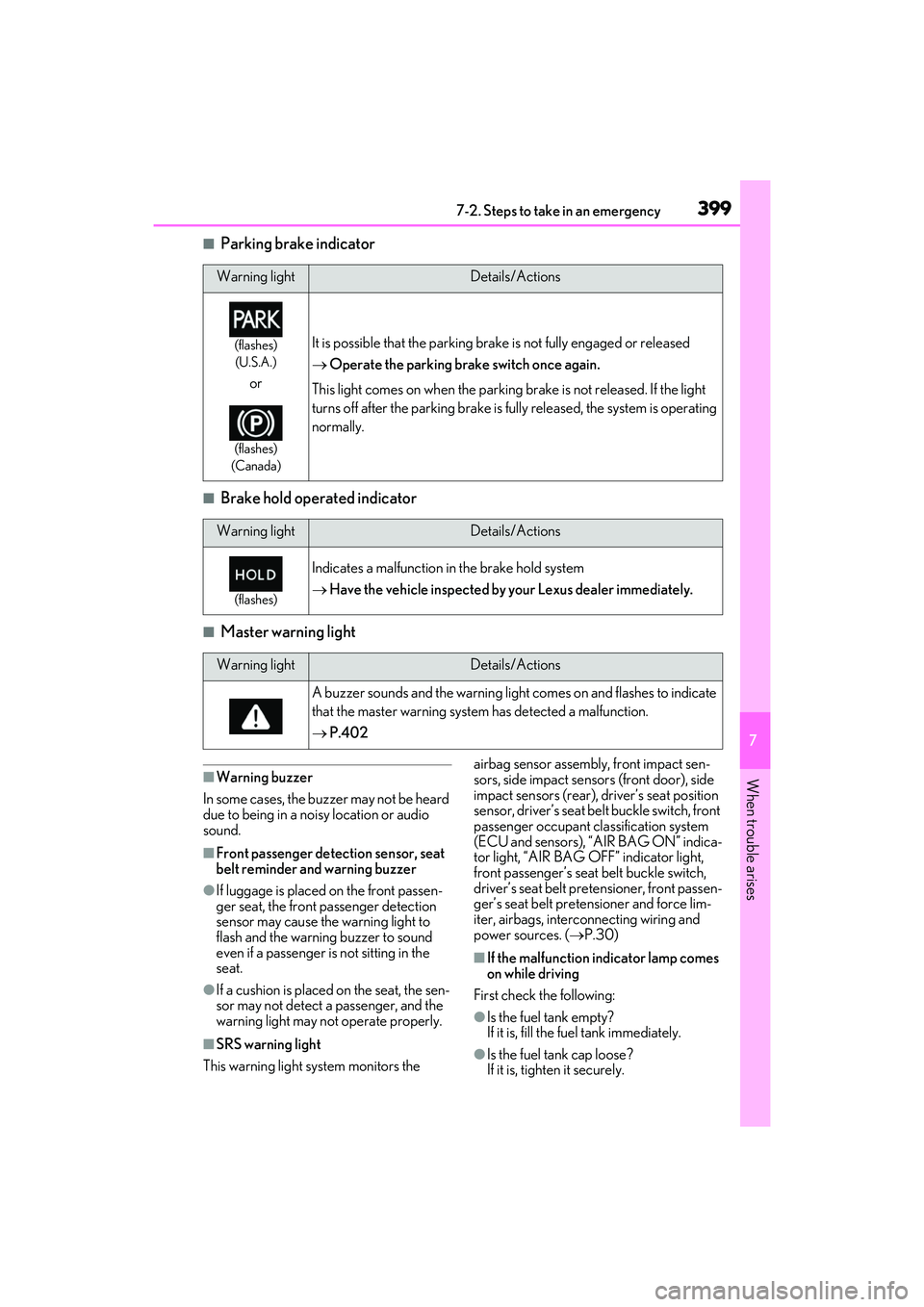

Page 401 of 508

3997-2. Steps to take in an emergency
7
When trouble arises
■Parking brake indicator
■Brake hold operated indicator
■Master warning light
■Warning buzzer
In some cases, the bu zzer may not be heard
due to being in a noisy location or audio
sound.
■Front passenger detection sensor, seat
belt reminder and warning buzzer
●If luggage is placed on the front passen-
ger seat, the front passenger detection
sensor may cause the warning light to
flash and the warning buzzer to sound
even if a passenger is not sitting in the
seat.
●If a cushion is placed on the seat, the sen-
sor may not detect a passenger, and the
warning light may not operate properly.
■SRS warning light
This warning light sy stem monitors the airbag sensor assembly, front impact sen-
sors, side impact sensor
s (front door), side
impact sensors (rear), driver’s seat position
sensor, driver’s seat belt buckle switch, front
passenger occupant classification system
(ECU and sensors), “AIR BAG ON” indica-
tor light, “AIR BAG OFF” indicator light,
front passenger’s seat belt buckle switch,
driver’s seat belt pr etensioner, front passen-
ger’s seat belt pretensioner and force lim-
iter, airbags, interconnecting wiring and
power sources. ( P.30)
■If the malfunction in dicator lamp comes
on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
Warning lightDetails/Actions
(flashes) (U.S.A.)
or
(flashes)
(Canada)
It is possible that the parking brake is not fully engaged or released
Operate the parking brake switch once again.
This light comes on when the parking brake is not released. If the light
turns off after the parking brake is fu lly released, the system is operating
normally.
Warning lightDetails/Actions
(flashes)
Indicates a malfunction in the brake hold system
Have the vehicle inspected by your Lexus dealer immediately.
Warning lightDetails/Actions
A buzzer sounds and the warning light comes on and flashes to indicate
that the master warning system has detected a malfunction.
P.402
Page 407 of 508

4057-2. Steps to take in an emergency
7
When trouble arises
■If “Radar Cruise Control Unavailable” is
displayed
The dynamic radar cruise control with
full-speed range system cannot be used
temporarily. Use the system when it
becomes available again.
■If a message that indicates the malfunc-
tion of front camera is displayed
The following systems may be suspended
until the problem shown in the message is
resolved. ( P.202, 398)
●PCS (Pre-Collision system)
●LTA (Lane Tracing Assist)
●Automatic High Beam
●RSA (Road Sign Assi st) (if equipped)
●Dynamic radar cruise control with
full-speed range
■If a message that indicates the malfunc-
tion of radar sensor is displayed
The following systems may be suspended
until the problem shown in the message is
resolved. ( P.202, 393)
●PCS (Pre-Collision system)
●LTA (Lane Tracing Assist)
●Dynamic radar cruise control with
full-speed range
■If “Check Fuel Cap” is displayed (if
equipped)
The fuel tank cap is no t properly installed.
Correctly install the fuel tank cap.
■If “Maintenance Required Soon” is dis-
played (U.S.A. only)
Indicates that all maintenance according to
the driven distance on the maintenance
schedule
* should be performed soon.
Comes on approximately 4500 miles
(7200 km) after the message has been
reset. If necessary, perform maintenance.
Please reset the message after the mainte-
nance is performed. ( P.342)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.
■If “Maintenance Required Visit Your
Dealer” is displayed (U.S.A. only)
Indicates that all mainte nance is required to
correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles
(8000 km) after the message has been
reset. (The indicator will not work properly
unless the message has been reset.) Per-
form the necessary maintenance. Please
reset the message after the maintenance is
performed. ( P.342)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the main tenance interval
applicable to your vehicle.
■If “Oil Maintenance Required Soon” is
displayed
Indicates that the engine oil should be
scheduled to be changed.
Check the engine oil and change it if neces-
sary. After changing th e engine oil, make
sure to reset the message. ( P.353)
■If “Oil Maintenance Required” is dis-
played
Indicates that the engine oil should be
changed.
Check and change the engine oil, and oil fil-
ter by your Lexus dealer. After changing the
engine oil, make sure to reset the message.
( P.353)
■If a message that indicates the need for
visiting your Lexus dealer is displayed
The system or part shown on the
multi-information displa y is malfunctioning.
Have the vehicle inspected by your Lexus
dealer immediately.
■If a message that indicates the need for
referring to Owner’ s Manual is dis-
played
●“Engine Coolant Temp High” is shown on
the multi-information display, follow the
instructions. ( P.426)
●“Transmission Fluid Temp High” is shown
on the multi-informatio n display, the auto-
matic transmission fluid temperature may
be too high. Immediately stop the vehicle

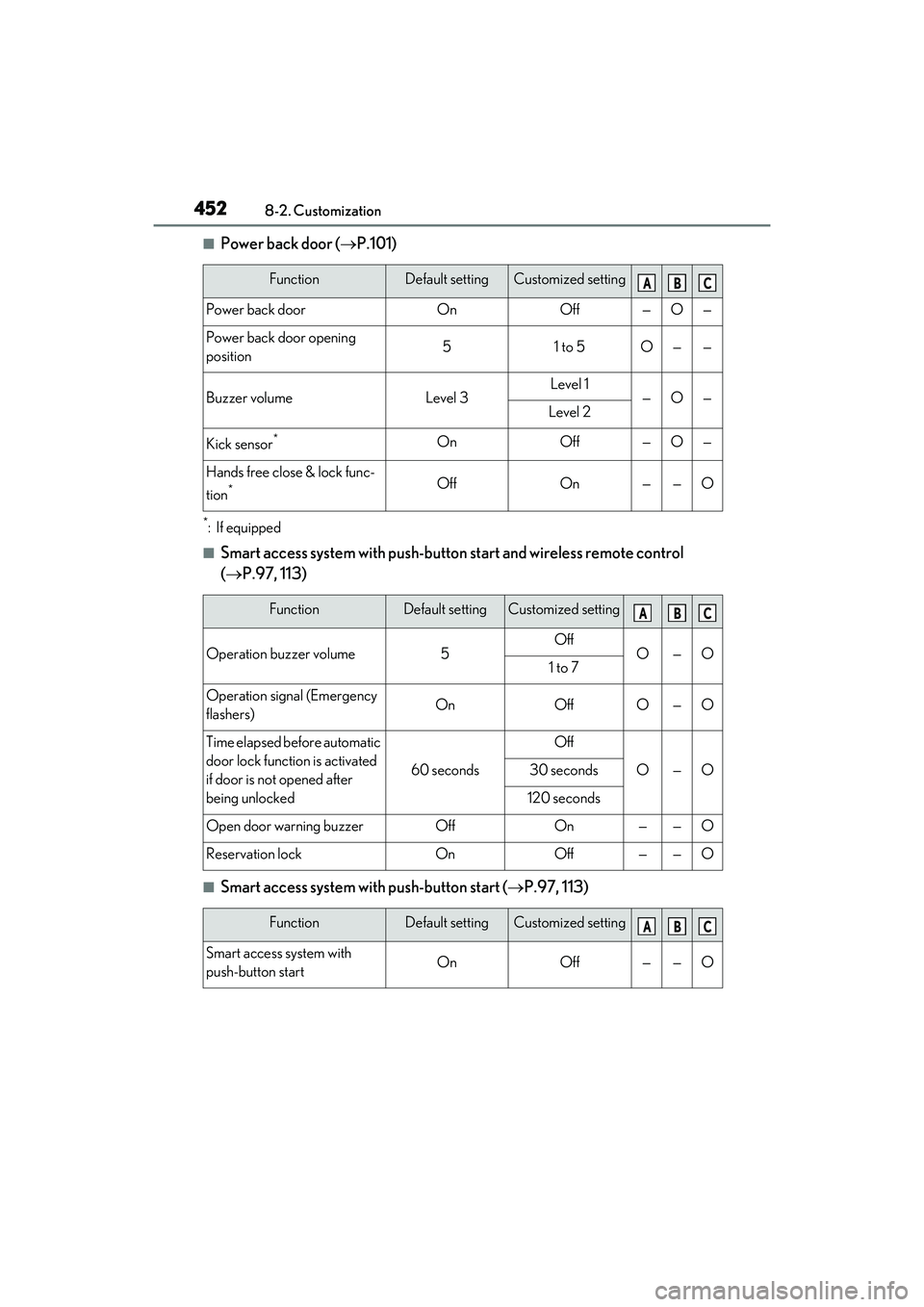

Page 454 of 508

4528-2. Customization
■Power back door (P.101)
*:If equipped
■Smart access system with push-button start and wireless remote control
( P.97, 113)
■Smart access system with push-button start ( P.97, 113)
FunctionDefault settingCustomized setting
Power back doorOnOff—O—
Power back door opening
position51 to 5O——
Buzzer volumeLevel 3Level 1—O—Level 2
Kick sensor*OnOff—O—
Hands free close & lock func-
tion
*OffOn——O
FunctionDefault settingCustomized setting
Operation buzzer volume5OffO—O1 to 7
Operation signal (Emergency
flashers)OnOffO—O
Time elapsed before automatic
door lock function is activated
if door is not opened after
being unlocked
60 seconds
Off
O—O30 seconds
120 seconds
Open door warning buzzerOffOn——O
Reservation lockOnOff——O
FunctionDefault settingCustomized setting
Smart access system with
push-button startOnOff——O
ABC
ABC
ABC

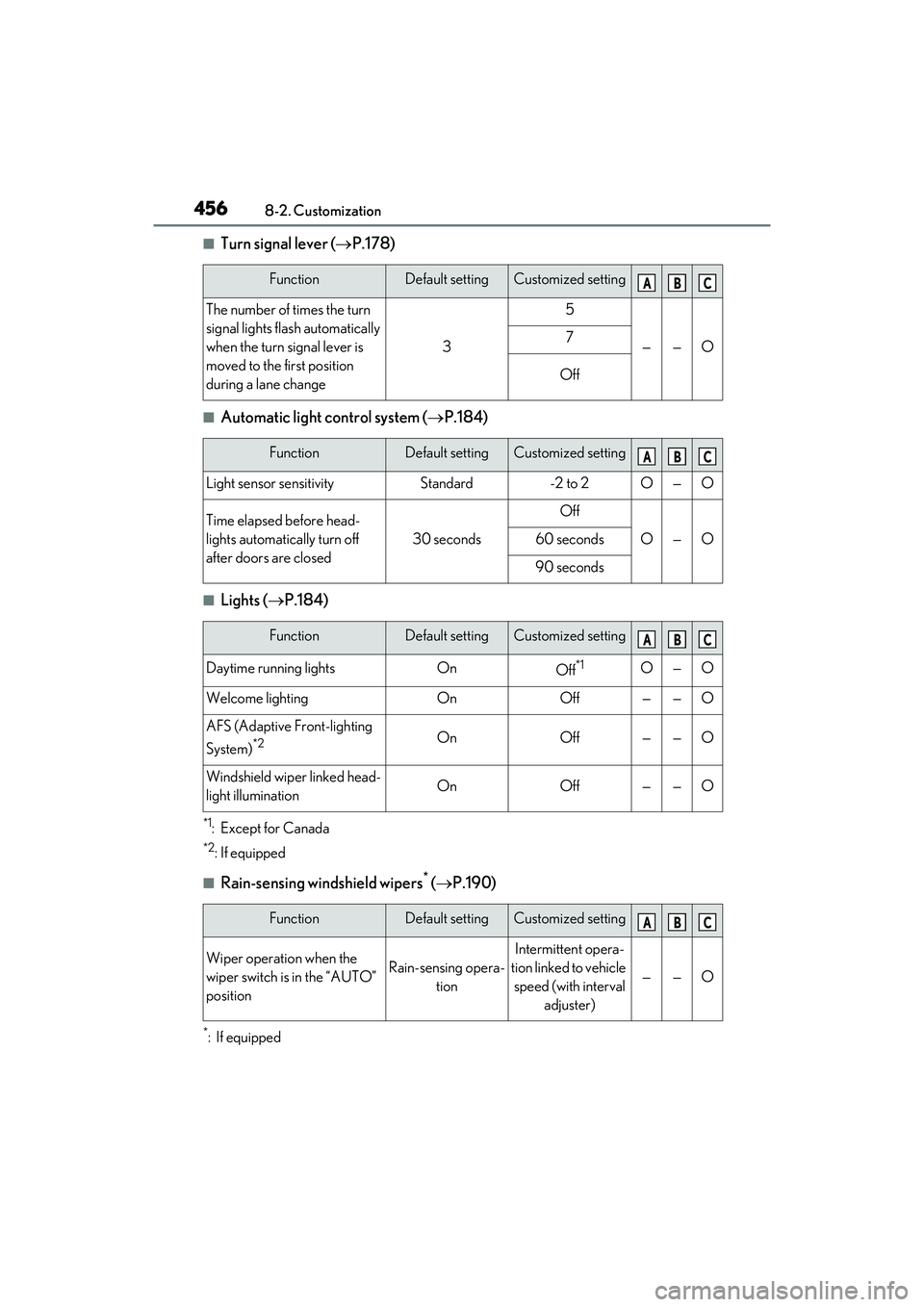

Page 458 of 508

4568-2. Customization
■Turn signal lever (P.178)
■Automatic light control system ( P.184)
■Lights ( P.184)
*1:Except for Canada
*2: If equipped
■Rain-sensing windshield wipers* ( P.190)
*:If equipped
FunctionDefault settingCustomized setting
The number of times the turn
signal lights flash automatically
when the turn signal lever is
moved to the first position
during a lane change
3
5
——O7
Off
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before head-
lights automatically turn off
after doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
FunctionDefault settingCustomized setting
Daytime running lightsOnOff*1O—O
Welcome lightingOnOff——O
AFS (Adaptive Front-lighting
System)
*2OnOff——O
Windshield wiper linked head-
light illuminationOnOff——O
FunctionDefault settingCustomized setting
Wiper operation when the
wiper switch is in the “AUTO”
positionRain-sensing opera-
tion
Intermittent opera-
tion linked to vehicle speed (with interval adjuster)
——O
ABC
ABC
ABC
ABC

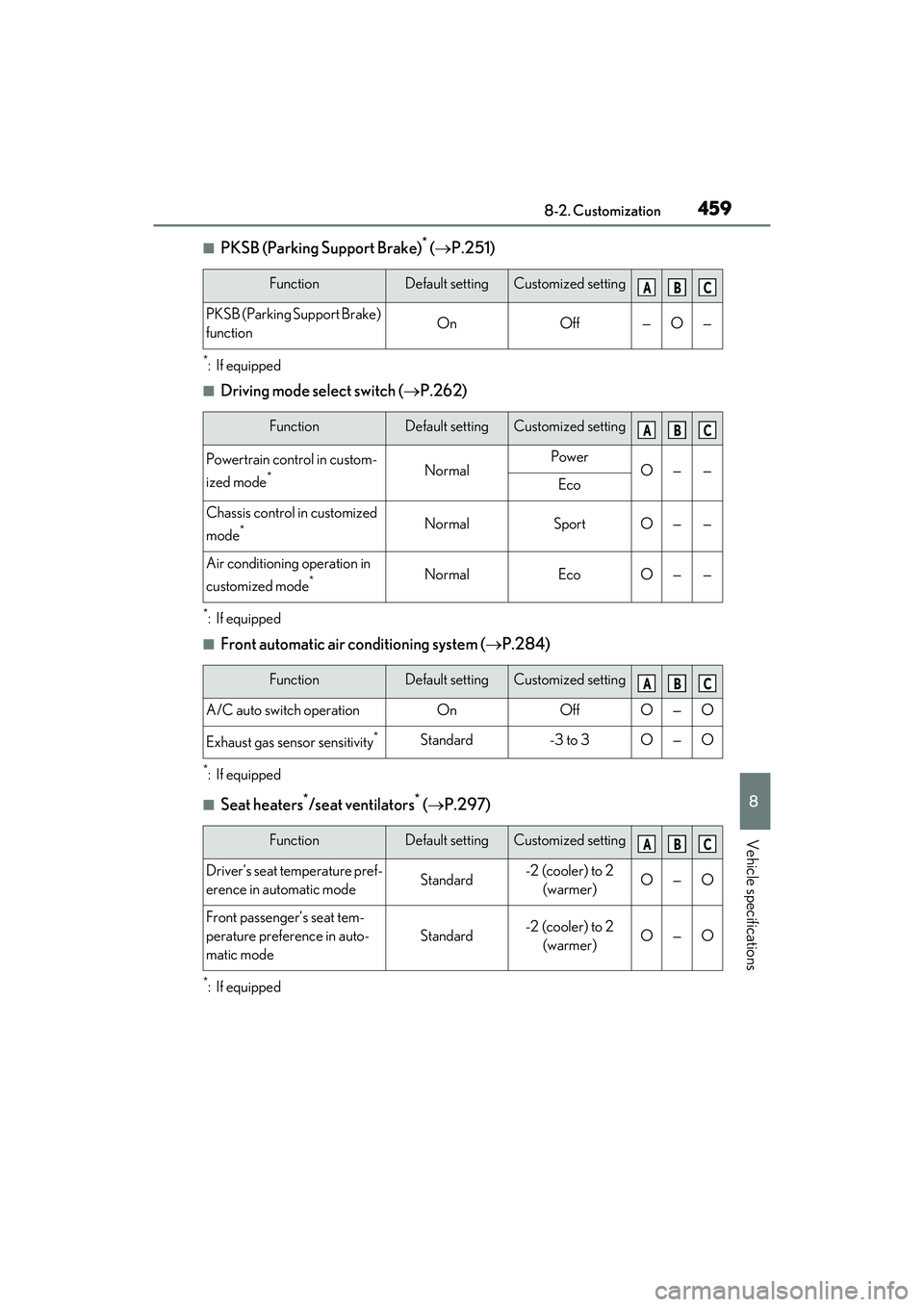

Page 461 of 508

4598-2. Customization
8
Vehicle specifications
■PKSB (Parking Support Brake)* ( P.251)
*:If equipped
■Driving mode select switch ( P.262)
*:If equipped
■Front automatic air conditioning system ( P.284)
*:If equipped
■Seat heaters*/seat ventilators* ( P.297)
*:If equipped
FunctionDefault settingCustomized setting
PKSB (Parking Support Brake)
functionOnOff—O—
FunctionDefault settingCustomized setting
Powertrain control in custom-
ized mode
*NormalPowerO——Eco
Chassis control in customized
mode
*NormalSportO——
Air conditioning operation in
customized mode
*NormalEcoO——
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivity*Standard-3 to 3O—O
FunctionDefault settingCustomized setting
Driver’s seat temperature pref-
erence in automatic modeStandard-2 (cooler) to 2
(warmer)O—O
Front passenger’s seat tem-
perature preference in auto-
matic mode
Standard-2 (cooler) to 2 (warmer)O—O
ABC
ABC
ABC
ABC
Page 481 of 508

479What to do if... (Troubleshooting)
Is the engine switch in IGNITION
ON mode?
If you cannot release the shift lever by
depressing the brake pedal with the engine
switch in IGNITION ON mode ( P.175)
It is locked automatically to prevent
theft of the vehicle. ( P.171)
Is the window lock switch pressed?
The power window except for the one at
the driver’s seat cannot be operated if the
window lock switch is pressed. ( P.142)
The auto power off function will be
operated if the vehicle is left in
ACCESSORY or IGNITION ON
mode (the engine is not running) for
a period of time. ( P.173)
The seat belt reminder light is flash-
ing
Are the driver and the passengers wearing
the seat belts? ( P.396)
The parking brake indicator is on
Is the parking brake released? ( P.179)
Depending on the situation, other
types of warning buzzer may also
sound. (P.393, 402)
Did anyone inside the vehicle open
a door during setting the alarm?
The sensor detects it and the alarm sounds.
(P.67)
Do one of the following to stop the
alarms:
Unlock the doors.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine.
Is the message displayed on the
multi-information display?
Check the message on the multi-informa-
tion display. ( P.402)
When a warning light turns on or a
warning message is displayed, refer
to P.393, 402.
The steering wheel cannot be
turned after the engine is
stopped
The windows do not open or
close by operating the power
window switches
The engine switch is turned off
automatically
A warning buzzer sounds during
driving
An alarm is activated and the
horn sounds
A warning buzzer sounds when
leaving the vehicle
A warning light turns on or a
warning message is displayed
When a problem has occurred
If you have a flat tire

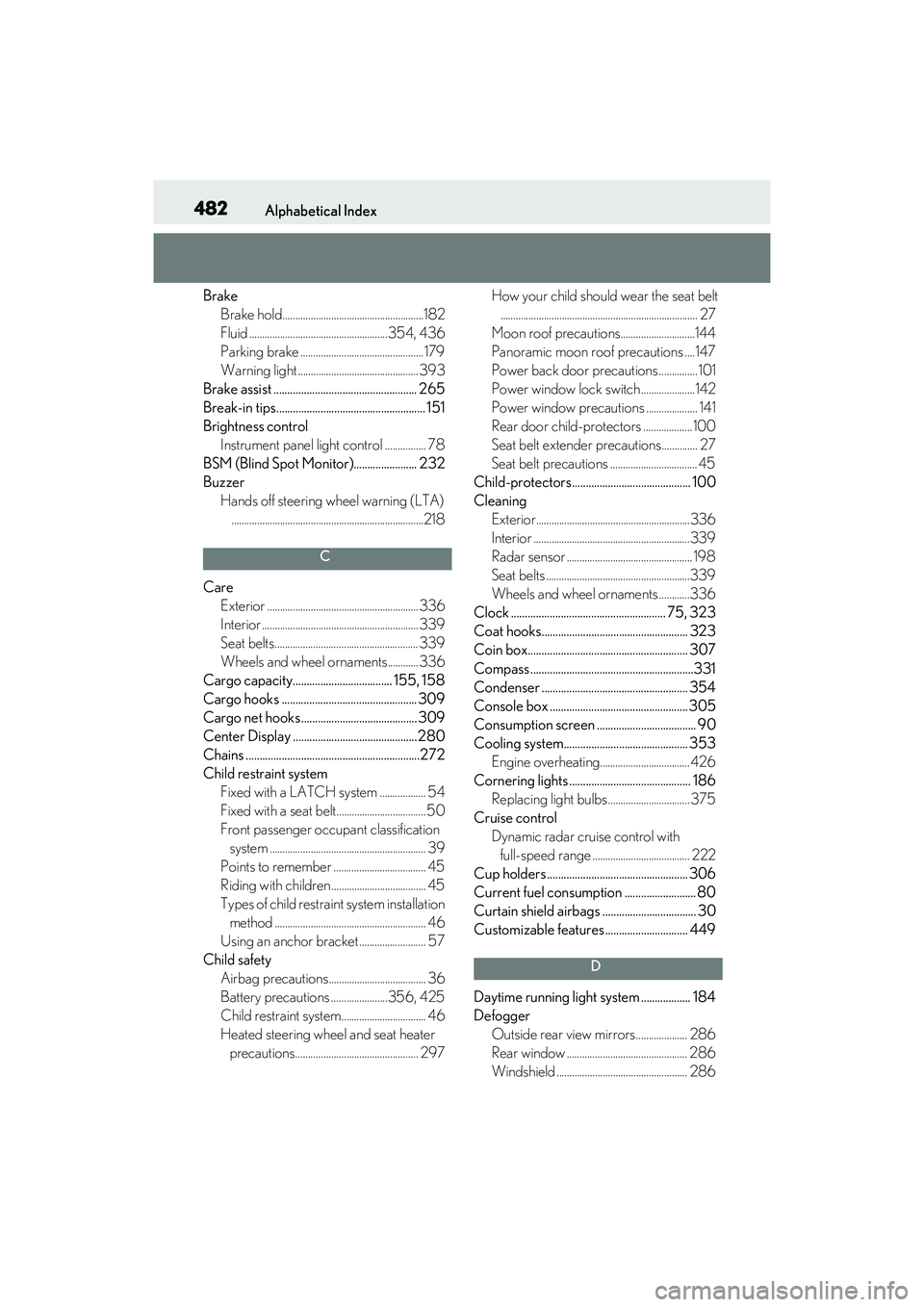

Page 484 of 508

482Alphabetical Index
BrakeBrake hold.......................................................182
Fluid ......................................................354, 436
Parking brake ................................................ 179
Warning light ............................................... 393
Brake assist .................................................... 265
Break-in tips...................................................... 151
Brightness control Instrument panel light control ................ 78
BSM (Blind Spot Monitor)....................... 232
Buzzer Hands off steering wheel warning (LTA)...........................................................................218
C
Care Exterior ........................................................... 336
Interior ............................................................. 339
Seat belts........................................................ 339
Wheels and wheel ornaments............ 336
Cargo capacity.................................... 155, 158
Cargo hooks ................................................. 309
Cargo net hooks .......................................... 309
Center Display .............................................280
Chains ...............................................................272
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupa nt classification
system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety Airbag precautions...................................... 36
Battery precautions ......................356, 425
Child restraint system................................. 46
Heated steering wheel and seat heater precautions................................................ 297 How your child should
wear the seat belt
............................................................................. 27
Moon roof precautions.............................144
Panoramic moon roof precautions ....147
Power back door precautions ............... 101
Power window lock switch .....................142
Power window precautions .................... 141
Rear door child-protectors ................... 100
Seat belt extender prec autions.............. 27
Seat belt precautions .................................. 45
Child-protectors........................................... 100
Cleaning Exterior............................................................336
Interior .............................................................339
Radar sensor ................................................. 198
Seat belts ........................................................339
Wheels and wheel ornaments ............336
Clock ........................................................ 75, 323
Coat hooks..................................................... 323
Coin box.......................................................... 307
Compass ...........................................................331
Condenser ..................................................... 354
Console box .................................................. 305
Consumption screen .................................... 90
Cooling system............................................. 353 Engine overheating................................... 426
Cornering lights ............................................ 186 Replacing light bulbs................................375
Cruise control Dynamic radar cruise control with full-speed range ...................................... 222
Cup holders ................................................... 306
Current fuel consumption .......................... 80
Curtain shield airbags .................................. 30
Customizable features .............................. 449
D
Daytime running light system .................. 184
Defogger Outside rear view mirrors.................... 286
Rear window ............................................... 286
Windshield ................................................... 286
Page 490 of 508

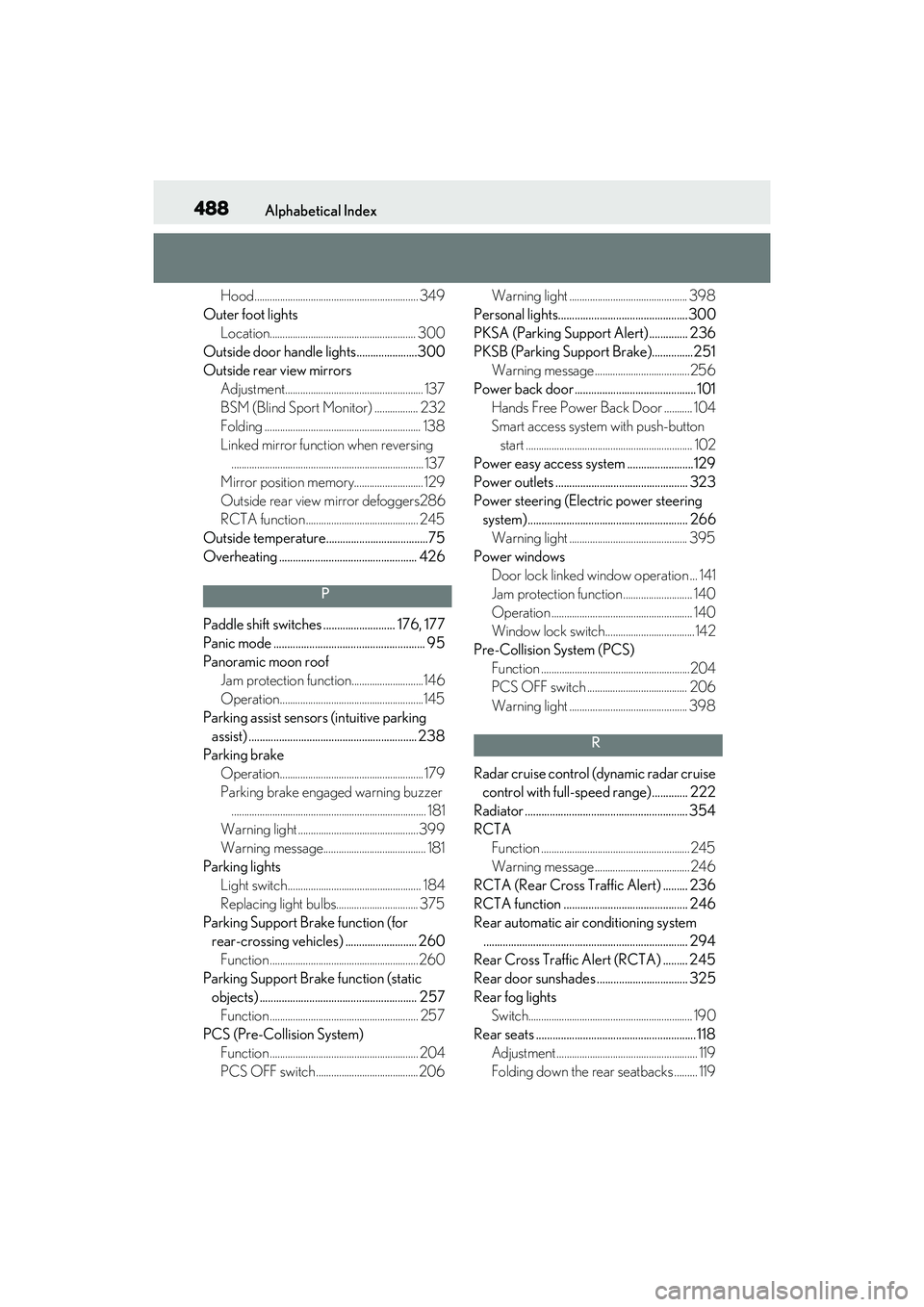

488Alphabetical Index
Hood................................................................ 349
Outer foot lights Location......................................................... 300
Outside door handle lights......................300
Outside rear view mirrors Adjustment...................................................... 137
BSM (Blind Sport Monitor) ................. 232
Folding ............................................................. 138
Linked mirror function when reversing........................................................................... 137
Mirror position memory........................... 129
Outside rear view mirror defoggers286
RCTA function ............................................ 245
Outside temperature.....................................75
Overheating .................................................. 426
P
Paddle shift switches .......................... 176, 177
Panic mode ....................................................... 95
Panoramic moon roof Jam protection function............................146
Operation........................................................145
Parking assist sensor s (intuitive parking
assist) ............................................................. 238
Parking brake Operation........................................................ 179
Parking brake engaged warning buzzer............................................................................ 181
Warning light ...............................................399
Warning message........................................ 181
Parking lights Light switch .................................................... 184
Replacing light bulbs................................ 375
Parking Support Brake function (for rear-crossing vehicles) .......................... 260 Function ..........................................................260
Parking Support Brake function (static objects) ......................................................... 257 Function .......................................................... 257
PCS (Pre-Collision System) Function .......................................................... 204
PCS OFF switch ........................................206 Warning light .............................................. 398
Personal lights...............................................300
PKSA (Parking Support Alert) .............. 236
PKSB (Parking Support Brake)...............251 Warning message .....................................256
Power back door ............................................ 101 Hands Free Power Back Door ........... 104
Smart access system with push-button start ................................................................. 102
Power easy access system ........................129
Power outlets ................................................ 323
Power steering (Elect ric power steering
system) .......................................................... 266 Warning light .............................................. 395
Power windows Door lock linked window operation ... 141
Jam protection function ........................... 140
Operation ....................................................... 140
Window lock switch...................................142
Pre-Collision System (PCS) Function ..........................................................204
PCS OFF switch ....................................... 206
Warning light .............................................. 398
R
Radar cruise control (dynamic radar cruise control with full-speed range)............. 222
Radiator ........................................................... 354
RCTA Function ..........................................................245
Warning message ..................................... 246
RCTA (Rear Cross Traffic Alert) ......... 236
RCTA function ............................................. 246
Rear automatic air conditioning system .......................................................................... 294
Rear Cross Traffic Alert (RCTA) ......... 245
Rear door sunshades ................................. 325
Rear fog lights Switch................................................................ 190
Rear seats .......................................................... 118 Adjustment ....................................................... 119
Folding down the rear seatbacks ......... 119
Page 491 of 508

489Alphabetical Index
Head restraints ............................................. 132
Seat heaters .................................................. 297
Rear side marker lights Light switch .................................................... 184
Replacing light bulbs................................ 375
Rear turn signal lights Replacing light bulbs.................... 375, 379
Turn signal lever ...........................................178
Wattage.......................................................... 437
Rear view mirror Inside rear view mirror..............................136
Outside rear view mirrors ...................... 137
Rear window defogger ............................. 286
Rear window wiper.......................................194
Refueling Capacity ......................................................... 432
Fuel types....................................................... 432
If the fuel filler door cannot be opened......................................................................... 420
Opening the fuel tank cap ..................... 195
Remote Touch .............................................. 278
Replacing Electronic key battery..............................369
Fuses .................................................................. 371
Light bulbs..................................................... 374
Tires ..................................................................406
Resetting the message indicating mainte- nance is required ...................................... 342
Rev indicator .....................................................76
Rev peak.............................................................. 77
Road Sign Assist .......................................... 220
RSA (Road Sign Assist) ............................ 220
S
Seat belt reminder ligh t............................. 396
Seat belts............................................................ 26 Automatic Locking Retractor ................ 28
Child restraint system installation......... 46
Cleaning and maintaining the seat belt......................................................................... 339
Emergency Locking Retractor .............. 28
How to wear your seat belt ......................27 How your child should
wear the seat belt
............................................................................. 27
Pregnant women, proper seat belt use ............................................................................. 26
Reminder light and buzzer .................. 396
Seat belt extender......................................... 27
Seat belt pretensioners .............................. 29
SRS warning light.......................................394
Seat heaters ................................................... 297
Seat position memory..................................129
Seat ventilators ............................................. 297
Seating capacity............................................ 158
Seats Adjustment ...............................................117, 119
Adjustment precautions ................... 117, 118
Child seats/child restraint system installa-tion .................................................................... 45
Cleaning .........................................................339
Driving position memory .........................129
Folding down the rear seatbacks ......... 119
Head restraints..............................................132
Power easy access system .....................129
Properly sitting in the seat ........................ 25
Seat heaters .................................................. 297
Seat position memory ...............................129
Seat ventilators ............................................ 297
Sensor Automatic headlight system .................. 184
Automatic High Beam system ............. 187
Inside rear view mirror ............................. 136
Intuitive parking assist ..............................238
LTA (Lane Tracing Assist) ....................... 211
Parking Support Brake function (rear-crossing vehicles) ..................... 260
Parking Support Brake function (static objects) ....................................................... 258
Radar sensor ..................................... 198, 232
Rain-sensing windshield wipers ............ 191
RCTA............................................................... 246
Service reminder message ..................... 342
Shift lever Automatic transmission ............................174
