LEXUS RX400H 2008 Owners Manual

119
1-8. Safety information
1
Before driving
RX400h_U

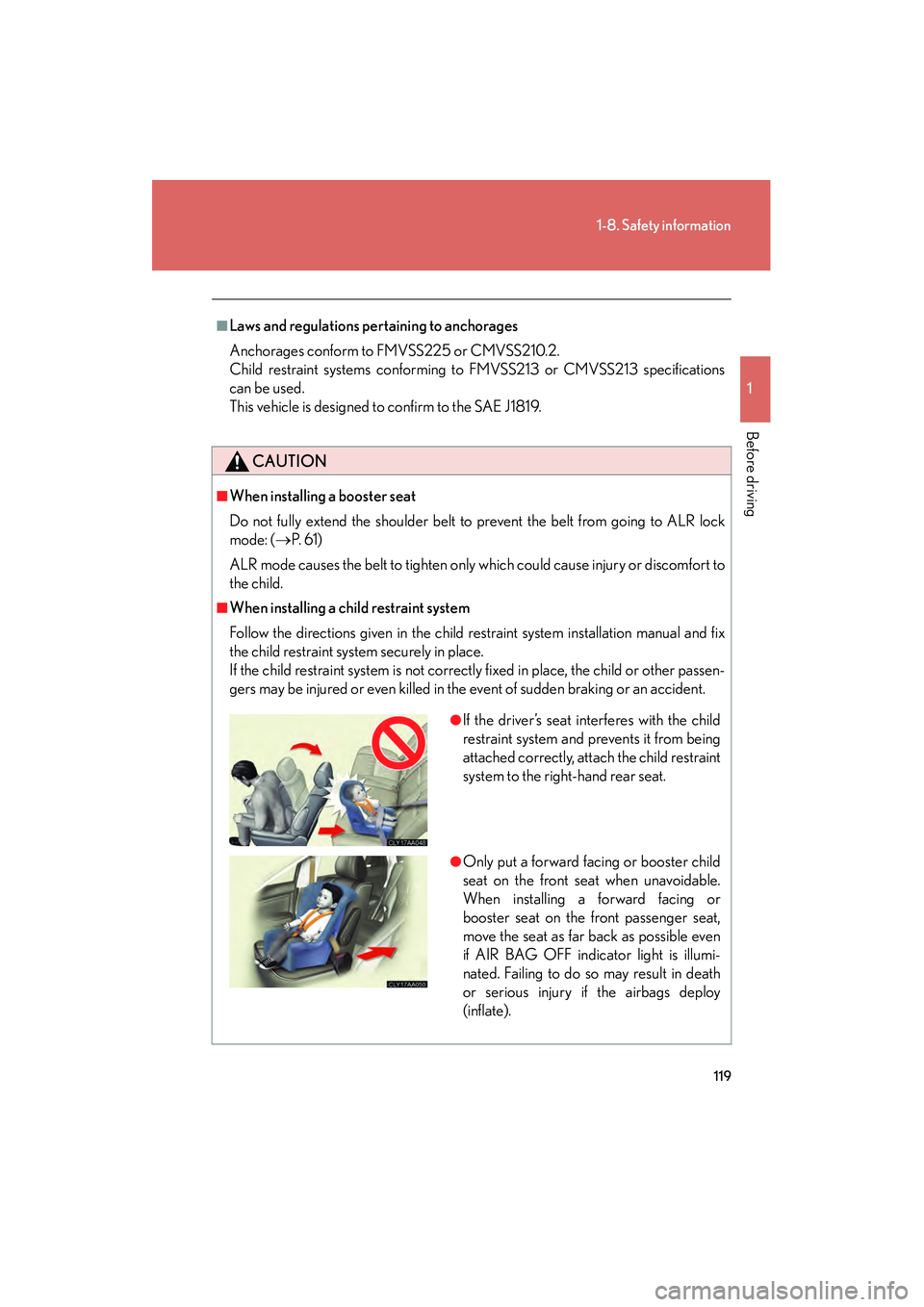

■Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to confirm to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: ( →P. 6 1 )
ALR mode causes the belt to tighten only which could cause injury or discomfort to
the child.
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Only put a forward facing or booster child
seat on the front seat when unavoidable.
When installing a forward facing or
booster seat on the front passenger seat,
move the seat as far back as possible even
if AIR BAG OFF indicator light is illumi-
nated. Failing to do so may result in death
or serious injury if the airbags deploy
(inflate).

120
1-8. Safety information
RX400h_U

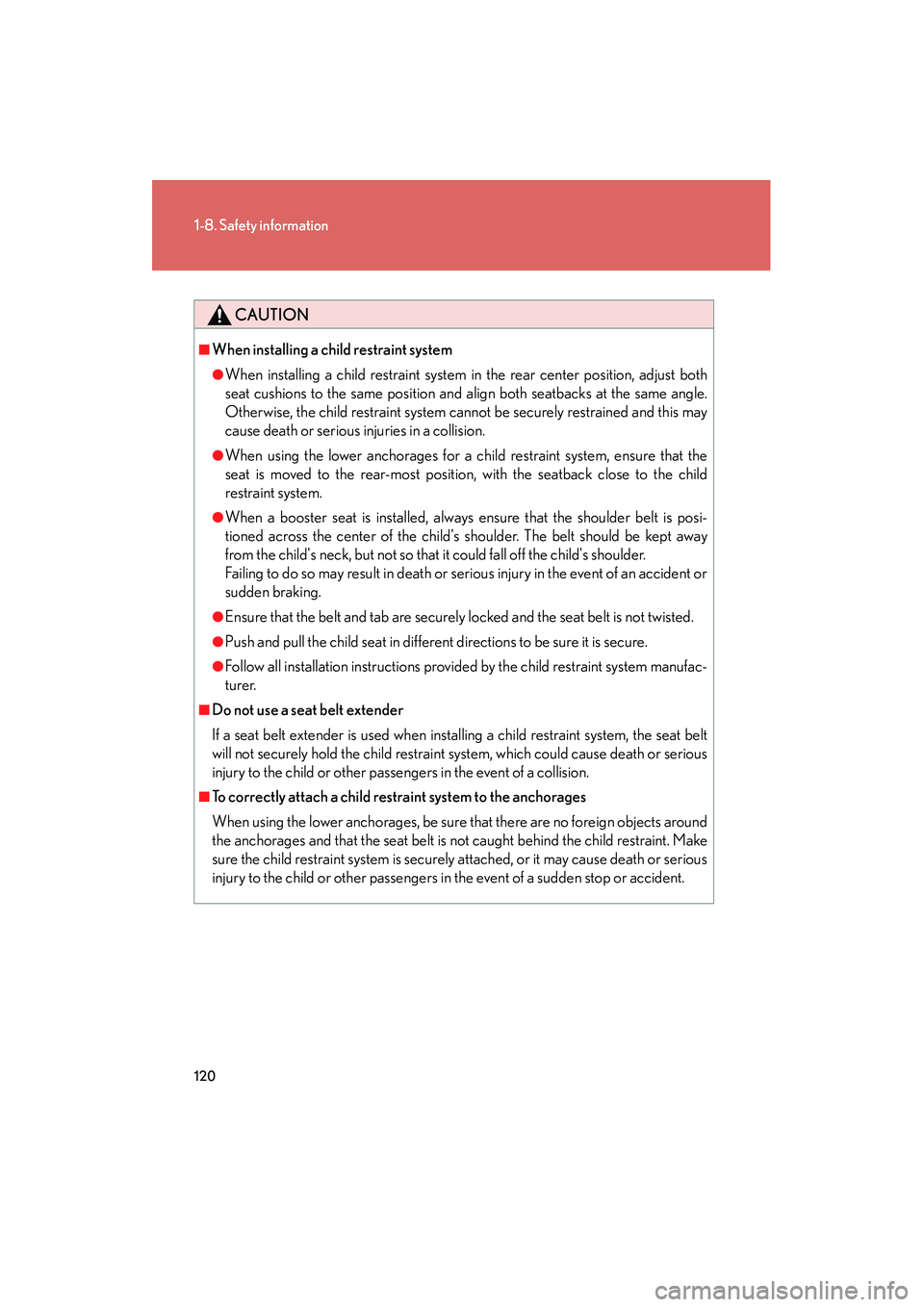

CAUTION
■When installing a child restraint system
●When installing a child restraint system in the rear center position, adjust both
seat cushions to the same position and align both seatbacks at the same angle.
Otherwise, the child restraint system cannot be securely restrained and this may
cause death or serious injuries in a collision.
●When using the lower anchorages for a child restraint system, ensure that the
seat is moved to the rear-most position, with the seatback close to the child
restraint system.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child's shoulder. The belt should be kept away
from the child's neck, but not so that it could fall off the child's shoulder.
Failing to do so may result in death or serious injury in the event of an accident or
sudden braking.
●Ensure that the belt and tab are securely locked and the seat belt is not twisted.
●Push and pull the child seat in different directions to be sure it is secure.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of a collision.
■To correctly attach a child restraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects around
the anchorages and that the seat belt is not caught behind the child restraint. Make
sure the child restraint system is securely attached, or it may cause death or serious
injury to the child or other passengers in the event of a sudden stop or accident.

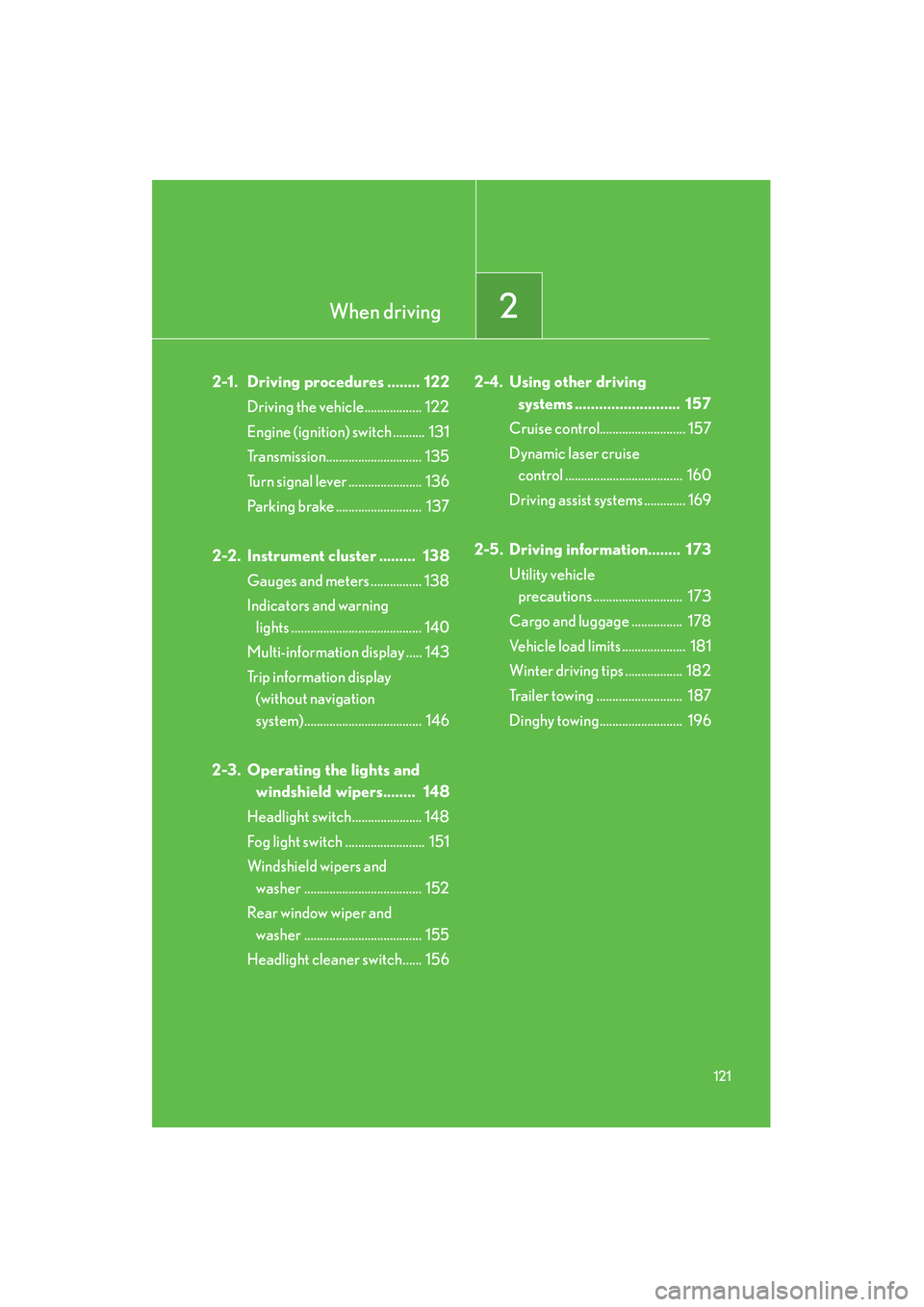

When driving2
121
RX400h_U
2-1. Driving procedures ........ 122Driving the vehicle.................. 122
Engine (ignition) switch .......... 131
Transmission.............................. 135
Turn signal lever ....................... 136
Parking brake ........................... 137
2-2. Instrument cluster ......... 138 Gauges and meters ................ 138
Indicators and warning lights ......................................... 140
Multi-information display ..... 143
Trip information display (without navigation
system)..................................... 146
2-3. Operating the lights and windshield wipers........ 148
Headlight switch...................... 148
Fog light switch ......................... 151
Windshield wipers and washer ..................................... 152
Rear window wiper and washer ..................................... 155
Headlight cleaner switch...... 156 2-4. Using other driving
systems .......................... 157
Cruise control........................... 157
Dynamic laser cruise control ..................................... 160
Driving assist systems ............. 169
2-5. Driving information........ 173 Utility vehicle precautions ............................ 173
Cargo and luggage ................ 178
Vehicle load limits .................... 181
Winter driving tips .................. 182
Trailer towing ........................... 187
Dinghy towing.......................... 196

122
RX400h_U
2-1. Driving procedures

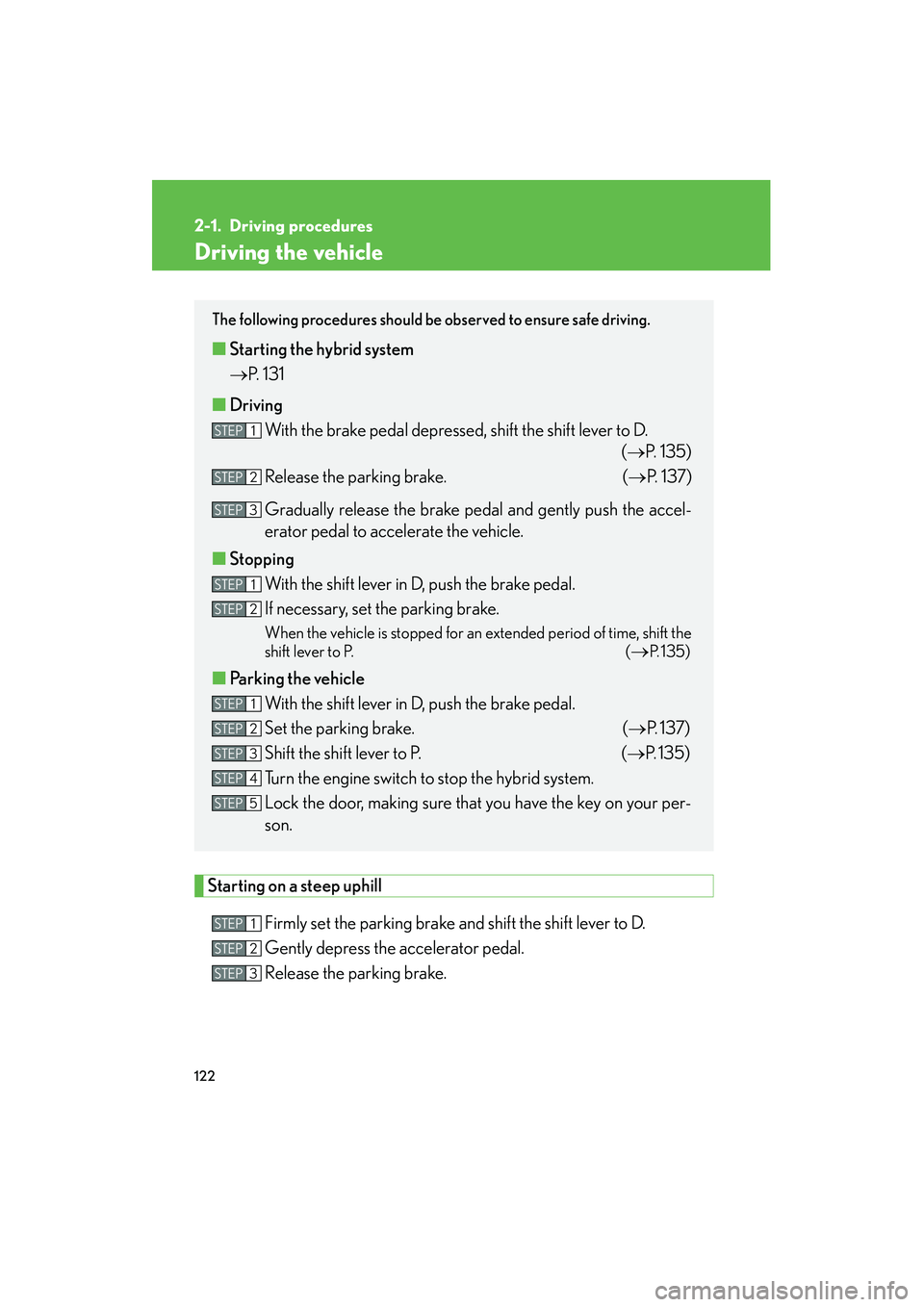

Driving the vehicle
Starting on a steep uphillFirmly set the parking brake and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■Starting the hybrid system
→ P. 1 3 1
■ Driving
With the brake pedal depressed, shift the shift lever to D. (→P. 135)
Release the parking brake. (→ P. 1 3 7 )
Gradually release the brake pedal and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in D, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to P. (
→P. 1 3 5 )
■Parking the vehicle
With the shift lever in D, push the brake pedal.
Set the parking brake. (→ P. 1 3 7 )
Shift the shift lever to P. (→ P. 135)
Turn the engine switch to stop the hybrid system.
Lock the door, making sure that you have the key on your per-
son.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3

123
2-1. Driving procedures
2
When driving
RX400h_U

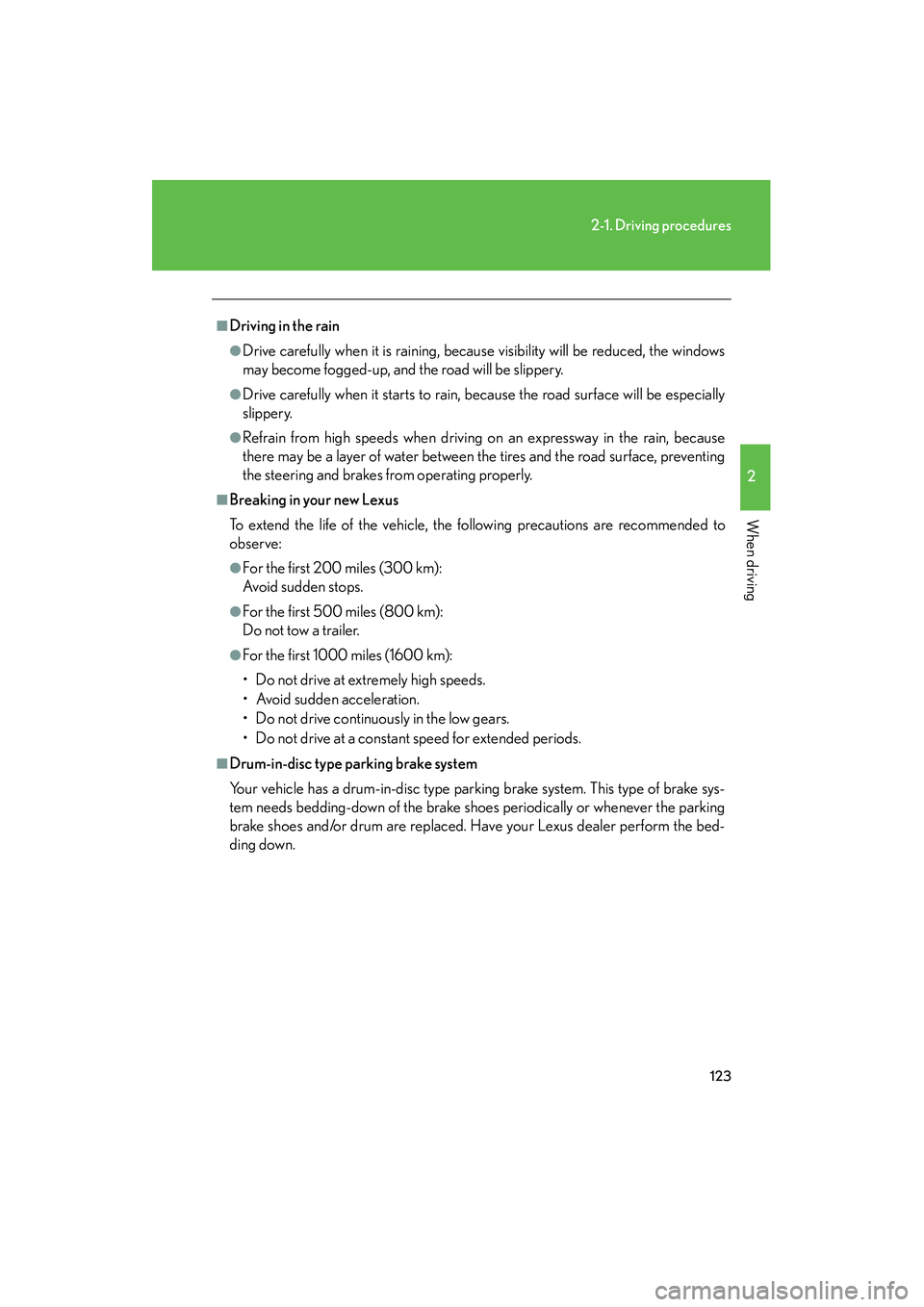

■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because
there may be a layer of water between the tires and the road surface, preventing
the steering and brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, the following precautions are recommended to
observe:
●For the first 200 miles (300 km):
Avoid sudden stops.
●For the first 500 miles (800 km):
Do not tow a trailer.
●For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low gears.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake sys-
tem needs bedding-down of the brake shoes periodically or whenever the parking
brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed-
ding down.

124
2-1. Driving procedures
RX400h_U
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 4 3 3 )
■For efficient use of the hybrid battery
●Put the shift lever into D when driving
In the N position, the gasoline engine operates but electricity cannot be gener-
ated. The hybrid battery (traction battery) will be discharged requiring unnec-
essary engine power to recharge.
●Drive your vehicle smoothly
Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-
eration will make more effective use of the traction motor without having to use
gasoline engine power.
●Avoid repeated acceleration
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving with
the accelerator pedal slightly released.
●Put the shift lever into P when parking
In the N position, the hybrid battery (traction battery) does not recharge.
Leaving the shift lever in the N position for an extended period of the time may
discharge the hybrid battery. The vehicle cannot run if the hybrid battery is dis-
charged.
■Normal characteristics after turning off the hybrid system
Approximately five hours after the hybrid system is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel evapo-
ration leakage check and, it does not indicate a malfunction.
CAUTION
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the hybrid system
running. This prevents the vehicle from creeping.

125
2-1. Driving procedures
2
When driving
RX400h_U
CAUTION
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal willresult in sudden acceleration that may lead to an accident that could result in
death or serious injury.
• When backing up, you may twist your body around, leading to a difficulty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle
only slightly, allowing you to depress the brake and accelerator pedals prop-
erly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, resulting in an acci-
dent.
●The driver should pay attention to pedestrians when the vehicle is powered only
by the electric motor (traction motor). Because there is no engine noise, the
pedestrians may misjudge the vehicle’s movement.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
●Do not let the vehicle roll backwards while th e shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the hybrid system to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
●If the smell of exhaust is noticed inside the vehicle, open the windows and check
that the back door is closed. Large amounts of exhaust in the vehicle can cause
driver drowsiness and an accident, resulting in death or a serious health hazard.
Have the vehicle inspected by your Lexus dealer immediately.
●Do not under any circumstances shift the shift lever to P, R or N while the vehicle
is moving.
Doing so can cause significant damage to the transmission system and may result
in a loss of vehicle control.
●Do not shift the shift lever to N while the vehicle is moving.
Doing so may cause the engine brake to not operate properly and lead to an
accident.

126
2-1. Driving procedures
RX400h_U
CAUTION
■When driving the vehicle
●Use engine braking to maintain a safe speed when driving down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. (→P. 1 3 5 )
●When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.
●Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury.
●Always check that all passengers' arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury.
●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
possible injury. Be sure to consult a tire dealer to determine whether the tires on
your vehicle are high-speed capability tires or not before driving at such speeds.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden changes in engine speed, such as engine braking caused by up-shifting
or down-shifting, may cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.

127

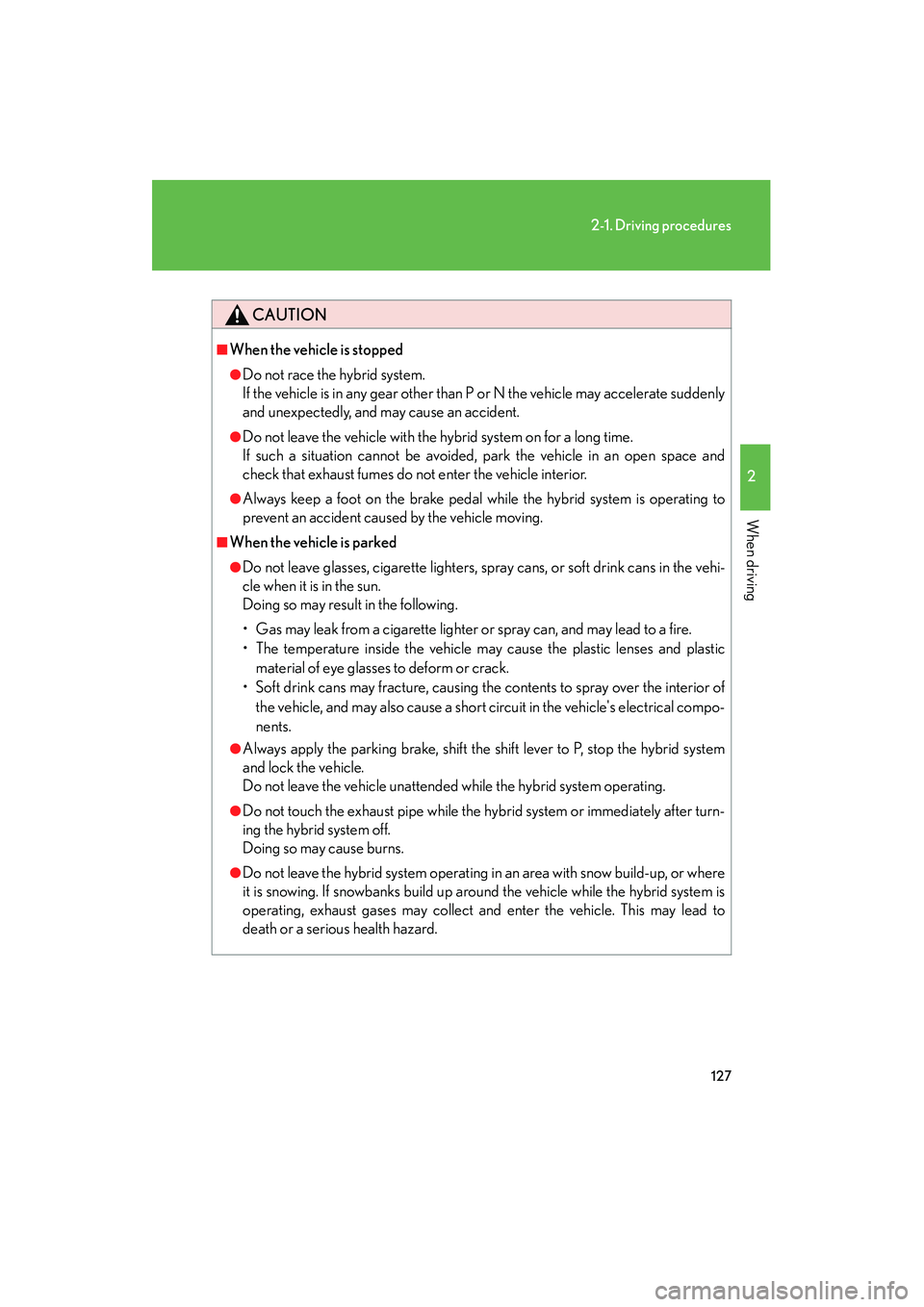

2-1. Driving procedures
2
When driving
RX400h_U
CAUTION
■When the vehicle is stopped
●Do not race the hybrid system.
If the vehicle is in any gear other than P or N the vehicle may accelerate suddenly
and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●Always keep a foot on the brake pedal while the hybrid system is operating to
prevent an accident caused by the vehicle moving.
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plasticmaterial of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of
the vehicle, and may also cause a short circuit in the vehicle's electrical compo-
nents.
●Always apply the parking brake, shift the shift lever to P, stop the hybrid system
and lock the vehicle.
Do not leave the vehicle unattended while the hybrid system operating.
●Do not touch the exhaust pipe while the hybrid system or immediately after turn-
ing the hybrid system off.
Doing so may cause burns.
●Do not leave the hybrid system operating in an area with snow build-up, or where
it is snowing. If snowbanks build up around the vehicle while the hybrid system is
operating, exhaust gases may collect and enter the vehicle. This may lead to
death or a serious health hazard.

128

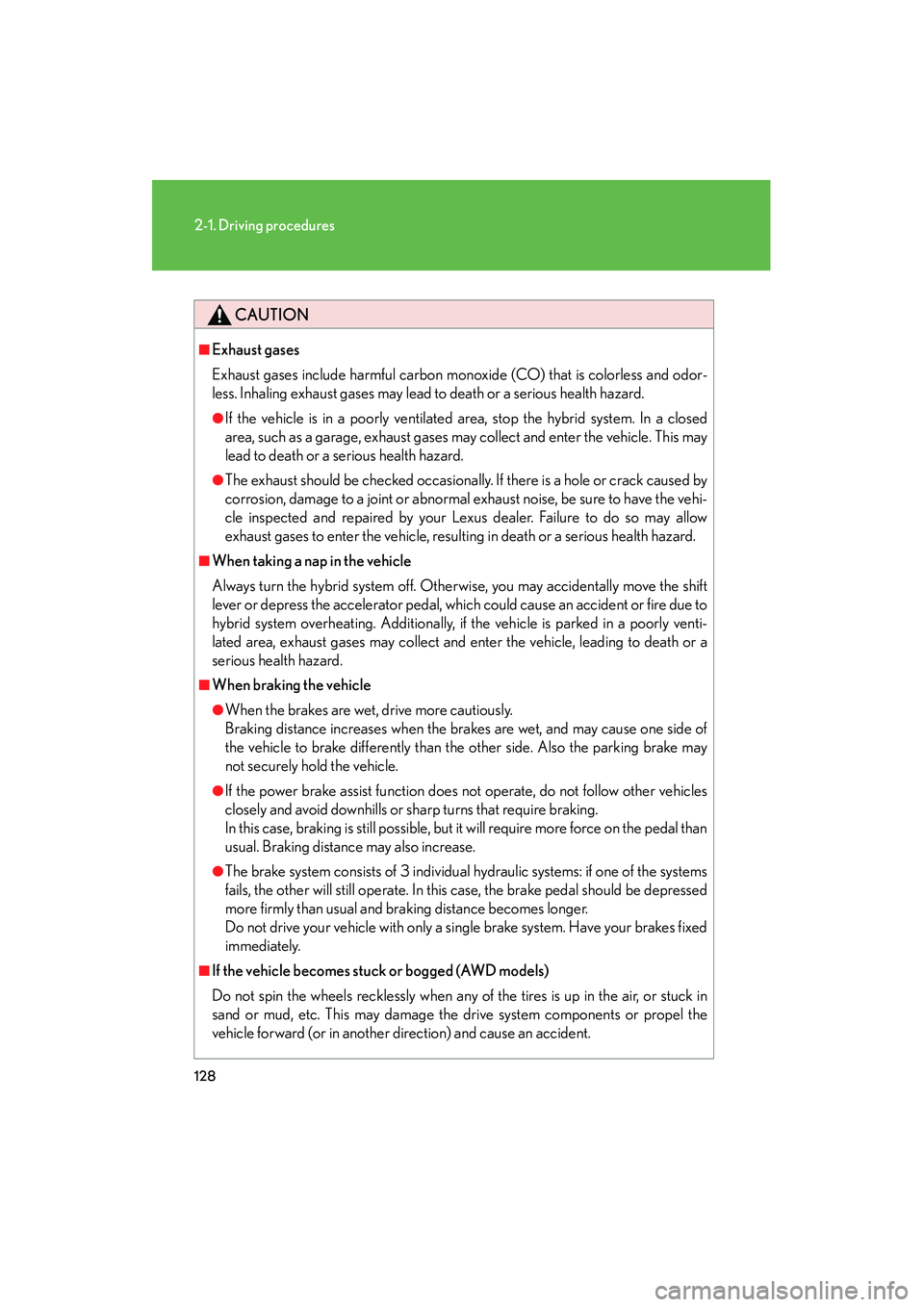

2-1. Driving procedures
RX400h_U
CAUTION
■Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and odor-
less. Inhaling exhaust gases may lead to death or a serious health hazard.
●If the vehicle is in a poorly ventilated area, stop the hybrid system. In a closed
area, such as a garage, exhaust gases may collect and enter the vehicle. This may
lead to death or a serious health hazard.
●The exhaust should be checked occasionally. If there is a hole or crack caused by
corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehi-
cle inspected and repaired by your Lexus dealer. Failure to do so may allow
exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
■When taking a nap in the vehicle
Always turn the hybrid system off. Otherwise, you may accidentally move the shift
lever or depress the accelerator pedal, which could cause an accident or fire due to
hybrid system overheating. Additionally, if the vehicle is parked in a poorly venti-
lated area, exhaust gases may collect and enter the vehicle, leading to death or a
serious health hazard.
■When braking the vehicle
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
●If the power brake assist function does not operate, do not follow other vehicles
closely and avoid downhills or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
●The brake system consists of 3 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer.
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.
■If the vehicle becomes stuck or bogged (AWD models)
Do not spin the wheels recklessly when any of the tires is up in the air, or stuck in
sand or mud, etc. This may damage the drive system components or propel the
vehicle forward (or in another direction) and cause an accident.
