LEXUS RX400H 2008 Owners Manual

149
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
AFS (vehicles with discharge headlights)AFS (Adaptive Front Lighting System) improves visibility at intersections
and on curves by automatically adjusting the direction light axis of the
headlights according to vehicle speed and the degree of the tire angle
that are controlled by steering input.
Operates at speeds of 18 mph (30 km/h) or higher.
■ Deactivating AFS
Turn the switch OFF to deactivate
AFS.
OFF
ON
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the hybrid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight control system to mal-
function.

150
2-3. Operating the lights and windshield wipers
RX400h_U
■Automatic light off system
●When the headlights come on: The headlights and tail lights turn off 30 seconds
after all doors are closed with the engine switch turned to the ACC or LOCK
position. (The light turns off immediately if the LOCK button on the key is pressed
after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically with the
engine switch turned to the ACC or LOCK position and the driver’s door is
opened.
To turn the lights on again, turn the engine switch to the ON position, or turn the
light switch OFF once and then back to the
or position.
■Automatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes... (veh icles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Setting (e.g. light sensor sensitivity) can be changed. (Customizable features
→ P. 4 5 8 )
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is off.

151
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
To turn the front fog lights off
To turn the front fog lights on

152
2-3. Operating the lights and windshield wipers
RX400h_U

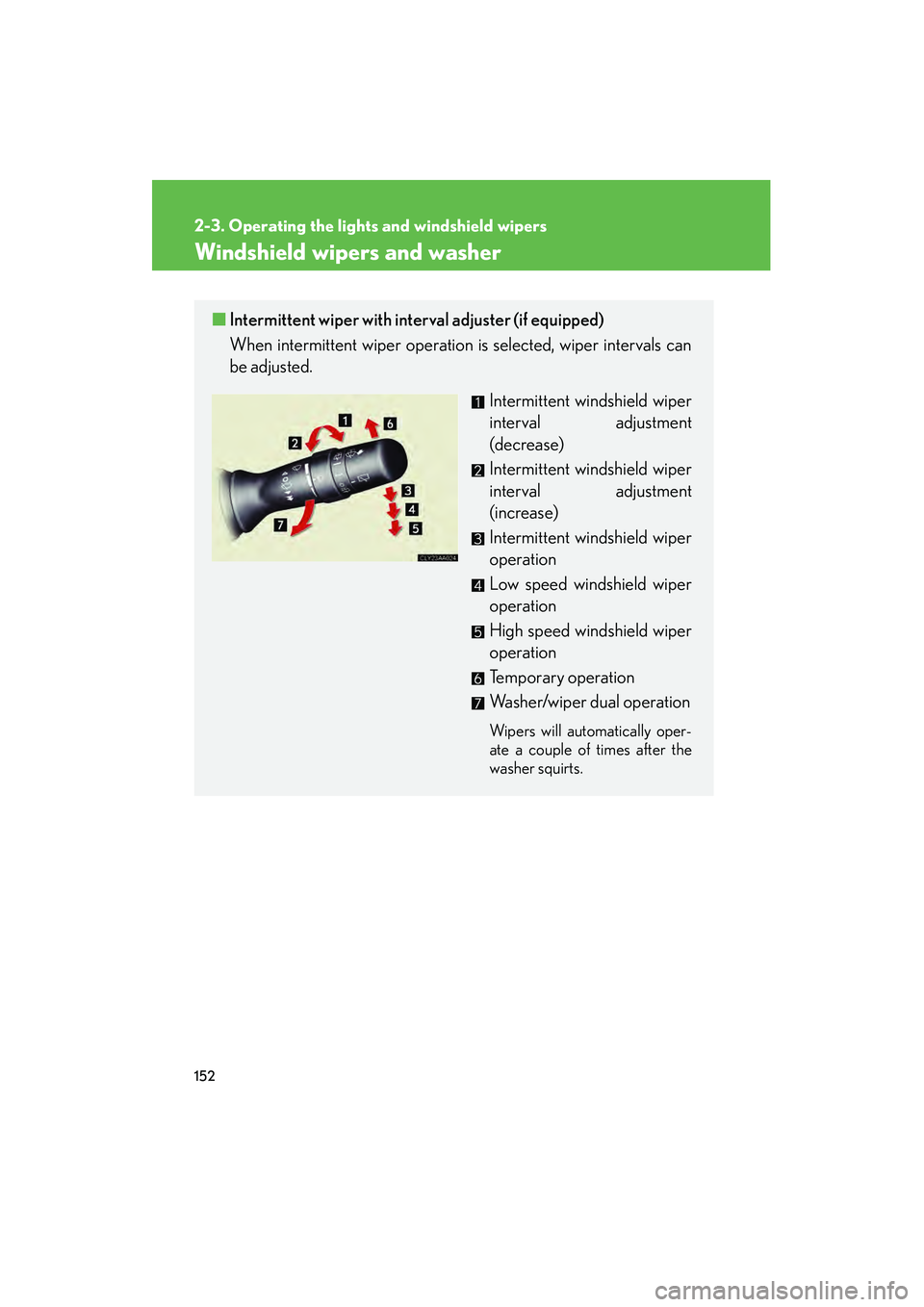

Windshield wipers and washer
■Intermittent wiper with interval adjuster (if equipped)
When intermittent wiper operation is selected, wiper intervals can
be adjusted.
Intermittent windshield wiper
interval adjustment
(decrease)
Intermittent windshield wiper
interval adjustment
(increase)
Intermittent windshield wiper
operation
Low speed windshield wiper
operation
High speed windshield wiper
operation
Temporary operation
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

153
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U
■The windshield wiper and washer can be operated when
The engine switch must be in the ON position.
■Effects of vehicle speed on wiper operation (vehicles with the rain-sensing wind-
shield wipers)
When low speed wiper operation is selected, wiper operation will be switched from
low speed to intermittent wiper operation when the vehicle is stationary.
(However, the mode will not be switched when the adjustment dial for the auto-
matic wiper control sensitivity is set to high.)
■Rain-sensing windshield wipers (if equipped)
With AUTO selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume.
Sensor sensitivity (high)
Sensor sensitivity (low)
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Washer/wiper dual operation
Wipers will automatically oper-
ate a couple of times after the
washer squirts.

154
2-3. Operating the lights and windshield wipers
RX400h_U
■Rain drop sensor (vehicles with the rain-sensing windshield wipers)
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■Customization that can be configured at Lexus dealer
The setting of the wiper operation when the vehicle is stationary can be changed.
(Customizable features →P. 4 5 8 )
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or any-
thing else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
The sensor judges the amount of raindrops.

155
2-3. Operating the lights and windshield wipers
2
When driving
RX400h_U

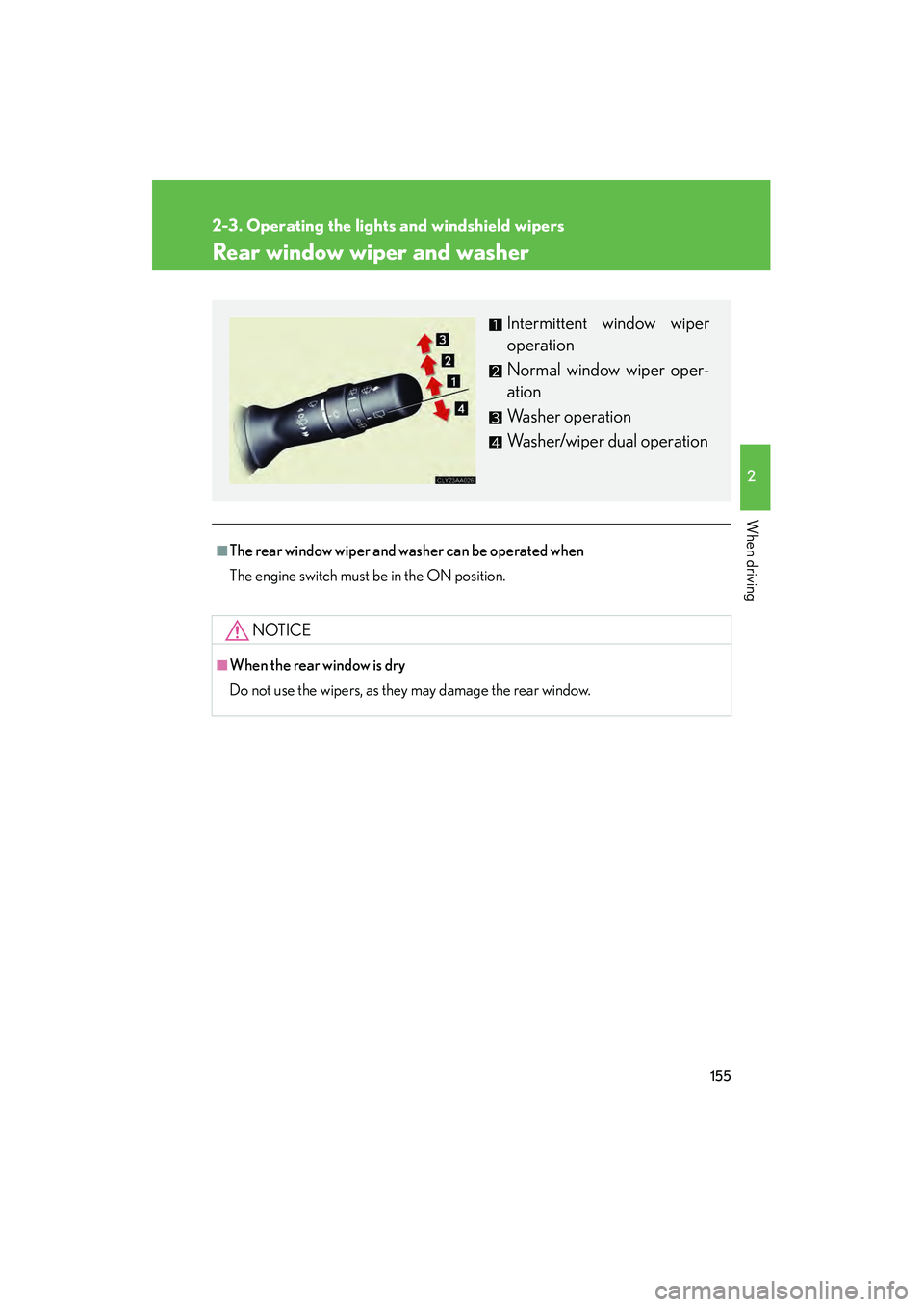

Rear window wiper and washer
■The rear window wiper and washer can be operated when
The engine switch must be in the ON position.
NOTICE
■When the rear window is dry
Do not use the wipers, as they may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer operation
Washer/wiper dual operation

156
2-3. Operating the lights and windshield wipers
RX400h_U

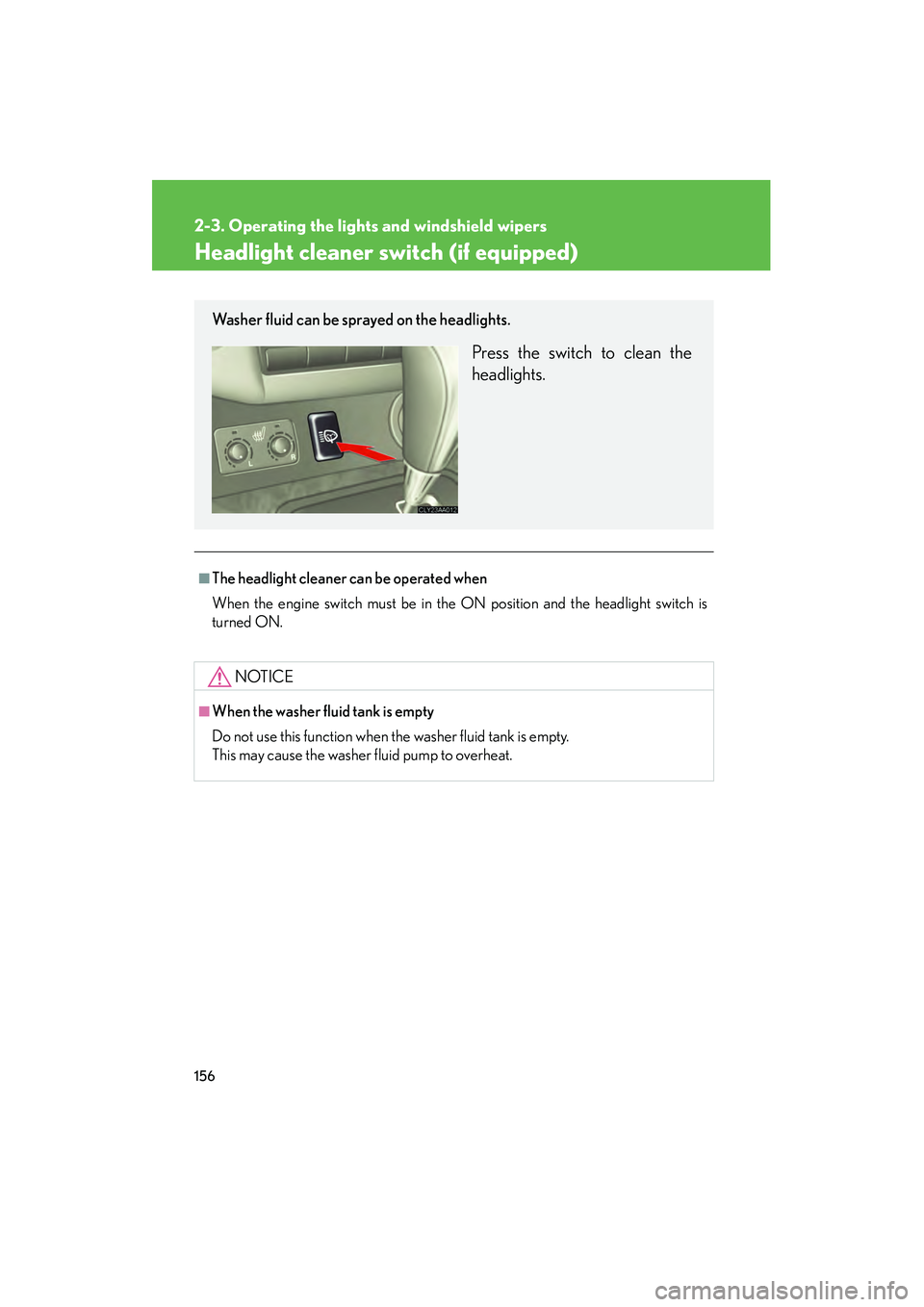

Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
When the engine switch must be in the ON position and the headlight switch is
turned ON.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty.
This may cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.

157
2
When driving
RX400h_U
2-4. Using other driving systems

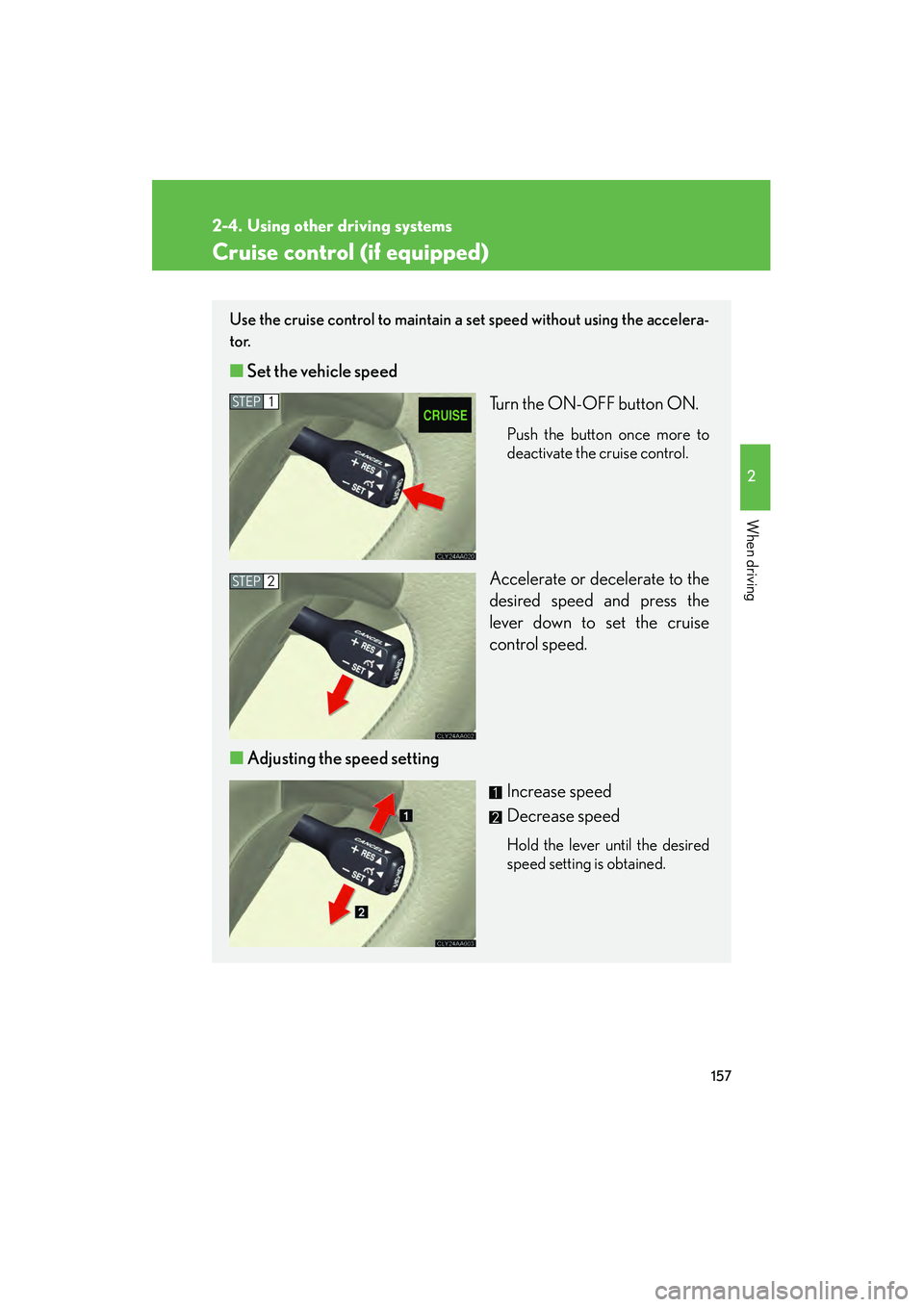

Cruise control (if equipped)
Use the cruise control to maintain a set speed without using the accelera-
tor.
■ Set the vehicle speed
Turn the ON-OFF button ON.
Push the button once more to
deactivate the cruise control.
Accelerate or decelerate to the
desired speed and press the
lever down to set the cruise
control speed.
■ Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
STEP1
STEP2

158
2-4. Using other driving systems
RX400h_U

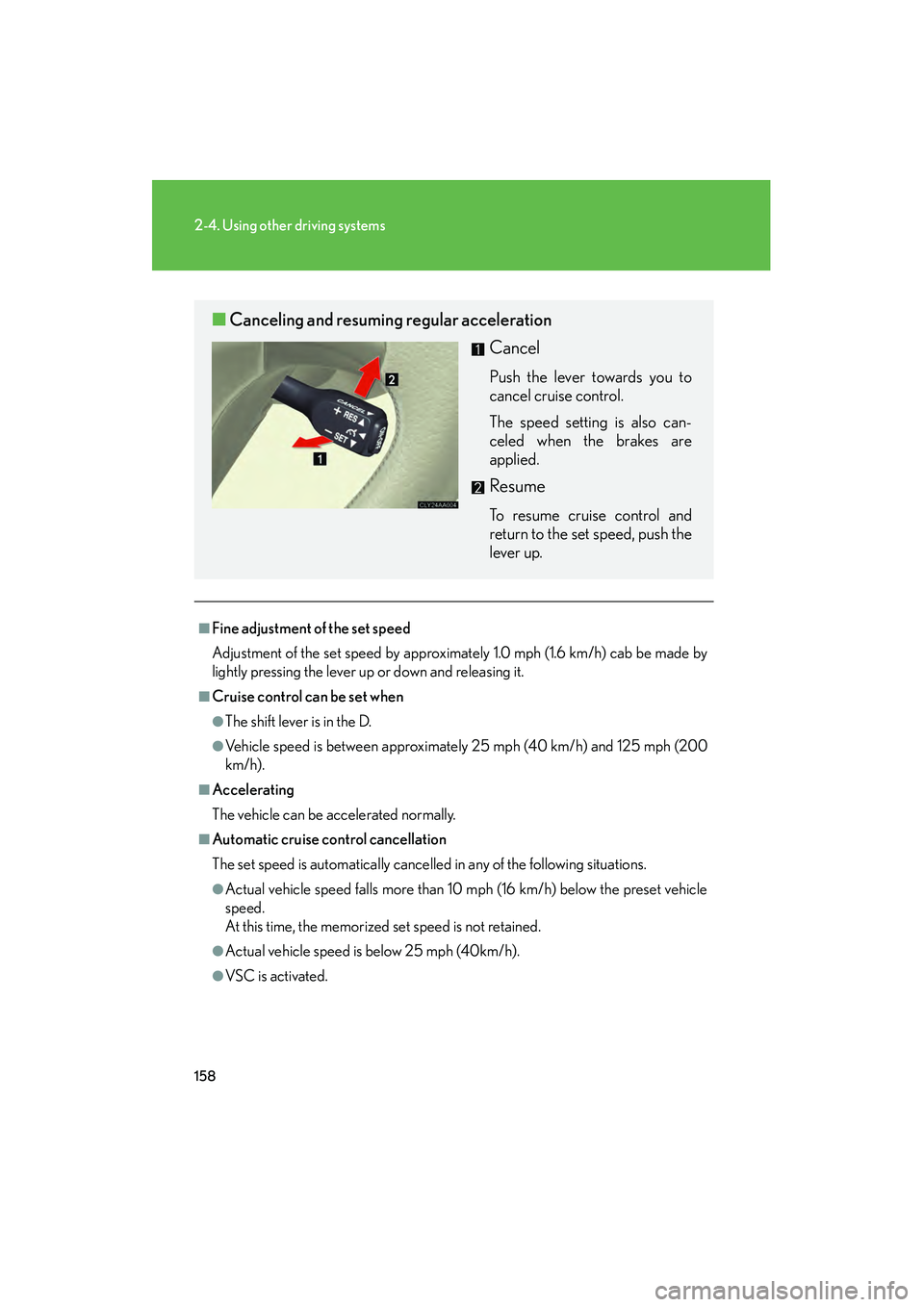

■Fine adjustment of the set speed
Adjustment of the set speed by approximately 1.0 mph (1.6 km/h) cab be made by
lightly pressing the lever up or down and releasing it.
■Cruise control can be set when
●The shift lever is in the D.
●Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph (200
km/h).
■Accelerating
The vehicle can be accelerated normally.
■Automatic cruise control cancellation
The set speed is automatically cancelled in any of the following situations.
●Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed.
At this time, the memorized set speed is not retained.
●Actual vehicle speed is below 25 mph (40km/h).
●VSC is activated.
■Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The speed setting is also can-
celed when the brakes are
applied.
Resume
To resume cruise control and
return to the set speed, push the
lever up.
