LEXUS RX400H 2008 Owners Manual

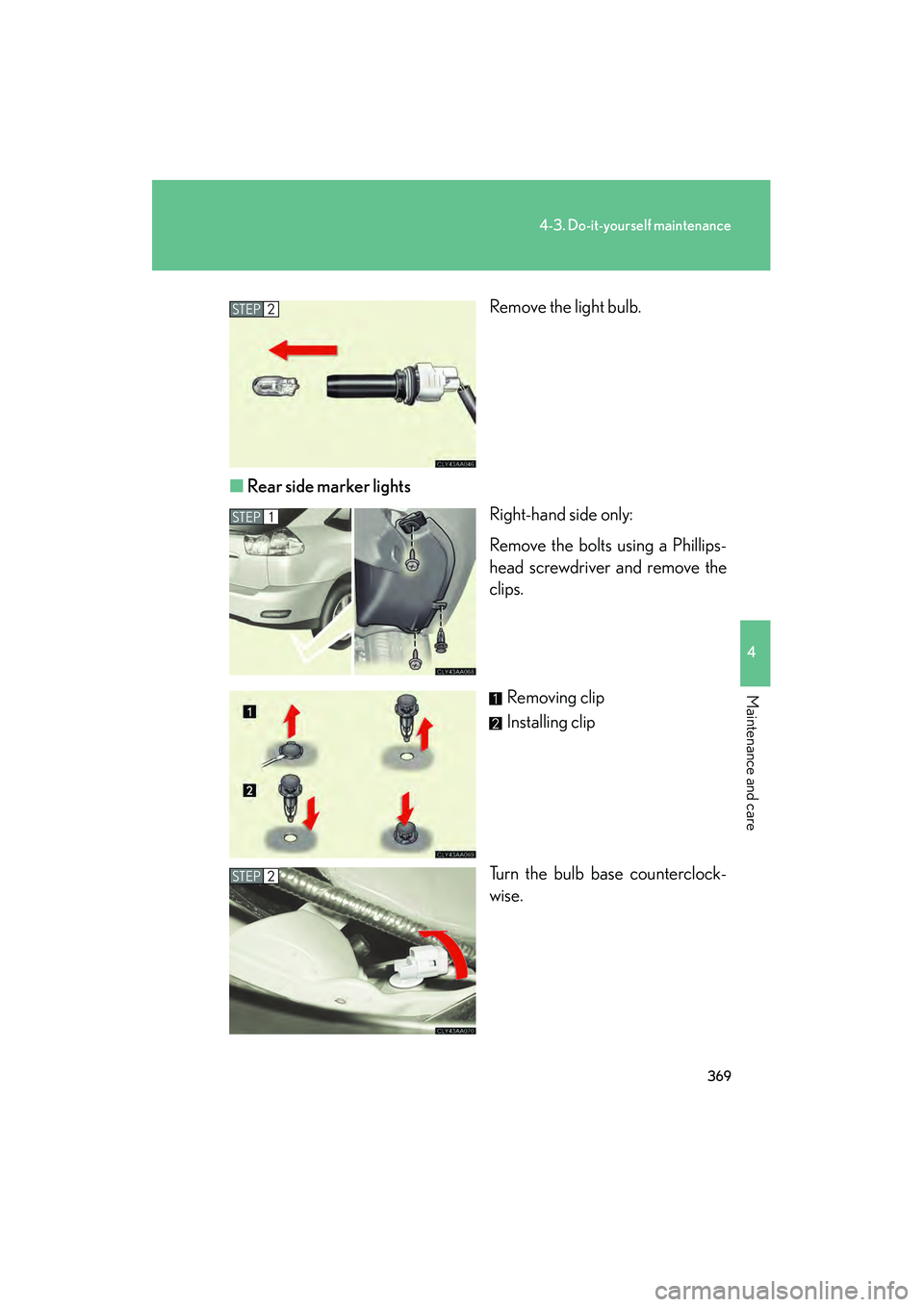

369
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_URemove the light bulb.
■ Rear side marker lights
Right-hand side only:
Remove the bolts using a Phillips-
head screwdriver and remove the
clips.
Removing clip
Installing clip
Turn the bulb base counterclock-
wise.
STEP2
STEP1
STEP2

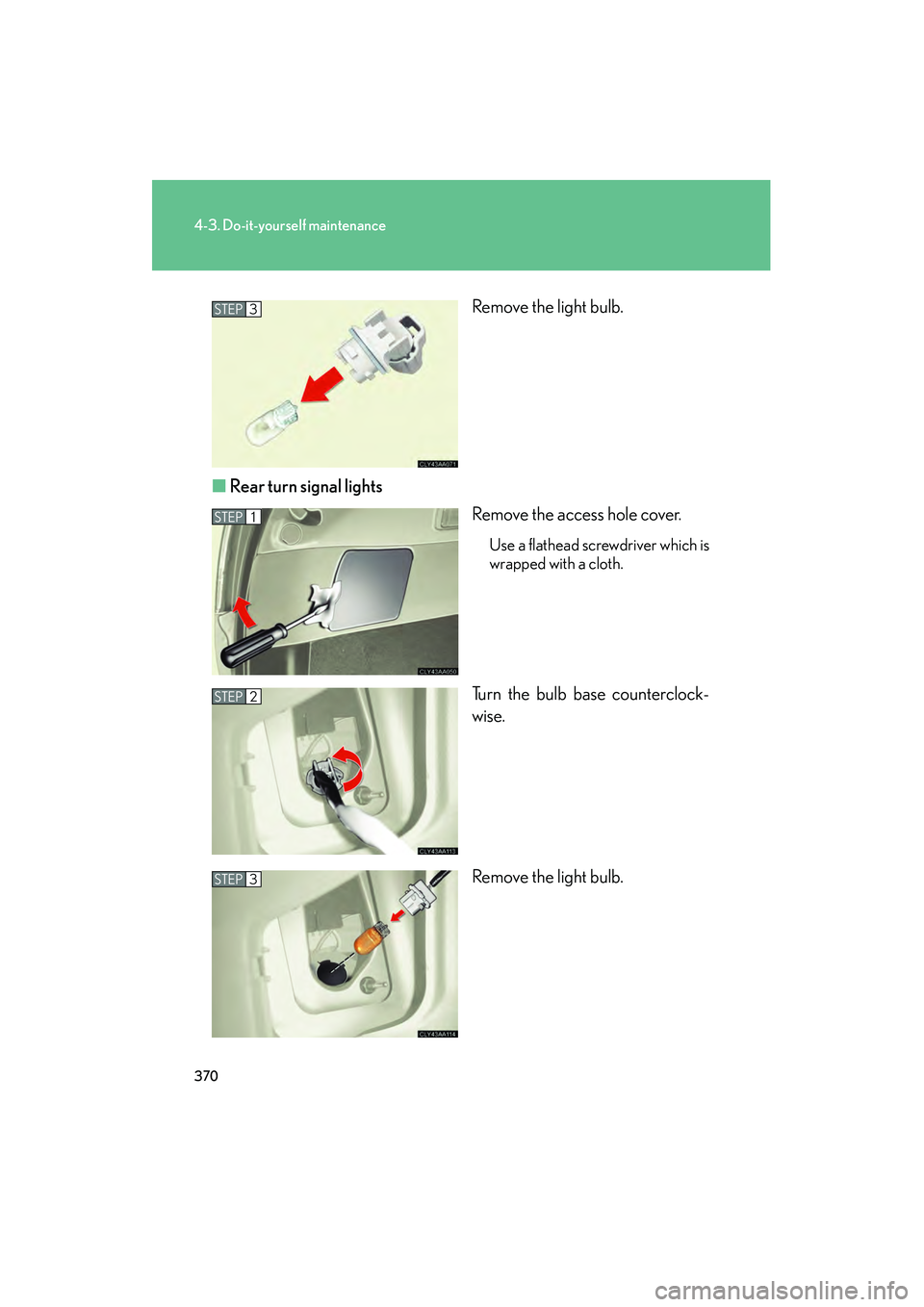

370
4-3. Do-it-yourself maintenance
RX400h_URemove the light bulb.
■ Rear turn signal lights
Remove the access hole cover.
Use a flathead screwdriver which is
wrapped with a cloth.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP3
STEP1
STEP2
STEP3

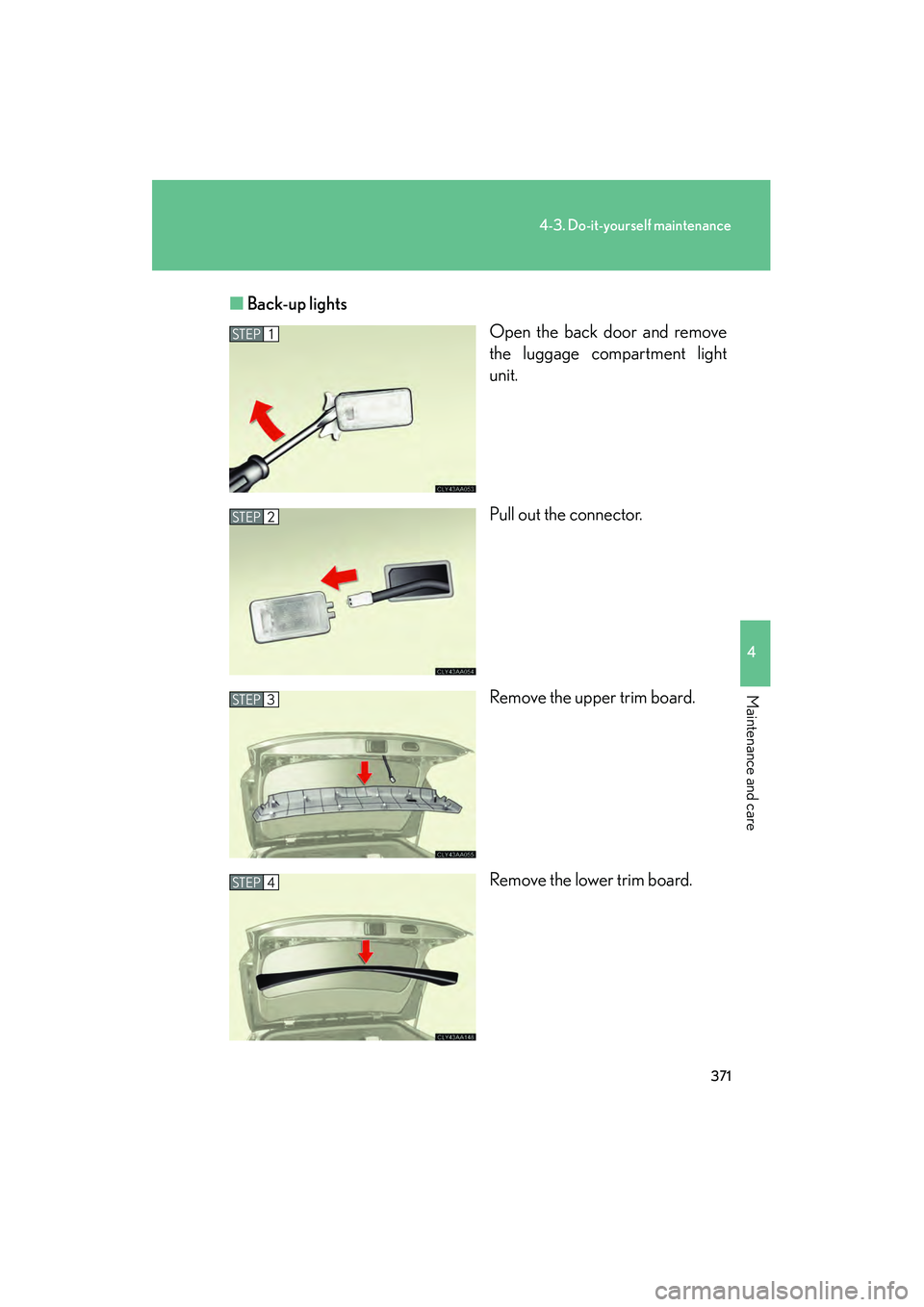

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U■
Back-up lights
Open the back door and remove
the luggage compartment light
unit.
Pull out the connector.
Remove the upper trim board.
Remove the lower trim board.
STEP1
STEP2
STEP3
STEP4

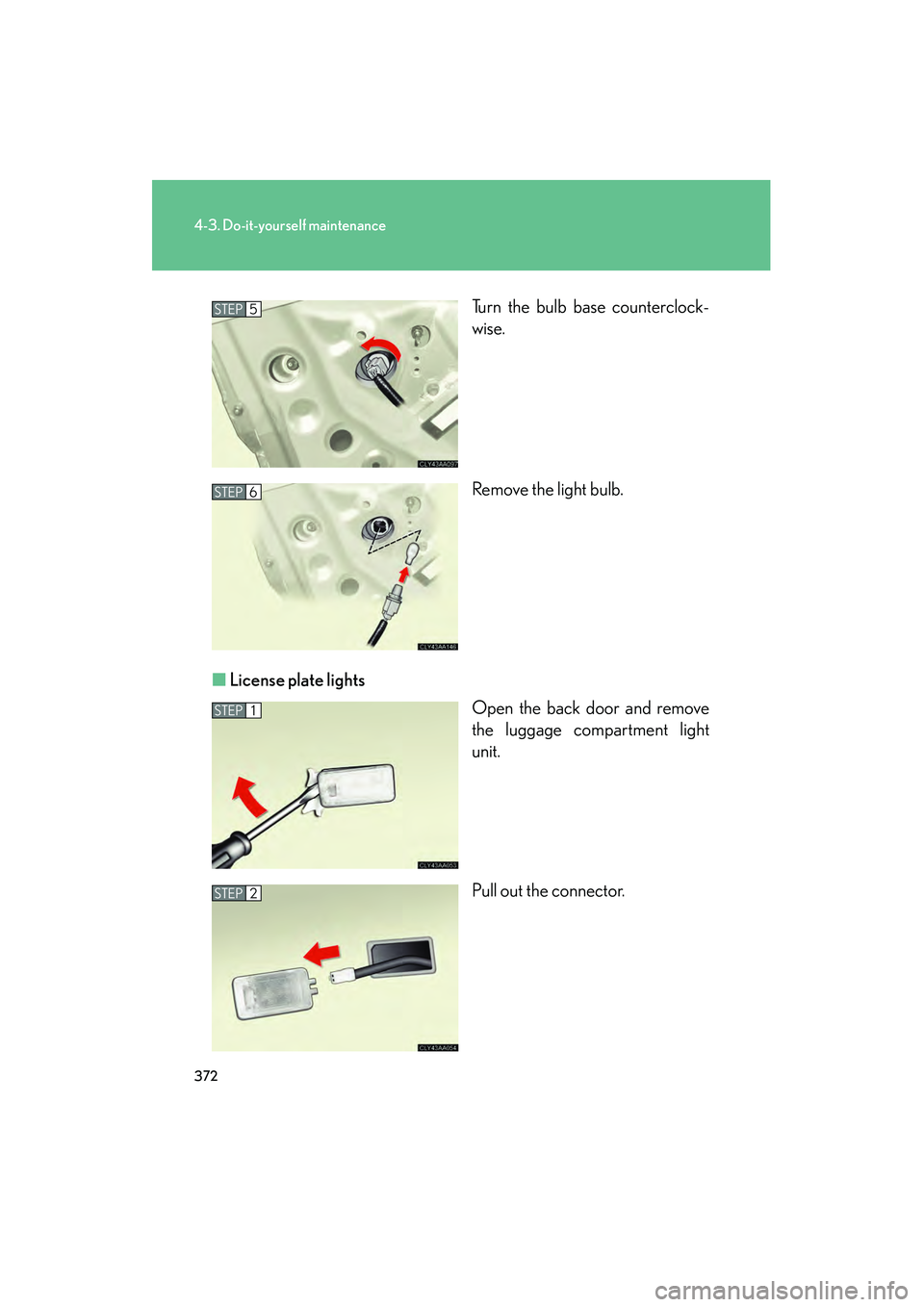

372
4-3. Do-it-yourself maintenance
RX400h_UTurn the bulb base counterclock-
wise.
Remove the light bulb.
■ License plate lights
Open the back door and remove
the luggage compartment light
unit.
Pull out the connector.
STEP5
STEP6
STEP1
STEP2

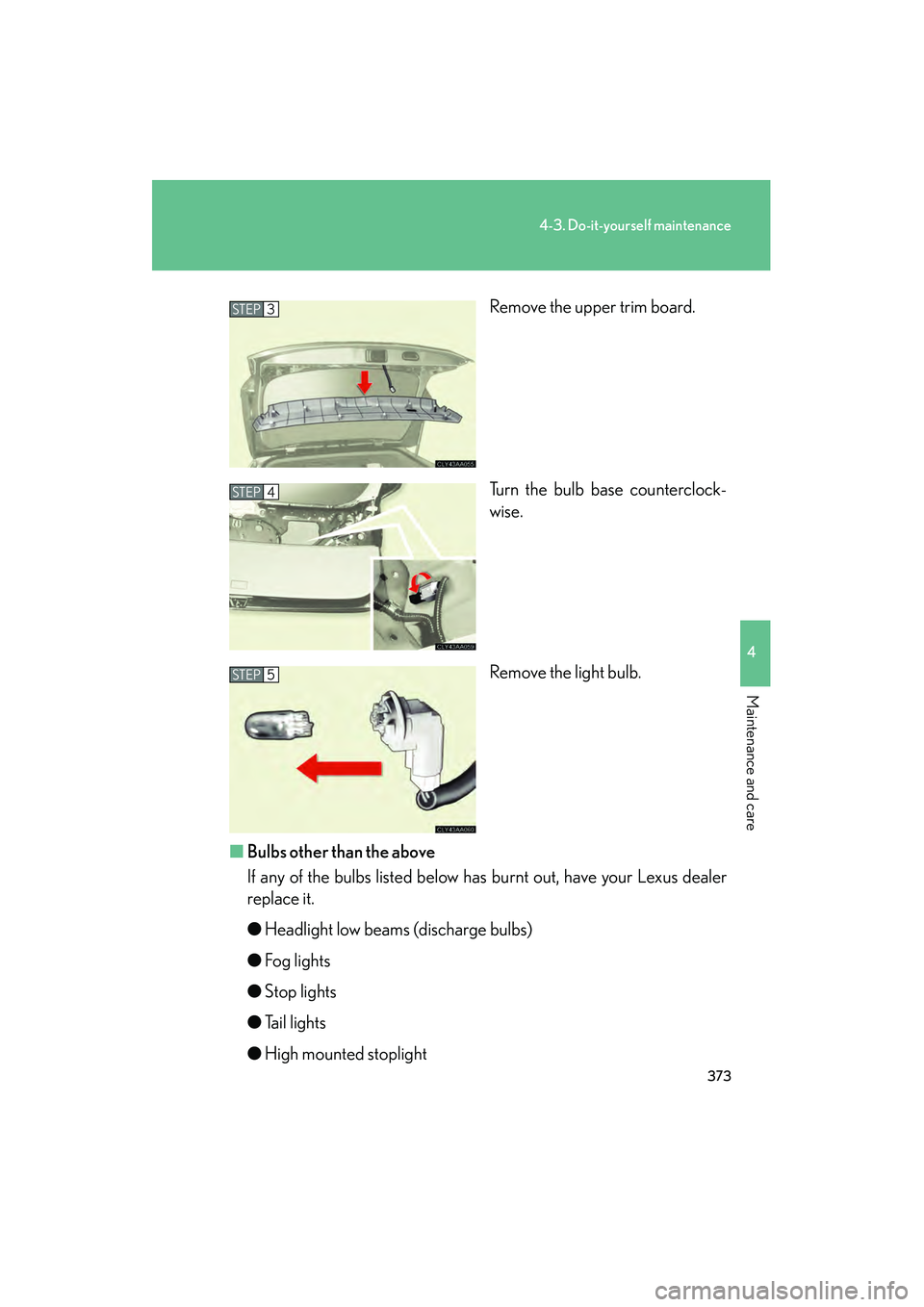

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_URemove the upper trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (discharge bulbs)
● Fog lights
● Stop lights
● Tail lights
● High mounted stoplight
STEP3
STEP4
STEP5

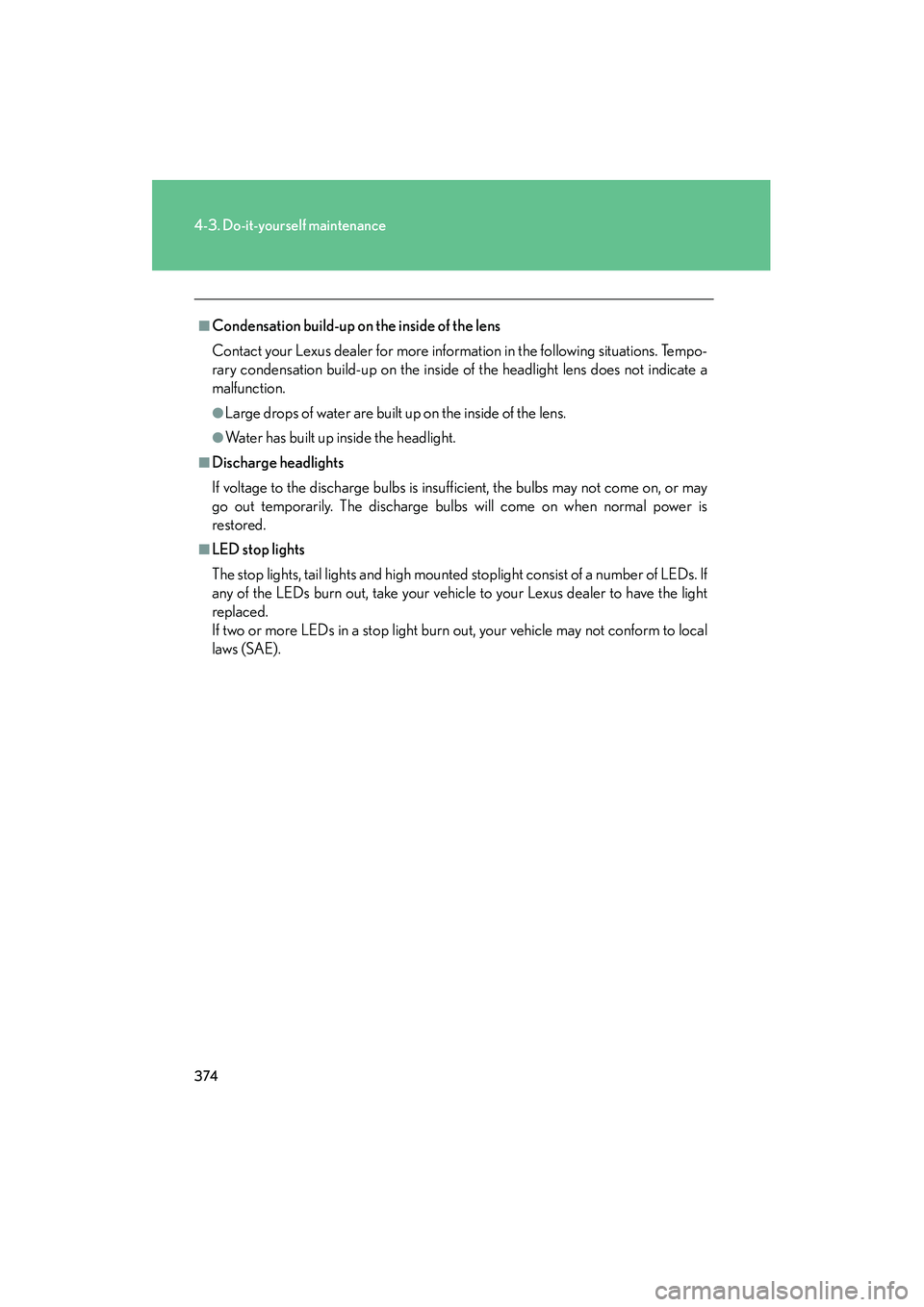

374
4-3. Do-it-yourself maintenance
RX400h_U
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED stop lights
The stop lights, tail lights and high mounted stoplight consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to your Lexus dealer to have the light
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to local
laws (SAE).

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX400h_U

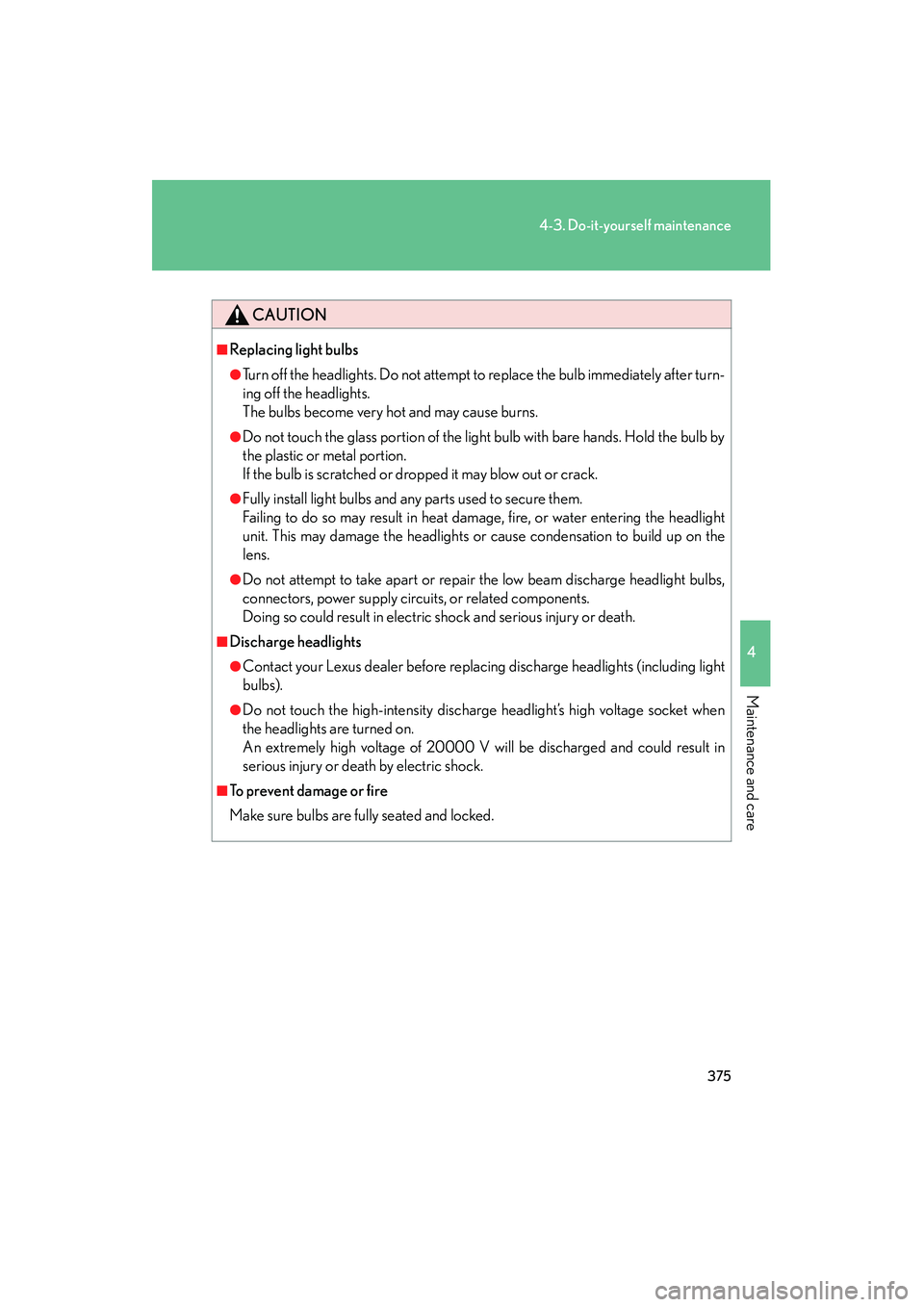

CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them.
Failing to do so may result in heat damage, fire, or water entering the headlight
unit. This may damage the headlights or cause condensation to build up on the
lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

376
4-3. Do-it-yourself maintenance
RX400h_U

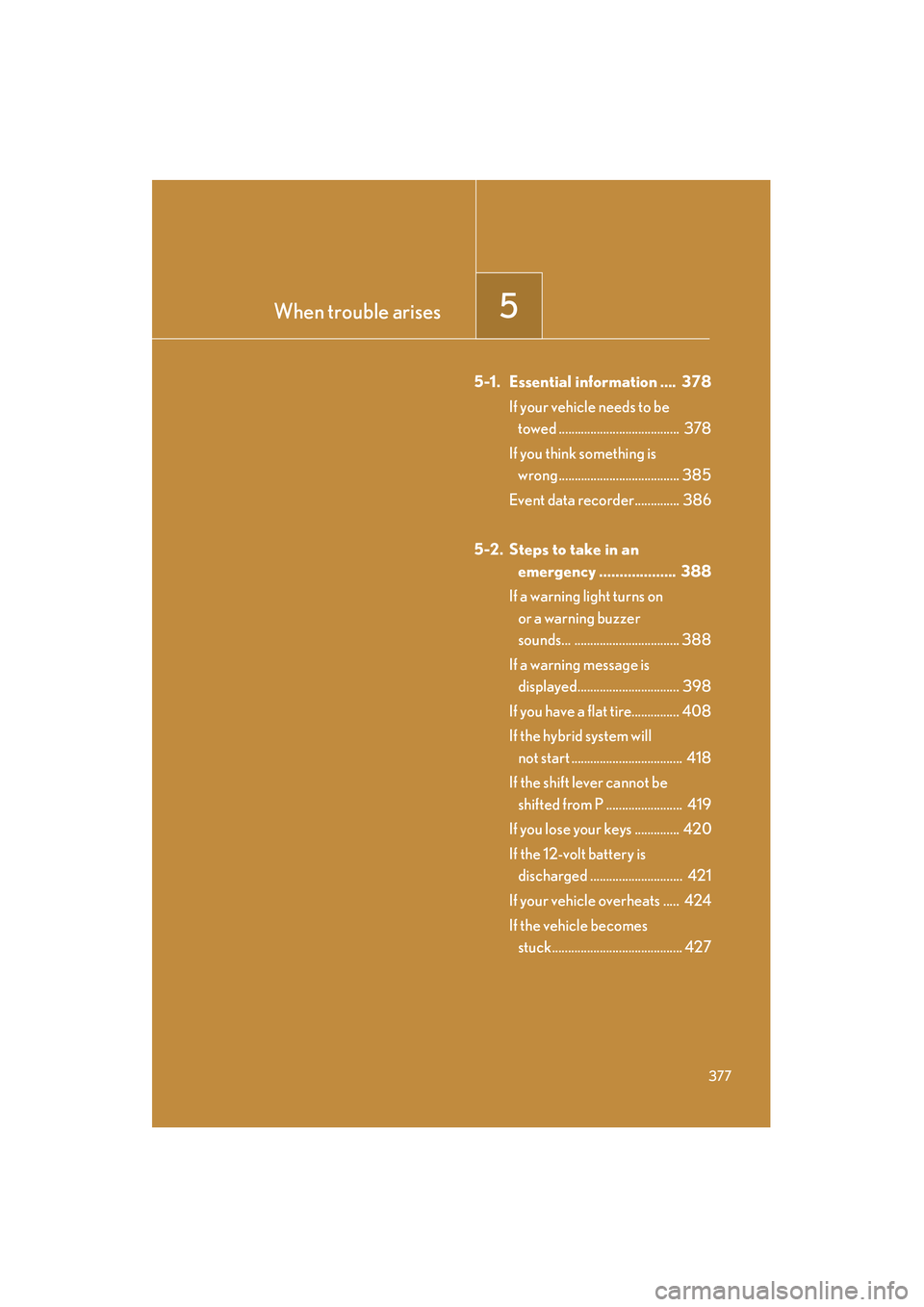

When trouble arises5
377
RX400h_U
5-1. Essential information .... 378If your vehicle needs to be towed ...................................... 378
If you think something is wrong ...................................... 385
Event data recorder.............. 386
5-2. Steps to take in an emergency ................... 388
If a warning light turns on or a warning buzzer
sounds... ................................. 388
If a warning message is displayed................................ 398
If you have a flat tire............... 408
If the hybrid system will not start ................................... 418
If the shift lever cannot be shifted from P ........................ 419
If you lose your keys .............. 420
If the 12-volt battery is discharged ............................. 421
If your vehicle overheats ..... 424
If the vehicle becomes stuck......................................... 427

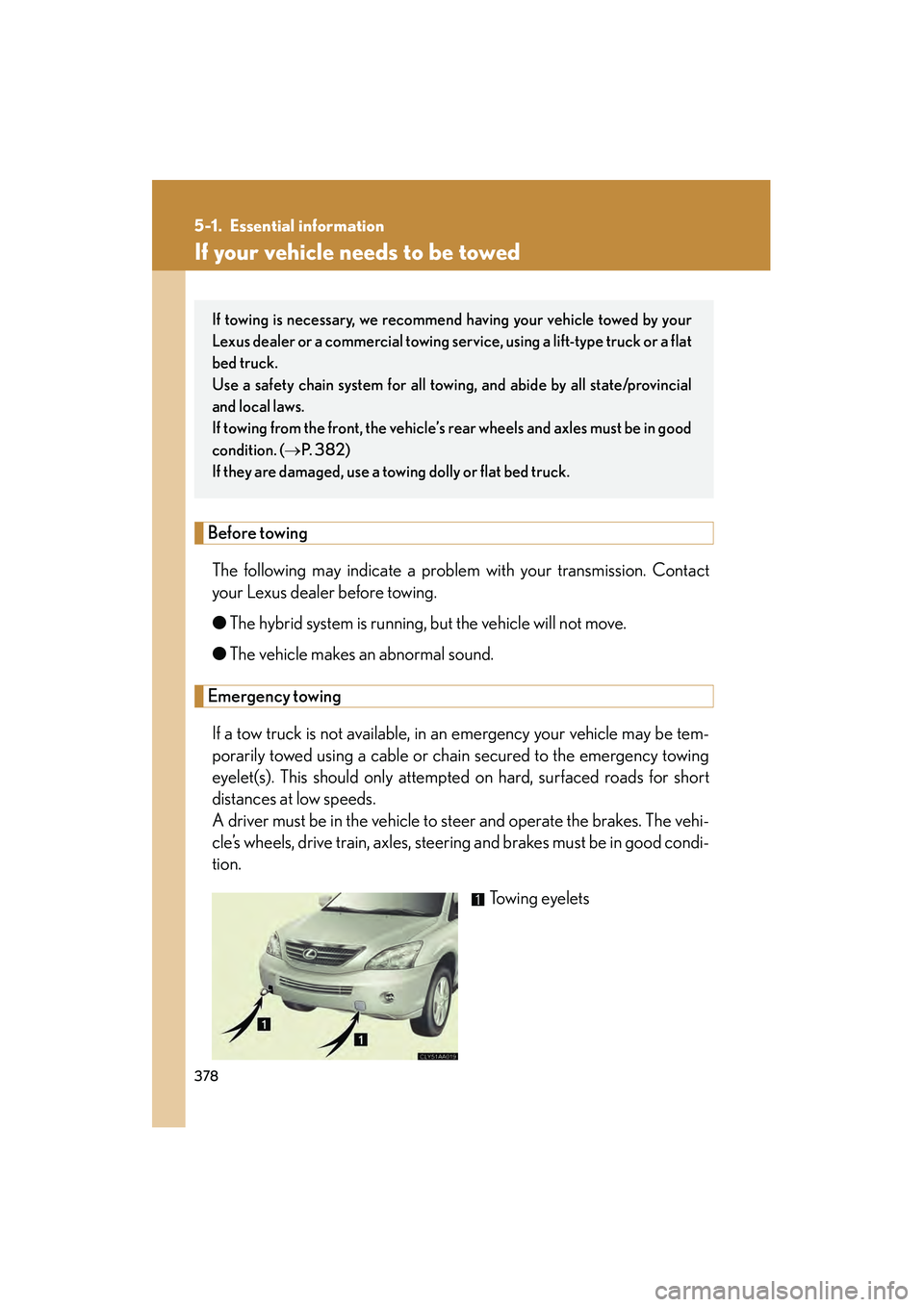

378
RX400h_U
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The hybrid system is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet(s). This should only attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
Towing eyelets
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the front, the vehicle’s rear wheels and axles must be in good
condition. ( →P. 3 8 2 )
If they are damaged, use a towing dolly or flat bed truck.
