LEXUS RX400H 2008 Owners Manual

5
When trouble arises
419
5-2. Steps to take in an emergency
RX400h_U

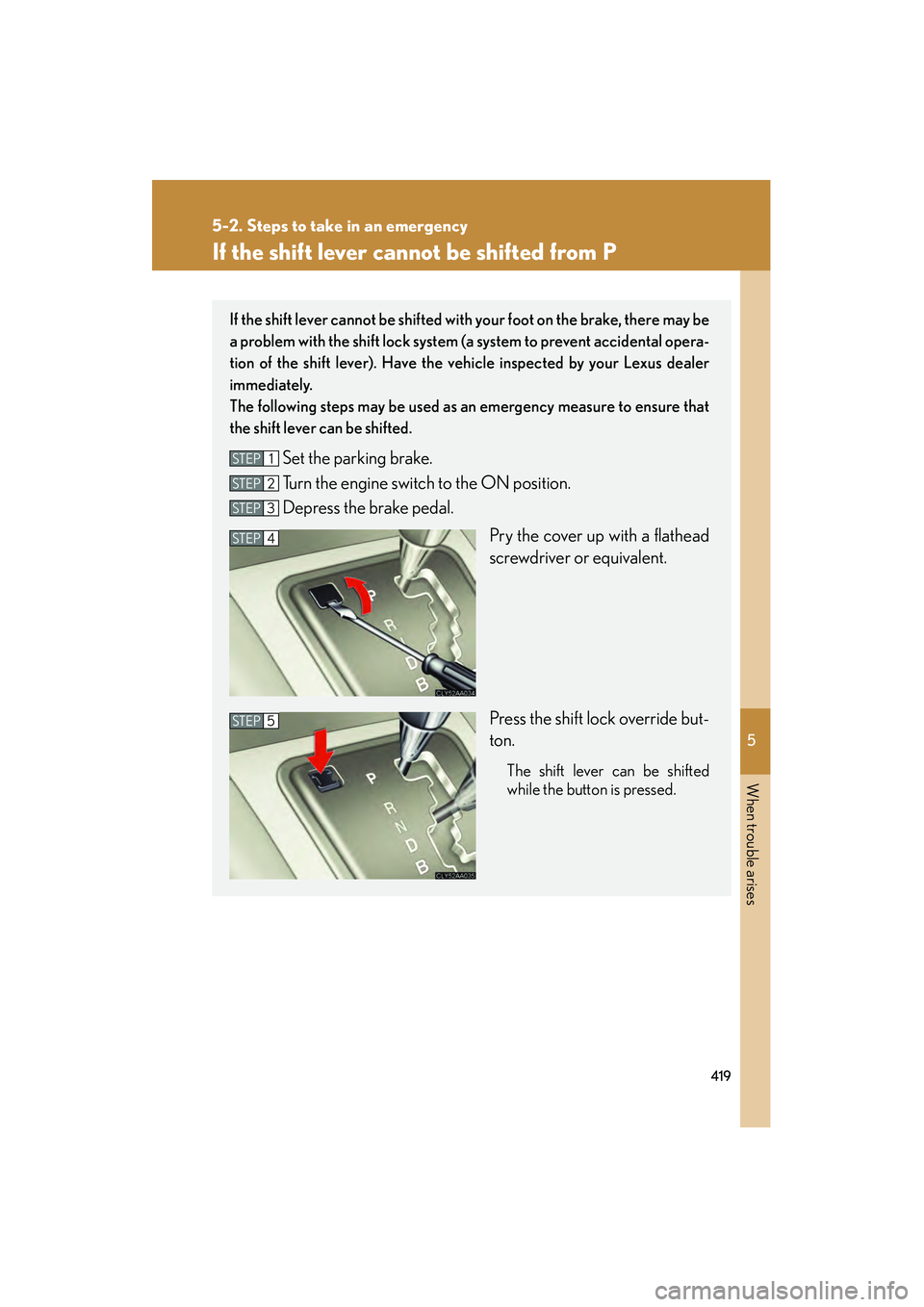

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the engine switch to the ON position.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5

420
5-2. Steps to take in an emergency
RX400h_U

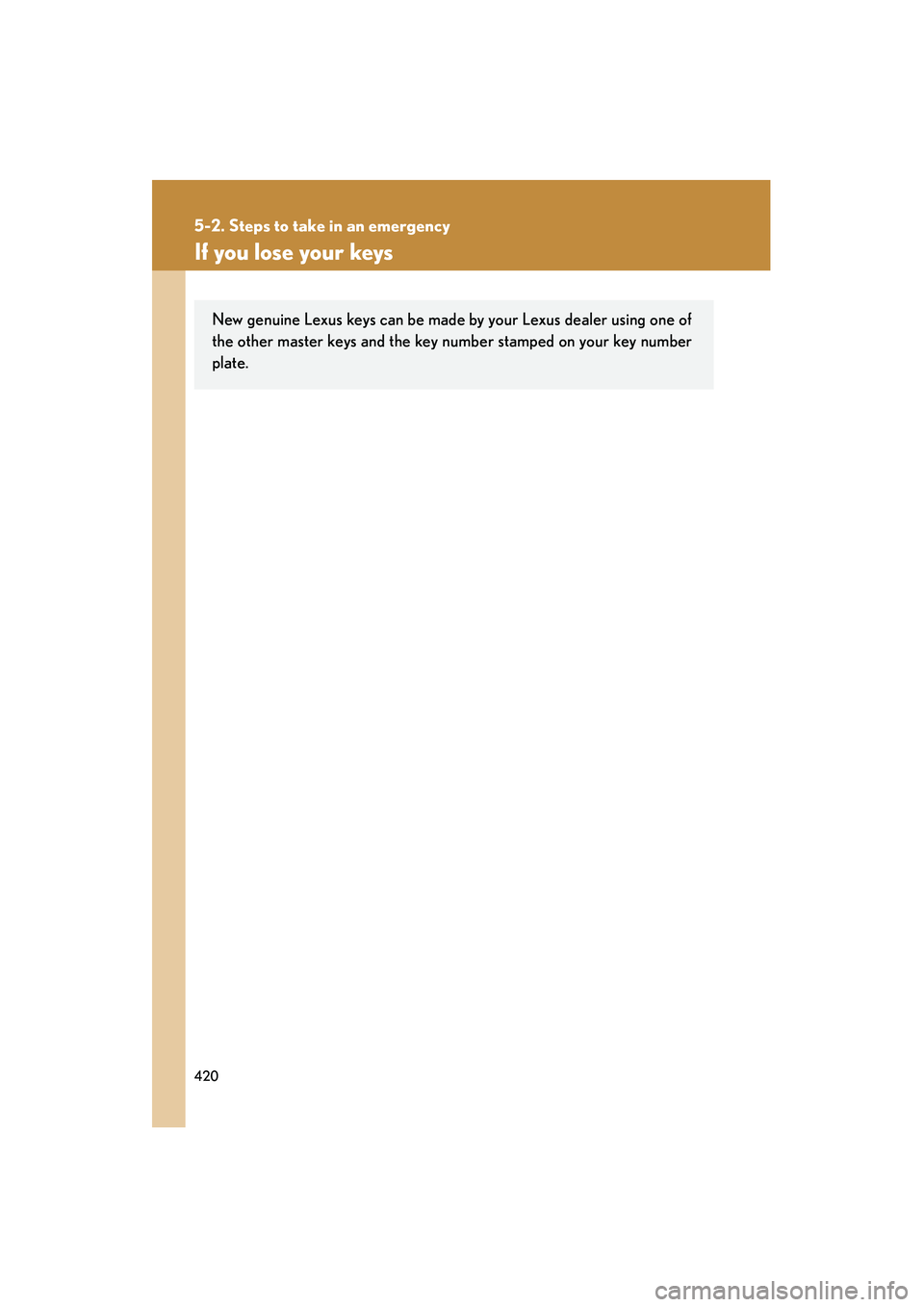

If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using one of
the other master keys and the key number stamped on your key number
plate.

5
When trouble arises
421
5-2. Steps to take in an emergency
RX400h_U

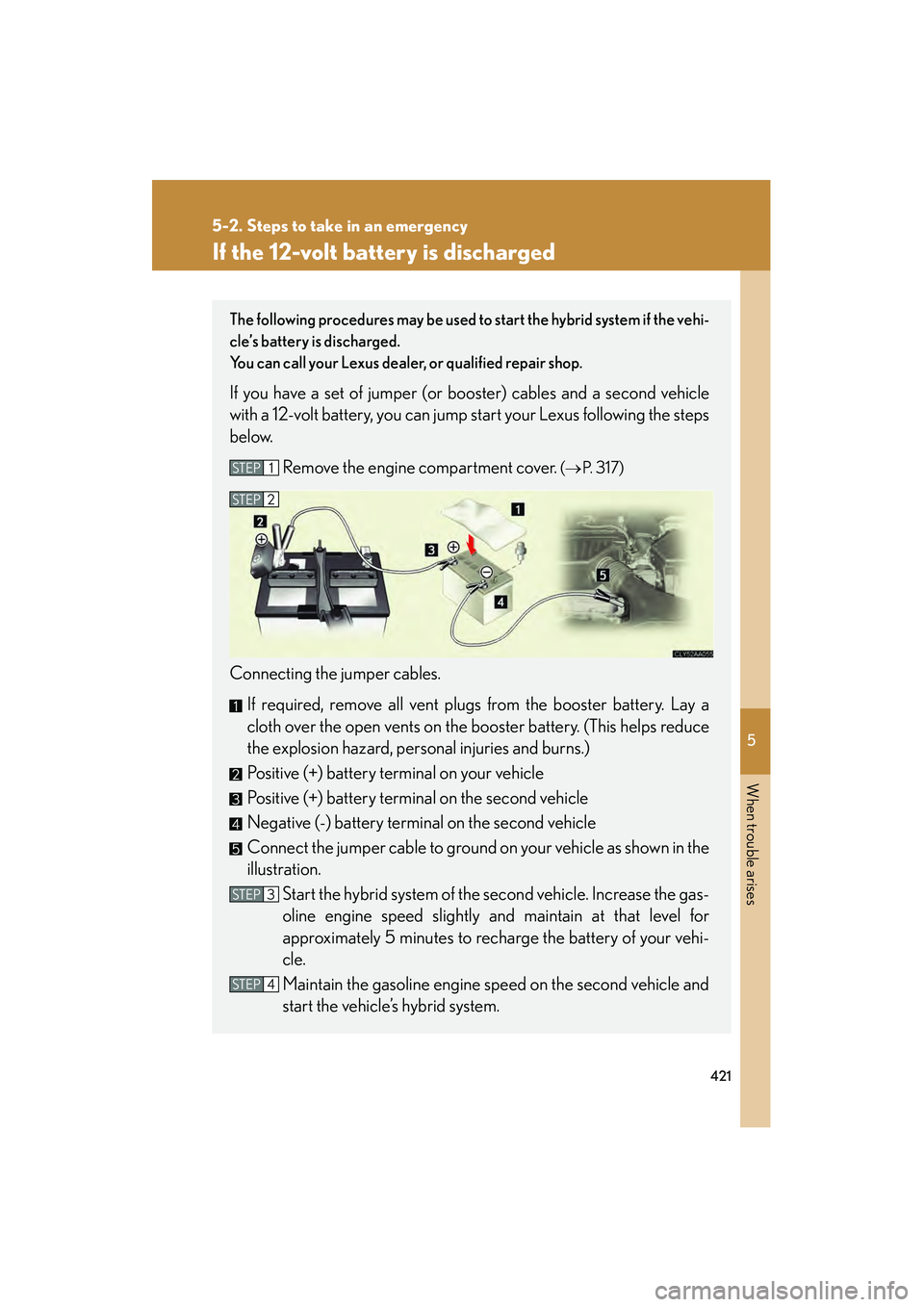

If the 12-volt battery is discharged
The following procedures may be used to start the hybrid system if the vehi-
cle’s battery is discharged.
You can call your Lexus dealer, or qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your Lexus following the steps
below.Remove the engine compartment cover.
(→ P. 3 1 7 )
Connecting the jumper cables.
If required, remove all vent plugs from the booster battery. Lay a
cloth over the open vents on the booster battery. (This helps reduce
the explosion hazard, personal injuries and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in the
illustration. Start the hybrid system of the second vehicle. Increase the gas-
oline engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your vehi-
cle.
Maintain the gasoline engine speed on the second vehicle and
start the vehicle’s hybrid system.
STEP1
STEP2
STEP3
STEP4

422
5-2. Steps to take in an emergency
RX400h_U

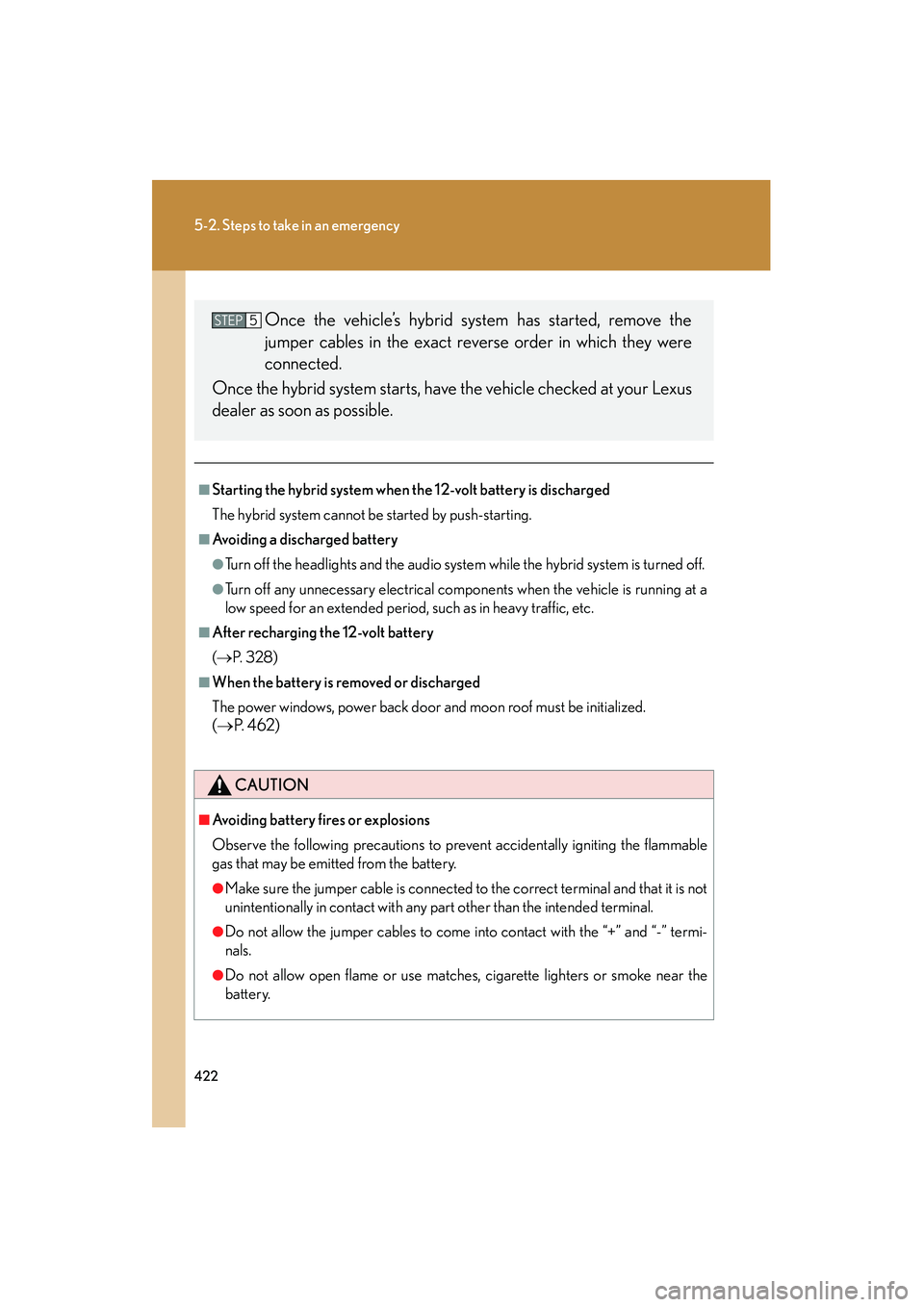

■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■Avoiding a discharged battery
●Turn off the headlights and the audio system while the hybrid system is turned off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■After recharging the 12-volt battery
(→ P. 3 2 8 )
■When the battery is removed or discharged
The power windows, power back door and moon roof must be initialized.
(→ P. 4 6 2 )
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any part other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Once the vehicle’s hybrid system has started, remove the
jumper cables in the exact reverse order in which they were
connected.
Once the hybrid system starts, have the vehicle checked at your Lexus
dealer as soon as possible.STEP5

5
When trouble arises
423
5-2. Steps to take in an emergency
RX400h_U
CAUTION

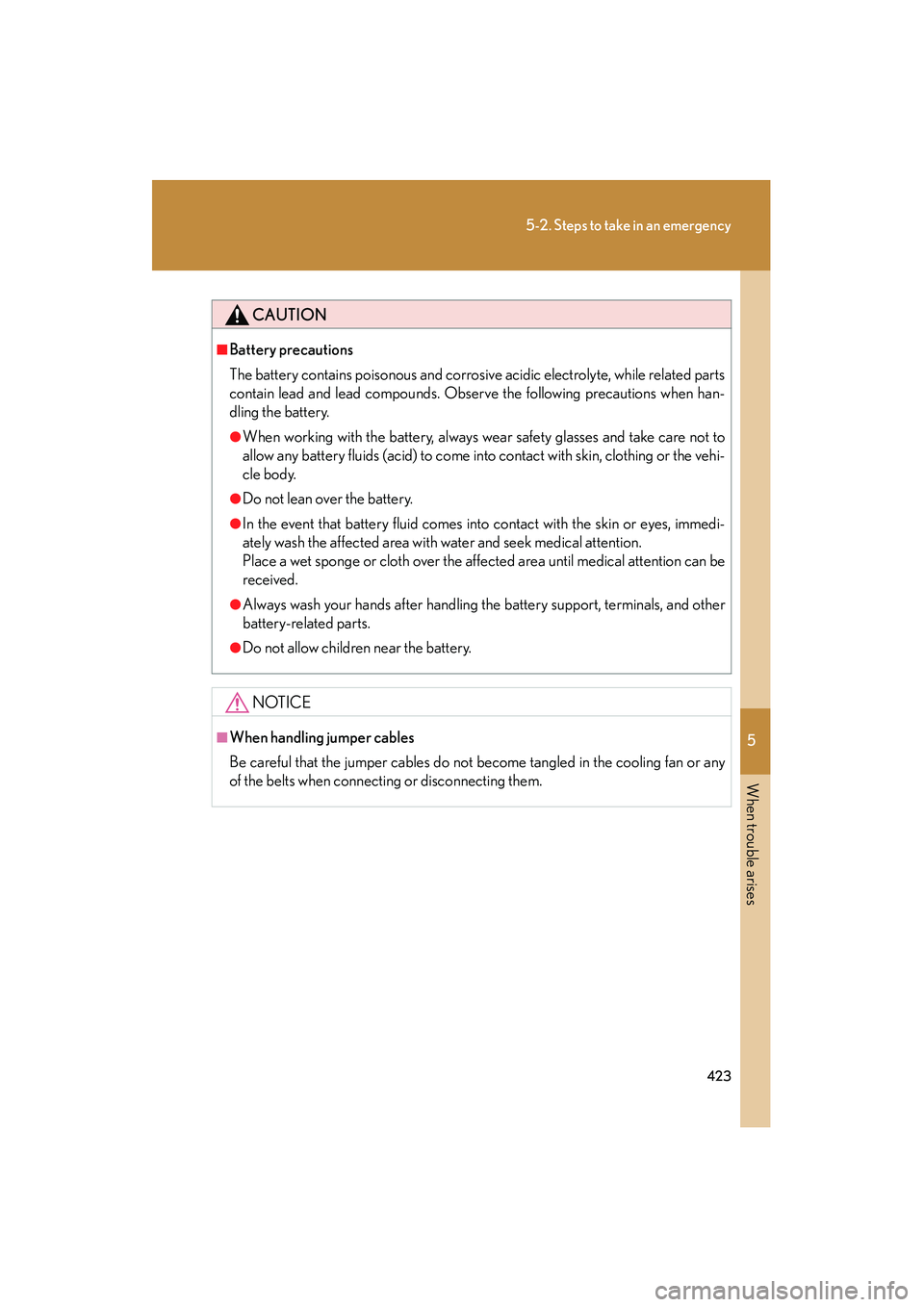

■Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when han-
dling the battery.
●When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehi-
cle body.
●Do not lean over the battery.
●In the event that battery fluid comes into contact with the skin or eyes, immedi-
ately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
●Do not allow children near the battery.
NOTICE
■When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan or any
of the belts when connecting or disconnecting them.

424
5-2. Steps to take in an emergency
RX400h_U
If your vehicle overheats
■Electric motor (traction motor) and inverter
If the message WATER TEMP is displayed on the multi-information
display.
■ Gasoline engine
If the needle of the engine coolant temperature gauge enters the
red zone, the gasoline engine has probably overheated.
Observe the following steps:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the hybrid system. Carefully lift the hood after the
steam subsides and then restart the hybrid system.
If you do not see steam: Leave the hybrid system running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the temperature of the engine (shown on the
instrument cluste r) begins to fall and then stop the hybrid
system.
If the fan is not operating: Stop the hybrid system immediately and call your local
Lexus dealer.
After the hybrid system has
cooled down sufficiently, check
the engine coolant level and
inspect the radiator core (radia-
tor) for any leaks.
STEP1
STEP2
STEP3
STEP4

5
When trouble arises
425
5-2. Steps to take in an emergency
RX400h_U
■Overheating
If you observe the following, your vehicle may be overheating.
●The message WATER TEMP is displayed on the multi-information display.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fan and other belts while the hybrid sys-
tem is running.
●Do not loosen the radiator cap while the hybrid system and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add engine coolant if required.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (→P. 4 3 5 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP5

426
5-2. Steps to take in an emergency
RX400h_U
NOTICE

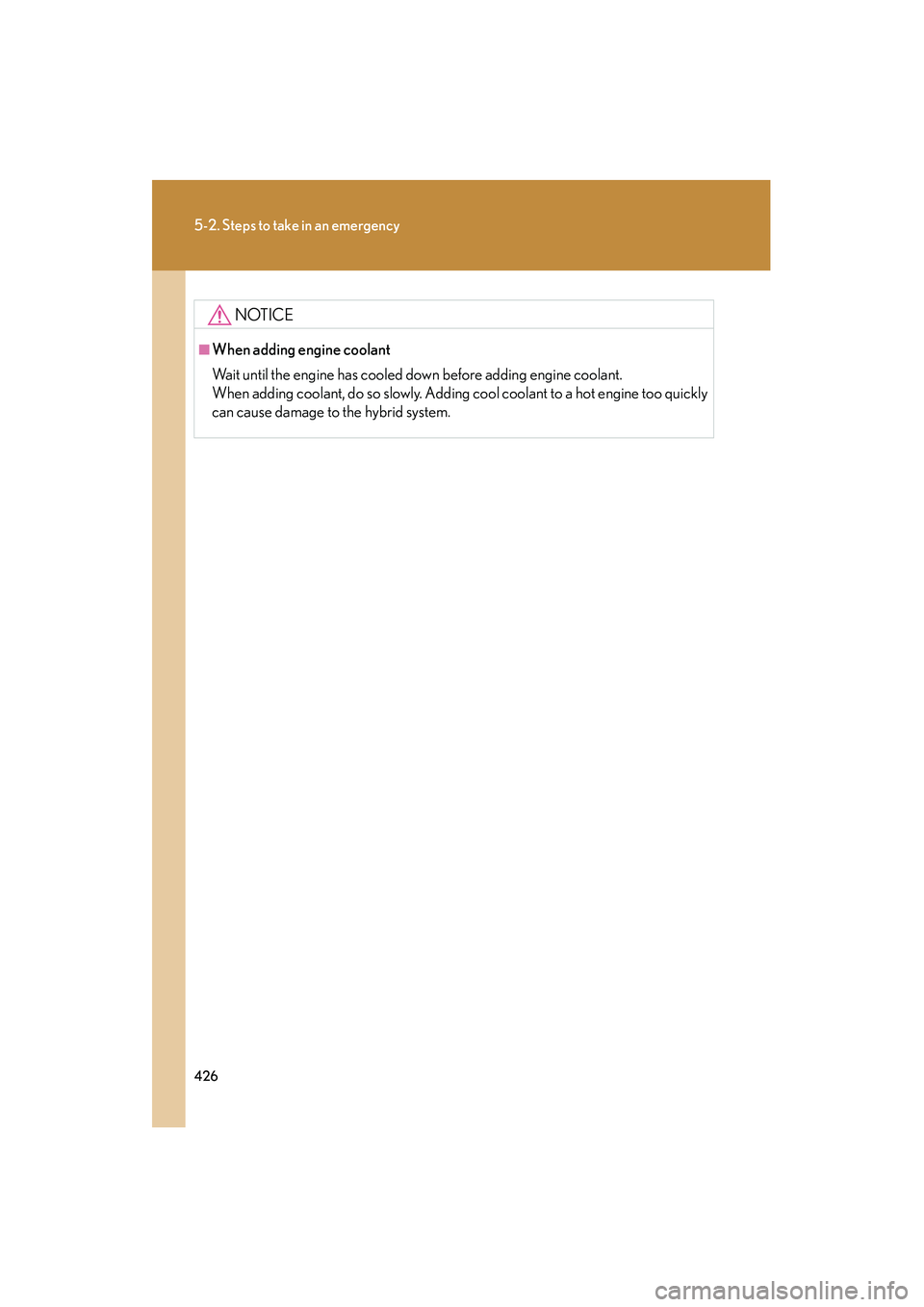

■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the hybrid system.

5
When trouble arises
427
5-2. Steps to take in an emergency
RX400h_U

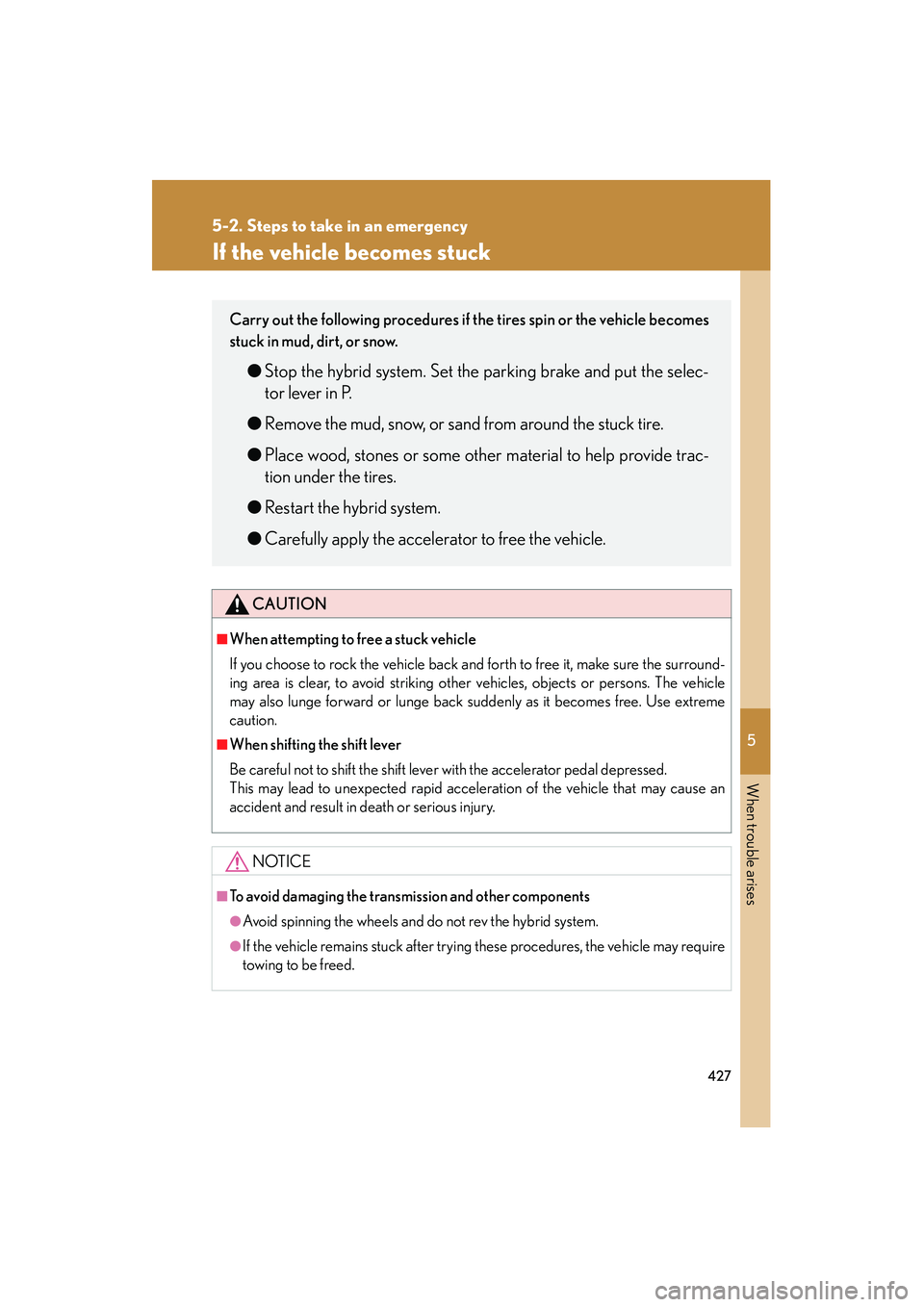

If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the hybrid system.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
●Stop the hybrid system. Set the parking brake and put the selec-
tor lever in P.
● Remove the mud, snow, or sand from around the stuck tire.
● Place wood, stones or some other material to help provide trac-
tion under the tires.
● Restart the hybrid system.
● Carefully apply the accelerator to free the vehicle.
