LEXUS RX400H 2008 Owners Manual

439
6-1. Specifications
6
Vehicle specifications
RX400h_U

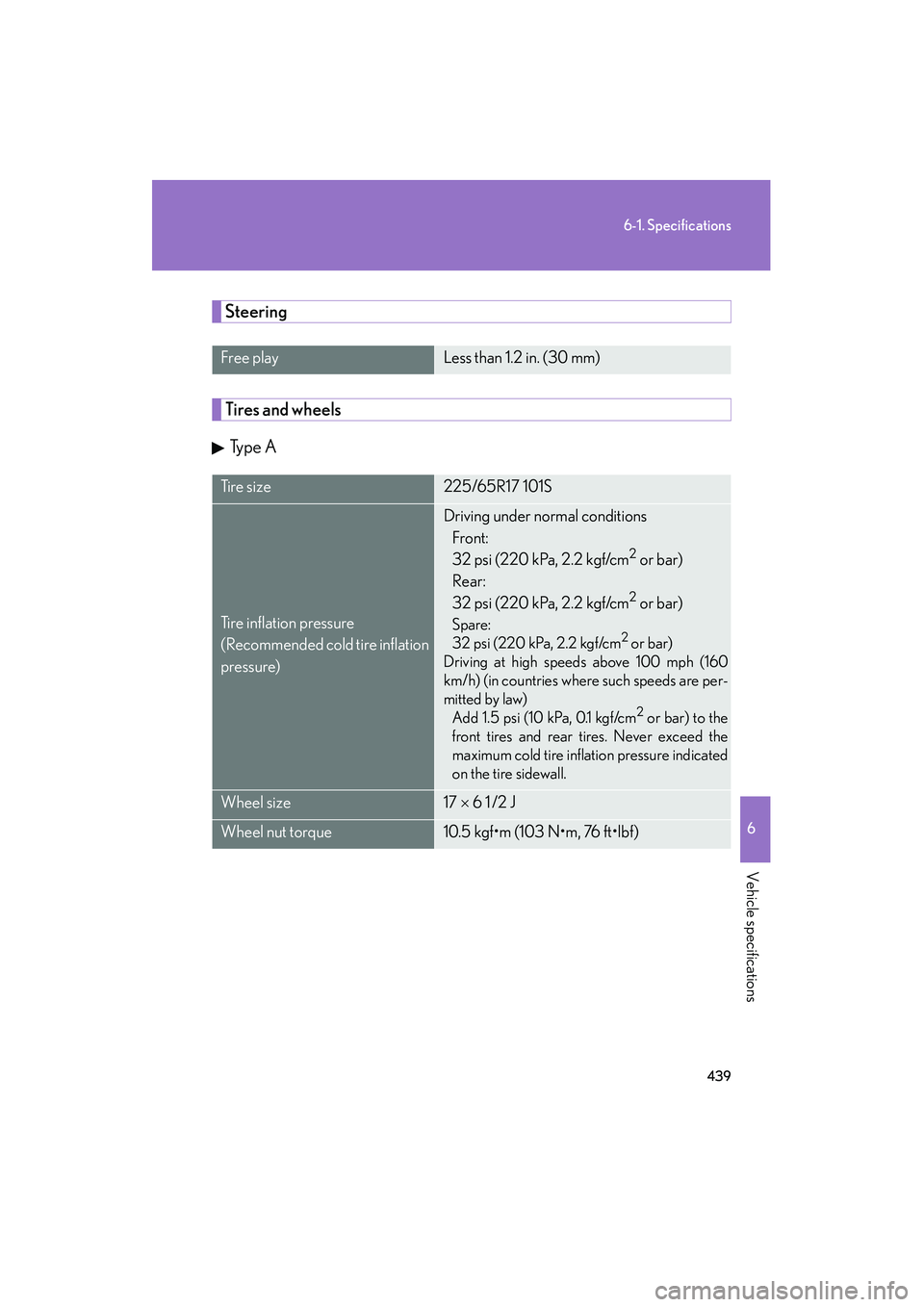

Steering
Tires and wheelsType A
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e225/65R17 101S
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 1.5 psi (10 kPa, 0.1 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Wheel size17 × 6 1 /2 J
Wheel nut torque10.5 kgf•m (103 N•m, 76 ft•lbf)

440
6-1. Specifications

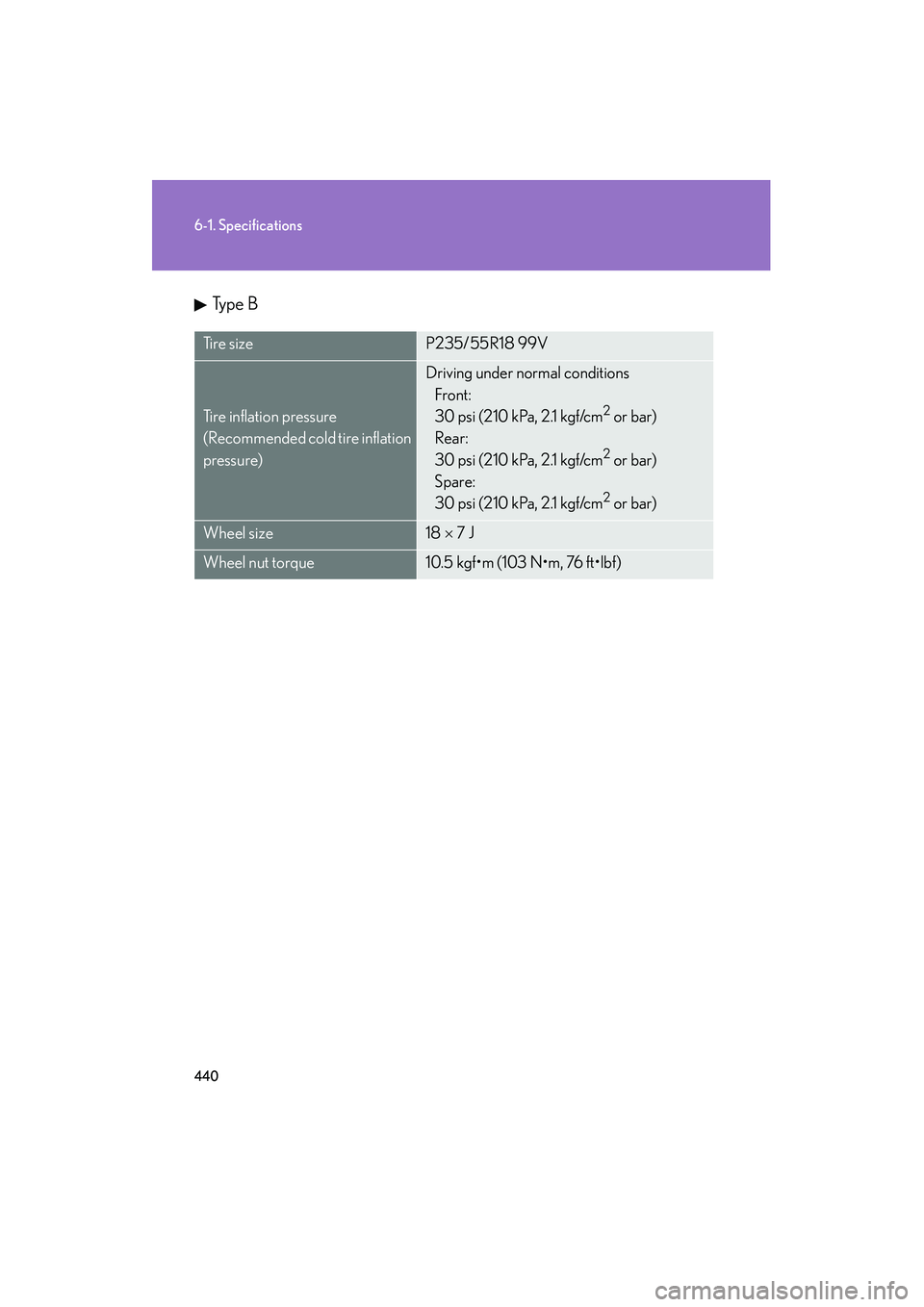

RX400h_UTy p e B
Ti r e s i z eP235/55R18 99V
Tire inflation pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions
Front:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Rear:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Spare:
30 psi (210 kPa, 2.1 kgf/cm
2 or bar)
Wheel size18 × 7 J
Wheel nut torque10.5 kgf•m (103 N•m, 76 ft•lbf)

441
6-1. Specifications
6
Vehicle specifications
RX400h_U

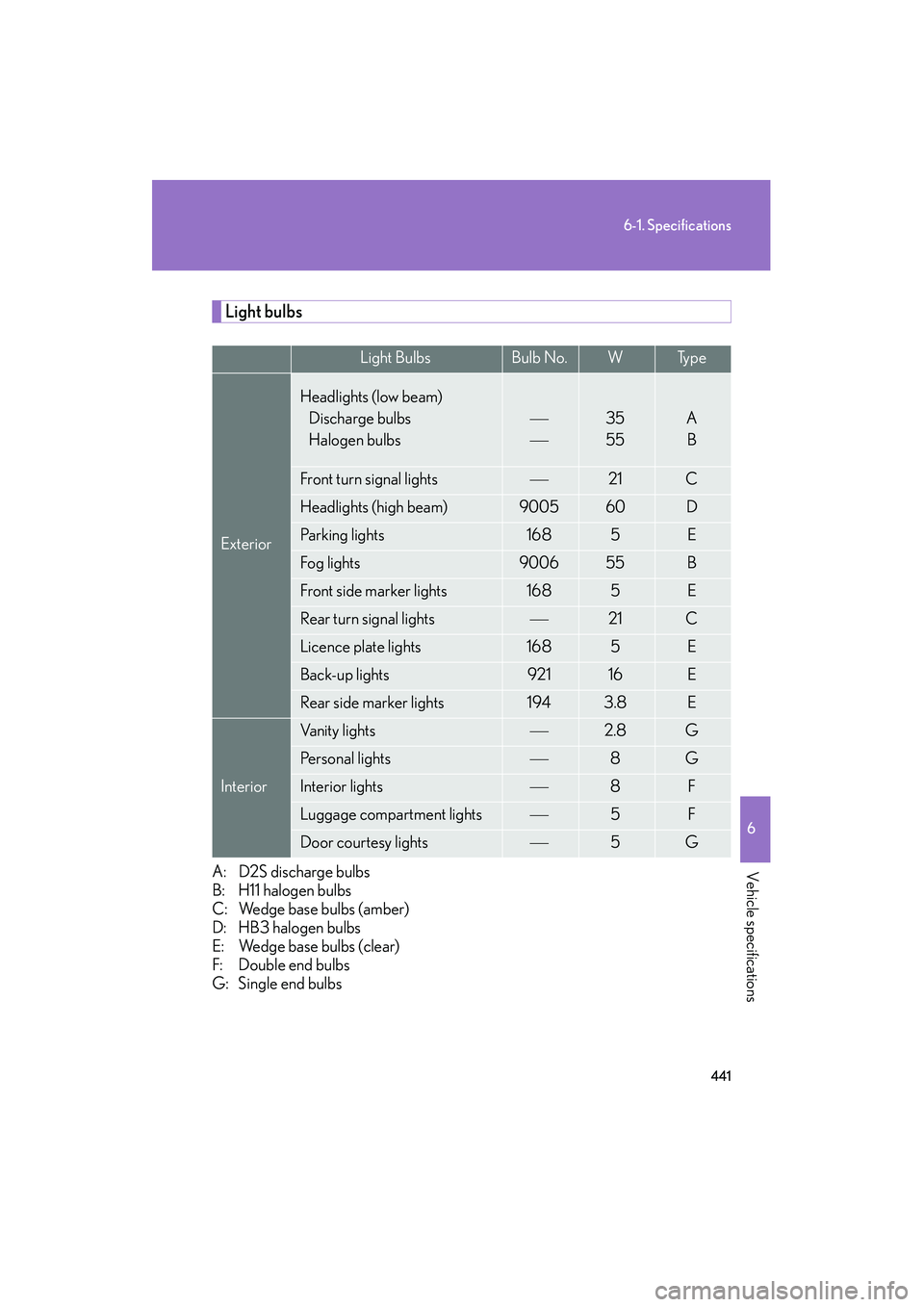

Light bulbs
A: D2S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
G: Single end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights (low beam)Discharge bulbs
Halogen bulbs

35
55A
B
Front turn signal lights21C
Headlights (high beam)900560D
Parking lights1685E
Fog lights900655B
Front side marker lights1685E
Rear turn signal lights21C
Licence plate lights1685E
Back-up lights92116E
Rear side marker lights1943.8E
Interior
Vanity lights2.8G
Pe r s o n a l l i g h t s8G
Interior lights8F
Luggage compartment lights5F
Door courtesy lights5G

442
6-1. Specifications
RX400h_U

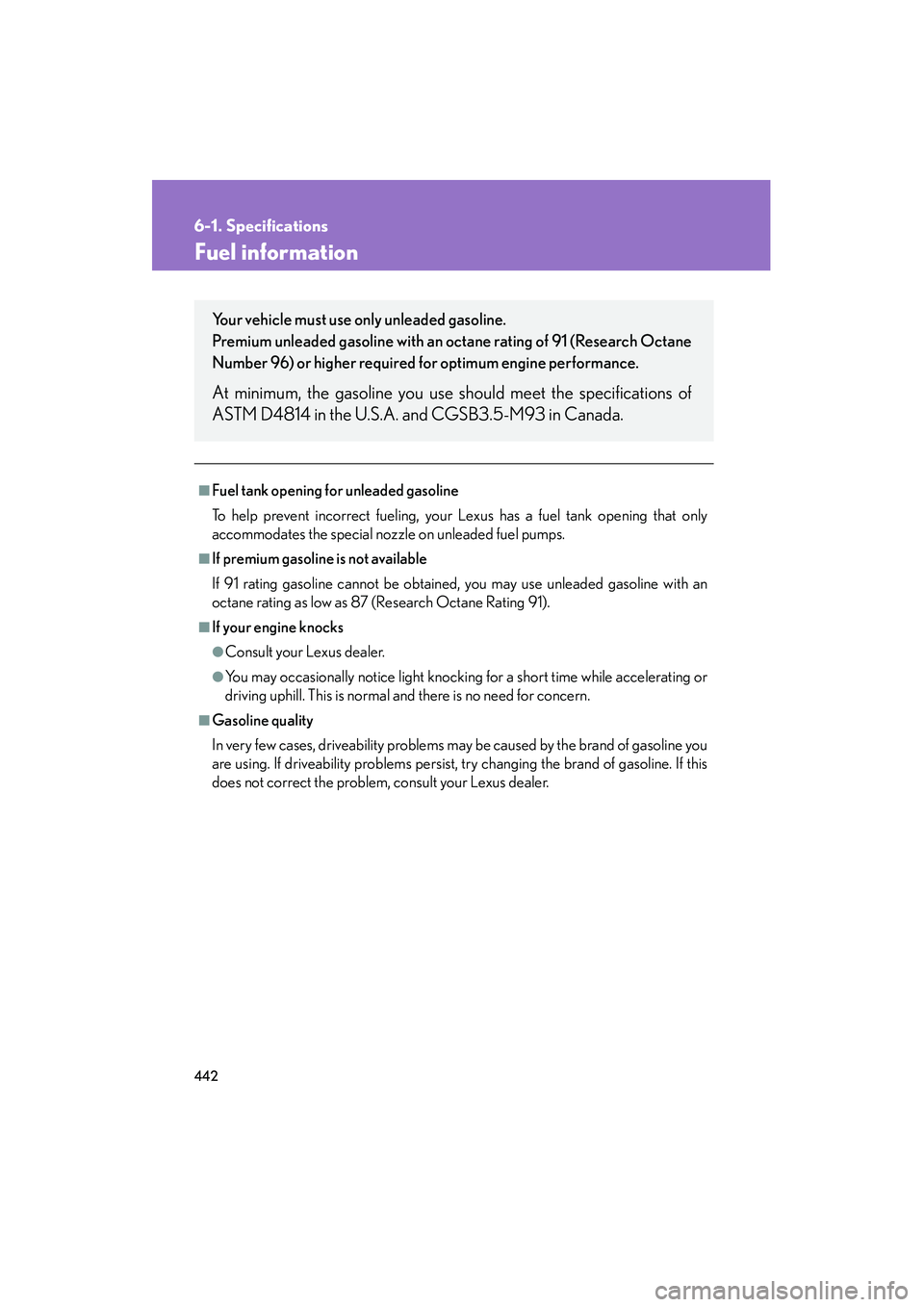

Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If premium gasoline is not available
If 91 rating gasoline cannot be obtained, you may use unleaded gasoline with an
octane rating as low as 87 (Research Octane Rating 91).
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

443
6-1. Specifications
6
Vehicle specifications
RX400h_U
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a speci-
fication for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission lev-
els. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and cus-
tomer satisfaction through better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to avoid
build-up of engine deposits.
●All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower than
87.
●Lexus does not recommend the use of gasoline containing methanol.
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel contain-
ing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.

444
6-1. Specifications
RX400h_U
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Use of unleaded gasoline with an octane rating lower than 91 may result in gaso-
line engine knocking. Persistent knocking can lead to gasoline engine damage
and should be corrected by refueling with higher octane unleaded gasoline.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol.
It can damage your vehicle's paint.

445
6-1. Specifications
6
Vehicle specifications
RX400h_U

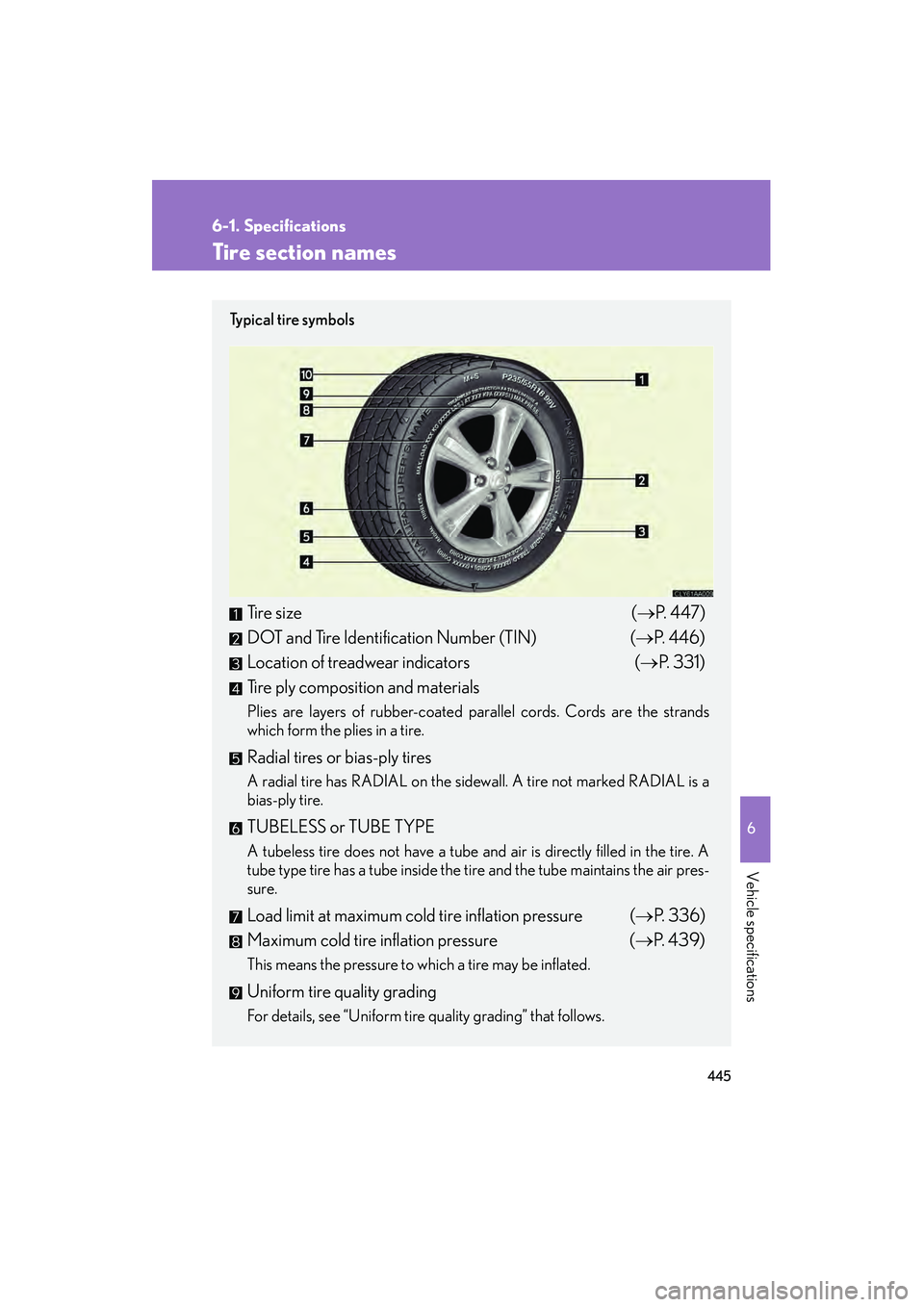

Tire section names
Ty p i c a l t i r e s y m b o l s
Tire size(→ P. 4 4 7 )
DOT and Tire Identification Number (TIN) (→P. 4 4 6 )
Location of treadwear indicators (→ P. 3 3 1 )
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the tire. A
tube type tire has a tube inside the ti re and the tube maintains the air pres-
sure.
Load limit at maximum cold tire inflation pressure ( →P. 3 3 6 )
Maximum cold tire inflation pressure ( →P. 4 3 9 )
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.

446
6-1. Specifications
RX400h_U

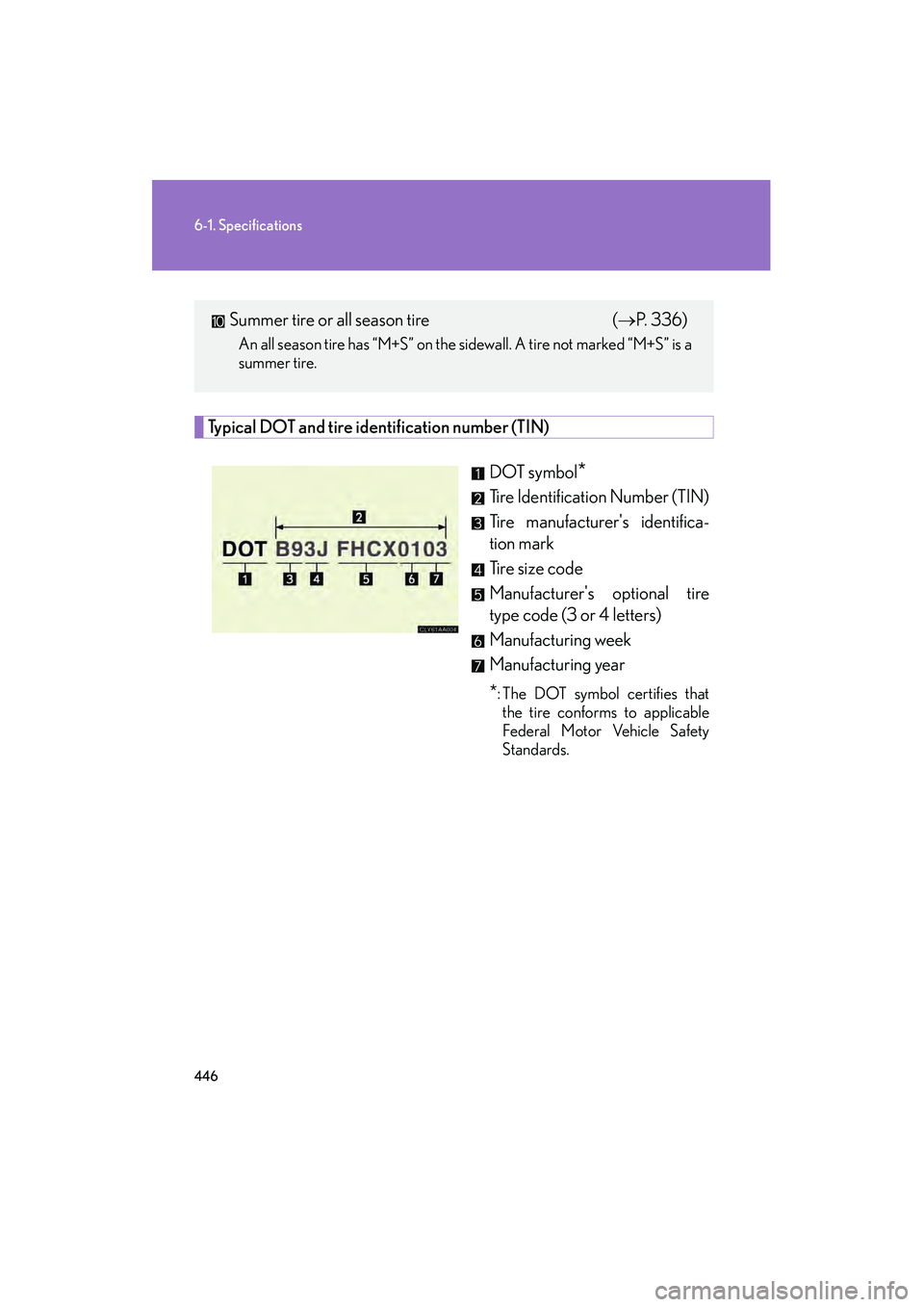

Typical DOT and tire iden tification number (TIN)
DOT symbol
*
Tire Identification Number (TIN)
Tire manufacturer's identifica-
tion mark
Tire size code
Manufacturer's optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
Summer tire or all season tire (→ P. 3 3 6 )
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.

447
6-1. Specifications
6
Vehicle specifications
RX400h_U

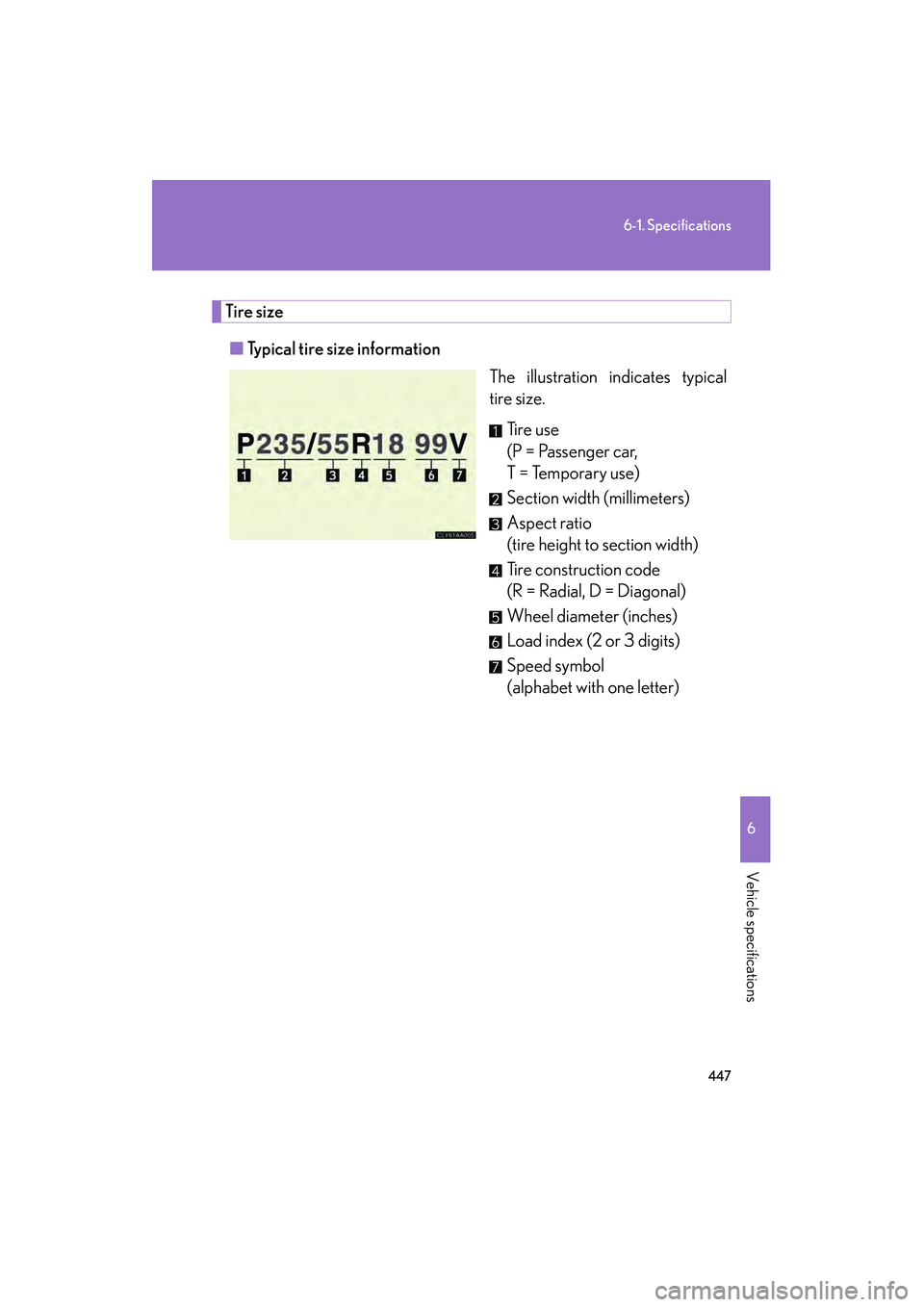

Tire size■ Typical tire si ze information
The illustration indicates typical
tire size.
Ti r e u s e
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol
(alphabet with one letter)

448
6-1. Specifications
RX400h_U■

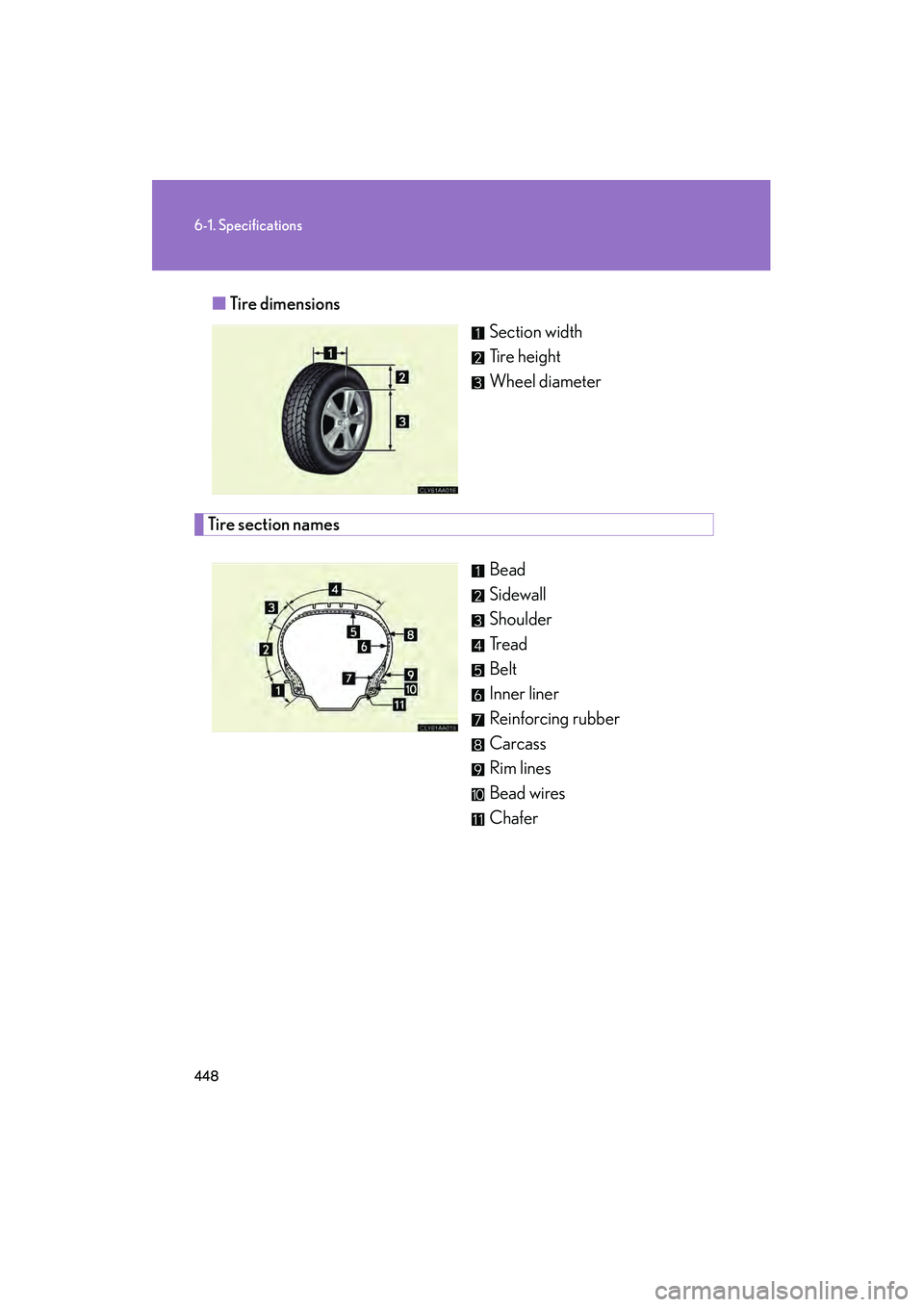

Tire dimensions
Section width
Ti r e h e i g h t
Wheel diameter
Tire section names
Bead
Sidewall
Shoulder
Tr e a d
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
