ignition LEXUS RX400H 2008 Owners Manual

TABLE OF CONTENTSIndex
RX400h_U
2
1-1. Hybrid system ............................... 24Hybrid system................................... 24
1-2. Key information ........................... 34 Keys ...................................................... 34
1-3. Opening, closing and locking the doors...................................... 36
Wireless remote control .............. 36
Side doors .......................................... 39
Back door ........................................... 44
1-4. Adjustable components (seats, mirrors,
steering wheel) .......................... 49
Front seats .......................................... 49
Rear seats ........................................... 52
Driving position memory ............. 55
Head restraints................................. 57
Seat belts ........................................... 58
Steering wheel (manually adjustable type) ....... 65
Steering wheel (power-adjustable type)............ 66
Anti-glare inside rear view mirror ................................................ 67
Outside rear view mirrors ........... 68
Roof luggage carrier ..................... 70 1-5. Opening and closing the
windows and moon roof .......... 72
Power windows................................ 72
Moon roof .......................................... 75
1-6. Refueling ........................................ 78 Opening the fuel tank cap........... 78
1-7. Theft deterrent system.............. 83 Hybrid vehicle immobilizer system ............................................... 83
Alarm................................................... 85
Theft prevention labels (U.S.A.) ............................................ 88
1-8. Safety information ...................... 89 Correct driving posture ............... 89
SRS airbags ........................................ 91
Front passenger occupant classification system .................. 103
Child restraint systems ............... 108
Installing child restraints ............... 112
2-1. Driving procedures................... 122 Driving the vehicle ........................ 122
Engine (ignition) switch ................ 131
Transmission ................................... 135
Turn signal lever............................. 136
Parking brake ................................. 137
1Before driving
2When driving

14

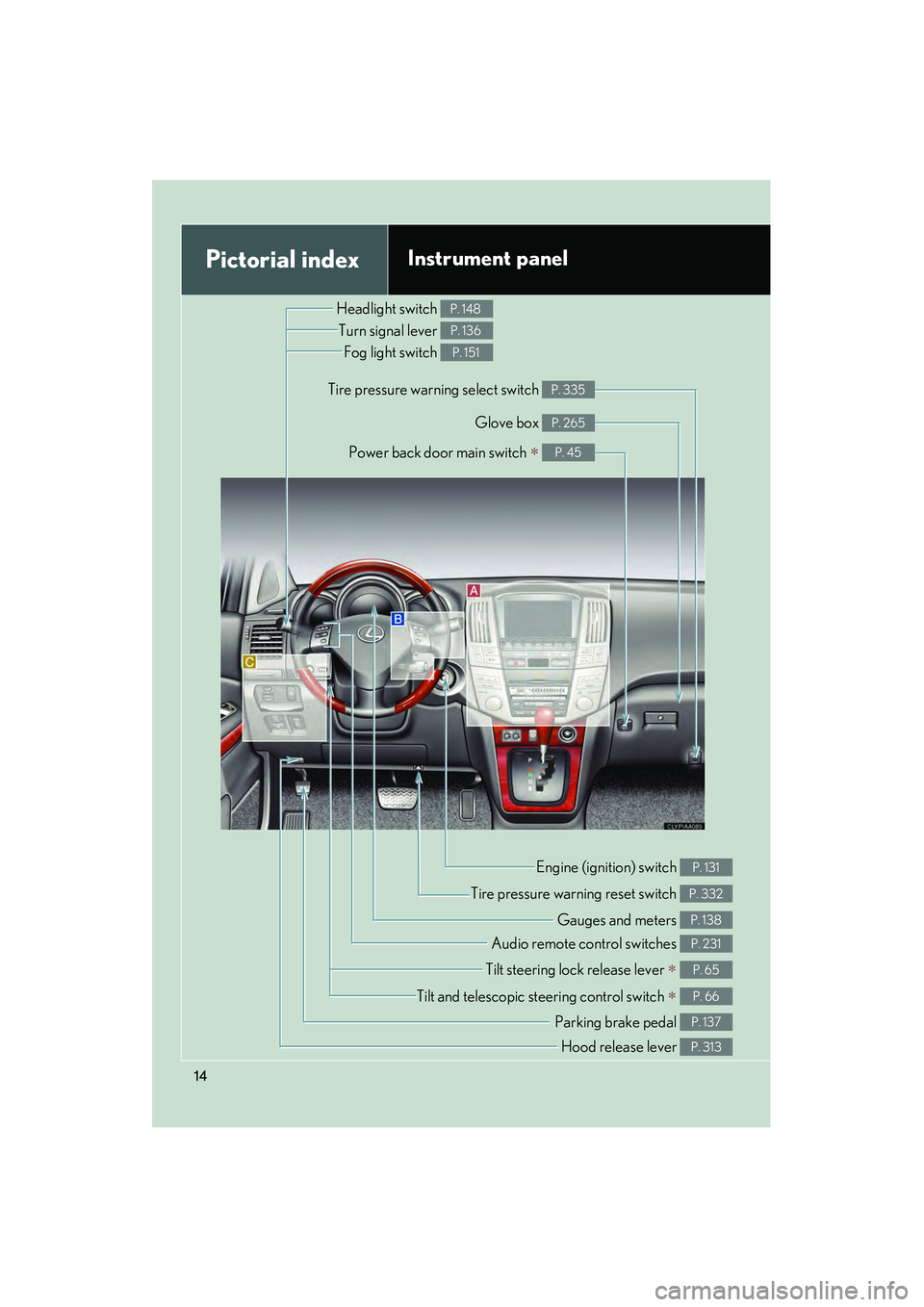

Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 148
P. 136
P. 151
Power back door main switch ∗ P. 45
Tilt steering lock release lever ∗ P. 65
Tilt and telescopic steering control switch ∗ P. 66
Parking brake pedal P. 137
Tire pressure warning reset switch P. 332
Hood release lever P. 313
Gauges and meters P. 138
Audio remote control switches P. 231
Glove box P. 265
Tire pressure warning select switch P. 335
Engine (ignition) switch P. 131

81
1-6. Refueling
1
Before driving
RX400h_U
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur-
ized fuel may spray out the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.
■When opening the fuel cap
Do not remove the cap quickly. In hot weather, fuel under pressure could cause
injury by spraying out of the filler neck if the cap is suddenly removed.

When driving2
121
RX400h_U
2-1. Driving procedures ........ 122Driving the vehicle.................. 122
Engine (ignition) switch .......... 131
Transmission.............................. 135
Turn signal lever ....................... 136
Parking brake ........................... 137
2-2. Instrument cluster ......... 138 Gauges and meters ................ 138
Indicators and warning lights ......................................... 140
Multi-information display ..... 143
Trip information display (without navigation
system)..................................... 146
2-3. Operating the lights and windshield wipers........ 148
Headlight switch...................... 148
Fog light switch ......................... 151
Windshield wipers and washer ..................................... 152
Rear window wiper and washer ..................................... 155
Headlight cleaner switch...... 156 2-4. Using other driving
systems .......................... 157
Cruise control........................... 157
Dynamic laser cruise control ..................................... 160
Driving assist systems ............. 169
2-5. Driving information........ 173 Utility vehicle precautions ............................ 173
Cargo and luggage ................ 178
Vehicle load limits .................... 181
Winter driving tips .................. 182
Trailer towing ........................... 187
Dinghy towing.......................... 196

131
2-1. Driving procedures
2
When driving
RX400h_U
Engine (ignition) switch
■Engine switch
LOCK
The hybrid system is off and
the steering wheel is locked
and the key can be removed
from the engine switch.
ACC
The hybrid system is off and
some electrical components
such as the audio system can
be used.
ON
The hybrid system is on and
all electrical components can
be used.
START
■ Starting the hybrid system
Check that the parking brake is set.
Turn off unnecessary lights and accessories.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
Turn the engine switch to the
START position.
After a few seconds, the
READY light will flash and come
on with a beep sound.
The vehicle can move when the
READY light is on, even if the
hybrid system is stopped.
As the hybrid system starts only with the transmission in the P position, put
the selector lever in P whenever starting the system.
STEP1
STEP2
STEP2STEP3
STEP3STEP4

134
2-1. Driving procedures
RX400h_U
CAUTION
■When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not press the
accelerator pedal while starting the hybrid system under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution when driving
Do not turn the engine switch to the LOCK position while driving. If, in an emer-
gency, you must turn the hybrid system off while the vehicle is moving, turn the
engine switch only to the ACC position.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the engine switch in the ACC or ON position for long periods without
the hybrid system on.
■When starting the hybrid system
●If any service reminder indicator light comes on or warning message appears on
the multi-information display or the 12-volt battery is disconnected, the hybrid
system may not start. In that case, turn the ignition on again. If the READY light
does not come on, contact your Lexus dealer.
●Do not race the hybrid system.
●If the hybrid system becomes difficult to start or stalls frequently, have the hybrid
system checked immediately.

406
5-2. Steps to take in an emergency
RX400h_U
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped, flashing
and then continuously on)
(Flashing)Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance.If the windshield wipers
are on, turn them off or set
them to either the inter-
mittent or the slow mode.
(If equipped, flashing)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in laser cruise
mode).
Slow the vehicle by apply-
ing the brakes.
(Flashing)
Indicates that the driver’s
door has been opened
(with the shift lever out of
in P, ignition on).
Shift the lever to P.
(Flashing)
Indicates that the starting
the hybrid system (with
the shift lever out of in P).Shift the lever to P and
turn the ignition to START
again.

435
6-1. Specifications
6
Vehicle specifications
RX400h_U
Cooling system
Ignition system
Capacity
Gasoline engine
power control unit10.9 qt. (10.3 L, 9.0 Imp.qt.)
3.6 qt. (3.4 L, 3.0 Imp.qt.)
Coolant type
Use either of the following.• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life organic acid technology
Do not use plain water alone.
Spark plug
Make
DENSO
NGK
Gap
SK20R11
IFR6A11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the gasoline
engine.

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

476
Alphabetical index
RX400h_U
Hybrid systemEnergy monitor...................................... 28
High voltage cautions .........................27
High voltage components ................27
Operating condition ........................... 28
Road accident cautions......................32
Starting procedure................................131
Hybrid vehicle immobilizer
system........................................................83
I/M test ..................................................... 309
Identification Engine ....................................................... 431
Vehicle ...................................................... 431
Ignition Keys ............................................................. 34
Ignition switch............................................131
Illuminated entry system ..................... 261
Indicator lights......................................... 140
Initialization Items to initialize ................................. 462
Inside door handle lights ....................260
Inside rear view mirror .......................... 67
Interior lights
Interior lights.........................................260
Switch ...................................................... 263
Wattage.................................................... 441
Jack Positioning a floor jack...................... 314
Replacing the wheel........................ 408
Jack handle ............................................. 408 Keyless entry ............................................. 36
Keys
Engine switch .......................................... 131
Flat key............................................. 34, 133
If you lose your keys ........................ 420
Ignition switch ......................................... 131
Key number.............................................. 34
Keyless entry............................................36
Keys.............................................................. 34
Wireless remote control key...........36
Laser cruise control.............................. 160
Licence plate lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Light bulbs
Replacing .............................................. 365
Wattage ................................................... 441
Lights Door courtesy lights ........................ 260
Engine switch light............................ 260
Fog light switch ...................................... 151
Headlights switch................................ 148
Inside door handle lights ............... 260
Interior light switch ............................263
Luggage compartment light ...........46
Meter ring light ................................... 260
Overhead courtesy light ............... 260
Personal light switch .........................264
Replacing light bulbs ....................... 365
Scuff lighting......................................... 260
Turn signal lever................................... 136
Vanity lights........................................... 273
Wattage ................................................... 441
Load capacity............................................ 181
Lock steering column ...........................132
I
J
K
L
