3613-2. Using the air conditio ning system and defogger
3
Interior features ■
Operating conditions
The “POWER” switch is in ON mode.
CAUTION■
When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars, as the
surfaces can become very hot and burn you.

3623-3. Using the Lexus Display Audio system

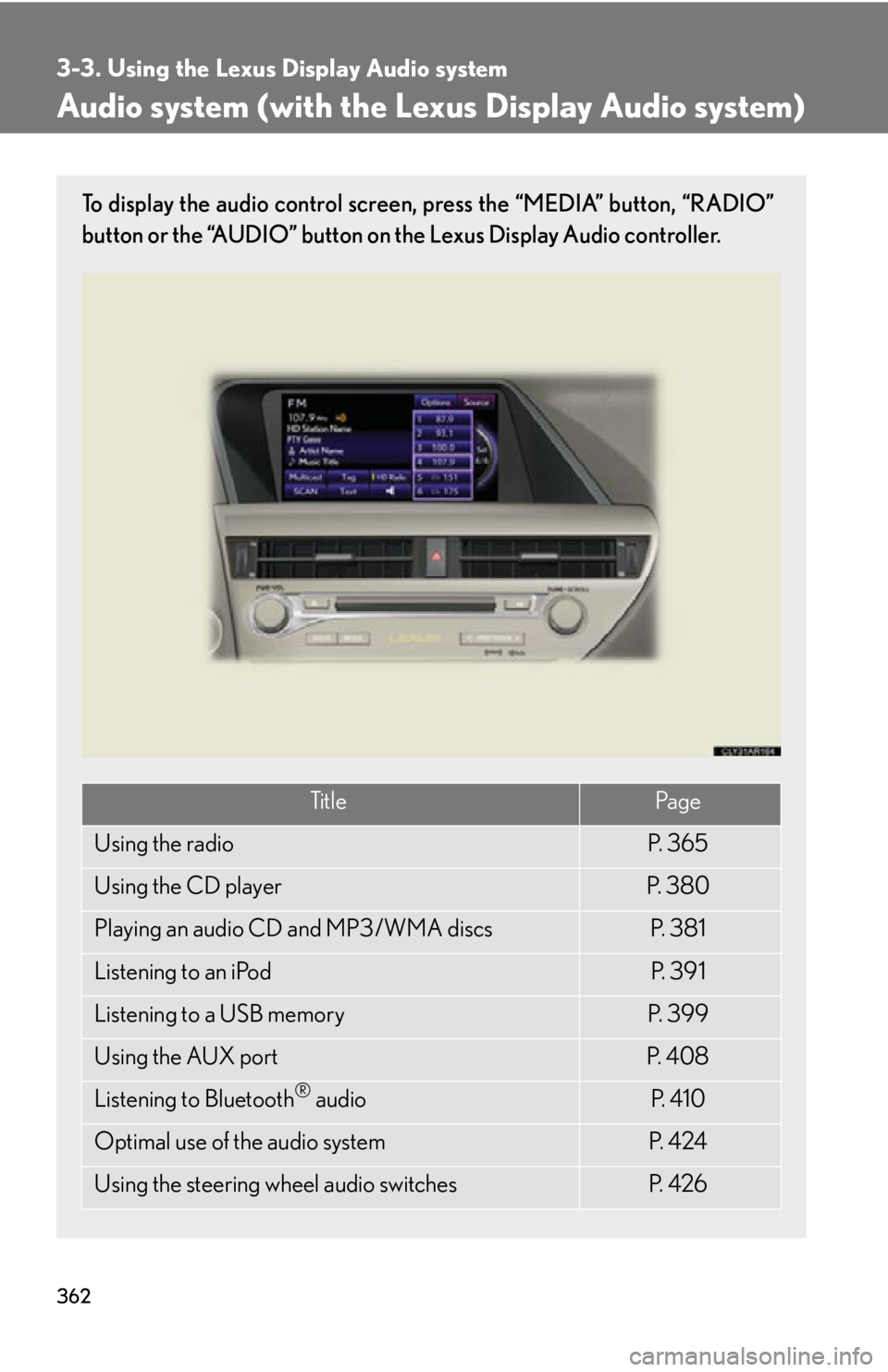

Audio system (with the Lexus Display Audio system) To display the audio control screen, press the “MEDIA” button, “RADIO”
button or the “AUDIO” button on the Lexus Display Audio controller.
Ti t l e Pa g e
Using the radio P. 3 6 5
Using the CD player P. 3 8 0
Playing an audio CD and MP3/WMA discs P. 3 8 1
Listening to an iPod P. 3 9 1
Listening to a USB memory P. 3 9 9
Using the AUX port P. 4 0 8
Listening to Bluetooth ®
audio P. 4 1 0
Optimal use of the audio system P. 4 2 4
Using the steering wheel audio switches P. 4 2 6

3633-3. Using the Lexus Display Audio system
3
Interior features Switching the audio source
Press the “MEDIA” button, “RAD IO” button or the “AUDIO” but-
ton on the Lexus Display Audio controller to display the audio
control screen.
Select “Source” or press the
“AUDIO” button on the Lexus Dis-
play Audio controller to display the
audio source selection screen. Each time the “MEDIA” button is
pressed, an audio source other
than radio is changed to.
Each time the “RADIO” button is
pressed, radio mode is changed.
Select the desired audio source.STEP 1
STEP 2
STEP 3

3643-3. Using the Lexus Display Audio system
■
Using mobile phones
Interference may be heard through the audio system’s speakers if a mobile phone is
being used inside or close to the vehicl e while the audio system is operating.
CAUTION■
Certification
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
NOTICE■
To prevent 12-volt battery discharge
Do not leave the audio system on longer than necessary when the hybrid system is
off.■
To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.

3653-3. Using the Lexus Display Audio system
3

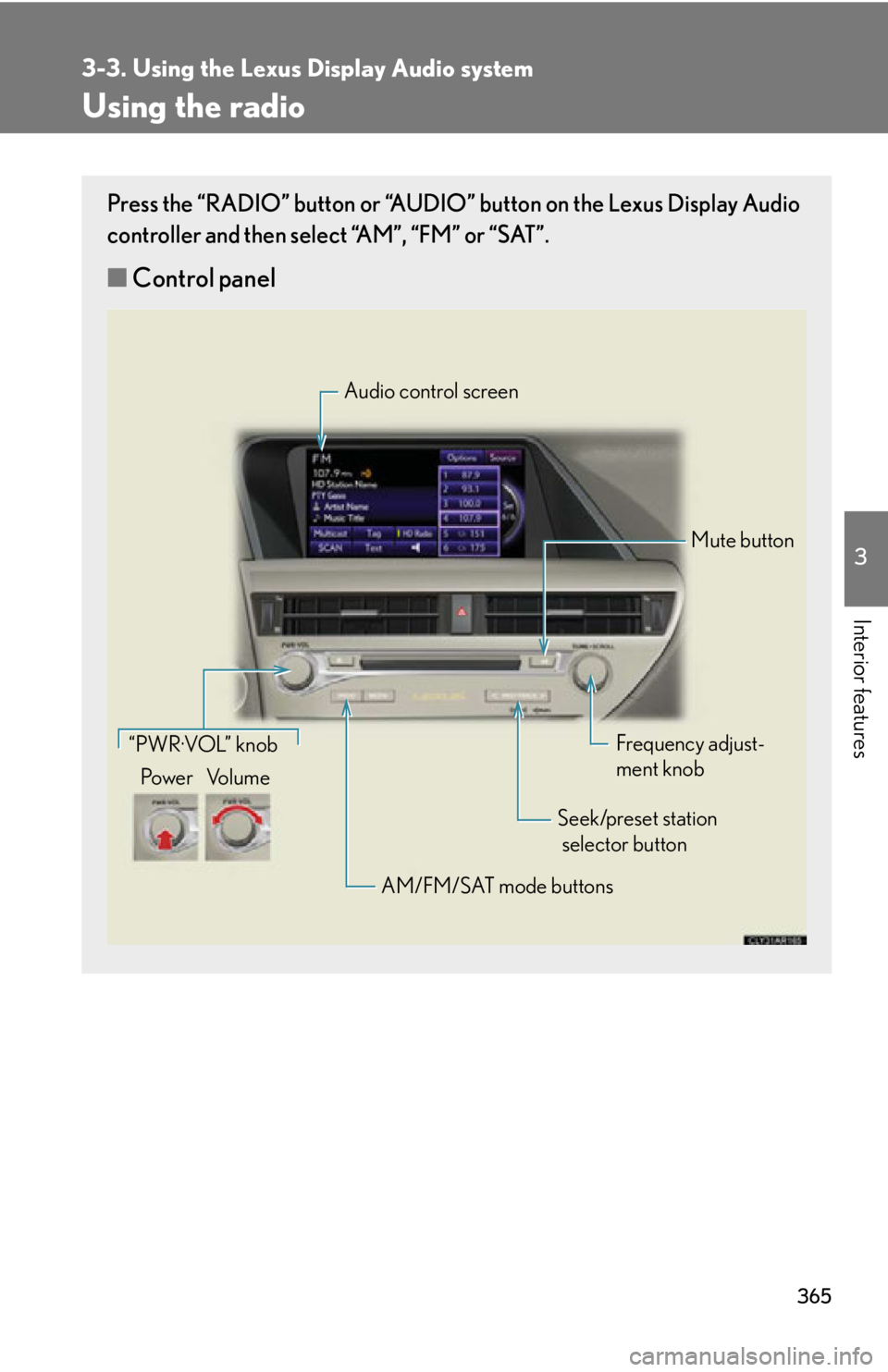

Interior features Using the radio Press the “RADIO” button or “AUDIO” button on the Lexus Display Audio
controller and then select “AM”, “FM” or “SAT”.
■ Control panel Audio control screen
Mute button
Frequency adjust-
ment knob
Seek/preset station
selector button
AM/FM/SAT mode buttons“PWR·VOL” knob
Po w e r Vo l u m e

3663-3. Using the Lexus Display Audio system
■ Audio control screen
Pressing the “RADIO” button or “A UDIO” button on the Lexus Dis-
play Audio controller displays the audio control screen from any
screens of the selected source.
“Presets” screen
“Options” screen “Options” screen appears
Audio source selection
screen appears
Changing the Multicast Ch
Information in the music
under broadcasting is mem-
orized
Selecting HD Radio™ tech-
nology
Setting the sound
(  P. 4 2 4 )
Displaying text messages
Scanning for receivable sta-
tion
Preset stations
“Presets” screen appears
Selecting program type or
channel category
RBDS message display on/
off
Displaying traffic messages

3673-3. Using the Lexus Display Audio system
3
Interior features Selecting a station
■ Seek tuning
Press and hold “  ” or “  ” on the “PRST•TRACK” button.
■ Manual tuning
Turn the “TUNE•SCROLL” knob.
■ Preset stations
Press “  ” or “  ” on the “PRST•TRACK” butto n or select desired preset
stations.
Setting station presets (excluding XM ®
Satellite Radio)
Radio mode has a mix preset function, which can store up to 36 stations
(6 station per page  6 page) from any of the AM, FM or SAT bands.
Search for desired stations by turning the “TUNE•SCROLL”
knob or pressing and holding “  ” or “  ” on the “PRST•TRACK”
button.
Select and hold one of the pr eset stations (1-6 every page).
Scanning radio stations (excluding XM ®
Satellite Radio)
Select “SCAN” on the screen. “SCAN” appears on the screen. The ra dio will find the next station and
stay there for 10 seconds if “All” or “HD Only” is selected, or 5 seconds
if “Analog” is selected (  P. 371), and then scan again.
Select “SCAN” once again when the desired station is reached.STEP 1
STEP 2
STEP 1
STEP 2

3683-3. Using the Lexus Display Audio system
RBDS (Radio Broadcast Data System)
This feature allows your radio to receive station identification information
and program information (classical, ja zz, etc.) from radio stations which
broadcast this information. RBDS features are available only when listen-
ing to an FM station that broadcas ts RBDS information and the “FM Info”
indicator is on.
■ Selecting a desired type
Select “Options”.
Select “FM Info” to turn the indica-
tor on.STEP 1
STEP 2

3693-3. Using the Lexus Display Audio system
3
Interior features Select “TYPE  ” or “  TYPE” to select program types.The type of program changes each time the button is selected.
• Classical
•Country
• EasyLis (Easy Listening)
• Inform (Information)
•Jazz
•News
• Oldies
•Other
•Pop Music
• Religion
•Rock
•R&B (Rhythm and Blues)
•Sports
•Talk
• Traffic (Not available when “HD Radio Settings” are set to analog)
• Alert (Emergency Alert)
When a program is set, “TYPE SEEK” appears.
Select “TYPE SEEK”. The radio seeks or scans for sta-
tions by the relevant program type.
If no relevant program can be
found, “no type” will appear on the
screen.STEP 3
STEP 4

3703-3. Using the Lexus Display Audio system
■ Traffic announcement
Select “Traffic” on the “Options”
screen. “TRAF SEEK” appears on the
screen, and the radio will start
seeking any station broadcasting
traffic program information.
If no traffic program station is
found, “No Traffic” appears on the
screen.
HD Radio™ technology information HD Radio™ Technology is the digital evol ution of analog AM/FM radio. Your radio
product has a special receiver which allows it to receive digital broadcasts (where
available) in addition to the analog broadc asts it already receives. Digital broadcasts
have better sound quality than analog broadcasts as digital broadcasts provide free,
crystal clear audio with no static or dist ortion. For more information, and a guide to
available radio stations and programming, refer to www.hdradio.com .
HD Radio Technology manufactured under license from iBiquity Digital Corpora-
tion. U.S. and Foreign Patents. HD Radio ™
and the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiquity Digital Corp.
