4113-3. Using the Lexus Display Audio system
3

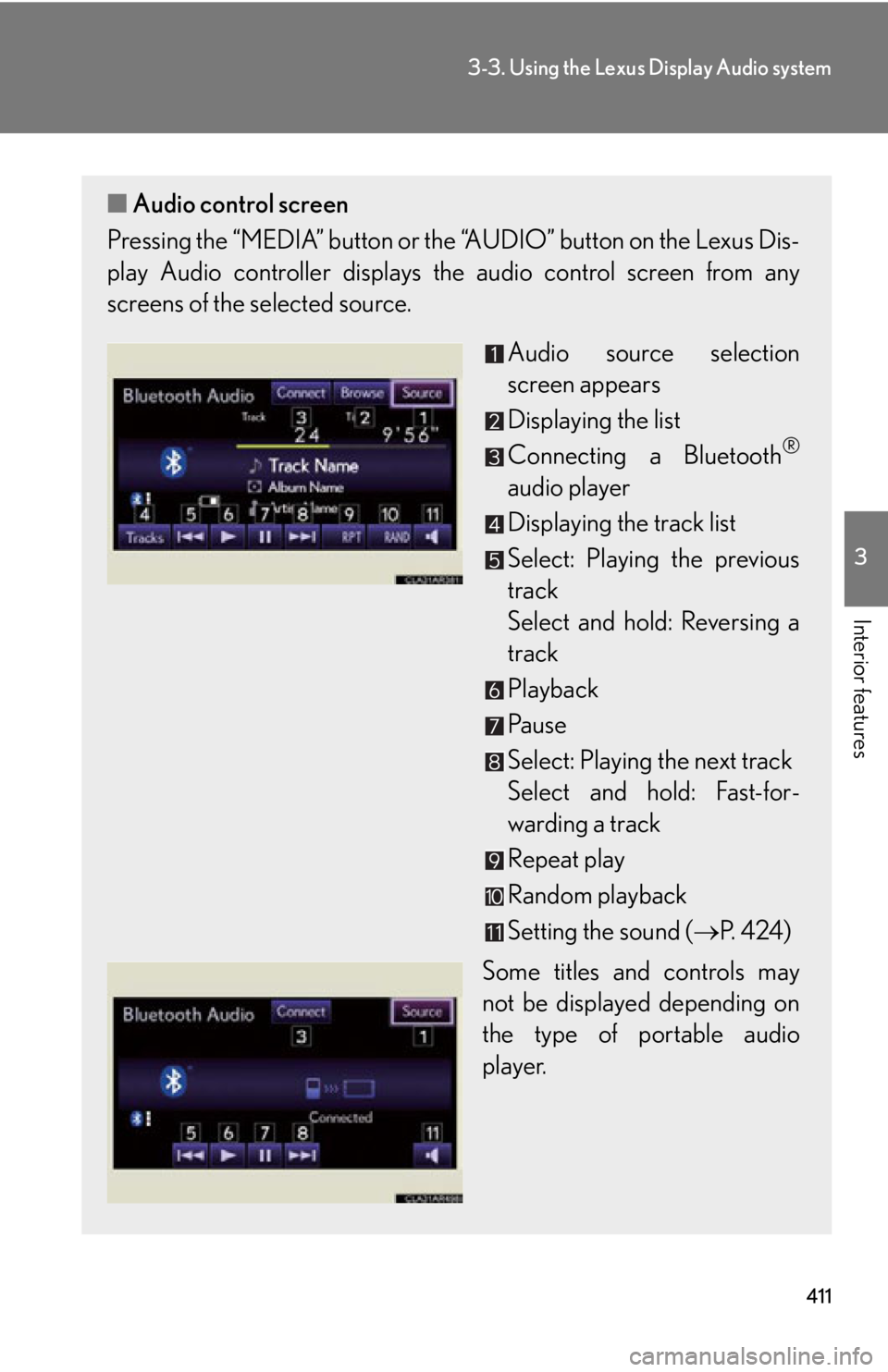

Interior features ■ Audio control screen
Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Dis-
play Audio controller displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Displaying the list
Connecting a Bluetooth ®
audio player
Displaying the track list
Select: Playing the previous
track
Select and hold: Reversing a
track
Playback
Pa u s e
Select: Playing the next track
Select and hold: Fast-for-
warding a track
Repeat play
Random playback
Setting the sound (  P. 4 2 4 )
Some titles and controls may
not be displayed depending on
the type of portable audio
player.

4123-3. Using the Lexus Display Audio system
Status display
You can check such indicators as sig nal strength and battery charge on
the screen.
Connection status
Battery charge
Indicators Conditions
Connection status Good Not connected
Battery charge Full Empty

4133-3. Using the Lexus Display Audio system
3
Interior features Registering a Bluetooth ®
audio player
To use the Bluetooth ®
audio system, yo u need to register your portable
audio player into the system. Once re gistered, you can enjoy your music
on the vehicle’s audio system. You can register up to 5 devices in the system.
Display the “Bluetooth
* Audio” screen.
Select “Connect”.
Select “Yes”.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3

4143-3. Using the Lexus Display Audio system
Input the passcode displayed on
the screen into your portable
audio player. For the operation of the portable
audio player, see the manual that
comes with your portable audio
player.
Passcodes are not required for SSP
(Secure Simple Pairing) compati-
ble Bluetooth ®
devices. Depend-
ing on the device, you may need to
select “Yes” to register, or “No” to
cancel on your Bluetooth ®
device.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.STEP 4

4153-3. Using the Lexus Display Audio system
3
Interior features Selecting the Bluetooth ®
audio player
If multiple Bluetooth ®
devices are registered , follow the procedure
below to select the Bluetooth ®
device to be used. You may only use one
device at a time.
Display the “Bluetooth
* Audio” screen.
Select “Connect”.
Select the device to connect. “Add New”: Registering a
Bluetooth ®
device. (  P. 4 6 7 )
The selection indicator is displayed
on left side of the selected device
name.
The Bluetooth ®
mark is displayed
when you connected the device.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3

4163-3. Using the Lexus Display Audio system
Connecting the Bluetooth ®
audio player
There are two connection methods available.
■ When the connection method is set to “From Vehicle”
When the portable audio player is on standby for the connection, it will
be automatically connected when ever the “POWER” switch is in
either ACCESSORY or ON mode.
■ When the connection method is set to “From Audio Player”
Operate the portable player and connect it to the Bluetooth ®
audio
system.
Display the “Bluetooth
* Audio” screen.
Select “Connect”.
Select the device to connect. A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
* : Bluetooth is a registered tr ademark of Bluetooth SIG. Inc.STEP 1
STEP 2
STEP 3

4173-3. Using the Lexus Display Audio system
3
Interior features Selecting, fast-forwarding and reversing tracks
■ Selecting a track
Press “  ” or “  ” on the “PRST•TRACK” button or turn the
“TUNE•SCROLL” knob to select the desired track number. To fast-forward or reverse, press and hold “  ” or “  ” on the “PRST•TRACK”
button until you hear a beep.
■ Selecting a track from audio control screen
Select or . To fast-forward or reverse, select and hold or until you hear a
beep.
■ Selecting a track from the list
From “Tracks”
Select “Tracks” on the screen.
Select the desired track.STEP 1
STEP 2

4183-3. Using the Lexus Display Audio system
From “Browse”
Select “Browse” on the screen.
Select the desired item. Continue to select the applicable
screen button until its track list is
displayed.
Select the desired track.
Random playback
Each time is selected, the mode changes in the following order: STEP 1
STEP 2
STEP 3
: Random play on the album
: Random play in all the album
: Off

4193-3. Using the Lexus Display Audio system
3
Interior features Repeat play
Each time is selected, the mode changes in the following order:
■
When using the Bluetooth ®
audio system●
In the following conditions, the system may not function.
• If the portable audio player is turned off
• If the portable audio player is not connected
• If the portable audio player’s battery is low
• If the portable player is behind the se at or in the glove box or console box
• If metal is covering or touching the portable player●
There may be a delay if phone connecti on is carried out during Bluetooth ®
audio play.●
Depending on the type of portable audio player that is connected to the system,
operation may differ slightly and ce rtain functions may not be available.■
Bluetooth ®
antenna
The antenna is built into the display. If the portable audio player is behind the seat or
in the glove box or console box, or is touching or covered by metal objects, connec-
tion status may deteriorate.■
Battery charge/signal status
This display may not correspond exactly with the portable audio player, and this sys-
tem does not have a charging function. : Track repeat
: Album repeat
: Off

4203-3. Using the Lexus Display Audio system
■
About Bluetooth ®
■
Compatible models
Portable audio players must correspond to the specifications. ●
Bluetooth ®
specifications:
Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher)●
Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher
(Recommended: Ver. 1.2 or higher)
This is a profile to transmit stereo audio or high quality sounds to the head-
phone.
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.4 or higher)
This is a profile to remote control the A/V equipment.
However, please note that some function s may be limited depending on the type of
portable audio player. Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
