1212. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U Displays the following items which are linked to the navigation system: ■
Street name
The name of the street that the vehicle is currently driving on is displayed on
the bottom of the display area.
When the navigation system is performing route guidance, the name of the
next street will be displayed on the top of the display area. ■
Route guidance to destination
Displayed when the navigation system is performing route guidance. When
approaching an intersection, an arrow will be displayed to indicate the sug-
gested direction of travel. ■
Compass
Displays the direction of travel. ■

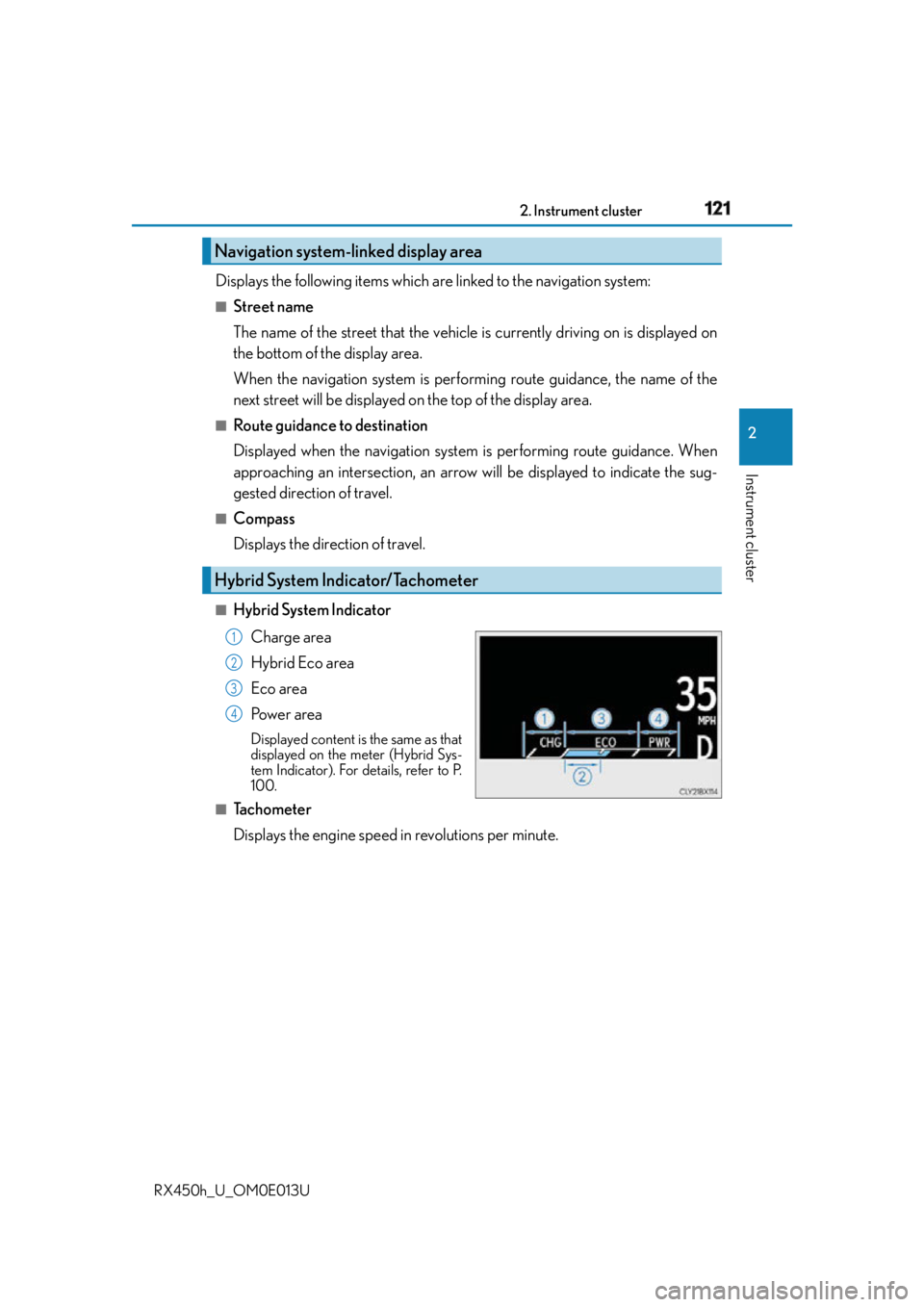

Hybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Po w e r a r e a Displayed content is the same as that
displayed on the meter (Hybrid Sys-
tem Indicator). For details, refer to P.
100.■
Tachometer
Displays the engine speed in revolutions per minute.Navigation system-linked display area
Hybrid System Indicator/Tachometer 1
2
3
4

122 2. Instrument cluster
RX450h_U_OM0E013U ■
Head-up display
The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.■
When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.■
Display brightness
The brightness of the head-up display can be adjusted on of the multi-information
display. Also, it is automa tically adjusted according to the ambient brightness.■
Enabling/disabling of the head-up display
If the head-up display is disabled, it will rema in disabled when the power switch is turned
off then back to ON mode. ■
Street name display (vehicles with a navigation system)
Only street names which are included in the map data will be displayed.
WA R N I N G ■
Before using the head-up display ●
Check that the position and brightness of the head-up display image does not inter-
fere with safe driving. Incorrect adjustment of the image’s position or brightness may
obstruct the driver’s view and lead to an accident, resulting in death or serious injury. ●
Do not continuously look at the head-up di splay while driving as you may fail to see
pedestrians, objects on the road, etc. ahead of the vehicle. ■
Caution for changing settings of the head-up display
As the hybrid system needs to be operating while changing the settings of the head-up
display, ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious health hazard.

1232. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U NOTICE ■
To prevent damage to components
■
When changing the settings of the head-up display
To prevent 12-volt battery discharge, ensure that the hybrid syst em is operating while
the changing the settings of the head-up display. ●
Do not place any drinks near the head-up dis-
play projector. If the projector gets wet, elec-
trical malfunctions may result. ●
Do not place anything on or put stickers onto
the head-up display projector.
Doing so could interrupt head-up display
indications. ●
Do not touch the inside of the head-up display
projector or thrust sharp edges or the like into
the projector.
Doing so could cause mechanical malfunc-
tions.

124 2. Instrument cluster

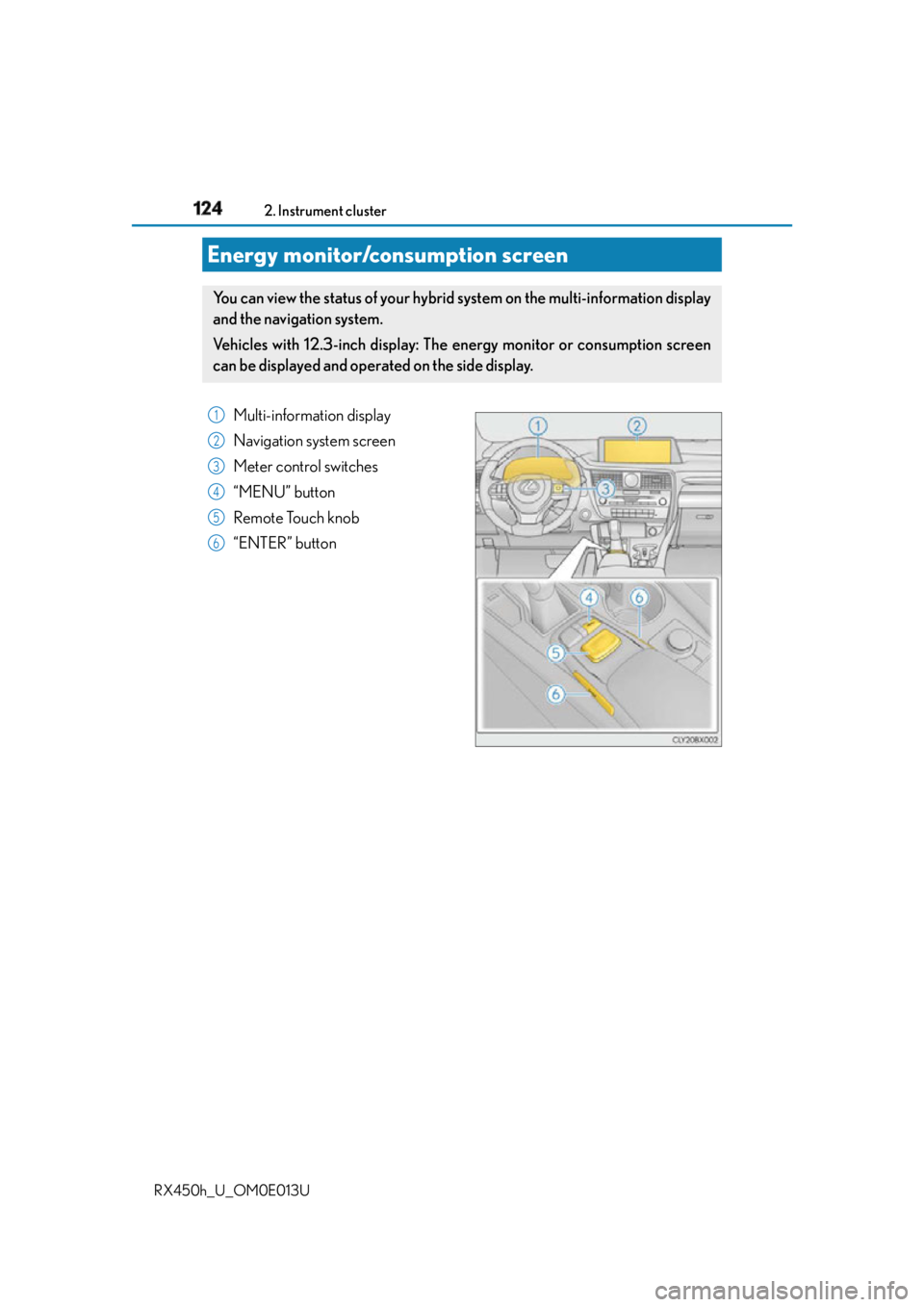

RX450h_U_OM0E013UEnergy monitor/consumption screen You can view the status of your hybrid system on the multi-information display
and the navigation system.
Vehicles with 12.3-inch display: The energy monitor or consumption screen
can be displayed and operated on the side display.
Multi-information display
Navigation system screen
Meter control switches
“MENU” button
Remote Touch knob
“ENTER” button 1
2
3
4
5
6

1252. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U 
Navigation system screen
Press the “MENU” button on the
Remote Touch, then select on the
“Menu” screen, and then select “Fuel
Consumption”. If the “Trip Information” or “Past Record”
screen is displayed, select “Energy”. 
Multi-information display
Press the “  ” or “  ” of the meter control switches and select , and then press
the “  ” or “  ” to select the energy monitor display.Energy monitor
Navigation system screen Multi-information display
When the vehicle is
powered by the elec-
tric motor (traction
motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gaso-
line engine

126 2. Instrument cluster

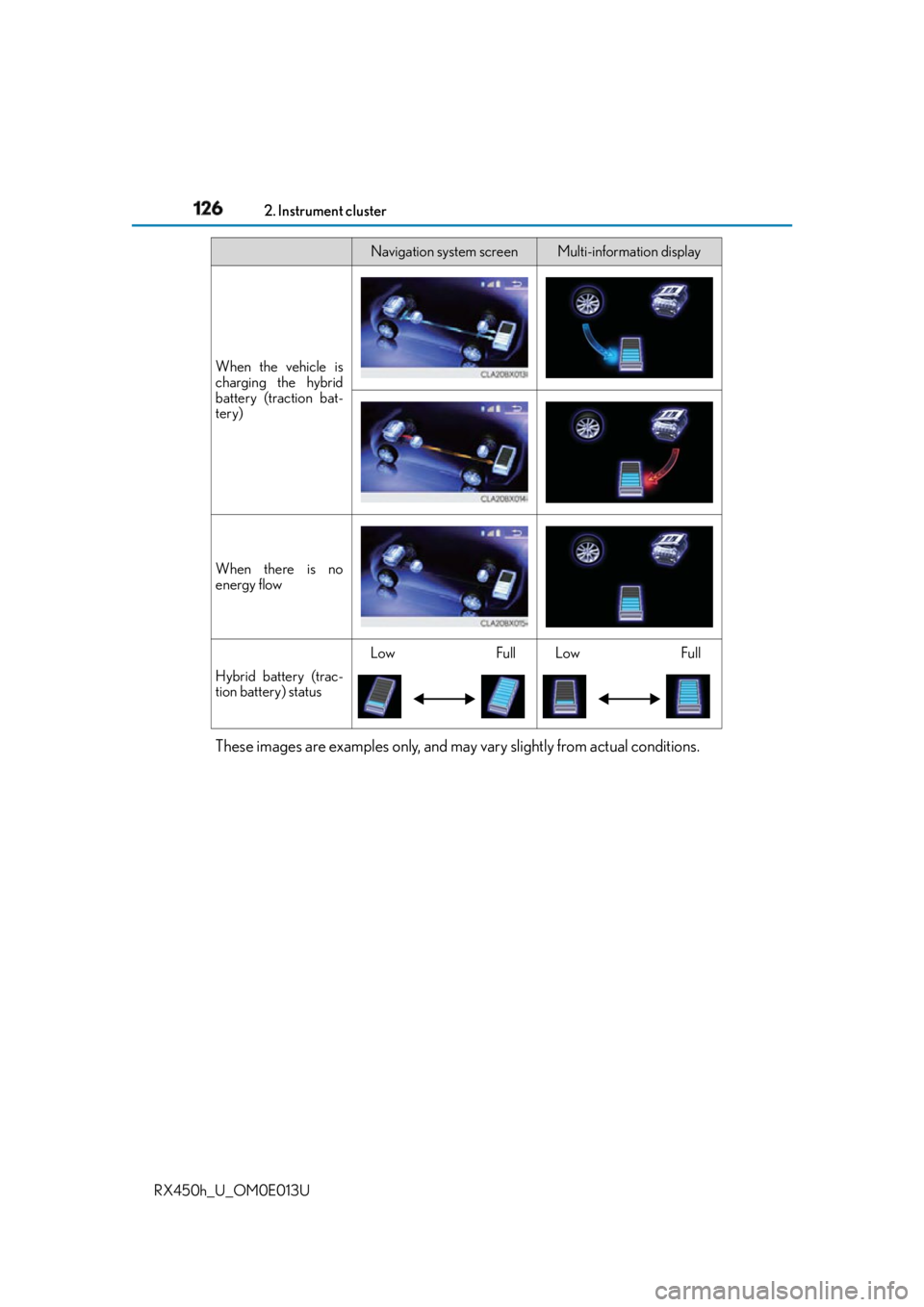

RX450h_U_OM0E013U These images are examples only, and may vary slightly from actual conditions. When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow
Hybrid battery (trac-
tion battery) status Low Full Low FullNavigation system screen Multi-information display

1272. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U ■

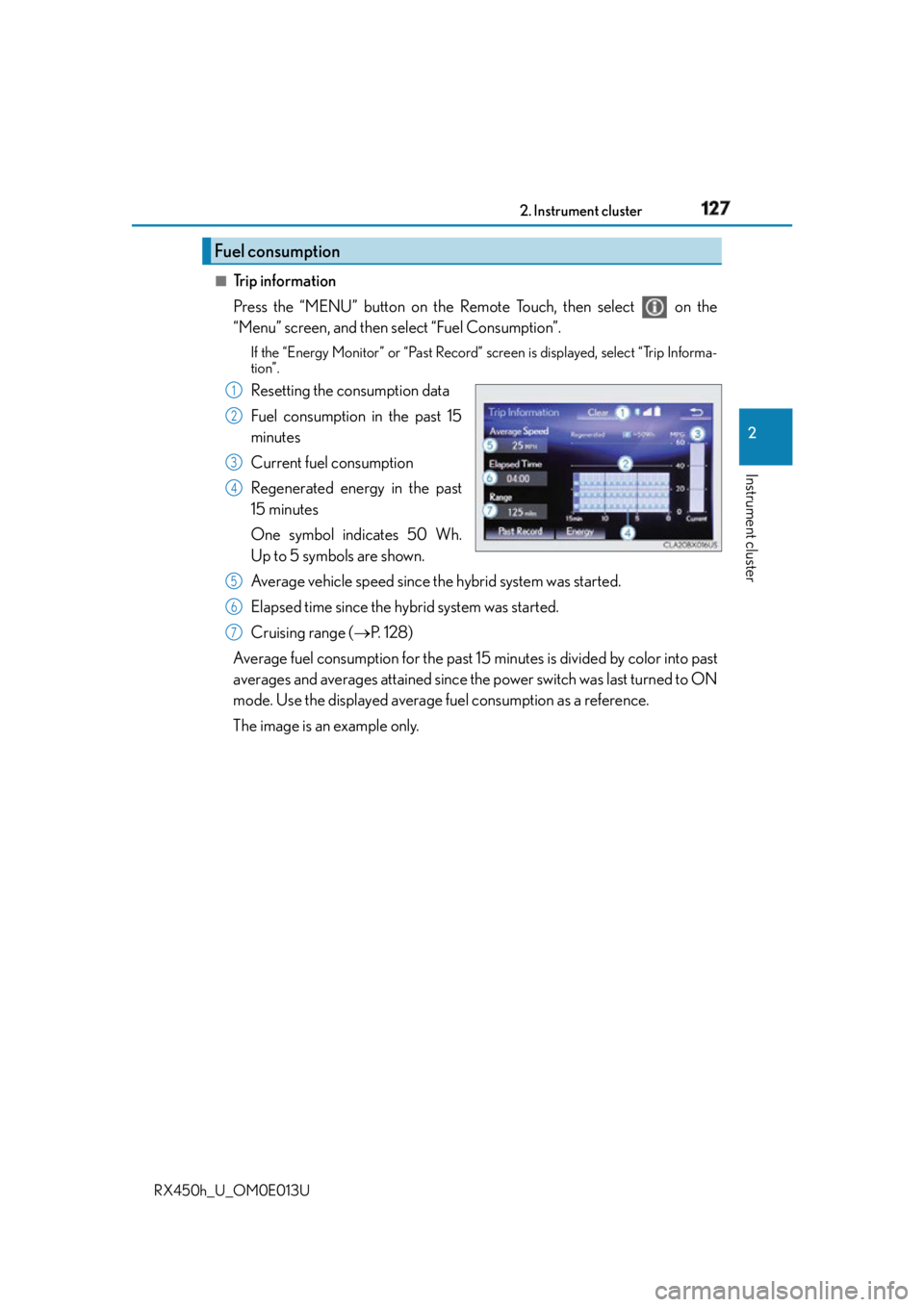

Trip information
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”. If the “Energy Monitor” or “Past Record” screen is displayed, select “Trip Informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range (  P. 1 2 8 )
Average fuel consumption fo r the past 15 minutes is divided by color into past
averages and averages attained since th e power switch was last turned to ON
mode. Use the displayed average fuel consumption as a reference.
The image is an example only.Fuel consumption 1
2
3
4
5
6
7

128 2. Instrument cluster
RX450h_U_OM0E013U ■
Past record
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”. If the “Energy Monitor” or “Trip Information” screen is displayed, select “Past
Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption record
Updating the average fuel con-
sumption data
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last updated. Use the displayed
average fuel consumption as a reference.
The image is an example only. ■
Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current fuel
consumption again. ■
Resetting the data
The fuel consumption data can be deleted by selecting “Clear”. ■
Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.1
2
3
4
5

1292. Instrument cluster
2
Instrument cluster

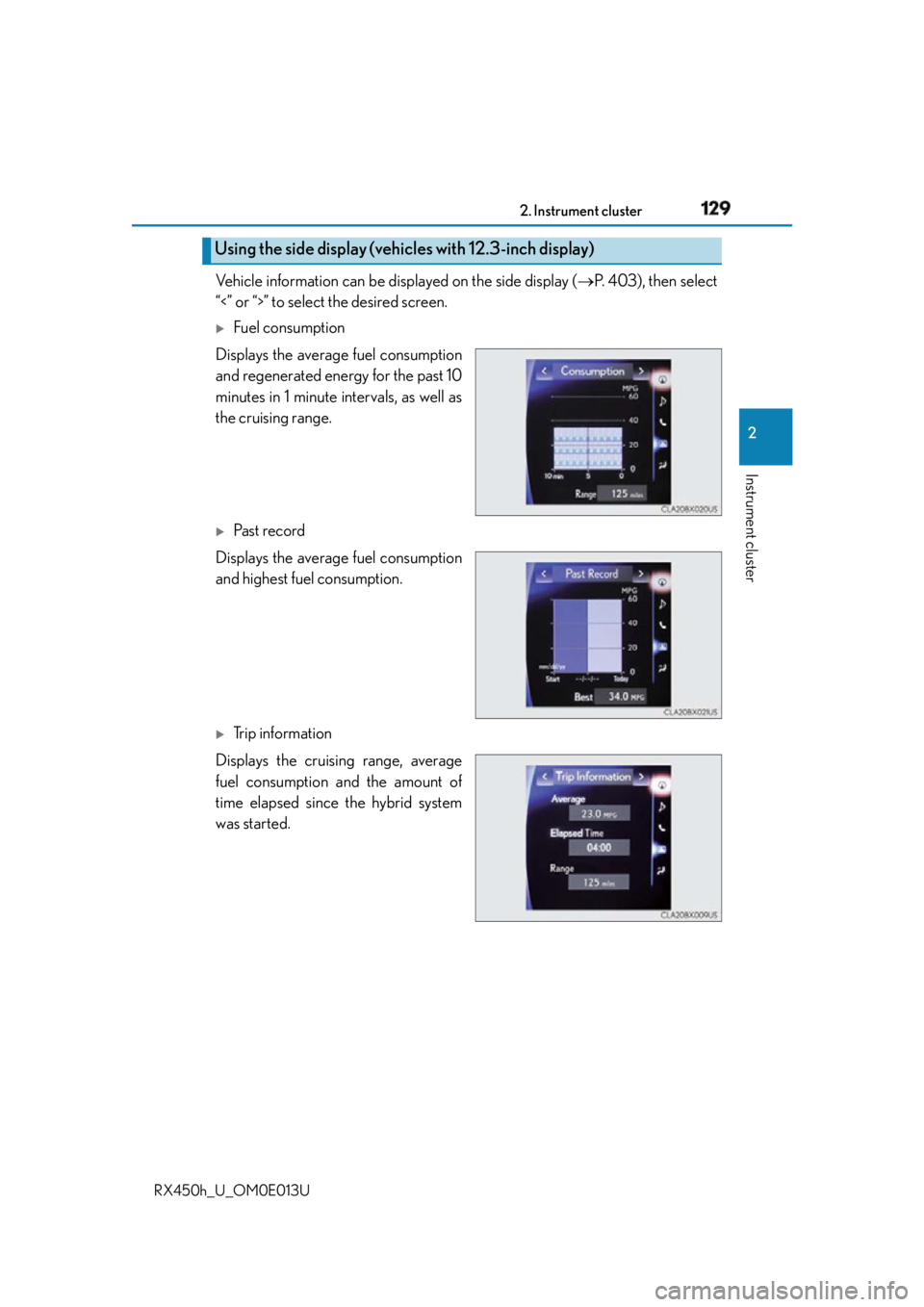

RX450h_U_OM0E013U Vehicle information can be displayed on the side display (  P. 4 0 3 ) , t h e n s e l e c t
“<” or “>” to select the desired screen. 
Fuel consumption
Displays the average fuel consumption
and regenerated energy for the past 10
minutes in 1 minute intervals, as well as
the cruising range. 
Past record
Displays the average fuel consumption
and highest fuel consumption. 
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the hybrid system
was started.Using the side display (vehicles with 12.3-inch display)

130 2. Instrument cluster
RX450h_U_OM0E013U 

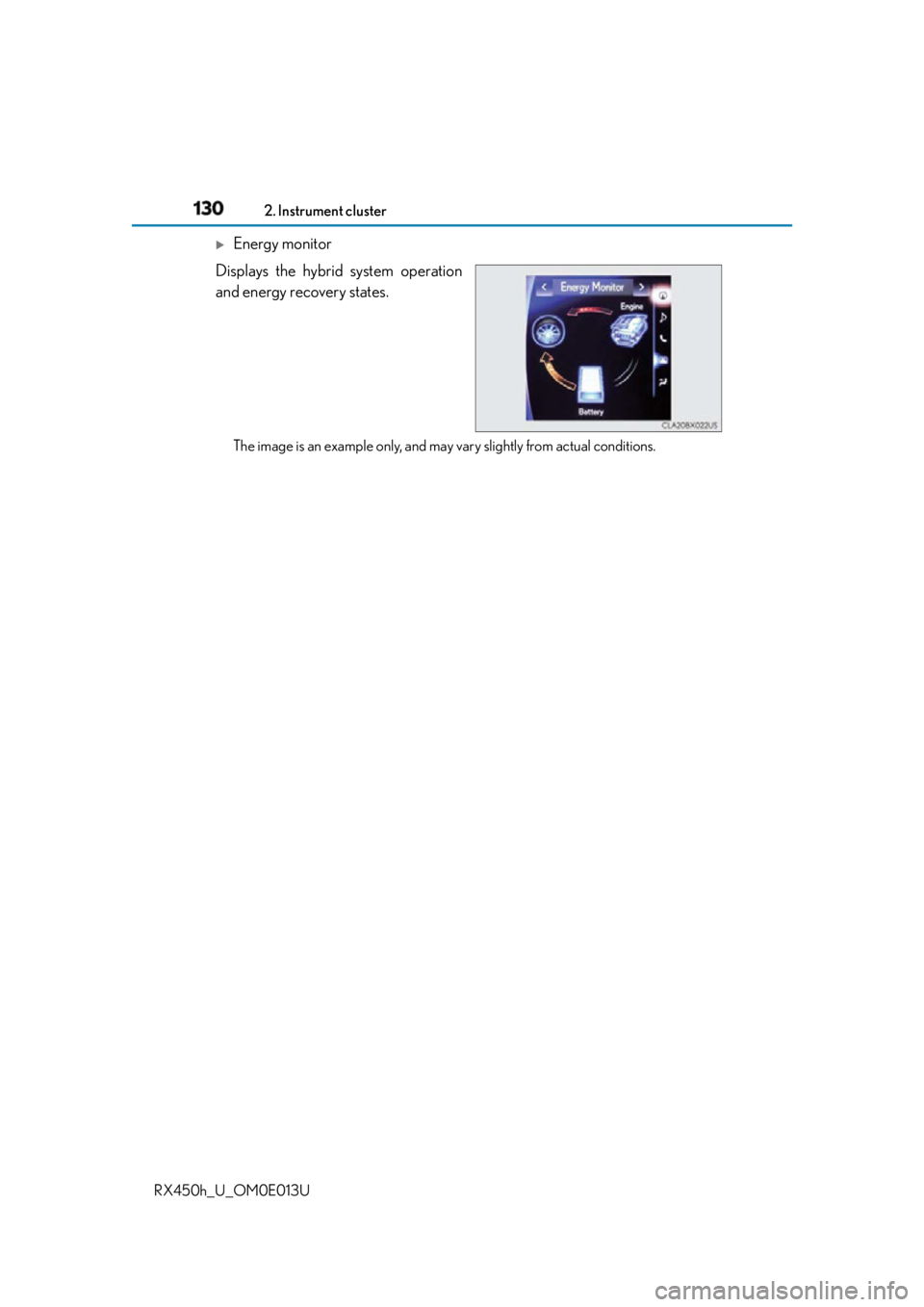

Energy monitor
Displays the hybrid system operation
and energy recovery states.
The image is an example only, and may vary slightly from actual conditions.
