LEXUS RX450h 2016 Owners Manual

2314-1. Before driving
4
Driving
RX450h_U_OM0E013UDinghy towing Your vehicle is not designed to be ding hy towed (with 4 wheels on the ground)
behind a motor home.
NOTICE ■
To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground. ■
To prevent causing serious damage to the hybrid transmission and Hybrid AWD sys-
tem (AWD models)
2WD models: Never tow this vehicle from the
rear with the front wheels on the ground.
This may cause serious damage to the hybrid
transmission.
AWD models: Never tow this vehicle with any
of the wheels on the ground. This may cause
serious damage to the hybrid transmission and
AWD system.

232
RX450h_U_OM0E013U 4-2. Driving procedures
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal. and a message will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
Press the power switch. If the “READY” indicator turns on, the
hybrid system will operate normally.
Continue depressing the brake pedal
until the “READY” indicator is illumi-
nated.
The hybrid system can be started from
any power switch mode.
Check that the “READY” indicator is illuminated. The vehicle will not move when the “READY” indicator is off.Power (ignition) switch Performing the following op erations when carrying the electronic key on your
person starts the hybrid system or changes power switch modes.
Starting the hybrid system 1
2
3
4
5

2334-2. Driving procedures
4
Driving
RX450h_U_OM0E013U Stop the vehicle completely.
Shift the shift lever to P.
Set the parking brake. (  P. 2 4 5 )If the parking brake is in automatic mode, the parking brake is set automatically when
shifting the shift lever to P. ( 
P. 2 4 5 )
Press the power switch.
Release the brake pedal and check that the display on the meters is off.
Modes can be changed by pressing the po wer switch with brake pedal released.
(The mode changes each time the switch is pressed.)
Off
* The emergency flashers can be used.
ACCESSORY mode Some electrical components such as the
audio system can be used.
“ACCESSORY” will be displayed on the
meters.
ON mode All electrical components can be used.
“IGNITION ON” will be displayed on
the meters.
* : If the shift lever is in a position other than
P when turning off the hybrid system,
the power switch will be turned to
ACCESSORY mode, not to of f.Stopping the hybrid system
Changing power switch modes 1
2
3
4
5
1
2
3

234 4-2. Driving procedures
RX450h_U_OM0E013U If the hybrid system is stopped with the shift lever in a position other than P, the
power switch will not be turned off but instead be turned to ACCESSORY
mode. Perform the following procedure to turn the switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that “Turn Off Vehicle” is displayed on the multi-information display
and then press the power switch once.
Check that “Turn Off Vehicle” on the multi-information display is off. ■
Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON mode (the
hybrid system is not operating) for more than an hour with the shift lever in P, the power
switch will automatically turn off. However, this function cannot entirely prevent 12-volt
battery discharge. Do not leave the vehicle with the power switch in ACCESSORY or
ON mode for long periods of time when the hybrid system is not operating.■
Sounds and vibrations spec ific to a hybrid vehicle
 P. 7 9 ■
Electronic key battery depletion
 P. 1 3 4 ■
When the ambient temperature is low, such as during winter driving conditions
When starting the hybrid system, the flas hing time of the “READY” indicator may be
long. Leave the vehicle as it is until the “REA DY” indicator is steady on, as steady means
the vehicle is able to move. ■
Conditions affe cting operation
 P. 1 6 0 ■
Note for the entry function
 P. 1 6 1 ■
If the hybrid system does not start ●
The immobilizer system may no t have been deactivated. (  P. 8 5 )
Contact your Lexus dealer. ●
Check that the shift lever is se curely set in P. The hybrid sy stem may not start if the shift
lever is displaced out of P. “To Start Vehicle, Put Shift Lever into P” will be displayed on
the multi-information display.When stopping the hybrid system with the shift lever in a position other
than P 1
2
3
4

2354-2. Driving procedures
4
Driving
RX450h_U_OM0E013U ■
Steering lock
After turning the power switch off and opening and closing the doors, the steering wheel
will be locked due to the stee ring lock function. Operating the power switch again auto-
matically cancels the steering lock. ■
When the steering lock cannot be released
■
Steering lock motor overheating prevention
To prevent the steering lock motor from over heating, operation of the motor may be sus-
pended if the hybrid system is turned on and off repeatedly in a short period of time. In
this case, refrain from operating the hybrid system. After about 10 seconds, the steering
lock motor will resume functioning. ■
When “Access System with Elec. Key Malfunction See Owner’s Manual” is displayed
on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately. ■
If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after performing the
proper procedures for starting the vehicle, contact your Lexus dealer immediately. ■
If the hybrid system is malfunctioning
 P. 8 1 ■
If the electronic key battery is depleted
 P. 5 0 6 ■
Operation of the power switch ●
When operating the power switch, one short, firm press is enough. If the switch is
pressed improperly, the hybrid system may no t start or the power switch mode may not
change. It is not necessary to press and hold the switch. ●
If attempting to restart the hybrid system immediately after turning the power switch off,
the hybrid system may not start in some cases. After turning the power switch off,
please wait a few seconds before restarting the hybrid system.■
If the smart access system with push-butto n start has been deactivated by a customized
setting
 P. 5 6 4“Steering Wheel Lock Press Power Switch while
Turning Wheel” will be displayed on the multi-
information display.
Check that the shift lever is in P. Press the power
switch while turning the steering wheel left and
right.

236 4-2. Driving procedures
RX450h_U_OM0E013U WA R N I N G ■
When starting the hybrid system
Always start the hybrid system while sittin g in the driver’s seat. Do not depress the
accelerator pedal while starting the hy brid system under any circumstances.
Doing so may cause an accident resu lting in death or serious injury.■
Caution while driving
If hybrid system failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and comp lete stop. Activation of the steering lock
in this circumstance may lead to an acci dent, resulting in death or serious injury.■
Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the vehicle, press
and hold the power switch for more than 2 se conds, or press it briefly 3 times or more
in succession. (  P. 5 2 9 )
However, do not touch the power switch whil e driving except in an emergency. Turning
the hybrid system off while driving will not cause loss of steering or braking control,
however, power assist to the steering will be lost. This will make it more difficult to steer
smoothly, so you should pull over and stop the vehicle as soon as it is safe to do so.
NOTICE ■
To prevent 12-volt battery discharge ●
Do not leave the power switch in ACCESSORY or ON mode for long periods of
time without the hybrid system on. ●
If “ACCESSORY” or “IGNITION ON” is displayed on the meters while the hybrid
system is not operating, the power switch is not off. Exit the vehicle after turning the
power switch off. ●
Do not stop the hybrid system when the shift lever is in a position other than P. If the
hybrid system is stopped in another shift lever position, the power switch will not be
turned off but instead be turned to ACCESSORY mode. If the vehicle is left in
ACCESSORY mode, 12-volt battery discharge may occur. ■
When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by your Lexus
dealer immediately. ■
Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating so mewhat differently than usual, such as the
switch sticking slightly, there may be a malf unction. Contact your Lexus dealer immedi-
ately.

2374-2. Driving procedures
4
Driving
RX450h_U_OM0E013U Turns EV drive mode on/off When EV drive mode is turned on, the
EV drive mode indicator will come on.
Pressing the switch when in EV drive
mode will return the vehicle to normal
driving (using the gasoline engine and
electric motor [traction motor]). ■
Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the following situations. If it cannot be
turned on, a buzzer will sound and a message will be shown on the multi-information dis-
play. ●
The temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds, etc. ●
The temperature of the hybrid system is low.
The vehicle has been left in temperatures lower than about 32  F (0  C) for a long
period of time, etc. ●
The gasoline engine is warming up. ●
The hybrid battery (traction battery) is low.
The remaining battery level indicated in the “Energy Monitor” display is low. (  P. 1 2 5 )●
Vehicle speed is high. ●
The accelerator pedal is depressed firm ly or the vehicle is on a hill, etc.●
The windshield defogger is in use.EV drive mode In EV drive mode, electric power is su pplied by the hybrid battery (traction
battery), and only the electric motor (tra ction motor) is used to drive the vehi-
cle.
This mode allows you to drive in residential areas early in the morning and late
at night, or in indoor parking lots, etc., without concern for noises and gas
emissions.
However, when the vehicle proximity noti fication system is active, the vehicle
may produce sound.

238 4-2. Driving procedures
RX450h_U_OM0E013U ■
Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is starte d while the gasoline engine is cold, the gasoline engine will
start automatically after a short period of time in order to warm up. In this case, you will
become unable to switch to EV drive mode.
After the hybrid system has started and the “READY” indicator has illuminated, press the
EV drive mode switch before the gasoline en gine starts to switch to EV drive mode.■
Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart in the fol-
lowing situations. When EV drive mode is canceled, a buzzer will sound, the EV drive
mode indicator will go off after flashing, an d a message is displaye d on the multi-informa-
tion display. ●
The hybrid battery (traction battery) becomes low.
The remaining battery level indicated in the “Energy Monitor” display is low. (  P. 1 2 5 )●
Vehicle speed is high. ●
The accelerator pedal is depressed firm ly or the vehicle is on a hill, etc.■
Possible driving distance when driving in EV drive mode
EV drive mode’s possible driving distance ra nges from a few hundred meters to approxi-
mately 0.6 mile (1 km). However, dependin g on vehicle conditions, there are situations
when EV drive mode cannot be used. (The distance that is possible depends on the
hybrid battery [traction battery] level and driving conditions.)■
Fuel economy
The hybrid system is designed to achieve the best possible fuel economy during normal
driving (using the gasoline engine and electric motor [traction motor]). Driving in EV
drive mode more than necessary may lower fuel economy.
WA R N I N G ■
Caution while driving
When driving in EV drive mode no engine noise is made. As such, pedestrians, people
riding bicycles or other people and vehicles in the surrounding area may not be aware
of the vehicle starting off or approaching them. Therefore, take extra care while driving
even if the vehicle proximity notification system is active.

2394-2. Driving procedures
4
Driving

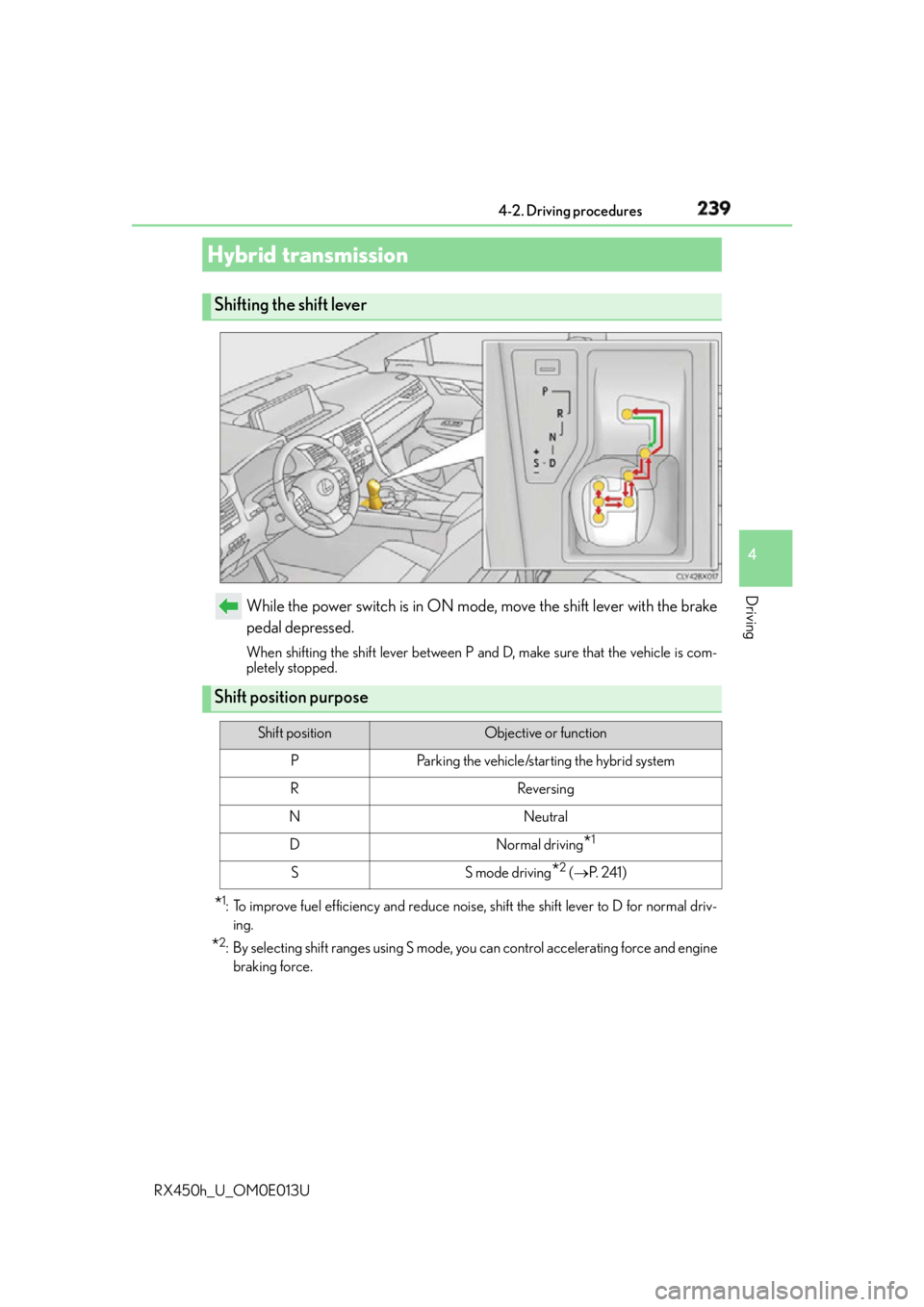

RX450h_U_OM0E013U While the power switch is in ON mode, move the shift lever with the brake
pedal depressed. When shifting the shift lever between P and D, make sure that the vehicle is com-
pletely stopped.
* 1
: To improve fuel efficiency and reduce noise, shift the shift lever to D for normal driv-
ing.
* 2
: By selecting shift ranges using S mode, yo u can control accelerating force and engine
braking force.Hybrid transmission Shifting the shift lever
Shift position purpose Shift position Objective or function
P Parking the vehicle/starting the hybrid system
R Reversing
N Neutral
D Normal driving
* 1
S S mode driving
* 2
(  P. 2 4 1 )

240 4-2. Driving procedures
RX450h_U_OM0E013U  P. 3 7 7
To drive using temporary shift range select ion, operate the “-” paddle shift switch.
Changing the shift range enables the level of engine braking force to be
selected. The shift range can then be selected by operating the “-” and “+” paddle
shift switches.
Upshifting
Downshifting The selected shift range, from D1 to D6,
will be displayed on the meters.
The initial shift range when the “-” pad-
dle shift switch is operated is automati-
cally set to D4 or D5 according to the
vehicle speed.
To return to normal D position driving,
the “+” paddle shift switch must be held
down for a period of time.■
Shift ranges and their functions ●
You can choose from 6 levels of engine braking force. ●
A lower shift range will provide greate r engine braking force than a higher
shift range, and the engine revolutions will also increase.Selecting the driving mode
Selecting shift ranges in the D position
(vehicles with paddle shift switches) 1
2
