RX450h_U_OM0E013U 8-1. Specifications
Maintenance data
(fuel, oil level, etc.)...................582
Fuel information........................... 591
Tire information ........................... 594
8-2. Customization
Customizable features ............ 607
8-3. Initialization
Items to initialize ...........................619

582
RX450h_U_OM0E013U 8-1. Spec ifications
* 1
: Unladen vehicle
* 2
: Vehicles with towing packageMaintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 192.5 in. (4890 mm)
Overall width 74 . 6 i n . ( 1 8 9 5 m m )
Overall height
* 1
67.7 in. (1720 mm)
Wheelbase 109.8 in. (2790 mm)
Tr e a d Front 64.4 in. (1635 mm)
Rear 64.0 in. (1625 mm)
Vehicle capacity weight
(Occupants + luggage) 920 lb. (420 kg)
Trailer Weight Rating
* 2

(Trailer weight + cargo weight) 3500 lb. (1588 kg)

5838-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U ■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.

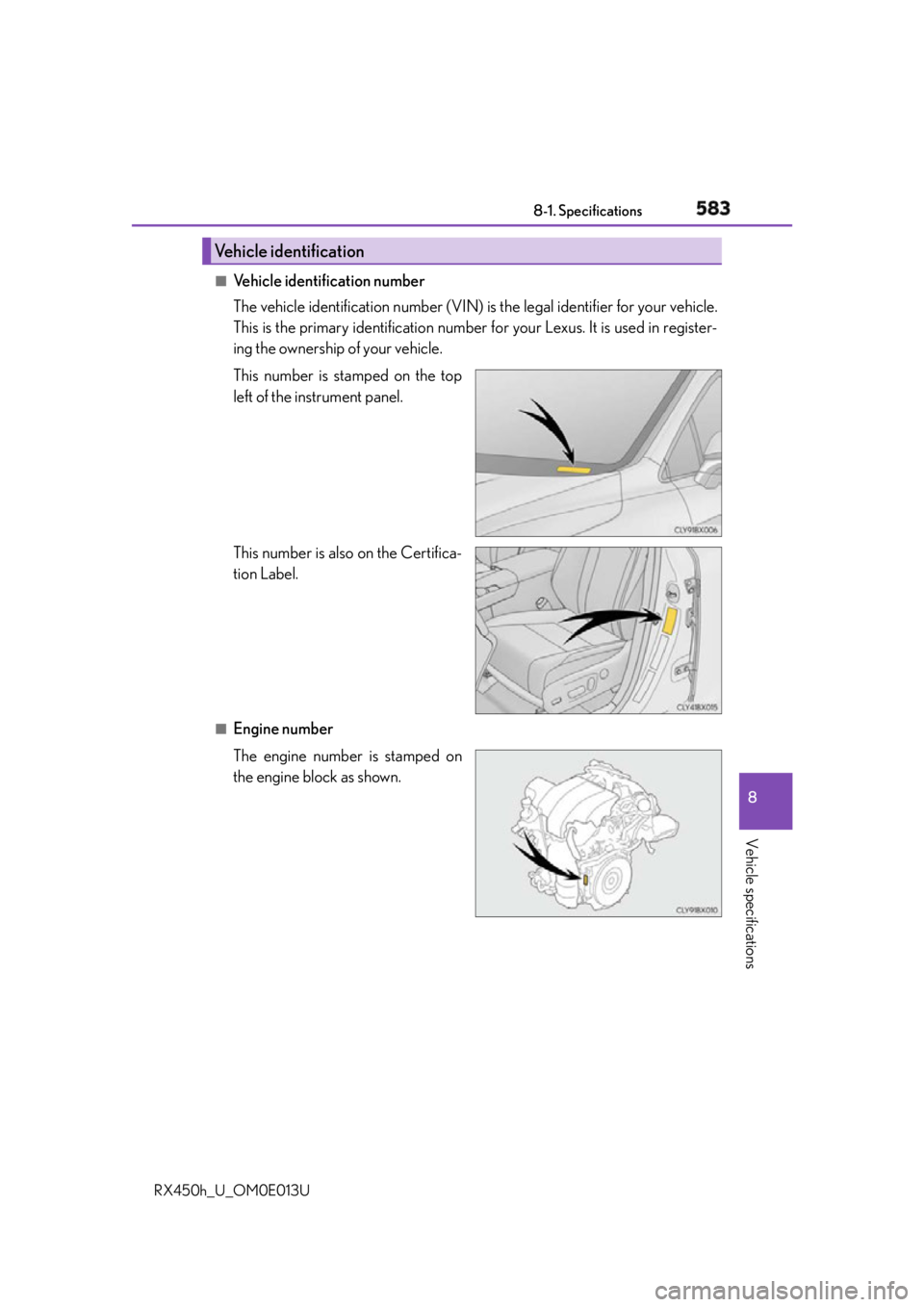

This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
■
Engine number
The engine number is stamped on
the engine block as shown.Vehicle identification

584 8-1. Specifications
RX450h_U_OM0E013U 
Front 
Rear (AWD models)Engine Model 3.5 L 6-cylinder (2GR-FXS)
Ty p e 6-cylinder V type, 4-cycle, gasoline
Bore and stroke 3.70  3.27 in. (94.0  83.0 mm)
Displacement 210.9 cu. in. (3456 cm 3
)
Valve clearance (engine cold) Automatic adjustment
Fuel Fuel type Unleaded gasoline only
Octane Rating 91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference) 17.2 gal. (65 L, 14.3 Imp. gal.)
Electric motor (traction motor) Ty p e Permanent magnet synchronous motor
Maximum output 123 kW
Maximum torque 247 ft•lbf (335 N•m, 34.2 kgf•m)
Ty p e Permanent magnet synchronous motor
Maximum output 50 kW
Maximum torque 103 ft•lbf (139 N•m, 14.2 kgf•m)

5858-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U * : The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.Hybrid battery (traction battery) Ty p e Nickel-Metal hydride battery
Vo l t a g e 9.6 V/m o d u l e
Capacity 6.5 Ah (3HR)
Quantity 30 modules
Overall voltage 288 V
Lubrication system Oil capacity
(Drain and refill — reference
* )
With filter 
Vehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp. qt.) 
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without filter 5.6 qt. (5.3 L, 4.7 Imp. qt.)

586 8-1. Specifications
RX450h_U_OM0E013U ■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20

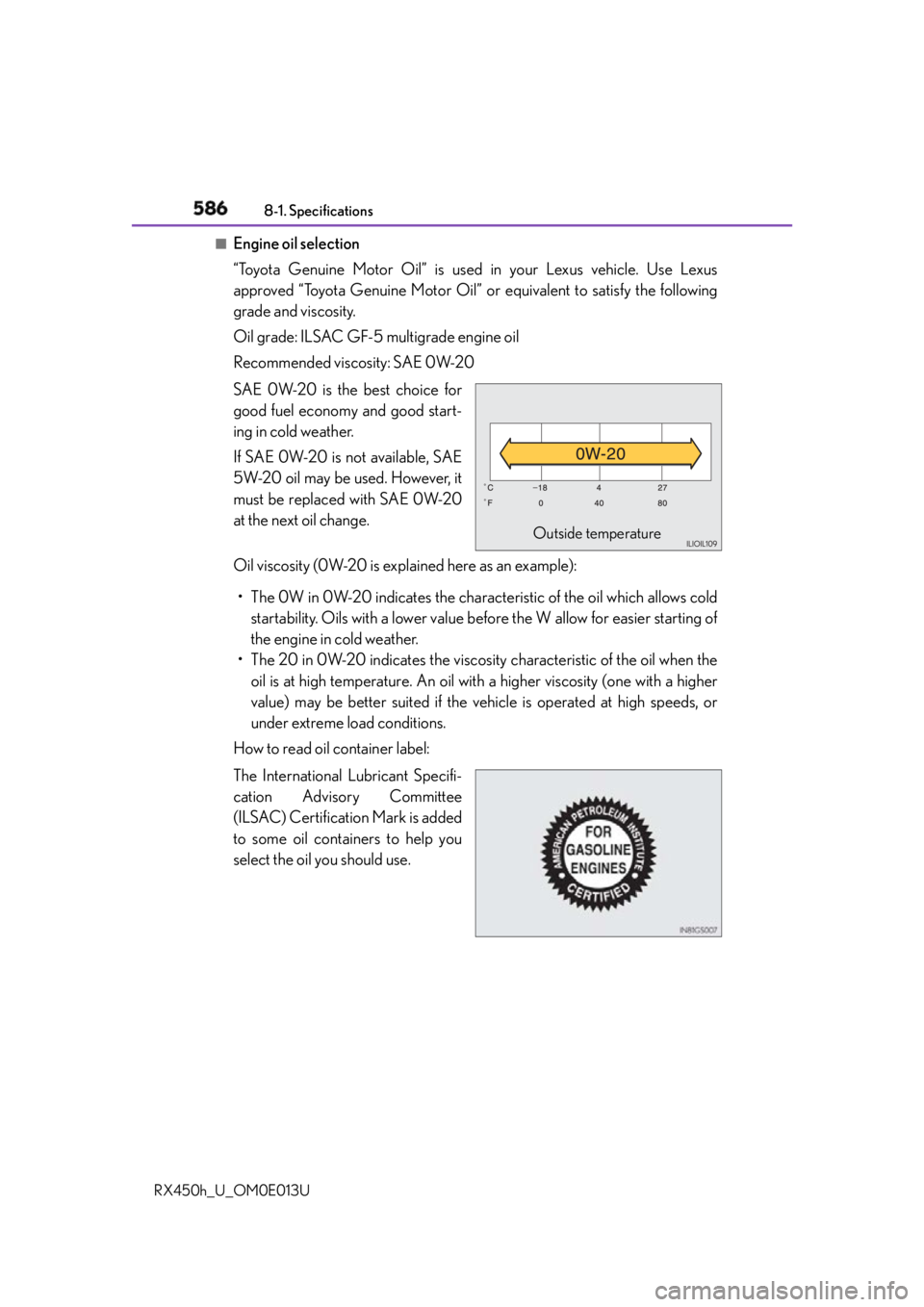

SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use. Outside temperature

5878-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U * : The coolant capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.Cooling system Capacity
* 
Gasoline engine
10.7 qt. (10.1 L, 8.9 Imp. qt.) 
Power control unit
2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug) Make DENSO FK20HBR8
Gap 0.03 in. (0.8 mm)
NOTICE ■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system 12-volt battery
Open voltage at 68  F (20  C): 12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates 5 A max.

588 8-1. Specifications
RX450h_U_OM0E013U * : The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
* : The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
* : Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50.0 kgf)

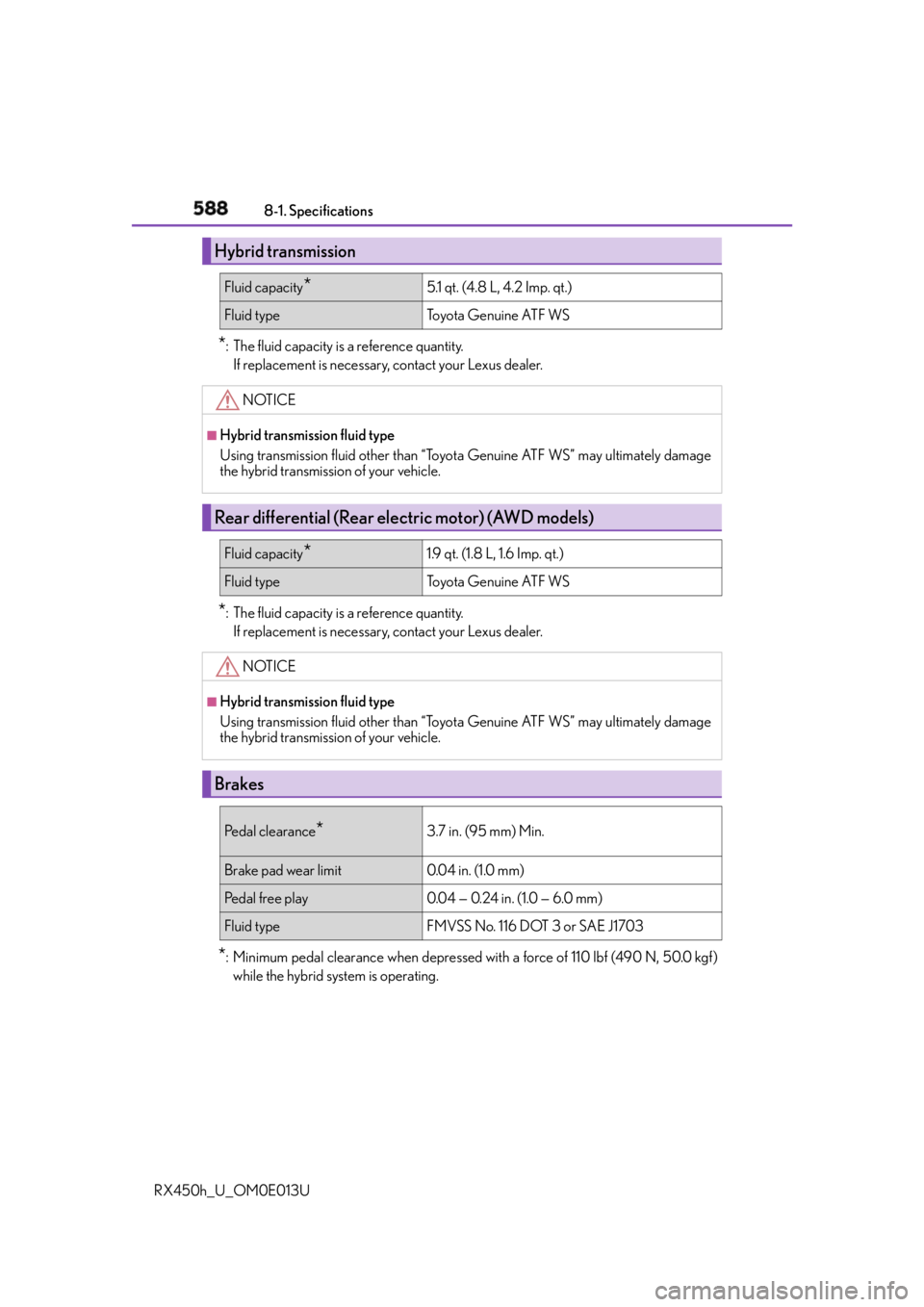

while the hybrid system is operating.Hybrid transmission Fluid capacity
* 5.1 qt. (4.8 L, 4.2 Imp. qt.)
Fluid type To y o t a G e n u i n e AT F W S
NOTICE ■
Hybrid transmission fluid type
Using transmission fluid other than “Toy ota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Rear differential (Rear electric motor) (AWD models) Fluid capacity
* 1.9 qt. (1.8 L, 1.6 Imp. qt.)
Fluid type To y o t a G e n u i n e AT F W S
NOTICE ■
Hybrid transmission fluid type
Using transmission fluid other than “Toy ota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Brakes Pe d a l c l e a r a n c e
* 3.7 in. (95 mm) Min.
Brake pad wear limit 0.04 in. (1.0 mm)
Pedal free play 0.04 — 0.24 in. (1.0 — 6.0 mm)
Fluid type FMVSS No. 116 DOT 3 or SAE J1703

5898-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U 
Ty p e A 
Ty p e BSteering Free play Less than 1.2 in. (30 mm)
Tires and wheels Ti r e s i z e 235/65R18 106V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 5 psi (30 kPa, 0.3 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressure indicated on the tire
sidewall.
Wheel size 18  8 J, 18  4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z e 235/55R20 102V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm 2
or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm 2
or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 11 psi (70 kPa, 0.7 kgf/cm 2
or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressure indicated on the tire
sidewall.
Wheel size 20  8 J, 18  4 T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)

590 8-1. Specifications

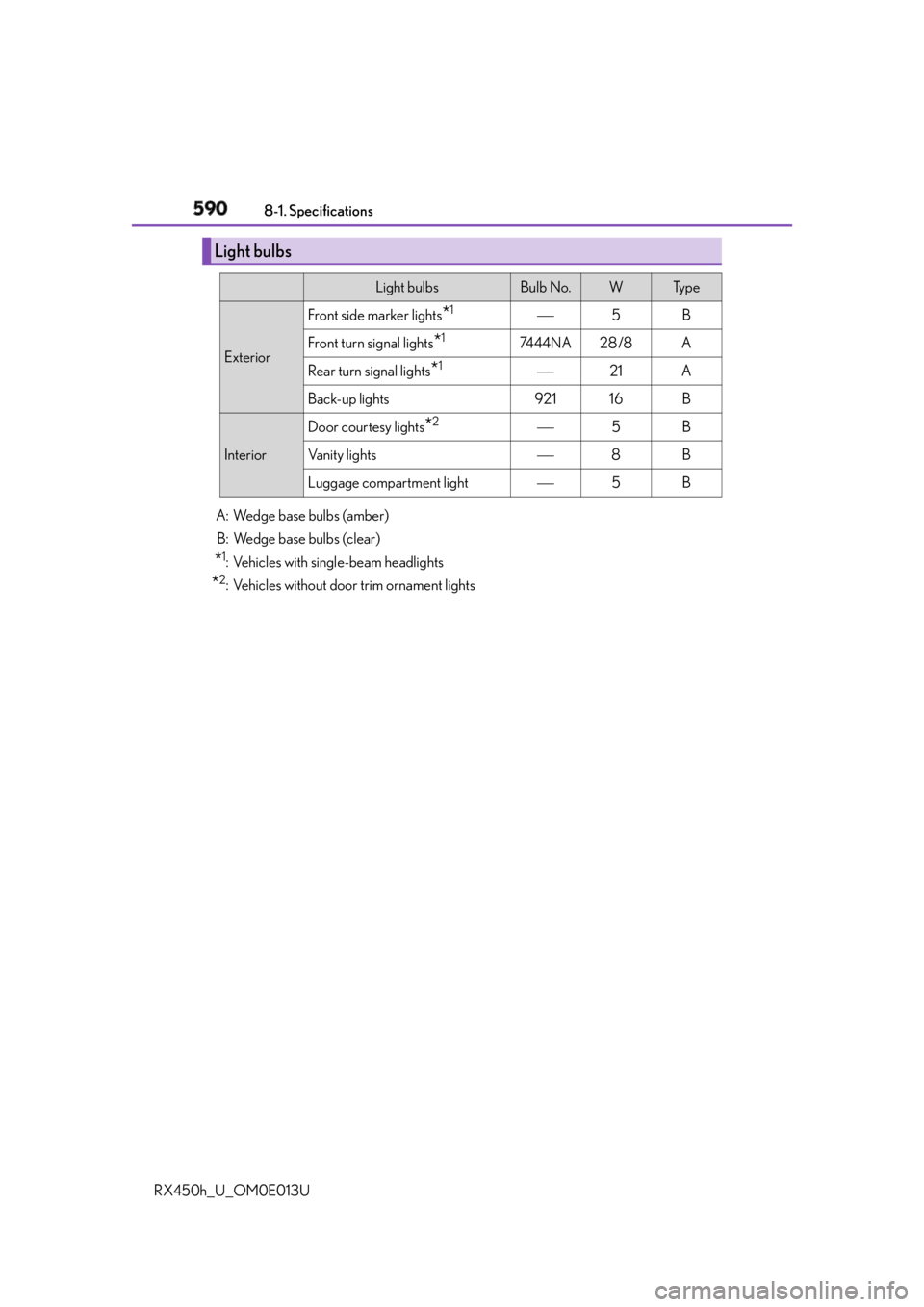

RX450h_U_OM0E013U Light bulbs Light bulbs Bulb No. W Ty p e
Exterior Front side marker lights
* 1
 5 B
Front turn signal lights
* 1
74 4 4 N A 28 /8 A
Rear turn signal lights
* 1
 21 A
Back-up lights 921 16 B
Interior Door courtesy lights
* 2
 5 B
Vanity lights  8 B
Luggage compartment light  5 B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
* 1
: Vehicles with single-beam headlights
* 2
: Vehicles without door trim ornament lights
