5517-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U WA R N I N G ■
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury. ●
Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains. ●
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle. ●
Put the jack properly in its jack point. ●
Do not put any part of your body under the vehicle while it is supported by the jack.●
Do not start the hybrid system or drive the vehicle while the vehicle is supported by
the jack. ●
Do not raise the vehicle while someone is inside. ●
When raising the vehicle, do not pu t an object on or under the jack.●
Do not raise the vehicle to a height greater than that required to replace the tire. ●
Use a jack stand if it is necessary to get under the vehicle. ●
When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.

552 7-2. Steps to take in an emergency
RX450h_U_OM0E013U When replacing tires on a vehicle with wheel lock nuts, use the following proce-
dures to remove and install the wheel lock nuts. The wheel lock key is stored in
the tray inside the luggage compartment. Always return the wheel lock key to its
original position after use, so that it does not get lost.■
Removal
For ease of removal, the wheel lock nut should always be the first one loos-
ened.
Place the wheel lock key on top of the wheel lock nut, turning until the
wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while applying pres-
sure on the wheel lock key, loosen the wheel lock nut.■
Installation
For ease of installation, the wheel lock nut should always be the last one tight-
ened.
By hand, install a wheel lock nut on each wheel.
Place the wheel lock key on top of the wheel lock nut, turning until the
wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while applying pres-
sure on the wheel lock key, tighten the wheel lock nut to the recommended
torque.Wheel lock nut (if equipped)
NOTICE
Do not use an impact wrench. Using an impact wrench may cause permanent damage
to wheel lock nut and wheel lock key. If in doubt about wheel lock application, contact
your Lexus dealer. 1
2
1
2
3

5537-2. Steps to take in an emergency
7
When trouble arises

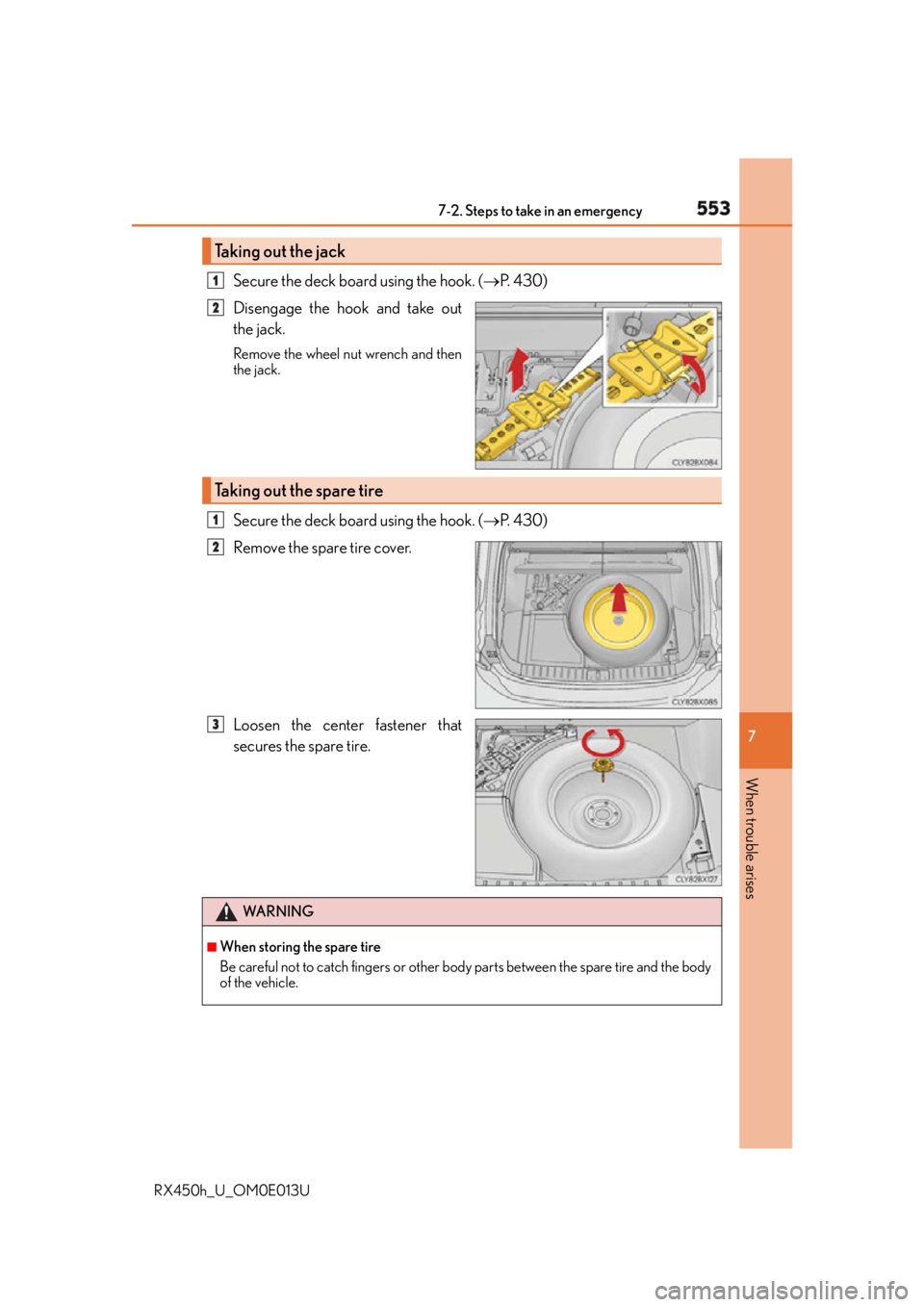

RX450h_U_OM0E013U Secure the deck board using the hook. (  P. 4 3 0 )
Disengage the hook and take out
the jack. Remove the wheel nut wrench and then
the jack.
Secure the deck board using the hook. (  P. 4 3 0 )
Remove the spare tire cover.
Loosen the center fastener that
secures the spare tire.Taking out the jack 1
2
Taking out the spare tire 1
2
3
WA R N I N G ■
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

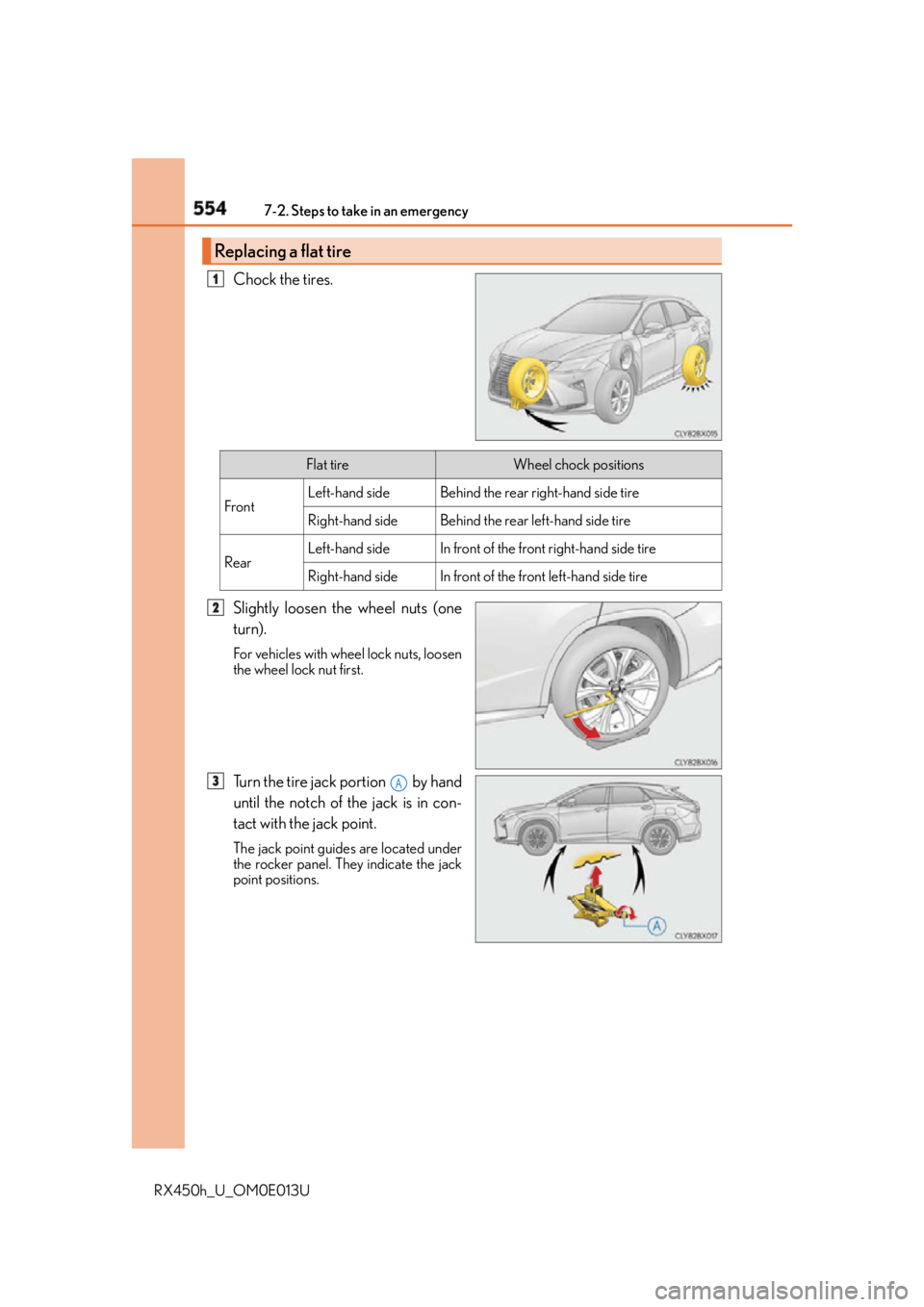

554 7-2. Steps to take in an emergency
RX450h_U_OM0E013U Chock the tires.
Slightly loosen the wheel nuts (one
turn). For vehicles with wheel lock nuts, loosen
the wheel lock nut first.
Turn the tire jack portion by hand
until the notch of the jack is in con-
tact with the jack point. The jack point guides are located under
the rocker panel. They indicate the jack
point positions.Replacing a flat tire 1
Flat tire Wheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire2
3
A

5557-2. Steps to take in an emergency
7
When trouble arises

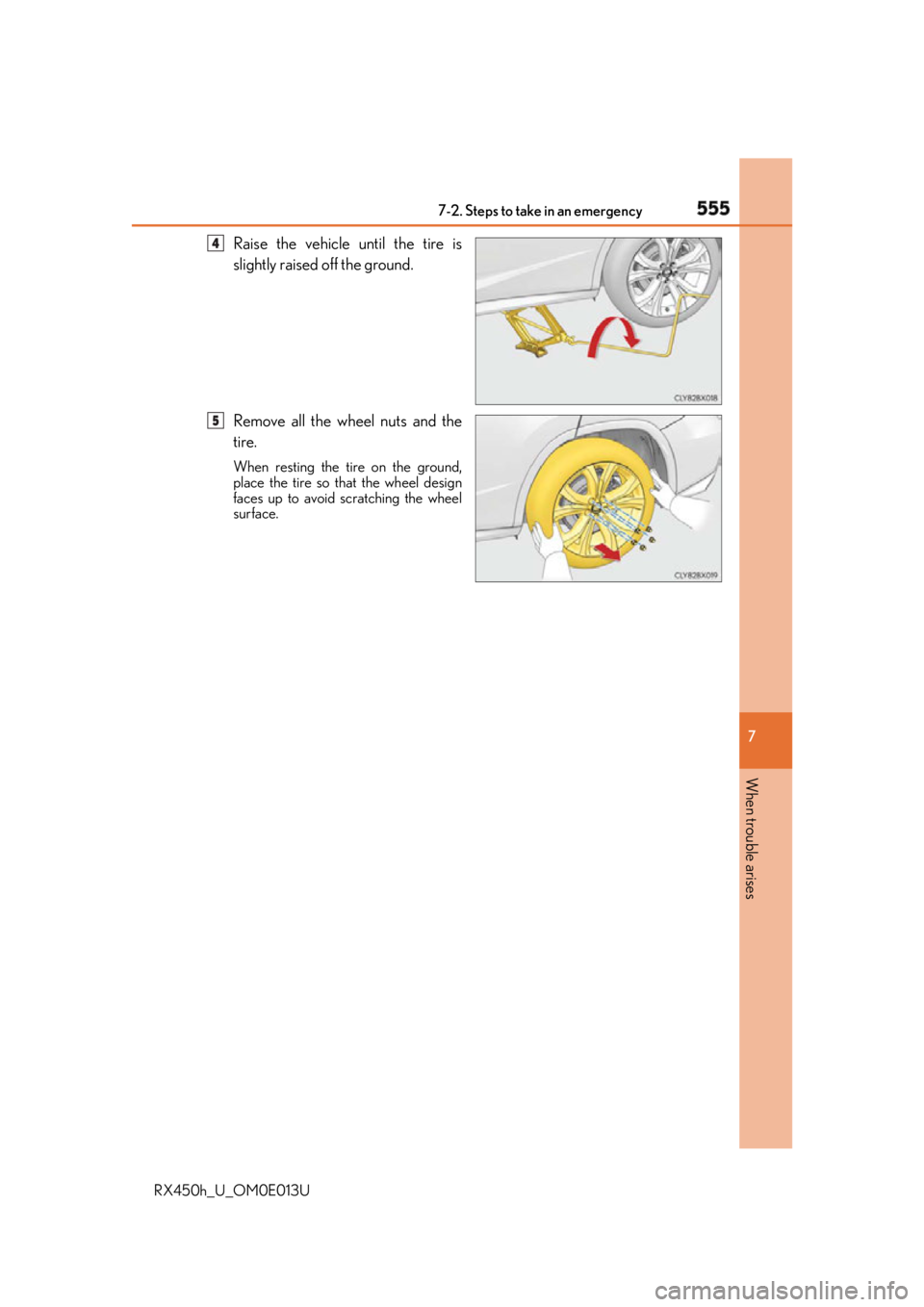

RX450h_U_OM0E013U Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire. When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface. 4
5

556 7-2. Steps to take in an emergency
RX450h_U_OM0E013U WA R N I N G ■
When holding a tire with Selectable Color Trim (if equipped)
■
Replacing a flat tire ●
Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will
be extremely hot. Touching these areas with hands, feet or other body parts while
changing a tire, etc. may result in burns. ●
Failure to follow these precautions could cause the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m,
10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes
of the wheel, have the vehicle inspected by your Lexus dealer.■
Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires, make sure to turn off the power back door main
switch (  P. 112). Failure to do so may cause the back door to operate unintentionally if
the power back door switch is accidentally touched, resulting in hands and fingers
being caught and injured.Do not hold the tire by the Selectable Color
Trim. Otherwise, the Selectable Color Trim
may be damaged or may fall off causing the tire
to drop, possibly causing injury.

5577-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U Remove any dirt or foreign matter
from the wheel contact surface. If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount. Tighten the wheel nuts until the tapered
portion comes into loose contact with
the disc wheel seat.
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration. For vehicles with wheel lock nuts,
tighten the wheel lock nut last
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.Installing the spare tire 1
Disc wheel
seatTapered portion2
3
4
5

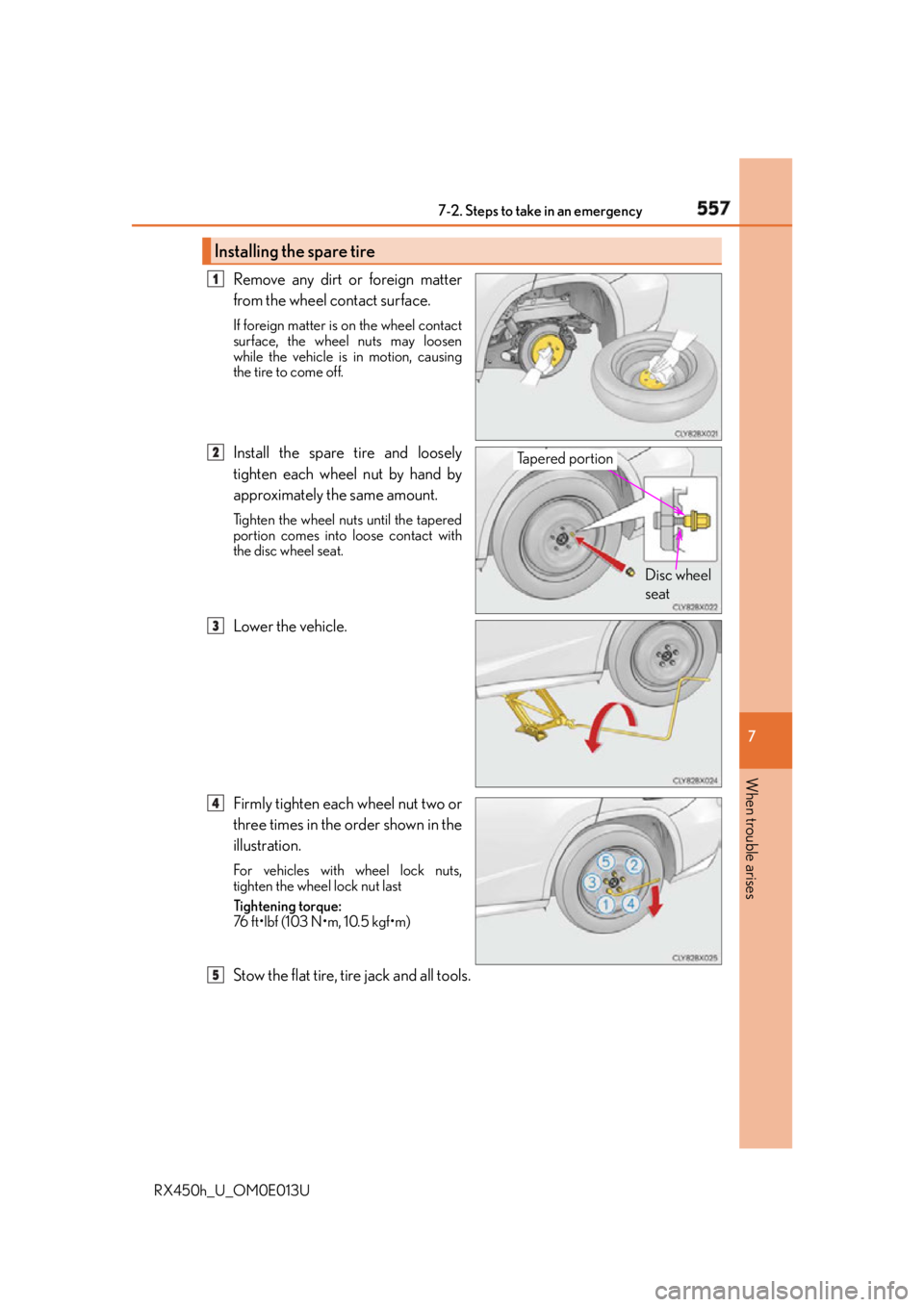

558 7-2. Steps to take in an emergency
RX450h_U_OM0E013U ■
The compact spare tire ●
The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency. ●
Make sure to check the tire inflation pressure of the compact spare tire. (  P. 5 8 9 )■
When using the compact spare tire
As the compact spare tire is not equipped wi th a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare ti re will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, th e light remains on.■
When the compact spare tire is equipped
When driving with the compact spare tire inst alled, the vehicle height will be different
than when driving with standard tires. ■
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires. 1
2
3

5597-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U WA R N I N G ■
When using the compact spare tire ●
Remember that the compact spare tire provid ed is specifically designed for use with
your vehicle. Do not use your compact spare tire on another vehicle. ●
Do not use more than one compact spare tire simultaneously. ●
Replace the compact spare tire with a standard tire as soon as possible.●
Avoid sudden acceleration, ab rupt steering, sudden bra king and shifting operations
that cause sudden engine braking. ■
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively
affect the drive-train components:
•E-Four (AWD models) ■
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.■
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.• ABS & Brake assist
•VSC
•TRAC
•EPS
• Trailer Sway Control
•VDIM
• Adaptive Variable Suspension System
(if equipped)
• Cruise control (if equipped)
• Dynamic radar cruise control (if
equipped)
• Dynamic radar cruise control with full-
speed range (if equipped)
• PCS (Pre-Collision System) (if
equipped) • LDA (Lane Departure Alert with
steering control) (if equipped)
• LKA (Lane-Keeping Assist) (if
equipped)
• Automatic High Beam (if equipped)
• AFS (Adaptive Front-lighting System)
(if equipped)
• Tire pressure warning system
• Intuitive parking assist
• Lexus parking assist monitor (if
equipped)
• Panoramic view monitor (if equipped)
• BSM (Blind Spot Monitor)
• Navigation system

560 7-2. Steps to take in an emergency
RX450h_U_OM0E013U NOTICE ■
Be careful when driving over bumps with the compact spare tire installed on the vehi-
cle
When driving with the compact spare tire inst alled, the vehicle height will be different
than when driving with standard tires. Be careful when driving over uneven road sur-
faces, etc. ■
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.■
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter
may be damaged if not handled correctly.
