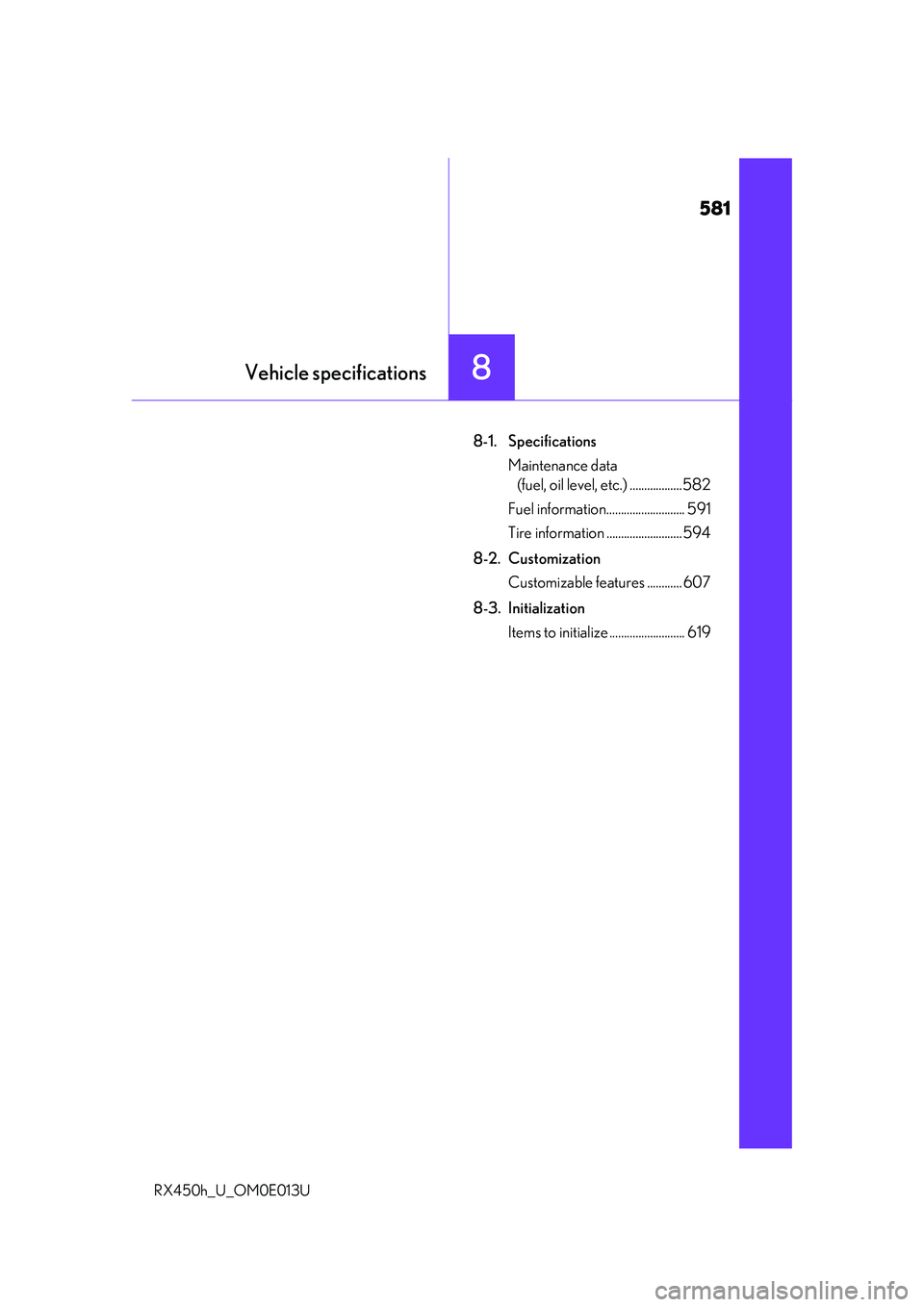

LEXUS RX450H 2016 Owners Manual

581
8Vehicle specifications
RX450h_U_OM0E013U
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) ..................582
Fuel information........................... 591
Tire information .......................... 594
8-2. Customization Customizable features ............ 607
8-3. Initialization Items to initialize .......................... 619

582
RX450h_U_OM0E013U8-1. Specifications
*1:Unladen vehicle
*2: Vehicles with towing package

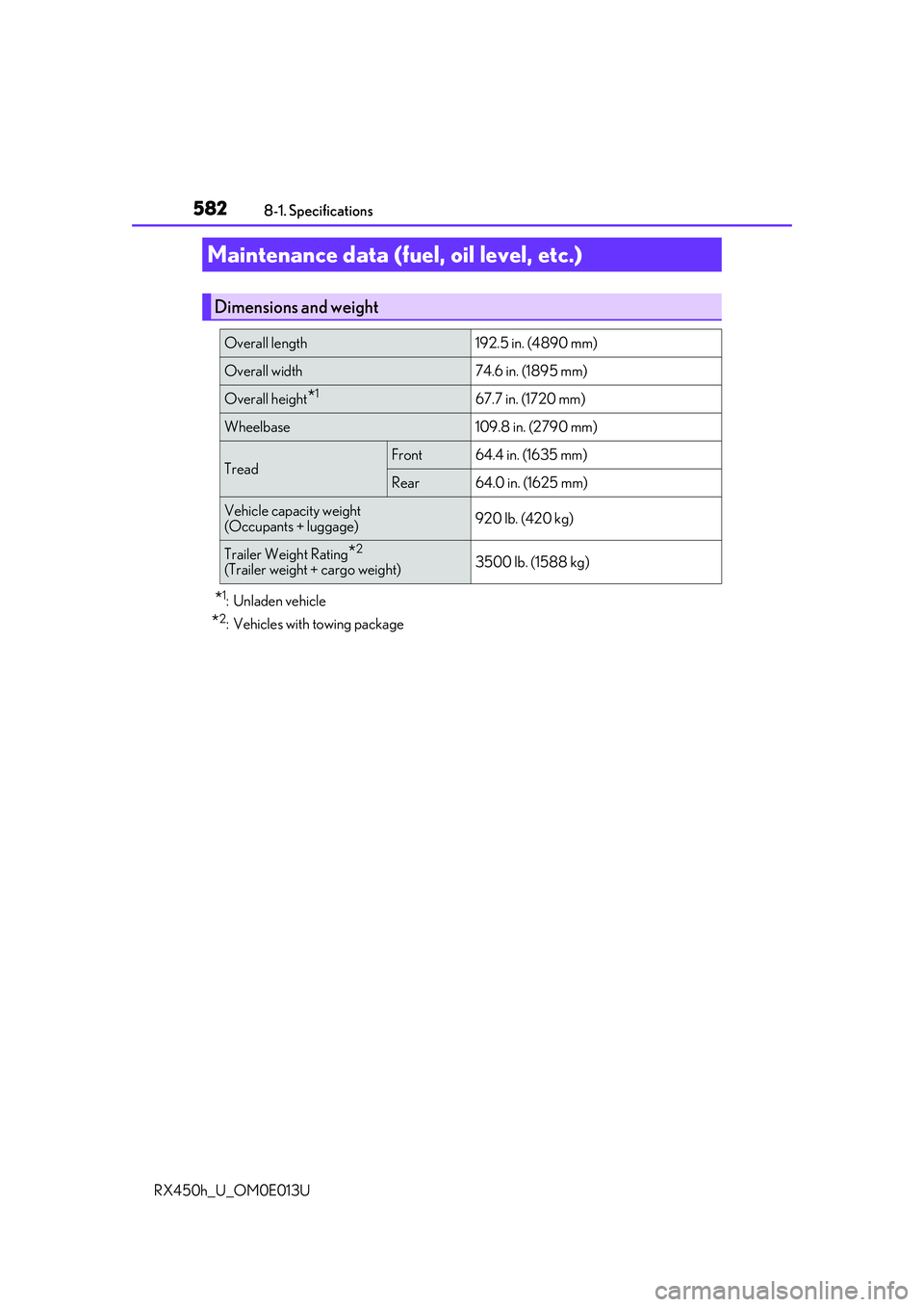

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length192.5 in. (4890 mm)
Overall width74.6 in. (1895 mm)
Overall height*167.7 in. (1720 mm)
Wheelbase109.8 in. (2790 mm)
TreadFront64.4 in. (1635 mm)
Rear64.0 in. (1625 mm)
Vehicle capacity weight
(Occupants + luggage)920 lb. (420 kg)
Trailer Weight Rating*2
(Trailer weight + cargo weight)3500 lb. (1588 kg)

5838-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U

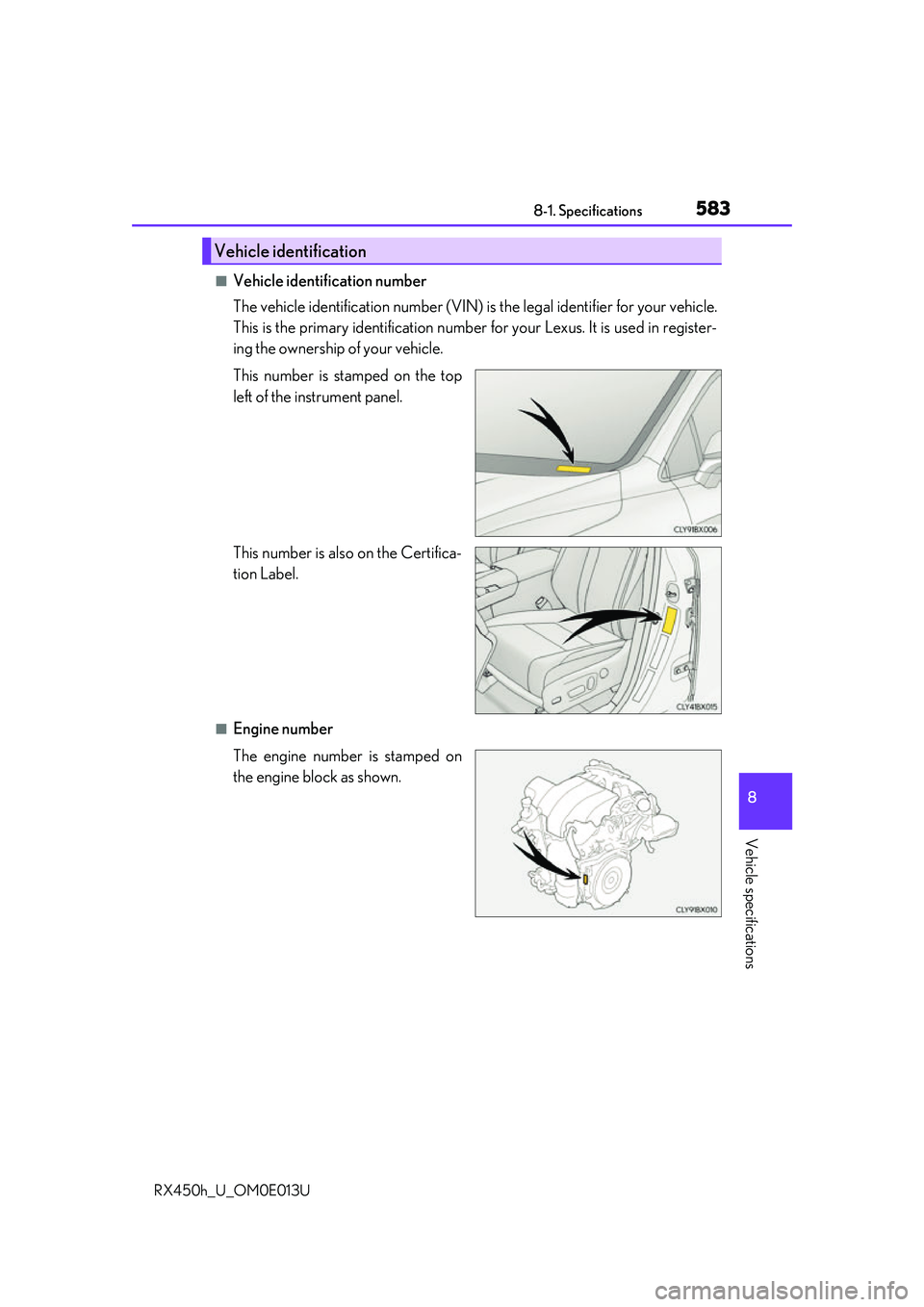

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certifica-
tion Label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

5848-1. Specifications
RX450h_U_OM0E013U
Front
Rear (AWD models)

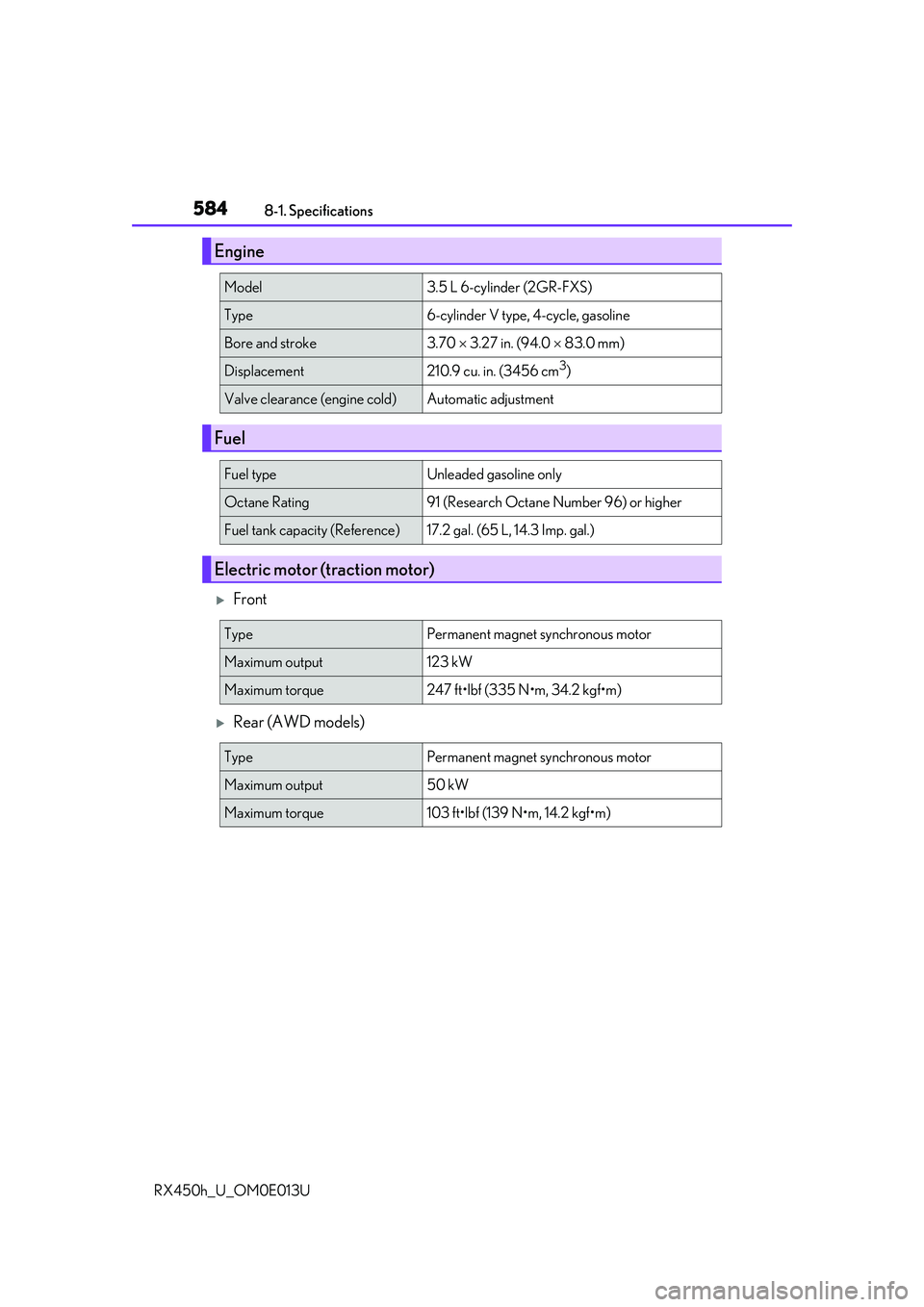

Engine
Model3.5 L 6-cylinder (2GR-FXS)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Valve clearance (engine cold)Automatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity (Reference)17.2 gal. (65 L, 14.3 Imp. gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output123 kW
Maximum torque247 ft•lbf (335 N•m, 34.2 kgf•m)
TypePermanent magnet synchronous motor
Maximum output50 kW
Maximum torque103 ft•lbf (139 N•m, 14.2 kgf•m)

5858-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage9.6 V/module
Capacity6.5 Ah (3HR)
Quantity30 modules
Overall voltage288 V
Lubrication system
Oil capacity
(Drain and refill — reference
*)
With filterVehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without filter5.6 qt. (5.3 L, 4.7 Imp. qt.)

5868-1. Specifications
RX450h_U_OM0E013U

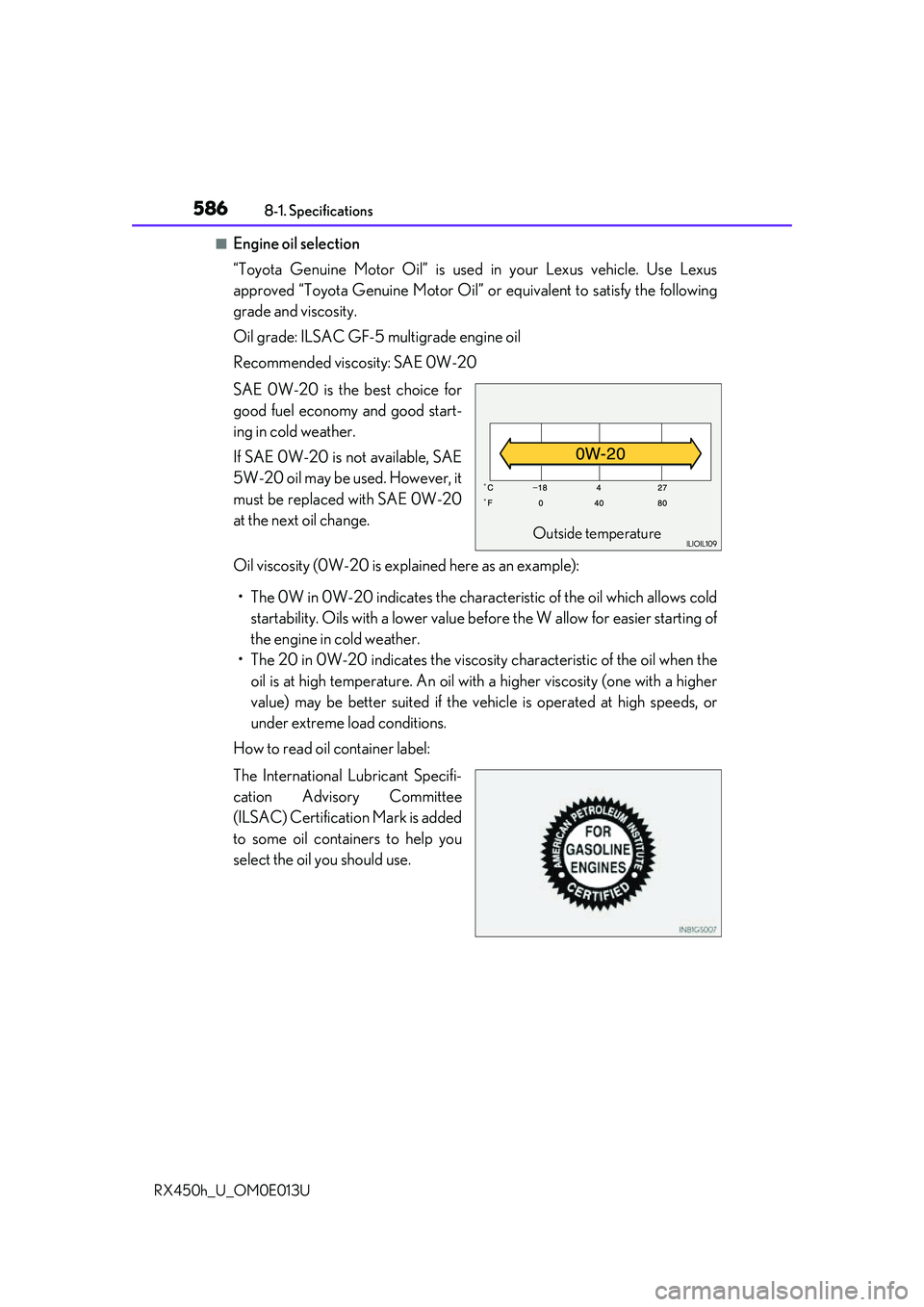

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value be fore the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

5878-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U
*: The coolant capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
Cooling system
Capacity*
Gasoline engine
10.7 qt. (10.1 L, 8.9 Imp. qt.)
Power control unit
2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FK20HBR8
Gap0.03 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage at 68F (20 C):
12.6 V or higher: Fully charged
12.2 — 12.4 V: Half charged
12.0 V or lower: Discharged
(Voltage is checked 20 minutes after the hybrid
system and all lights are turned off.)
Charging rates5 A max.

5888-1. Specifications
RX450h_U_OM0E013U
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer.
*: Minimum pedal clearance when depressed wi th a force of 110 lbf (490 N, 50.0 kgf)
while the hybrid system is operating.

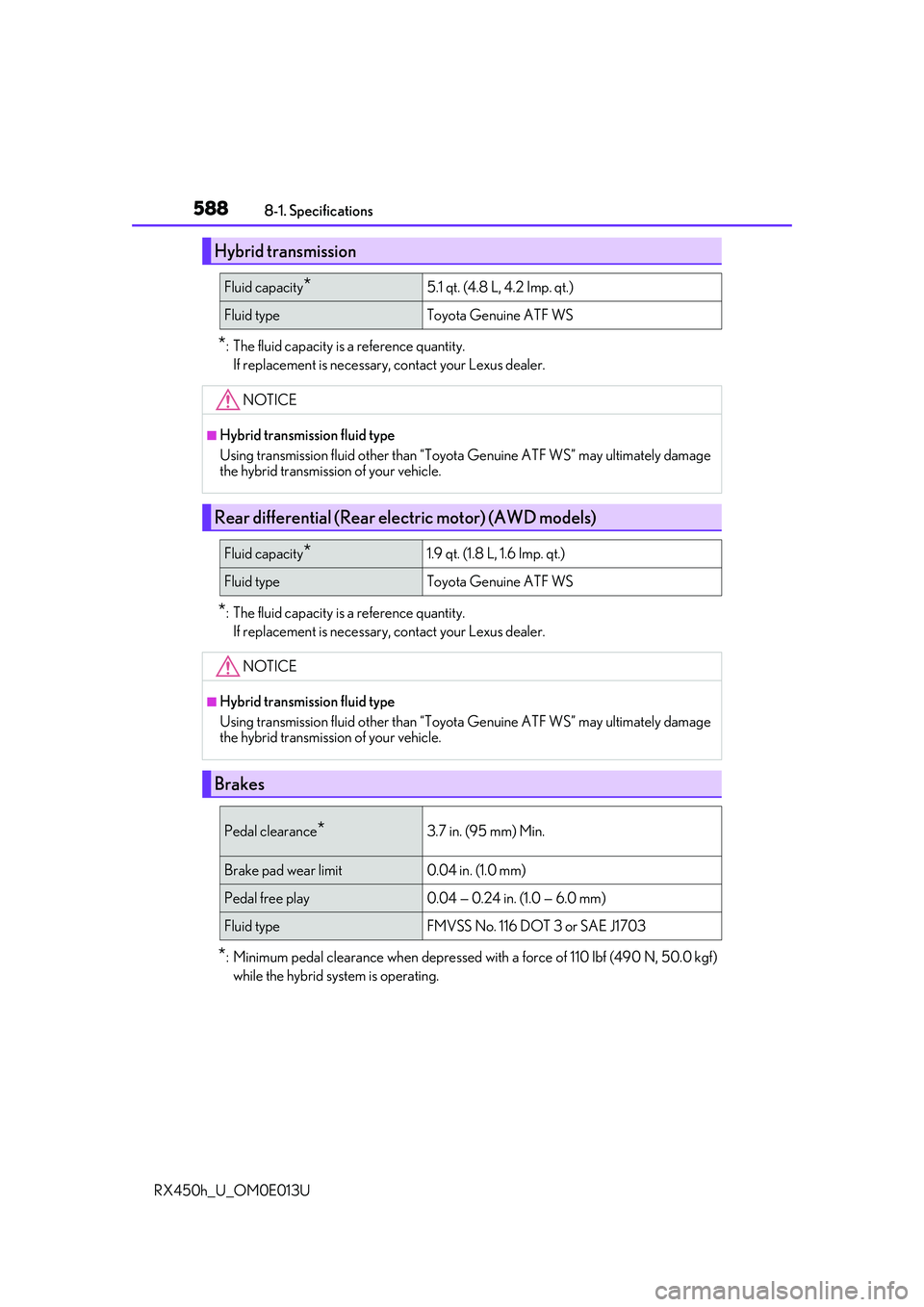

Hybrid transmission
Fluid capacity*5.1 qt. (4.8 L, 4.2 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid ot her than “Toyota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Rear differential (Rear electric motor) (AWD models)
Fluid capacity*1.9 qt. (1.8 L, 1.6 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid ot her than “Toyota Genuine ATF WS” may ultimately damage
the hybrid transmission of your vehicle.
Brakes
Pedal clearance*3.7 in. (95 mm) Min.
Brake pad wear limit0.04 in. (1.0 mm)
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703

5898-1. Specifications
8
Vehicle specifications
RX450h_U_OM0E013U
Type A
Type B

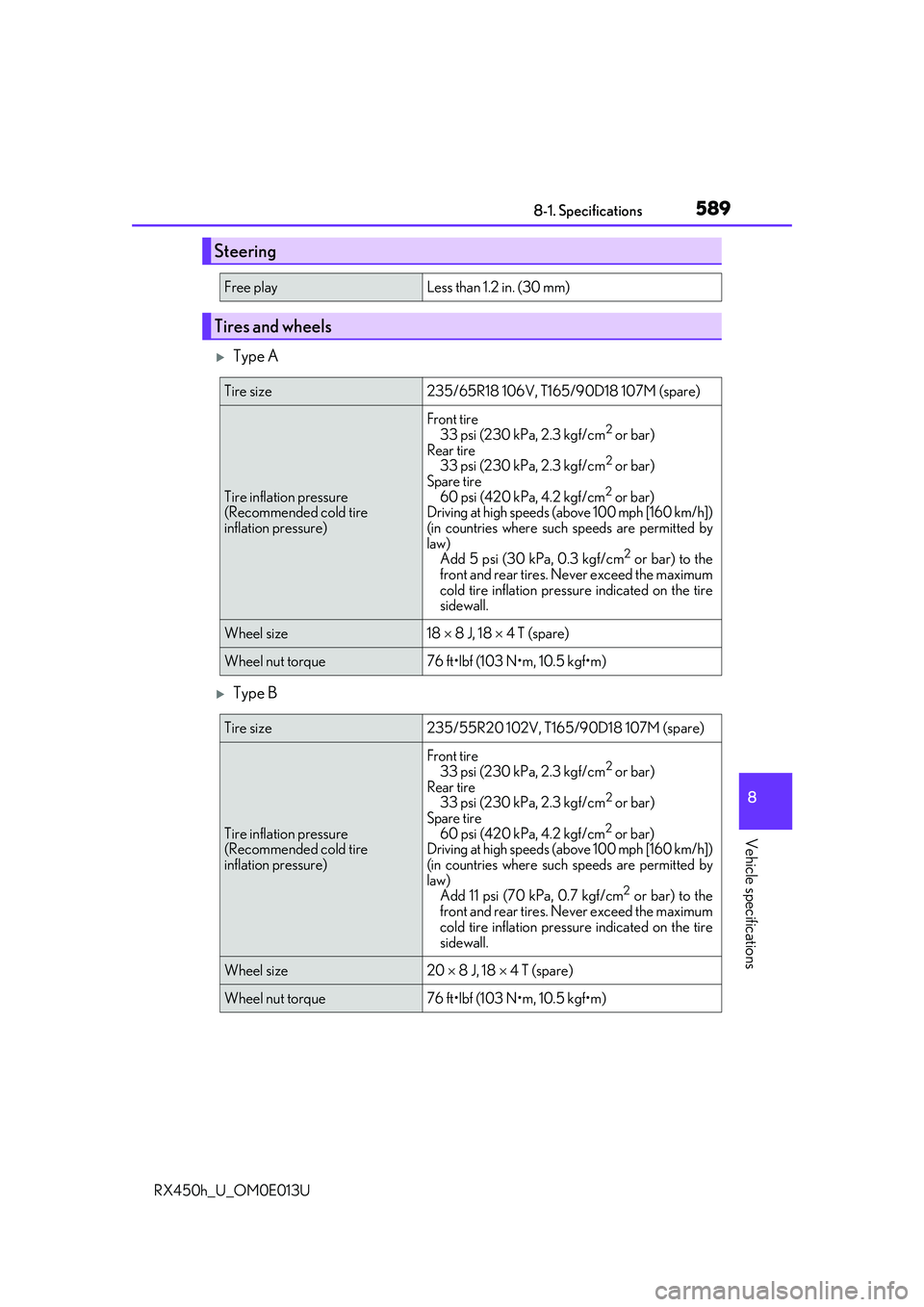

Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/65R18 106V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)Spare tire
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 5 psi (30 kPa, 0.3 kgf/cm2 or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressu re indicated on the tire
sidewall.
Wheel size18  8 J, 18  4 T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size235/55R20 102V, T165/90D18 107M (spare)
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear tire33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Spare tire
60 psi (420 kPa, 4.2 kgf/cm2 or bar)Driving at high speeds (above 100 mph [160 km/h])
(in countries where such speeds are permitted by
law)
Add 11 psi (70 kPa, 0.7 kgf/cm2 or bar) to the
front and rear tires. Never exceed the maximum
cold tire inflation pressu re indicated on the tire
sidewall.
Wheel size20  8 J, 18  4 T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

5908-1. Specifications
RX450h_U_OM0E013U

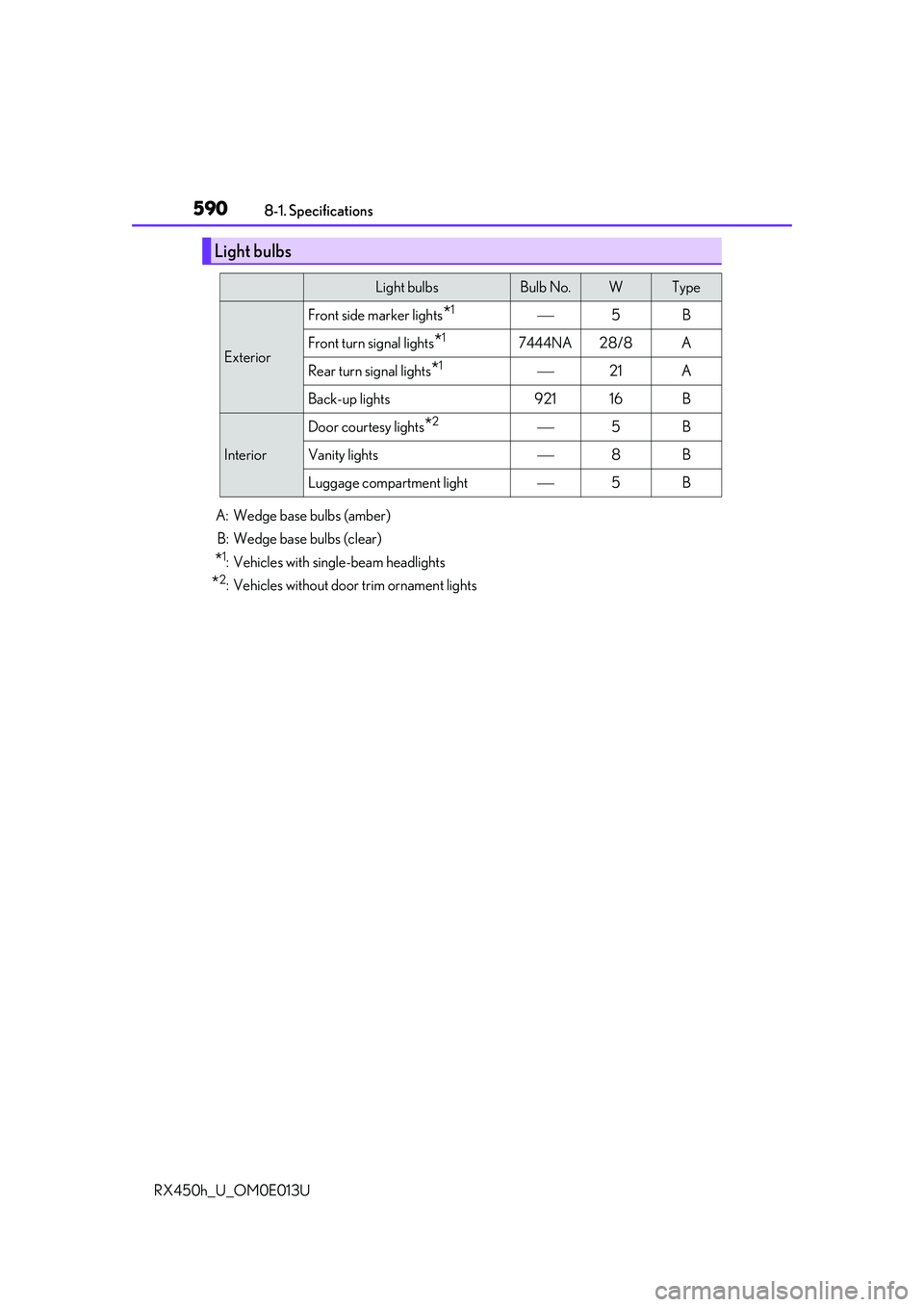

Light bulbs
Light bulbsBulb No.WType
Exterior
Front side marker lights*15B
Front turn signal lights*17444NA28/8A
Rear turn signal lights*121A
Back-up lights92116B
Interior
Door courtesy lights*25B
Vanity lights8B
Luggage compartment light5B
A: Wedge base bulbs (amber) B: Wedge base bulbs (clear)
*1: Vehicles with single-beam headlights
*2: Vehicles without door trim ornament lights
