LEXUS RX450H 2016 Owners Manual

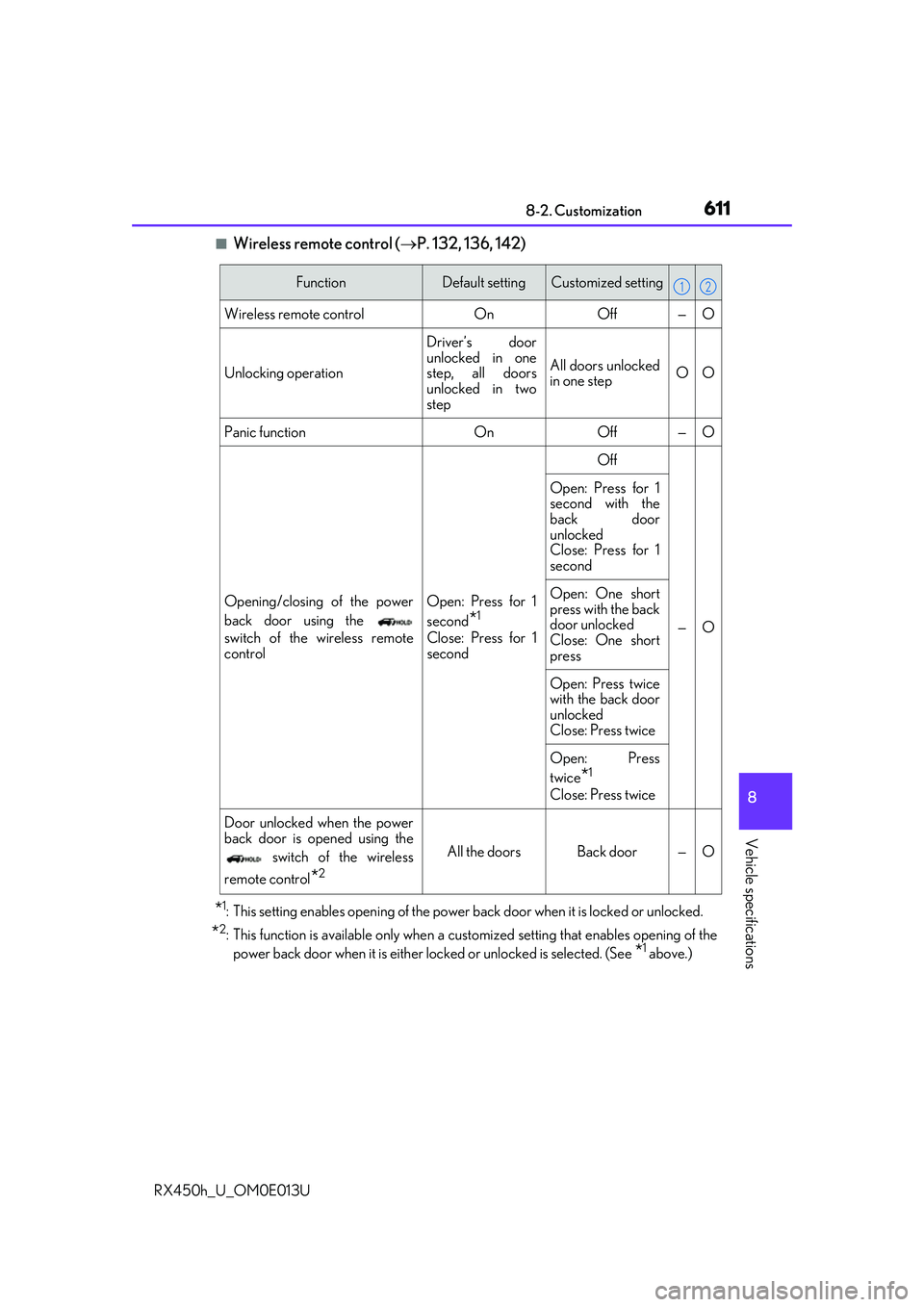

6118-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Wireless remote control (P. 132, 136, 142)
*1: This setting enables opening of the power back door when it is locked or unlocked.
*2: This function is available only when a customized setting that enables opening of the
power back door when it is either locked or unlocked is selected. (See
*1 above.)
FunctionDefault settingCustomized setting
Wireless remote control OnOff — O
Unlocking operation Driver’s door
unlocked in one
step, all doors
unlocked in two
stepAll doors unlocked
in one step
OO
Panic function OnOff — O
Opening/closing of the power
back door using the
switch of the wireless remote
control Open: Press for 1
second
*1
Close: Press for 1
secondOff
—O
Open: Press for 1
second with the
back door
unlocked
Close: Press for 1
second
Open: One short
press with the back
door unlocked
Close: One short
press
Open: Press twice
with the back door
unlocked
Close: Press twice
Open: Press
twice
*1
Close: Press twice
Door unlocked when the power
back door is opened using the switch of the wireless
remote control
*2
All the doors Back door — O
12

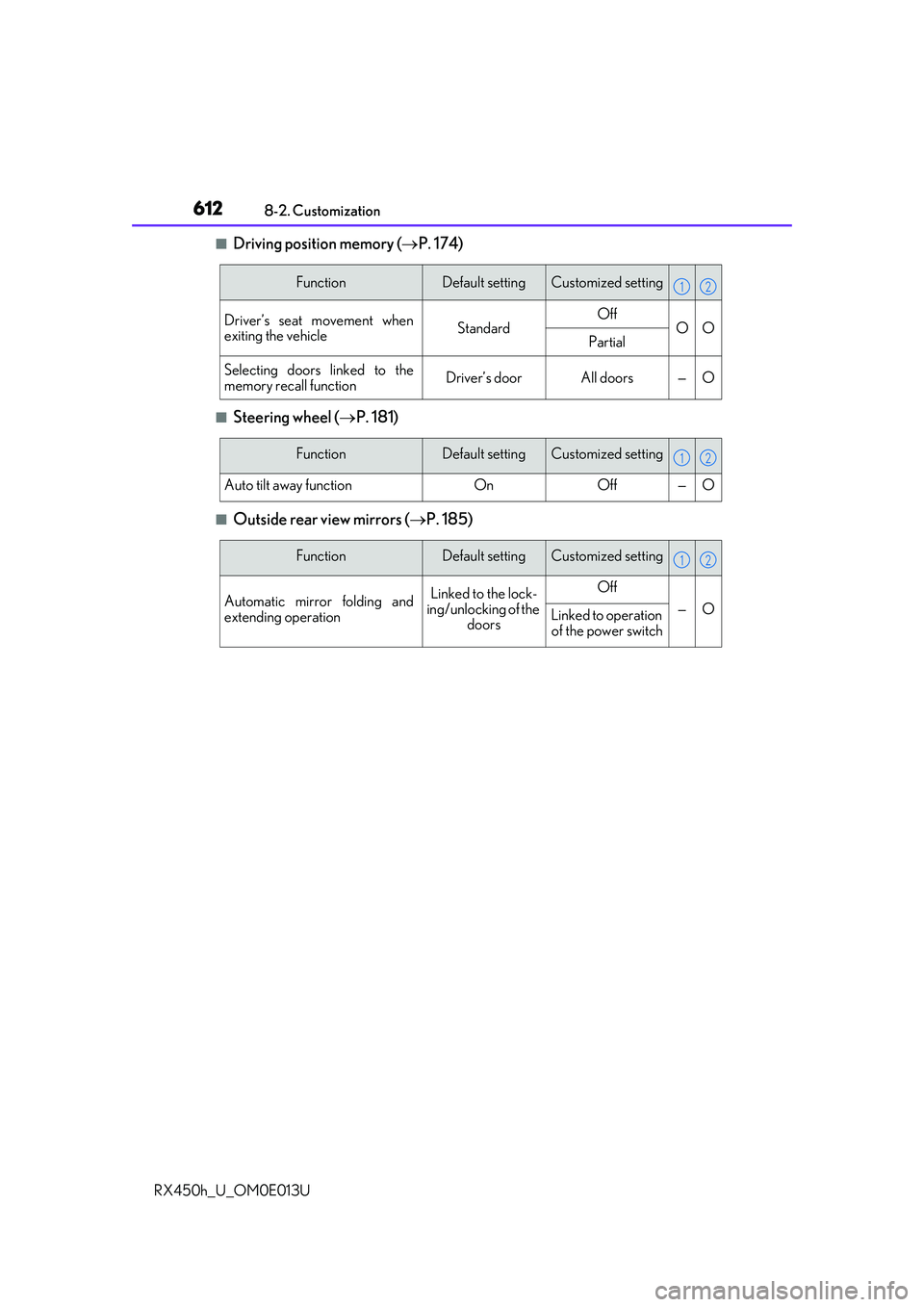

6128-2. Customization
RX450h_U_OM0E013U
■Driving position memory ( P. 174)
■Steering wheel ( P. 181)
■Outside rear view mirrors ( P. 185)
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffOOPartial
Selecting doors linked to the
memory recall functionDriver’s doorAll doors—O
12
FunctionDefault settingCustomized setting
Auto tilt away functionOnOff—O
12
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operationLinked to the lock-
ing/unlocking of the
doorsOff
—OLinked to operation of the power switch
12

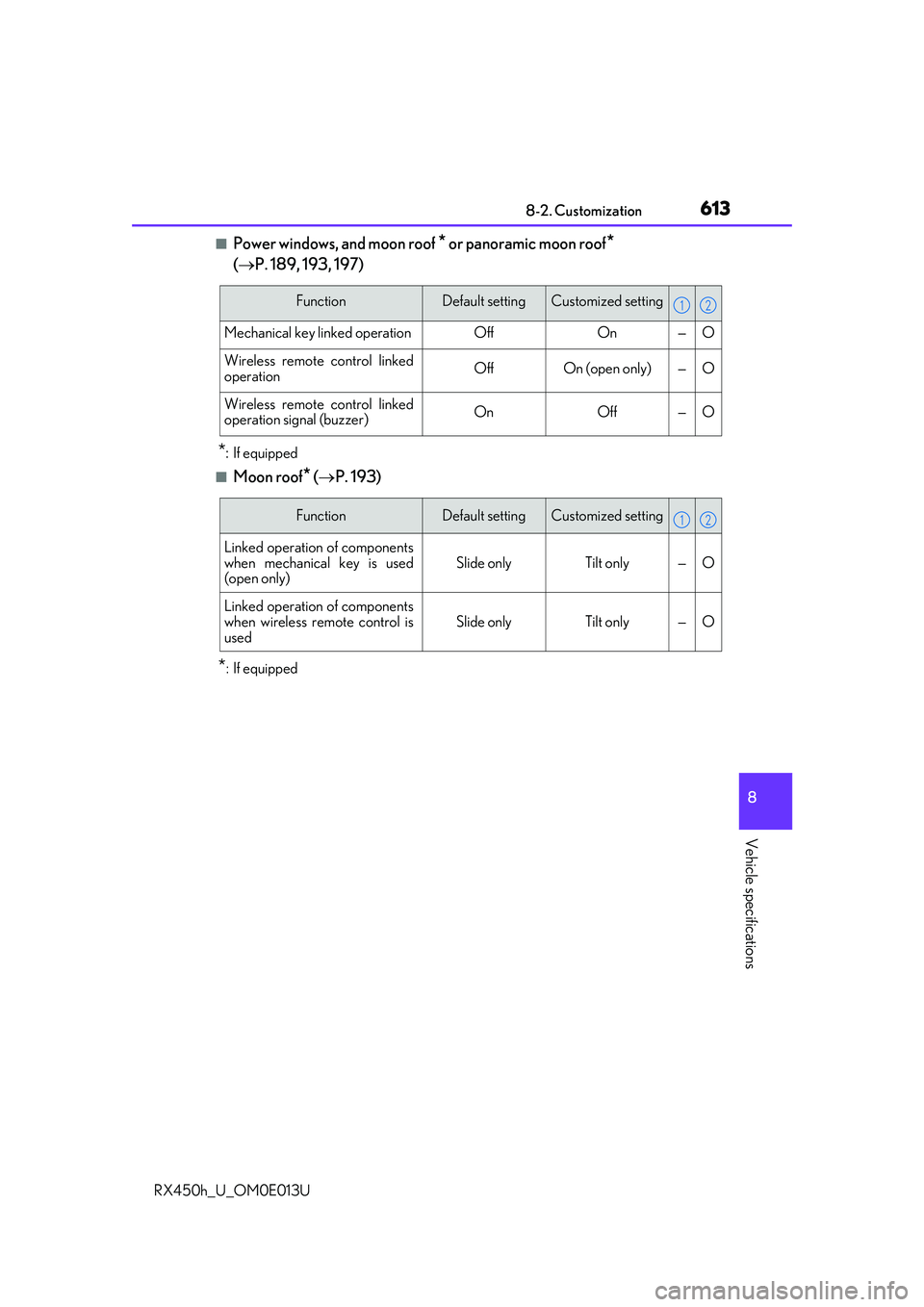

6138-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Power windows, and moon roof * or panoramic moon roof*
(  P. 189, 193, 197)
*:If equipped
■Moon roof* ( P. 193)
*: If equipped
FunctionDefault settingCustomized setting
Mechanical key linked operationOffOn—O
Wireless remote control linked
operationOffOn (open only)—O
Wireless remote control linked
operation signal (buzzer)OnOff—O
12
FunctionDefault settingCustomized setting
Linked operation of components
when mechanical key is used
(open only)
Slide onlyTilt only—O
Linked operation of components
when wireless remote control is
used
Slide onlyTilt only—O
12

6148-2. Customization
RX450h_U_OM0E013U
■Turn signal lever ( P. 244)
■Automatic light control system ( P. 251)
■Lights (P. 251)
*1:Except for Canada
*2: If equipped
■Rain-sensing windshield wipers (P. 260)
FunctionDefault settingCustomized setting
The number of times the turn sig-
nal lights flash automatically
when the turn signal lever is
moved to the first position during
a lane change
3
5
—O7
Off
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
automatically turn off after doors
are closed 30 seconds
Off
OO
60 seconds
90 seconds
12
FunctionDefault settingCustomized setting
Daytime running lightsOnOff*1OO
Welcome lightingOnOff—O
AFS (Adaptive Front-lighting
System)
*2OnOff—O
12
FunctionDefault settingCustomized setting
Wiper operation when the wiper
switch is in the “AUTO” positionRain-sensing oper-ation
Intermittent opera-
tion linked to vehi- cle speed (with
interval adjuster)
—O
12

6158-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Intuitive parking assist (P. 339)
*: When intuitive parking assist is operating.
■BSM (Blind Spot Monitor) ( P. 363)
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Outside rear view mirror indica-
tor brightnessBrightDimOO
Alert timing for presence of
approaching vehicle (BSM func-
tion only)
Intermediate
Early
OOLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—Level 3
12

6168-2. Customization
RX450h_U_OM0E013U
■Driving mode select switch ( P. 377)
*: If equipped
■Automatic air conditioning system ( P. 405)
■Seat heaters/seat ventilators ( P. 415, 416)
FunctionDefault settingCustomized setting
Powertrain control in customized
mode
*NormalPowerO—Eco
Chassis control in customized
mode*NormalSportO—
Air conditioning operation in
customized mode
*NormalEcoO—
12
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffOO
Exhaust gas sensor sensitivityStandard-3 to 3OO
12
FunctionDefault settingCustomized setting
Driver’s seat temperature prefer-
ence in automatic modeStandard-2 (cooler) to 2
(warmer)OO
Front passenger’s seat tempera-
ture preference in automatic
modeStandard-2 (cooler) to 2 (warmer)OO
12

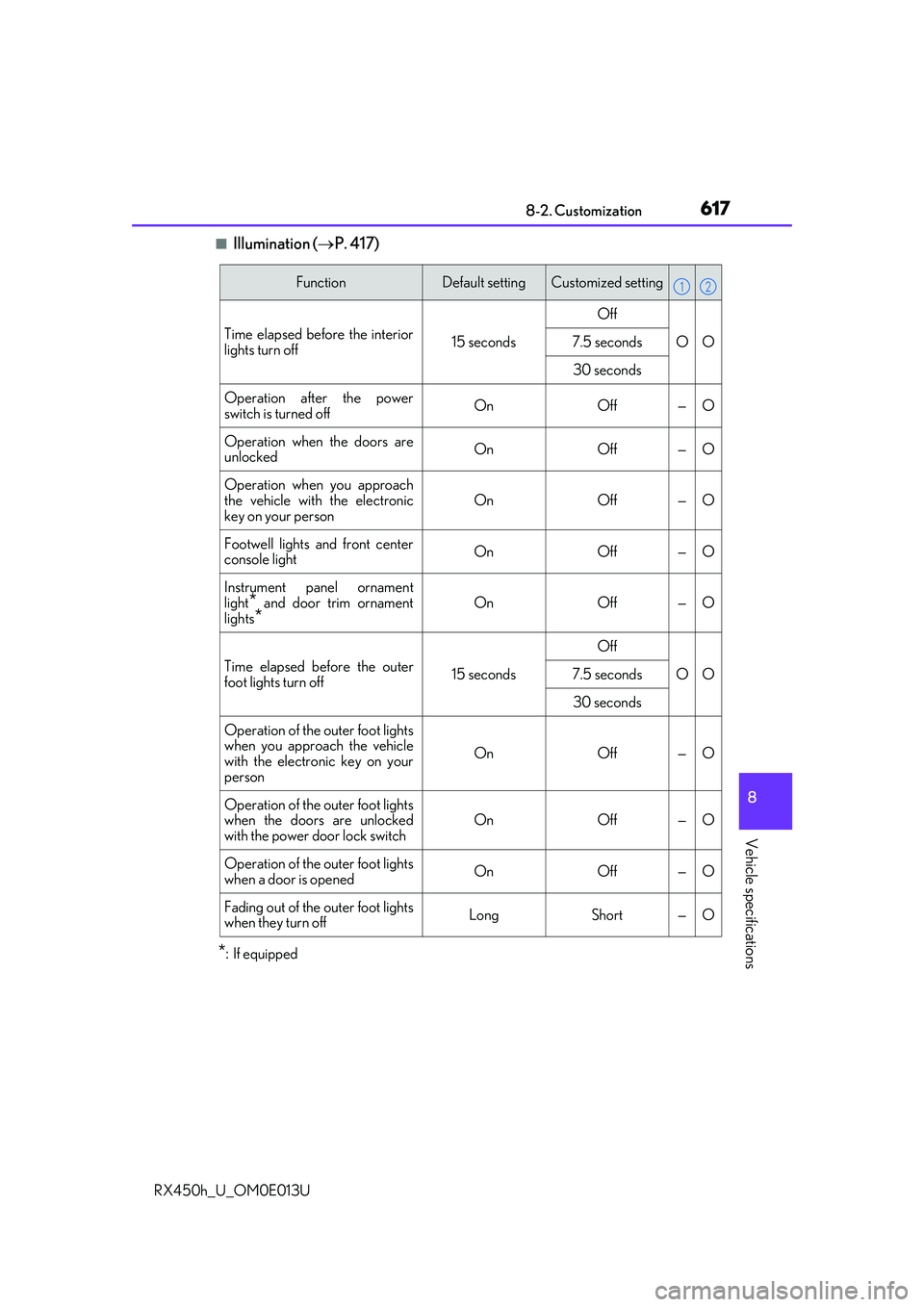

6178-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Illumination (P. 417)
*:If equipped
FunctionDefault settingCustomized setting
Time elapsed before the interior
lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff—O
Operation when the doors are
unlockedOnOff—O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff—O
Footwell lights and front center
console lightOnOff—O
Instrument panel ornament
light
* and door trim ornament
lights*OnOff—O
Time elapsed before the outer
foot lights turn off15 seconds
Off
OO7.5 seconds
30 seconds
Operation of the outer foot lights
when you approach the vehicle
with the electronic key on your
person
OnOff—O
Operation of the outer foot lights
when the doors are unlocked
with the power door lock switch
OnOff—O
Operation of the outer foot lights
when a door is openedOnOff—O
Fading out of the outer foot lights
when they turn offLongShort—O
12

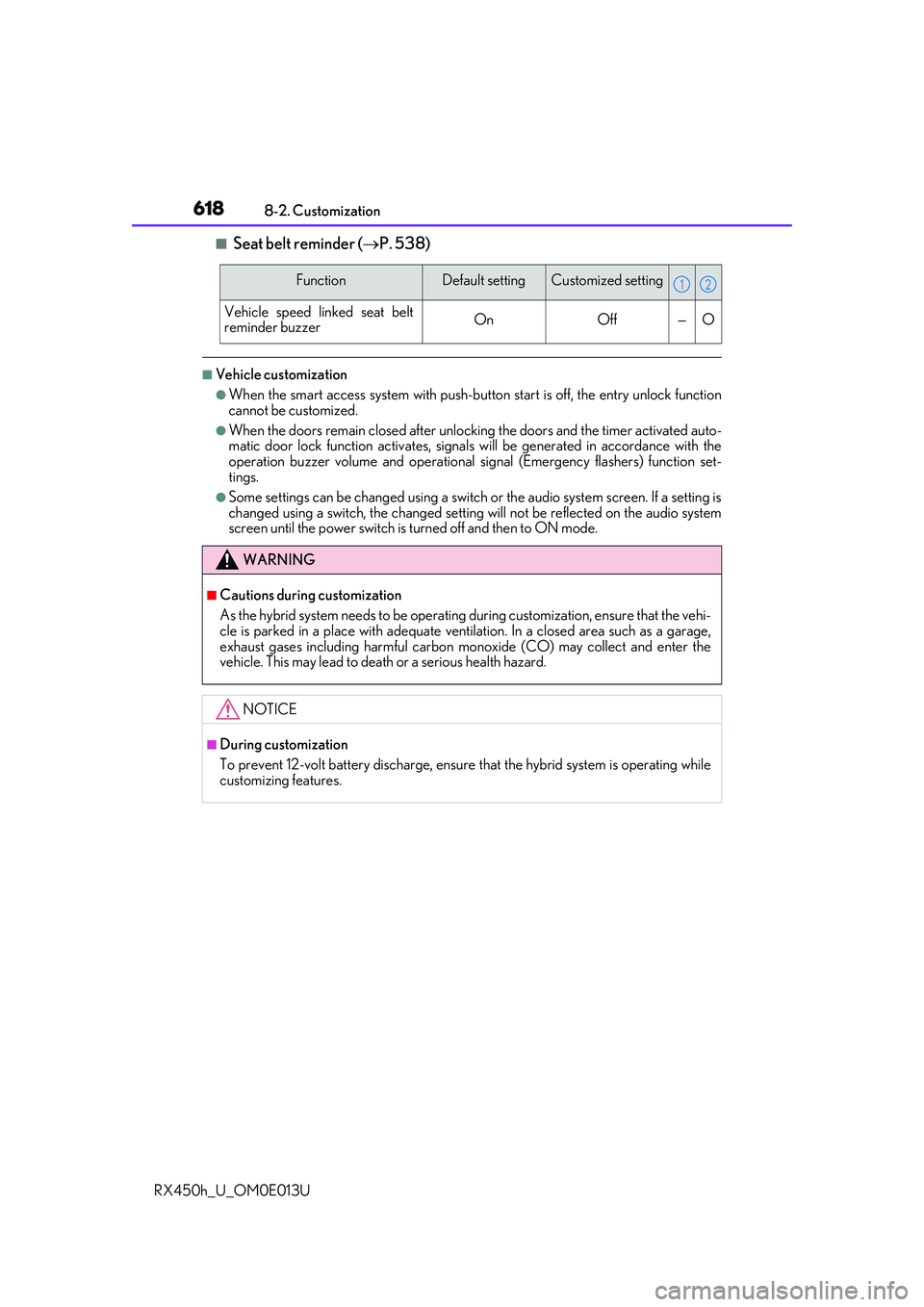

6188-2. Customization
RX450h_U_OM0E013U
■Seat belt reminder ( P. 538)
■Vehicle customization
●When the smart access system with push-button start is off, the entry unlock function
cannot be customized.
●When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings.
●Some settings can be changed using a switch or the audio system screen. If a setting is
changed using a switch, the changed setting will not be reflected on the audio system screen until the power switch is turned off and then to ON mode.
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff—O
WARNING
■Cautions during customization
As the hybrid system needs to be operating during customization, ensure that the vehi-
cle is parked in a place with adequate ventil ation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.
12

619
RX450h_U_OM0E013U
8
Vehicle specifications

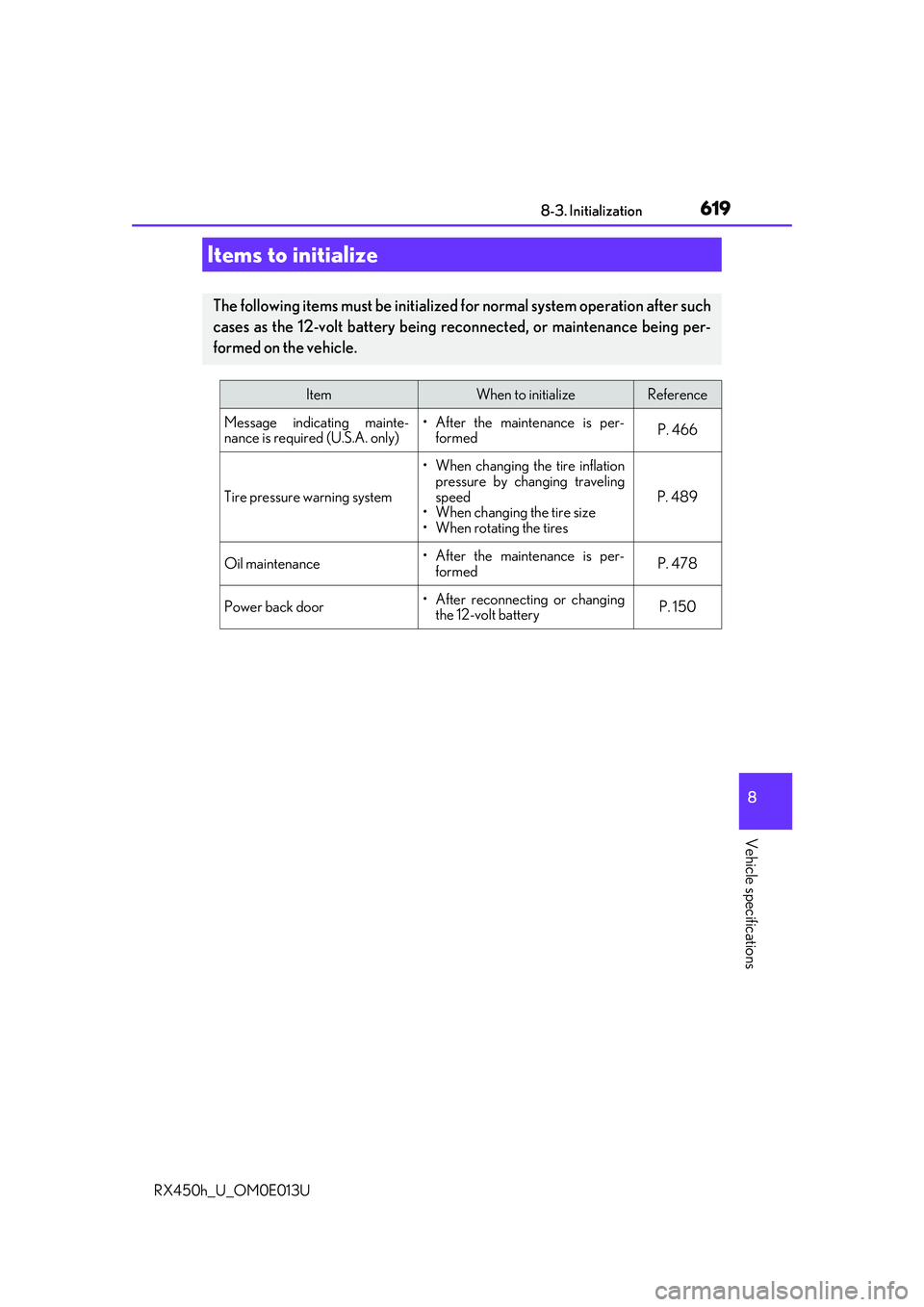

8-3. Initialization
Items to initialize
The following items must be initialized for normal system operation after such
cases as the 12-volt battery being reconnected, or maintenance being per-
formed on the vehicle.
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A. only)• After the maintenance is per- formedP. 466
Tire pressure warning system
• When changing the tire inflationpressure by changing traveling
speed
• When changing the tire size
• When rotating the tires
P. 489
Oil maintenance• After the maintenance is per- formedP. 478
Power back door• After reconnecting or changingthe 12-volt batteryP. 150

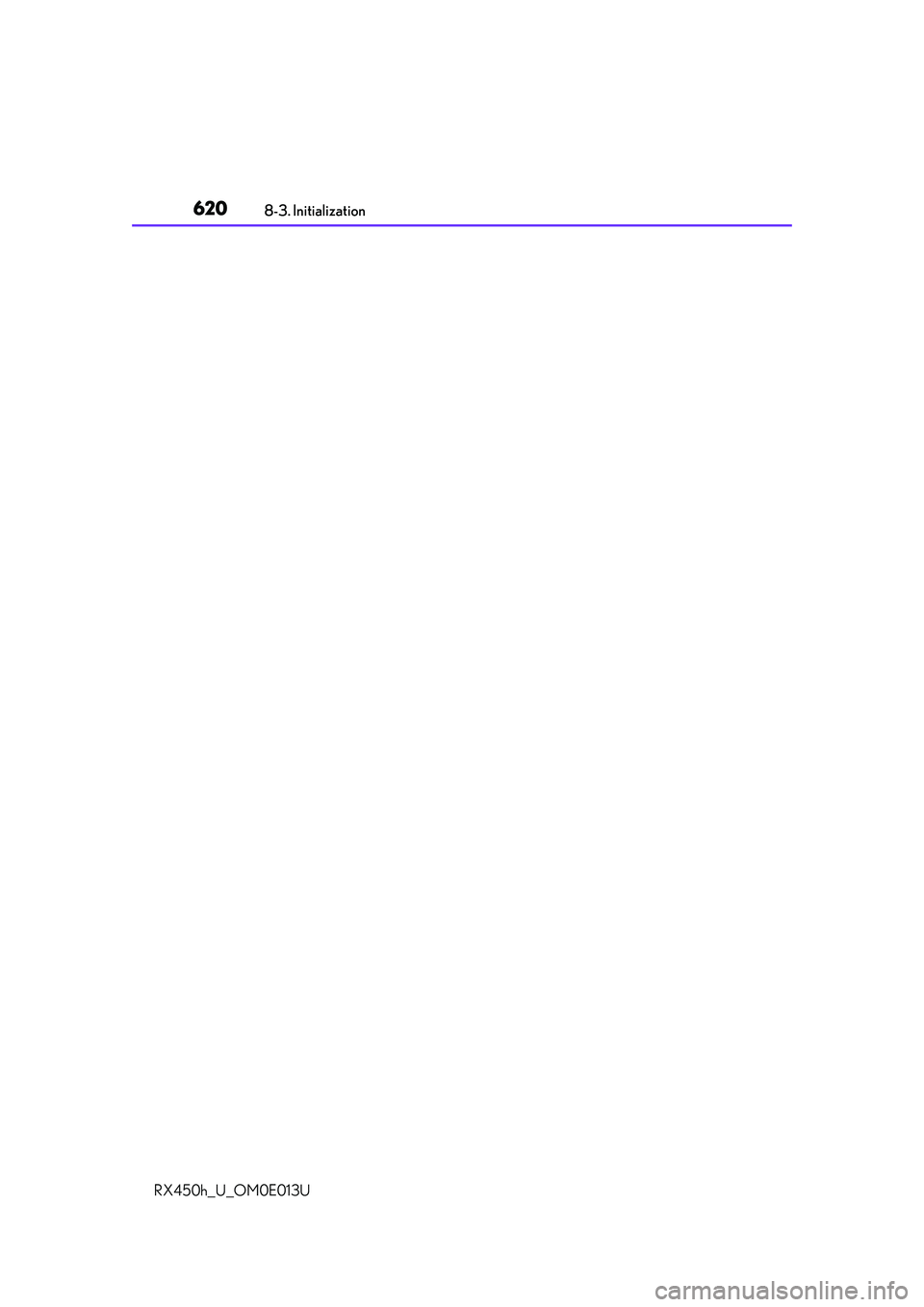

6208-3. Initialization
RX450h_U_OM0E013U
