LEXUS RX450H 2016 Repair Manual

611-2. Child safety
1
For safety and security
RX450h_U_OM0E013U

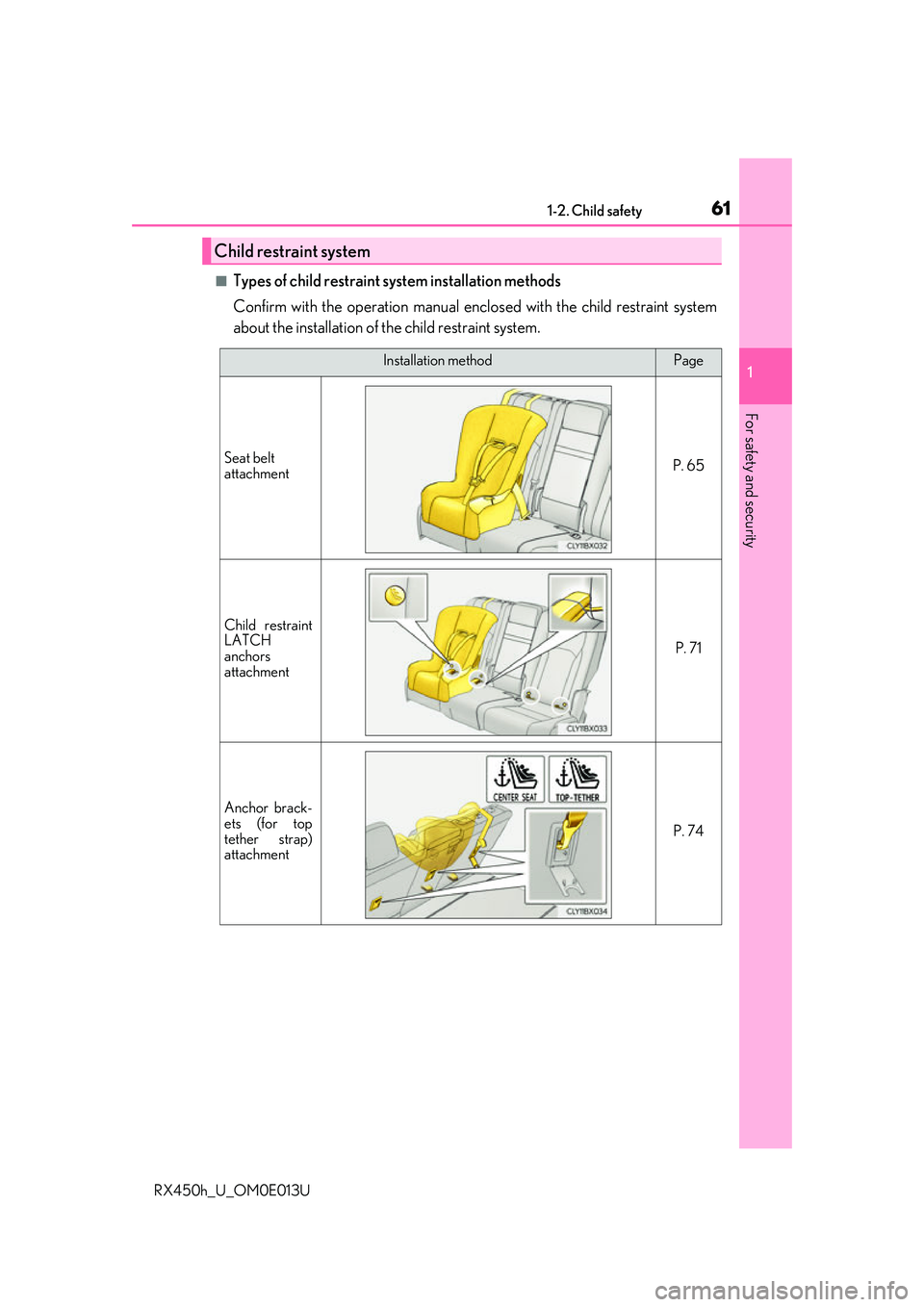

■Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system
about the installation of the child restraint system.
Child restraint system
Installation methodPage
Seat belt
attachment P. 65
Child restraint
LATCH
anchors
attachment P. 71
Anchor brack-
ets (for top
tether strap)
attachment
P. 74

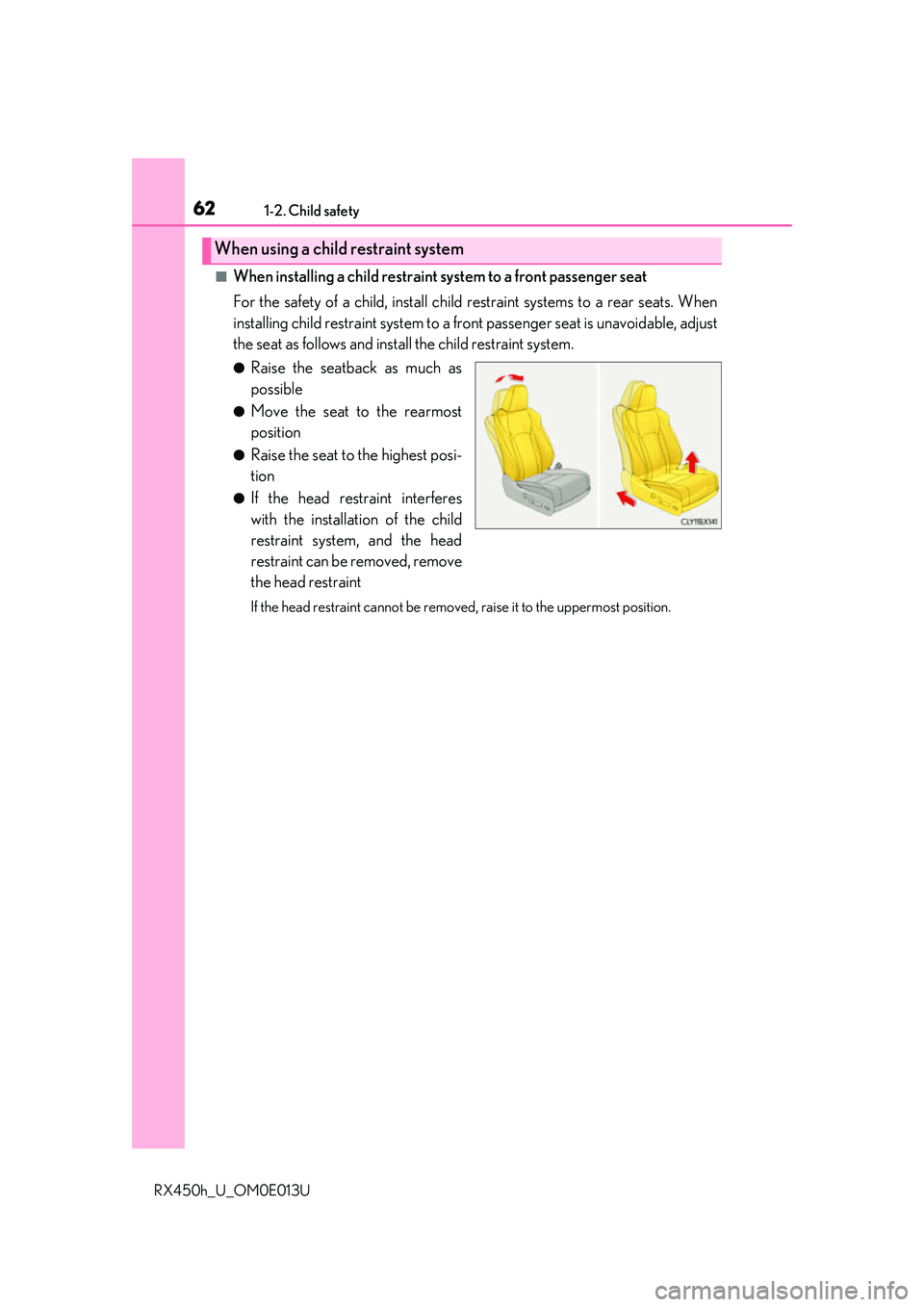

621-2. Child safety
RX450h_U_OM0E013U
■When installing a child restraint system to a front passenger seat
For the safety of a child, install child restraint systems to a rear seats. When
installing child restraint system to a fron t passenger seat is unavoidable, adjust
the seat as follows and install the child restraint system.
●Raise the seatback as much as
possible
●Move the seat to the rearmost
position
●Raise the seat to the highest posi-
tion
●If the head restraint interferes
with the installation of the child
restraint system, and the head
restraint can be removed, remove
the head restraint
If the head restraint cannot be removed, raise it to the uppermost position.
When using a child restraint system

631-2. Child safety
1
For safety and security
RX450h_U_OM0E013U
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Never install a rear-facing child restraint system on the front passenger seat even if
the “AIR BAG OFF” indicator light is illuminated. In the even t of an accident, the force
of the rapid inflation of the front passenger airbag can cause death or serious injury to
the child if the rear-facing ch ild restraint system is installed on the front passenger
seat.
●A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restraint system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat.
●A forward-facing child restraint system may
be installed on the front passenger seat only
when it is unavoidable. When installing a for-
ward-facing child restraint system on the front
passenger seat, raise the seatback as much as
possible, move the seat to the rearmost posi-
tion, and raise the seat to the highest position,
even if the “AIR BAG OFF” indicator light is
illuminated.
If the head restraint interferes with the instal-
lation of the child restraint system, and the
head restraint can be removed, remove the
head restraint.
If the head restraint cannot be removed, raise
it to the uppermost position.
●Do not allow the child to lean his/her head or
any part of his/her body against the door or
the area of the seat, front or rear pillars, or
roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy
even if the child is seat ed in the child restraint
system. It is dangerous if the SRS side airbags
and curtain shield airbags inflate, and the
impact could cause death or serious injury to
the child.

641-2. Child safety
RX450h_U_OM0E013U

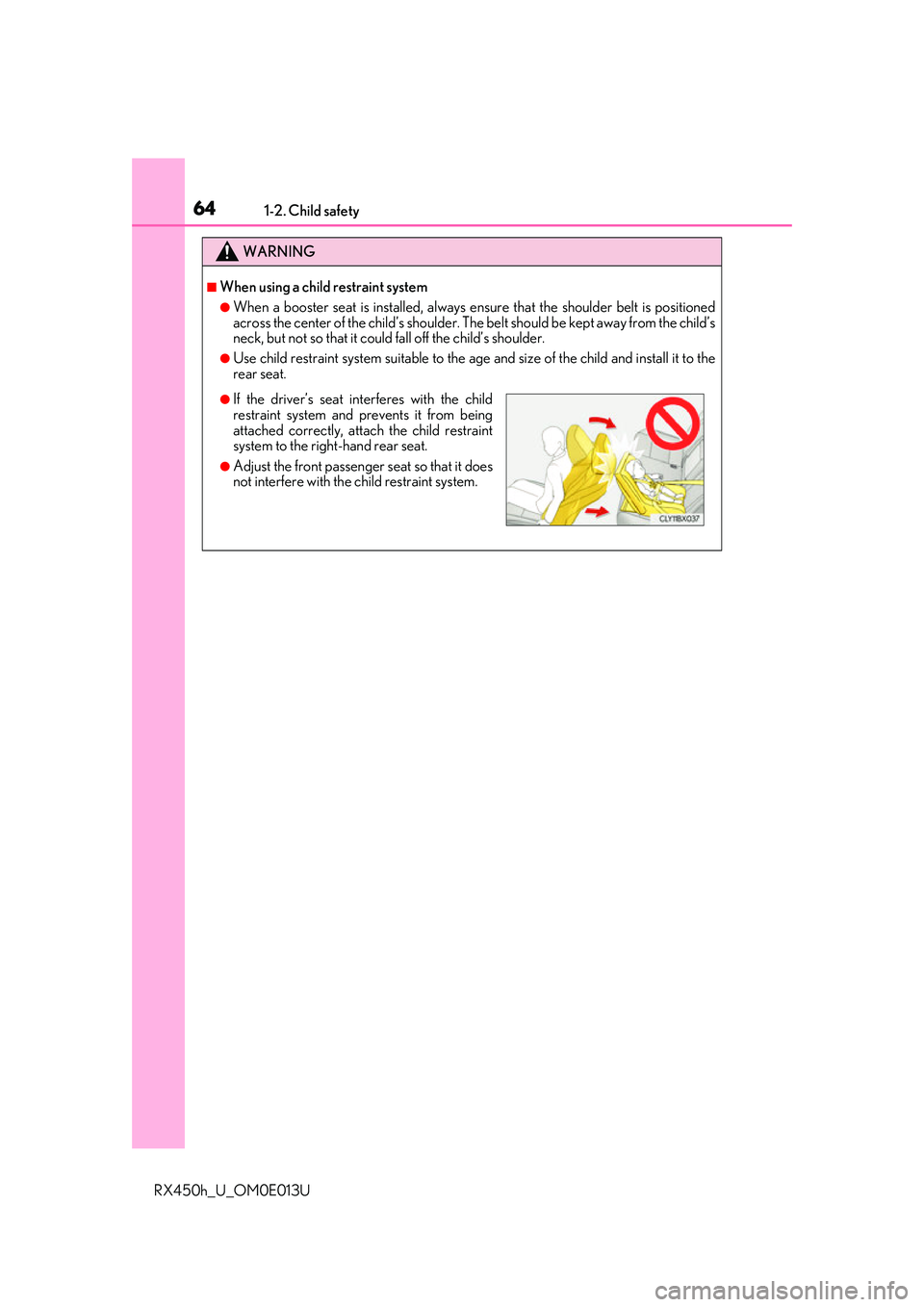

WARNING
■When using a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●Use child restraint system suitab le to the age and size of the child and install it to the
rear seat.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, atta ch the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it does
not interfere with the child restraint system.

651-2. Child safety
1
For safety and security
RX450h_U_OM0E013U

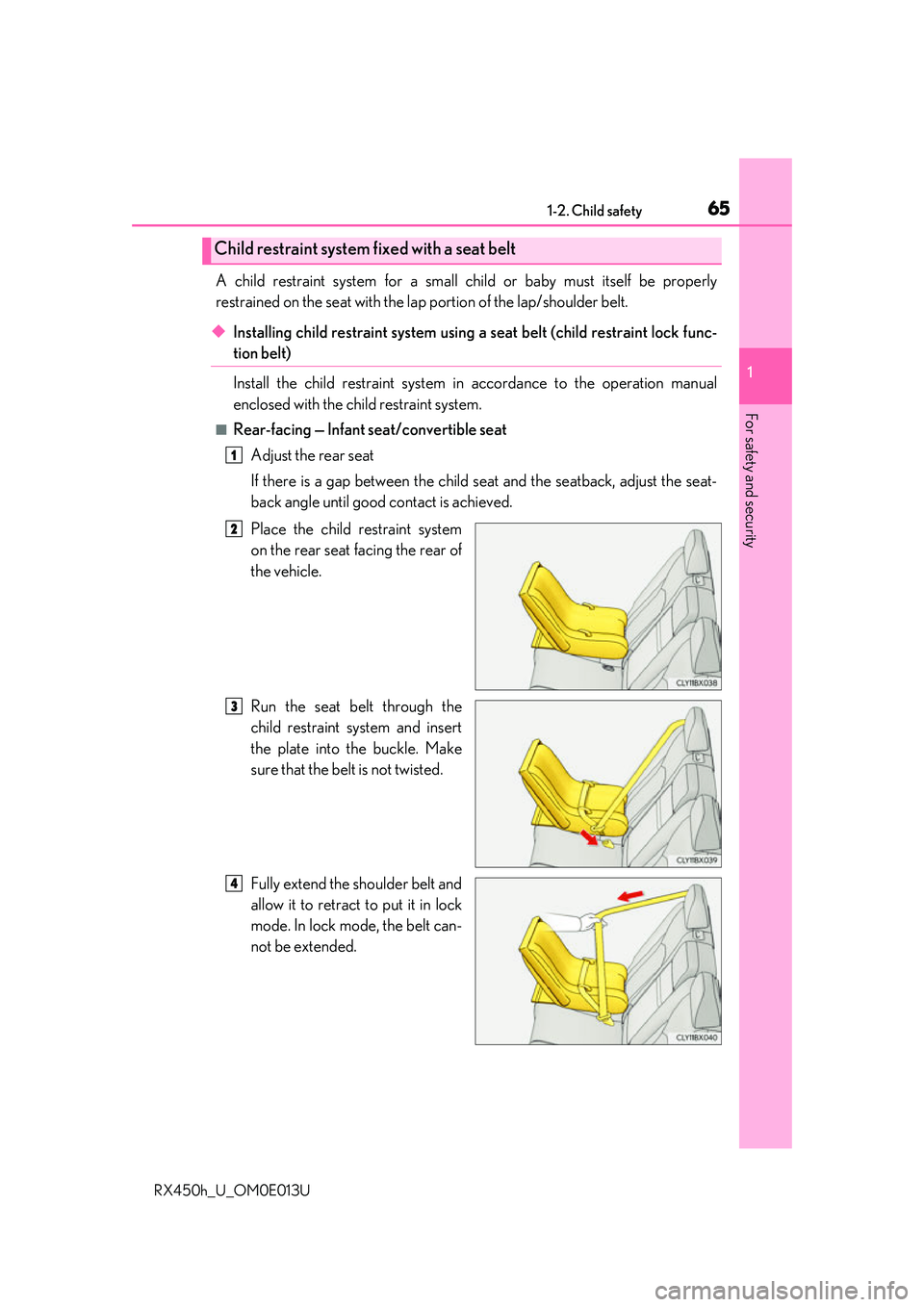

A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
◆Installing child restraint system using a seat belt (child restraint lock func-
tion belt)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
■Rear-facing — Infant seat/convertible seat
Adjust the rear seat
If there is a gap between the child se at and the seatback, adjust the seat-
back angle until good contact is achieved.
Place the child restraint system
on the rear seat facing the rear of
the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
Child restraint system fixed with a seat belt
1
2
3
4

661-2. Child safety
RX450h_U_OM0E013U

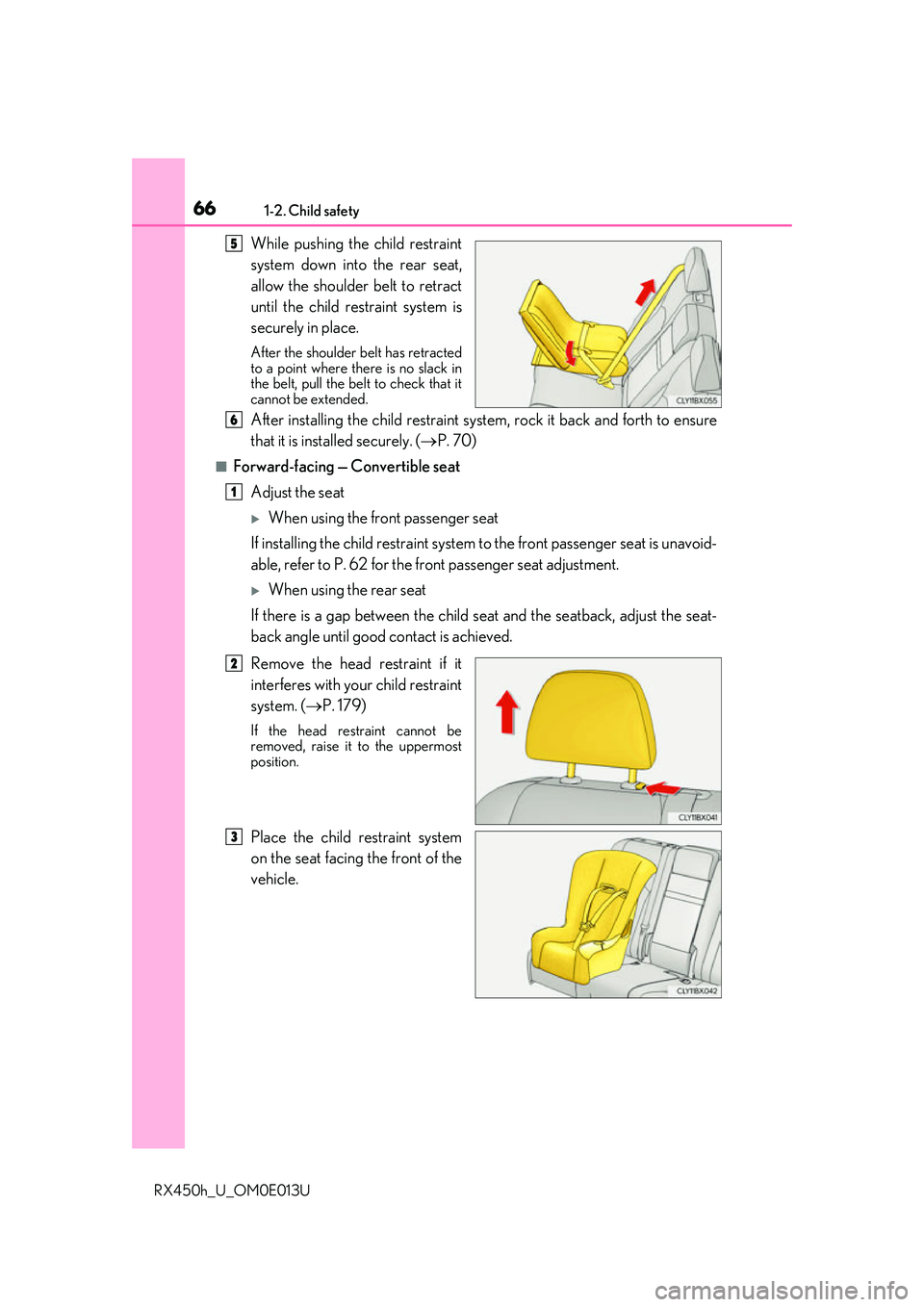

While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. (P. 70)
■Forward-facing — Convertible seat
Adjust the seat
When using the front passenger seat
If installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 62 for the fr ont passenger seat adjustment.
When using the rear seat
If there is a gap between the child se at and the seatback, adjust the seat-
back angle until good contact is achieved.
Remove the head restraint if it
interferes with your child restraint
system. ( P. 179)
If the head restraint cannot be
removed, raise it to the uppermost
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
5
6
1
2
3

671-2. Child safety
1
For safety and security
RX450h_U_OM0E013U

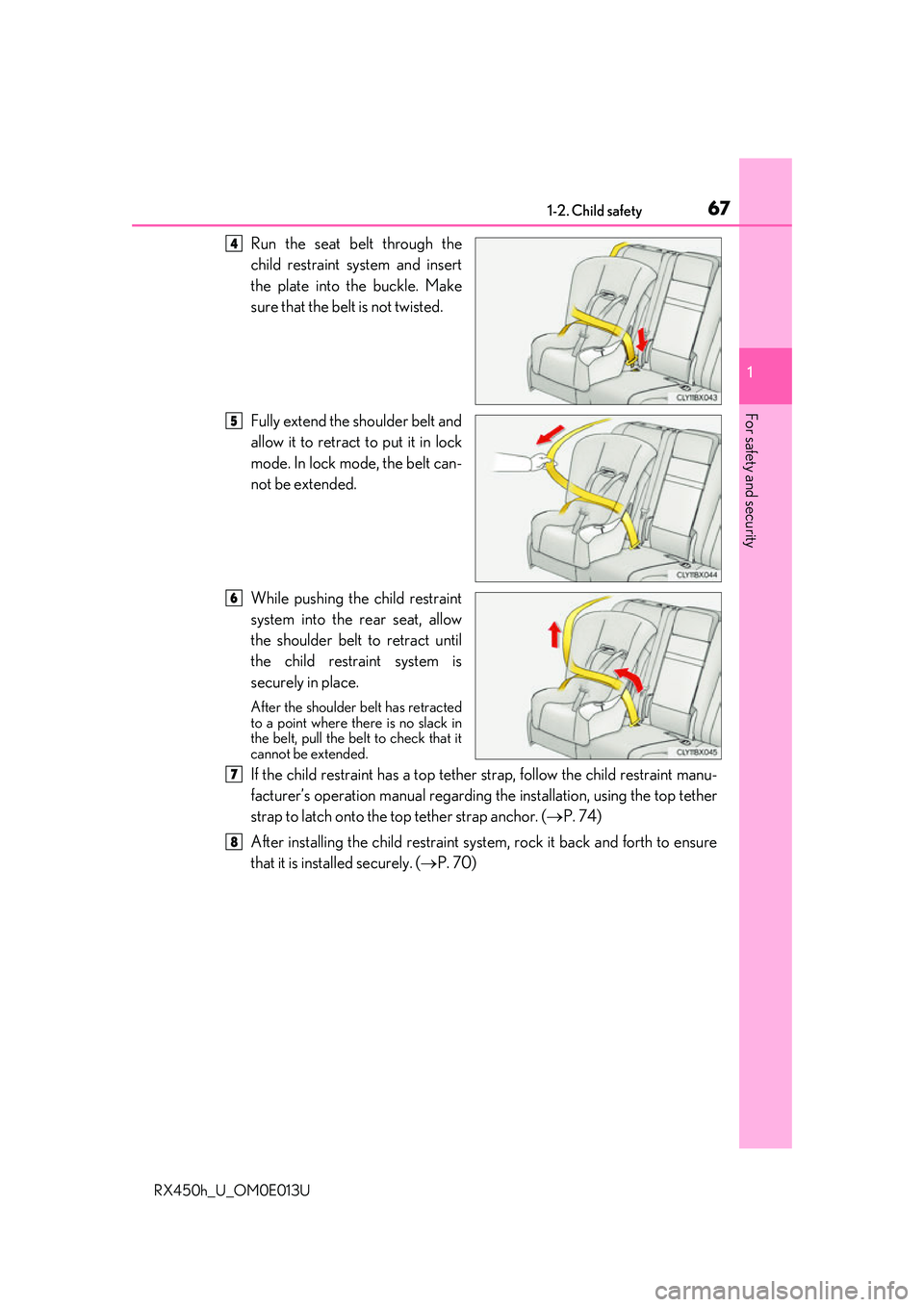

Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt and
allow it to retract to put it in lock
mode. In lock mode, the belt can-
not be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
If the child restraint has a top tether strap, follow the child restraint manu-
facturer’s operation manual regarding the installation, using the top tether
strap to latch onto the top tether strap anchor. ( P. 74)
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. ( P. 70)
4
5
6
7
8

681-2. Child safety
RX450h_U_OM0E013U

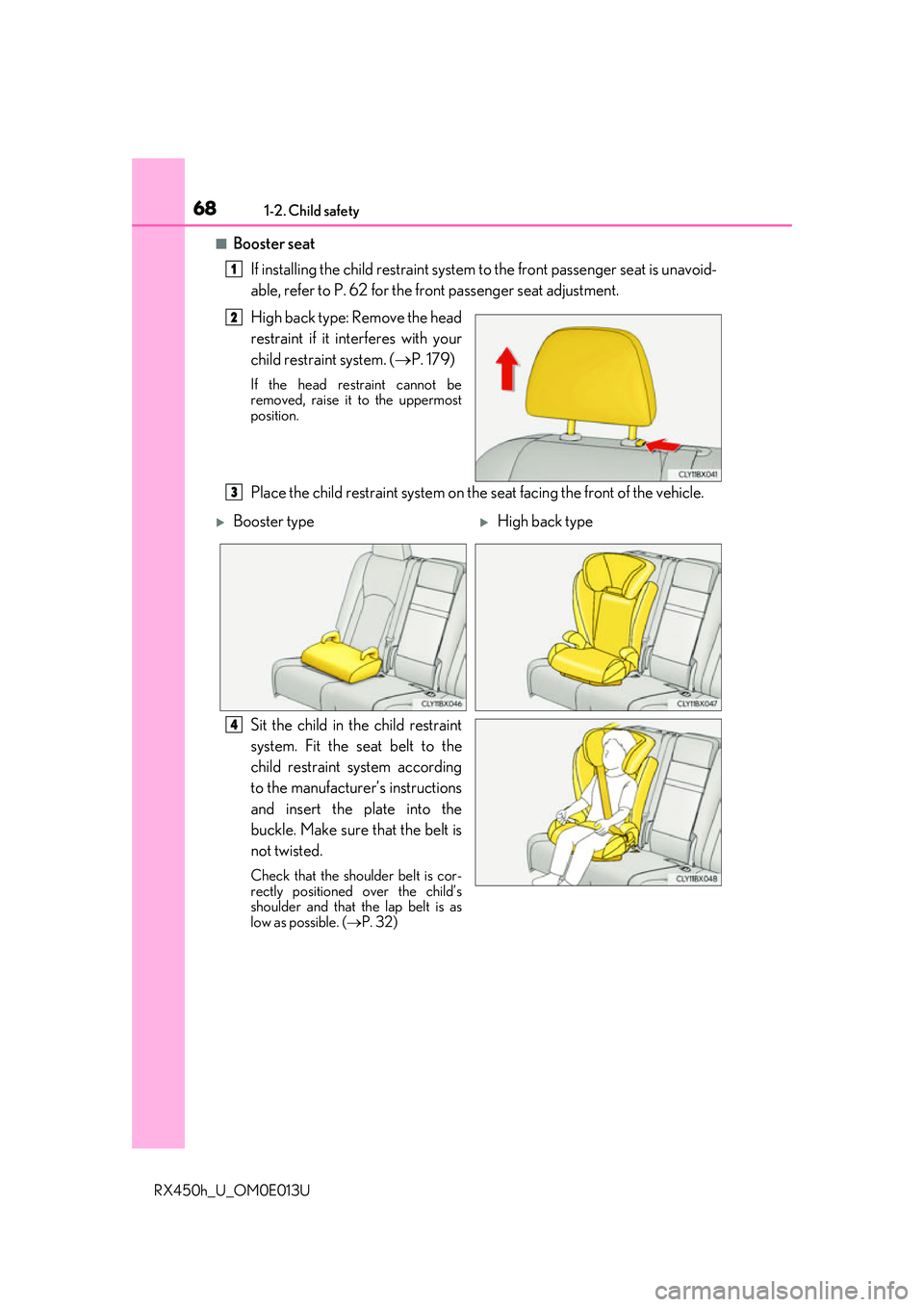

■Booster seatIf installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 62 for the fr ont passenger seat adjustment.
High back type: Remove the head
restraint if it interferes with your
child restraint system. ( P. 179)
If the head restraint cannot be
removed, raise it to the uppermost
position.
Place the child restraint system on the seat facing the front of the vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. ( P. 32)
1
2
3
Booster typeHigh back type
4

691-2. Child safety
1
For safety and security
RX450h_U_OM0E013U

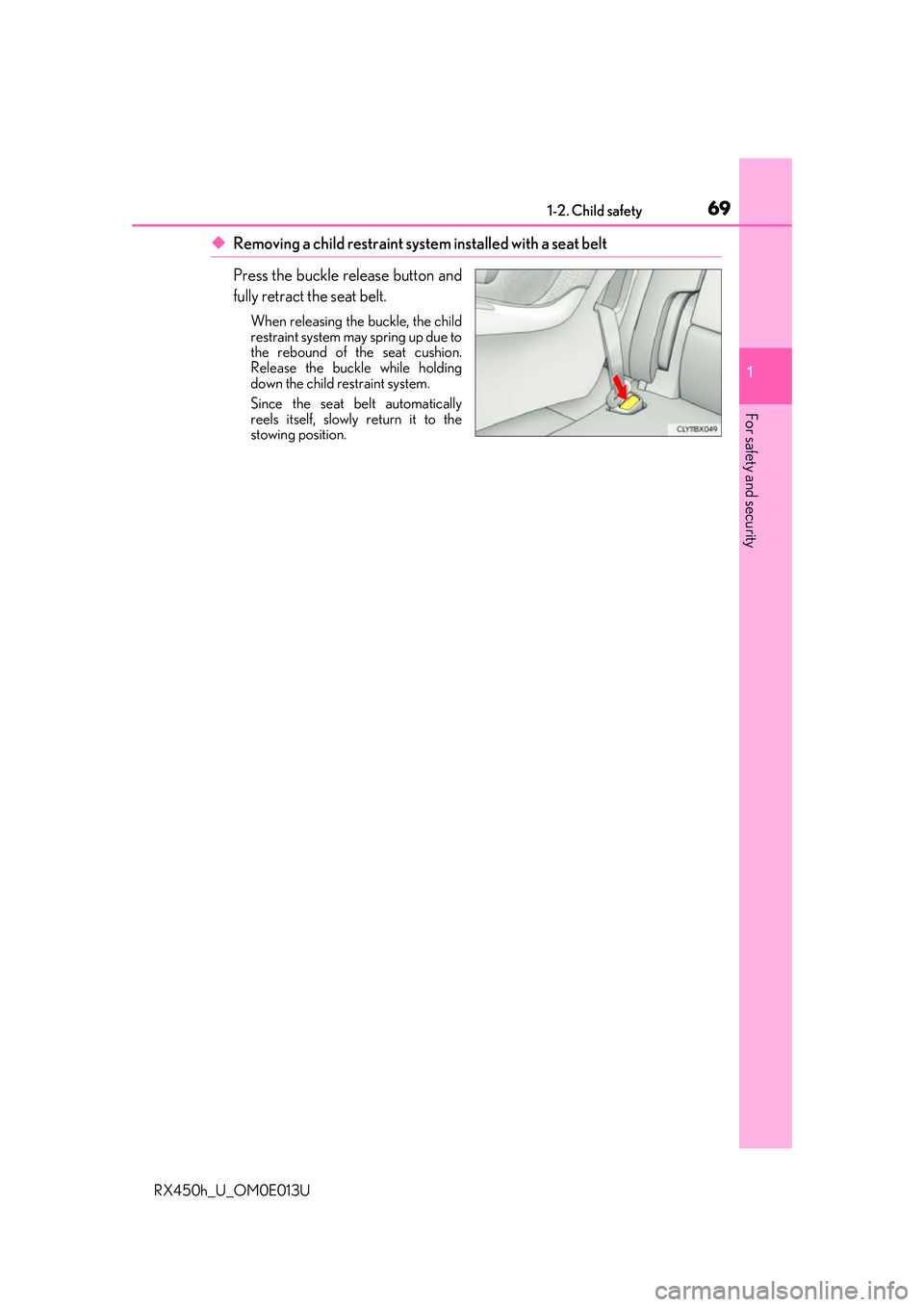

◆Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.

701-2. Child safety
RX450h_U_OM0E013U

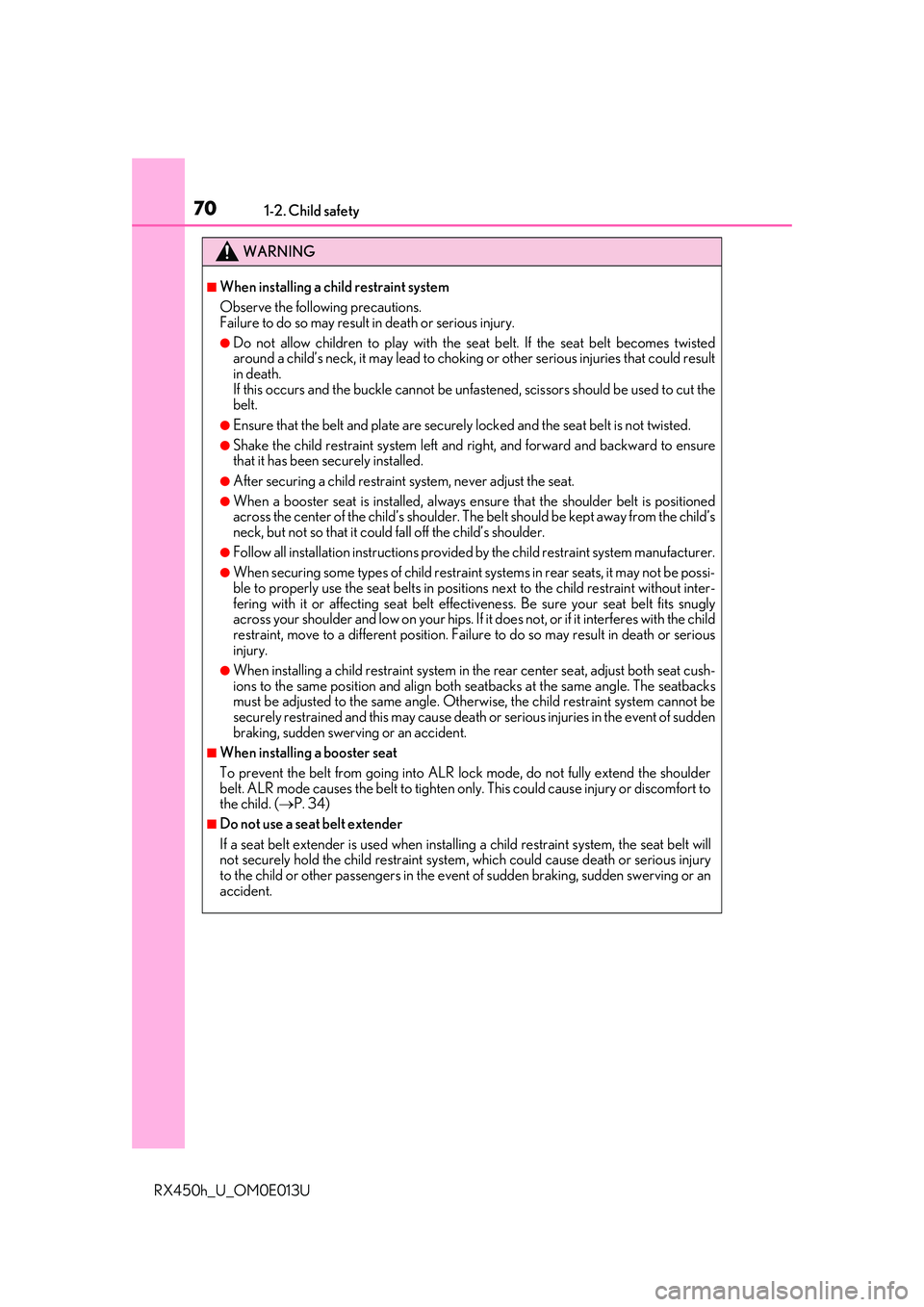

WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to chokin g or other serious injuries that could result
in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
●After securing a child restraint system, never adjust the seat.
●When a booster seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●Follow all installation instructions provided by the child restraint system manufacturer.
●When securing some types of child restraint systems in rear seats, it may not be possi-
ble to properly use the seat belts in positions next to the child restraint without inter-
fering with it or affecting seat belt effectiveness. Be sure your seat belt fits snugly
across your shoulder and low on your hips. If it does not, or if it interferes with the child
restraint, move to a different position. Failure to do so ma y result in death or serious
injury.
●When installing a child restraint system in th e rear center seat, adjust both seat cush-
ions to the same position an d align both seatbacks at the same angle. The seatbacks
must be adjusted to the same angle. Otherwise, the child restra int system cannot be
securely restrained and this may cause death or serious injuries in the event of sudden
braking, sudden swerving or an accident.
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discomfort to
the child. ( P. 34)
■Do not use a seat belt extender
If a seat belt extender is used when insta lling a child restraint system, the seat belt will
not securely hold the child restraint system , which could cause death or serious injury
to the child or other passengers in the event of sudden braking, sudden swerving or an
accident.
