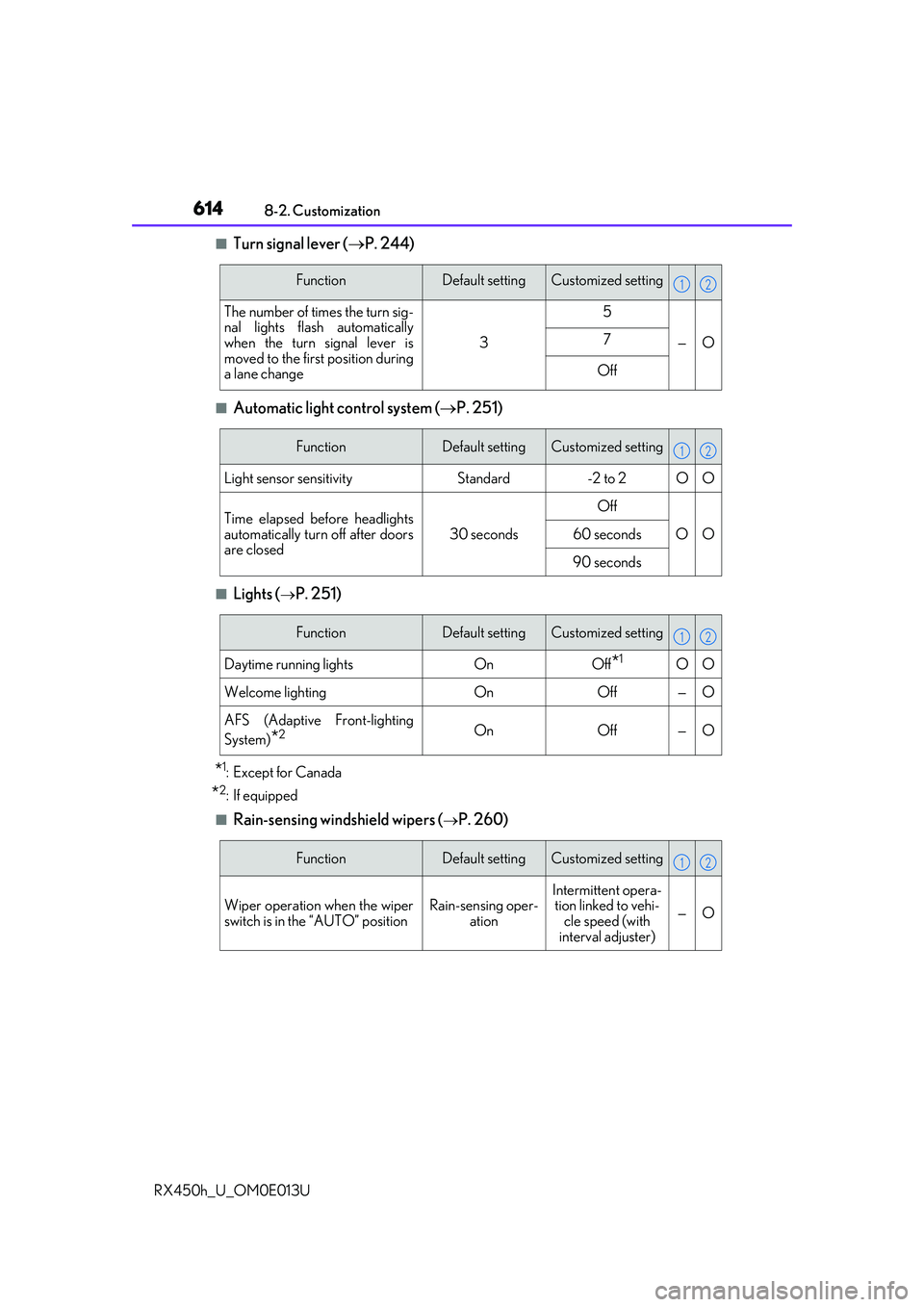

6148-2. Customization
RX450h_U_OM0E013U
■Turn signal lever ( P. 244)
■Automatic light control system ( P. 251)
■Lights (P. 251)
*1:Except for Canada
*2: If equipped
■Rain-sensing windshield wipers (P. 260)
FunctionDefault settingCustomized setting
The number of times the turn sig-
nal lights flash automatically
when the turn signal lever is
moved to the first position during
a lane change
3
5
—O7
Off
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before headlights
automatically turn off after doors
are closed 30 seconds
Off
OO
60 seconds
90 seconds
12
FunctionDefault settingCustomized setting
Daytime running lightsOnOff*1OO
Welcome lightingOnOff—O
AFS (Adaptive Front-lighting
System)
*2OnOff—O
12
FunctionDefault settingCustomized setting
Wiper operation when the wiper
switch is in the “AUTO” positionRain-sensing oper-ation
Intermittent opera-
tion linked to vehi- cle speed (with
interval adjuster)
—O
12

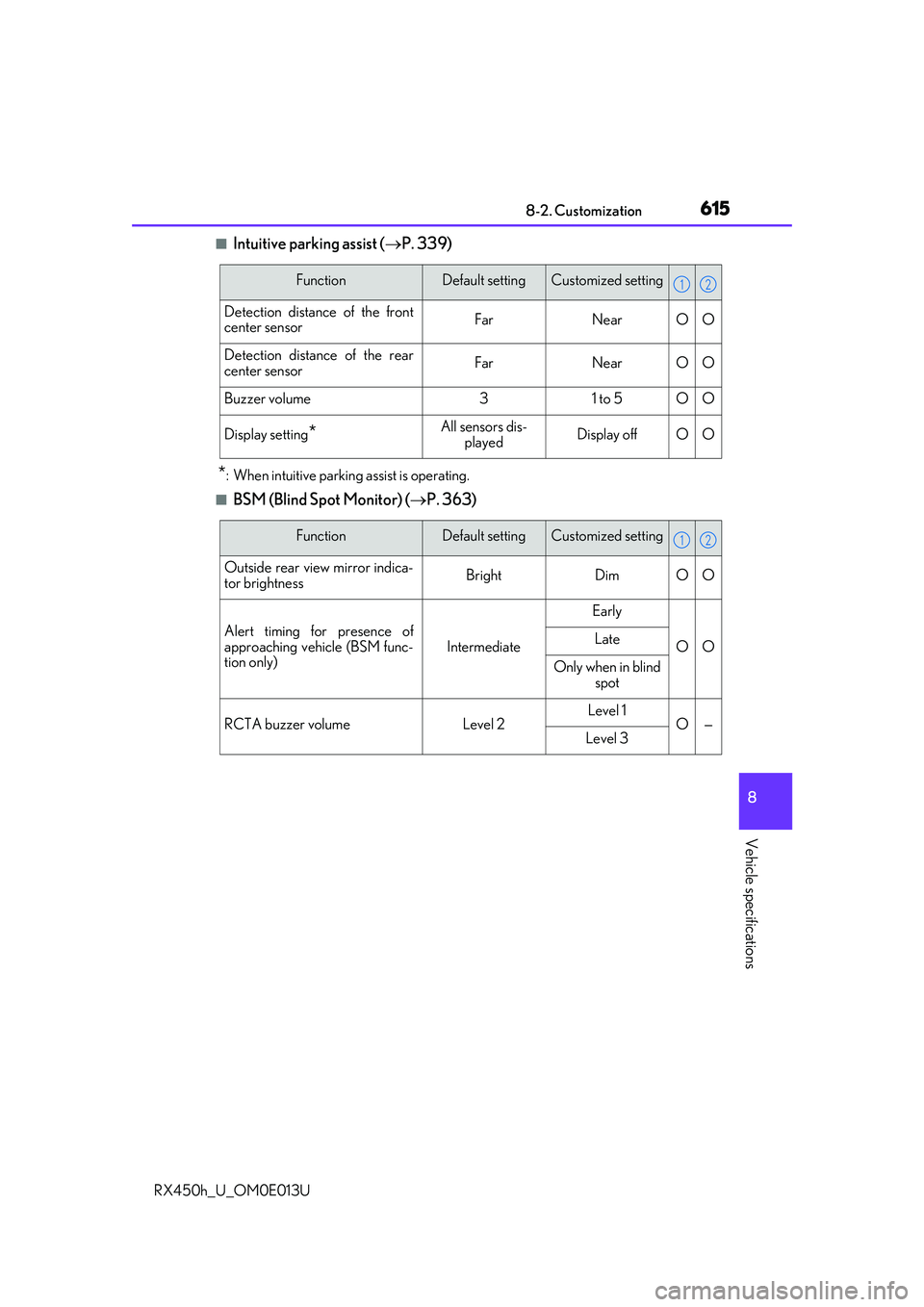

6158-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Intuitive parking assist (P. 339)
*: When intuitive parking assist is operating.
■BSM (Blind Spot Monitor) ( P. 363)
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Outside rear view mirror indica-
tor brightnessBrightDimOO
Alert timing for presence of
approaching vehicle (BSM func-
tion only)
Intermediate
Early
OOLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—Level 3
12

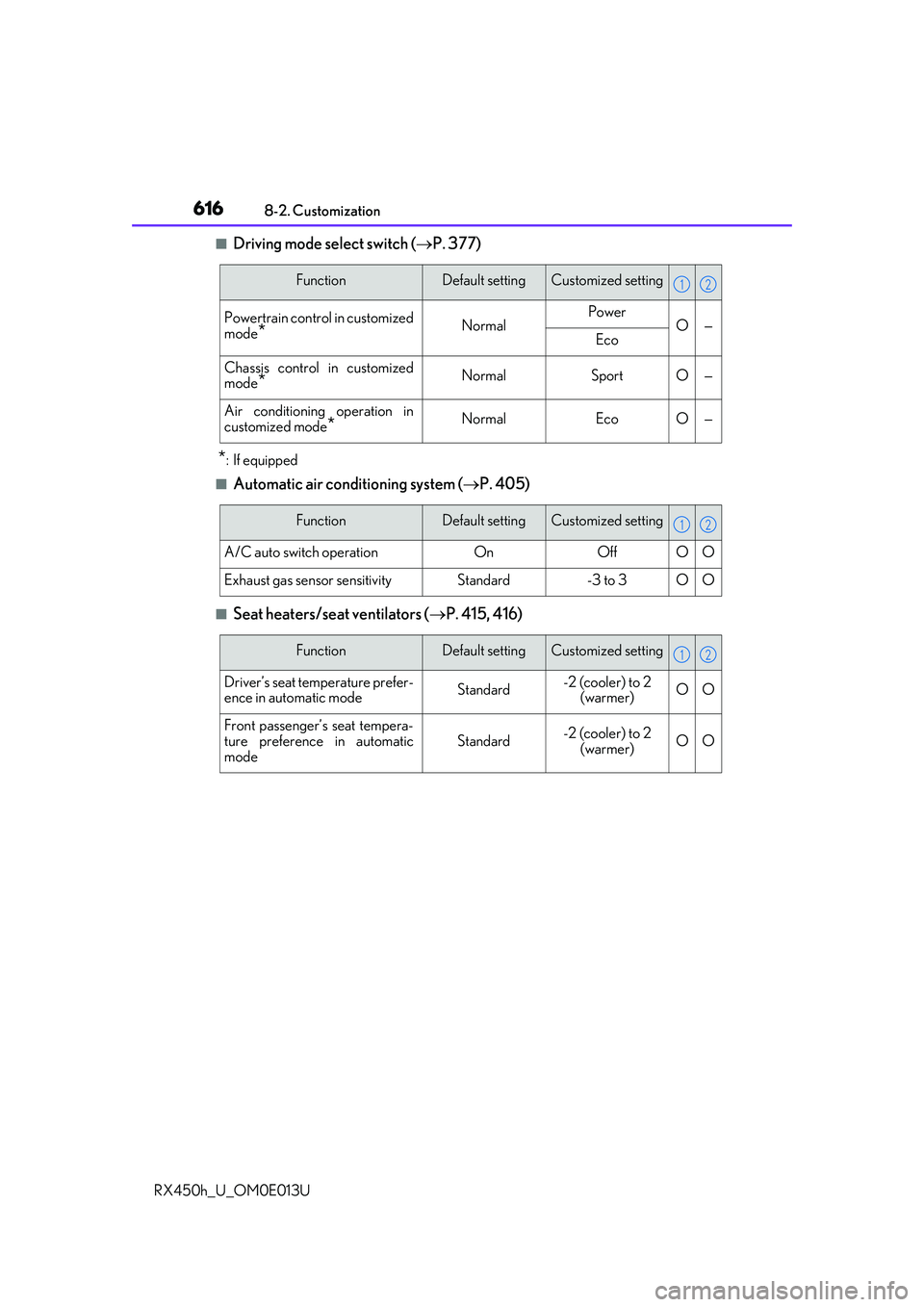

6168-2. Customization
RX450h_U_OM0E013U
■Driving mode select switch ( P. 377)
*: If equipped
■Automatic air conditioning system ( P. 405)
■Seat heaters/seat ventilators ( P. 415, 416)
FunctionDefault settingCustomized setting
Powertrain control in customized
mode
*NormalPowerO—Eco
Chassis control in customized
mode*NormalSportO—
Air conditioning operation in
customized mode
*NormalEcoO—
12
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffOO
Exhaust gas sensor sensitivityStandard-3 to 3OO
12
FunctionDefault settingCustomized setting
Driver’s seat temperature prefer-
ence in automatic modeStandard-2 (cooler) to 2
(warmer)OO
Front passenger’s seat tempera-
ture preference in automatic
modeStandard-2 (cooler) to 2 (warmer)OO
12

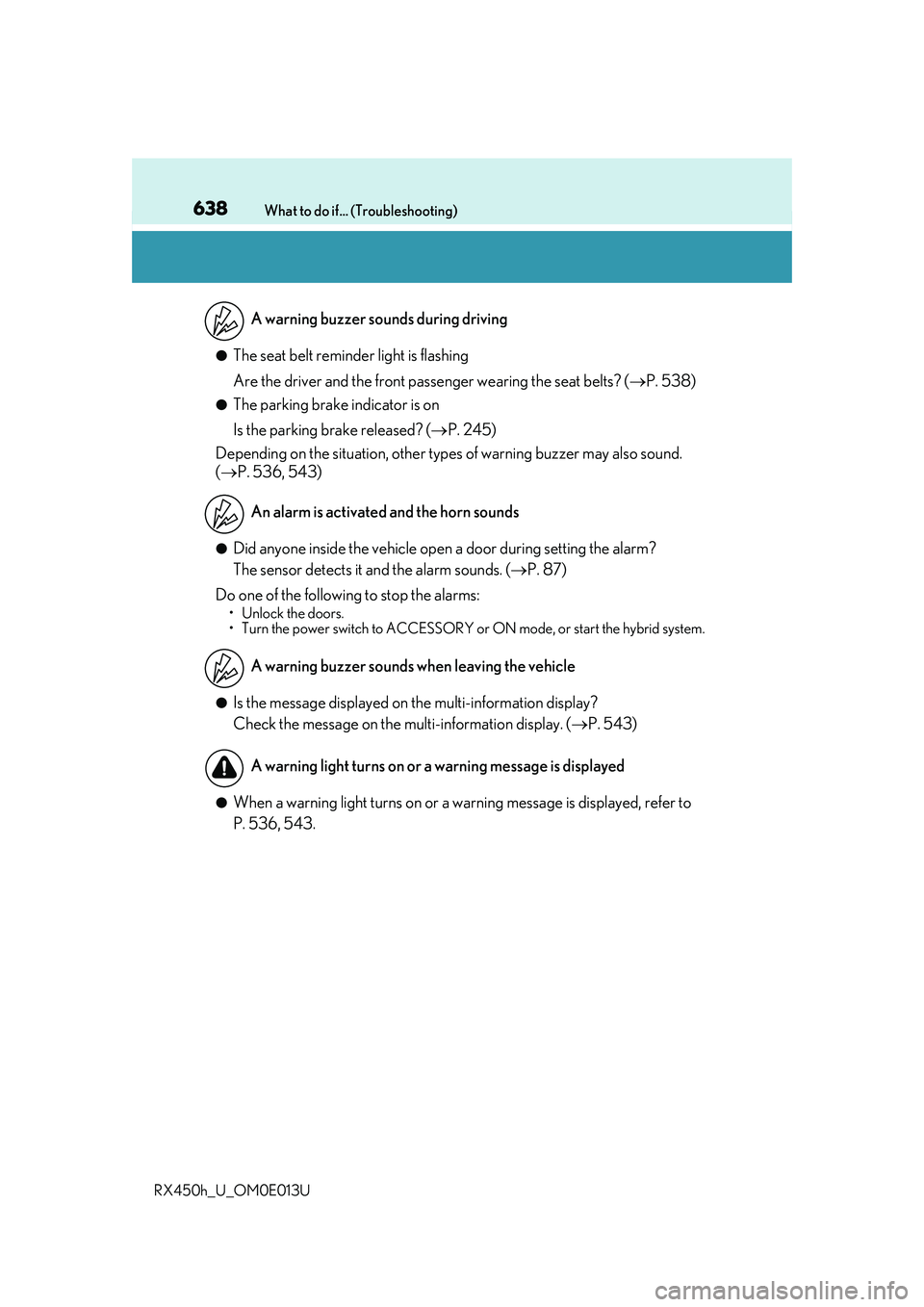

638What to do if... (Troubleshooting)
RX450h_U_OM0E013U
●The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts? (P. 538)
●The parking brake indicator is on
Is the parking brake released? ( P. 245)
Depending on the situation, other types of warning buzzer may also sound.
( P. 536, 543)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 87)
Do one of the following to stop the alarms:
• Unlock the doors.
• Turn the power switch to ACCESSORY or ON mode, or start the hybrid system.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 543)
●When a warning light turns on or a warning message is displayed, refer to
P. 536, 543.A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

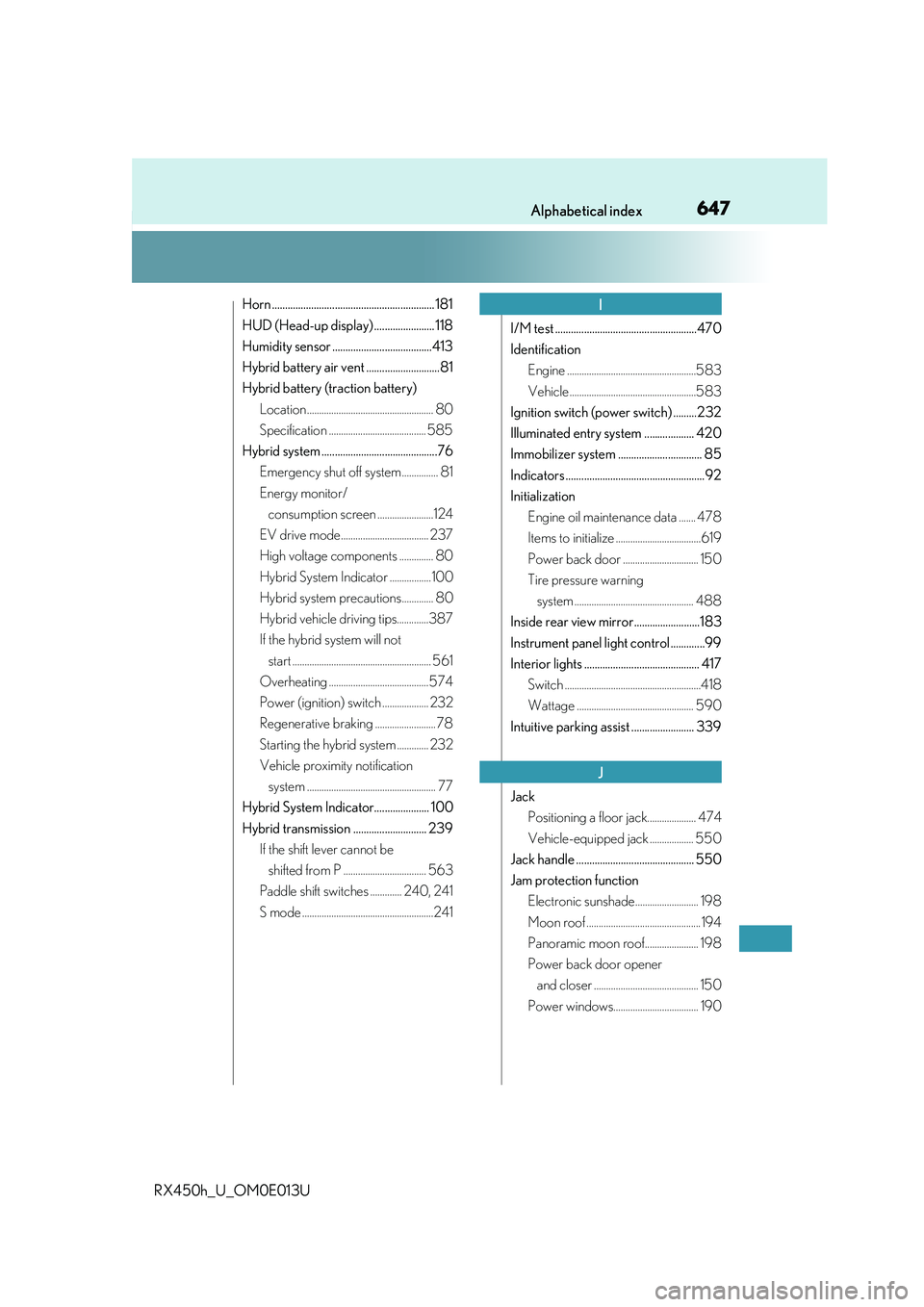

647Alphabetical index
RX450h_U_OM0E013U
Horn .............................................................. 181
HUD (Head-up display) ....................... 118
Humidity sensor ......................................413
Hybrid battery air vent ............................81
Hybrid battery (traction battery)Location .................................................... 80
Specification ........................................ 585
Hybrid system ............................................76 Emergency shut off system............... 81
Energy monitor/consumption screen .......................124
EV drive mode.................................... 237
High voltage components .............. 80
Hybrid System Indicator .................100
Hybrid system precautions............. 80
Hybrid vehicle driving tips.............387
If the hybrid system will not start ......................................................... 561
Overheating .........................................574
Power (ignition) switch ................... 232
Regenerative braking ......................... 78
Starting the hybrid system ............. 232
Vehicle proximity notification system ..................................................... 77
Hybrid System Indicator..................... 100
Hybrid transmission ............................ 239 If the shift lever cannot be shifted from P .................................. 563
Paddle shift switches ............. 240, 241
S mode ......................................................241 I/M test ......................................................470
Identification
Engine .....................................................583
Vehicle ....................................................583
Ignition switch (power switch) .........232
Illuminated entry system ................... 420
Immobilizer system ................................ 85
Indicators .....................................................92
Initialization Engine oil maintenance data ....... 478
Items to initialize ...................................619
Power back door ............................... 150
Tire pressure warning system ................................................. 488
Inside rear view mirror.........................183
Instrument panel light control .............99
Interior lights ............................................ 417 Switch ........................................................418
Wattage ................................................ 590
Intuitive parking assist ........................ 339
Jack Positioning a floor jack.................... 474
Vehicle-equipped jack .................. 550
Jack handle ............................................. 550
Jam protection function Electronic sunshade.......................... 198
Moon roof ...............................................194
Panoramic moon roof...................... 198
Power back door openerand closer ........................................... 150
Power windows................................... 190I
J

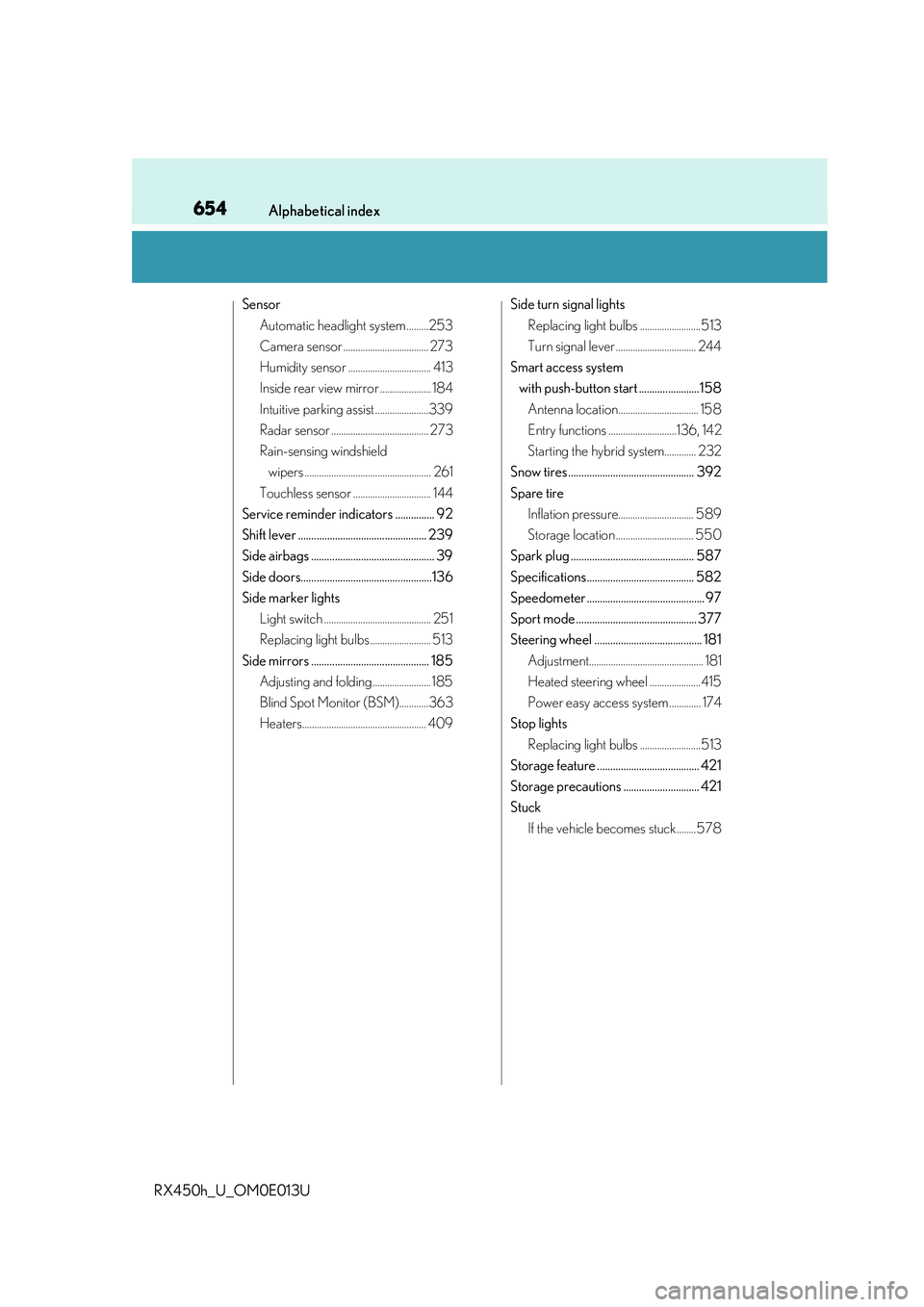

654Alphabetical index
RX450h_U_OM0E013U
SensorAutomatic headlight system .........253
Camera sensor ................................... 273
Humidity sensor .................................. 413
Inside rear view mirror ..................... 184
Intuitive parking assist ......................339
Radar sensor ........................................ 273
Rain-sensing windshield wipers .................................................... 261
Touchless sensor ................................ 144
Service reminder indicators ............... 92
Shift lever ................................................. 239
Side airbags ............................................... 39
Side doors..................................................136
Side marker lights Light switch ............................................ 251
Replacing light bulbs ......................... 513
Side mirrors ............................................. 185 Adjusting and folding........................ 185
Blind Spot Monitor (BSM)............363
Heaters................................................... 409 Side turn signal lights
Replacing light bulbs .........................513
Turn signal lever ................................. 244
Smart access system with push-button start .......................158 Antenna location................................. 158
Entry functions ............................136, 142
Starting the hybrid system............. 232
Snow tires ................................................ 392
Spare tire Inflation pressure............................... 589
Storage location ................................ 550
Spark plug ............................................... 587
Specifications......................................... 582
Speedometer ............................................. 97
Sport mode .............................................. 377
Steering wheel ......................................... 181 Adjustment............................................... 181
Heated steering wheel .....................415
Power easy access system ............. 174
Stop lights Replacing light bulbs .........................513
Storage feature ....................................... 421
Storage precautions ............................. 421
Stuck If the vehicle becomes stuck........ 578
