11. INSTALL FRONT PILLAR GARNISH(a) Insert front side of the garnish to the pillar to install theclip.
(b) Install the garnish by tapping.
(c) Install two screws and the assist grip.
12. INSTALL ASSIST GRIP
BO±126
±
BODY Trim, Assist Grip and Visor
WhereEverybodyKnowsYourName

BODY DIMENSIONS
Description
1. BASIC DIMENSIONS(a) There are two types of dimensions in the diagram. (Three±dimensional distance)
wStraight±line distance between the centers of two
measuring points.
(Two±dimensional distance)
wHorizontal distance in forward/rearward between the centers of two measuring points.
wThe height from an imaginary standard line.
(b) In cases in which only one dimension is given, left and right are symmetrical.
(c) The dimensions in the following drawing indicate actual
distance. Therefore, please use the dimensions as a
reference.
2. MEASURING (a) Basically, all measurements are to be done with atracking gauge. For portions where it is not possible to
use a tracking gauge, a tape measure should be used.
(b) Use only a tracking gauge that has no looseness in the body, measuring plate, or pointers.
HINT:
1. The height of the left and right pointers must be equal.
2. Always calibrate the tracking gauge before measuring or after adjusting the pointer height.
3. Take care not to drop the tracking gauge or otherwise shock it.
4. Confirm that the pointers are securely in the holes.
(c) When using a tape measure, avoid twists and bends in
the tape.
(d) When tracking a diagonal measurement from the front
spring support inner hole to the suspension member
upper rear installation hole, measure along the front
spring support panel surface.
±
BODY Body Dimensions (Description)BO±127
WhereEverybodyKnowsYourName

Body Dimension Drawings
ENGINE COMPARTMENT
(Three±Dimensional Distance)
mm (in.)B06846
B06860
Symble
NameHole dia.SymbleNameHole dia.
A,aFront fender apron standard hole10 (0.39)L,lFront fender installation nut6 (0.24) screw
B,bFront spring support hole ± front11 (0.43)M,nHood hinge installation nut ± rear8 (0.31) screw
C,cCowl side panel standard hole10 (0.39)N,nFront fender installation nut ± rear6 (0.24) screw
DCowl top panel center mark'O,oHeadlight installation nut6 (0.24) screw
E,eFront side member working hole18 (0.71)P, pHeadlight installation nut6 (0.24) screw
F, fFront side member working hole18 (0.71)Q,qHeadlight installation nut6 (0.24) screw
G,gRadiator support standard hole10 (0.39)R,rHeadlight installation nut6 (0.24) screw
H,hRadiator support standard hole10 (0.39)S,sHeadlight installation hole11 (0.43)
I,iFront fender apron standard hole10 (0.39)T, tHeadlight installation hole10 (0.39)
J,jFront side member standard hole8 (0.31)U,uHeadlight installation hole10 (0.39)
K,kFront fender installation nut ± front6 (0.24) screw'''
BO±128±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

UNDER BODY
(Three±Dimensional Distance)
±
BODY Body Dimensions (Body Dimension Drawings)BO±129
WhereEverybodyKnowsYourName

UNDER BODY (Cont'd)
(Three±Dimensional Distance)
BO±130
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

UNDER BODY (Cont'd)

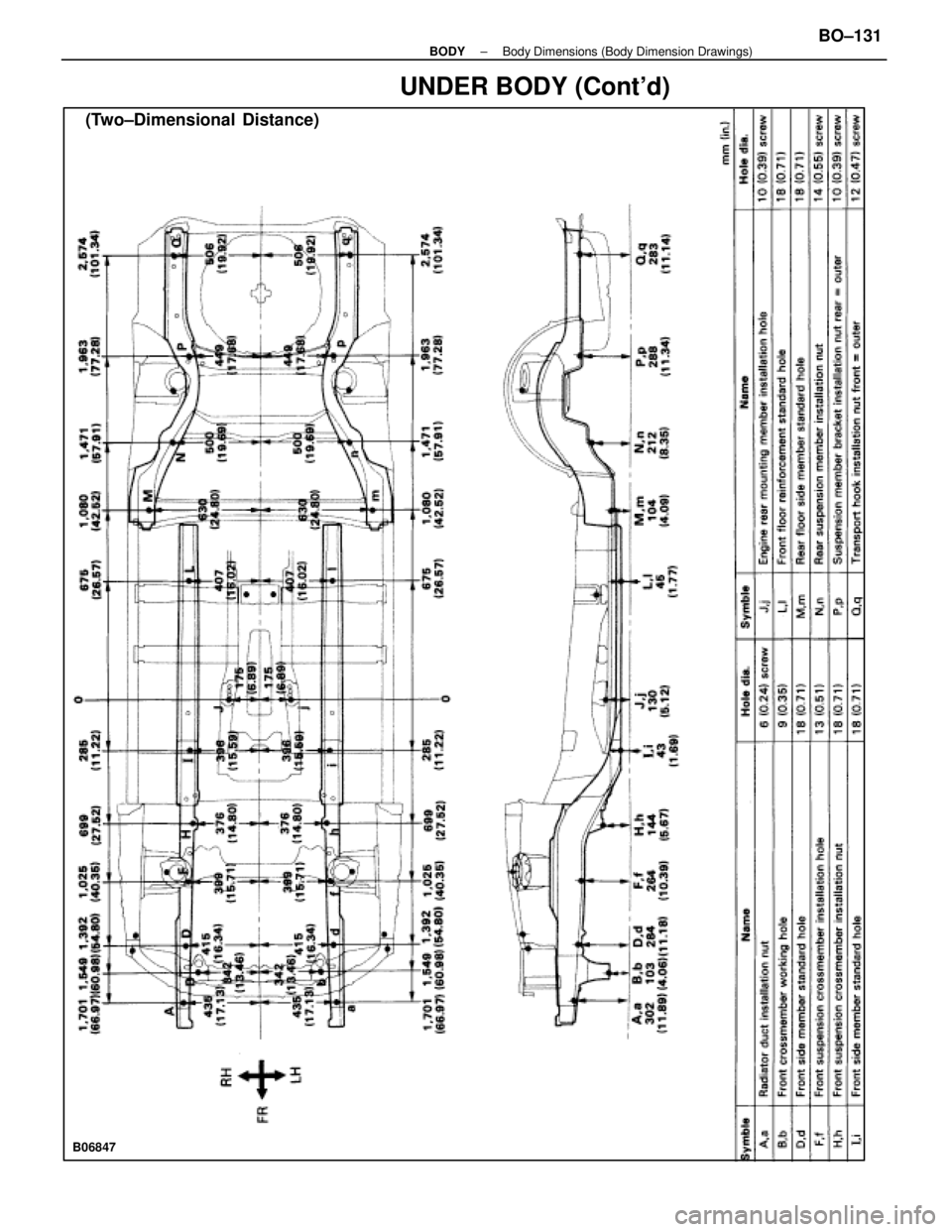

(Two±Dimensional Distance)
B06847
±
BODY Body Dimensions (Body Dimension Drawings)BO±131
WhereEverybodyKnowsYourName

UNDER BODY (Cont'd)
(Two±Dimensional Distance)
BO±132
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

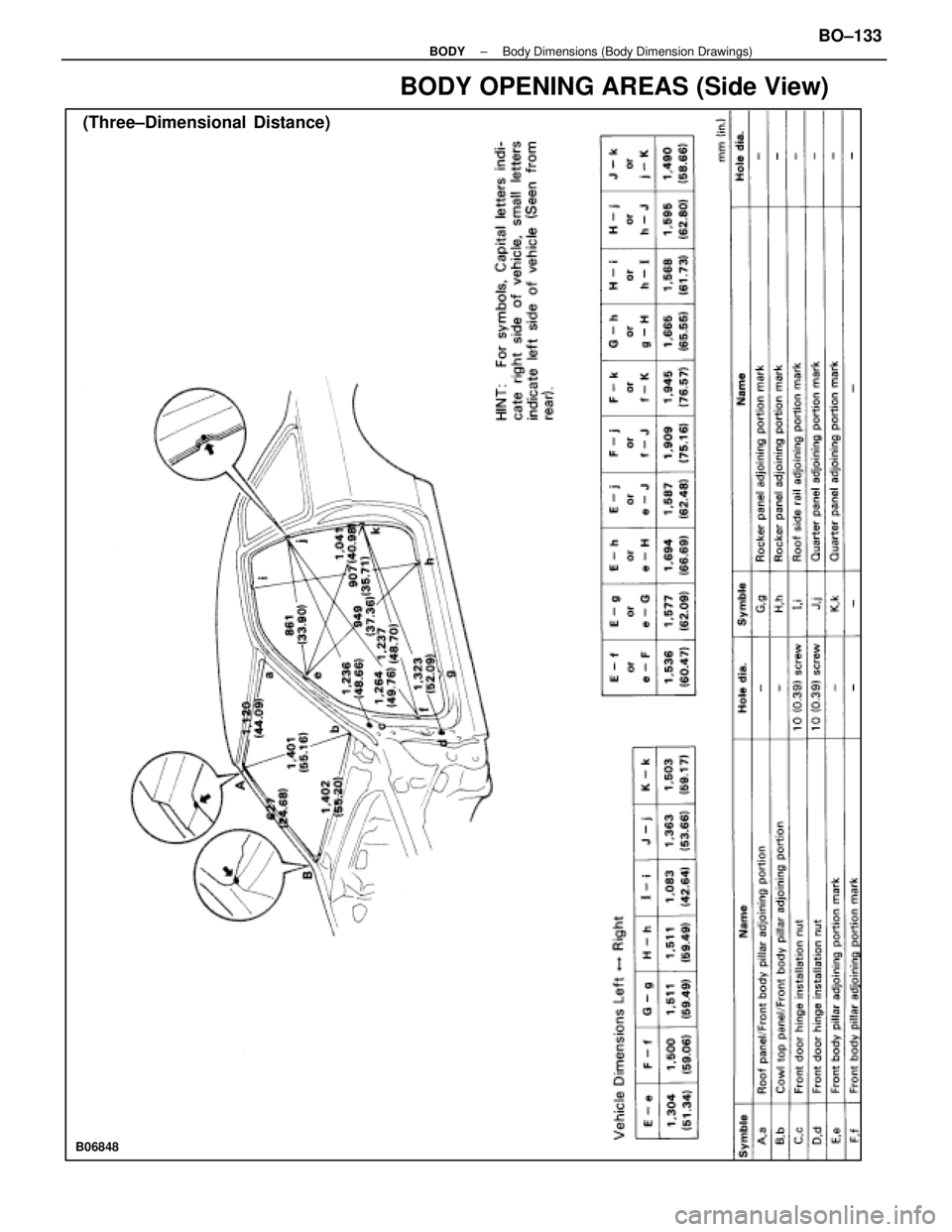

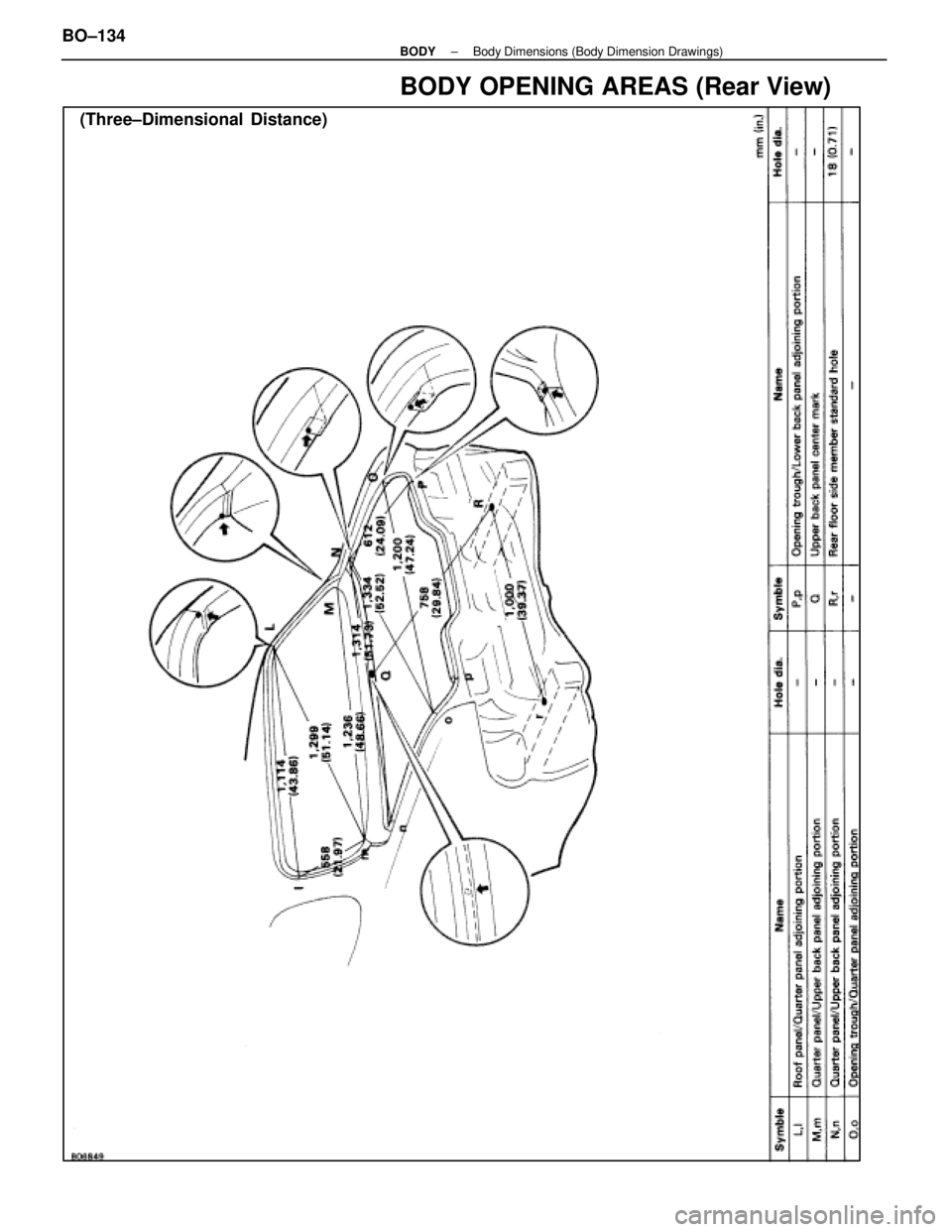

BODY OPENING AREAS (Side View)
(Three±Dimensional Distance)
B06848
±
BODY Body Dimensions (Body Dimension Drawings)BO±133
WhereEverybodyKnowsYourName

BODY OPENING AREAS (Rear View)
(Three±Dimensional Distance)
BO±134
±
BODY Body Dimensions (Body Dimension Drawings)
WhereEverybodyKnowsYourName

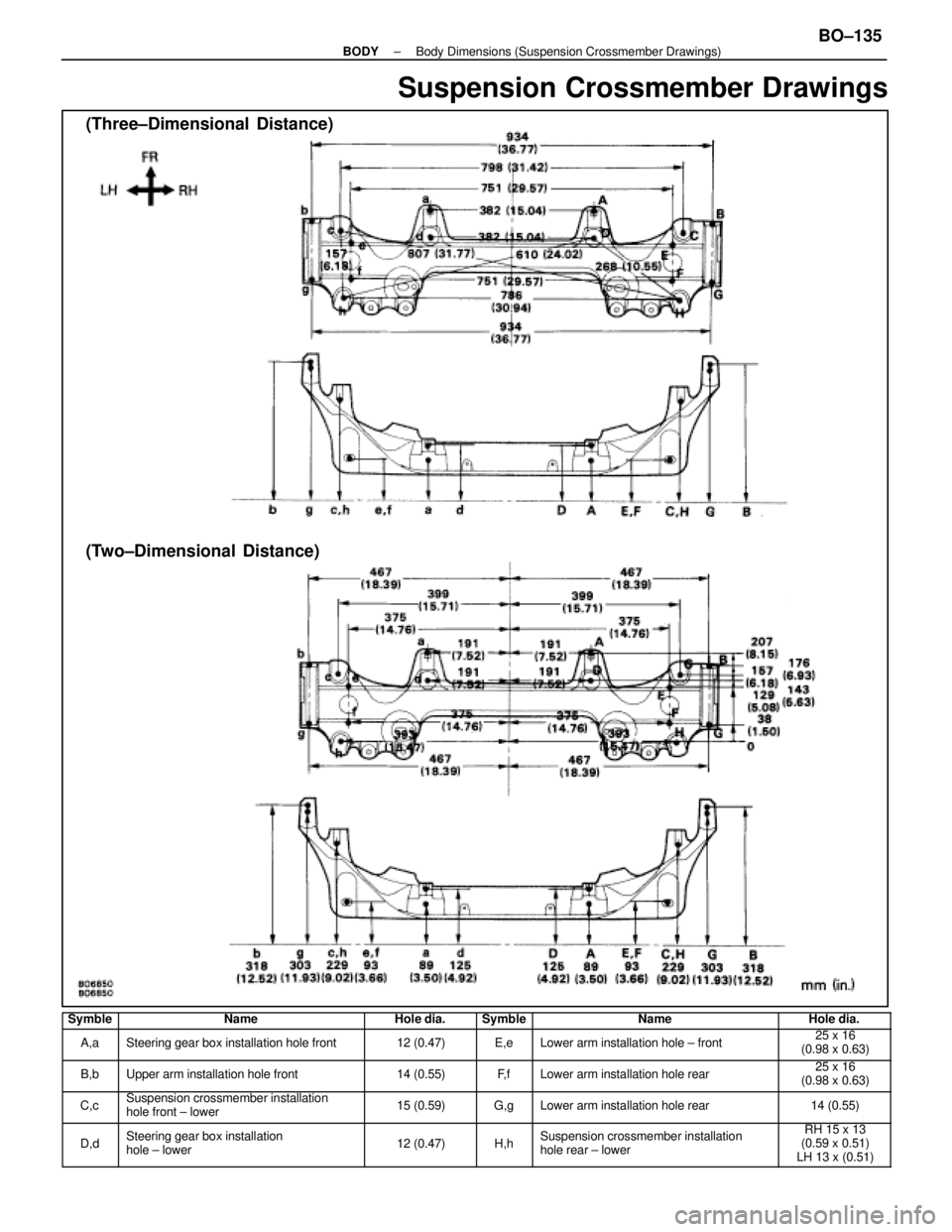

Suspension Crossmember Drawings
(Three±Dimensional Distance)
(Two±Dimensional Distance)
SymbleNameHole dia.SymbleNameHole dia.
A,aSteering gear box installation hole front12 (0.47)E,eLower arm installation hole ± front25 x 16
(0.98 x 0.63)
B,bUpper arm installation hole front14 (0.55)F, fLower arm installation hole rear25 x 16
(0.98 x 0.63)
C,cSuspension crossmember installation
hole front ± lower15 (0.59)G,gLower arm installation hole rear14 (0.55)
D,dSteering gear box installation
hole ± lower12 (0.47)H,hSuspension crossmember installation
hole rear ± lowerRH 15 x 13
(0.59 x 0.51)
LH 13 x (0.51)
±
BODY Body Dimensions (Suspension Crossmember Drawings)BO±135
