ELECTRICAL COMPONENTS
393

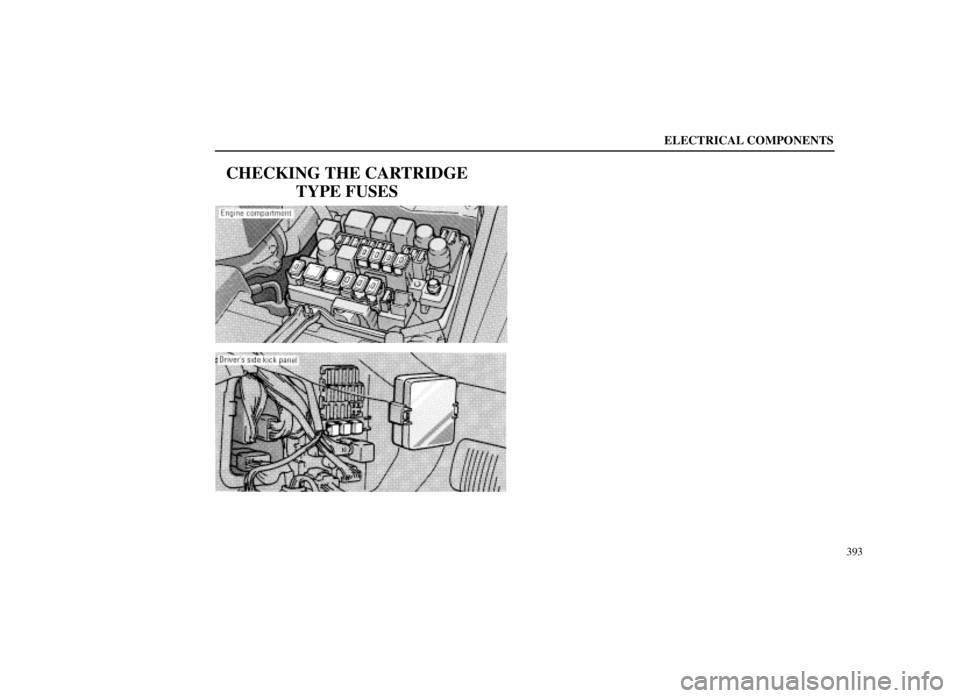

CHECKING THE CARTRIDGETYPE FUSES
Page 412 of 432
ELECTRICAL COMPONENTS
394If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.
If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.
NOTICE
Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.
Page 413 of 432
ELECTRICAL COMPONENTS
395
CAUTION
Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire ± even for a
temporary fix. This may cause extensive damage and possibly
a fire.
Page 414 of 432
ELECTRICAL COMPONENTS
396
ADDING WASHER FLUID
If the washer tank becomes nearly empty, add washer
fluid.
You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available
at your Lexus dealer and most auto parts stores. Follow the
manufacturer 's directions for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other substitute
because it may damage your vehicle's paint.
CHECKING THE HEADLIGHTAIM
(For low beam only)
Page 415 of 432
ELECTRICAL COMPONENTS
397
Before checking the headlight aim:
1. Be sure that the body around the headlight is not deformed.
2. Park the vehicle on a level spot.
3. The driver should stay in the driver's seat so that the
vehicle has its normal load (with the tank full).
4. Bounce the vehicle several times.
Page 416 of 432
ELECTRICAL COMPONENTS
398

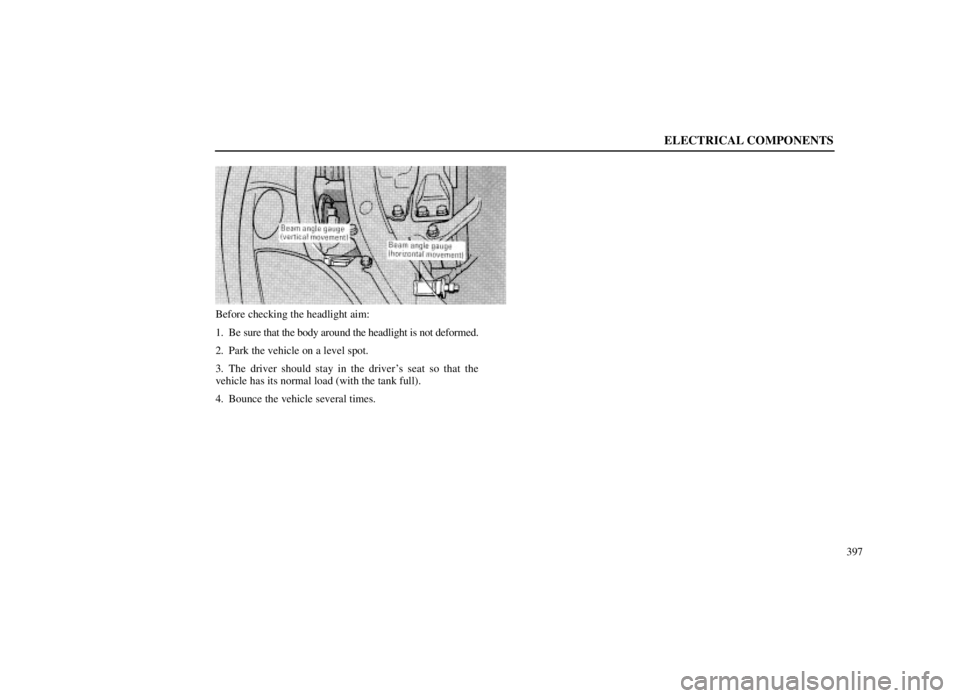

To check the headlight aim, check the vertical and
horizontal gauges.
1. Look at the beam angle gauge (vertical movement). The
bubble of the gauge should not deviate from the center of the
gauge by more than two marks on either side of the gauge.
Page 417 of 432
ELECTRICAL COMPONENTS
399

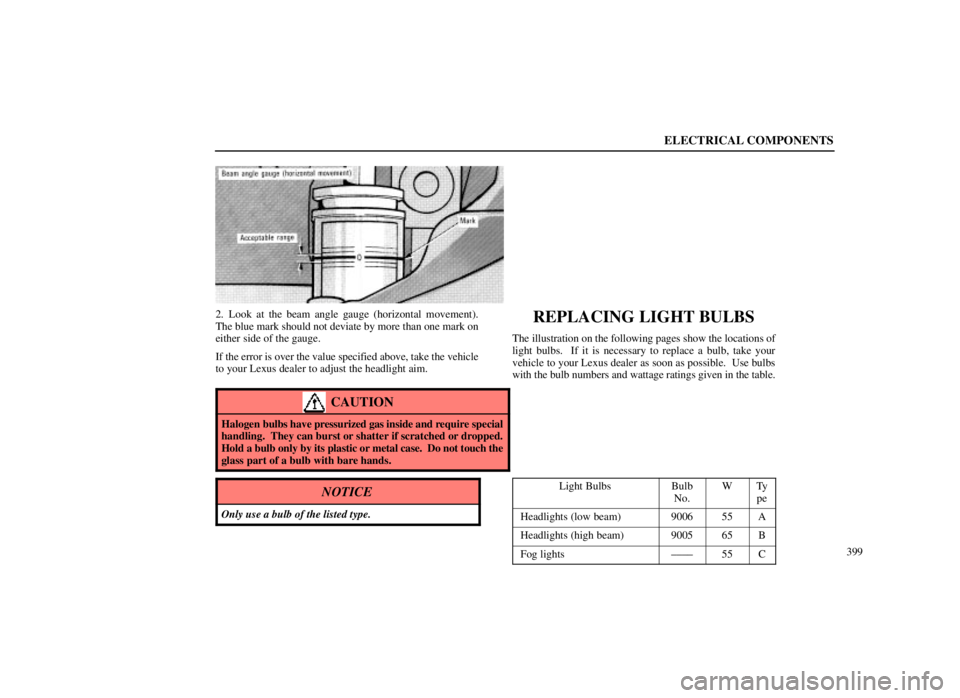

2. Look at the beam angle gauge (horizontal movement).
The blue mark should not deviate by more than one mark on
either side of the gauge.
If the error is over the value specified above, take the vehicle
to your Lexus dealer to adjust the headlight aim.REPLACING LIGHT BULBS
The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your
vehicle to your Lexus dealer as soon as possible. Use bulbs
with the bulb numbers and wattage ratings given in the table.
CAUTION
Halogen bulbs have pressurized gas inside and r equire special
handling. They can burst or shatter if scratched or dropped.
Hold a bulb only by its plastic or metal case. Do not touch the
glass part of a bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Light BulbsBulb
No.WType
Headlights (low beam)900655A
Headlights (high beam)900565B
Fog lights±±±±55C
Page 418 of 432
ELECTRICAL COMPONENTS
400Parking lights
±±±±5E
Front side marker lights1943.8E
Front turn signal lights1157
NA27/8D
Rear turn signal lights115627D
Light BulbsBulbNo.WType
Stop lights115627D
Tail lights±±±±5E
Back±up lights115627D
High mounted stoplight92118E
License plate lights±±±±5E
Interior light±±±±10F
Personal lights±±±±8D
Glovebox light±±±±1.2E
Door courtesy lights±±±±5E
Footlights±±±±1.2E
Vanity lights±±±±3F
Trunk light1943.8E
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: H3 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs
