Page 1661 of 4087

LEXUS SC400 1991  Service Repair Manual
wPosition SST on the edge of the lifter for easy removal
of the shim.
w Remove the adjusting shim with a small screwdriver and
a magnetic finger.

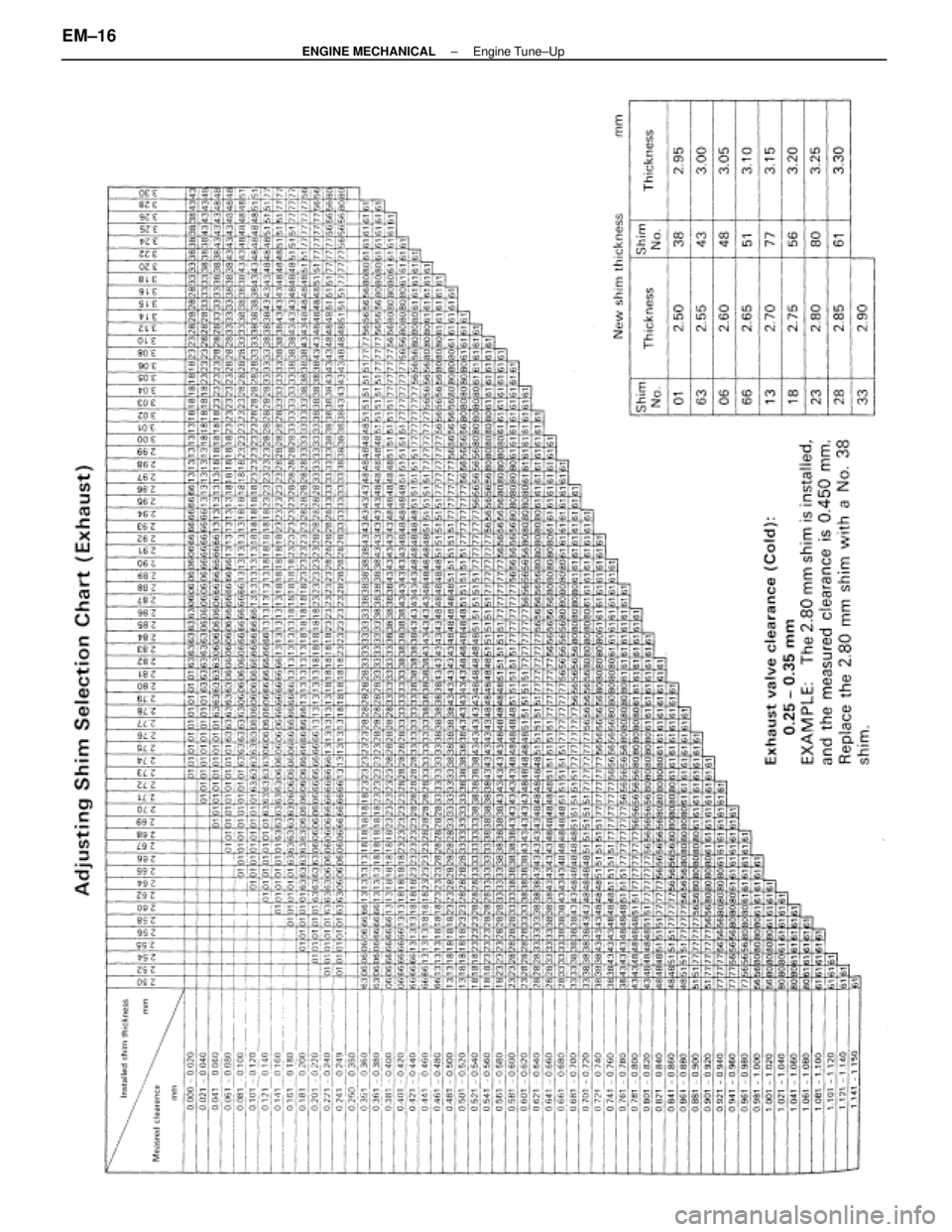

(b) D e t e r m i n e t h e r e p l a c e m e n t a d

Page 1662 of 4087

LEXUS SC400 1991  Service Repair Manual
±
ENGINE MECHANICAL Engine Tune±UpEM±15
WhereEverybodyKnowsYourName

Page 1663 of 4087

LEXUS SC400 1991  Service Repair Manual
EM±16±
ENGINE MECHANICAL Engine Tune±Up
WhereEverybodyKnowsYourName

Page 1664 of 4087

LEXUS SC400 1991  Service Repair Manual
13.  REINSTALL NO. 3, NO. 1 AND NO. 2 CYLINDER HEADCOVERS
(a)  Remove any oil packing (FIPG) material.
(b)  Apply seal packing to the cylinder head as shown in theillustration.
Seal packing: Part No.

Page 1665 of 4087

LEXUS SC400 1991  Service Repair Manual
16. REINSTALL THROTTLE BODY WITH INTAKE AIRCONNECTOR
(a)  Place a new gasket so the protrusion face the intakechamber, and set the throttle body with intake air
connector.
(b)  Connect  the two water

Page 1666 of 4087

LEXUS SC400 1991  Service Repair Manual
19.  REINSTALL AIR CLEANER HOSE(a)  Install the air cleaner hose with two hose clamps.
(b)  Connect the following hoses:(1) PS air hose to No. 4 timing belt cover
(2) PCV hose to No. 2 cylinder head

Page 1667 of 4087

LEXUS SC400 1991  Service Repair Manual
ENGINE TUNE±UP
INSPECTION OF ENGINE COOLANT
1. INSPECT ENGINE COOLANT LEVEL AT RESERVOIRTANK
The coolant level should be above the ºCOLD LEVELº at
normal temperature (20 5C (68 5F)).
If low, chec

Page 1668 of 4087

LEXUS SC400 1991  Service Repair Manual
INSPECTION OF BATTERY
1. INSPECT BATTERY SPECIFIC GRAVITY ANDELECTROLYTE LEVEL
(a)  Check the specific gravity of each cell.
Standard specific gravity:
1.27±1.29 when fully charged at 20 5C(68 5F)
I

Page 1669 of 4087

LEXUS SC400 1991  Service Repair Manual
INSPECTION OF HIGH±TENSION CORDS
1.  REMOVE HIGH±TENSION CORDS (See page IG±11)
2.  INSPECT HIGH±TENSION CORDS (b)  Using an ohmmeter, measure the resistance.
Maximum resistance: 25 k  per cord

Page 1670 of 4087

LEXUS SC400 1991  Service Repair Manual
INSPECTION AND ADJUSTMENT OF
VALVE CLEARANCE
HINT: Inspect and adjust the valve clearance when the
engine is cold.
1.  DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
CAUTION: Work must be starte
