LEXUS SC400 1991 Service Repair Manual

TORQUE SPECIFICATIONS
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 No.1 idler pulley X Cylinder block  34 350 25
No.2 idler pulley X Cylinder block3435025 Hydraulic pump X Cylinder block 12 mm head 16 160 12  14 mm head 30 310 22
 Crankshaft pulley X Crankshaft  245 2,500 181
Camshaft timing pulley X Camshaft1081,10080 Timing belt tensioner X Oil pump  26 270 20 Spark plug X Cylinder head  18 180 13
 Drive belt tensioner X Cylinder block  16 160 12
Alternator X Alternator bracket3738027 Alternator X Cylinder block  37 380 27 Distributor housing X Cylinder head  18 185 13
 Distributor rotor X Distributor housing   3.8 39  34 in. Vlbf
Distributor cap X Camshaft timing pulley 3.839 34 in. Vlbf\
 \
RH No.2 timing belt cover X Cylinder block (for 12 mm head) 16 160 12 Drive belt idler pulley X Hydraulic pump  37 380 27
 A/C compressor X Hydraulic pump  49 500 36
A/C compressor X Cylinder block4950036 A/C compressor stay X Oil filter bracket  29 300 22 Exhaust manifold X Cylinder head  39 400 29
 Main oxygen sensor X Exhaust manifold  44 450 33
Cylinder head X Cylinder block1st3940029  2nd Turn 90 5
 Camshaft bearing cap X Cylinder head  16 160 12
 Cylinder head cover X Cylinder head   5.9 60  52 in. Vlbf
Engine hanger X Cylinder head3738027 EGR pipe X Exhaust manifold  18 185 13 Rear water by±pass joint X Cylinder head  18 185 13
 Front water by±pass joint X Cylinder head  18 185 13
Intake manifold X Cylinder head1818513 Delivery pipe X Intake manifold  18 185 13\
 \
Fuel return pipe X RH delivery pipe(for union bolt) 35 360 26
 Fuel inlet hose X LH delivery pipe  39 400 29
for SST3334024 Cold start injector X Air intake chamber   7.8 80  69 in. Vlbf Air intake chamber X Intake manifold  18 185 13
 EGR pipe X Air intake chamber  18 185 13
EGR pipe X RH cylinder head1818513 Cold start injector tube X RH delivery pipe  15 150 11 Brake booster union X Air intake chamber  29 300 22
 Throttle body X Air intake chamber  18 185 13
ISC valve X Air intake chamber1818513 EGR valve adapter X Air intake chamber  18 185 13 EGR valve X EGR valve adapter  18 185 13
 Timing belt rear plate X Cylinder head   7.8 80  69 in. Vlbf
Water inlet housing X Water pump1818513\
 \
Catalytic converter (main) X Exhaust manifold 62 630 46\
 \
Catalytic converter (main) X Front exhaust pipe 43 440 32
\
 \
Front exhaust pipe support bracket X Transmission 43 440 32
PS pump X RH cylinder headBolt3940029  Nut 43 440 32 Main bearing cap X Cylinder block Nut 1st 27 275 20
  2nd Turn 90 5
Bolt4950036
±
ENGINE MECHANICAL Service SpecificationsEM±181
WhereEverybodyKnowsYourName

TORQUE SPECIFICATIONS (Cont'd)
\
 \
Part tightened NVm kgf Vcm ft Vlbf
 Connecting rod cap X Connecting rod 1st 25 250 18
2ndTurn 90 5 Rear oil seal retainer X Cylinder block   7.8 80  69 in. Vlbf Water seal plate X Cylinder block  14 145 10
 Alternator bracket X Cylinder block  18 185 13
 Oil pump X Cylinder block 12 mm head 16 160 12
14 mm head3031022 Water pump X Cylinder block  18 185 13 Water by±pass pipe X Cylinder block  18 185 13
 Knock sensor X Cylinder block  44 450 33
 Starter X Cylinder block  39 400 29
Engine mounting bracket X Cylinder block3738027 Drive plate X Crankshaft  98 1,000 72 A/T oil cooler pipe X Transmission  34 350 25 Rear engine mounting member X Body  25 260 19
\
 \
Rear engine mounting member X Engine mounting insulator 13 135 10
\
 \
Front engine mounting insulator X Suspension crossmember 59 600 43
Center floor brace X Body131309 Tailpipe X Center exhaust pipe  43 440 32 Front exhaust pipe X Center exhaust pipe  43 440 32
 Sub±oxygen sensor X Front exhaust pipe  44 450 33
EM±182±
ENGINE MECHANICAL Service Specifications
WhereEverybodyKnowsYourName

EXHAUST SYSTEM
NOTE: The specification descriptions ºUSA Spec.º and
º Exc. USA Spec. º used in this section indicate the following
specifications.
USA Spec .: USA (50 States) Specifications.
Exc. USA Spec .: USA (except California) and Canadian
Specifications.
EX±1
WhereEverybodyKnowsYourName

COMPONENTS

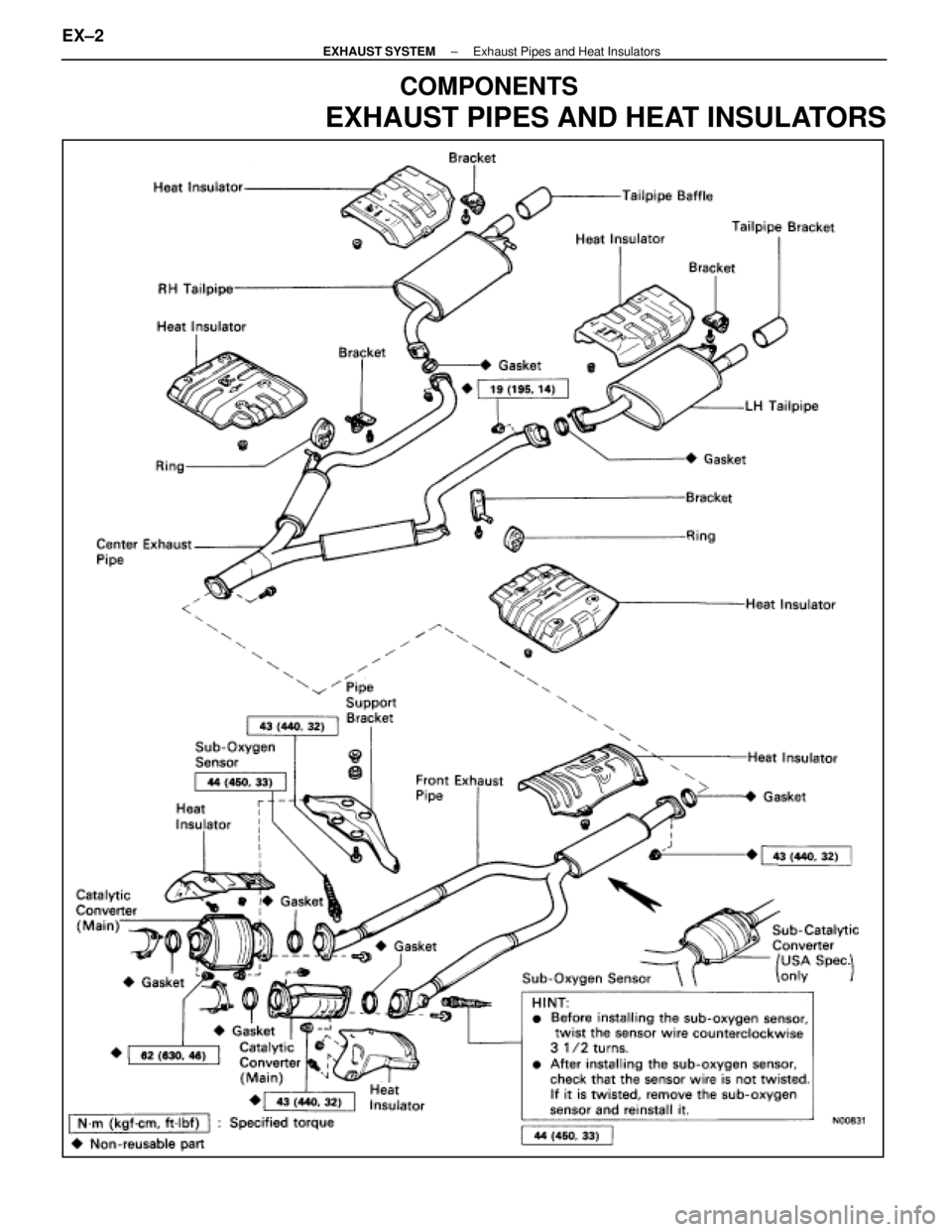

EXHAUST PIPES AND HEAT INSULATORS
EX±2±
EXHAUST SYSTEM Exhaust Pipes and Heat Insulators
WhereEverybodyKnowsYourName

EFI SYSTEM
NOTE: The specification descriptions ºUSA Spec.º and
º Exc. USA Spec. º used in this section indicate the following
specifications.
USA Spec .: USA (50 States) Specifications
Exc. USA Spec .: USA (except California) and Canadian
Specifications. FI±1
EFI SYSTEM
WhereEverybodyKnowsYourName

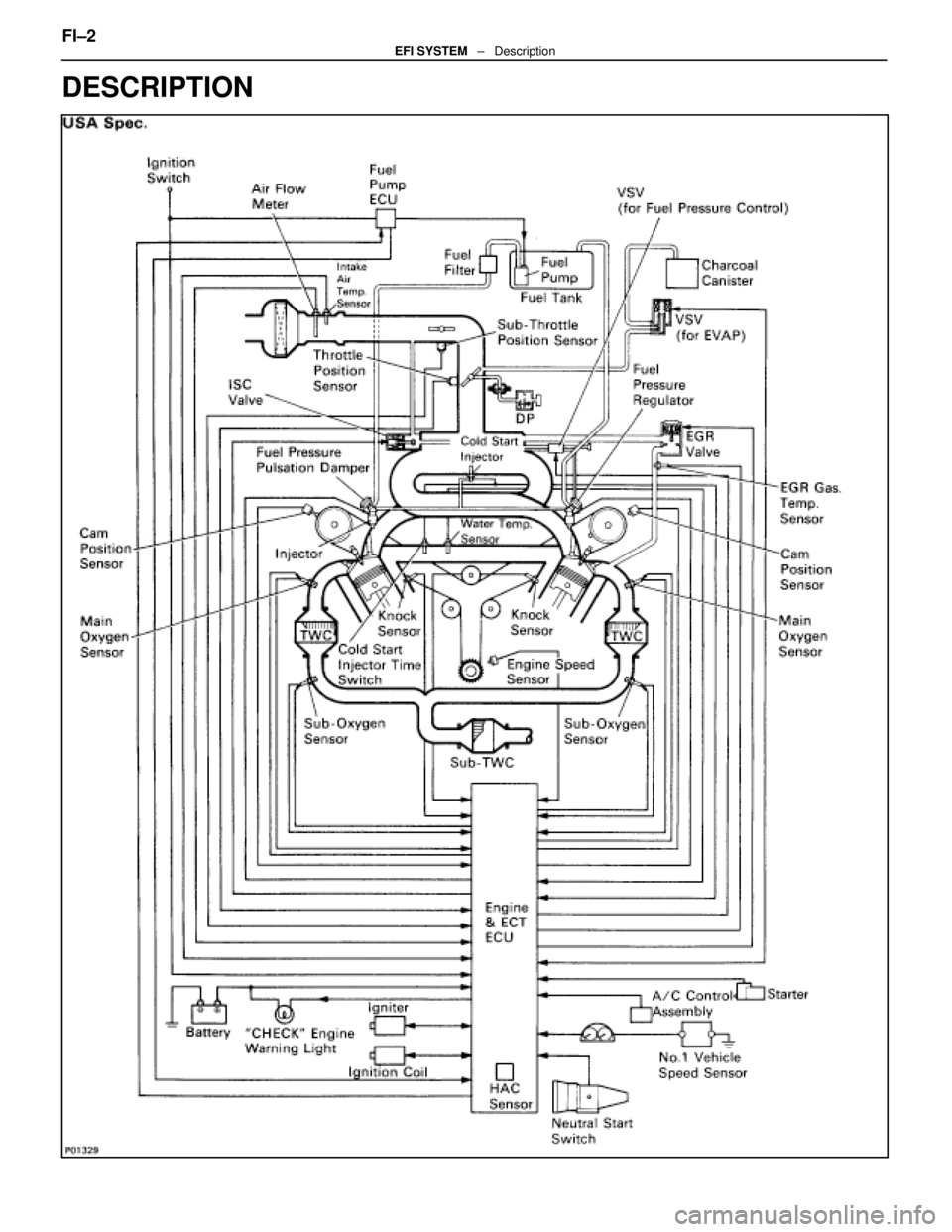

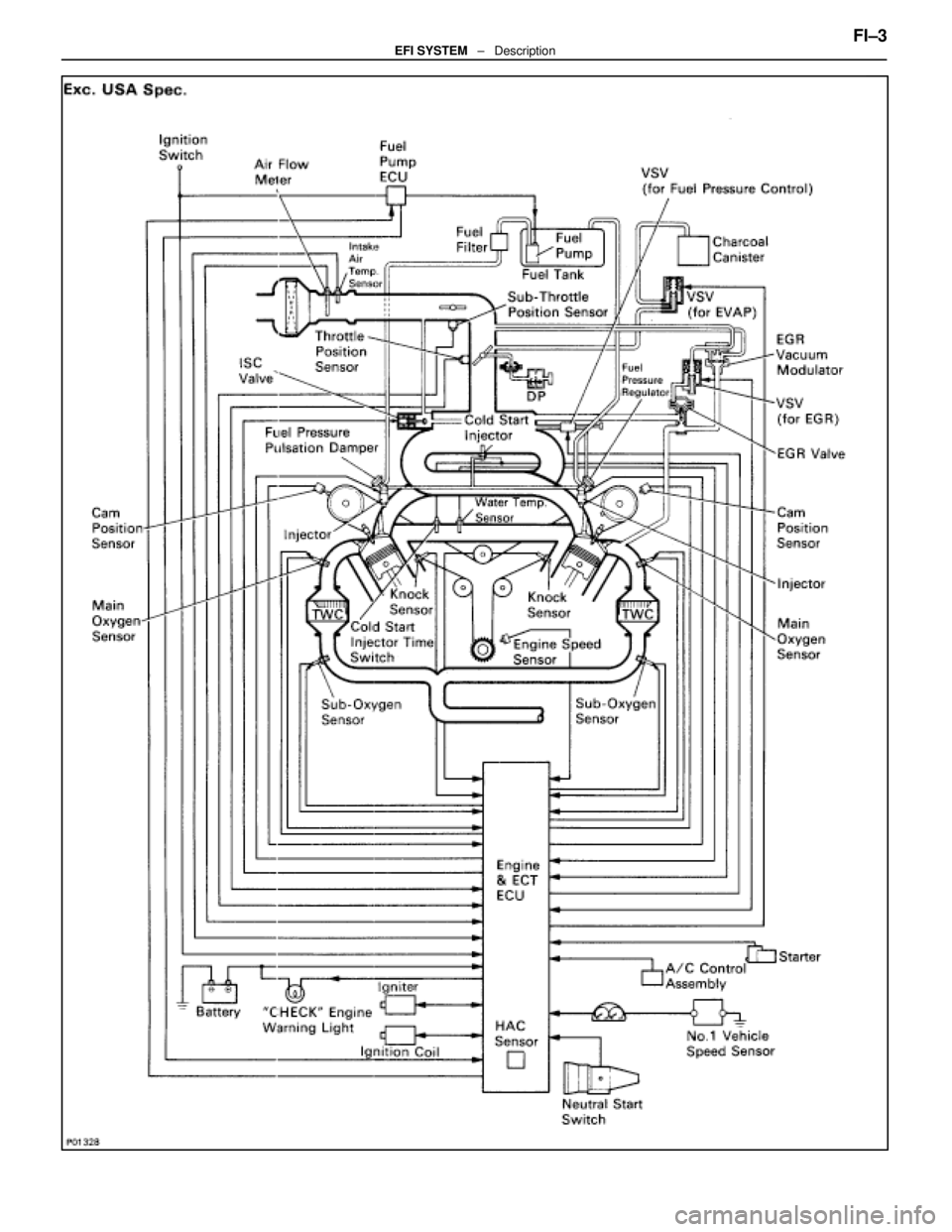

DESCRIPTION
FI±2EFI SYSTEM ± Description
WhereEverybodyKnowsYourName

FI±3EFI SYSTEM ± Description
WhereEverybodyKnowsYourName

The EFI system is composed of three basic sub±systems: Fuel, Air Induction and Elect\
ronic Control
Systems.
FUEL SYSTEM
An electric pump fuel pressure supplies sufficient fuel, under a constant pressure, to the EFI injectors. In
accordance with signals from the ECU (Electronic Control Unit), these \
injectors inject the quantity of fuel most
appropriate for the engine condition into the intake manifold.
AIR INDUCTION SYSTEM
The air induction system provides sufficient air for engine operation.
ELECTRONIC CONTROL SYSTEM
The 1UZ±FE engine (ECU±formerly EFI computer) with a microcomputer \
centrally controls the EFI, ESA,
ISC and Diagnosis system, etc. The ECU controls the following functions:
1. Electronic Fuel Injection (EFI)
The ECU receives signals from various sensors indicating changing engine op\
eration conditions such as:Intake air volume
Intake air temperature
Coolant temperature
Engine rpm
Acceleration/deceleration
Exhaust oxygen content etc.
The signals are utilized by the ECU to determine the injection duration nec\
essary for an optimum air±fuel
ratio.
2. Electronic Spark Advance (ESA) The ECU is programmed with data for optimum ignition timing under any and all opera\
ting conditions. Using
data provided by sensors which monitor various engine functions (rpm, coola\
nt temperature, etc.), the
Electronic Control Unit (ECU) triggers the spark at precisely right instant. (S\
ee IG section)
3. Idle Speed Control (ISC) The ECU is programmed with idle speed data for various engine conditions (\
coolant temperature, air condi-
tioner ON/OFF, etc.).
The air volume flowing through the throttle valve by±pass passage is adj\
usted according to the signal from
each sensor and the idle speed is kept at the set value.
4. Diagnosis Function When the ECU detects any malfunctions or abnormalities in the sensor network\
, it lights the ºCHECKº en-
gine warning light in the combination meter. At the same time, the trouble is identified and a diagnostic code
is recorded by the ECU. The diagnostic code can be read by the number of\
blinks of the ºCHECKº engine
warning light when terminals TE1 and E1 are connected. The diagnostic co\
des are refer to the later page.
(See TR section)
5. Self±Correction Function If any sensor malfunctions, an average value recorded in the back±up ci\
rcuit is substituted to make driving
possible.
If danger is predicted, the engine is stopped and the ºCHECKº engine\
warning light will light up.
6. Fail±Safe Function Even if an abnormality occurs in the ECU, the back±up circuit uses a specifie\
d fuel injection and ignition
timing to provide vehicle driveability, and also lightsup the ºCHECKº engine warning light.
FI±4
EFI SYSTEM
± Description
WhereEverybodyKnowsYourName

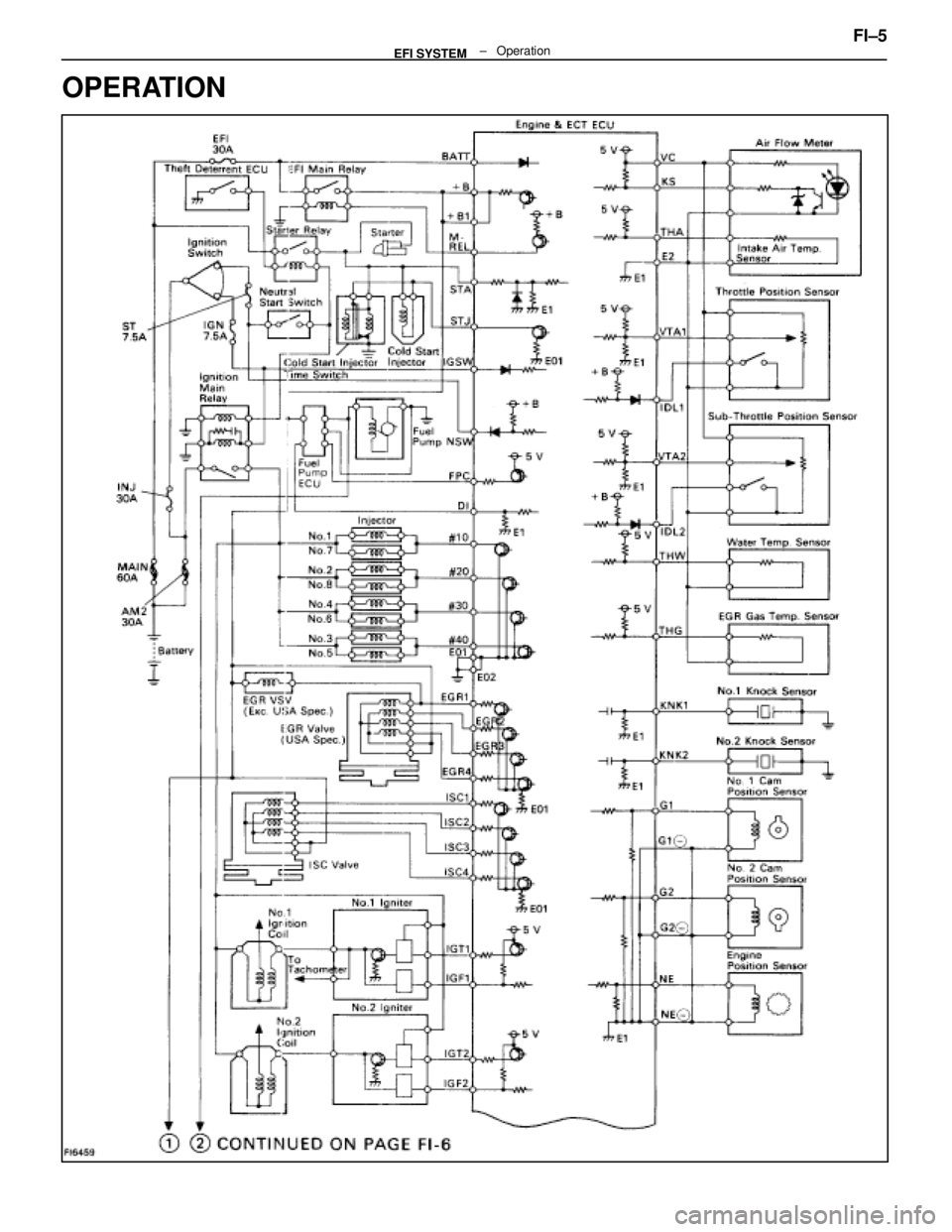

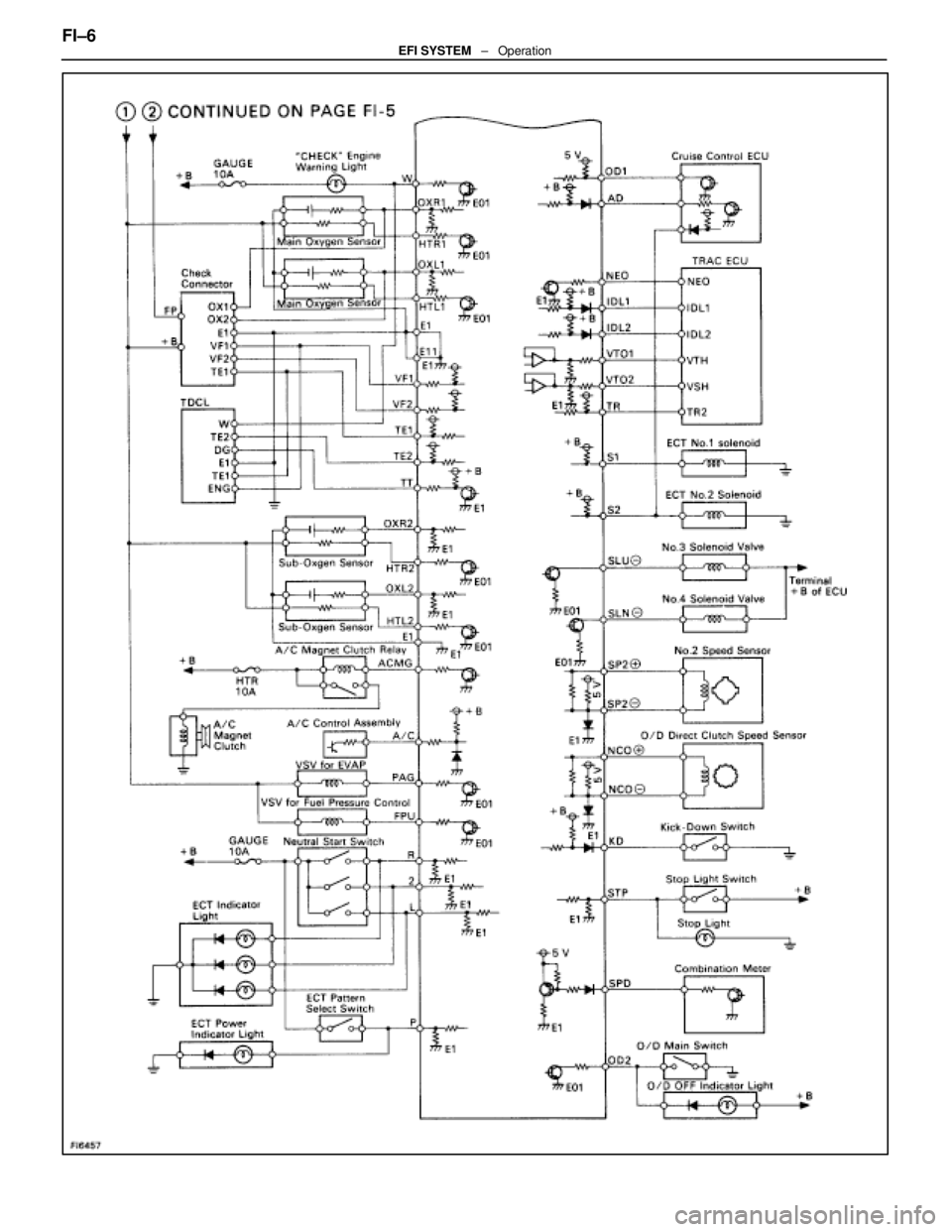

OPERATION
FI±5 ± OperationEFI SYSTEM
WhereEverybodyKnowsYourName

FI±6EFI SYSTEM ± Operation
WhereEverybodyKnowsYourName
