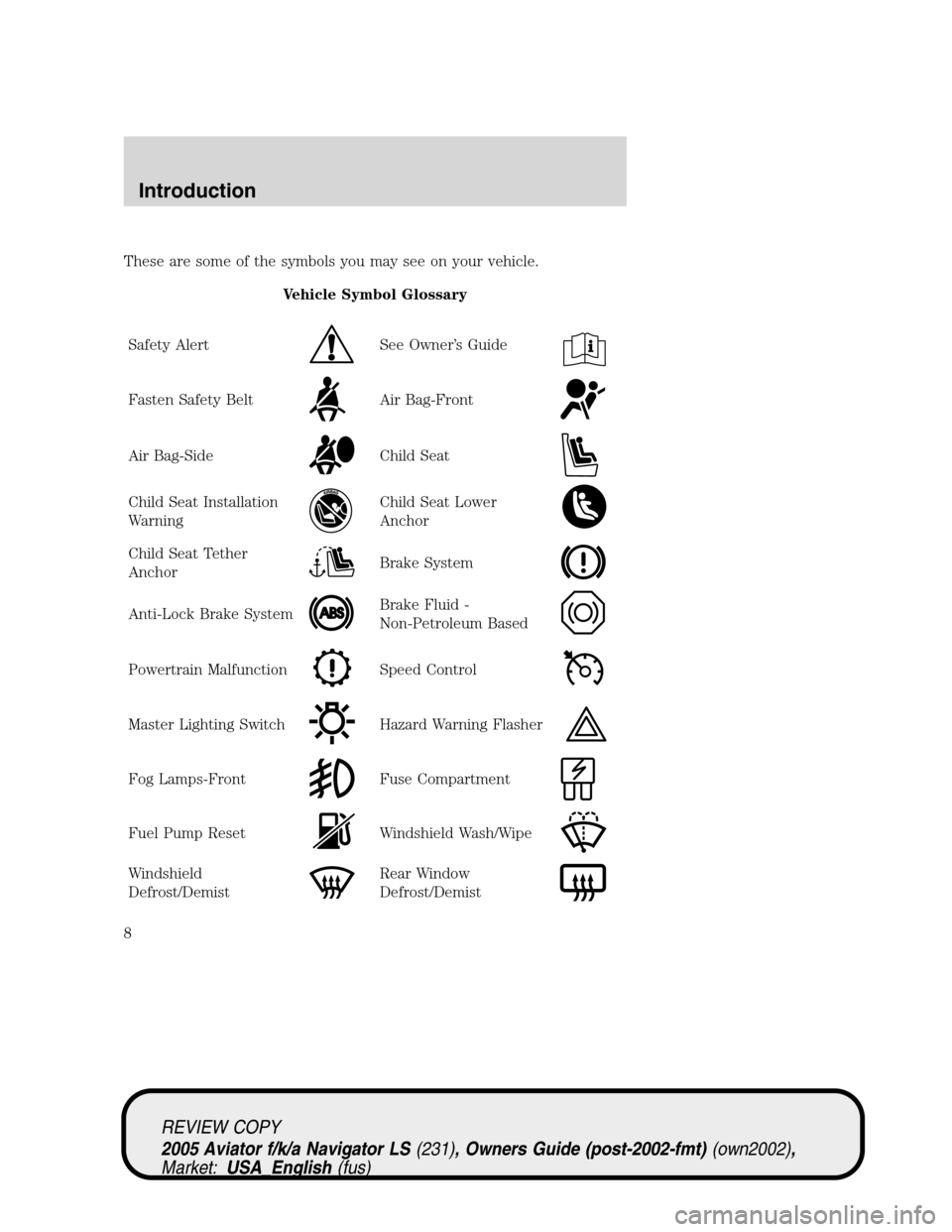

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Introduction
8
Page 104 of 368
HEADLAMP CONTROL
Rotate the headlamp control
clockwise to the first position
to
turn on the parking lamps. Rotate
clockwise to the second
position
to also turn on the
headlamps.
Foglamp control
The headlamp control also operates
the foglamps. The foglamps can be
turned on only when the headlamp
control is in the
,or
position and the high beams are not
turned on.
Pull headlamp control towards you
to turn foglamps on. The foglamp
indicator light
will illuminate if
the ignition is in the ON position.
Autolamp control
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system also keeps the
lights on for approximately 20
seconds after the ignition switch is
turned to the OFF/LOCK position.
•To turn autolamps on, rotate the
control counterclockwise.
•To turn autolamps off, rotate the control clockwise to the OFF
position.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
Lights
104
Page 111 of 368
BULBS
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America to assure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Number of bulbs Trade number
Park/turn lamps
(front)2
3157 AK (amber)
TH headlamps, low
beam2
H11
HID headlamps, low
beam*2
D2R
Headlamps, high beam 2 9005 (HB3)
Front sidemarker 2 WY5W
Rear stop/turn/tail
lamps4
3057K
Back-up lamps 2 3156K
Fog lamp 2 9140
Liftgate lamp 4 916
High-mount stop lamp 32 LEDS 2C54–13A613**
Rear license plate
lamp2
168
Mirror turn signal
lamp2
906
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
111
Page 117 of 368

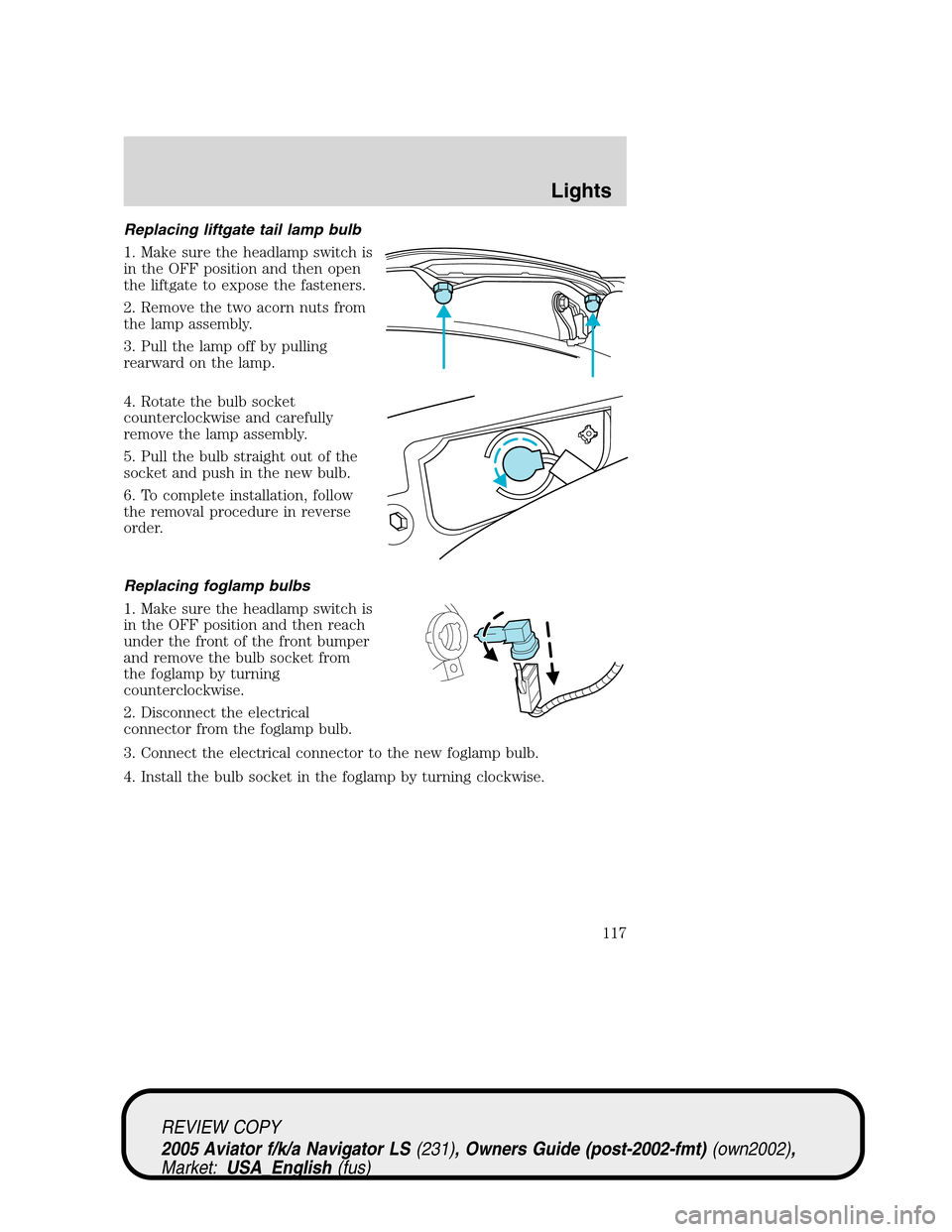

Replacing liftgate tail lamp bulb
1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the fasteners.
2. Remove the two acorn nuts from
the lamp assembly.
3. Pull the lamp off by pulling
rearward on the lamp.
4. Rotate the bulb socket
counterclockwise and carefully
remove the lamp assembly.
5. Pull the bulb straight out of the
socket and push in the new bulb.
6. To complete installation, follow
the removal procedure in reverse
order.
Replacing foglamp bulbs
1. Make sure the headlamp switch is
in the OFF position and then reach
under the front of the front bumper
and remove the bulb socket from
the foglamp by turning
counterclockwise.
2. Disconnect the electrical
connector from the foglamp bulb.
3. Connect the electrical connector to the new foglamp bulb.
4. Install the bulb socket in the foglamp by turning clockwise.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Lights
117
Page 300 of 368
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
* Mini Fuses ** Cartridge Fuses
1 60A** Power Junction Box (PJB)
2 30A** Door locks (BSM)
3 20A** Cigar lighter
4 40A** Heated backlight/mirrors
5 40A** Anti-lock Brake System
(ABS)/Roll Stability Control
(RSC) module (pump)
6 60A** Delayed accessory
7 20A** Daytime Running Lamps (DRL)
module
8 20A** Electric cooling fan
9 20A** Headlamp switch
10 30A** ABS/RSC module (valves)
11 40A** PTEC relay contacts
12 50A** Ignition/Starter relay
13 40A** Trailer tow relays
14 15A* Brake lamp feed
15 10A* Keep alive power
(PTEC/cluster/DEATC), Courtesy
lights
16 20A* Power point #3
17 20A* Rear wiper module
18 20A* 4x4 module
19 30A** Driver window motor
20 30A** Electric trailer brake module
21 30A** Memory seat module
22 20A** Main exterior lamps (low beam
headlamps, high beam headlamps,
fog lamps)
23 30A** Ignition switch
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
300
Page 359 of 368
LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local authorized Lincoln or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln Accessory
found to be defective in factory-supplied materials or workmanship
during the warranty period, as well as any component damaged by the
defective accessory. The accessory will be warranted for whichever
provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Lincoln Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—4 years or 50,000 miles (80,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Lincoln Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Fender flares
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Step Bars
Wheels
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
Accessories
359
Page 364 of 368
Engine oil ..................................328
change oil soon warning,
message center .......................328
checking and adding ..............328
dipstick ....................................328
filter, specifications ........331, 351
recommendations ...................331
refill capacities ........................352
specifications ..................354, 356
Exhaust fumes ..........................268
F
Fail safe cooling ........................337
Floor mats .................................155
Fluid capacities .........................352
Foglamps ...................................104
Four-Wheel Drive vehicles
driving off road .......................285
preparing to drive your
vehicle .....................................275
Fuel ............................................338
calculating fuel
economy ..........................143, 343
cap ...........................................340
capacity ...................................352
choosing the right fuel ...........341
comparisons with EPA fuel
economy estimates .................346
detergent in fuel .....................342
filling your vehicle with
fuel ...........................338, 340, 343
filter, specifications ........343, 351
fuel pump shut-off switch .....293
improving fuel economy ........343
octane rating ...................342, 356
quality ......................................342
running out of fuel .................342
safety information relating to
automotive fuels .....................338Fuses ..................................294–295
G
Garage Door Opener
(see Homelink wireless
control system) .........................137
Gas cap (see Fuel cap) ............340
Gas mileage
(see Fuel economy) .................343
Gauges .........................................13
H
Hazard flashers .........................293
Head restraints .........................176
Headlamps .................................104
aiming ......................................107
autolamp system .....................104
bulb specifications ..................111
daytime running lights ...........106
flash to pass ............................107
high beam ...............................106
replacing bulbs .......................113
turning on and off ..................104
Homelink wireless control
system ........................................137
I
Ignition ...............................265, 356
Infant seats
(see Safety seats) .....................211
Inspection/maintenance (I/M)
testing ........................................348
Instrument panel
cleaning ...................................322
cluster ........................................10
J
Jack ....................................229, 232
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
364
Page 365 of 368
positioning .......................229, 234
storage .............................229, 232
Jump-starting your vehicle ......304
K
Keyless entry system
locking and unlocking doors ..167
programming entry code .......165
Keys ...................................169–171
positions of the ignition .........265
L
Lamps
autolamp system .....................104
bulb replacement
specifications chart ................111
daytime running light .............106
fog lamps .................................104
headlamps ...............................104
headlamps, flash to pass ........107
interior lamps .................110, 112
replacing
bulbs ................111, 113, 115–118
Lane change indicator
(see Turn signal) ......................109
Liftgate ..............................155, 161
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........270
Load limits .................................252
Loading instructions .................258
Locks
childproof ................................159
doors ........................................158
Lubricant specifications ...354, 356
Lug nuts ....................................237
Luggage rack .............................156Lumbar support, seats .............176
M
Manual transmission
fluid capacities ........................352
lubricant specifications ..........356
Message center .........................141
english/metric button .............146
system check button ..............145
warning messages ...................148
Mirrors .......................................128
automatic dimming rearview
mirror ......................................128
fold away .................................130
heated ......................................130
programmable memory ..........162
side view mirrors (power) .....129
signal .......................................130
Moon roof ..................................123
Motorcraft parts ................343, 351
N
Navigation system .......................36
cd functions ..............................53
destination mode ......................77
DVD location .............................99
map mode .................................57
quick start .................................38
radio functions ..........................45
O
Octane rating ............................342
Oil (see Engine oil) ..................328
P
Panic alarm feature, remote
entry system ..............................161
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
365
