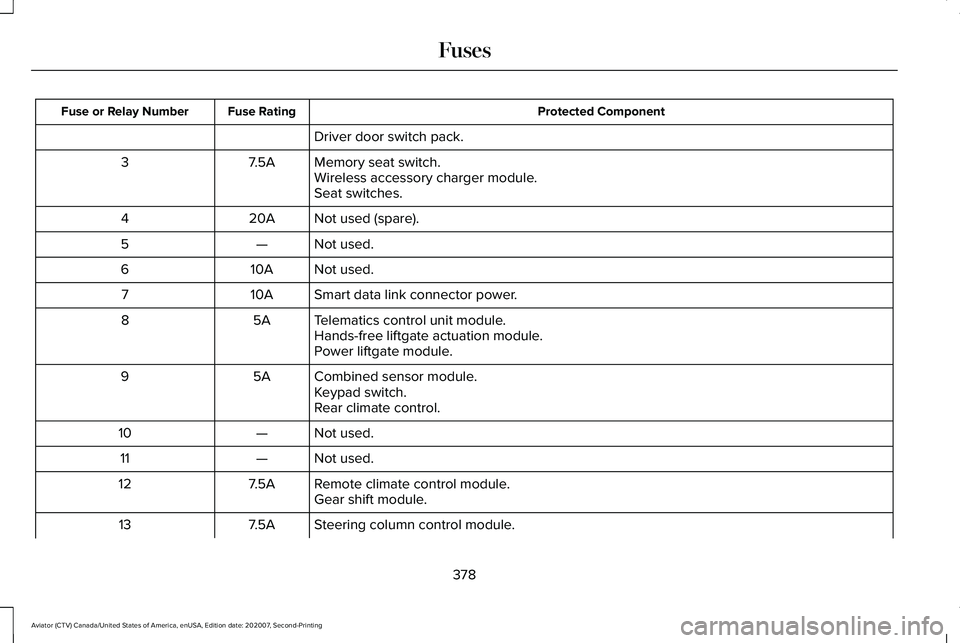

Protected Component
Fuse Rating
Fuse or Relay Number
Driver door switch pack.
Memory seat switch.
7.5A
3
Wireless accessory charger module.
Seat switches.
Not used (spare).
20A
4
Not used.
—
5
Not used.
10A
6
Smart data link connector power.
10A
7
Telematics control unit module.
5A
8
Hands-free liftgate actuation module.
Power liftgate module.
Combined sensor module.
5A
9
Keypad switch.
Rear climate control.
Not used.
—
10
Not used.
—
11
Remote climate control module.
7.5A
12
Gear shift module.
Steering column control module.
7.5A
13
378
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Fuses

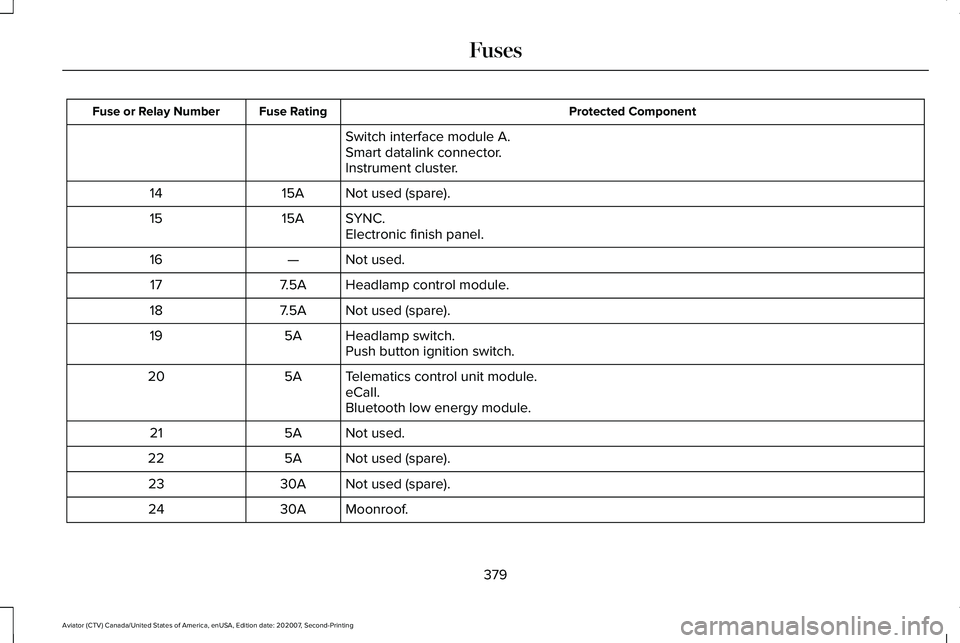

Protected Component
Fuse Rating
Fuse or Relay Number
Switch interface module A.
Smart datalink connector.
Instrument cluster.
Not used (spare).
15A
14
SYNC.
15A
15
Electronic finish panel.
Not used.
—
16
Headlamp control module.
7.5A
17
Not used (spare).
7.5A
18
Headlamp switch.
5A
19
Push button ignition switch.
Telematics control unit module.
5A
20
eCall.
Bluetooth low energy module.
Not used.
5A
21
Not used (spare).
5A
22
Not used (spare).
30A
23
Moonroof.
30A
24
379
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Fuses

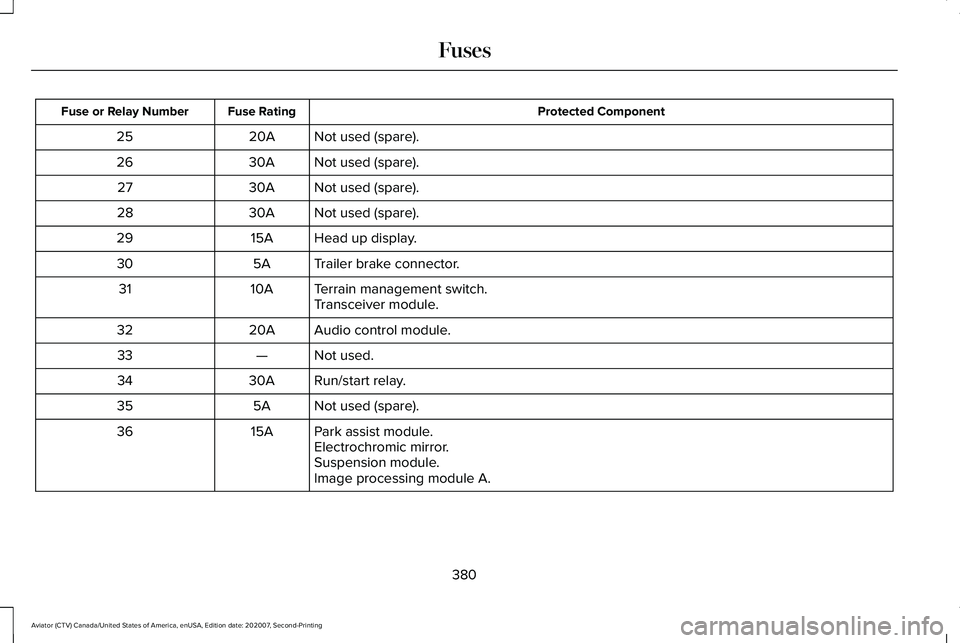

Protected Component
Fuse Rating
Fuse or Relay Number
Not used (spare).
20A
25
Not used (spare).
30A
26
Not used (spare).
30A
27
Not used (spare).
30A
28
Head up display.
15A
29
Trailer brake connector.
5A
30
Terrain management switch.
10A
31
Transceiver module.
Audio control module.
20A
32
Not used.
—
33
Run/start relay.
30A
34
Not used (spare).
5A
35
Park assist module.
15A
36
Electrochromic mirror.
Suspension module.
Image processing module A.
380
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Not used (spare).
20A
37
Not used.
—
38
Note: Spare fuse amperage may vary.

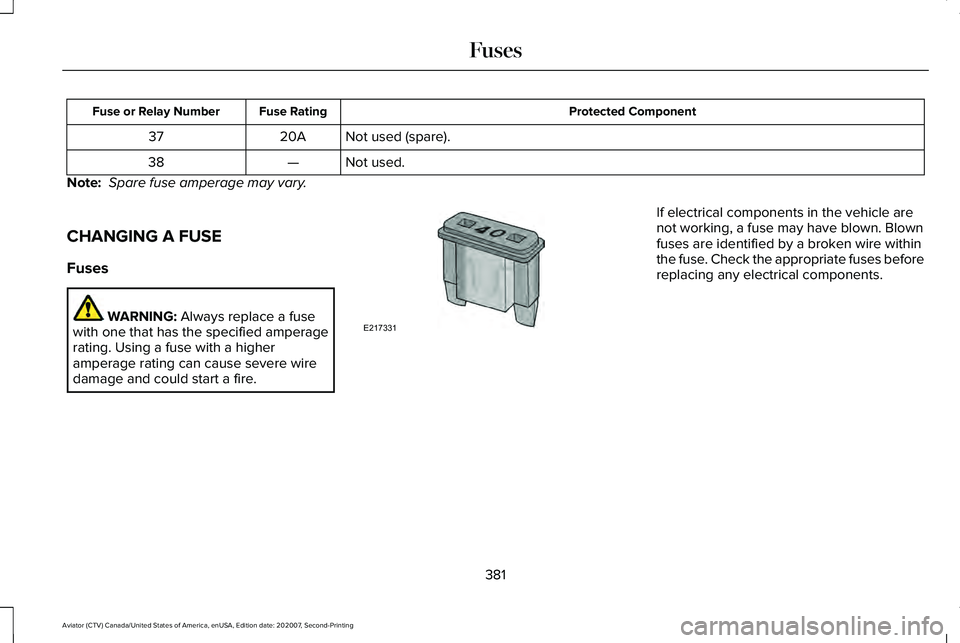

CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified amperage
rating. Using a fuse with a higher
amperage rating can cause severe wire
damage and could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses before
replacing any electrical components.
381
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing FusesE217331
