Check Every Six Months
Seatbelts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and seatbelt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval to
help make sure your vehicle keeps running
great. Multi-Point Inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioning hoses
Engine air filter
Suspension components for leaks or damage
Exhaust system
567
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance

Multi-Point Inspection
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and proper pressure2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tir\
e sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive way
to perform a thorough inspection of your
vehicle. Your checklist gives you immediate
feedback on the overall condition of your
vehicle. NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you use
your vehicle. By using several important
factors in its calculations, the monitor helps
reduce the cost of owning your vehicle and
reduces environmental waste at the same
time.This means you do not have to remember to
change the oil on a mileage-based schedule.
Your vehicle lets you know when an oil
change is due by displaying a message in
the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of use.
568
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance

Normal Maintenance Intervals
At Every Oil Change Interval as Indicated by the Information Display
1
Change the engine oil and filter. 2
Rotate the tires.
Perform a multi-point inspection, recommended.
Inspect the brake pads, rotors, hoses and parking brake.
Inspect the engine cooling system strength and hoses.
Inspect the exhaust system and heat shields.
Inspect the front axle.
Inspect the rear axle and U-joints.
Inspect the half-shaft boots.
Inspect the steering linkage, ball joints, suspension and the tire-rod ends.
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
1 Do not exceed one year or 12,500 mi (20,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter change\
s.
See Engine Oil Check (page 387).
570
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance

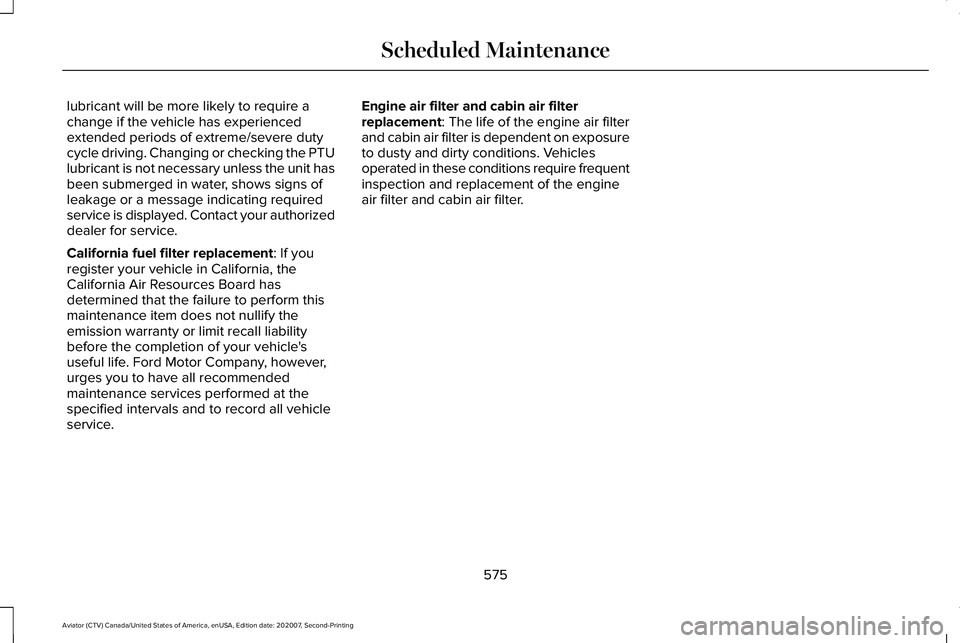

lubricant will be more likely to require a
change if the vehicle has experienced
extended periods of extreme/severe duty
cycle driving. Changing or checking the PTU
lubricant is not necessary unless the unit has
been submerged in water, shows signs of
leakage or a message indicating required
service is displayed. Contact your authorized
dealer for service.
California fuel filter replacement: If you
register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service. Engine air filter and cabin air filter
replacement
: The life of the engine air filter
and cabin air filter is dependent on exposure
to dusty and dirty conditions. Vehicles
operated in these conditions require frequent
inspection and replacement of the engine
air filter and cabin air filter.
575
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Scheduled Maintenance

Manual Park Release ........................................248
SelectShift Automatic ™ Transmission............247
Stay in Neutral Mode.........................................246
Understanding Your Transmission Selector Positions...........................................................245
Automatic Transmission Fluid Check...........................................................395
Auto-Start-Stop - Excluding: Plug-In Hybrid Electric Vehicle (PHEV).............................218
Disabling Auto-Start-Stop..................................219
Enabling Auto-Start-Stop...................................218
Autowipers......................................................106 Autowipers Settings............................................107
Low Temperature Wipe Inhibit.........................
107
Auxiliary Power Points
................................203
110 Volt AC Power Point...................................203
12 Volt DC Power Point.....................................203
USB Port and Power Point Locations............
203
AWD See: All-Wheel Drive.........................................250
B
Battery See: Changing the 12V Battery.......................397
Blind Spot Information System..................312 Blind Spot Information System with Trailer
Tow.....................................................................313 Switching the System On and Off...................316
System Errors.......................................................315
Using the Blind Spot Information
System...............................................................312
BLIS See: Blind Spot Information System...............
312
Body Styling Kits............................................412
Bonnet Lock See: Opening and Closing the Hood............384
Booster Seats..................................................38 Types of Booster Seats.......................................38
Brake Fluid Check
........................................395
Brake Fluid Service Interval.............................396
Brakes
.............................................................257
General Information...........................................257
Breaking-In.....................................................348
Bulb Specification Chart.............................473
C
Canceling the Set Speed...........................290
Capacities and Specifications
...................444
Capacities and Specifications - Excluding: Plug-In Hybrid Electric Vehicle
(PHEV)..........................................................450
Air Conditioning System....................................
451
Alternative Engine Oil for Extremely Cold Climates...........................................................455 Automatic Transmission...................................452
Engine Coolant...................................................453
Engine Oil.............................................................454
Front Axle.............................................................459
Fuel Tank..............................................................456
Grease...................................................................456
Hydraulic Brake System....................................457
Locks.....................................................................458
Rear Axle..............................................................460
Transfer Case......................................................458
Washer Reservoir................................................461
Capacities and Specifications - Plug-In Hybrid Electric Vehicle (PHEV)...............462
Air Conditioning System...................................462
Alternative Engine Oil for Extremely Cold Climates...........................................................466
Automatic Transmission....................................463
Engine Coolant...................................................464
Engine Oil.............................................................465
Front Axle.............................................................470
Fuel Tank..............................................................468
Grease...................................................................468
Hydraulic Brake System...................................468
Locks.....................................................................469
Rear Axle................................................................471
Transfer Case.......................................................470
Washer Reservoir................................................472
649
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Car Wash
See: Cleaning the Exterior...............................405
Catalytic Converter......................................235
On-Board Diagnostics (OBD-II).......................236
Readiness for Inspection and Maintenance (I/M) Testing......................................................237
Changing a Bulb...........................................403 LED Lamps...........................................................403
Changing a Fuse...........................................381 Fuses......................................................................381
Changing a Road Wheel.............................434 Dissimilar Spare Wheel and Tire Assembly
Information.......................................................435
Tire Change Procedure....................................436
Changing the 12V Battery..........................397 Battery Management System..........................398
Remove and Reinstall the Battery..................399
Changing the Engine Air Filter.................389
Changing the Front Wiper Blades - Vehicles With: Heated Wiper
Blades
...........................................................402
Replacing the Rubber Insert............................402
Changing the Front Wiper Blades - Vehicles Without: Heated Wiper
Blades............................................................401
Installing the Front Wiper Blades ..................402
Removing the Front Wiper Blades.................402
Changing the Rear Wiper Blades.............403 Changing the Vehicle Wi-Fi Hotspot Name
or Password................................................479
Charging the High Voltage Battery - Plug-In Hybrid Electric Vehicle (PHEV)...............238
IMPORTANT SAFETY INSTRUCTIONS.........238
Checking MyKey System Status.................78 MyKey Distance.....................................................78
Number of Admin Keys.......................................79
Number of MyKeys...............................................79
Checking the Interior Air Quality...............175 Particulate Matter Pollution Information........176
Checking the Wiper Blades........................401
Child Restraint and Seatbelt Maintenance.................................................50
Child Restraint Positioning
...........................40
Child Safety......................................................25 General Information.............................................25
Child Safety Locks..........................................42
Cleaning Leather Seats..............................409
Cleaning Products
........................................404
Materials...............................................................404
Cleaning the Engine....................................407
Cleaning the Exterior..................................405 Cleaning the Exterior Lamps...........................405
Cleaning the Exterior Precautions.................405
Exterior Chrome Parts.......................................406
Exterior Plastic Parts..........................................406
Stripes or Graphics............................................406 Underbody...........................................................406
Under Hood.........................................................406
Cleaning the Instrument Panel and Instrument Cluster Lens...........................408
Cleaning the Interior
....................................408
Mirrors...................................................................408
Cleaning the Wheels
....................................410
Cleaning the Windows and Wiper Blades...........................................................407
Clearing All MyKeys
.......................................78
Climate.............................................................518 Accessing Rear Climate Controls...................
521
Accessing the Climate Control Menu............518
Directing the Airflow...........................................518
Rear Climate Control Lock Indicator..............521
Setting the Blower Motor Speed....................519
Setting the Temperature...................................519
Switching Auto Mode On and Off...................
519
Switching Dual Zone Mode On and Off........519
Switching Maximum Air Conditioning On and Off......................................................................520
Switching Maximum Defrost On and Off......................................................................520
Switching Rear Auto Mode On and Off.........521
Switching Recirculated Air On and Off.........520
Switching the Air Conditioning On and Off.......................................................................519
650
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Switching the Climate Controlled Seats On
and Off...............................................................519
Switching the Climate Control On and Off.......................................................................519
Switching the Heated Exterior Mirrors On and Off......................................................................520
Switching the Heated Rear Window On and Off......................................................................520
Switching the Heated Seats On and Off......................................................................520
Switching the Heated Steering Wheel On and Off......................................................................520
Switching the Heated Windshield On and Off......................................................................520
Switching the Rear Climate Controlled Seats On and Off........................................................521
Switching the Rear Heated Seats On and Off.......................................................................521
Switching the Rear Ventilated Seats On and Off.......................................................................521
Switching the Ventilated Seats On and Off.......................................................................521
Climate Control..............................................168
Cold Weather Precautions.........................348
Collision, Damage or Fire Event...............355 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped With
High Voltage Batteries.................................355 Connected Vehicle Data................................19
Connecting the Vehicle to a Mobile Network........................................................475
Enabling the Modem Using The Lincoln Way....................................................................475
Enabling the Modem Using the Touchscreen....................................................475
What Is the Modem............................................475
Coolant Check See: Engine Coolant Check............................390
Crash Sensors and Airbag Indicator...........61
Creating a MyKey............................................77 Programming and Changing Configurable
Settings...............................................................78
Creating a Vehicle Wi-Fi Hotspot.............479 Connecting a Device to the Wi-Fi
Hotspot.............................................................479
Finding the Wi-Fi Hotspot Name and Password..........................................................479
Cross Traffic Alert
..........................................316
Cross Traffic Alert Behavior When Trailer is
Attached............................................................319
Cross Traffic Alert Indicator.............................320
Cross Traffic Alert Information Messages .........................................................320
Cross Traffic Alert System Limitations...........319
Cross Traffic Alert System Sensors................319
Switching the System On and Off...................319 Using Cross Traffic Alert....................................316
Cruise Control...............................................289
Cruise Control Indicators...........................290
Cruise Control - Vehicles With: Adaptive Cruise Control With Lane
Centering......................................................102
Cruise Control - Vehicles With: Cruise Control...........................................................103
Customer Assistance..................................359
Customer Information.................................576 Radio Frequency Certification Labels...........576
D
Data Privacy......................................................16 Services That Third Parties Provide..................17
Services That We Provide...................................
16
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................111
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL).................111
Declaration of Conformity..........................644
Declaration of Conformity - Vehicles With: SYNC 3
.........................................................645
Radio Frequency Statement............................645
651
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Digital Radio...................................................484
HD Radio Reception and Station
Troubleshooting.............................................485
Direction Indicators
........................................114
Indicating a Lane Change..................................114
Doors and Locks..............................................81
Drive Mode Control.....................................329 Drive Modes........................................................329
Drive Modes
..................................................329
Conserve..............................................................329
Deep Conditions................................................329
Deep Sand...........................................................330
Excite.....................................................................330
Normal...................................................................330
Preserve EV.........................................................330
Pure EV.................................................................330
Slippery..................................................................331
Driver Alert.....................................................305 PRINCIPLE OF OPERATION............................305
USING DRIVER ALERT......................................306
Driver and Passenger Airbags....................54 Children and Airbags...........................................55
Proper Driver and Front Passenger Seating
Adjustment.........................................................55
Driver and Passenger Knee Airbags.........59
Driving Aids
...................................................305
Driving Hints..................................................347
Driving Through Water................................348 DRL
See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running Lamps.......111
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)......................111
E
Economical Driving......................................347
Electric Parking Brake.................................258 Applying the Electric Parking Brake..............258
Automatically Releasing the Electric Parking
Brake.................................................................259
Manually Releasing the Electric Parking Brake.................................................................259
Releasing the Electric Parking Brake if the Vehicle Battery is Running Out of
Charge..............................................................259
Electric Vehicle Information
........................531
Charge Preferences..........................................535
Charge Settings..................................................532
Charge Time Settings.......................................536
Departure Time Settings..................................537
Engine On Due To...............................................531
Power Flow...........................................................531
Vehicle Operational States...............................531
Electromagnetic Compatibility.................609
Emergency Call Limitations.........................65 Emergency Call Requirements....................64
Emergency Call System Data......................20
Emergency Door Release............................89
Emission Law
.................................................234
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance............
235
Tampering With a Noise Control System..............................................................234
End User License Agreement....................614 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) .....................................614
Engine Block Heater....................................216 Using the Engine Block Heater.......................217
Engine Coolant Check................................390 Adding Coolant....................................................391
Coolant Change..................................................393
Engine Coolant Temperature
Management...................................................394
Fail-Safe Cooling................................................393
Recycled Coolant...............................................392
Severe Climates..................................................393
Engine Emission Control
............................234
Engine Immobilizer See: Passive Anti-Theft System........................97
Engine Oil Check..........................................387 Adding Engine Oil..............................................388
Engine Oil Dipstick.......................................387
652
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Engine Specifications - Excluding: Plug-In
Hybrid Electric Vehicle (PHEV)...............444
Drivebelt Routing................................................445
Engine Specifications - Plug-In Hybrid Electric Vehicle (PHEV)............................445
Drivebelt Routing................................................446
Entertainment................................................506 AM/FM Radio.......................................................507
Apps........................................................................\
518
Bluetooth Stereo or USB...................................516
CD........................................................................\
...515
HD Radio ™ Information (If Available)................511
SiriusXM® Satellite Radio (If Activated).........507
Sources.................................................................506
Supported Media Players, Formats and Metadata Information....................................518
USB Ports..............................................................518
Environment......................................................21
EPB See: Electric Parking Brake.............................
258
Essential Towing Checks............................343 Before Towing a Trailer.....................................
344
Hitches..................................................................343
Launching or Retrieving a Boat or Personal Watercraft (PWC)............................................344
Safety Chains.......................................................343
Trailer Brakes.......................................................343
Trailer Lamps.......................................................344 When Towing a Trailer.......................................344
Event Data
.........................................................18
Export Unique Options...................................15
Exterior Mirrors..............................................120 360-Degree Camera..........................................122
Auto-dimming Feature.......................................122
Auto-Folding Exterior Mirrors............................121
Blind Spot Information System........................122
Direction Indicator Mirrors ...............................122
Fold-Away Exterior Mirrors................................121
Heated Exterior Mirrors ....................................122
Lincoln Welcome Mat Projection Lamp.........122
Memory Mirrors ..................................................122
Power Exterior Mirrors.......................................120
F
Fastening the Seatbelts
................................45
Seatbelt Locking Modes.....................................46
Using Seatbelts During Pregnancy..................45
Flat Tire See: Changing a Road Wheel.........................434
Floor Mats......................................................349
Fog Lamps - Front See: Front Fog Lamps..........................................111
Front Fog Lamps.............................................111 Front Fog Lamp Indicator...................................112
Switching the Front Fog Lamps On or Off......111 Front Parking Aid..........................................274
Object Distance Indicator.................................276
Front Passenger Sensing System..............56
Front Wiper Blades See: Changing the Front Wiper Blades - Vehicles
With: Heated Wiper Blades.........................402
See: Changing the Front Wiper Blades - Vehicles Without: Heated Wiper Blades....................401
Fuel and Refueling.......................................226
Fuel Consumption
........................................232
Advertised Capacity..........................................232
Calculating Fuel Economy...............................
232
Fuel Filler Funnel Location.........................227
Fuel Filter
.........................................................401
Fuel Quality....................................................227 Choosing the Right Fuel...................................227
Fuel Shutoff...................................................352
Fuses...............................................................368
Fuse Specification Chart............................368 Engine Compartment Fuse Box.....................368
Passenger Compartment Fuse Panel............
376
G
Garage Door Opener...................................197
Garage Door Opener See: Universal Garage Door Opener.............197
653
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Gauges.............................................................126
Battery Gauge......................................................127
Engine Coolant Temperature Gauge.............128
Fuel Gauge............................................................127
Information On Demand....................................127
Low Fuel Reminder.............................................127
Status Bar..............................................................127
Vehicle Driving Range........................................128
Gearbox See: Transmission..............................................245
General Information on Radio Frequencies..................................................66
Intelligent Access.................................................66
General Maintenance Information...........564 Multi-Point Inspection........................................567
Owner Checks and Services...........................565
Protecting Your Investment.............................564
Why Maintain Your Vehicle?............................564
Why Maintain Your Vehicle at Your Dealership?......................................................564
Getting Assistance Outside the U.S. and Canada.........................................................363
Getting the Services You Need................359 Away From Home..............................................359
Global Opening and Closing ......................
120
Closing the Windows.........................................120
Opening the Windows.......................................120 H
Hazard Flashers
............................................352
Headlamp Adjusting See: Adjusting the Headlamps.......................
399
Headlamp Exit Delay......................................111
Headrest See: Head Restraints..........................................179
Head Restraints
..............................................179
Adjusting the Head Restraints.........................179
Head Up Display...........................................164 Configuring The Head Up Display..................164
Head Up Display Overview..............................165
Maintaining Your Head Up Display.................167
Heated Exterior Mirrors................................173
Heated Rear Window...................................173
Heated Seats..................................................193 Automatic Climate Controlled Seats..............193
Front Seats............................................................193
Second Row Heated Seats...............................
193
Heated Steering Wheel...............................104
Heating See: Climate Control..........................................168
High Voltage Battery
...................................238
General Information...........................................238
Hill Descent Control....................................270
Hill Descent Control Indicator
....................271 Hill Start Assist
..............................................260
Switching the System On and Off.................260
Using Hill Start Assist........................................260
Hints on Controlling the Interior Climate
............................................................171
Defogging the Side Windows in Cold
Weather.............................................................172
General Hints.........................................................171
Quickly Cooling the Interior..............................172
Quickly Heating the Interior..............................172
Recommended Settings for Cooling..............172
Recommended Settings for Heating..............
172
Hints on Driving With Anti-Lock Brakes..........................................................258
Hood Lock See: Opening and Closing the Hood............384
Horn..................................................................104
How Does Adaptive Cruise Control With Stop and Go Work......................................291
How Does Auto Air Refresh Work.............175
How Does the Rear Occupant Alert System Work...............................................................195
Hybrid Vehicle Frequently Asked Questions....................................................224
Hybrid Vehicle Operation
..........................220
Battery....................................................................221
Braking...................................................................221
Driving...................................................................220
654
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
