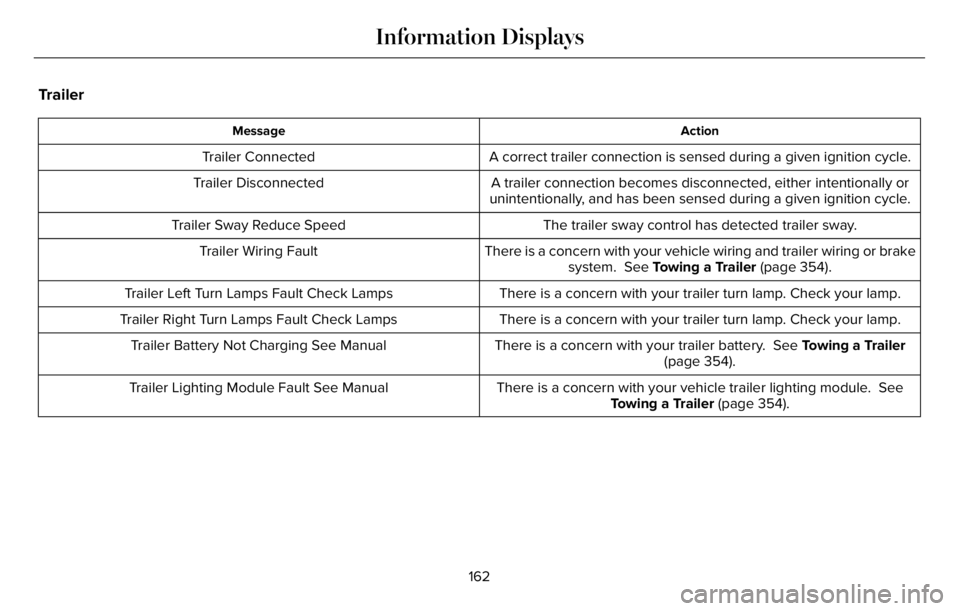

Trailer
Action Message
A correct trailer connection is sensed during a given ignition cycle. Trailer Connected
A trailer connection becomes disconnected, either intentionally or
unintentionally, and has been sensed during a given ignition cycle. Trailer Disconnected
The trailer sway control has detected trailer sway. Trailer Sway Reduce Speed
There is a concern with your vehicle wiring and trailer wiring or brake
system. See Towing a Trailer (page 354). Trailer Wiring Fault
There is a concern with your trailer turn lamp. Check your lamp. Trailer Left Turn Lamps Fault Check Lamps
There is a concern with your trailer turn lamp. Check your lamp. Trailer Right Turn Lamps Fault Check Lamps
There is a concern with your trailer battery. See Towing a Trailer
(page 354). Trailer Battery Not Charging See Manual
There is a concern with your vehicle trailer lighting module. See
Towing a Trailer (page 354). Trailer Lighting Module Fault See Manual
162
Information Displays

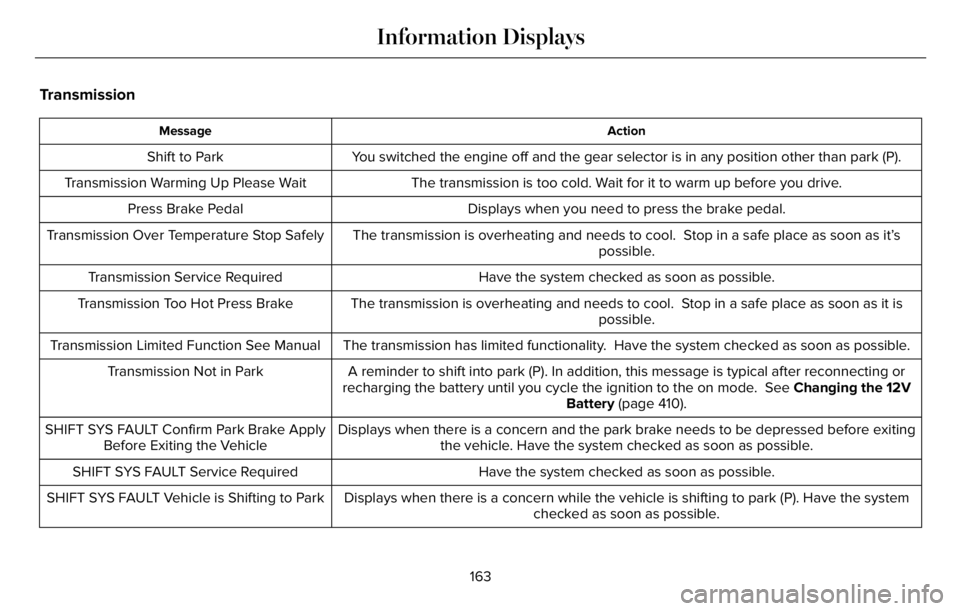

Transmission
Action Message
You switched the engine off and the gear selector is in any position other than park (P). Shift to Park
The transmission is too cold. Wait for it to warm up before you drive. Transmission Warming Up Please Wait
Displays when you need to press the brake pedal. Press Brake Pedal
The transmission is overheating and needs to cool. Stop in a safe place as soon as it’s
possible. Transmission Over Temperature Stop Safely
Have the system checked as soon as possible. Transmission Service Required
The transmission is overheating and needs to cool. Stop in a safe place as soon as it is
possible. Transmission Too Hot Press Brake
The transmission has limited functionality. Have the system checked as soon as possible. Transmission Limited Function See Manual
A reminder to shift into park (P). In addition, this message is typical after reconnecting or
recharging the battery until you cycle the ignition to the on mode. See Changing the 12V
Battery (page 410). Transmission Not in Park
Displays when there is a concern and the park brake needs to be depressed before exiting
the vehicle. Have the system checked as soon as possible. SHIFT SYS FAULT Confirm Park Brake Apply
Before Exiting the Vehicle
Have the system checked as soon as possible. SHIFT SYS FAULT Service Required
Displays when there is a concern while the vehicle is shifting to park (P). Have the system
checked as soon as possible. SHIFT SYS FAULT Vehicle is Shifting to Park
163
Information Displays

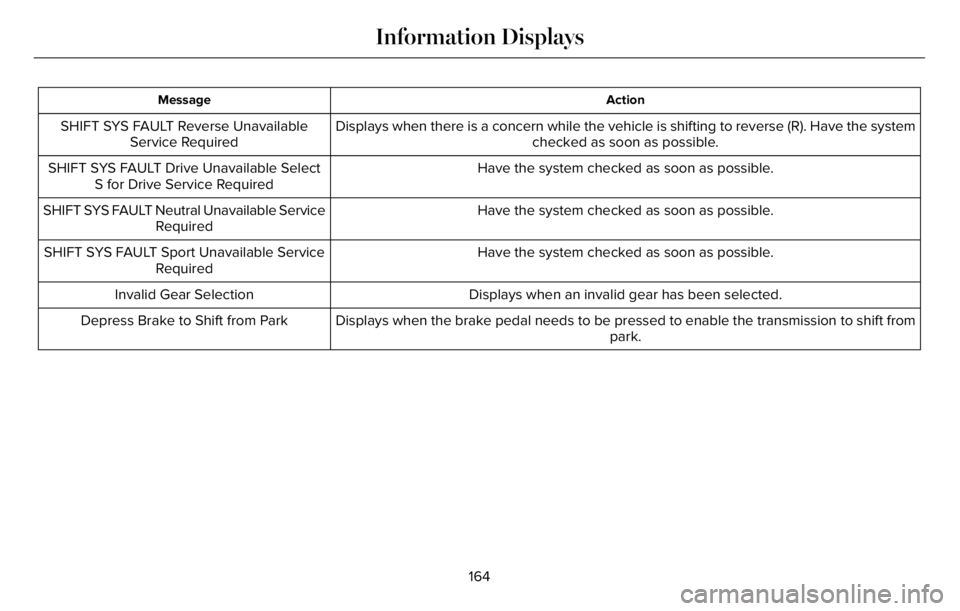

Action Message
Displays when there is a concern while the vehicle is shifting to reverse (R). Have the system
checked as soon as possible. SHIFT SYS FAULT Reverse Unavailable
Service Required
Have the system checked as soon as possible. SHIFT SYS FAULT Drive Unavailable Select
S for Drive Service Required
Have the system checked as soon as possible. SHIFT SYS FAULT Neutral Unavailable Service
Required
Have the system checked as soon as possible. SHIFT SYS FAULT Sport Unavailable Service
Required
Displays when an invalid gear has been selected. Invalid Gear Selection
Displays when the brake pedal needs to be pressed to enable the transmission to shift from
park. Depress Brake to Shift from Park
164
Information Displays

Selecting a Row
Press 2nd Row to control the second row
climate.
Press 3rd Row to control the third row
climate.
Linking the Rows
E282078
Press the button to simultaneously
control the climate of the second
and third row.
Setting the Rear Blower Motor Speed
Press the arrow buttons to adjust
the volume of air circulated in the
rear passenger compartment.
Setting the Rear Temperature
Press the arrow buttons to set the
temperature in the rear passenger
compartment.
Switching the Rear Climate Control On
and Off
Press the button to switch the
selected row controls on or off.
Note:When linked, touch the button to
switch both rows on or off.
Directing Air to the Overhead and Rear
Footwell Air Vents
Press the button to activate the
selection screen.
E244097Press the button to direct airflow
to the overhead air vents.
Press the button to direct airflow
to the rear footwell air vents.
Switching Rear Auto Mode On and Off
Press AUTO switch on rear automatic
operation, then set the temperature.
Rear Climate Control Lock Message
A message displays when the controls are
locked through the front and you try to
operate them.
REAR PASSENGER CLIMATE
CONTROLS - VEHICLES WITH:
TRIPLE ZONE AUTOMATIC
TEMPERATURE CONTROL
Use the rear passenger touchscreen to
select the following:
E283811
Press the climate button on the
feature bar to access the rear
passenger climate control screen.
170
Climate Control

Rear Passenger Climate Control Screen
E368025E368025
Setting the Rear Blower Motor Speed
Press the arrow buttons to adjust
the volume of air circulated in the
rear passenger compartment.
Setting the Rear Temperature
Press the arrow buttons to set the
temperature in the rear passenger
compartment.
Switching the Rear Climate Control On
and Off
Press the button to switch the
controls on or off.
Directing Air to the Overhead and Rear
Footwell Air Vents
Press the button to activate the
selection screen.
E244097Press the button to direct airflow
to the overhead air vents.
Press the button to direct airflow
to the rear footwell air vents.
Switching Rear Auto Mode On and Off
Press AUTO switch on rear automatic
operation, then set the temperature.
Rear Climate Control Lock Message
A message displays when the controls are
locked through the front and you try to
operate them.
HEATED REAR WINDOW
E184884
Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off after
a short period of time.
Note:Do not use harsh chemicals, razor
blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window. The vehicle warranty may not
cover damage to the heated rear window
grid lines.
HEATED EXTERIOR MIRRORS
When you switch the heated rear window
on, the heated exterior mirrors turn on.
Note:Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.
Note:Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.
171
Climate Control

Particulate Matter Pollution
Information
PM2.5 is particulate patter pollution smaller
than 2.5 microns in size in the air.
PM2.5 particles can include cigarette smoke,
road level pollution, industrial pollution, and
some allergens.
The numbers provided by the cabin PM2.5
sensor are estimates of the concentrations
of particles in the cabin air. The
measurement unit is μg/m3, representing
mass (micrograms of particulates) per unit of
air volume (cubic meter of air).
The colors around the PM2.5 numbers
provide visual cues about the concentration
levels.
Note:PM2.5 is only one pollution type
contributing to an Air Quality Index and by
itself does not represent the Air Quality
Index.
AUTO AIR REFRESH INDICATORS
(IF EQUIPPED)
The indicator area is on the touchscreen
feature bar and displays one of the following:
E324585
Indicates blower motor is on for
filtering and PM2.5 is low.
E283817
Indicates the blower motor is on
for filtering.
E324586
Indicates the blower motor is off.
E324587
Indicates the status is not available.
REFRESHING THE INTERIOR AIR
MANUALLY REFRESHING THE
INTERIOR AIR
(If Equipped)
1. Press MENU on the climate control unit.
2. Press Cabin Refresh on the touchscreen.Note:Climate control settings could change
for about 90 seconds to help flow outside
air into the cabin. You can change the
blower motor speed to the settings you
prefer.
AUTOMATICALLY REFRESHING THE
INTERIOR AIR (If Equipped)
If the cabin air recirculates continuously for
longer than 35 minutes, climate control
settings could change automatically for about
90 seconds to help flow outside air into the
cabin.
Refreshing the Interior Air Upon Start
If the cabin is above a certain high
temperature while parked for over 30
minutes, when you start the engine the
climate control system settings could change
for approximately 60 seconds to help flow
outside air into the cabin.
Note:The system is not designed to cool the
interior air temperature.
174
Interior Air Quality

AUTO AIR REFRESH HINTS (IF
EQUIPPED)
To further improve the quality of air in the
cabin:
• Adjust the windows and other cabin
openings such as the moonroof.
• Switch recirculated air on or off.
• Manually refresh the interior air.• Adjust the blower motor speed.
• Replace the cabin air filter at regular
intervals.
INTERIOR AIR QUALITY –
TROUBLESHOOTING
INTERIOR AIR QUALITY –
INFORMATION MESSAGES
(If Equipped)
Note: Depending on your vehicle options,
not all messages display or are available.
Certain messages may be abbreviated or
shortened depending upon which cluster
type you have.
Action Message
Allow time for the cabin PM2.5 sensor to cool down, warm up, or dry
out. Environmental Limit
Allow a few seconds for the cabin PM2.5 sensor to start up. Initializing
175
Interior Air Quality

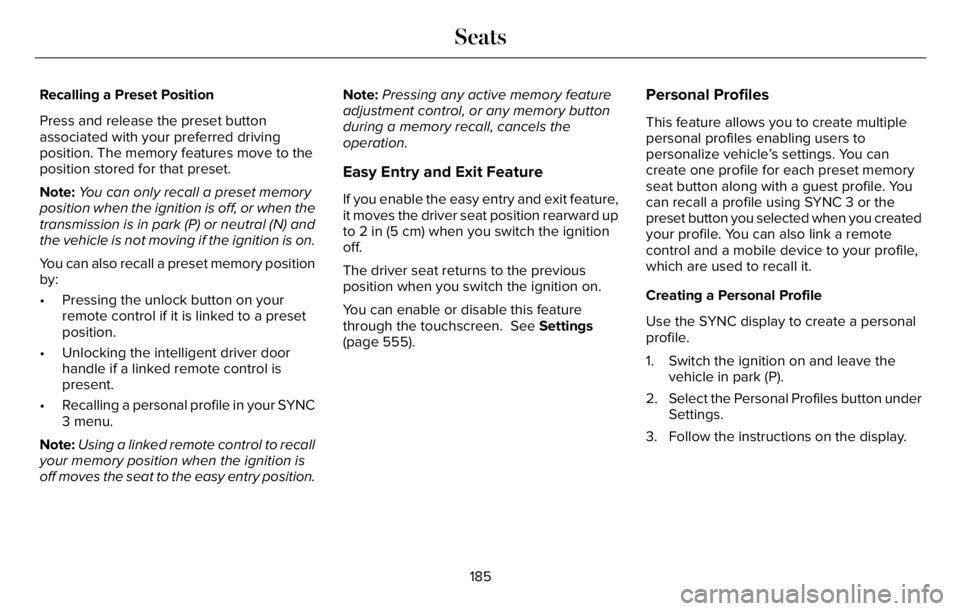

Recalling a Preset Position
Press and release the preset button
associated with your preferred driving
position. The memory features move to the
position stored for that preset.
Note:You can only recall a preset memory
position when the ignition is off, or when the
transmission is in park (P) or neutral (N) and
the vehicle is not moving if the ignition is on.
You can also recall a preset memory position
by:
• Pressing the unlock button on your
remote control if it is linked to a preset
position.
• Unlocking the intelligent driver door
handle if a linked remote control is
present.
• Recalling a personal profile in your SYNC
3 menu.
Note:Using a linked remote control to recall
your memory position when the ignition is
off moves the seat to the easy entry position.Note:Pressing any active memory feature
adjustment control, or any memory button
during a memory recall, cancels the
operation.
Easy Entry and Exit Feature
If you enable the easy entry and exit feature,
it moves the driver seat position rearward up
to 2 in (5 cm) when you switch the ignition
off.
The driver seat returns to the previous
position when you switch the ignition on.
You can enable or disable this feature
through the touchscreen. See Settings
(page 555).
Personal Profiles
This feature allows you to create multiple
personal profiles enabling users to
personalize vehicle’s settings. You can
create one profile for each preset memory
seat button along with a guest profile. You
can recall a profile using SYNC 3 or the
preset button you selected when you created
your profile. You can also link a remote
control and a mobile device to your profile,
which are used to recall it.
Creating a Personal Profile
Use the SYNC display to create a personal
profile.
1. Switch the ignition on and leave the
vehicle in park (P).
2. Select the Personal Profiles button under
Settings.
3. Follow the instructions on the display.
185
Seats

Linking a Personal Profile to Your Remote
Control or Mobile Device
You can save preset memory positions for
up to three remote controls, by assigning a
remote control to a personal profile in your
SYNC 3. You can assign three additional
remote controls set up as Phone as a Key.
See Keys and Remote Controls (page 68).
Use the SYNC display to link a remote
control, mobile device or both to a personal
profile.
1. Switch the ignition on and leave the
vehicle in park (P).
2. Select the Personal Profiles button under
Settings.
3. Touch the arrow for the profile you wish
to link to a remote control or mobile
device.
4. Select the correct button to link a remote
control, mobile device, or both.
5. Follow the instructions on the display.Note:To successfully link a mobile device,
the mobile device must be present in your
vehicle, and must have previously been
setup as a remote control for your vehicle.
Note:If more than one linked remote control
is in range, the memory function moves to
the settings of the first key to initiate a
memory recall.
Note:The guest profile consists of existing
settings when there is no driver profile
created. After you create a driver profile, the
guest profile serves as an additional driver
profile.
Note:You cannot link a personalized name,
a memory seat button or a remote control
to a guest profile.
Personal Settings
Personal Profiles allow you to personalize
positional settings such as seats and mirrors,
as well as non-positional settings such as
radio, navigation, driver assist and system
settings. See SYNCâ„¢ 3 (page 507). You
cannot change the menu locations and
settings of those personalized features with
Personal Profiles.Note:Non-positional settings are saved to
the active driver profile whenever you
change a setting.
Note:You can save positional settings if you
press and hold a memory seat button.
Recalling and Changing a Profile
You can recall a profile by:
• Using a remote control or mobile device
that has been linked to a driver profile to
access the remote start feature, press an
unlock button or open the door with the
exterior door handle.
• Pressing a memory seat button that has
been linked to a driver profile.
• Using the Personal Profiles menu on the
SYNC touchscreen.
Note:The recalled profile replaces the
previously active profile. If the active profile
is not your preferred profile, you can change
it using any of the three methods listed.
186
Seats

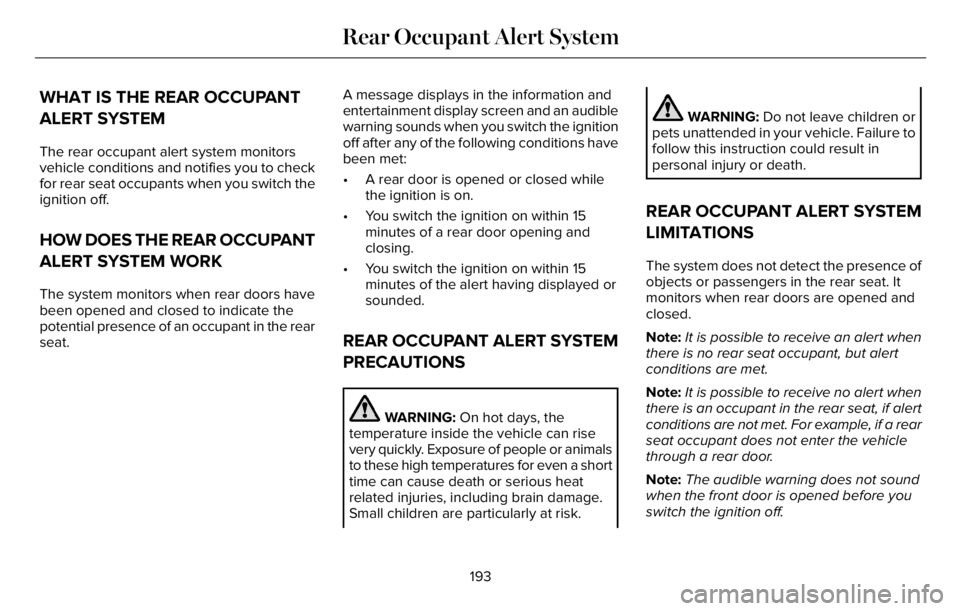

WHAT IS THE REAR OCCUPANT
ALERT SYSTEM
The rear occupant alert system monitors
vehicle conditions and notifies you to check
for rear seat occupants when you switch the
ignition off.
HOW DOES THE REAR OCCUPANT
ALERT SYSTEM WORK
The system monitors when rear doors have
been opened and closed to indicate the
potential presence of an occupant in the rear
seat.A message displays in the information and
entertainment display screen and an audible
warning sounds when you switch the ignition
off after any of the following conditions have
been met:
• A rear door is opened or closed while
the ignition is on.
• You switch the ignition on within 15
minutes of a rear door opening and
closing.
• You switch the ignition on within 15
minutes of the alert having displayed or
sounded.
REAR OCCUPANT ALERT SYSTEM
PRECAUTIONS
WARNING: On hot days, the
temperature inside the vehicle can rise
very quickly. Exposure of people or animals
to these high temperatures for even a short
time can cause death or serious heat
related injuries, including brain damage.
Small children are particularly at risk.
WARNING: Do not leave children or
pets unattended in your vehicle. Failure to
follow this instruction could result in
personal injury or death.
REAR OCCUPANT ALERT SYSTEM
LIMITATIONS
The system does not detect the presence of
objects or passengers in the rear seat. It
monitors when rear doors are opened and
closed.
Note:It is possible to receive an alert when
there is no rear seat occupant, but alert
conditions are met.
Note:It is possible to receive no alert when
there is an occupant in the rear seat, if alert
conditions are not met. For example, if a rear
seat occupant does not enter the vehicle
through a rear door.
Note:The audible warning does not sound
when the front door is opened before you
switch the ignition off.
193
Rear Occupant Alert System
