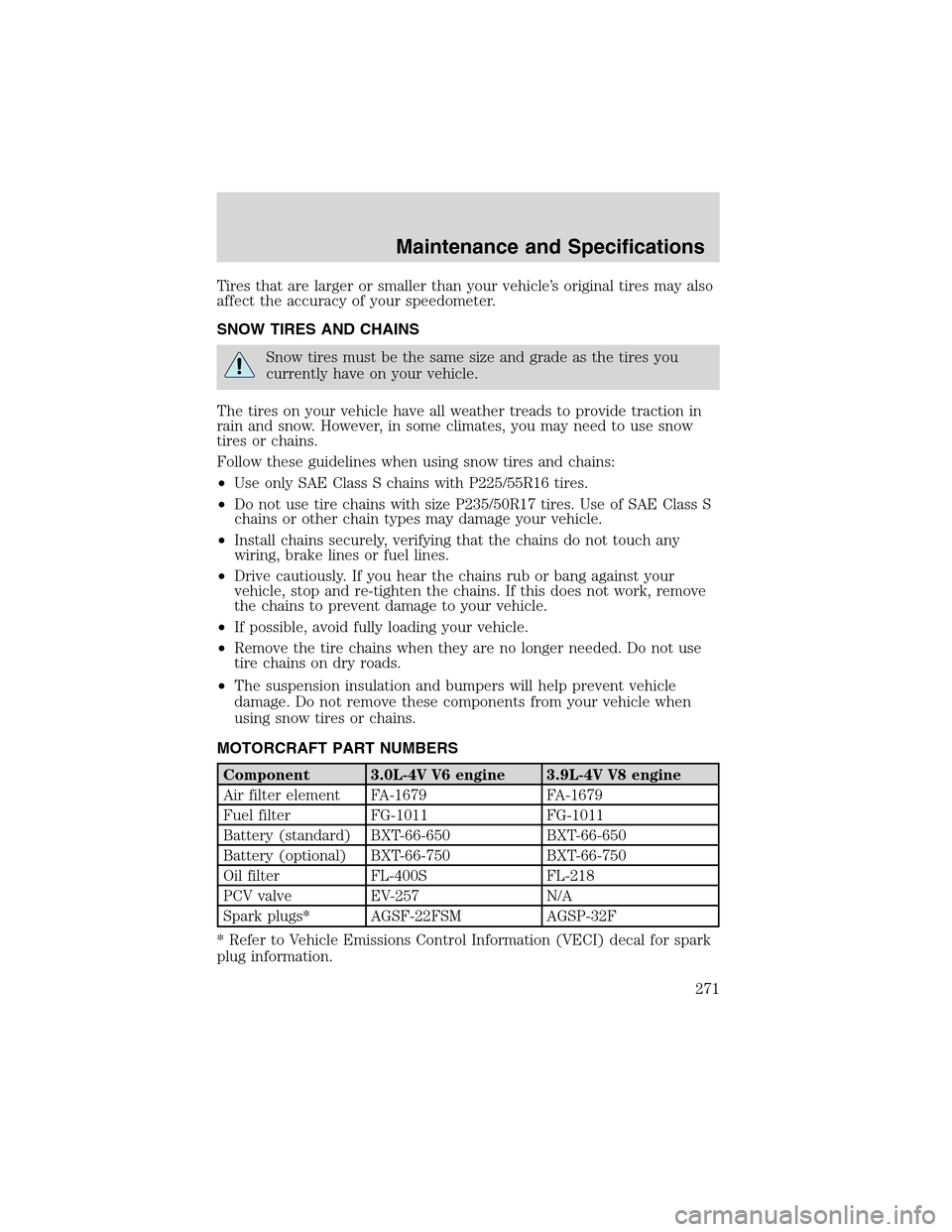

Tires that are larger or smaller than your vehicle’s original tires may also
affect the accuracy of your speedometer.
SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires or chains.
Follow these guidelines when using snow tires and chains:
•Use only SAE Class S chains with P225/55R16 tires.
•Do not use tire chains with size P235/50R17 tires. Use of SAE Class S
chains or other chain types may damage your vehicle.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires or chains.
MOTORCRAFT PART NUMBERS
Component 3.0L-4V V6 engine 3.9L-4V V8 engine
Air filter element FA-1679 FA-1679
Fuel filter FG-1011 FG-1011
Battery (standard) BXT-66-650 BXT-66-650
Battery (optional) BXT-66-750 BXT-66-750
Oil filter FL-400S FL-218
PCV valve EV-257 N/A
Spark plugs* AGSF-22FSM AGSP-32F
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug information.
Maintenance and Specifications
271

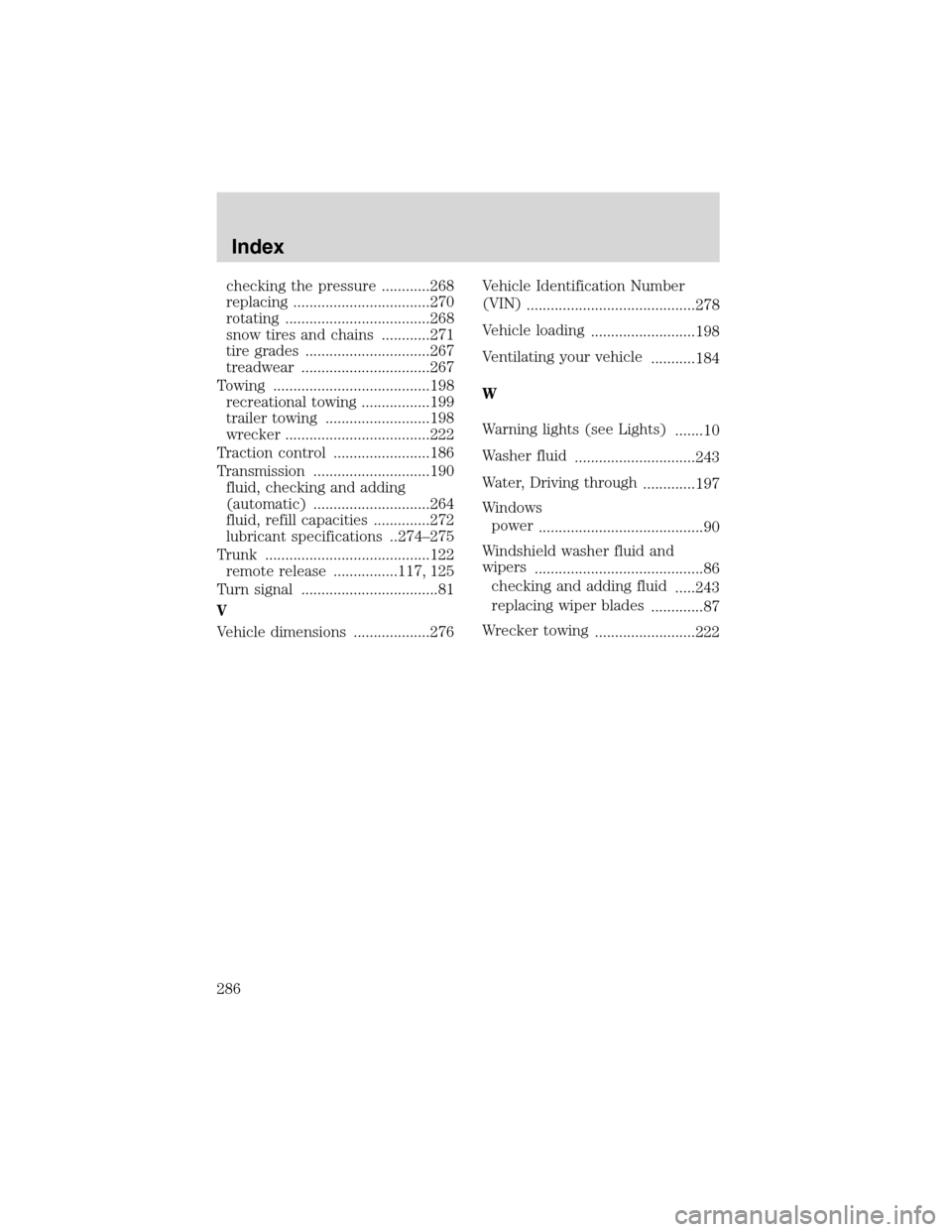

checking the pressure ............268
replacing ..................................270
rotating ....................................268
snow tires and chains ............271
tire grades ...............................267
treadwear ................................267
Towing .......................................198
recreational towing .................199
trailer towing ..........................198
wrecker ....................................222
Traction control ........................186
Transmission .............................190
fluid, checking and adding
(automatic) .............................264
fluid, refill capacities ..............272
lubricant specifications ..274–275
Trunk .........................................122
remote release ................117, 125
Turn signal ..................................81
V
Vehicle dimensions ...................276Vehicle Identification Number
(VIN)
..........................................278
Vehicle loading
..........................198
Ventilating your vehicle
...........184
W
Warning lights (see Lights)
.......10
Washer fluid
..............................243
Water, Driving through
.............197
Windows
power
.........................................90
Windshield washer fluid and
wipers
..........................................86
checking and adding fluid
.....243
replacing wiper blades
.............87
Wrecker towing
.........................222
Index
286
