LINCOLN LS 2005 Owners Manual

Autolock
The autolock feature will lock the vehicle’s doors when:
•all the doors are closed,
•the ignition is in the 4 (RUN) position,
•you shift into forward or reverse, and
•the vehicle speed is greater than 3 mph (5 km/h).
Relock
The autolock feature repeats when:
•either door is opened then closed while the ignition is in the 4 (RUN)
position, and
•you shift into forward or reverse, and
•the vehicle speed is greater than 3 mph (5 km/h).
Deactivating/activating autolock
Your vehicle comes with the autolock feature activated; in order to
deactivate the feature, take your vehicle to an authorized dealer, or use
the message center (if equipped). Refer toMessage centerin theDriver
Controlschapter for more information.
Memory seat feature
The remote entry system allows you to recall the memory
seat/mirror/steering column/adjustable pedals feature.
Press
to automatically move the seat/mirror/steering
column/adjustable pedals to the desired memory position.Note:The
seat and steering column will not travel to their final position if the key
is not in the ignition and the easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat, mirrors, steering column and adjustable pedals to
the positions you desire.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
151

2. Press the SET control on the
driver’s door panel.
3. Within 5 five seconds, press any
control on the remote transmitter
and then press the 1 or 2 control on
the driver’s door panel to associate
with the Driver 1 or Driver 2
positions.
4. Repeat this procedure for another
remote transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press the SET control on the driver’s door panel.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on
the driver’s door panel again.
3. Repeat this procedure for another remote transmitter if desired.
KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the trunk.
•recall memory seat/mirrors/steering column/adjustable pedals positions
1or2.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box, is marked on
the computer module, and is available from your authorized dealer. You
can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
123
45678
90
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
152

Programming a personal entry code
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Enter a sixth digit to indicate which personality feature should be
recalled by the personal code.Note:The lock motors will cycle, locked
then unlocked.
•1•2 recalls driver personality 1.
•3•4 recalls driver personality 2.
•9•0 does not recall a driver personality.
Wait 5 seconds without pressing a keypad button in order to store a
personal entry code.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
•If you set a personal code and store it over an existing personal code
it will erase that personal code only.
Erasing personal codes
1. Enter the factory set 5–digit code. The keyless entry keypad and
interior lights will illuminate and the driver’s door will unlock.
2. Press and release the 1•2 within five seconds of completing Step 1.
3. Press and hold the 1•2 for two seconds to erase the customer
programmed codes.
All personal codes are now erased and only the factory set 5–digit code
will work.
Note:To exit programming mode, either wait 5 seconds after pressing 1
•2 on the keypad, or press the 7•8 and 9•0 pads simultaneously to
lock all vehicle doors and end programming mode.
Anti-scan feature
If the wrong code has been entered several times, the keypad will go into
an anti-scan mode. This mode disables the keypad for one minute and
the keypad illumination will flash.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
153

The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the UNLOCK
control on the remote entry transmitter.
•the ignition is turned to the 4 (RUN) position.
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate when the driver’s door is
unlocked.
To unlock all doors,press the 3•4 control within five seconds.
To lock all doors,press the 7•8 and the 9•0 at the same time. The
driver’s door must be closed to lock all doors. Youdo notneed to enter
the keypad code first.Note:The interior lamps will turn off.
Recalling a memory seat/mirrors/steering column/adjustable
pedals position 1 or 2
•Unlock the vehicle using the personal entry code 1 in order to recall
memory position 1.
•Unlock the vehicle using the personal entry code 2 in order to recall
memory position 2.
Releasing the trunk with the keyless entry system
To release/open the trunk, enter the factory-set code or personal code
(driver door unlocks) and press 5•6 within five seconds.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a“no-start”condition.
Your vehicle comes with three coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to the
Programming spare keyssection in this chapter for instructions on how
to program the coded key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
154

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition to the 2 (OFF) position,
remove all objects on the key chain away from the coded key and restart
the engine.
Theft indicator
The theft indicator is located on top of the instrument panel.
•When the ignition is in the 2 (OFF) position, the indicator will flash
once every 2 seconds if the vehicle is locked and the perimeter alarm
is armed.
•When the ignition is in the 4 (RUN) position, the indicator will glow
for 3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the 4 (RUN) position. If
this occurs, the vehicle should be taken to an authorized dealer for
service.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to a dealership. The key codes
need to be erased from your vehicle and new coded keys will need to be
programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
A maximum of eight keys can be coded to your vehicle. Only
Securilock
keys can be used. To program acoded keyyourself, you
will need two previously programmedcoded keys(keys that already
operate your vehicle’s engine) and the new unprogrammed key(s) readily
accessible for timely implementation of each step in the procedure.
If two previously programmedcoded keysare not available, you must
take your vehicle to an authorized Ford dealer to have the sparecoded
key(s)programmed.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
155

Please read and understand the entire procedure before you begin.
1. Insert the first previously
programmedcoded keyinto the
ignition from 1 (LOCK) to 4 (RUN)
(maintain ignition in the 4 (RUN)
position for at least three seconds,
but no more than ten seconds).
2. Turn the ignition to the 1 (LOCK)
position and remove the firstcoded
keyfrom the ignition.
3. Within ten seconds of turning the ignition to the 1 (LOCK) position,
insert the second previously programmed coded key into the ignition and
turn the ignition from the 1 (LOCK) position to the 4 (RUN) position
(maintain ignition in the 4 (RUN) position for at least three seconds, but
no more than ten seconds).
4. Turn the ignition to the 1 (LOCK) position and remove the second
coded keyfrom the ignition.
5. Within twenty seconds of turning the ignition to the 1 (LOCK)
position, insert the new unprogrammed key (new key/valet key) into the
ignition and turn the ignition from 1 (LOCK) to 4 (RUN) (maintain
ignition in the 4 (RUN) position for at least three seconds). This step
will program your new key to acoded key.
6. To program additional new unprogrammed key(s), wait at least twenty
seconds and then repeat this procedure from Step 1.
If successful, the newcoded key(s)will start the vehicle’s engine and
the theft indicator will flash on and off. You may repeat Steps 1 through
5. If failure repeats, take your vehicle to your authorized dealer in order
to have new spare key(s) programmed.
PERIMETER ALARM SYSTEM
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
23 1
4
5
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
156

The system is ready to arm whenever key is removed from the ignition.
Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Press the driver or passenger interior power door lock control while
that respective door is open, then close the door.
•Lock the vehicle with the key in the driver’s door key cylinder.
•Lock the vehicle by pressing the 7•8 and the 9•0 on the keypad at
the same time (with the driver’s door closed).
Theft indicator
When the vehicle is locked using one of the listed methods, the theft
indicator located on the instrument panel will flash briefly every 2
seconds to indicate that the perimeter alarm system is armed.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Unlock the doors by entering the factory-set code or any of the three
custom codes into the keyless entry keypad.
•Turn the ignition to the 4 (RUN) position with a SecuriLock
coded
key.
Triggering the anti-theft system
The armed system will be triggered if any door, the trunk or the hood is
opened without using the key, the remote entry transmitter or valid
keypad code.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Locks and Security
157

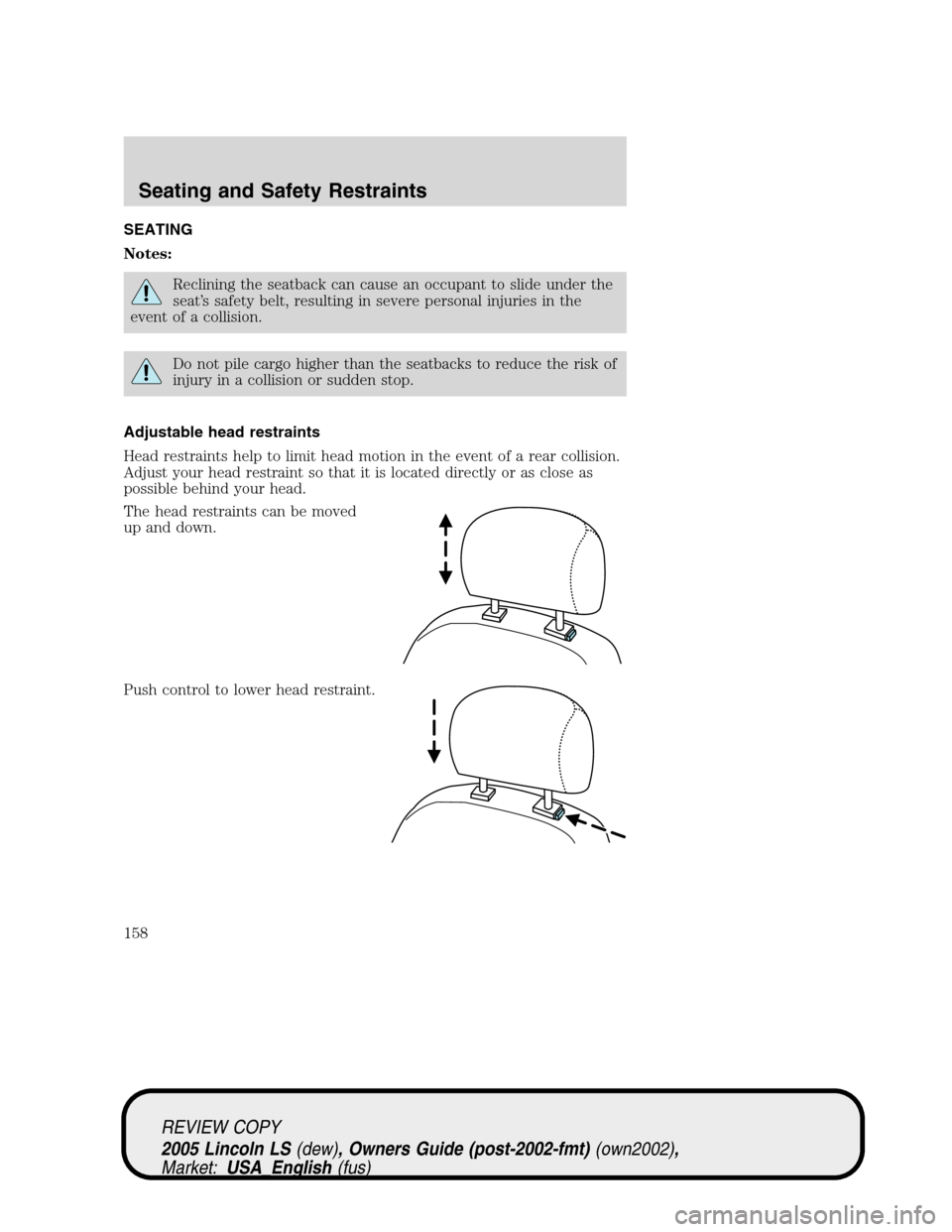

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Adjustable head restraints
Head restraints help to limit head motion in the event of a rear collision.
Adjust your head restraint so that it is located directly or as close as
possible behind your head.
The head restraints can be moved
up and down.
Push control to lower head restraint.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
Seating and Safety Restraints
158

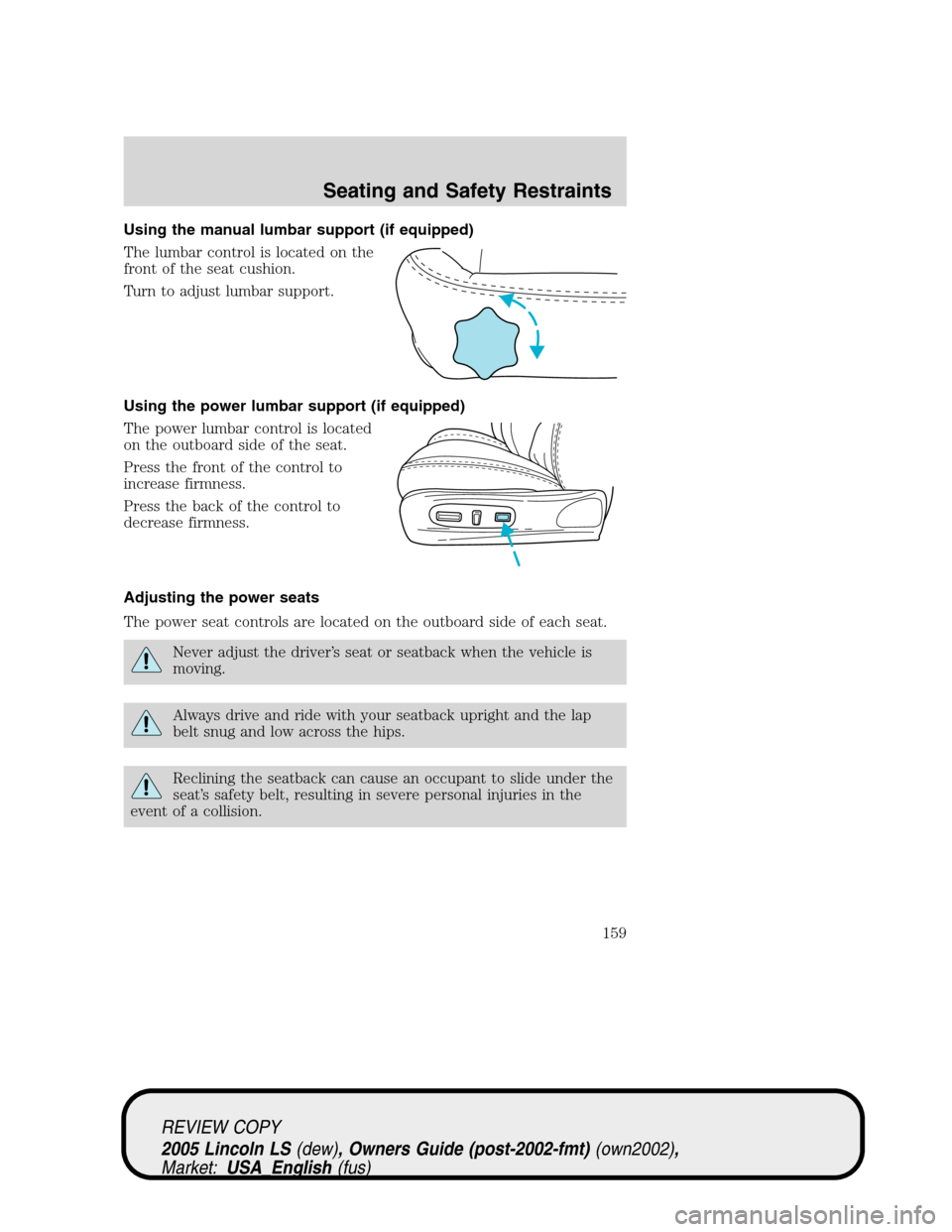

Using the manual lumbar support (if equipped)
The lumbar control is located on the
front of the seat cushion.
Turn to adjust lumbar support.
Using the power lumbar support (if equipped)
The power lumbar control is located
on the outboard side of the seat.
Press the front of the control to
increase firmness.
Press the back of the control to
decrease firmness.
Adjusting the power seats
The power seat controls are located on the outboard side of each seat.
Never adjust the driver’s seat or seatback when the vehicle is
moving.
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
159

Rotate the vertical control to adjust
the seatback.
•Driver
•Passenger
Slide the control forward or
backward to move the seat forward
or backward.
•Driver
•Passenger
Move the control up or down to
move the seat up and down.
•Driver
•Passenger
Move front/rear of control up or
down to tilt the front/rear of the
seat cushion.
•Driver
Easy entry/easy exit feature (if equipped)
This feature automatically moves the driver’s seat backward 5 cm (2
inches) when the key is removed from the ignition cylinder.
The seat will move 5 cm (2 inches) forward (to the original position)
when the key is placed in the ignition cylinder.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Seating and Safety Restraints
160
