power steering fluid LINCOLN LS 2005 Owners Manual

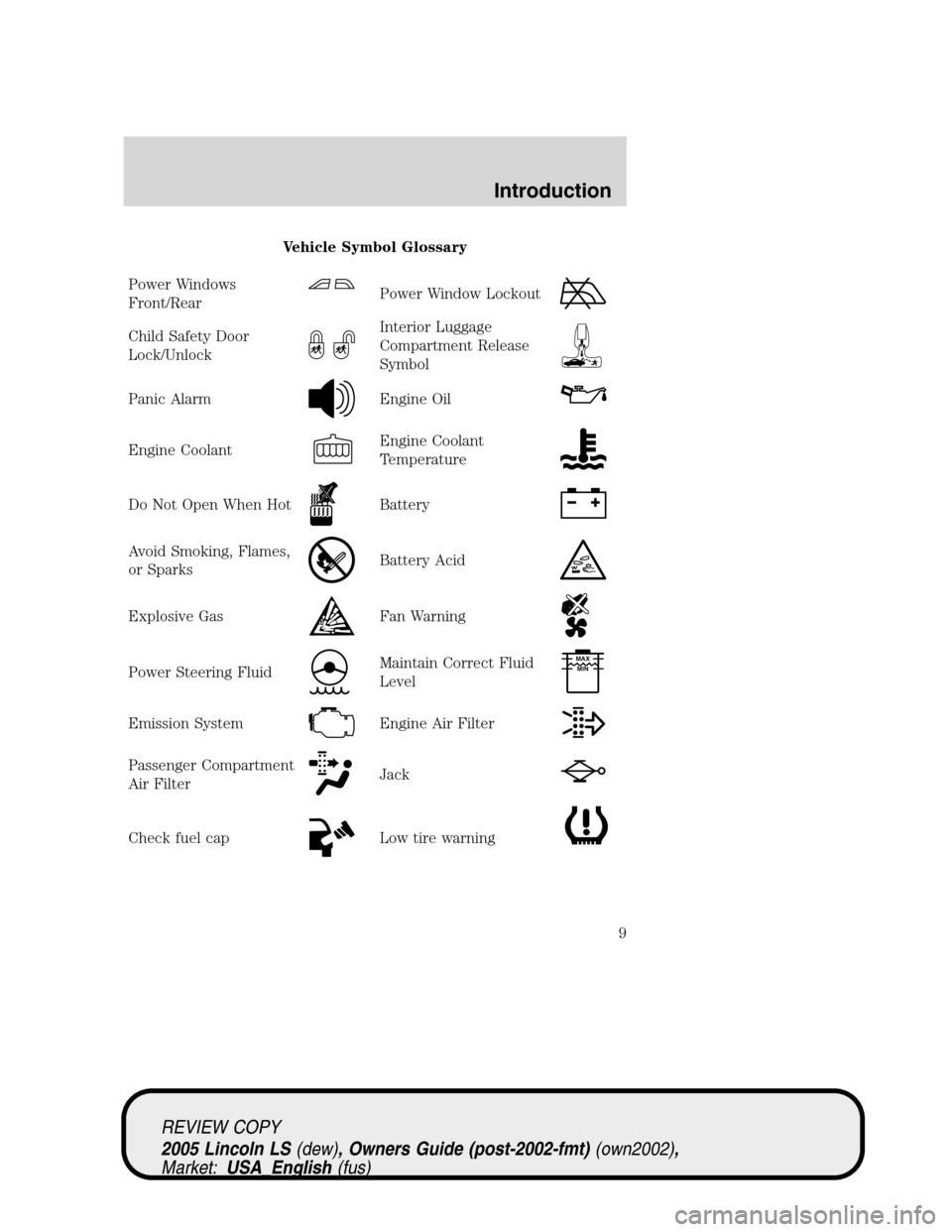

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire warning
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Introduction
9

STEERING
To prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
Speed sensitive steering
The steering in your vehicle is speed sensitive. At high speeds, steering
assist will decrease to improve steering feel. At lower speeds,
maneuverability will be increased.
If the amount of effort required to steer your vehicle changes while
driving at a constant vehicle speed, have the power steering system
checked by your dealer or a qualified service technician.
TRACTION CONTROL
The Traction Control
system helps you maintain the stability and
steerability of your vehicle, especially on slippery road surfaces such as
snow- or ice-covered roads and gravel roads. The system will allow your
vehicle to make better use of available traction in these conditions.
During Traction Control
operation, the traction control active light will
illuminate, you may hear an electric motor type of sound coming from
the engine compartment and the engine will not“rev-up”when you push
further on the accelerator. This is normal system behavior and should be
no reason for concern.
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
230

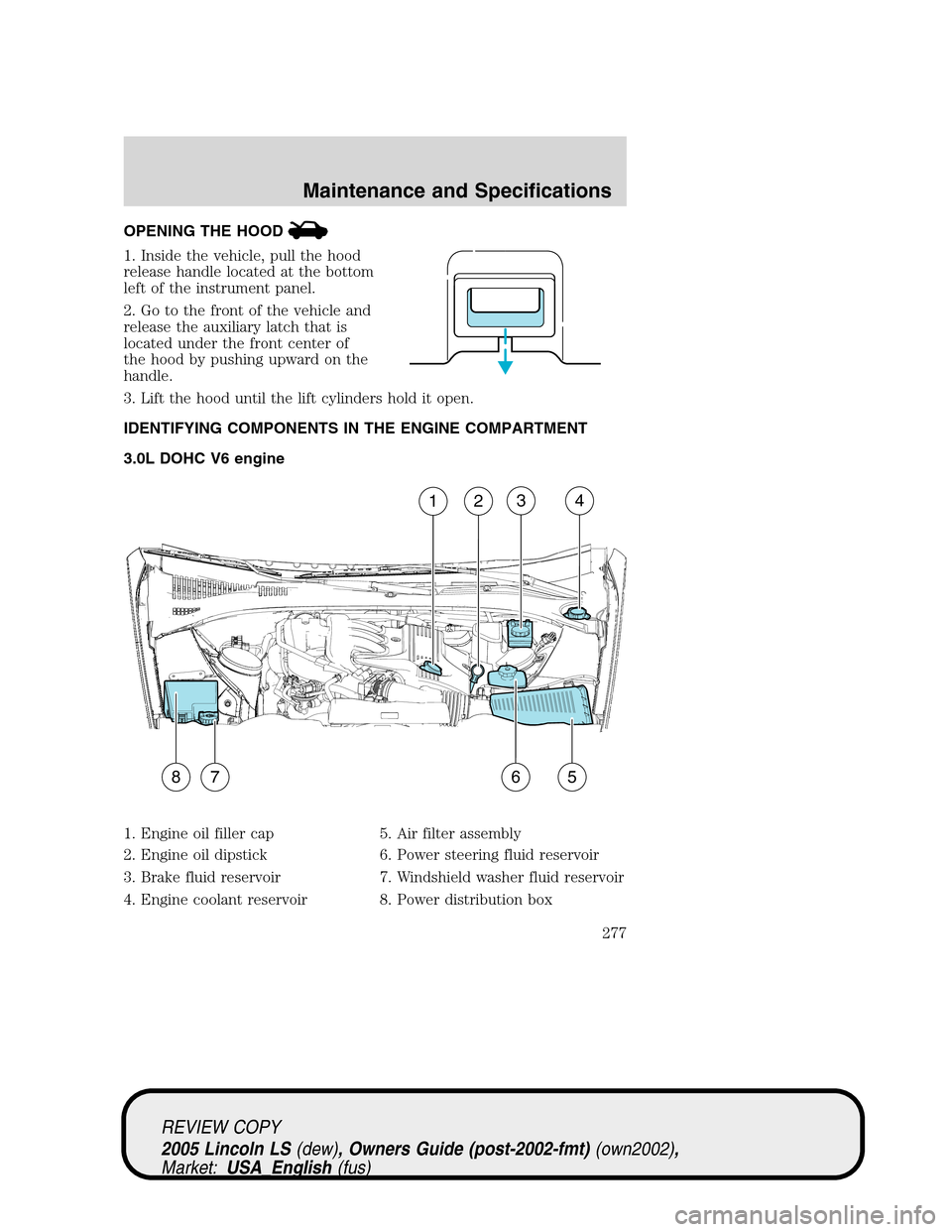

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located at the bottom
left of the instrument panel.
2. Go to the front of the vehicle and
release the auxiliary latch that is
located under the front center of
the hood by pushing upward on the
handle.
3. Lift the hood until the lift cylinders hold it open.
IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
3.0L DOHC V6 engine
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake fluid reservoir
4. Engine coolant reservoir5. Air filter assembly
6. Power steering fluid reservoir
7. Windshield washer fluid reservoir
8. Power distribution box
1234
5678
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
277

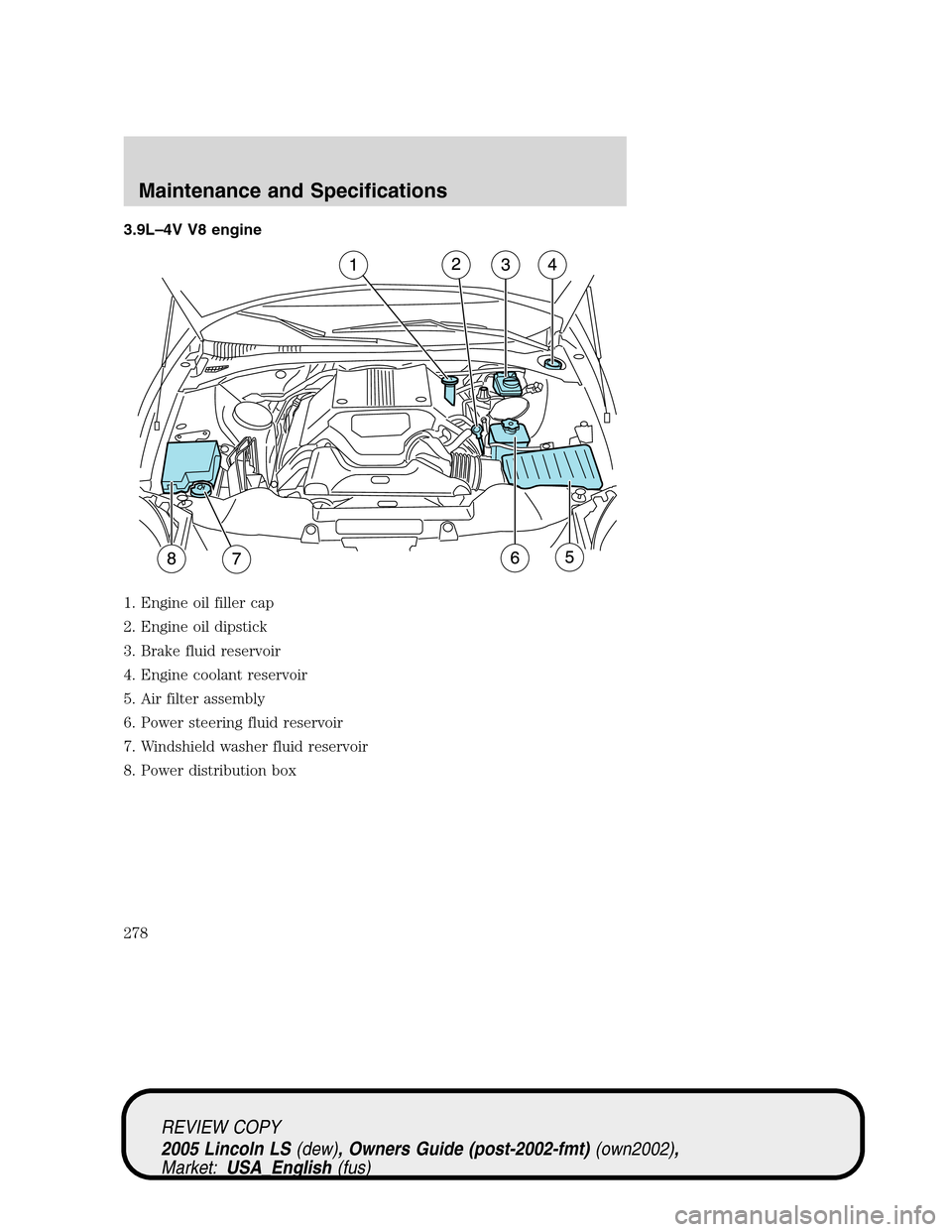

3.9L–4V V8 engine
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake fluid reservoir
4. Engine coolant reservoir
5. Air filter assembly
6. Power steering fluid reservoir
7. Windshield washer fluid reservoir
8. Power distribution box
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
278

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.

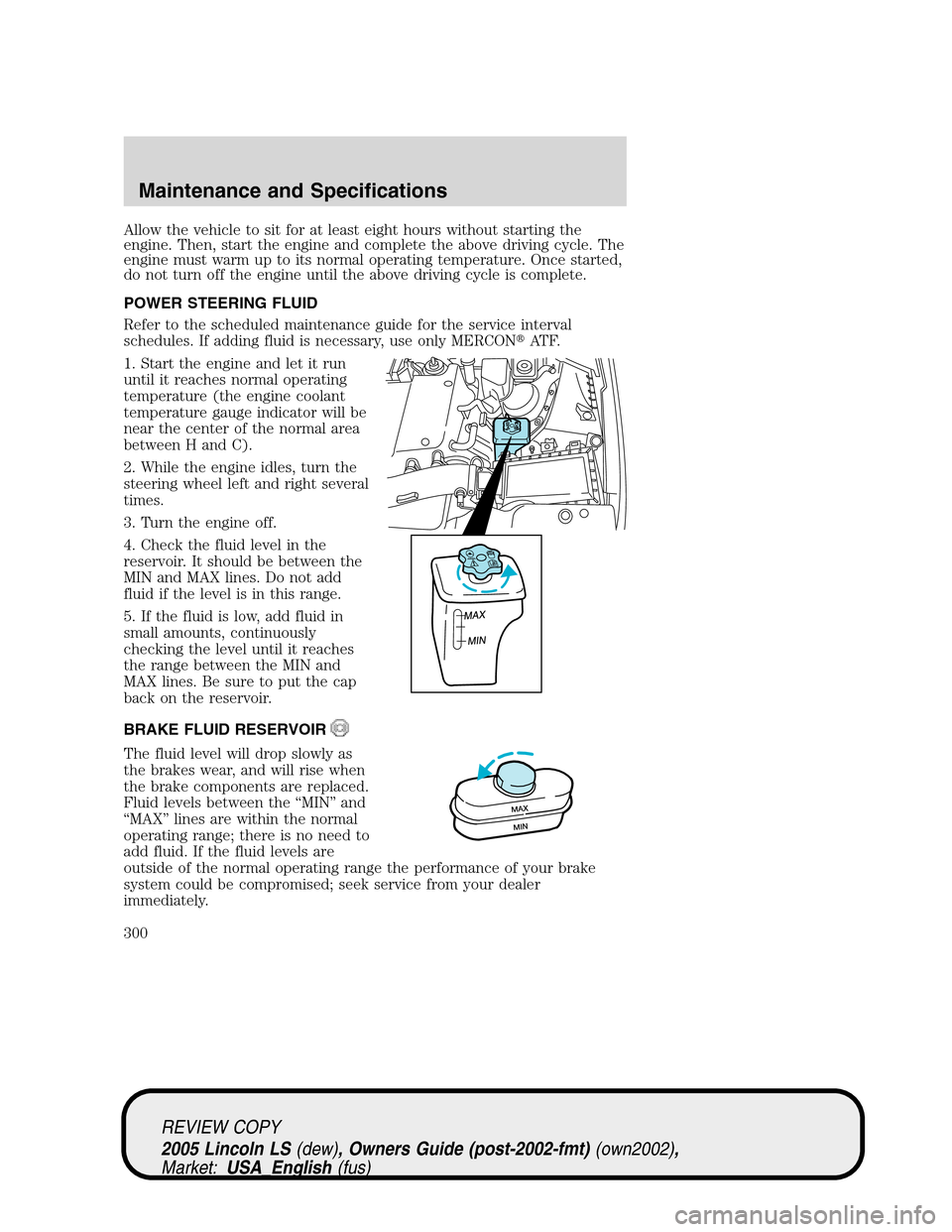

POWER STEERING FLUID
Refer to the scheduled maintenance guide for the service interval
schedules. If adding fluid is necessary, use only MERCONAT F.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir.
BRAKE FLUID RESERVOIR
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the“MIN”and
“MAX”lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating range the performance of your brake
system could be compromised; seek service from your dealer
immediately.
MAX
MIN
MAX
MIN
MAX
MIN
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
300

For PCV valve replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be void
for any damage to the engine if such spark plugs are not used.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
All Fill to MAX line
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)3.0L-4V V6
engine6.5L (6.9
quarts)
3.9L-4V V8
engine6.2L (6.5
quarts)
Engine coolant
2Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L-4V V6
engine10.6L (11.2
quarts)
3.9L-4V V8
engine11.3L (11.9
quarts)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to MAX line
on reservoir
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
304

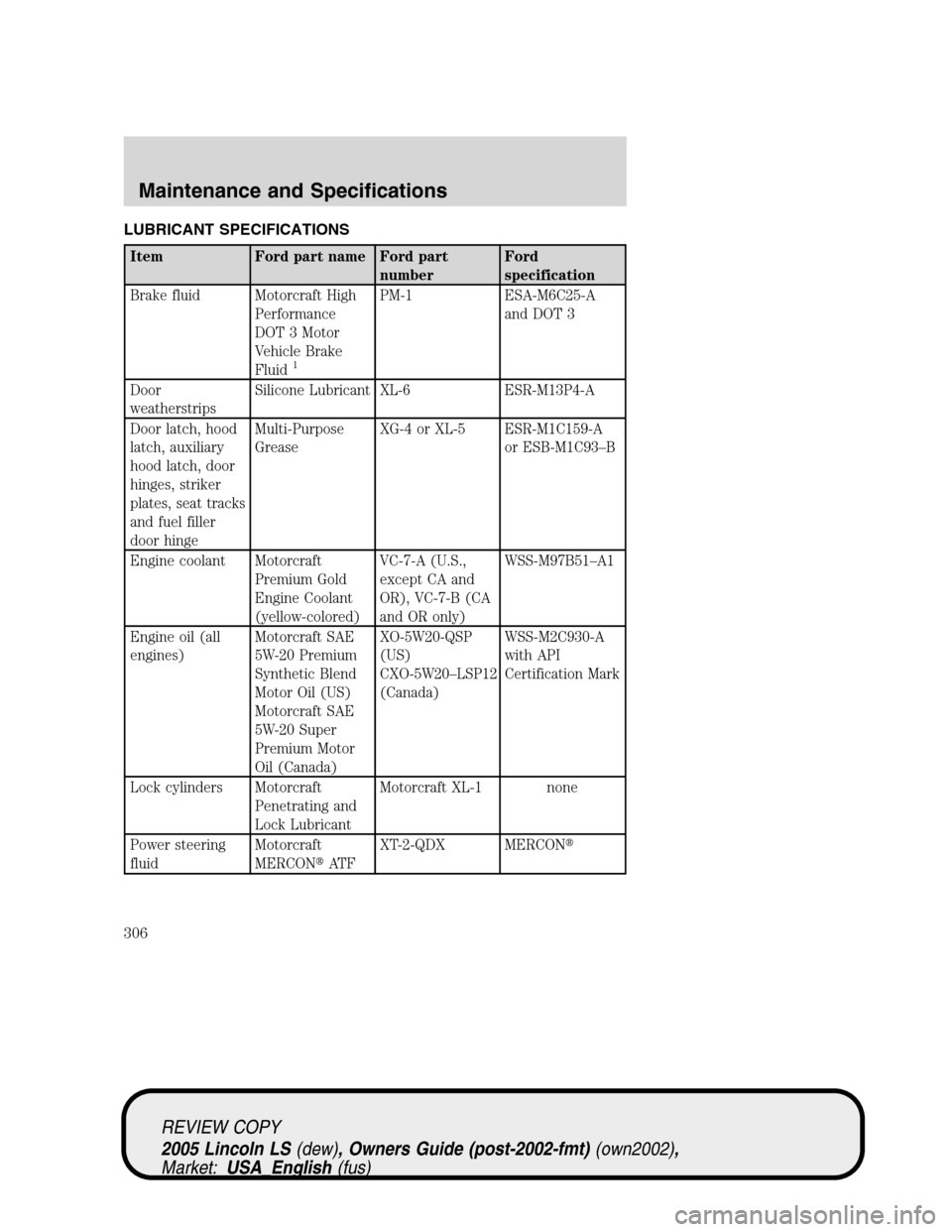

LUBRICANT SPECIFICATIONS
Item Ford part name Ford part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
1
PM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone Lubricant XL-6 ESR-M13P4-A
Door latch, hood
latch, auxiliary
hood latch, door
hinges, striker
plates, seat tracks
and fuel filler
door hingeMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93–B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS-M97B51–A1
Engine oil (all
engines)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
with API
Certification Mark
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
306

wheels ......................................271
wiper blades ............................273
Climate control (see Air
conditioning or Heating) ......89, 92
Clock adjust
6-CD in dash .............................19
AM/FM/Tape/CD .......................23
Compass, electronic ..................113
calibration ...............................114
set zone adjustment ...............114
Console ......................................140
overhead ..................................110
Controls
power seat ...............................159
steering column ......................119
Coolant
checking and adding ..............284
refill capacities ................288, 304
specifications ..................306–307
Cruise control
(see Speed control) ..................117
Customer Assistance ................242
Ford accessories for your
vehicle .....................................275
Ford Extended Service
Plan ..........................................267
Getting assistance outside
the U.S. and Canada ..............268
Getting roadside assistance ...242
Getting the service you
need .........................................261
Ordering additional owner’s
literature .................................269
The Dispute Settlement
Board .......................................263
Utilizing the
Mediation/Arbitration
Program ...................................266D
Daytime running lamps
(see Lamps) ................................99
Defrost
rear window ..............................96
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................279
Doors
central unlocking ....................143
lubricant specifications ..........306
Driving under special
conditions ..................................239
through water .........................241
E
Emergencies, roadside
jump-starting ..........................254
Emergency Flashers .................243
Emission control system ..........297
Engine ................................307–308
cleaning ...................................271
coolant .....................................284
fail-safe coolant ......................289
idle speed control ...................282
lubrication
specifications ..................306–307
refill capacities ........................304
service points ..................277–278
Engine block heater .................227
Engine oil ..................................279
checking and adding ..............279
dipstick ....................................279
filter, specifications ........281, 303
recommendations ...................281
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
314

Power distribution box
(see Fuses) .......................248, 251
Power door locks ......................142
Power mirrors ...........................115
Power point ...............................110
Power steering ..........................230
fluid, checking and adding ....300
fluid, refill capacity ................304
fluid, specifications .........306–307
Power Windows .........................111
R
Radio ......................................17, 21
Rear Park Assist .......................239
Rear window defroster ...............96
Relays ........................................244
Remote entry system ...............146
opening the trunk ...................148
Roadside assistance ..................242
Roof rack ...................................141
S
Safety Belt Maintenance ..........177
Safety belts (see Safety
restraints) ..................165, 168–173
Safety Canopy ...........................182
Safety defects, reporting ..........269
Safety restraints ........165, 168–173
belt minder .............................174
extension assembly ................177
for adults .........................169–172
for children .....................188–189
safety belt maintenance .........177
warning light and chime ........173
Safety seats for children ..........191Seat belts
(see Safety restraints) .............165
Seats ..........................................158
child safety seats ....................191
climate control ........................162
memory seat ...................151, 161
Select Shift Transmission
(SST) shifter .............................237
Servicing your vehicle ..............276
Setting the clock
AM/FM/In-dash 6 CD ................19
AM/FM/Tape/CD .......................23
Spark plugs,
specifications .............303, 307–308
Specification chart,
lubricants ...........................306–307
Speed control ............................117
Starting your vehicle ........224–226
jump starting ..........................254
Steering
speed sensitive .......................230
Steering column lock ................109
Steering wheel
controls ....................................119
tilting .......................................108
T
Tilt steering wheel ....................108
Tires ...........................199–200, 204
alignment ................................216
care ..........................................214
changing ..........................204, 206
checking the pressure ............202
inspecting and inflating .........201
label .........................................214
replacing ..................................204
rotating ....................................216
REVIEW COPY
2005 Lincoln LS(dew), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
317
