Page 72 of 304

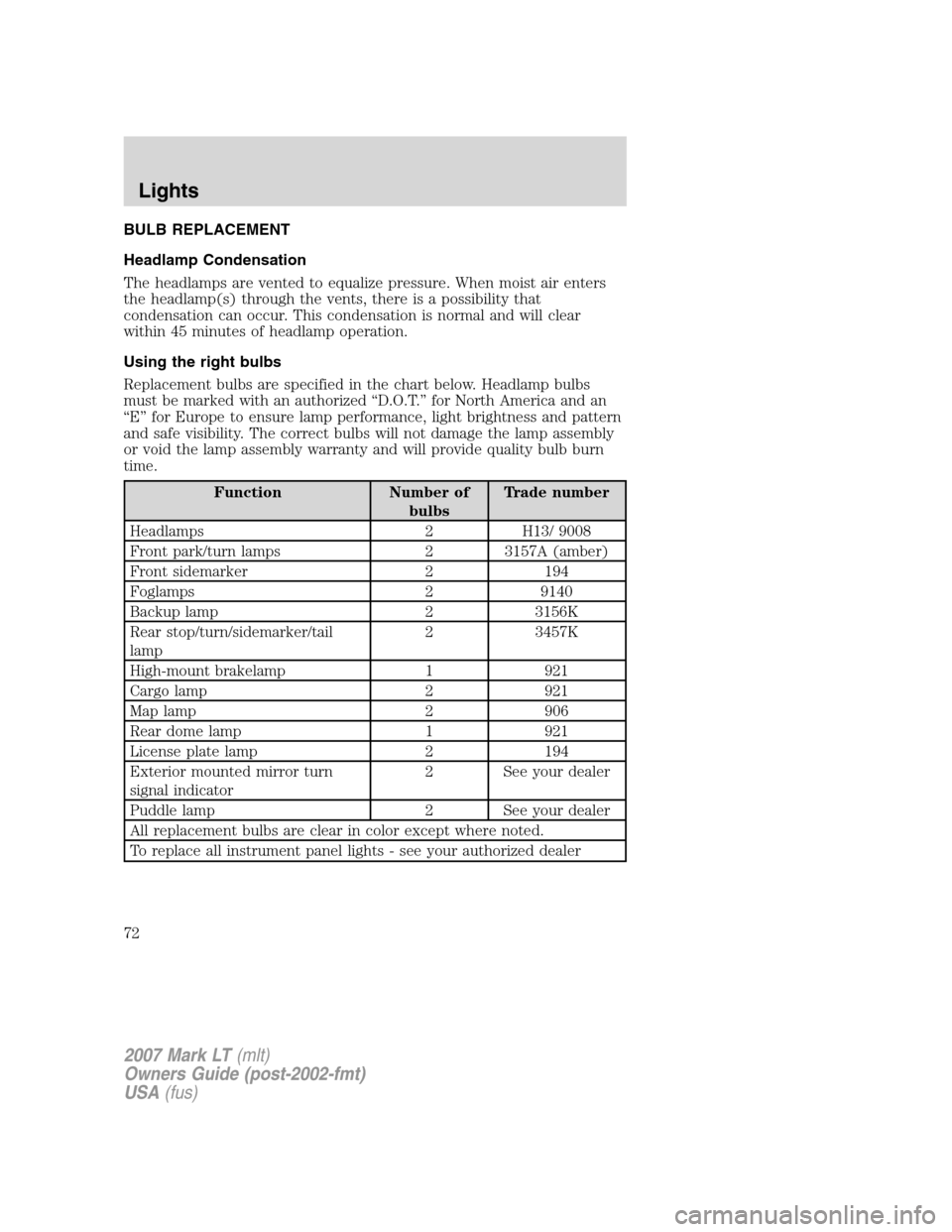

BULB REPLACEMENT
Headlamp Condensation
The headlamps are vented to equalize pressure. When moist air enters
the headlamp(s) through the vents, there is a possibility that
condensation can occur. This condensation is normal and will clear
within 45 minutes of headlamp operation.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of
bulbsTrade number
Headlamps 2 H13/ 9008
Front park/turn lamps 2 3157A (amber)
Front sidemarker 2 194
Foglamps 2 9140
Backup lamp 2 3156K
Rear stop/turn/sidemarker/tail
lamp2 3457K
High-mount brakelamp 1 921
Cargo lamp 2 921
Map lamp 2 906
Rear dome lamp 1 921
License plate lamp 2 194
Exterior mounted mirror turn
signal indicator2 See your dealer
Puddle lamp 2 See your dealer
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
72
Page 75 of 304
3. Carefully pull the lamp assembly
straight rearward from the tailgate
pillar to disengage two hidden
snap-in retainers.
4. Remove bulb socket from the
lamp assembly by turning it
counterclockwise.
5. Pull bulb straight out of socket
and press in the new bulb.
Install the new bulb(s) in reverse order.
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is
in the OFF position.
1. Remove the two screws and move
the lamp assembly away from the
vehicle to expose the bulb sockets.
2. Remove the bulb socket by
rotating counterclockwise and
pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb.
Install the new bulbs in reverse order.
Replacing foglamp bulbs
1. Make sure the headlamp control
is in the OFF position.
2. Remove the bulb socket from the
foglamp by turning
counterclockwise.
3. Disconnect the electrical
connector from the foglamp bulb.
Install the new bulb in reverse order.
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
75
Page 301 of 304
Exhaust fumes ..........................199
F
Fail safe cooling ........................272
Family entertainment system ....37
Fluid capacities .........................291
Foglamps .....................................67
Four-Wheel Drive vehicles .......211
driving off road .......................212
electronic shift ........................211
indicator light .........................211
preparing to drive your
vehicle .....................................203
Fuel ............................................274
calculating fuel
economy ............................99, 278
cap ...........................................276
capacity ...................................291
choosing the right fuel ...........277
comparisons with EPA fuel
economy estimates .................281
detergent in fuel .....................278
filling your vehicle with
fuel ...........................274, 276, 279
filter, specifications ........273, 290
fuel pump shut-off switch .....222
improving fuel economy ........278
octane rating ...................277, 294
quality ......................................277
running out of fuel .................278
safety information relating to
automotive fuels .....................274
Fuel pump shut-off switch .......222
Fuses ..................................223–224
G
Gas cap (see Fuel cap) ............276Gas mileage
(see Fuel economy) .................278
Gauges .........................................16
H
Hazard flashers .........................222
Head restraints .................122, 126
Headlamps ...................................67
aiming ........................................69
autolamp system .......................67
bulb specifications ....................72
daytime running lights .............68
flash to pass ..............................68
high beam .................................68
replacing bulbs .........................73
turning on and off ....................67
Heating
heating and air conditioning
system .......................................63
Homelink wireless control
system ..........................................92
Hood ..........................................260
How to get going ........................19
I
Ignition ...............................196, 294
Illuminated visor mirror .............78
Infant seats
(see Safety seats) .....................155
Inspection/maintenance (I/M)
testing ........................................284
Instrument panel
cleaning ...................................255
cluster ........................................12
lighting up panel and
interior .......................................69
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
301
Page 302 of 304
J
Jack ............................................230
positioning ...............................230
storage .............................230, 233
Jump-starting your vehicle ......238
K
Keyless entry system ...............117
autolock ...................................108
keypad .....................................117
locking and unlocking doors ..119
programming entry code .......117
Keys ...................................108, 120
positions of the ignition .........196
L
Lamps
autolamp system .......................67
bulb replacement
specifications chart ..................72
daytime running light ...............68
fog lamps ...................................67
headlamps .................................67
headlamps, flash to pass ..........68
instrument panel, dimming .....69
interior lamps ...........................71
replacing bulbs ...................73, 76
Lane change indicator
(see Turn signal) ........................70
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........200
Load limits .................................184
Loading instructions .................190
Locks
autolock ...................................108
childproof ................................110
doors ........................................108Lubricant specifications ...........291
Lug nuts ....................................237
Lumbar support, seats .............124
M
Message center .....................96–97
english/metric button .............101
system check button ..............100
warning messages ...................102
Mirrors .........................................85
automatic dimming rearview
mirror ........................................85
fold away ...................................86
heated ........................................87
programmable memory ..113, 125
side view mirrors (power) .......85
signal .........................................87
Moon roof ....................................91
Motorcraft parts ........257, 273, 290
N
Navigation system .......................62
O
Octane rating ............................277
Oil (see Engine oil) ..................263
P
Parking brake ............................201
Parts (see Motorcraft parts) ....290
Passenger Occupant
Classification Sensor .................129
Power distribution box
(see Fuses) ...............................224
Power door locks ......................108
2007 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
302
