LINCOLN MARK LT 2008 Owners Manual

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A
Seat tracks — Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Hinges, latches, striker
plates, fuel filler door
hinge and door check
arm—Motorcraft Silicone
Brake Caliper Grease
and Dielectric
CompoundXG-3-A /
ESE-M1C171-A
Transmission
/steering/parking brake
linkages and pivots and
brake pedal shaft—Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Engine oil 7.0 quarts (6.6L)Motorcraft SAE 5W-20
Premium Synthetic
Blend
Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
1
XO-5W20-QSP (US)
CXO-5W20–LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
311

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Engine coolant21.2 quarts
(20.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
2
VC-7-B /
WSS-M97B51-A1
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Front axle (4X4) fluid 3.7 pints (2.0L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid– 9.75
inch
3
5.5 pints (2.6L)
4
Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Automatic transmission
fluid (4R75E)13.9 quarts
(13.2L)
5
Motorcraft
MERCONV
AT F
6
XT-5-QM /
MERCONV
Power steering fluidFill to between
MIN and MAX
lines on reservoirMotorcraft
MERCONV
AT FXT-5-QM /
MERCONV
Transfer case fluid
(4X4)2.0 quarts (1.9L)
7
Motorcraft Transfer Case
FluidXL-12 /
—
Windshield washer fluid 4.25 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank
(5.5’ box)30.0 gallons
(113.6L)——
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
312

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank
(6.5’ box)27.0 gallons
(102.2L) Standard
35.7 gallons
(135.1L) Optional——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.4Service refill capacity is determined by filling the axle to 1/4-9/16 inch (6-14 mm) below the
bottom of the filler hole with the vehicle on a level surface.
Add 4 oz. (118 ml) of Additive Friction Modifier or equivalent meeting Ford specification
EST-M2C118-A, for complete fill of 9.75 inch Traction-Lok axles.5Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
cooling lines, auxiliary cooler capacities). The amount of transmission fluid and fluid level should
be set by the indication on the dipstick’s normal operating range.6Automatic transmissions that require MERCONV should only use MERCONV fluid or fluid that
is specified dual usage MERCON/MERCONV. Use of any fluid other than the recommended fluid
may cause transmission damage. Refer toscheduled maintenance informationto determine the
correct service interval. Use of any fluid other than the recommended fluid may cause transmission
damage.7Service refill capacity is determined by filling the transfer case to the bottom of the filler hole
with the vehicle on a level surface.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
313

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap
10.040–0.050 inch (1.02–1.28mm)
Compression ratio 9.85:1
1The spark plug gap can not be adjusted.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
314

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
315

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
316

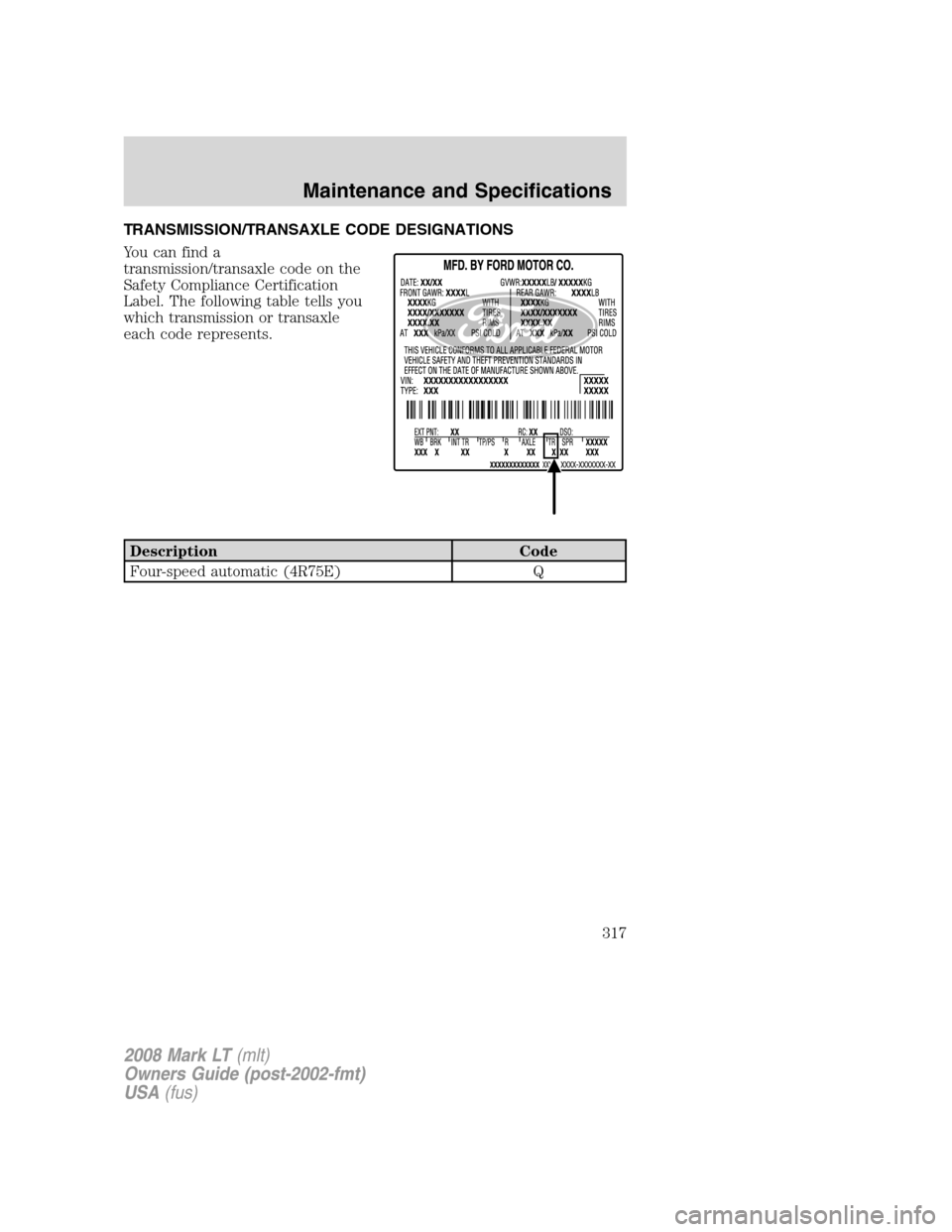

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic (4R75E) Q
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
317

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step bars
Tonneau covers
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
318

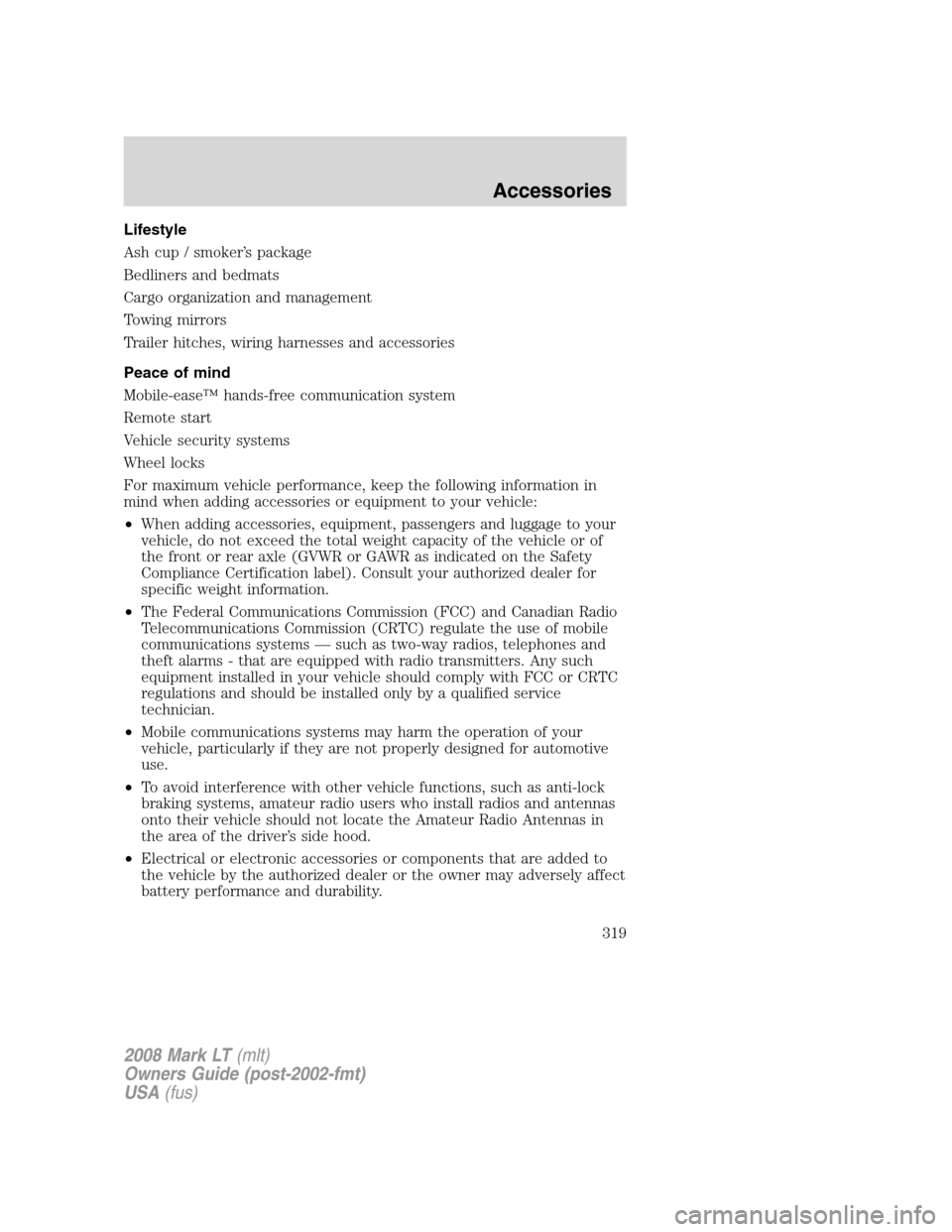

Lifestyle
Ash cup / smoker’s package
Bedliners and bedmats
Cargo organization and management
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
319

A
Accessory delay ..........................89
Air cleaner filter ...............308–310
Air conditioning ..........................68
Airbag supplemental restraint
system ................................155–156
and child safety seats ............158
description ..............................156
disposal ....................................160
driver airbag ....................156, 158
indicator light .........................159
operation .........................156, 158
passenger airbag .............156, 158
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................287
Anti-lock brake system
(see Brakes) ..............................215
Anti-theft system ......................131
arming the system ..................132
Audio system (see Radio) ...19, 23
Automatic transmission
driving an automatic
overdrive .................................221
fluid, adding ............................305
fluid, checking ........................305
fluid, refill capacities ..............311
fluid, specification ..................311
Auxiliary input jack (Line in) ....31
Axle
lubricant specifications ..........311
refill capacities ........................311
traction lok ..............................218
B
Battery .......................................285acid, treating emergencies .....285
jumping a disabled battery ....255
maintenance-free ....................285
replacement, specifications ...310
servicing ..................................285
Belt-Minder.............................150
deactivating/activating the
Belt-Minder...........................153
Booster seats .............................164
Brakes ........................................215
anti-lock ...................................215
anti-lock brake system (ABS)
warning light ...........................215
fluid, checking and adding ....305
fluid, refill capacities ..............311
fluid, specifications .................311
lubricant specifications ..........311
parking ....................................216
shift interlock ..........................219
Bulbs ............................................77
C
Capacities for refilling fluids ....311
Cargo cage .................................112
Cargo management system ......114
Cell phone use ..............................9
Changing a tire .........................247
Child safety restraints ..............164
child safety belts ....................164
Child safety seats ......................167
attaching with tether straps ..171
in front seat ............................169
in rear seat ..............................169
Child safety seats - booster
seats ...........................................164
Cleaning your vehicle
engine compartment ..............273
2008 Mark LT(mlt)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320
