wipers LINCOLN MKC 2015 User Guide

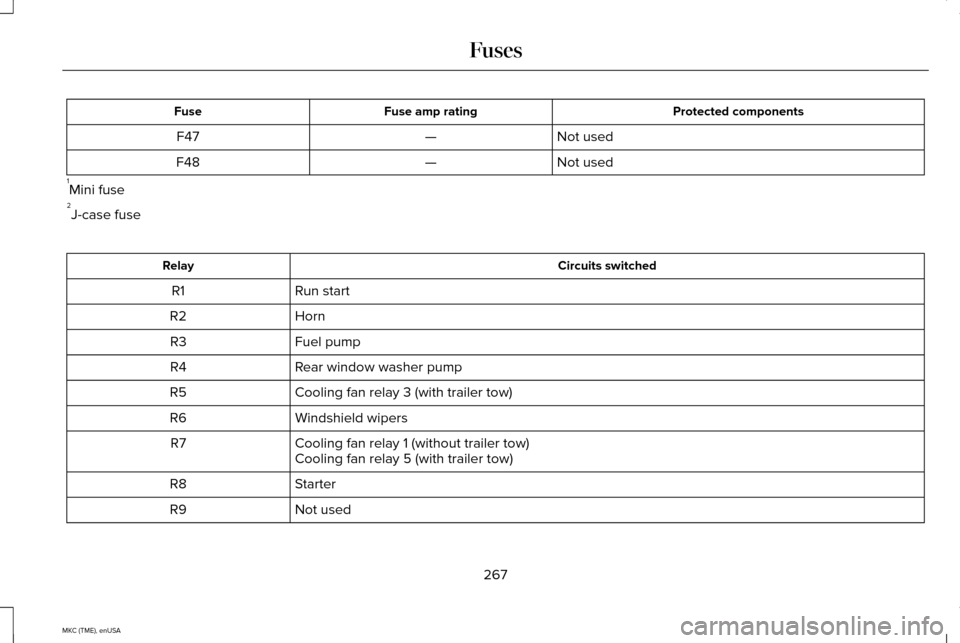

Protected components
Fuse amp rating
Fuse
Not used
—
F47
Not used
—
F48
1 Mini fuse
2 J-case fuse Circuits switched
Relay
Run start
R1
Horn
R2
Fuel pump
R3
Rear window washer pump
R4
Cooling fan relay 3 (with trailer tow)
R5
Windshield wipers
R6
Cooling fan relay 1 (without trailer tow)
R7
Cooling fan relay 5 (with trailer tow)
Starter
R8
Not used
R9
267
MKC (TME), enUSA Fuses

•

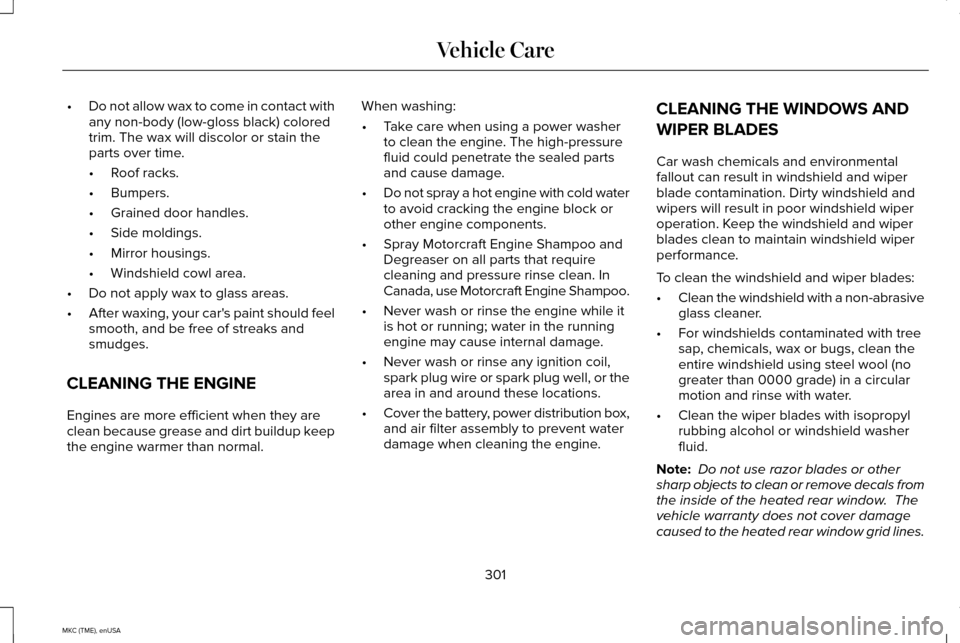

Do not allow wax to come in contact with
any non-body (low-gloss black) colored
trim. The wax will discolor or stain the
parts over time.
•Roof racks.
• Bumpers.
• Grained door handles.
• Side moldings.
• Mirror housings.
• Windshield cowl area.
• Do not apply wax to glass areas.
• After waxing, your car's paint should feel
smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal. When washing:
•
Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.
• Do not spray a hot engine with cold water
to avoid cracking the engine block or
other engine components.
• Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or the
area in and around these locations.
• Cover the battery, power distribution box,
and air filter assembly to prevent water
damage when cleaning the engine. CLEANING THE WINDOWS AND
WIPER BLADES
Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.
To clean the windshield and wiper blades:
•
Clean the windshield with a non-abrasive
glass cleaner.
• For windshields contaminated with tree
sap, chemicals, wax or bugs, clean the
entire windshield using steel wool (no
greater than 0000 grade) in a circular
motion and rinse with water.
• Clean the wiper blades with isopropyl
rubbing alcohol or windshield washer
fluid.
Note: Do not use razor blades or other
sharp objects to clean or remove decals from
the inside of the heated rear window. The
vehicle warranty does not cover damage
caused to the heated rear window grid lines.
301
MKC (TME), enUSA Vehicle Care

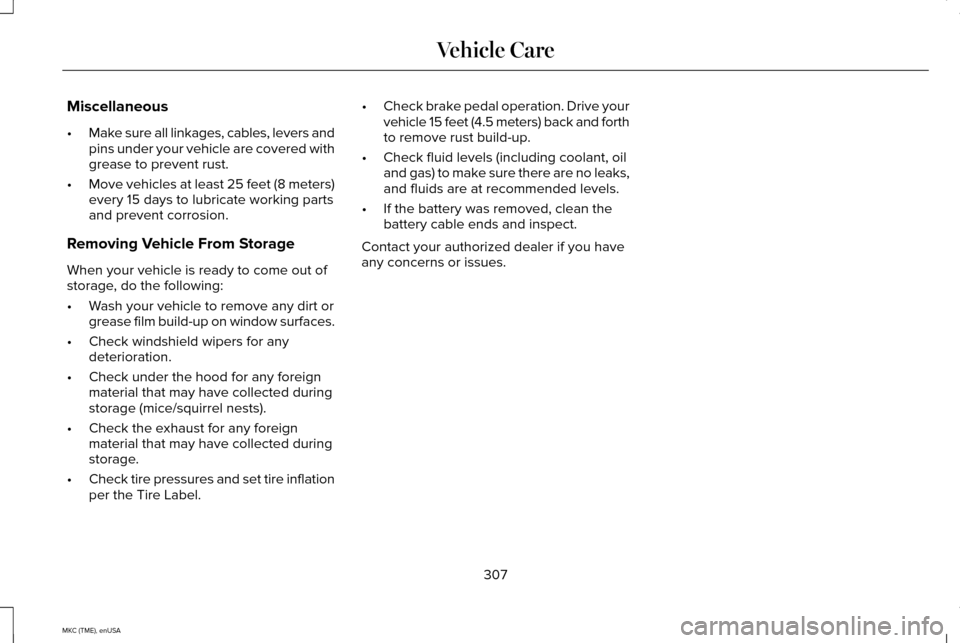

Miscellaneous
•
Make sure all linkages, cables, levers and
pins under your vehicle are covered with
grease to prevent rust.
• Move vehicles at least 25 feet (8 meters)
every 15 days to lubricate working parts
and prevent corrosion.
Removing Vehicle From Storage
When your vehicle is ready to come out of
storage, do the following:
• Wash your vehicle to remove any dirt or
grease film build-up on window surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected during
storage (mice/squirrel nests).
• Check the exhaust for any foreign
material that may have collected during
storage.
• Check tire pressures and set tire inflation
per the Tire Label. •
Check brake pedal operation. Drive your
vehicle 15 feet (4.5 meters) back and forth
to remove rust build-up.
• Check fluid levels (including coolant, oil
and gas) to make sure there are no leaks,
and fluids are at recommended levels.
• If the battery was removed, clean the
battery cable ends and inspect.
Contact your authorized dealer if you have
any concerns or issues.
307
MKC (TME), enUSA Vehicle Care

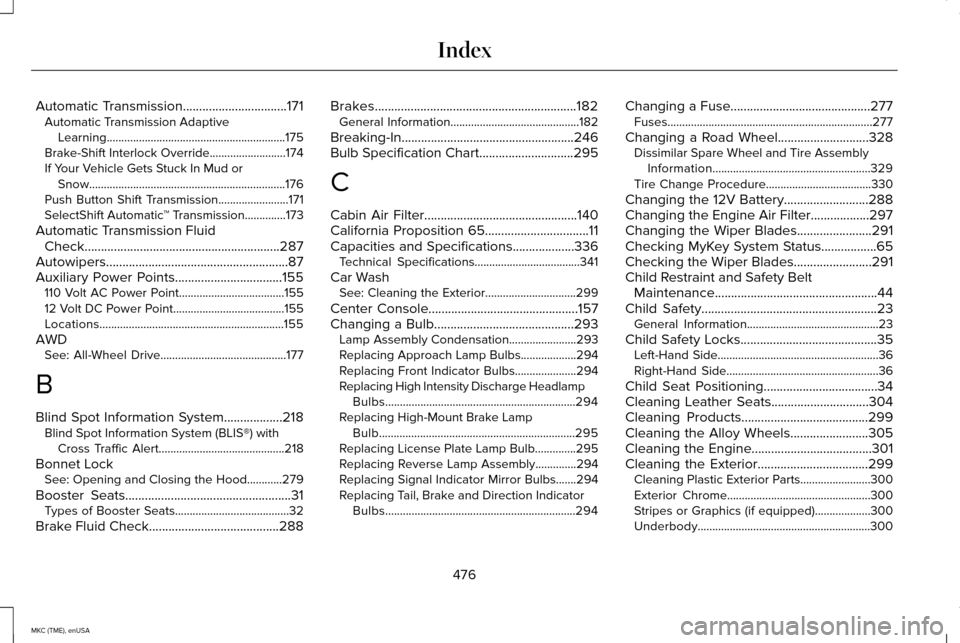

Automatic Transmission................................171
Automatic Transmission Adaptive
Learning.............................................................175
Brake-Shift Interlock Override..........................174
If Your Vehicle Gets Stuck In Mud or Snow...................................................................176
Push Button Shift Transmission........................171
SelectShift Automatic ™ Transmission..............173
Automatic Transmission Fluid Check............................................................287
Autowipers........................................................87
Auxiliary Power Points.................................155 110 Volt AC Power Point....................................155
12 Volt DC Power Point......................................155
Locations...............................................................155
AWD See: All-Wheel Drive...........................................177
B
Blind Spot Information System
..................218
Blind Spot Information System (BLIS®) with
Cross Traffic Alert...........................................218
Bonnet Lock See: Opening and Closing the Hood............279
Booster Seats...................................................31 Types of Booster Seats.......................................32
Brake Fluid Check
........................................288 Brakes..............................................................182
General Information............................................182
Breaking-In.....................................................246
Bulb Specification Chart
.............................295
C
Cabin Air Filter
...............................................140
California Proposition 65................................11
Capacities and Specifications
...................336
Technical Specifications....................................341
Car Wash See: Cleaning the Exterior...............................
299
Center Console
..............................................157
Changing a Bulb...........................................293
Lamp Assembly Condensation.......................293
Replacing Approach Lamp Bulbs...................294
Replacing Front Indicator Bulbs.....................294
Replacing High Intensity Discharge Headlamp
Bulbs.................................................................294
Replacing High-Mount Brake Lamp Bulb...................................................................295
Replacing License Plate Lamp Bulb..............295
Replacing Reverse Lamp Assembly..............
294
Replacing Signal Indicator Mirror Bulbs.......294
Replacing Tail, Brake and Direction Indicator Bulbs.................................................................294 Changing a Fuse...........................................277
Fuses......................................................................277
Changing a Road Wheel............................328 Dissimilar Spare Wheel and Tire Assembly
Information......................................................329
Tire Change Procedure....................................
330
Changing the 12V Battery..........................288
Changing the Engine Air Filter..................297
Changing the Wiper Blades.......................291
Checking MyKey System Status
.................65
Checking the Wiper Blades........................291
Child Restraint and Safety Belt Maintenance..................................................44
Child Safety......................................................23 General Information.............................................23
Child Safety Locks..........................................35 Left-Hand Side.......................................................36
Right-Hand Side....................................................36
Child Seat Positioning...................................34
Cleaning Leather Seats..............................304
Cleaning Products
.......................................299
Cleaning the Alloy Wheels........................305
Cleaning the Engine.....................................301
Cleaning the Exterior..................................299 Cleaning Plastic Exterior Parts........................
300
Exterior Chrome.................................................300
Stripes or Graphics (if equipped)...................300
Underbody...........................................................300
476
MKC (TME), enUSA Index

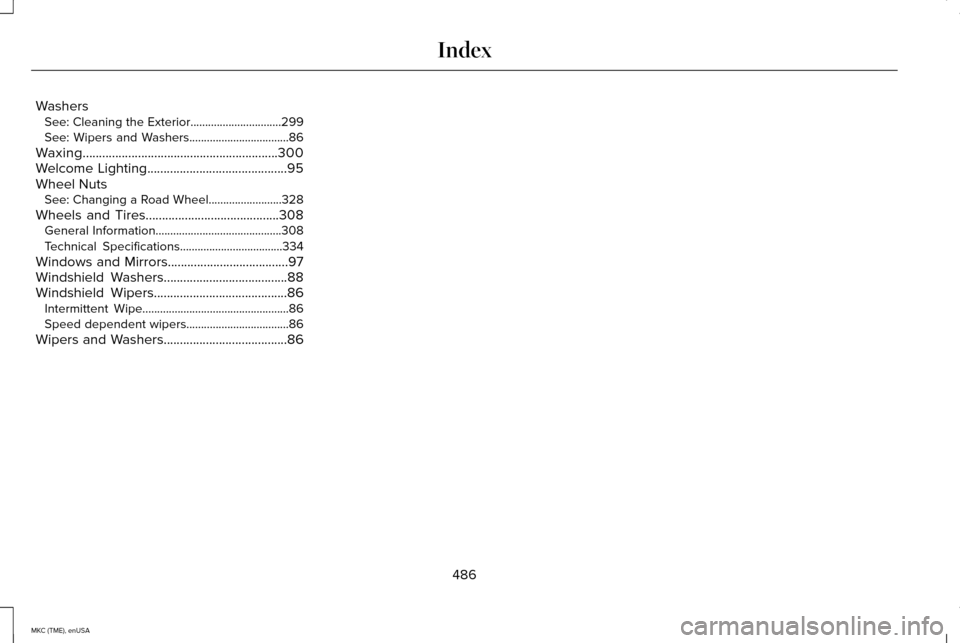

Washers
See: Cleaning the Exterior...............................299
See: Wipers and Washers..................................86
Waxing
............................................................300
Welcome Lighting...........................................95
Wheel Nuts See: Changing a Road Wheel.........................328
Wheels and Tires.........................................308 General Information...........................................308
Technical Specifications...................................334
Windows and Mirrors.....................................97
Windshield Washers......................................88
Windshield Wipers
.........................................86
Intermittent Wipe..................................................86
Speed dependent wipers...................................
86
Wipers and Washers......................................86
486
MKC (TME), enUSA Index
