cabin filter LINCOLN MKC 2015 Owners Manual

Security
Passive Anti-Theft System............................80
Anti-Theft Alarm...............................................81
Steering Wheel
Adjusting the Steering Wheel.....................82
Audio Control
...................................................83
Voice Control...................................................84
Cruise Control
..................................................84
Information Display Control.........................84
Heated Steering Wheel
................................85
Wipers and Washers
Windshield Wipers
.........................................86
Autowipers........................................................87
Windshield Washers......................................88
Rear Window Wiper and Washers..............88
Lighting
Lighting Control..............................................90
Autolamps ..........................................................
91
Instrument Lighting Dimmer........................92
Headlamp Exit Delay.....................................92 Daytime Running Lamps...............................92
Automatic High Beam Control....................93
Direction Indicators........................................94
Welcome Lighting...........................................95
Interior Lamps
..................................................95
Ambient Lighting............................................96
Windows and Mirrors
Power Windows
...............................................97
Global Opening and Closing.......................98
Exterior Mirrors
................................................98
Interior Mirror
..................................................101
Sun Visors
.......................................................102
Moonroof.........................................................102
Instrument Cluster
Gauges............................................................105
Warning Lamps and Indicators
..................107
Audible Warnings and Indicators................111
Information Displays
General Information
.......................................112
Information Messages
...................................118 Climate Control
Automatic Climate Control..........................136
Hints on Controlling the Interior
Climate.........................................................138
Heated Windows and Mirrors....................139
Cabin Air Filter
...............................................140
Remote Start
...................................................140
Seats
Sitting in the Correct Position.....................141
Head Restraints
..............................................141
Power Seats....................................................143
Memory Function..........................................145
Rear Seats.......................................................146
Heated Seats
..................................................147
Climate Controlled Seats
............................148
Rear Seat Armrest
.........................................149
Universal Garage Door Opener
Universal Garage Door Opener................150
Auxiliary Power Points
Auxiliary Power Points.................................155
2
MKC (TME), enUSA Table of Contents

Safety alert
See Owner's Manual
Air conditioning system
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Brake fluid - non petroleum based
Brake system Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten safety belt
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
8
MKC (TME), enUSA Introduction E162384 E71340

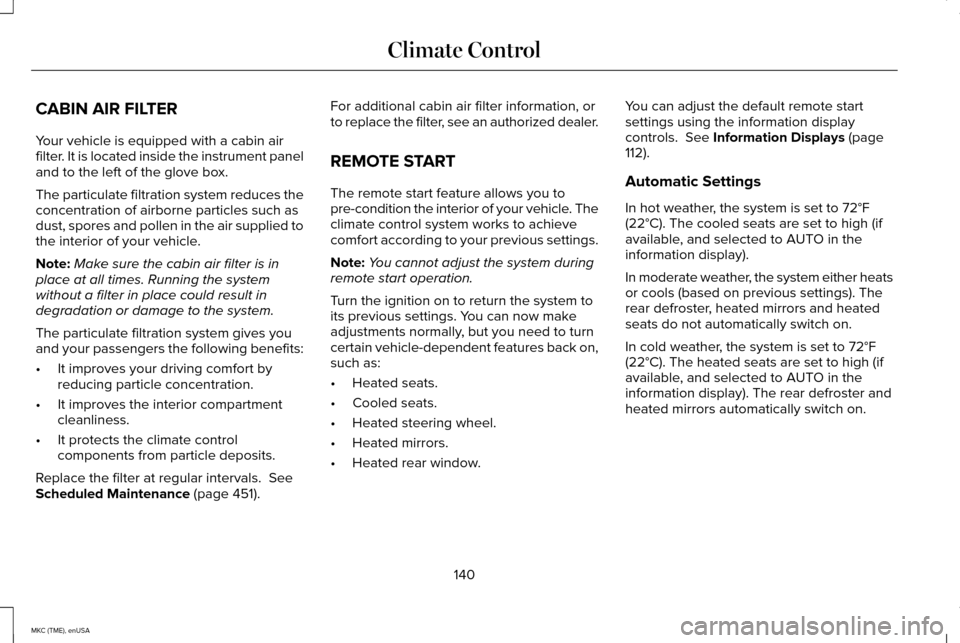

CABIN AIR FILTER
Your vehicle is equipped with a cabin air
filter. It is located inside the instrument panel
and to the left of the glove box.
The particulate filtration system reduces the
concentration of airborne particles such as
dust, spores and pollen in the air supplied to
the interior of your vehicle.
Note:
Make sure the cabin air filter is in
place at all times. Running the system
without a filter in place could result in
degradation or damage to the system.
The particulate filtration system gives you
and your passengers the following benefits:
• It improves your driving comfort by
reducing particle concentration.
• It improves the interior compartment
cleanliness.
• It protects the climate control
components from particle deposits.
Replace the filter at regular intervals. See
Scheduled Maintenance (page 451). For additional cabin air filter information, or
to replace the filter, see an authorized dealer.
REMOTE START
The remote start feature allows you to
pre-condition the interior of your vehicle. The
climate control system works to achieve
comfort according to your previous settings.
Note:
You cannot adjust the system during
remote start operation.
Turn the ignition on to return the system to
its previous settings. You can now make
adjustments normally, but you need to turn
certain vehicle-dependent features back on,
such as:
• Heated seats.
• Cooled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window. You can adjust the default remote start
settings using the information display
controls.
See Information Displays (page
112).
Automatic Settings
In hot weather, the system is set to 72°F
(22°C). The cooled seats are set to high (if
available, and selected to AUTO in the
information display).
In moderate weather, the system either heats
or cools (based on previous settings). The
rear defroster, heated mirrors and heated
seats do not automatically switch on.
In cold weather, the system is set to 72°F
(22°C). The heated seats are set to high (if
available, and selected to AUTO in the
information display). The rear defroster and
heated mirrors automatically switch on.
140
MKC (TME), enUSA Climate Control

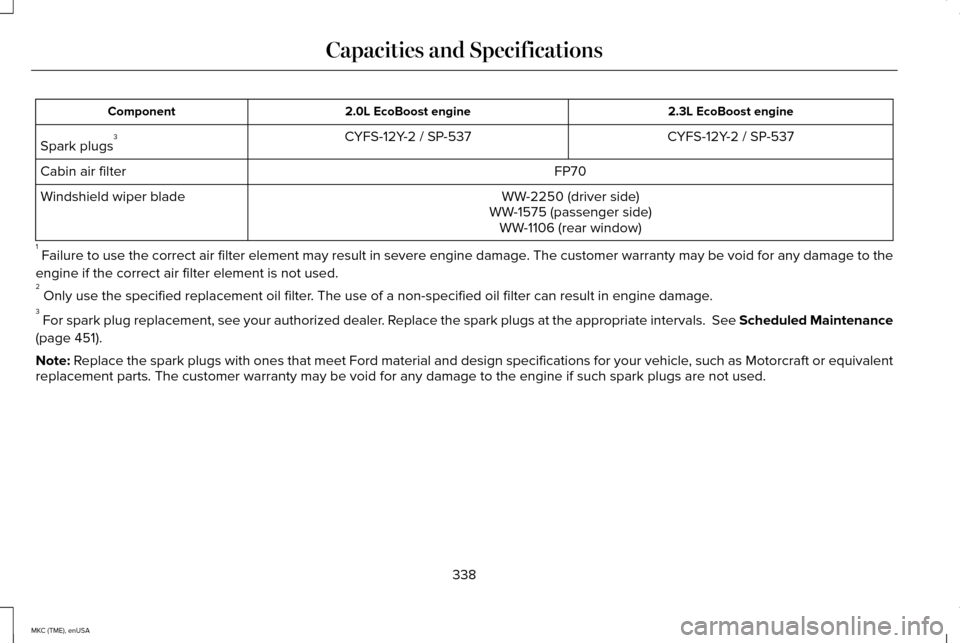

2.3L EcoBoost engine
2.0L EcoBoost engine
Component
CYFS-12Y-2 / SP-537
CYFS-12Y-2 / SP-537
Spark plugs 3
FP70
Cabin air filter
WW-2250 (driver side)
Windshield wiper blade
WW-1575 (passenger side)WW-1106 (rear window)
1 Failure to use the correct air filter element may result in severe engi\
ne damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2 Only use the specified replacement oil filter. The use of a non-specified oil filter can result in engine damage.
3 For spark plug replacement, see your authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance
(page 451).
Note:
Replace the spark plugs with ones that meet Ford material and design spec\
ifications for your vehicle, such as Motorcraft or equivalent
replacement parts. The customer warranty may be void for any damage to t\
he engine if such spark plugs are not used.
338
MKC (TME), enUSA Capacities and Specifications

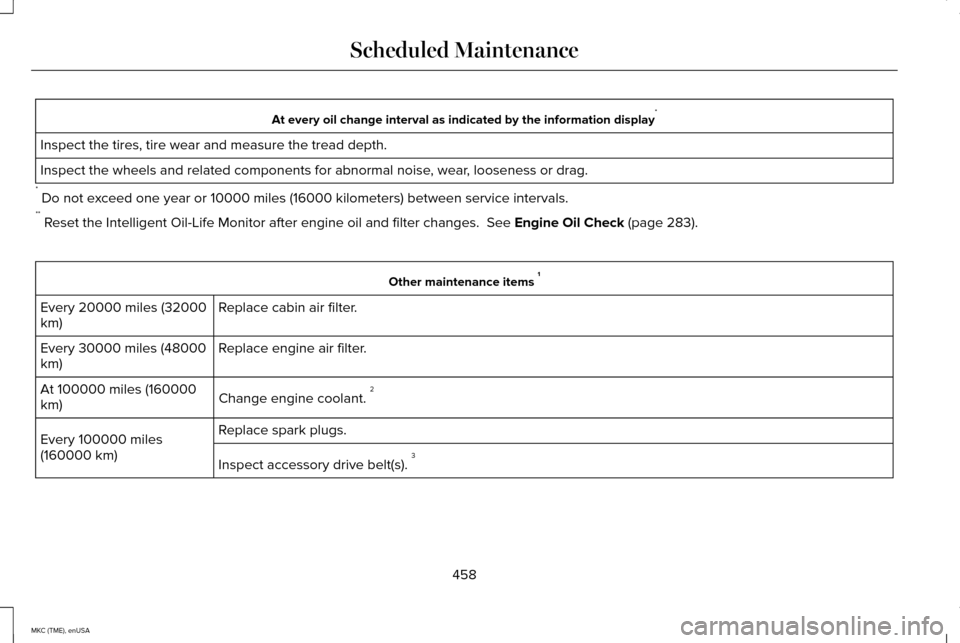

At every oil change interval as indicated by the information display
*
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
* Do not exceed one year or 10000 miles (16000 kilometers) between service interv\
als.
** Reset the Intelligent Oil-Life Monitor after engine oil and filter change\
s. See Engine Oil Check (page 283). Other maintenance items
1
Replace cabin air filter.
Every 20000 miles (32000
km)
Replace engine air filter.
Every 30000 miles (48000
km)
Change engine coolant. 2
At 100000 miles (160000
km)
Replace spark plugs.
Every 100000 miles
(160000 km)
Inspect accessory drive belt(s). 3
458
MKC (TME), enUSA Scheduled Maintenance

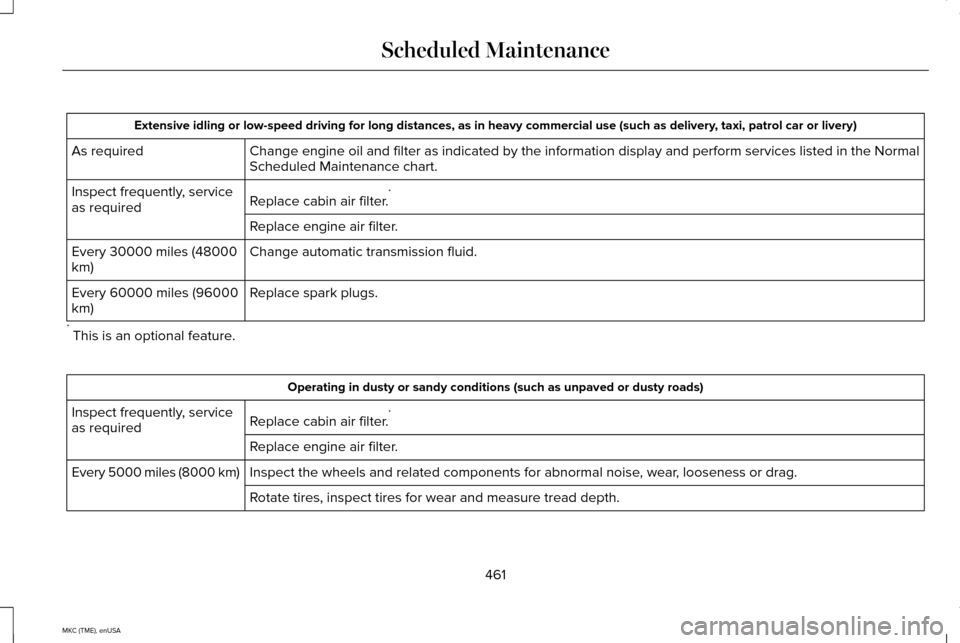

Extensive idling or low-speed driving for long distances, as in heavy co\
mmercial use (such as delivery, taxi, patrol car or livery)
Change engine oil and filter as indicated by the information display and\
perform services listed in the Normal
Scheduled Maintenance chart.
As required
Replace cabin air filter.*
Inspect frequently, service
as required
Replace engine air filter.
Change automatic transmission fluid.
Every 30000 miles (48000
km)
Replace spark plugs.
Every 60000 miles (96000
km)
* This is an optional feature. Operating in dusty or sandy conditions (such as unpaved or dusty roads)\
Replace cabin air filter. *
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal noise, wear, looseness or drag.
Every 5000 miles (8000 km)
Rotate tires, inspect tires for wear and measure tread depth.
461
MKC (TME), enUSA Scheduled Maintenance

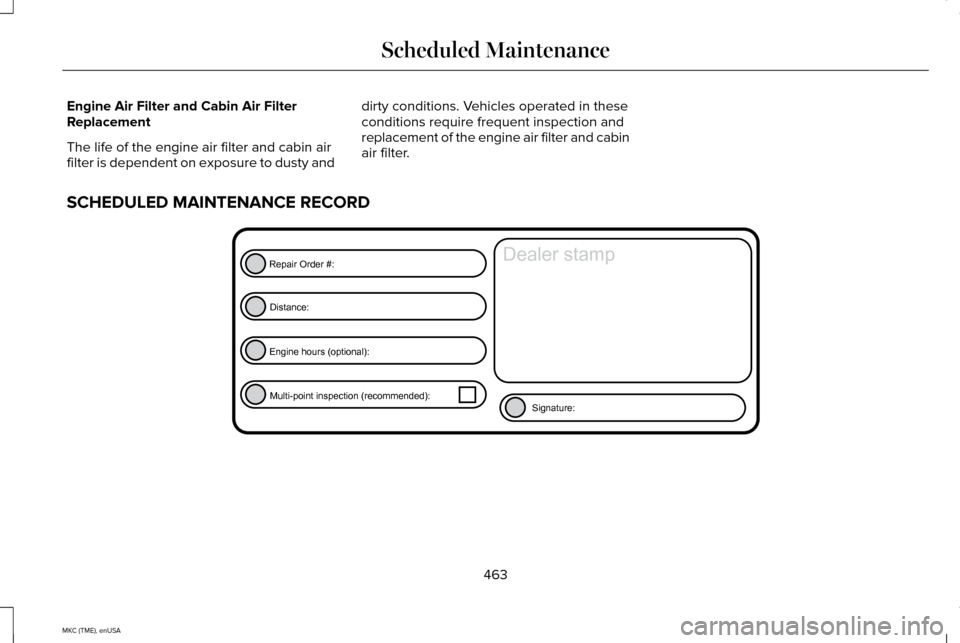

Engine Air Filter and Cabin Air Filter
Replacement
The life of the engine air filter and cabin air
filter is dependent on exposure to dusty and
dirty conditions. Vehicles operated in these
conditions require frequent inspection and
replacement of the engine air filter and cabin
air filter.
SCHEDULED MAINTENANCE RECORD 463
MKC (TME), enUSA Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

Automatic Transmission................................171
Automatic Transmission Adaptive
Learning.............................................................175
Brake-Shift Interlock Override..........................174
If Your Vehicle Gets Stuck In Mud or Snow...................................................................176
Push Button Shift Transmission........................171
SelectShift Automatic ™ Transmission..............173
Automatic Transmission Fluid Check............................................................287
Autowipers........................................................87
Auxiliary Power Points.................................155 110 Volt AC Power Point....................................155
12 Volt DC Power Point......................................155
Locations...............................................................155
AWD See: All-Wheel Drive...........................................177
B
Blind Spot Information System
..................218
Blind Spot Information System (BLIS®) with
Cross Traffic Alert...........................................218
Bonnet Lock See: Opening and Closing the Hood............279
Booster Seats...................................................31 Types of Booster Seats.......................................32
Brake Fluid Check
........................................288 Brakes..............................................................182
General Information............................................182
Breaking-In.....................................................246
Bulb Specification Chart
.............................295
C
Cabin Air Filter
...............................................140
California Proposition 65................................11
Capacities and Specifications
...................336
Technical Specifications....................................341
Car Wash See: Cleaning the Exterior...............................
299
Center Console
..............................................157
Changing a Bulb...........................................293
Lamp Assembly Condensation.......................293
Replacing Approach Lamp Bulbs...................294
Replacing Front Indicator Bulbs.....................294
Replacing High Intensity Discharge Headlamp
Bulbs.................................................................294
Replacing High-Mount Brake Lamp Bulb...................................................................295
Replacing License Plate Lamp Bulb..............295
Replacing Reverse Lamp Assembly..............
294
Replacing Signal Indicator Mirror Bulbs.......294
Replacing Tail, Brake and Direction Indicator Bulbs.................................................................294 Changing a Fuse...........................................277
Fuses......................................................................277
Changing a Road Wheel............................328 Dissimilar Spare Wheel and Tire Assembly
Information......................................................329
Tire Change Procedure....................................
330
Changing the 12V Battery..........................288
Changing the Engine Air Filter..................297
Changing the Wiper Blades.......................291
Checking MyKey System Status
.................65
Checking the Wiper Blades........................291
Child Restraint and Safety Belt Maintenance..................................................44
Child Safety......................................................23 General Information.............................................23
Child Safety Locks..........................................35 Left-Hand Side.......................................................36
Right-Hand Side....................................................36
Child Seat Positioning...................................34
Cleaning Leather Seats..............................304
Cleaning Products
.......................................299
Cleaning the Alloy Wheels........................305
Cleaning the Engine.....................................301
Cleaning the Exterior..................................299 Cleaning Plastic Exterior Parts........................
300
Exterior Chrome.................................................300
Stripes or Graphics (if equipped)...................300
Underbody...........................................................300
476
MKC (TME), enUSA Index
