LINCOLN MKC 2015 Owners Manual

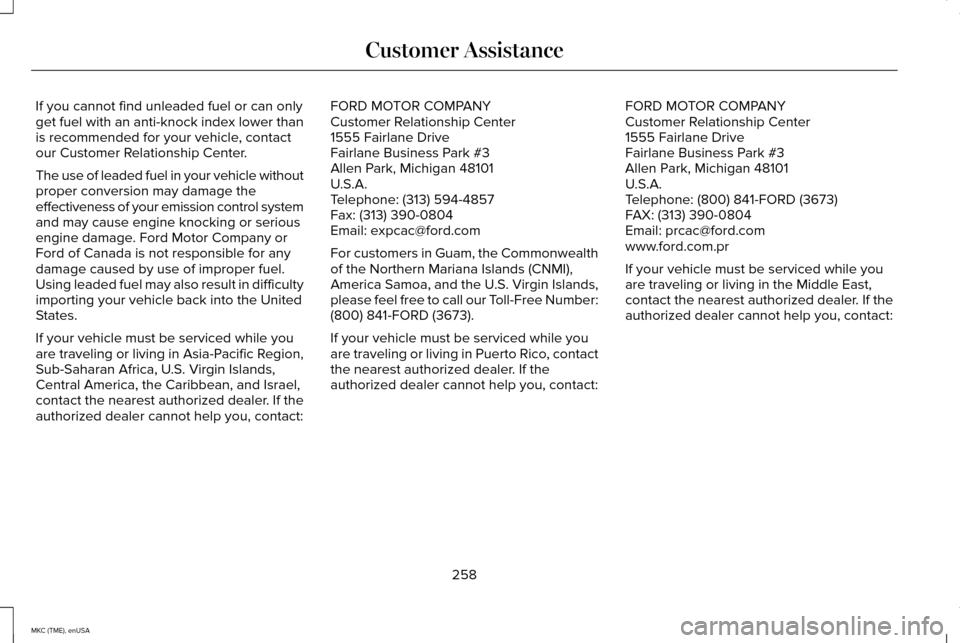

If you cannot find unleaded fuel or can only
get fuel with an anti-knock index lower than
is recommended for your vehicle, contact
our Customer Relationship Center.
The use of leaded fuel in your vehicle without
proper conversion may damage the
effectiveness of your emission control system
and may cause engine knocking or serious
engine damage. Ford Motor Company or
Ford of Canada is not responsible for any
damage caused by use of improper fuel.
Using leaded fuel may also result in difficulty
importing your vehicle back into the United
States.
If your vehicle must be serviced while you
are traveling or living in Asia-Pacific Region,
Sub-Saharan Africa, U.S. Virgin Islands,
Central America, the Caribbean, and Israel,
contact the nearest authorized dealer. If the
authorized dealer cannot help you, contact:
FORD MOTOR COMPANY
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (313) 594-4857
Fax: (313) 390-0804
Email: [email protected]
For customers in Guam, the Commonwealth
of the Northern Mariana Islands (CNMI),
America Samoa, and the U.S. Virgin Islands,
please feel free to call our Toll-Free Number:
(800) 841-FORD (3673).
If your vehicle must be serviced while you
are traveling or living in Puerto Rico, contact
the nearest authorized dealer. If the
authorized dealer cannot help you, contact:
FORD MOTOR COMPANY
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (800) 841-FORD (3673)
FAX: (313) 390-0804
Email: [email protected]
www.ford.com.pr
If your vehicle must be serviced while you
are traveling or living in the Middle East,
contact the nearest authorized dealer. If the
authorized dealer cannot help you, contact:
258
MKC (TME), enUSA Customer Assistance

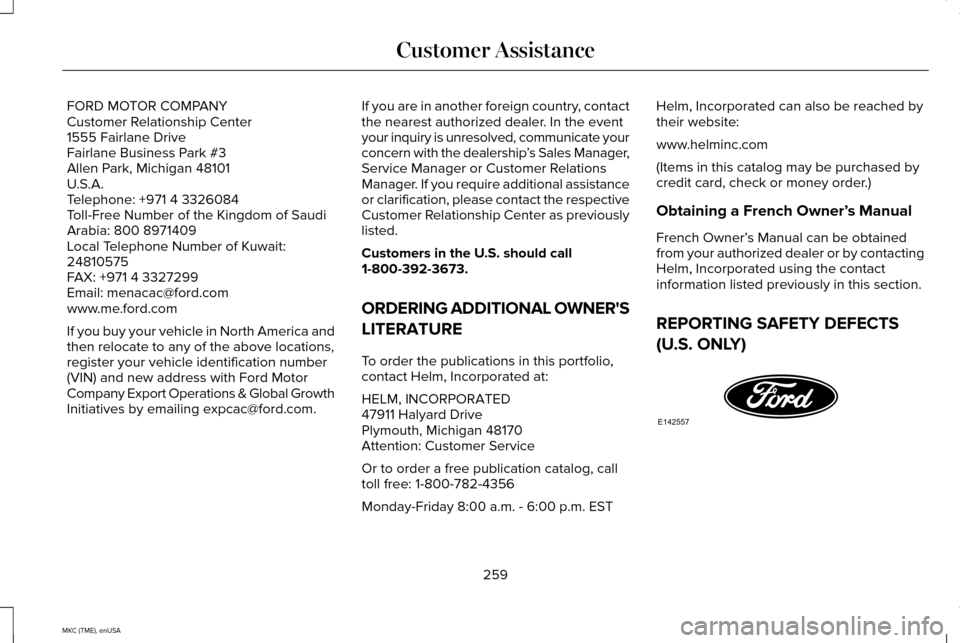

FORD MOTOR COMPANY
Customer Relationship Center
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: +971 4 3326084
Toll-Free Number of the Kingdom of Saudi
Arabia: 800 8971409
Local Telephone Number of Kuwait:
24810575
FAX: +971 4 3327299
Email: [email protected]
www.me.ford.com
If you buy your vehicle in North America and
then relocate to any of the above locations,
register your vehicle identification number
(VIN) and new address with Ford Motor
Company Export Operations & Global Growth
Initiatives by emailing [email protected].
If you are in another foreign country, contact
the nearest authorized dealer. In the event
your inquiry is unresolved, communicate your
concern with the dealership
’s Sales Manager,
Service Manager or Customer Relations
Manager. If you require additional assistance
or clarification, please contact the respective
Customer Relationship Center as previously
listed.
Customers in the U.S. should call
1-800-392-3673.
ORDERING ADDITIONAL OWNER'S
LITERATURE
To order the publications in this portfolio,
contact Helm, Incorporated at:
HELM, INCORPORATED
47911 Halyard Drive
Plymouth, Michigan 48170
Attention: Customer Service
Or to order a free publication catalog, call
toll free: 1-800-782-4356
Monday-Friday 8:00 a.m. - 6:00 p.m. EST Helm, Incorporated can also be reached by
their website:
www.helminc.com
(Items in this catalog may be purchased by
credit card, check or money order.)
Obtaining a French Owner’
s Manual
French Owner’ s Manual can be obtained
from your authorized dealer or by contacting
Helm, Incorporated using the contact
information listed previously in this section.
REPORTING SAFETY DEFECTS
(U.S. ONLY) 259
MKC (TME), enUSA Customer AssistanceE142557

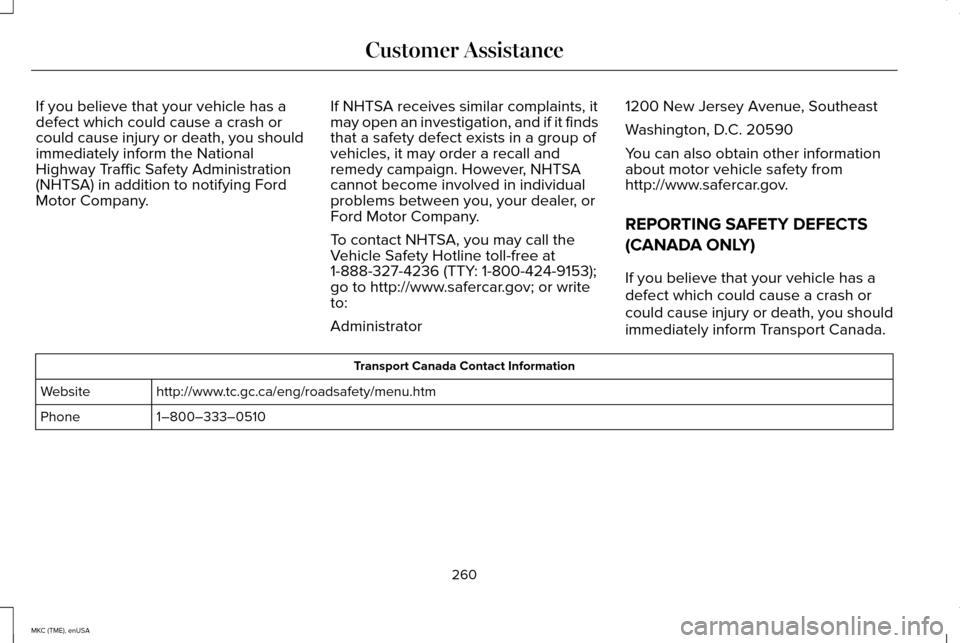

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:
Administrator1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada. Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
260
MKC (TME), enUSA Customer Assistance

FUSE SPECIFICATION CHART
Pre-Fuse Box
The pre-fuse box is in the engine
compartment attached to the positive battery
post. This box contains several high current
fuses. If you need to replace one of these
high current fuses, see an authorized dealer.
Power Distribution Box WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.
You will need to reset some features if you
disconnect and reconnect the battery. See
Changing the 12V Battery (page 288).
Lift the release lever at the rear of the cover
to remove it.
261
MKC (TME), enUSA Fuses

262
MKC (TME), enUSA FusesE157389

Protected components
Fuse amp rating
Fuse
Anti-lock brake system module
50A 2
F7
Anti-lock brake system module
30A 2
F8
Fuel pump relay
20A 2
F9
Blower motor relay
40A 2
F10
Run start relay
30A 2
F11
Powertrain control module relay
40A 2
F12
Starter relay
30A 2
F13
Memory seat
30A 2
F14
Wipers and washers relay
30A 2
F15
Cooling fan
25A 2
F16
Cooling fan 1 (without trailer tow)
40A 2
F17
263
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Cooling fan 1 (with trailer tow)
50A 2
Cooling fan 2 (without trailer tow)
40A 2
F18
Cooling fan 2 (with trailer tow)
50A 2
Anti-lock brake system module run/start
5A 1
F19
Horn relay
20A 1
F20
Brake pedal switch
10A 1
F21
Windshield wipers and washer
25A 1
F22
Run/start relay coil
5A 1
F23
Transmission range control module
20A 1
F24
Air conditioning clutch relay
10A 1
F25
Powertrain control module relay coil
5A 1
F26
Washer pump relay
10A 1
F27
264
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Alternator sensor
10A 1
F28
Rain sensor
15A 1
F29
Rear wiper
Washer pump relay coil
Left-hand headlamp
20A 1
F30
Right-hand headlamp
20A 1
F31
Vehicle power 1 (powertrain control module)
15A 1
F32
Vehicle power 2 (canister vent solenoid, universal exhausted
gas oxygen sensor, variable camshaft timing, catalyst monitor
sensor, canister purge solenoid)
15A
1
F33
Vehicle power 3 (A/C clutch control relay coil, variable A/C
compressor, fan control relay coil, engine charge air bypass
valve solenoid, active grill shutters)
15A
1
F34
Vehicle power 4 (ignition coils)
15A 1
F35
Not used
—
F36
Not used
—
F37
265
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Not used
—
F38
Powertrain control ignition start power - run
5A 1
F39
Electronic power assist steering run/start
10A 1
F40
Not used
—
F41
Adaptive cruise control
10A 1
F42
Blind spot information system
Heads-up display
Rear video camera
Not used
—
F43
Heated rear window relay coil
5A 1
F44
Transmission range control module run/start
5A 1
F45
Heated rear window relay
40A 2
F46
266
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Not used
—
F47
Not used
—
F48
1 Mini fuse
2 J-case fuse Circuits switched
Relay
Run start
R1
Horn
R2
Fuel pump
R3
Rear window washer pump
R4
Cooling fan relay 3 (with trailer tow)
R5
Windshield wipers
R6
Cooling fan relay 1 (without trailer tow)
R7
Cooling fan relay 5 (with trailer tow)
Starter
R8
Not used
R9
267
MKC (TME), enUSA Fuses
