LINCOLN MKC 2015 Owners Manual

Circuits switched
Relay
Cooling fan relay 4 (with trailer tow)
R10
Air conditioning clutch
R11
Cooling fan relay 1 (with trailer tow)
R12
Cooling fan relay 3 (without trailer tow)
Cooling fan relay 2
R13
Powertrain control module
R14
Heated rear window
R15
Blower motor
R16

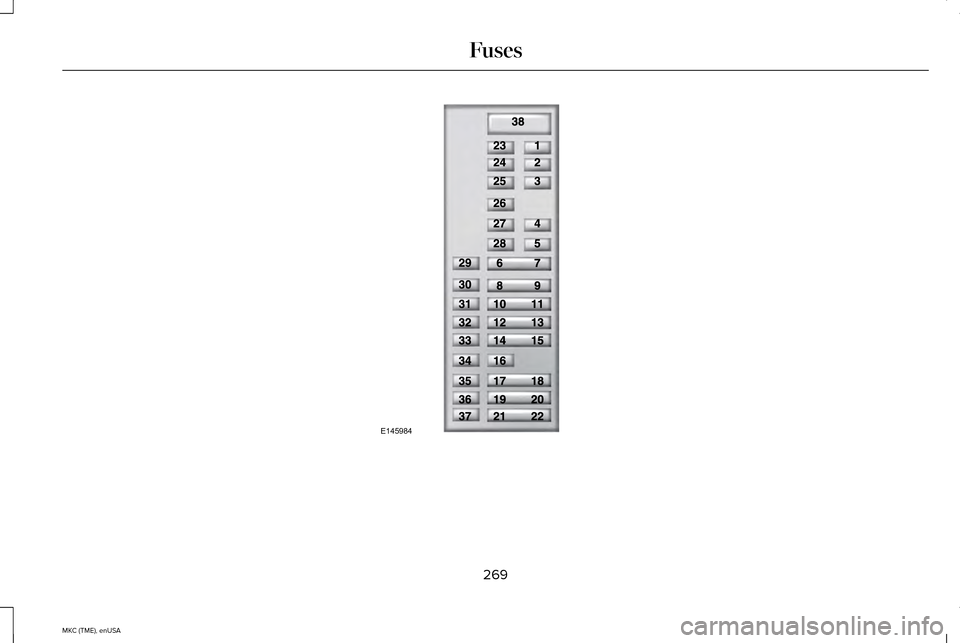

Passenger Compartment Fuse Box
The fuse panel is behind the lower end of
the glove box.
268
MKC (TME), enUSA Fuses

269
MKC (TME), enUSA FusesE145984

Protected components
Fuse amp rating
Fuse
Lighting (ambient, glove box, vanity, dome, cargo)
10A 1
1
Memory seats
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier
20A 1
5
THX amplifier
Not used (spare)
10A 2
6
Not used (spare)
10A 2
7
Not used (spare)
10A 2
8
Not used (spare)
10A 2
9
Keypad
5A 2
10
Power liftgate logic
Not used (spare)
5A 2
11
270
MKC (TME), enUSA Fuses

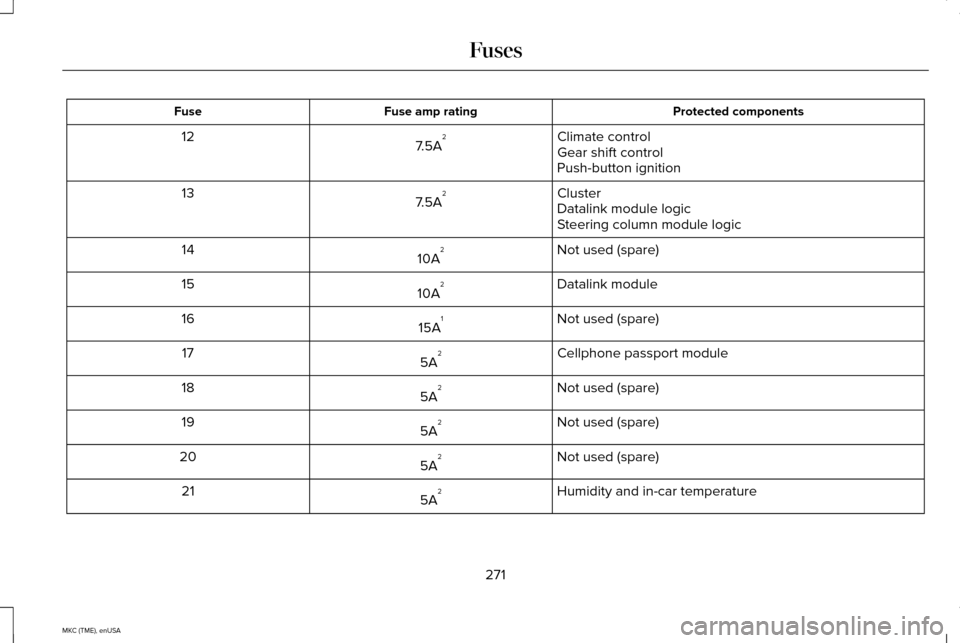

Protected components
Fuse amp rating
Fuse
Climate control
7.5A 2
12
Gear shift control
Push-button ignition
Cluster
7.5A 2
13
Datalink module logic
Steering column module logic
Not used (spare)
10A 2
14
Datalink module
10A 2
15
Not used (spare)
15A 1
16
Cellphone passport module
5A 2
17
Not used (spare)
5A 2
18
Not used (spare)
5A 2
19
Not used (spare)
5A 2
20
Humidity and in-car temperature
5A 2
21
271
MKC (TME), enUSA Fuses

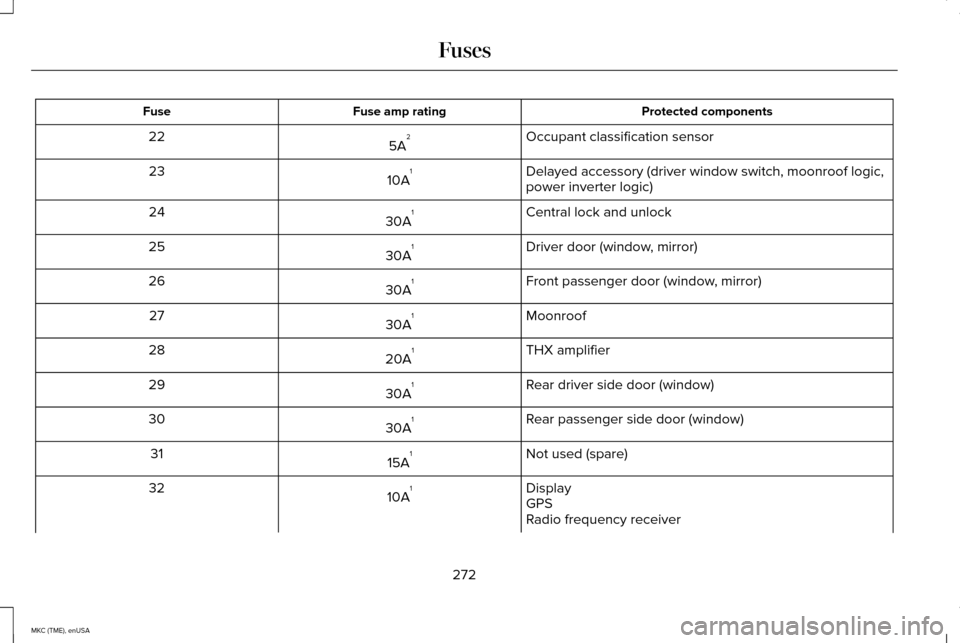

Protected components
Fuse amp rating
Fuse
Occupant classification sensor
5A 2
22
Delayed accessory (driver window switch, moonroof logic,
power inverter logic)
10A 1
23
Central lock and unlock
30A 1
24
Driver door (window, mirror)
30A 1
25
Front passenger door (window, mirror)
30A 1
26
Moonroof
30A 1
27
THX amplifier
20A 1
28
Rear driver side door (window)
30A 1
29
Rear passenger side door (window)
30A 1
30
Not used (spare)
15A 1
31
Display
10A 1
32
GPS
Radio frequency receiver
272
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Voice control
Radio and active noise control
20A 1
33
Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker)
30A 1
34
Restraints control module
5A 1
35
Auto-dimming rear view mirror
15A 1
36
Continuous control damping suspension
Lane keeping system module
Rear heated seats module
All-wheel drive relay
15A 1
37
Heated steering wheel
Not used (spare)
30A
38
1 Micro fuse
2 Dual micro fuse
273
MKC (TME), enUSA Fuses

Rear Cargo Fuse Box
The fuse panel is located in the cargo area
on the passenger side. Open the fuse panel
cover to gain access to the fuses. 274
MKC (TME), enUSA FusesE175700

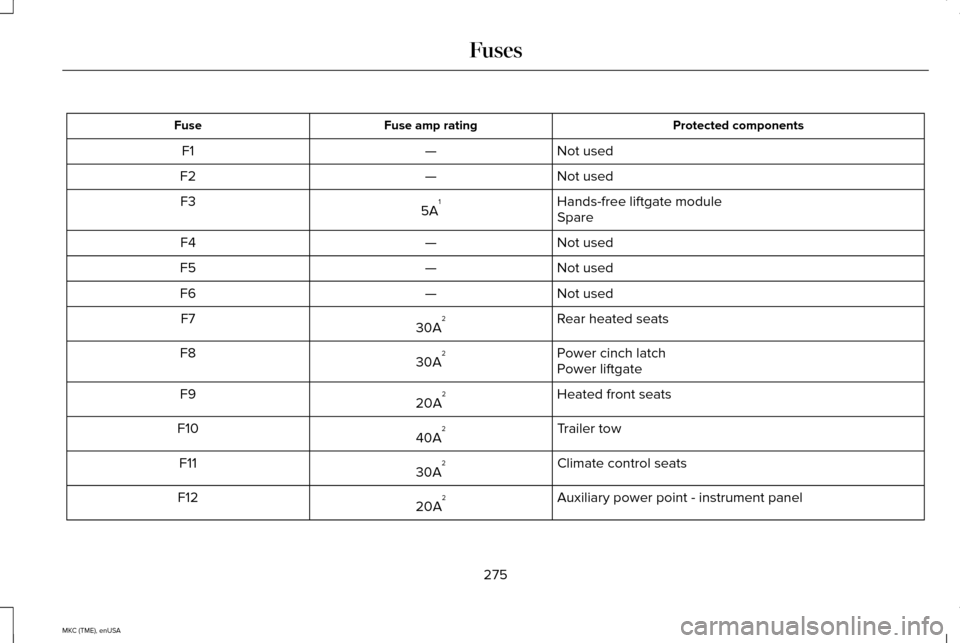

Protected components
Fuse amp rating
Fuse
Not used
—
F1
Not used
—
F2
Hands-free liftgate module
5A 1
F3
Spare
Not used
—
F4
Not used
—
F5
Not used
—
F6
Rear heated seats
30A 2
F7
Power cinch latch
30A 2
F8
Power liftgate
Heated front seats
20A 2
F9
Trailer tow
40A 2
F10
Climate control seats
30A 2
F11
Auxiliary power point - instrument panel
20A 2
F12
275
MKC (TME), enUSA Fuses

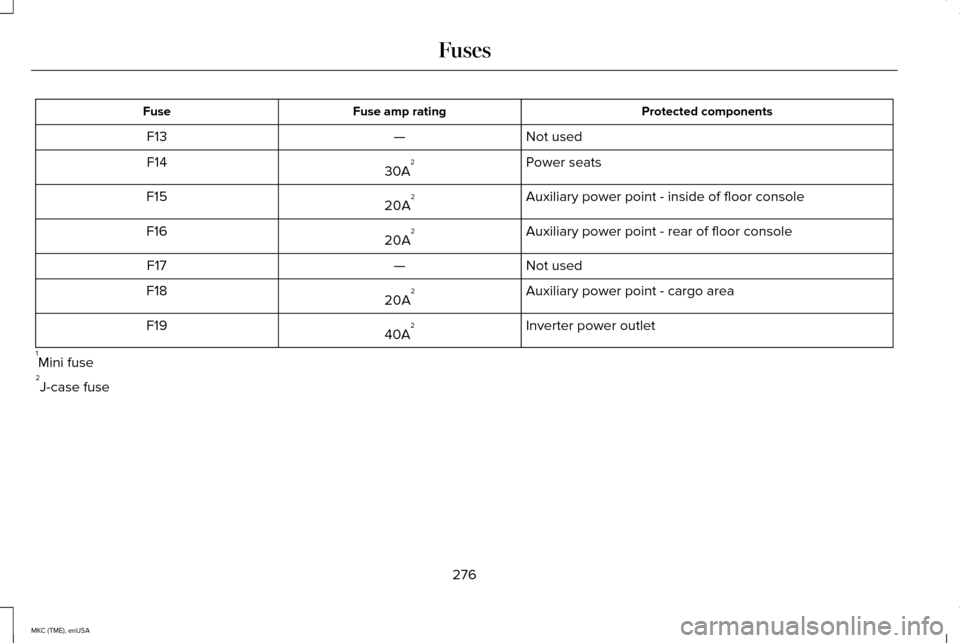

Protected components
Fuse amp rating
Fuse
Not used
—
F13
Power seats
30A 2
F14
Auxiliary power point - inside of floor console
20A 2
F15
Auxiliary power point - rear of floor console
20A 2
F16
Not used
—
F17
Auxiliary power point - cargo area
20A 2
F18
Inverter power outlet
40A 2
F19
1 Mini fuse
2 J-case fuse
276
MKC (TME), enUSA Fuses

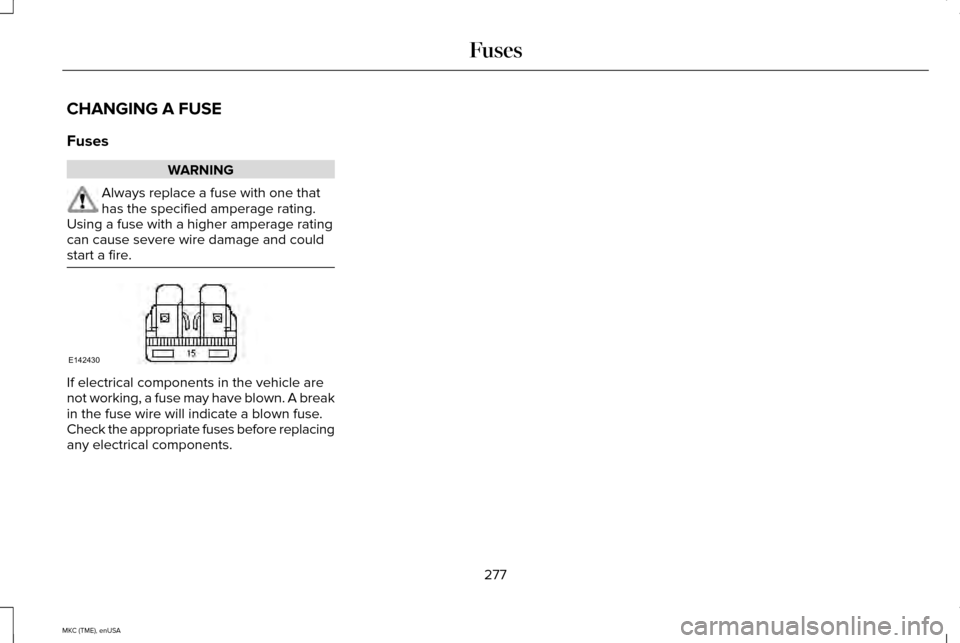

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage rating
can cause severe wire damage and could
start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. A break
in the fuse wire will indicate a blown fuse.
Check the appropriate fuses before replacing
any electrical components.
277
MKC (TME), enUSA FusesE142430
