FUSE SPECIFICATION CHART
Pre-Fuse Box
The pre-fuse box is in the engine
compartment attached to the positive battery
post. This box contains several high current
fuses. If you need to replace one of these
high current fuses, see an authorized dealer.
Power Distribution Box WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.
You will need to reset some features if you
disconnect and reconnect the battery. See
Changing the 12V Battery (page 288).
Lift the release lever at the rear of the cover
to remove it.
261
MKC (TME), enUSA Fuses

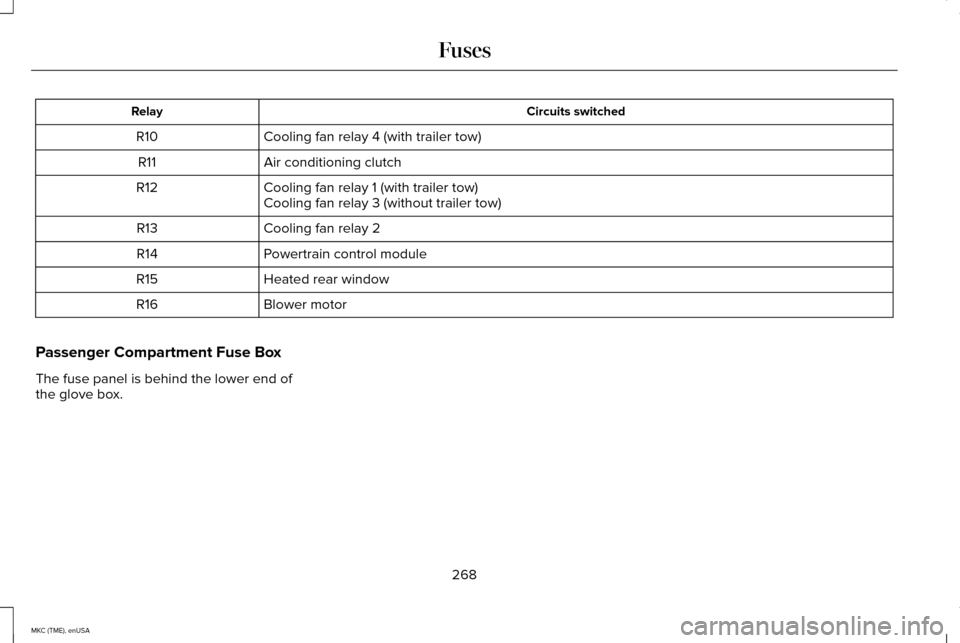

Circuits switched
Relay
Cooling fan relay 4 (with trailer tow)
R10
Air conditioning clutch
R11
Cooling fan relay 1 (with trailer tow)
R12
Cooling fan relay 3 (without trailer tow)
Cooling fan relay 2
R13
Powertrain control module
R14
Heated rear window
R15
Blower motor
R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end of
the glove box.
268
MKC (TME), enUSA Fuses

Protected components
Fuse amp rating
Fuse
Lighting (ambient, glove box, vanity, dome, cargo)
10A 1
1
Memory seats
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier
20A 1
5
THX amplifier
Not used (spare)
10A 2
6
Not used (spare)
10A 2
7
Not used (spare)
10A 2
8
Not used (spare)
10A 2
9
Keypad
5A 2
10
Power liftgate logic
Not used (spare)
5A 2
11
270
MKC (TME), enUSA Fuses

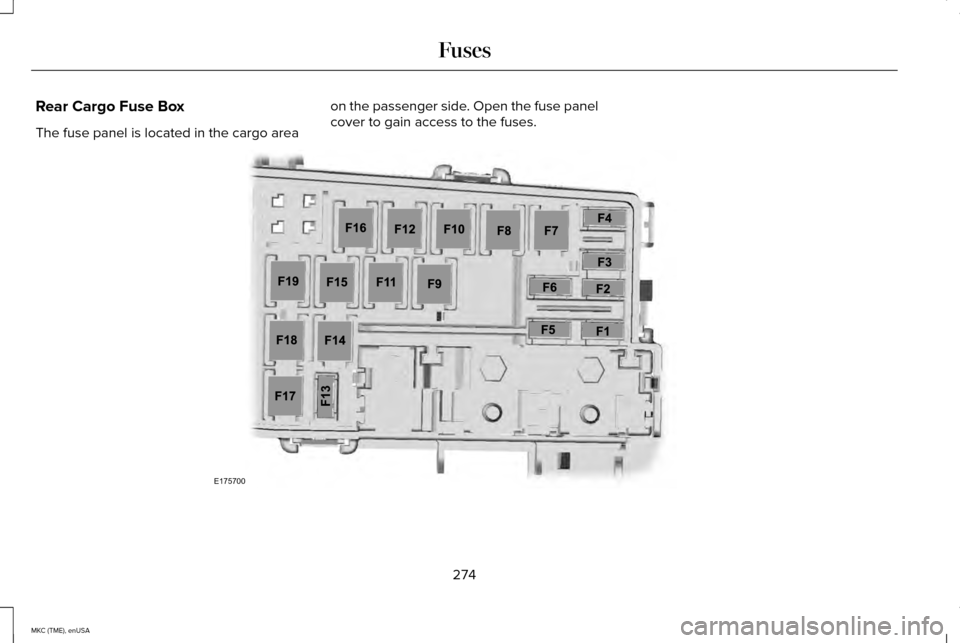

Rear Cargo Fuse Box
The fuse panel is located in the cargo area
on the passenger side. Open the fuse panel
cover to gain access to the fuses. 274
MKC (TME), enUSA FusesE175700

Engine Specifications..................................336
Drivebelt Routing................................................336
Entertainment................................................376 AM/FM Radio.......................................................378
Bluetooth Audio..................................................394
Browsing Device Content.................................
377
CD ........................................................................\
...389
Line In (Auxiliary Input Jack)............................394
SD Card Slot and USB Port...............................391
Sirius® Satellite Radio (If Activated)...............385
Supported Media Players, Formats and Metadata Information...................................394
EPB See: Electric Parking Brake..............................183
Essential Towing Checks.............................241 Before Towing a Trailer.....................................242
Hitches...................................................................241
Launching or Retrieving a Boat or Personal
Watercraft (PWC)............................................242
Safety Chains.......................................................241
Trailer Brakes........................................................241
Trailer Lamps.......................................................242
When Towing a Trailer.......................................242
Event Data Recording See: Data Recording..............................................9
Export Unique Options...................................14 Extended Service Plan (ESP).....................448
SERVICE PLANS (CANADA ONLY).................449
SERVICE PLANS (U.S. Only).............................
448
Exterior Mirrors
................................................98
Auto-Dimming Feature......................................100
Blind Spot Monitor...............................................101
Fold-Away Exterior Mirrors.................................99
Heated Exterior Mirrors.....................................100
Integrated Blind Spot Mirrors...........................100
Lincoln Welcome Mat.........................................100
Memory Mirrors...................................................100
Power Exterior Mirrors.........................................98
F
Fastening the Safety Belts...........................38 How to Extract Safety Belts in the Rear
Outboard Positions..........................................40
Safety Belt Extension Assembly........................41
Safety Belt Locking Modes................................39
Using Safety Belts During Pregnancy.............39
Floor Mats
.......................................................247
Front Passenger Sensing System..............49
Fuel and Refueling........................................163
Fuel Consumption
.........................................167
Calculating Fuel Economy................................168
Filling the Tank.....................................................168
Fuel Filter
.......................................................288 Fuel Quality
.....................................................164
Choosing the Right Fuel....................................164
Octane Recommendations...............................164
Fuel Shutoff
...................................................250
Fuses................................................................261
Fuse Specification Chart.............................261
Passenger Compartment Fuse Box..............268
Power Distribution Box......................................261
Pre-Fuse Box........................................................261
Rear Cargo Fuse Box.........................................274
G
Garage Door Opener See: Universal Garage Door Opener.............150
Gauges............................................................105 Engine Coolant Temperature Gauge.............107
Fuel Gauge...........................................................106
Information Display.............................................106
General Information on Radio Frequencies...................................................57
Intelligent Access..................................................57
478
MKC (TME), enUSA Index
