FUSE SPECIFICATION CHART
Pre-Fuse Box
The pre-fuse box is in the engine
compartment attached to the positive battery
post. This box contains several high current
fuses. If you need to replace one of these
high current fuses, see an authorized dealer.
Power Distribution Box WARNINGS
Always disconnect the battery before
servicing high current fuses.
To reduce risk of electrical shock,
always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs. The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.
You will need to reset some features if you
disconnect and reconnect the battery. See
Changing the 12V Battery (page 294).
Lift the release lever at the rear of the cover
to remove it.
265
MKC (TME), enUSA, First Printing Fuses

Circuits switched
Relay
Cooling fan relay 4 (with trailer tow).
R10
Air conditioning clutch.
R11
Cooling fan relay 1 (with trailer tow).
R12
Cooling fan relay 3 (without trailer tow).
Cooling fan relay 2.
R13
Powertrain control module.
R14
Heated rear window.
R15
Heated wiper park.
Blower motor.
R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end of
the glove box.
272
MKC (TME), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse
Lighting (ambient, glove box, vanity, dome, cargo).
10A 1
1
Memory seats.
7.5A 1
2
Driver door unlock.
20A 1
3
273

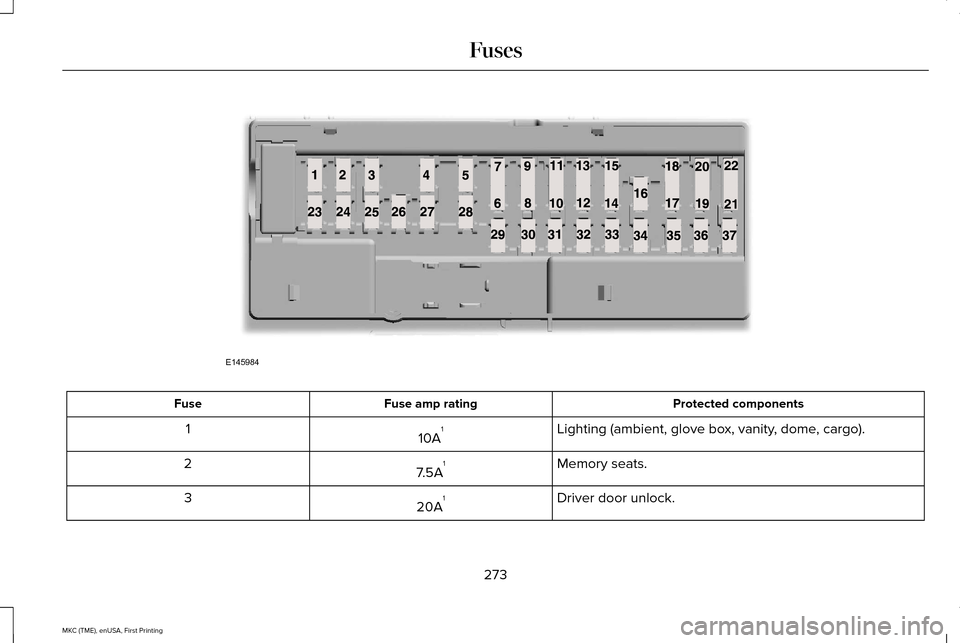

MKC (TME), enUSA, First Printing FusesE145984

Protected components
Fuse amp rating
Fuse
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Continuous control damping suspension.
Lane keeping system module.
Rear heated seats module.
All-wheel drive relay.
20A 1
37
Heated steering wheel.
Not used (spare).
30A
38
1 Micro fuse.
2 Dual micro fuse.
Rear Cargo Fuse Box
The fuse panel is located in the cargo area
on the passenger side. Open the fuse panel
cover to gain access to the fuses.
277
MKC (TME), enUSA, First Printing Fuses
