technical specifications LINCOLN MKC 2016 Owners Manual

Waxing............................................................305
Cleaning the Engine....................................306
Cleaning the Windows and Wiper
Blades.........................................................306
Cleaning the Interior....................................307
Cleaning the Instrument Panel and Instrument Cluster Lens.........................309
Cleaning Leather Seats...............................310
Repairing Minor Paint Damage..................310
Cleaning the Alloy Wheels.........................310
Vehicle Storage...............................................311
Wheels and Tires
General Information......................................313
Tire Care
..........................................................315
Using Snow Chains......................................329
Tire Pressure Monitoring System.............330
Changing a Road Wheel.............................334
Technical Specifications
.............................340
Capacities and Specifications
Engine Specifications..................................342
Motorcraft Parts............................................343 Vehicle Identification Number...................344
Vehicle Certification Label.........................344
Transmission Code Designation
..............345
Capacities and Specifications -
2.0L
EcoBoost™..................................................346
Capacities and Specifications -
2.3L
EcoBoost™...................................................351
Audio System
General Information.....................................358
Audio Unit......................................................359
Media Hub.......................................................361
Accessories
Accessories...................................................362
Extended Service Plan (ESP)
Extended Service Plan (ESP).....................364
Scheduled Maintenance
General Maintenance Information
...........367
Normal Scheduled Maintenance...............371
Special Operating Conditions Scheduled Maintenance..............................................375 Scheduled Maintenance Record..............379
Appendices
End User License Agreement...................399
5
MKC (TME), enUSA, First Printing Table of Contents

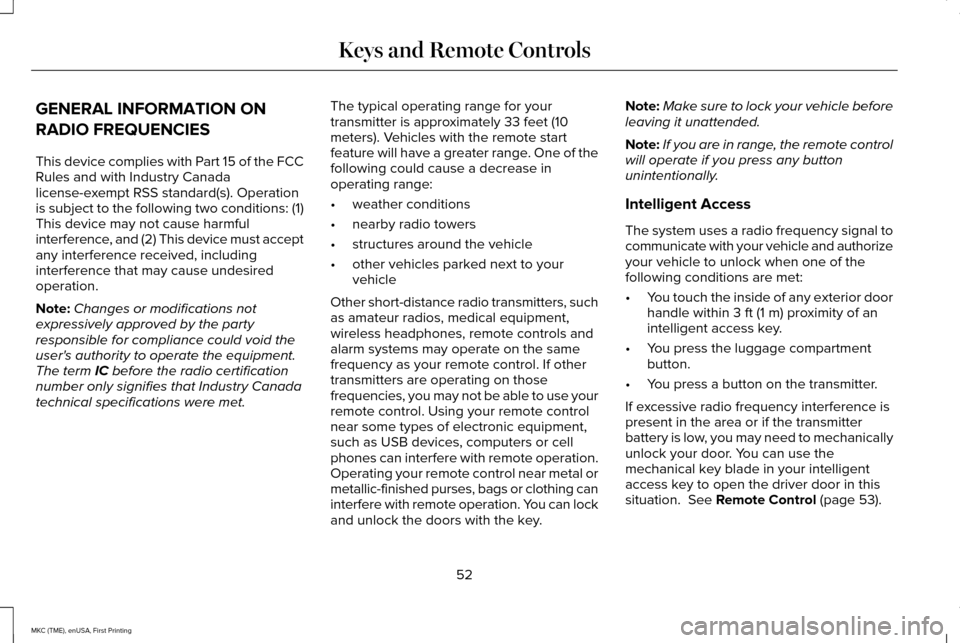

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met. The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in
operating range:
•
weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your
vehicle
Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key. Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
• You touch the inside of any exterior door
handle within
3 ft (1 m) proximity of an
intelligent access key.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the
mechanical key blade in your intelligent
access key to open the driver door in this
situation.
See Remote Control (page 53).
52
MKC (TME), enUSA, First Printing Keys and Remote Controls

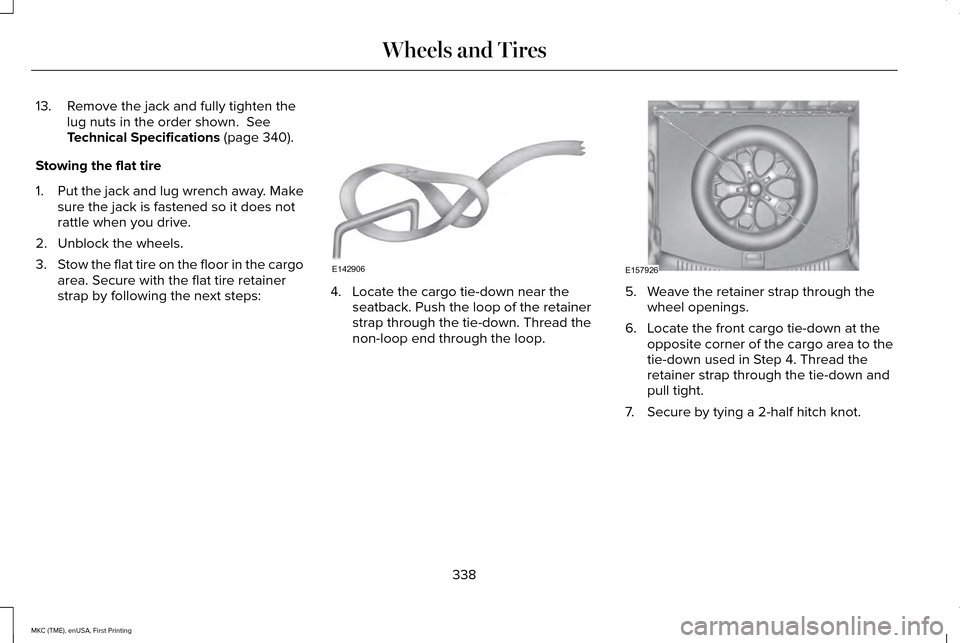

13. Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 340).
Stowing the flat tire
1. Put the jack and lug wrench away. Make
sure the jack is fastened so it does not
rattle when you drive.
2. Unblock the wheels.
3. Stow the flat tire on the floor in the cargo
area. Secure with the flat tire retainer
strap by following the next steps: 4. Locate the cargo tie-down near the
seatback. Push the loop of the retainer
strap through the tie-down. Thread the
non-loop end through the loop. 5. Weave the retainer strap through the
wheel openings.
6. Locate the front cargo tie-down at the opposite corner of the cargo area to the
tie-down used in Step 4. Thread the
retainer strap through the tie-down and
pull tight.
7. Secure by tying a 2-half hitch knot.
338
MKC (TME), enUSA, First Printing Wheels and TiresE142906 E157926

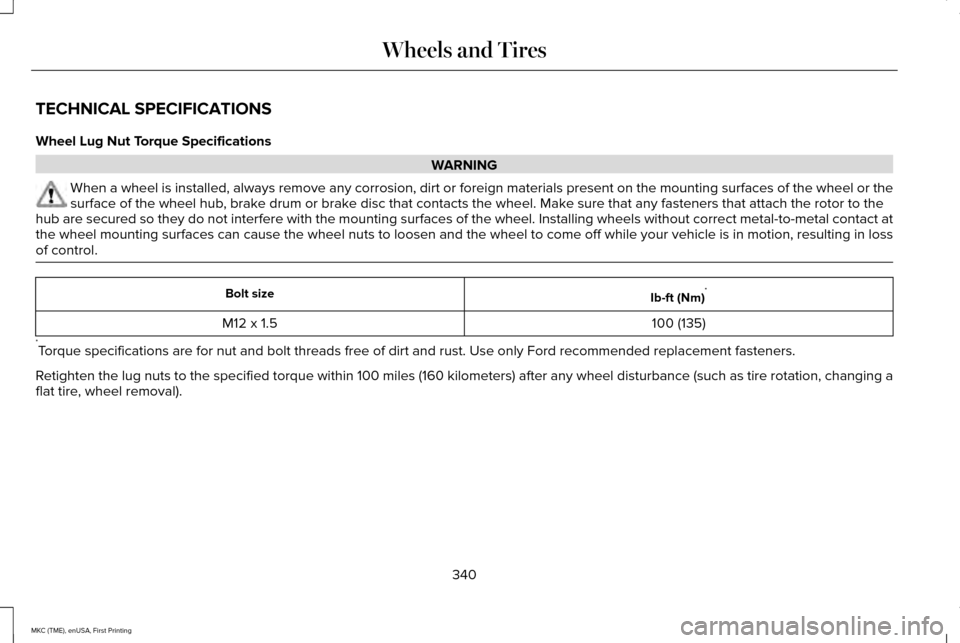

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign \
materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of t\
he wheel. Installing wheels without correct metal-to-metal contact at
the wheel mounting surfaces can cause the wheel nuts to loosen and the w\
heel to come off while your vehicle is in motion, resulting in loss
of control. Ib-ft (Nm)
*
Bolt size
100 (135)
M12 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust.\
Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kil\
ometers) after any wheel disturbance (such as tire rotation, changing \
a
flat tire, wheel removal).
340
MKC (TME), enUSA, First Printing Wheels and Tires

ERROR-FREE OR THAT THE FUNCTIONING
OF THE GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO
DISCONTINUE ITS ONLINE SERVICES AT
ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR
LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any interference
received, including interference that may
cause undesired operation. WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC" before the radio certification
number only signifies that Industry Canada
technical specifications were met. The antenna used for this transmitter must
not be co-located or operating in conjunction
with any other antenna or transmitter.
418
MKC (TME), enUSA, First Printing Appendices

Safety Belt Warning Lamp and Indicator
Chime..............................................................35
Conditions of operation......................................36
Safety Canopy™...............................................48
Safety Precautions........................................163
Scheduled Maintenance Record..............379
Scheduled Maintenance.............................367
Seats.................................................................139
Security..............................................................77
Side Airbags.....................................................47
Sitting in the Correct Position....................139
Snow Chains See: Using Snow Chains..................................329
Special Notices
.................................................13
New Vehicle Limited Warranty...........................13
Notice to Owners of Pickup Trucks and Utility Type Vehicles.....................................................13
On-board Diagnostics (OBD-II)...........................13
Special Instructions...............................................13
Using Your Vehicle as an Ambulance...............13
Using Your Vehicle With a Snowplow...............13
Special Operating Conditions Scheduled Maintenance...............................................375
Exceptions............................................................378
Speed Control See: Cruise Control...........................................203
Stability Control
.............................................190
Principle of Operation........................................190 Starting a Gasoline Engine.........................159
Automatic Engine Shutdown...........................160
Failure to Start......................................................160
Fast Restart...........................................................159
Guarding Against Exhaust Fumes...................161
Important Ventilating Information....................161
Stopping the Engine When Your Vehicle is
Moving................................................................161
Stopping the Engine When Your Vehicle is Stationary...........................................................161
Starting and Stopping the Engine.............158 General Information............................................158
Steering..........................................................225 Electric Power Steering....................................225
Steering Wheel
................................................79
Storage Compartments................................157
Sunroof See: Moonroof.......................................................99
Sun Visors
.........................................................99
Illuminated Vanity Mirror.....................................99
Supplementary Restraints System
..............41
Principle of Operation...........................................41
Symbols Glossary
..............................................7 T
Tailgate
See: Manual Liftgate............................................69
See: Power Liftgate..............................................70
Technical Specifications See: Capacities and Specifications...............342
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.........................260
Ticket Holders................................................157
Tire Care..........................................................315
Glossary of Tire Terminology...........................316
Information About Uniform Tire Quality
Grading..............................................................315
Information Contained on the Tire Sidewall.............................................................317
Temperature A B C..............................................316
Traction AA A B C................................................316
Treadwear.............................................................316
Tire Pressure Monitoring System.............330 Changing Tires With a Tire Pressure
Monitoring System..........................................331
Understanding Your Tire Pressure Monitoring System ..............................................................331
Tires See: Wheels and Tires.......................................313
Towing a Trailer.............................................240 Load Placement..................................................240
427
MKC (TME), enUSA, First Printing Index

Ventilation
See: Climate Control...........................................133
VIN See: Vehicle Identification Number...............344
Voice Control
....................................................81 W
Warning Lamps and Indicators..................104
Adaptive Cruise Control....................................104
Anti-Lock Braking System.................................104
Battery....................................................................104
Blind Spot Monitor..............................................104
Brake System.......................................................105
Cruise Control......................................................105
Direction Indicator..............................................105
Door Ajar...............................................................105
Electric Park Brake..............................................105
Engine Coolant Temperature...........................105
Engine Oil..............................................................105
Fasten Safety Belt...............................................105
Front Airbag..........................................................106
Heads Up Display...............................................106
High Beam............................................................106
Hood Ajar..............................................................106
Low Fuel Level.....................................................106
Low Tire Pressure Warning..............................106
Low Washer Fluid................................................106
Parking Lamps.....................................................106
Powertrain Fault..................................................106
Service Engine Soon..........................................107
Stability Control....................................................107
Stability Control Off.............................................107
Washer Fluid Check....................................293 Washers
See: Cleaning the Exterior...............................304
See: Wipers and Washers...................................83
Waxing............................................................305
Welcome Lighting...........................................92
Wheel Nuts See: Changing a Road Wheel.........................334
Wheels and Tires
...........................................313
General Information............................................313
Technical Specifications...................................340
Windows and Mirrors
.....................................94
Windshield Washers......................................85
Windshield Wipers..........................................83
Intermittent Wipe..................................................83
Speed dependent wipers...................................
83
Wipers and Washers......................................83
Wrecker Towing See: Transporting the Vehicle.........................247
429
MKC (TME), enUSA, First Printing Index
