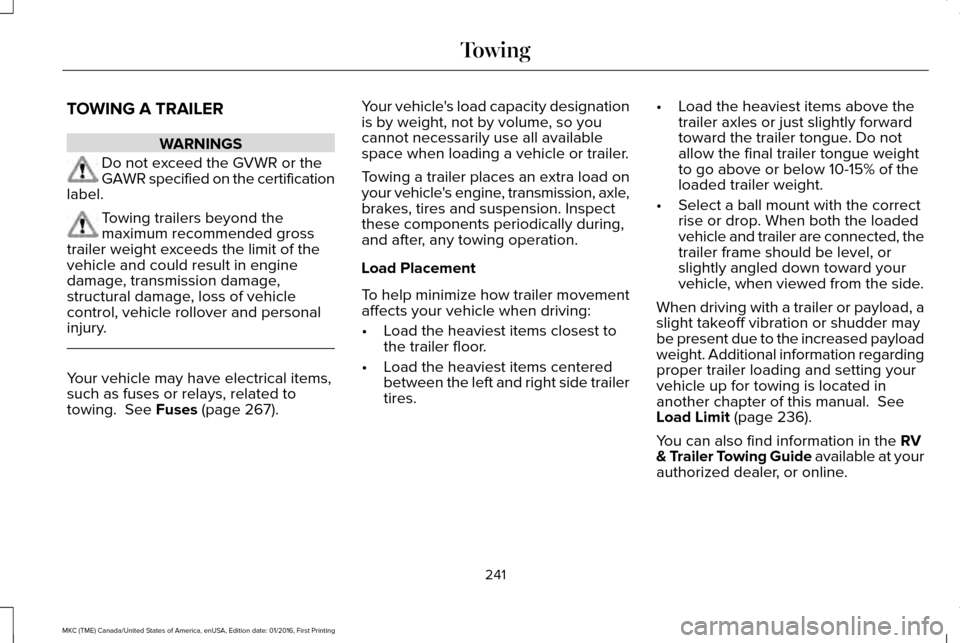

TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or the
GAWR specified on the certification
label. Towing trailers beyond the
maximum recommended gross
trailer weight exceeds the limit of the
vehicle and could result in engine
damage, transmission damage,
structural damage, loss of vehicle
control, vehicle rollover and personal
injury. Your vehicle may have electrical items,
such as fuses or relays, related to
towing. See Fuses (page 267). Your vehicle's load capacity designation
is by weight, not by volume, so you
cannot necessarily use all available
space when loading a vehicle or trailer.
Towing a trailer places an extra load on
your vehicle's engine, transmission, axle,
brakes, tires and suspension. Inspect
these components periodically during,
and after, any towing operation.
Load Placement
To help minimize how trailer movement
affects your vehicle when driving:
•
Load the heaviest items closest to
the trailer floor.
• Load the heaviest items centered
between the left and right side trailer
tires. •
Load the heaviest items above the
trailer axles or just slightly forward
toward the trailer tongue. Do not
allow the final trailer tongue weight
to go above or below 10-15% of the
loaded trailer weight.
• Select a ball mount with the correct
rise or drop. When both the loaded
vehicle and trailer are connected, the
trailer frame should be level, or
slightly angled down toward your
vehicle, when viewed from the side.
When driving with a trailer or payload, a
slight takeoff vibration or shudder may
be present due to the increased payload
weight. Additional information regarding
proper trailer loading and setting your
vehicle up for towing is located in
another chapter of this manual. See
Load Limit (page 236).
You can also find information in the
RV
& Trailer Towing Guide available at your
authorized dealer, or online.
241
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Towing

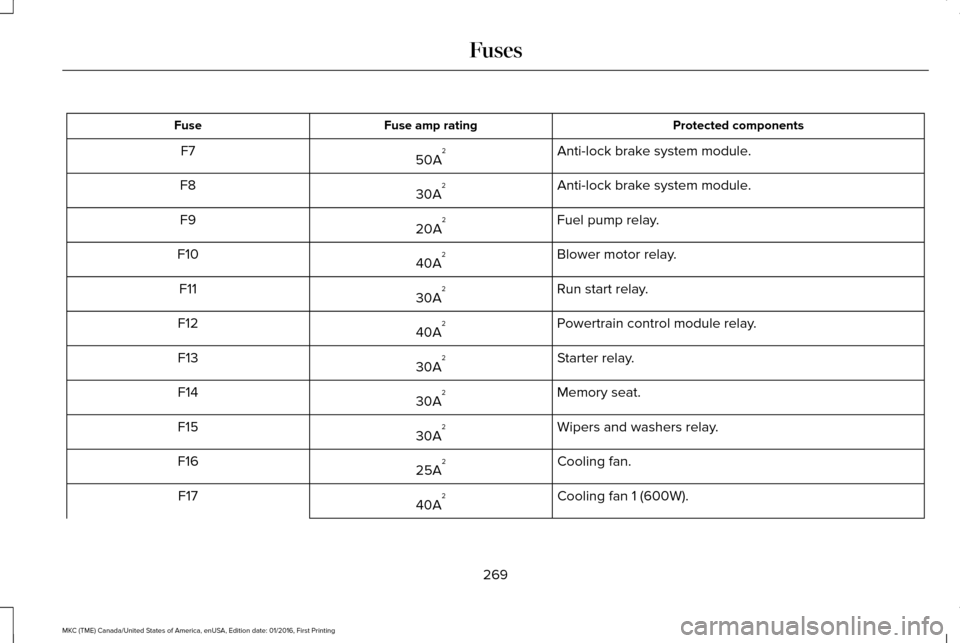

Protected components
Fuse amp rating
Fuse
Anti-lock brake system module.
50A 2
F7
Anti-lock brake system module.
30A 2
F8
Fuel pump relay.
20A 2
F9
Blower motor relay.
40A 2
F10
Run start relay.
30A 2
F11
Powertrain control module relay.
40A 2
F12
Starter relay.
30A 2
F13
Memory seat.
30A 2
F14
Wipers and washers relay.
30A 2
F15
Cooling fan.
25A 2
F16
Cooling fan 1 (600W).
40A 2
F17
269
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

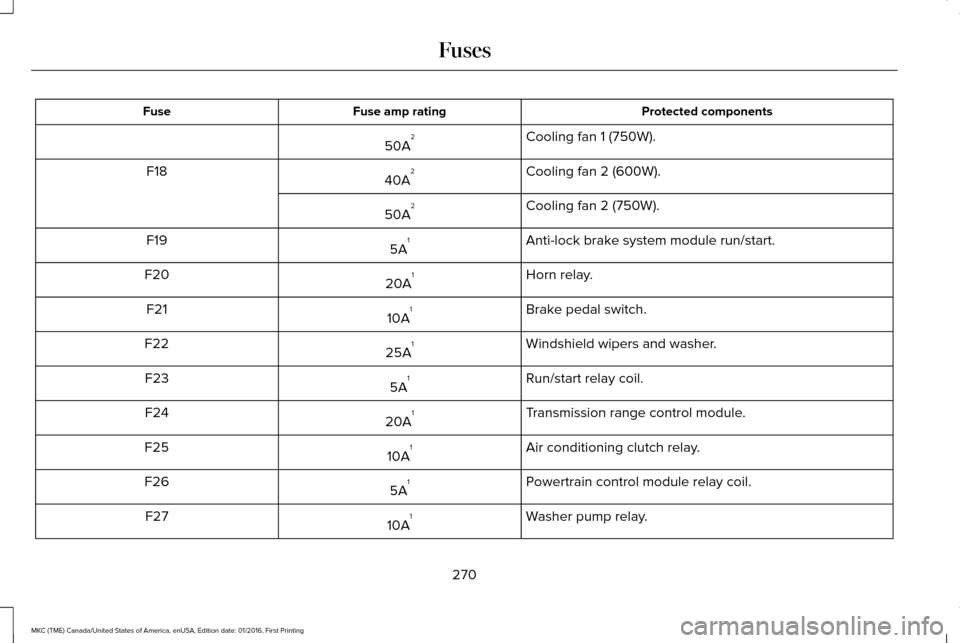

Protected components
Fuse amp rating
Fuse
Cooling fan 1 (750W).
50A 2
Cooling fan 2 (600W).
40A 2
F18
Cooling fan 2 (750W).
50A 2
Anti-lock brake system module run/start.
5A 1
F19
Horn relay.
20A 1
F20
Brake pedal switch.
10A 1
F21
Windshield wipers and washer.
25A 1
F22
Run/start relay coil.
5A 1
F23
Transmission range control module.
20A 1
F24
Air conditioning clutch relay.
10A 1
F25
Powertrain control module relay coil.
5A 1
F26
Washer pump relay.
10A 1
F27
270
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

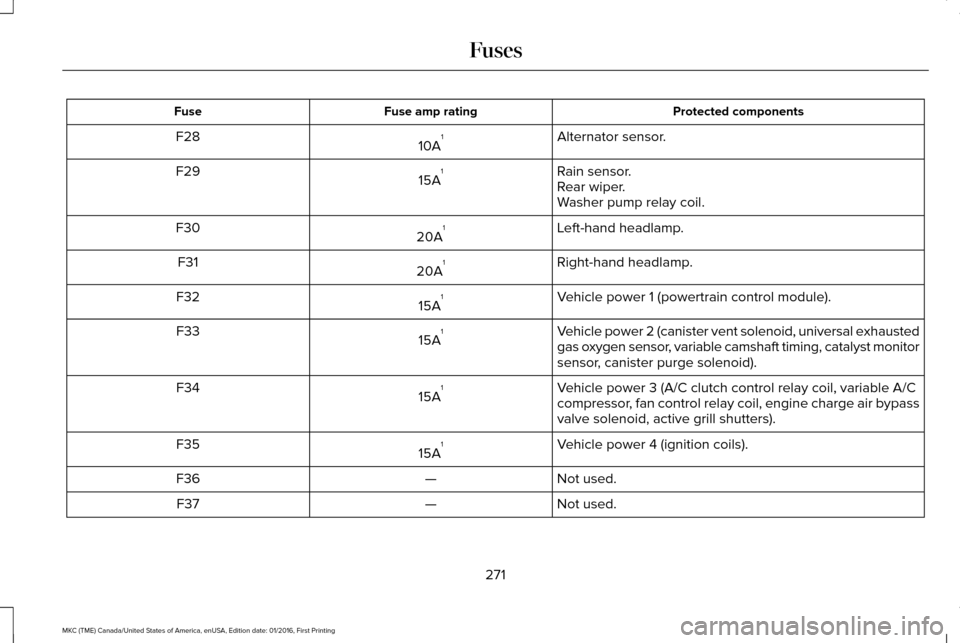

Protected components
Fuse amp rating
Fuse
Alternator sensor.
10A 1
F28
Rain sensor.
15A 1
F29
Rear wiper.
Washer pump relay coil.
Left-hand headlamp.
20A 1
F30
Right-hand headlamp.
20A 1
F31
Vehicle power 1 (powertrain control module).
15A 1
F32
Vehicle power 2 (canister vent solenoid, universal exhausted
gas oxygen sensor, variable camshaft timing, catalyst monitor
sensor, canister purge solenoid).
15A
1
F33
Vehicle power 3 (A/C clutch control relay coil, variable A/C
compressor, fan control relay coil, engine charge air bypass
valve solenoid, active grill shutters).
15A
1
F34
Vehicle power 4 (ignition coils).
15A 1
F35
Not used.
—
F36
Not used.
—
F37
271
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

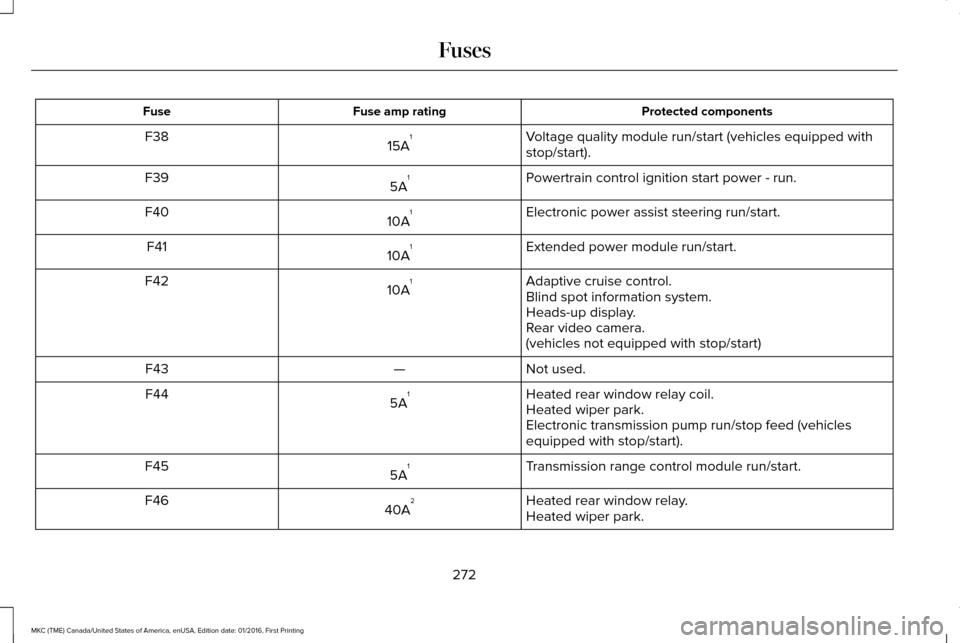

Protected components
Fuse amp rating
Fuse
Voltage quality module run/start (vehicles equipped with
stop/start).
15A 1
F38
Powertrain control ignition start power - run.
5A 1
F39
Electronic power assist steering run/start.
10A 1
F40
Extended power module run/start.
10A 1
F41
Adaptive cruise control.
10A 1
F42
Blind spot information system.
Heads-up display.
Rear video camera.
(vehicles not equipped with stop/start)
Not used.
—
F43
Heated rear window relay coil.
5A 1
F44
Heated wiper park.
Electronic transmission pump run/stop feed (vehicles
equipped with stop/start).
Transmission range control module run/start.
5A 1
F45
Heated rear window relay.
40A 2
F46
Heated wiper park.
272
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

Protected components
Fuse amp rating
Fuse

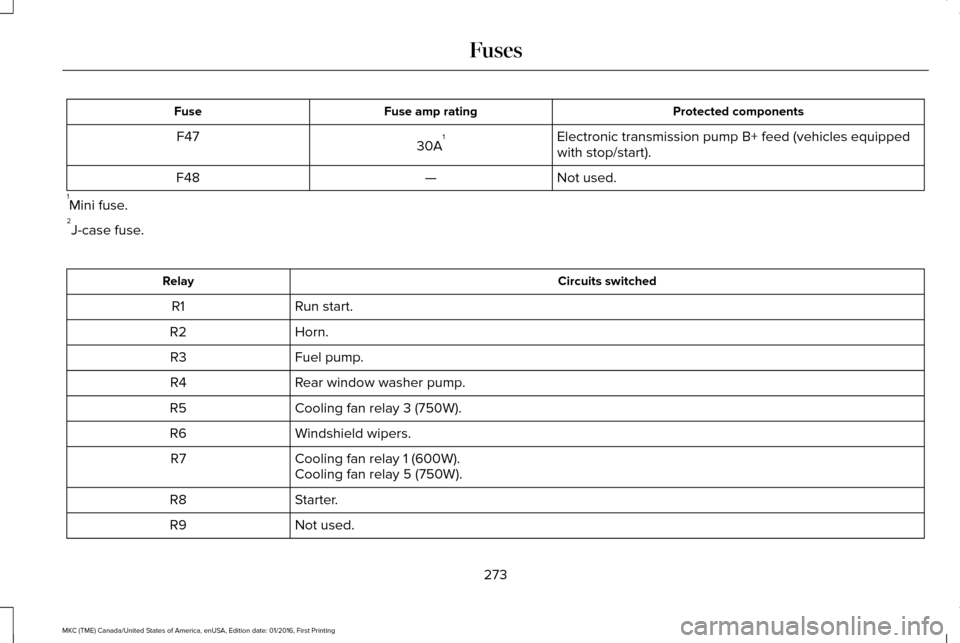

Electronic transmission pump B+ feed (vehicles equipped
with stop/start).
30A 1
F47
Not used.
—
F48
1 Mini fuse.
2 J-case fuse. Circuits switched
Relay
Run start.
R1
Horn.
R2
Fuel pump.
R3
Rear window washer pump.
R4
Cooling fan relay 3 (750W).
R5
Windshield wipers.
R6
Cooling fan relay 1 (600W).
R7
Cooling fan relay 5 (750W).
Starter.
R8
Not used.
R9
273
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

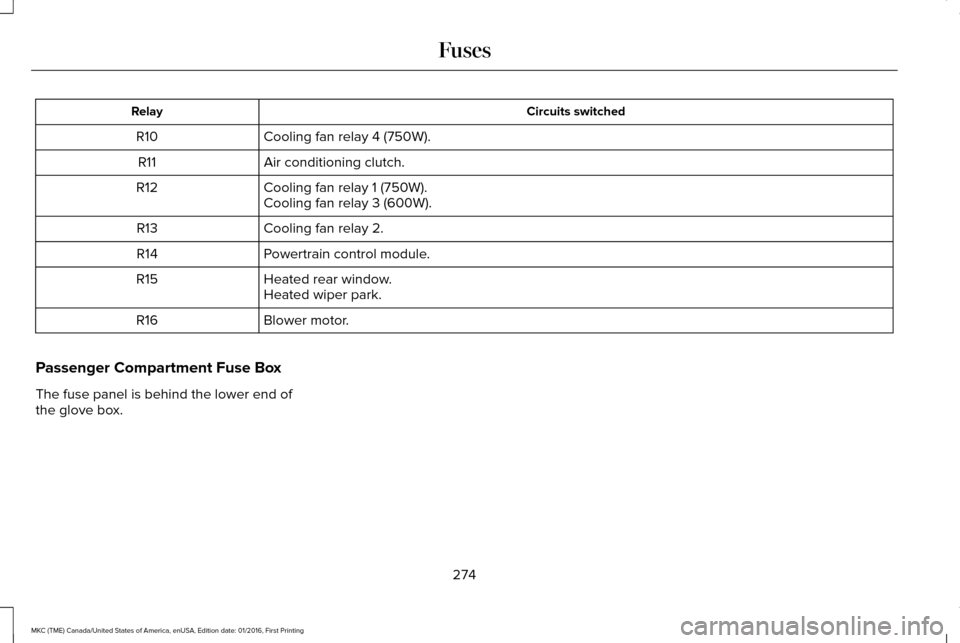

Circuits switched
Relay
Cooling fan relay 4 (750W).
R10
Air conditioning clutch.
R11
Cooling fan relay 1 (750W).
R12
Cooling fan relay 3 (600W).
Cooling fan relay 2.
R13
Powertrain control module.
R14
Heated rear window.
R15
Heated wiper park.
Blower motor.
R16
Passenger Compartment Fuse Box
The fuse panel is behind the lower end of
the glove box.
274
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

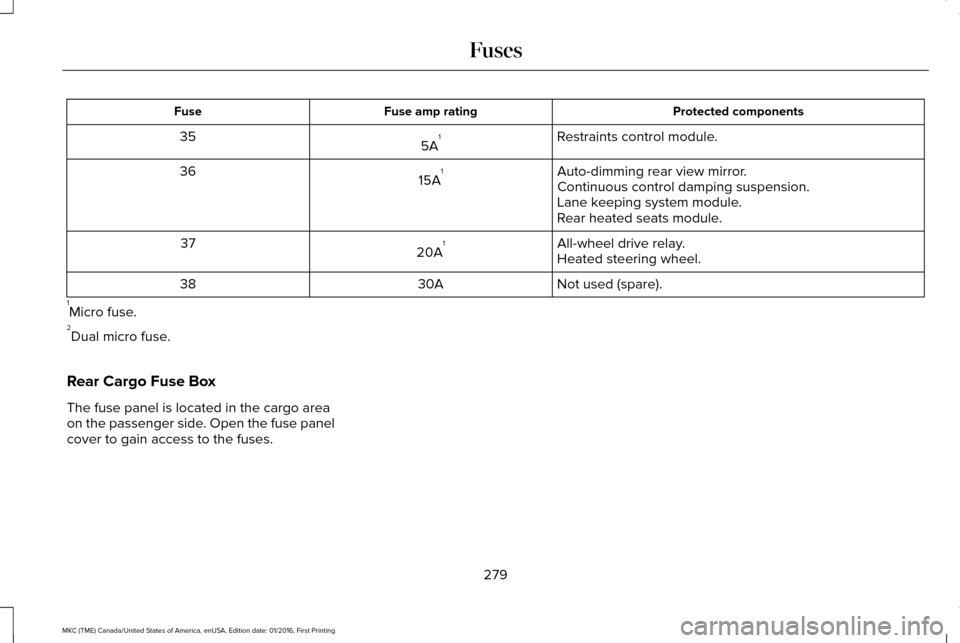

Protected components
Fuse amp rating
Fuse
Restraints control module.
5A 1
35
Auto-dimming rear view mirror.
15A 1
36
Continuous control damping suspension.
Lane keeping system module.
Rear heated seats module.
All-wheel drive relay.
20A 1
37
Heated steering wheel.
Not used (spare).
30A
38
1 Micro fuse.
2 Dual micro fuse.
Rear Cargo Fuse Box
The fuse panel is located in the cargo area
on the passenger side. Open the fuse panel
cover to gain access to the fuses.
279
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses

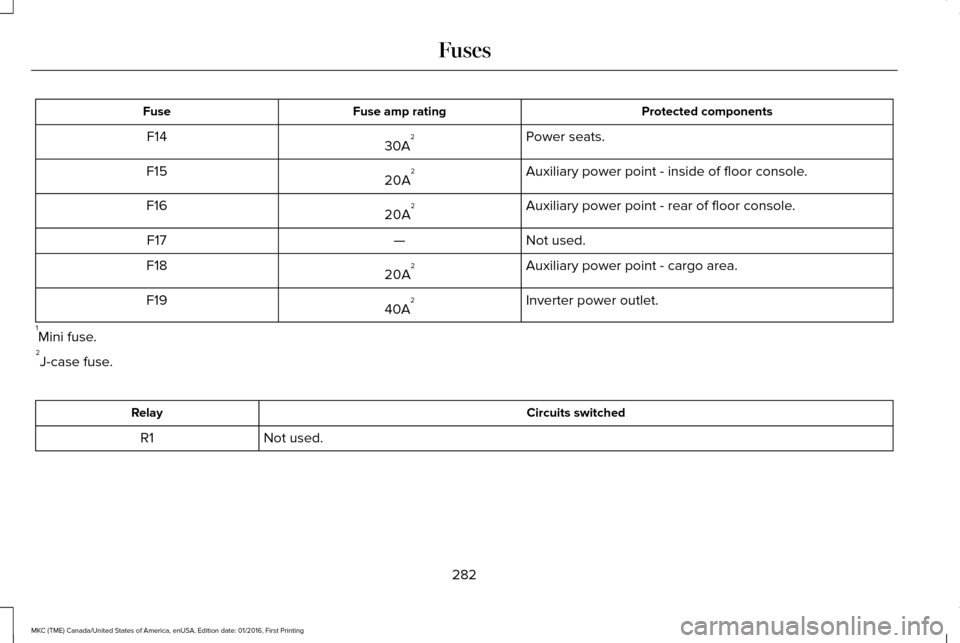

Protected components
Fuse amp rating
Fuse
Power seats.
30A 2
F14
Auxiliary power point - inside of floor console.
20A 2
F15
Auxiliary power point - rear of floor console.
20A 2
F16
Not used.
—
F17
Auxiliary power point - cargo area.
20A 2
F18
Inverter power outlet.
40A 2
F19
1 Mini fuse.
2 J-case fuse. Circuits switched
Relay
Not used.
R1
282
MKC (TME) Canada/United States of America, enUSA, Edition date: 01/2016, First Printing Fuses
