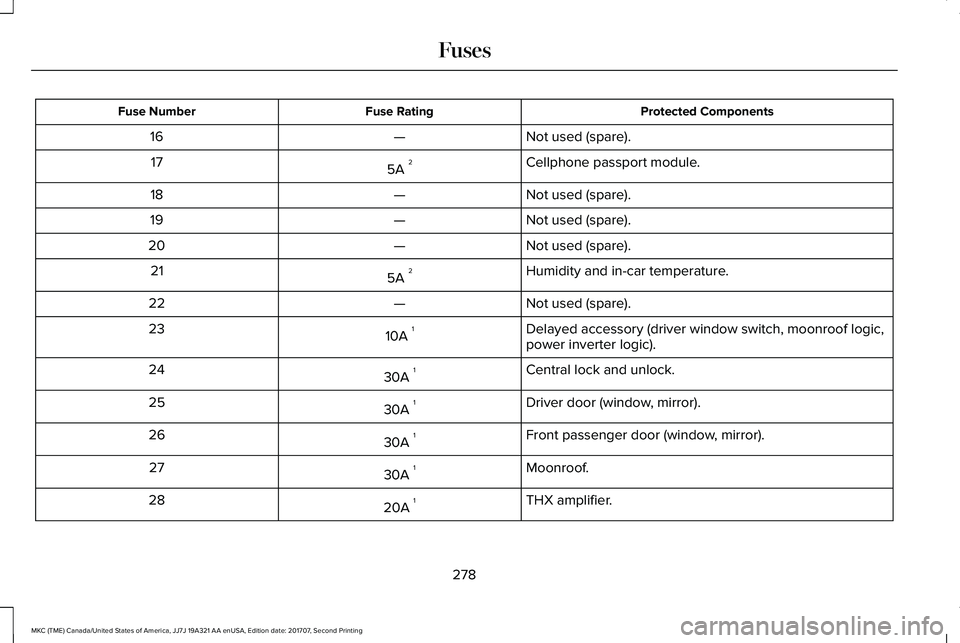

Protected ComponentsFuse RatingFuse Number
Not used (spare).—16
Cellphone passport module.5A 217
Not used (spare).—18
Not used (spare).—19
Not used (spare).—20
Humidity and in-car temperature.5A 221
Not used (spare).—22
Delayed accessory (driver window switch, moonroof logic,power inverter logic).10A 123
Central lock and unlock.30A 124
Driver door (window, mirror).30A 125
Front passenger door (window, mirror).30A 126
Moonroof.30A 127
THX amplifier.20A 128
278
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Fuses

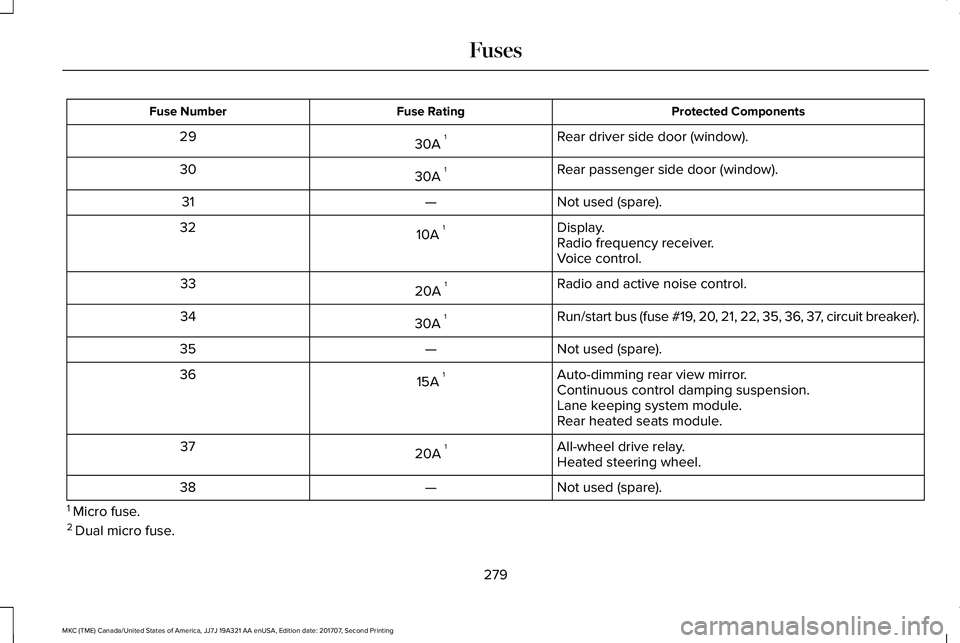

Protected ComponentsFuse RatingFuse Number
Rear driver side door (window).30A 129
Rear passenger side door (window).30A 130
Not used (spare).—31
Display.10A 132Radio frequency receiver.Voice control.
Radio and active noise control.20A 133
Run/start bus (fuse #19, 20, 21, 22, 35, 36, 37, circuit breaker).30A 134
Not used (spare).—35
Auto-dimming rear view mirror.15A 136Continuous control damping suspension.Lane keeping system module.Rear heated seats module.
All-wheel drive relay.20A 137Heated steering wheel.
Not used (spare).—38
1 Micro fuse.2 Dual micro fuse.
279
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Fuses

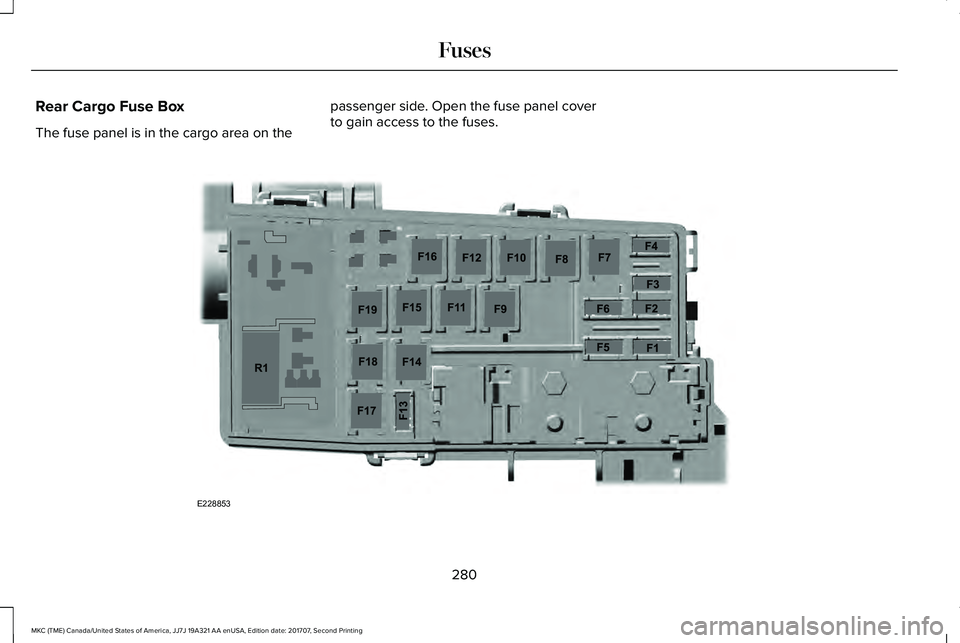

Rear Cargo Fuse Box
The fuse panel is in the cargo area on the
passenger side. Open the fuse panel coverto gain access to the fuses.
280
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
FusesE228853

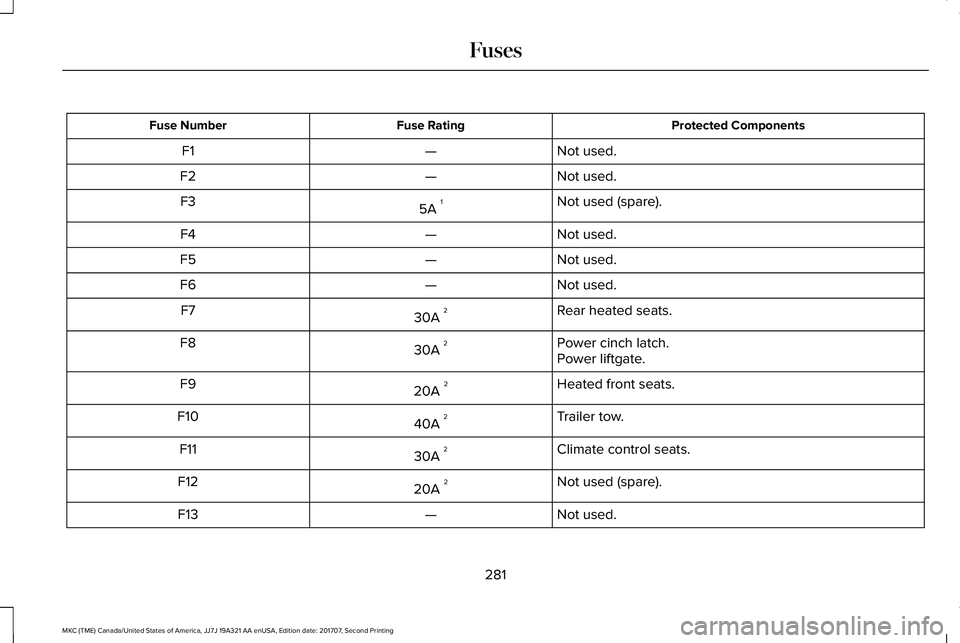

Protected ComponentsFuse RatingFuse Number
Not used.—F1
Not used.—F2
Not used (spare).5A 1F3
Not used.—F4
Not used.—F5
Not used.—F6
Rear heated seats.30A 2F7
Power cinch latch.30A 2F8Power liftgate.
Heated front seats.20A 2F9
Trailer tow.40A 2F10
Climate control seats.30A 2F11
Not used (spare).20A 2F12
Not used.—F13
281
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Fuses

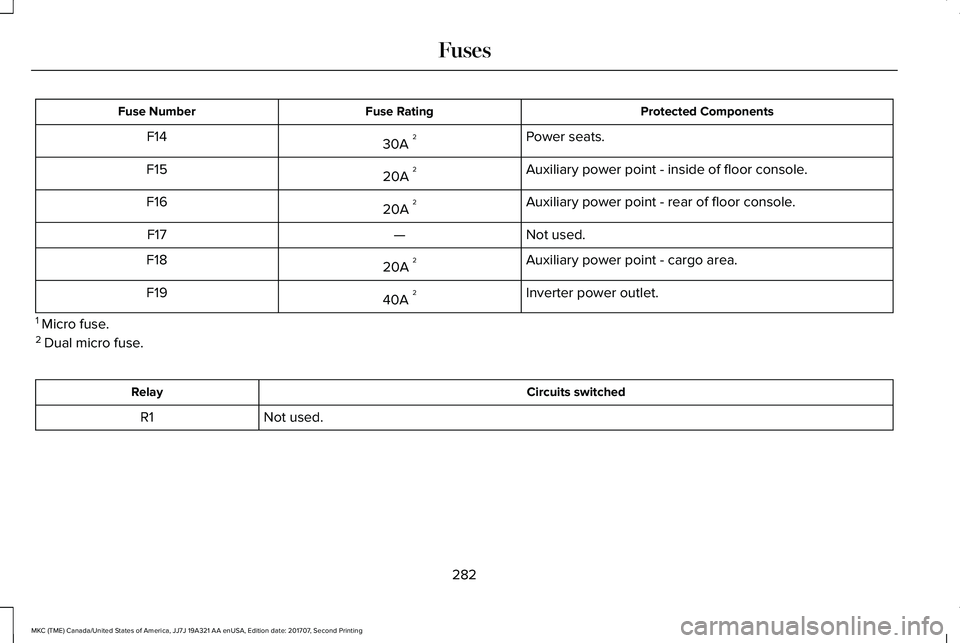

Protected ComponentsFuse RatingFuse Number
Power seats.30A 2F14
Auxiliary power point - inside of floor console.20A 2F15
Auxiliary power point - rear of floor console.20A 2F16
Not used.—F17
Auxiliary power point - cargo area.20A 2F18
Inverter power outlet.40A 2F19
1 Micro fuse.2 Dual micro fuse.
Circuits switchedRelay
Not used.R1
282
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Fuses

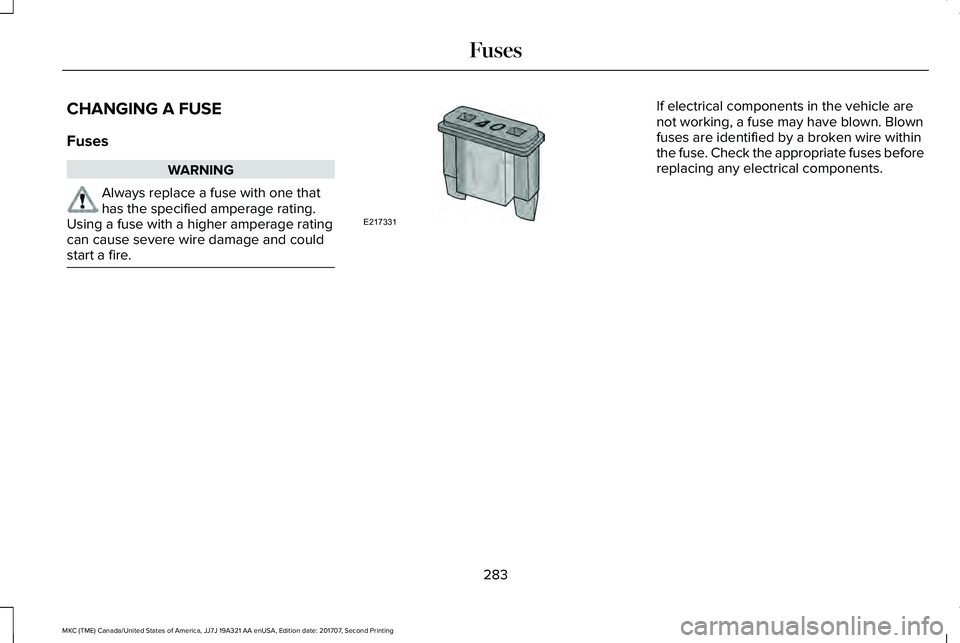

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperage ratingcan cause severe wire damage and couldstart a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fuses beforereplacing any electrical components.
283
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
FusesE217331

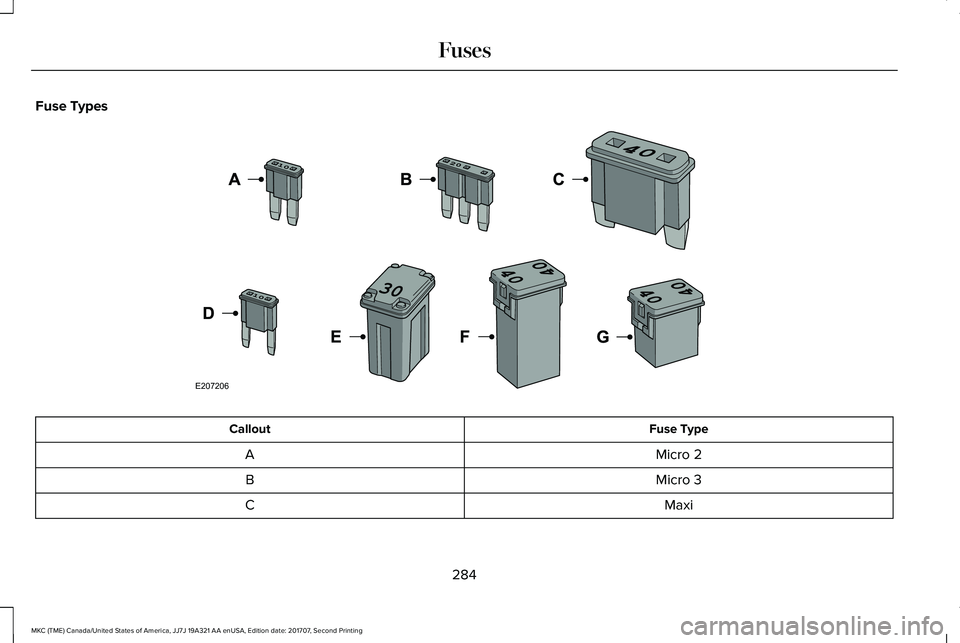

Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
284
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
FusesE207206

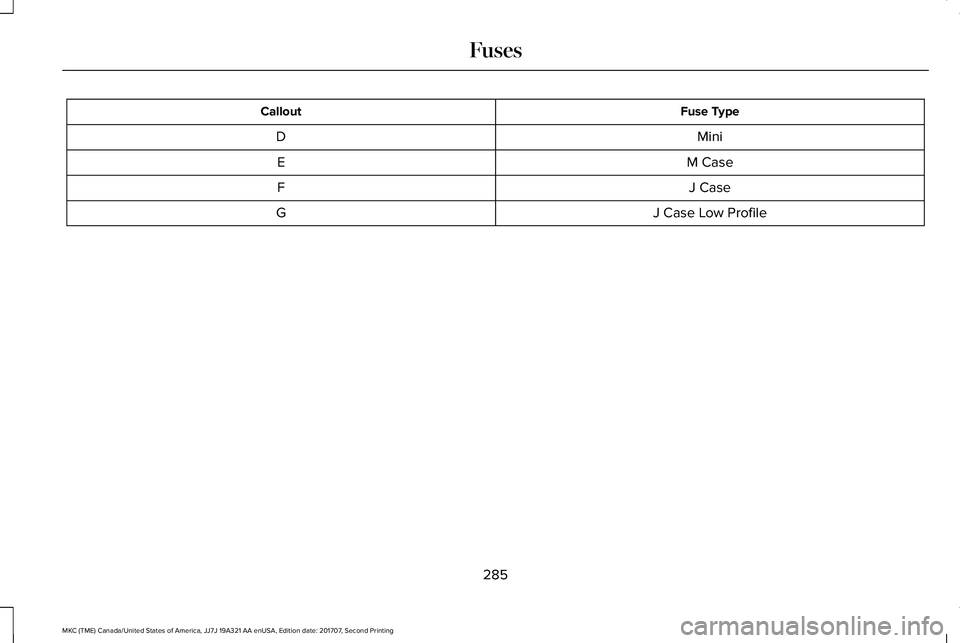

Fuse TypeCallout
MiniD
M CaseE
J CaseF
J Case Low ProfileG
285
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
Fuses

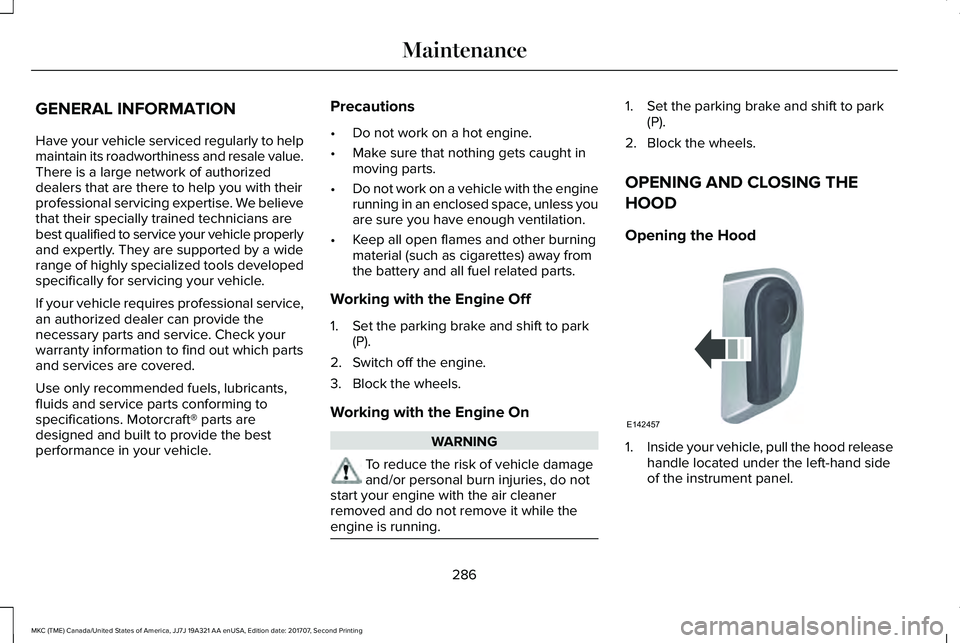

GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resale value.There is a large network of authorizeddealers that are there to help you with theirprofessional servicing expertise. We believethat their specially trained technicians arebest qualified to service your vehicle properlyand expertly. They are supported by a widerange of highly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out which partsand services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. Motorcraft® parts aredesigned and built to provide the bestperformance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with the enginerunning in an enclosed space, unless youare sure you have enough ventilation.
•Keep all open flames and other burningmaterial (such as cigarettes) away fromthe battery and all fuel related parts.
Working with the Engine Off
1. Set the parking brake and shift to park(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On
WARNING
To reduce the risk of vehicle damageand/or personal burn injuries, do notstart your engine with the air cleanerremoved and do not remove it while theengine is running.
1. Set the parking brake and shift to park(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Inside your vehicle, pull the hood releasehandle located under the left-hand sideof the instrument panel.
286
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
MaintenanceE142457

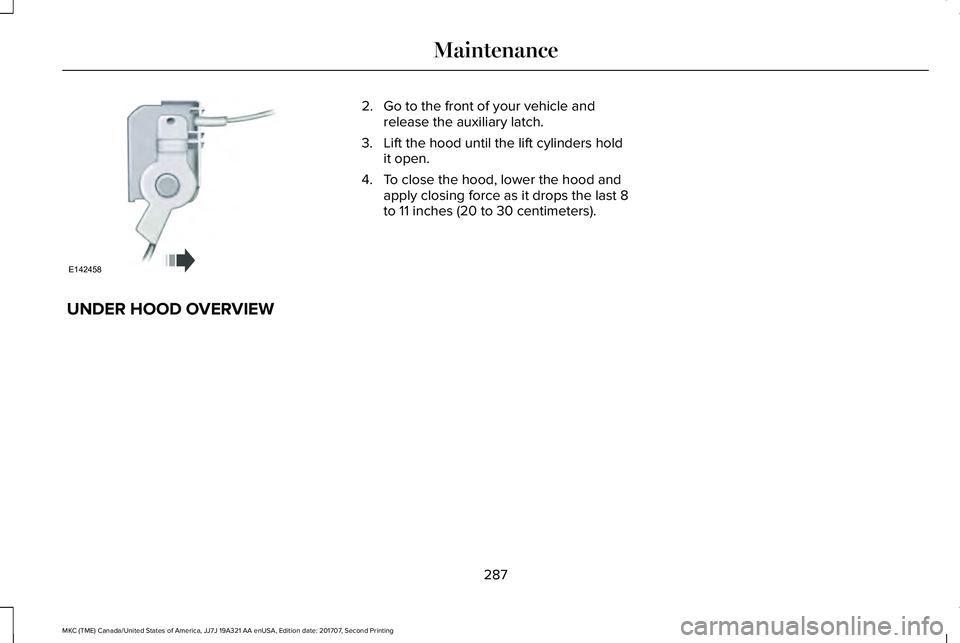

2. Go to the front of your vehicle andrelease the auxiliary latch.
3. Lift the hood until the lift cylinders holdit open.
4. To close the hood, lower the hood andapply closing force as it drops the last 8to 11 inches (20 to 30 centimeters).
UNDER HOOD OVERVIEW
287
MKC (TME) Canada/United States of America, JJ7J 19A321 AA enUSA, Edition date: 201707, Second Printing
MaintenanceE142458
