LINCOLN MKC 2019 Owners Manual

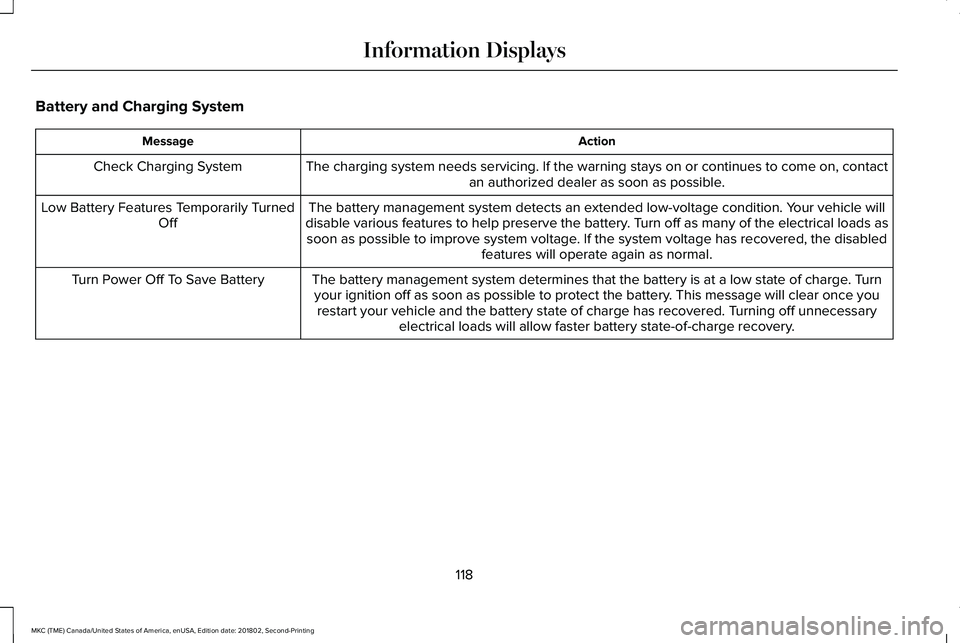

Battery and Charging System
ActionMessage
The charging system needs servicing. If the warning stays on or continues to come on, contactan authorized dealer as soon as possible.Check Charging System
The battery management system detects an extended low-voltage condition. Your vehicle willdisable various features to help preserve the battery. Turn off as many of the electrical loads assoon as possible to improve system voltage. If the system voltage has recovered, the disabledfeatures will operate again as normal.
Low Battery Features Temporarily TurnedOff
The battery management system determines that the battery is at a low state of charge. Turnyour ignition off as soon as possible to protect the battery. This message will clear once yourestart your vehicle and the battery state of charge has recovered. Turning off unnecessaryelectrical loads will allow faster battery state-of-charge recovery.
Turn Power Off To Save Battery
118
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

Blind Spot Information and Cross Traffic Alert System
ActionMessage
A fault with the system has occurred. Contact an authorized dealer as soon as possible.Blindspot System Fault
The system sensors are blocked. See Blind Spot Information System (page 226).Blindspot Not Available Sensor BlockedSee Manual
The system detects a vehicle. See Blind Spot Information System (page 226).Vehicle Coming From X
The blind spot information system and cross traffic alert system sensors are blocked. See BlindSpot Information System (page 226).Cross Traffic Not Available Sensor BlockedSee Manual
A fault with the system has occurred. Contact an authorized dealer as soon as possible.Cross Traffic System Fault
Collision Warning System
ActionMessage
A fault with the system has occurred. Contact an authorized dealer as soon as possible.Collision Warning Malfunction
You have a blocked sensor due to bad weather, ice, mud or water in front of the radar sensor.You can typically clean the sensor to resolve. See Pre-Collision Assist (page 233).Collision Warning Not Available SensorBlocked See Manual
A fault with the system has occurred. Contact an authorized dealer as soon as possible.Collision Warning Not Available
119
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

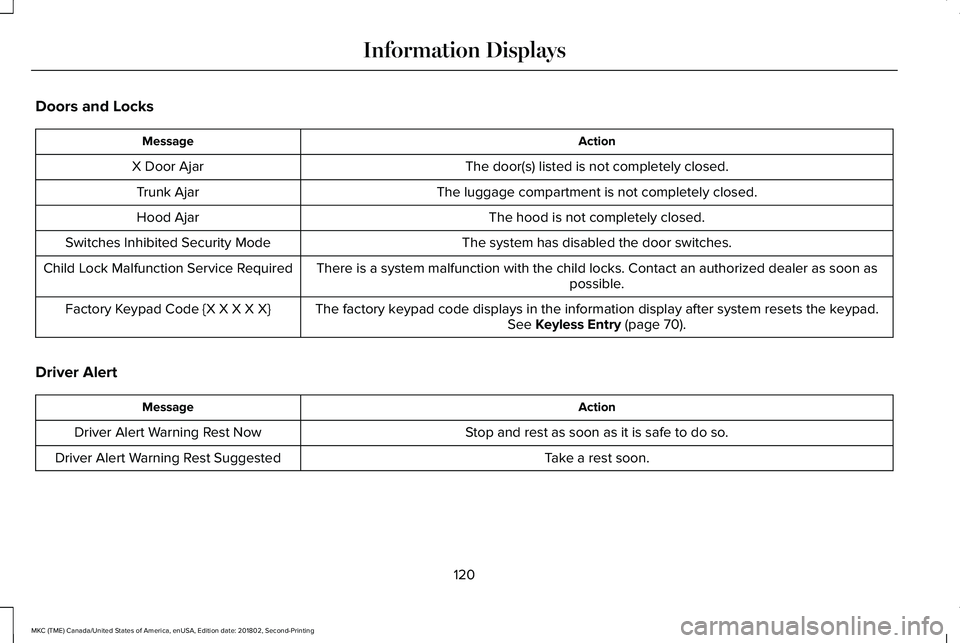

Doors and Locks
ActionMessage
The door(s) listed is not completely closed.X Door Ajar
The luggage compartment is not completely closed.Trunk Ajar
The hood is not completely closed.Hood Ajar
The system has disabled the door switches.Switches Inhibited Security Mode
There is a system malfunction with the child locks. Contact an authorized dealer as soon aspossible.Child Lock Malfunction Service Required
The factory keypad code displays in the information display after system resets the keypad.See Keyless Entry (page 70).Factory Keypad Code {X X X X X}
Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning Rest Now
Take a rest soon.Driver Alert Warning Rest Suggested
120
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
Hill Start Assist
ActionMessage
Hill start assist is not available. Contact an authorized dealer. See Auto Hold (page 192).Hill Start Assist Not Available
Keys and Intelligent Access
ActionMessage
A reminder to press the brake while starting the vehicle.To START Press Brake
The system does not detect a key in your vehicle. See Keyless Starting (page 157).No Key Detected
You pressed the start/stop button to switch off the engine and your vehicle does not detect yourintelligent access key inside your vehicle.Restart Now or Key is Needed
Your vehicle is in the run ignition state.Full Accessory Power Active
There is a problem with your vehicle’s starting system. See an authorized dealer for service.Starting System Fault
121
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

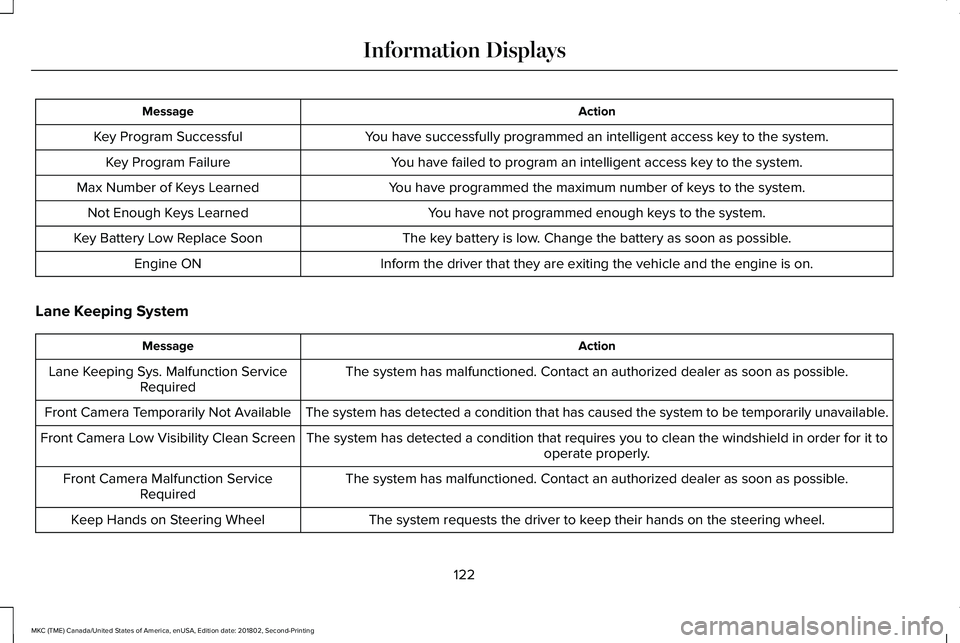

ActionMessage
You have successfully programmed an intelligent access key to the system.Key Program Successful
You have failed to program an intelligent access key to the system.Key Program Failure
You have programmed the maximum number of keys to the system.Max Number of Keys Learned
You have not programmed enough keys to the system.Not Enough Keys Learned
The key battery is low. Change the battery as soon as possible.Key Battery Low Replace Soon
Inform the driver that they are exiting the vehicle and the engine is on.Engine ON
Lane Keeping System
ActionMessage
The system has malfunctioned. Contact an authorized dealer as soon as possible.Lane Keeping Sys. Malfunction ServiceRequired
The system has detected a condition that has caused the system to be temporarily unavailable.Front Camera Temporarily Not Available
The system has detected a condition that requires you to clean the windshield in order for it tooperate properly.Front Camera Low Visibility Clean Screen
The system has malfunctioned. Contact an authorized dealer as soon as possible.Front Camera Malfunction ServiceRequired
The system requests the driver to keep their hands on the steering wheel.Keep Hands on Steering Wheel
122
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off the engine. Check the oil level. If thewarning stays on or continues to come on with your engine running, contact an authorized dealeras soon as possible.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less. See Engine Oil Check (page 290).Change Engine Oil Soon
The oil life left is at 0%. See Engine Oil Check (page 290).Oil Change Required
The brake fluid level is low, inspected the brake system immediately. See Brake Fluid Check(page 296).Brake Fluid Level Low
The brake system needs servicing. Stop your vehicle in a safe place. Contact an authorizeddealer.Check Brake System
The engine coolant temperature is excessively high.Engine Coolant Over Temperature
The washer fluid is low, refill washer fluid.Washer Fluid Level Low
The engine has reduced power to help reduce high engine temperature.Power Reduced to Lower Engine Temp
Your vehicle is still in Transport or Factory mode. This may not allow some features to operateproperly. See an authorized dealer.Transport / Factory Mode Contact Dealer
The powertrain needs service due to a powertrain malfunction.See Manual
123
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

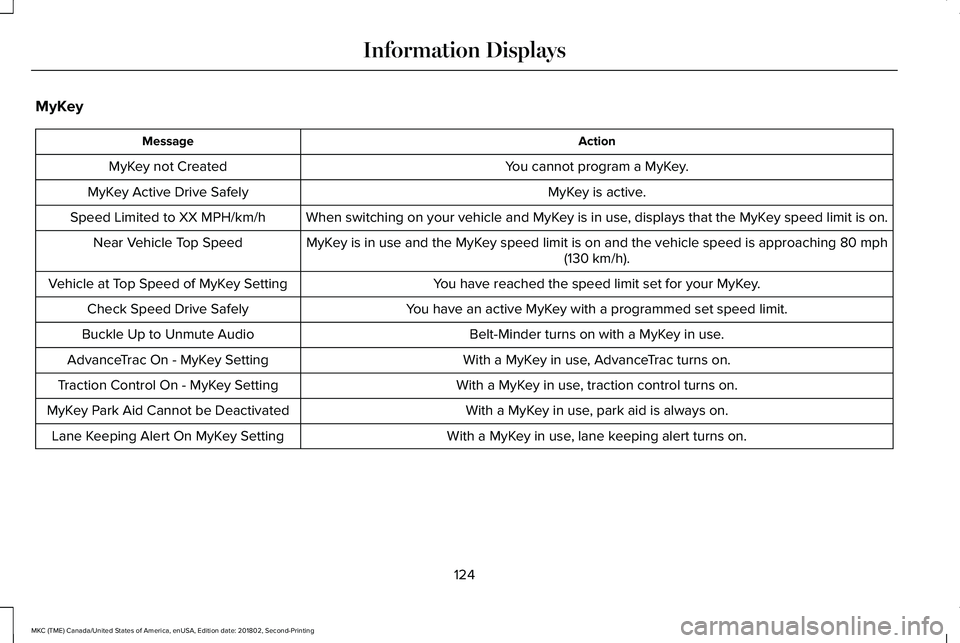

MyKey
ActionMessage
You cannot program a MyKey.MyKey not Created
MyKey is active.MyKey Active Drive Safely
When switching on your vehicle and MyKey is in use, displays that the MyKey speed limit is on.Speed Limited to XX MPH/km/h
MyKey is in use and the MyKey speed limit is on and the vehicle speed is approaching 80 mph(130 km/h).Near Vehicle Top Speed
You have reached the speed limit set for your MyKey.Vehicle at Top Speed of MyKey Setting
You have an active MyKey with a programmed set speed limit.Check Speed Drive Safely
Belt-Minder turns on with a MyKey in use.Buckle Up to Unmute Audio
With a MyKey in use, AdvanceTrac turns on.AdvanceTrac On - MyKey Setting
With a MyKey in use, traction control turns on.Traction Control On - MyKey Setting
With a MyKey in use, park aid is always on.MyKey Park Aid Cannot be Deactivated
With a MyKey in use, lane keeping alert turns on.Lane Keeping Alert On MyKey Setting
124
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

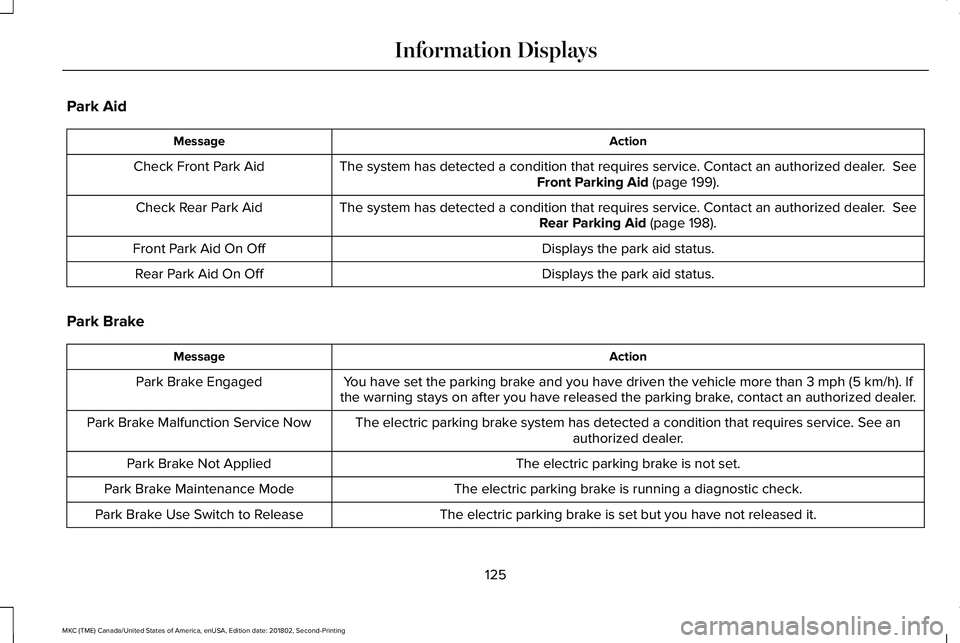

Park Aid
ActionMessage
The system has detected a condition that requires service. Contact an authorized dealer. SeeFront Parking Aid (page 199).Check Front Park Aid
The system has detected a condition that requires service. Contact an authorized dealer. SeeRear Parking Aid (page 198).Check Rear Park Aid
Displays the park aid status.Front Park Aid On Off
Displays the park aid status.Rear Park Aid On Off
Park Brake
ActionMessage
You have set the parking brake and you have driven the vehicle more than 3 mph (5 km/h). Ifthe warning stays on after you have released the parking brake, contact an authorized dealer.Park Brake Engaged
The electric parking brake system has detected a condition that requires service. See anauthorized dealer.Park Brake Malfunction Service Now
The electric parking brake is not set.Park Brake Not Applied
The electric parking brake is running a diagnostic check.Park Brake Maintenance Mode
The electric parking brake is set but you have not released it.Park Brake Use Switch to Release
125
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

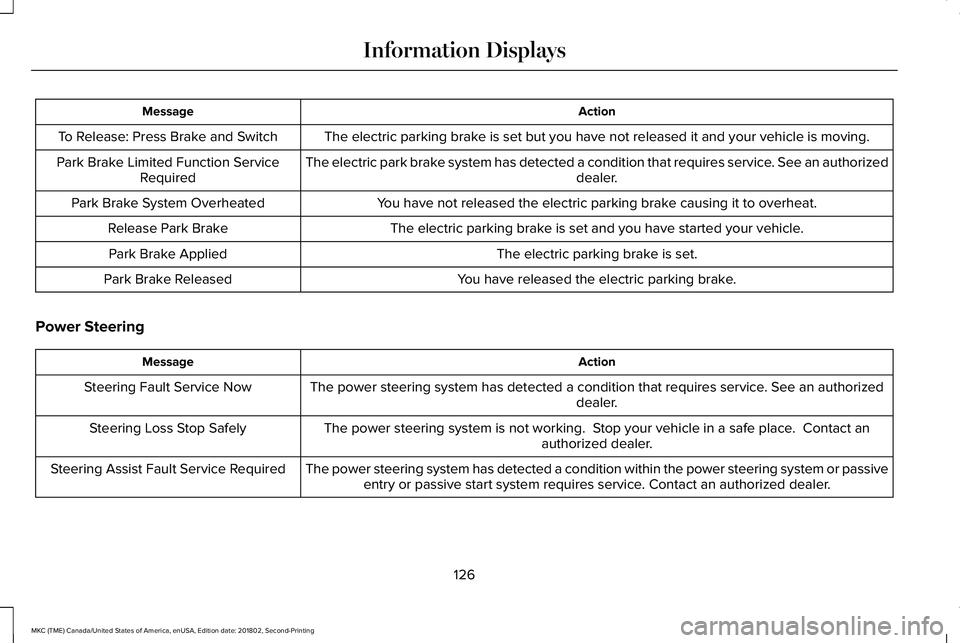

ActionMessage
The electric parking brake is set but you have not released it and your vehicle is moving.To Release: Press Brake and Switch
The electric park brake system has detected a condition that requires service. See an authorizeddealer.Park Brake Limited Function ServiceRequired
You have not released the electric parking brake causing it to overheat.Park Brake System Overheated
The electric parking brake is set and you have started your vehicle.Release Park Brake
The electric parking brake is set.Park Brake Applied
You have released the electric parking brake.Park Brake Released
Power Steering
ActionMessage
The power steering system has detected a condition that requires service. See an authorizeddealer.Steering Fault Service Now
The power steering system is not working. Stop your vehicle in a safe place. Contact anauthorized dealer.Steering Loss Stop Safely
The power steering system has detected a condition within the power steering system or passiveentry or passive start system requires service. Contact an authorized dealer.Steering Assist Fault Service Required
126
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

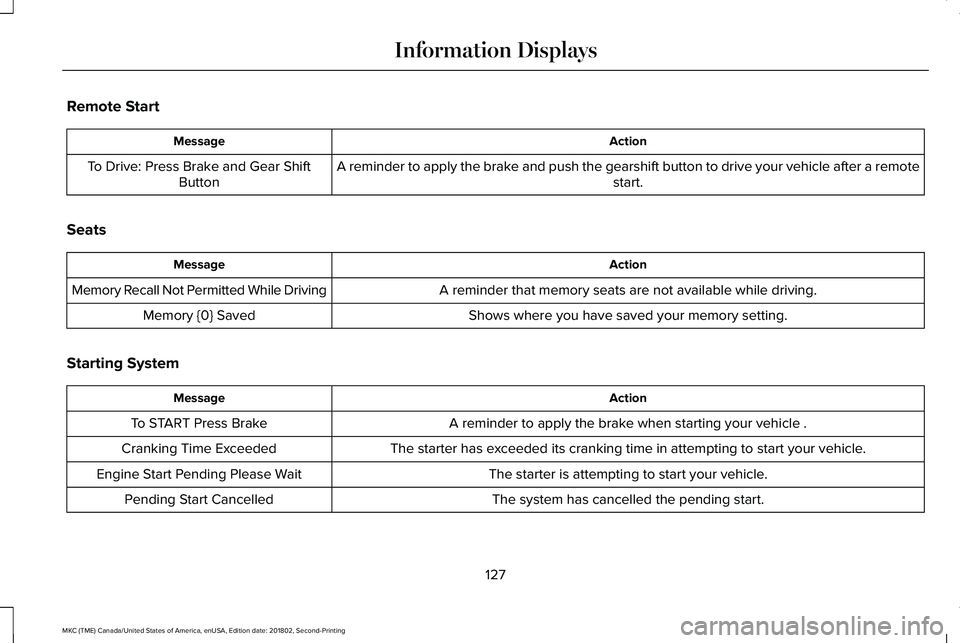

Remote Start
ActionMessage
A reminder to apply the brake and push the gearshift button to drive your vehicle after a remotestart.To Drive: Press Brake and Gear ShiftButton
Seats
ActionMessage
A reminder that memory seats are not available while driving.Memory Recall Not Permitted While Driving
Shows where you have saved your memory setting.Memory {0} Saved
Starting System
ActionMessage
A reminder to apply the brake when starting your vehicle .To START Press Brake
The starter has exceeded its cranking time in attempting to start your vehicle.Cranking Time Exceeded
The starter is attempting to start your vehicle.Engine Start Pending Please Wait
The system has cancelled the pending start.Pending Start Cancelled
127
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays
