LINCOLN MKC 2019 Owners Manual

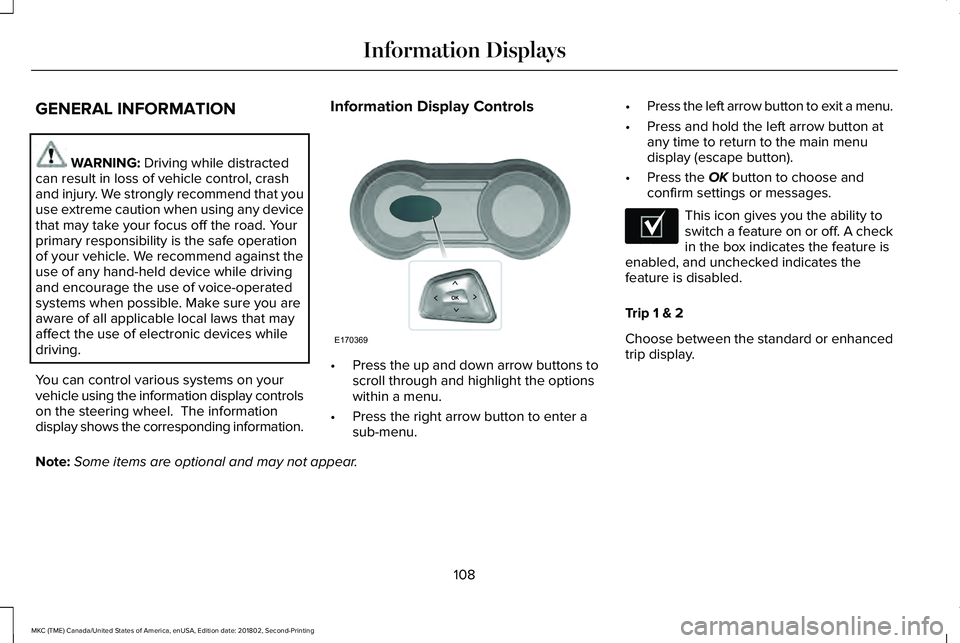

GENERAL INFORMATION
WARNING: Driving while distractedcan result in loss of vehicle control, crashand injury. We strongly recommend that youuse extreme caution when using any devicethat may take your focus off the road. Yourprimary responsibility is the safe operationof your vehicle. We recommend against theuse of any hand-held device while drivingand encourage the use of voice-operatedsystems when possible. Make sure you areaware of all applicable local laws that mayaffect the use of electronic devices whiledriving.
You can control various systems on yourvehicle using the information display controlson the steering wheel. The informationdisplay shows the corresponding information.
Information Display Controls
•Press the up and down arrow buttons toscroll through and highlight the optionswithin a menu.
•Press the right arrow button to enter asub-menu.
•Press the left arrow button to exit a menu.
•Press and hold the left arrow button atany time to return to the main menudisplay (escape button).
•Press the OK button to choose andconfirm settings or messages.
This icon gives you the ability toswitch a feature on or off. A checkin the box indicates the feature isenabled, and unchecked indicates thefeature is disabled.
Trip 1 & 2
Choose between the standard or enhancedtrip display.
Note:Some items are optional and may not appear.
108
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information DisplaysE170369 E204495

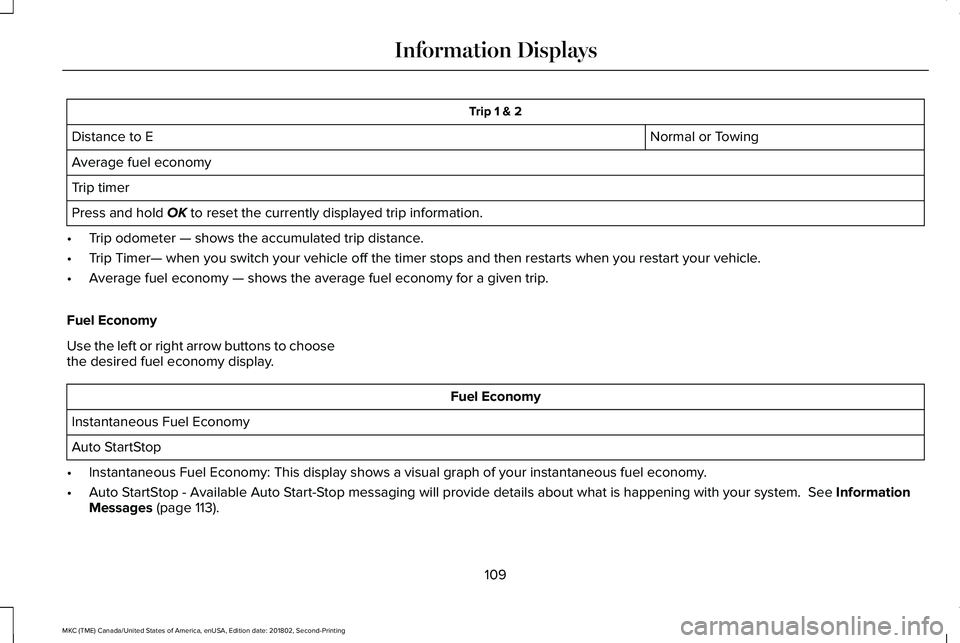

Trip 1 & 2
Normal or TowingDistance to E
Average fuel economy
Trip timer
Press and hold OK to reset the currently displayed trip information.
•Trip odometer — shows the accumulated trip distance.
•Trip Timer— when you switch your vehicle off the timer stops and then restarts when you restart your vehicle.
•Average fuel economy — shows the average fuel economy for a given trip.
Fuel Economy
Use the left or right arrow buttons to choosethe desired fuel economy display.
Fuel Economy
Instantaneous Fuel Economy
Auto StartStop
•Instantaneous Fuel Economy: This display shows a visual graph of your instantaneous fuel economy.
•Auto StartStop - Available Auto Start-Stop messaging will provide details about what is happening with your system. See InformationMessages (page 113).
109
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

Driver AssistUse the up or down arrow buttons to choosebetween the following display options.
Driver Assist
Traction Control
Blindspot
SensitivityCollision Warning
Cross Traffic
Adaptive or NormalCruise Control
On or DisplayDriver Alert
Intelligent AWD
ModeLane Keeping Sys
Intensity
Front Park Aid
Rear Park Aid
Tire Pressure on demand screenTire Monitor
110
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

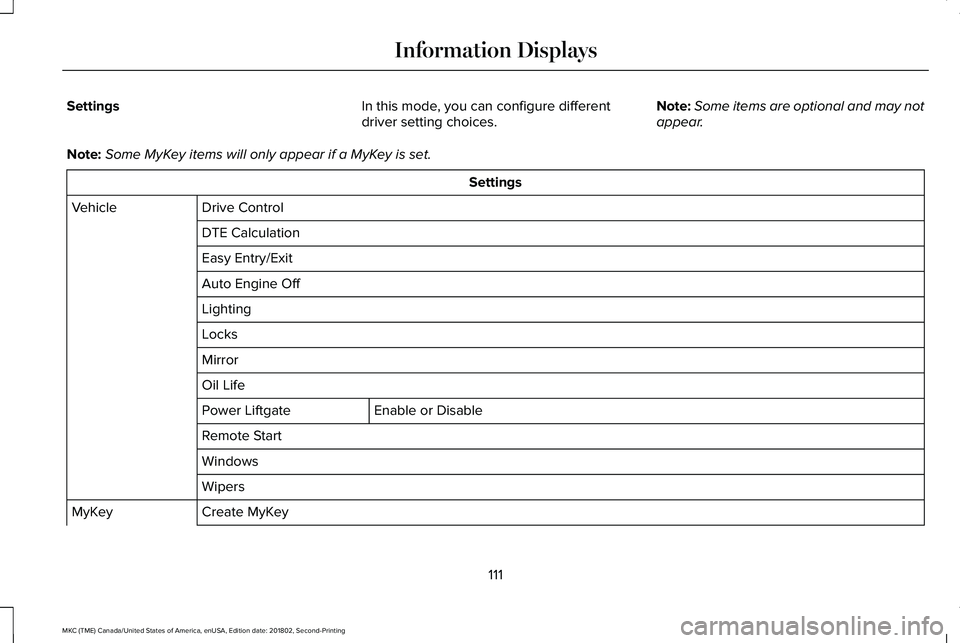

SettingsIn this mode, you can configure differentdriver setting choices.Note:Some items are optional and may notappear.
Note:Some MyKey items will only appear if a MyKey is set.
Settings
Drive ControlVehicle
DTE Calculation
Easy Entry/Exit
Auto Engine Off
Lighting
Locks
Mirror
Oil Life
Enable or DisablePower Liftgate
Remote Start
Windows
Wipers
Create MyKeyMyKey
111
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

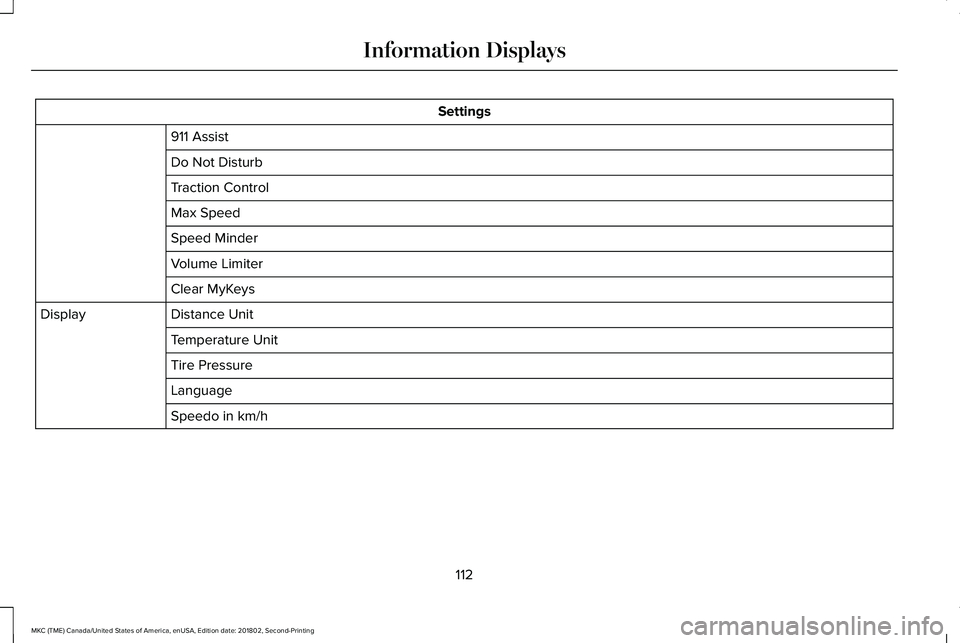

Settings
911 Assist
Do Not Disturb
Traction Control
Max Speed
Speed Minder
Volume Limiter
Clear MyKeys
Distance UnitDisplay
Temperature Unit
Tire Pressure
Language
Speedo in km/h
112
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

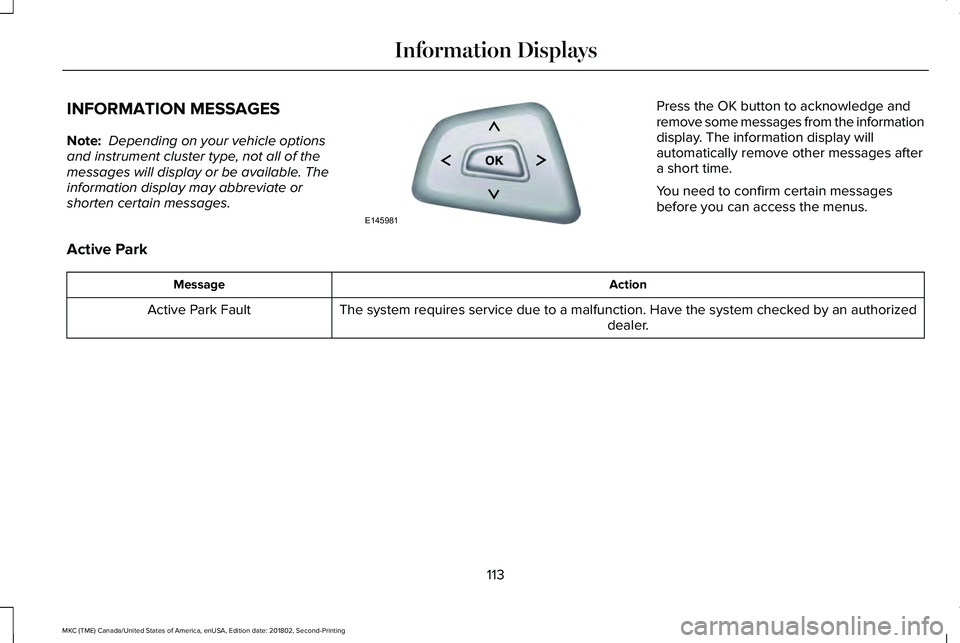

INFORMATION MESSAGES
Note: Depending on your vehicle optionsand instrument cluster type, not all of themessages will display or be available. Theinformation display may abbreviate orshorten certain messages.
Press the OK button to acknowledge andremove some messages from the informationdisplay. The information display willautomatically remove other messages aftera short time.
You need to confirm certain messagesbefore you can access the menus.
Active Park
ActionMessage
The system requires service due to a malfunction. Have the system checked by an authorizeddealer.Active Park Fault
113
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information DisplaysE145981

Adaptive Cruise Control
ActionMessage
A radar malfunction is preventing the adaptive cruise control from engaging. See Using AdaptiveCruise Control (page 211).Adaptive Cruise Malfunction
A condition exists such that the adaptive cruise cannot function properly. See Using AdaptiveCruise Control (page 211).Adaptive Cruise Not Available
You have a blocked sensor due to bad weather, ice, mud or water in front of the radar sensor.You can typically clean the sensor to resolve. See Using Adaptive Cruise Control (page 211).Adaptive Cruise Not Available SensorBlocked See Manual
The system has disabled the automatic braking.Normal Cruise Active Automatic BrakingTurned Off
A radar malfunction is preventing the adaptive cruise control from engaging.Front Sensor Not Aligned
The adaptive cruise has reinstated controls to the driver.Adaptive Cruise - Driver Resume Control
The vehicle speed is too slow to activate the adaptive cruise.Adaptive Cruise Speed Too Low toActivate
The adaptive cruise is automatically adjusting the gap distance and the driver needs to shift thetransmission into a lower gear.Adaptive Cruise Shift Down
114
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

AdvanceTrac™
ActionMessage
The system detects a malfunction due to a blocked sensor.Service AdvanceTrac
The status of the AdvanceTrac system after you switch it off.AdvanceTrac Off
The status of the AdvanceTrac system after you switch it on.AdvanceTrac On
Airbag
ActionMessage
The system detects a malfunction due to a blocked sensor. Remove blockage.Occupant Sensor BLOCKED RemoveObjects Near Passenger Seat
Alarm
ActionMessage
Alarm triggered due to unauthorized entry. See Anti-Theft Alarm (page 78).Vehicle Alarm To Stop Alarm, Start Vehicle.
115
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

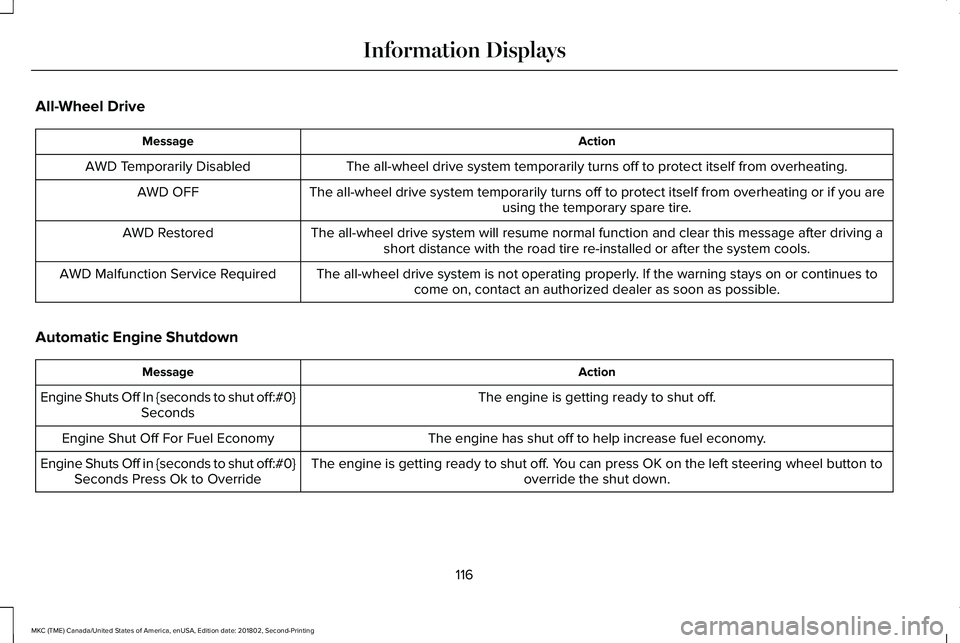

All-Wheel Drive
ActionMessage
The all-wheel drive system temporarily turns off to protect itself from overheating.AWD Temporarily Disabled
The all-wheel drive system temporarily turns off to protect itself from overheating or if you areusing the temporary spare tire.AWD OFF
The all-wheel drive system will resume normal function and clear this message after driving ashort distance with the road tire re-installed or after the system cools.AWD Restored
The all-wheel drive system is not operating properly. If the warning stays on or continues tocome on, contact an authorized dealer as soon as possible.AWD Malfunction Service Required
Automatic Engine Shutdown
ActionMessage
The engine is getting ready to shut off.Engine Shuts Off In {seconds to shut off:#0}Seconds
The engine has shut off to help increase fuel economy.Engine Shut Off For Fuel Economy
The engine is getting ready to shut off. You can press OK on the left steering wheel button tooverride the shut down.Engine Shuts Off in {seconds to shut off:#0}Seconds Press Ok to Override
116
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays

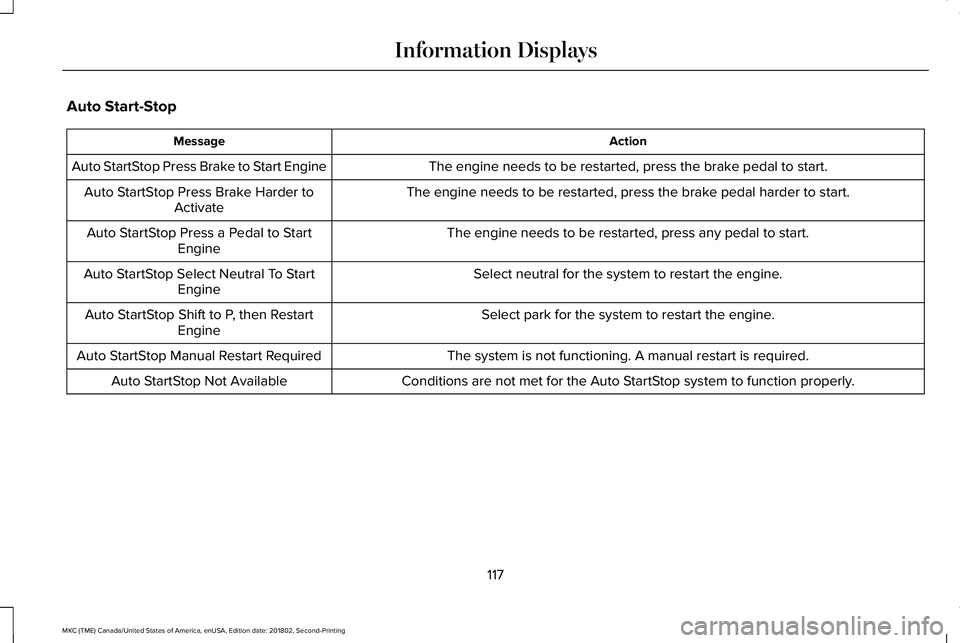

Auto Start-Stop
ActionMessage
The engine needs to be restarted, press the brake pedal to start.Auto StartStop Press Brake to Start Engine
The engine needs to be restarted, press the brake pedal harder to start.Auto StartStop Press Brake Harder toActivate
The engine needs to be restarted, press any pedal to start.Auto StartStop Press a Pedal to StartEngine
Select neutral for the system to restart the engine.Auto StartStop Select Neutral To StartEngine
Select park for the system to restart the engine.Auto StartStop Shift to P, then RestartEngine
The system is not functioning. A manual restart is required.Auto StartStop Manual Restart Required
Conditions are not met for the Auto StartStop system to function properly.Auto StartStop Not Available
117
MKC (TME) Canada/United States of America, enUSA, Edition date: 201802, Second-Printing
Information Displays
