LINCOLN MKS 2009 Owners Manual

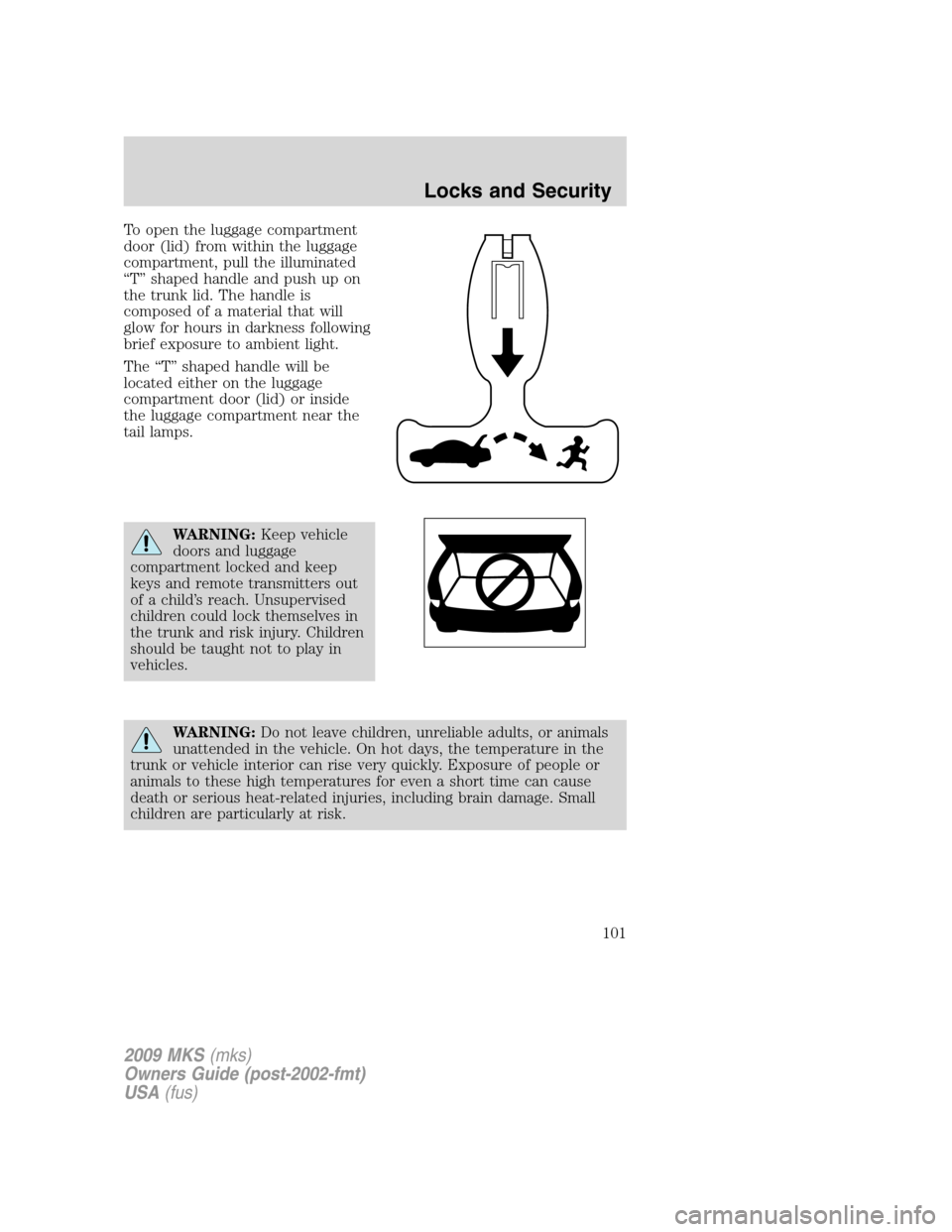

To open the luggage compartment
door (lid) from within the luggage
compartment, pull the illuminated
“T” shaped handle and push up on
the trunk lid. The handle is
composed of a material that will
glow for hours in darkness following
brief exposure to ambient light.
The “T” shaped handle will be
located either on the luggage
compartment door (lid) or inside
the luggage compartment near the
tail lamps.
WARNING:Keep vehicle
doors and luggage
compartment locked and keep
keys and remote transmitters out
of a child’s reach. Unsupervised
children could lock themselves in
the trunk and risk injury. Children
should be taught not to play in
vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
101

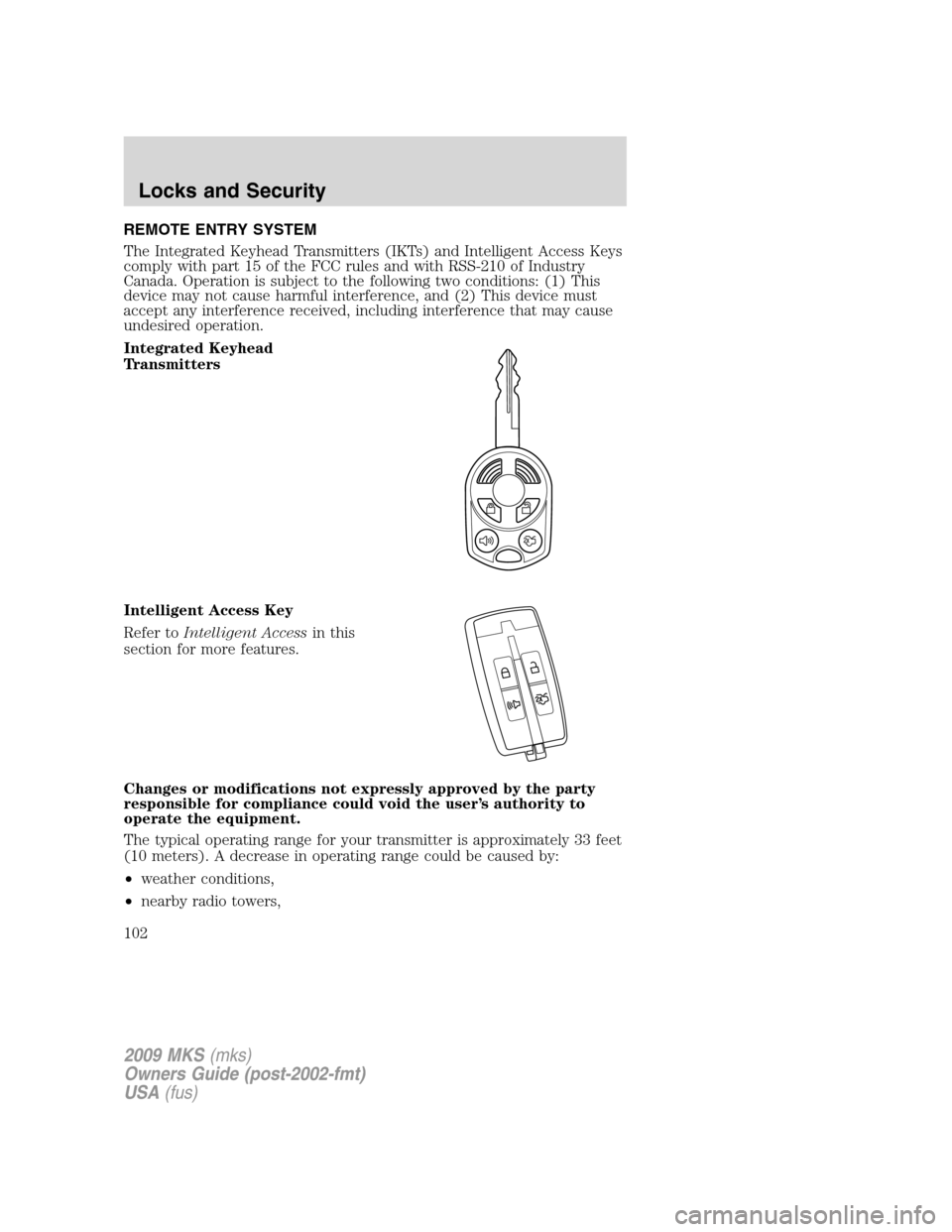

REMOTE ENTRY SYSTEM
The Integrated Keyhead Transmitters (IKTs) and Intelligent Access Keys
comply with part 15 of the FCC rules and with RSS-210 of Industry
Canada. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause
undesired operation.
Integrated Keyhead
Transmitters
Intelligent Access Key
Refer toIntelligent Accessin this
section for more features.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
102

•structures around the vehicle, or
•other vehicles parked next to your vehicle.
The transmitter allows you to:
•remotely unlock the vehicle doors.
•remotely lock all the vehicle doors.
•remotely open the trunk.
•activate the personal alarm.
•arm and disarm the perimeter anti-theft system.
•operate the illuminated entry feature.
•activate the global opening windows feature.
The remote entry lock/unlock feature operates in any ignition position
except while the vehicle is in the start position. The panic feature
operates with the ignition off.
If there are problems with the remote entry system, make sure to take
ALL Integrated Keyhead Transmitters or Intelligent Access Keys
with you to the authorized dealer in order to aid in troubleshooting the
problem.
INTELLIGENT ACCESS (IF EQUIPPED)
WARNING:Radio waves from the Intelligent Access system
transmitters in the vehicle may affect certain implanted medical
devices such as pacemakers or cardiac defibrillators. People having
such implanted medical devices should ask the medical device
manufacturer or their physician whether the Intelligent Access system
may affect the equipment before coming into close proximity with a
vehicle equipped with Intelligent Access. Failure to do so may result in
interference with the medical device, which could result in serious
injury.
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or transmitter. You can use the Intelligent Access
feature at the driver door or at the trunk. You can activate the Intelligent
Access feature as long as you have one of your Intelligent Access Keys
within range of the driver door or the trunk.
Activating Intelligent Access at the Driver’s Door:If your
Intelligent Access Key is within 3 feet (1 meter) of the drivers door, you
can activate your Intelligent Access system by pressing any button on
the keyless entry keypad. The drivers door will automatically unlock and
the door can be opened.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
103

(Note:If two stage unlocking is disabled, all doors will unlock when you
press any button on the keyless entry keypad).
Activating Intelligent Access at the Trunk:If your Intelligent Access
Key is within 3 feet (1 meter) of the trunk, you can activate your
Intelligent Access system by pressing the exterior trunk release button,
hidden under the trim above the license plate. The trunk will release and
open.
Refer to theRemote entry systemin this section for more details on
how to use the lock, unlock, panic, or trunk buttons on the transmitter.
Your Intelligent Access system uses a RF signal to communicate with
your vehicle and authorize your vehicle to unlock when commanded
(either by pressing any keyless entry keypad button, the trunk button, or
a button on the transmitter itself). If excessive RF interference is
present in the area, or if your vehicle battery is low, it may be necessary
to mechanically unlock your door. The mechanical key blade in your
Intelligent Access Key can be used to open the driver’s door in this
situation (refer toIntelligent access keyin this chapter for more
information on the location and use of the mechanical key blade).
A mechanical key is needed for access if the Intelligent Access Key
battery or vehicle battery is low.
Push button startYour vehicle is equipped with a push button start
system, which allows you to start your vehicle without using a key. To
operate the push button start system and start your vehicle, your
Intelligent Access Key must be present inside the vehicle, either in the
passenger compartment or in the trunk. Refer toPush button startin
theDrivingchapter.
Unlocking the doors/two stage unlock
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate.
2. Press
and release again within three seconds to unlock all the
doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
on.
The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
104

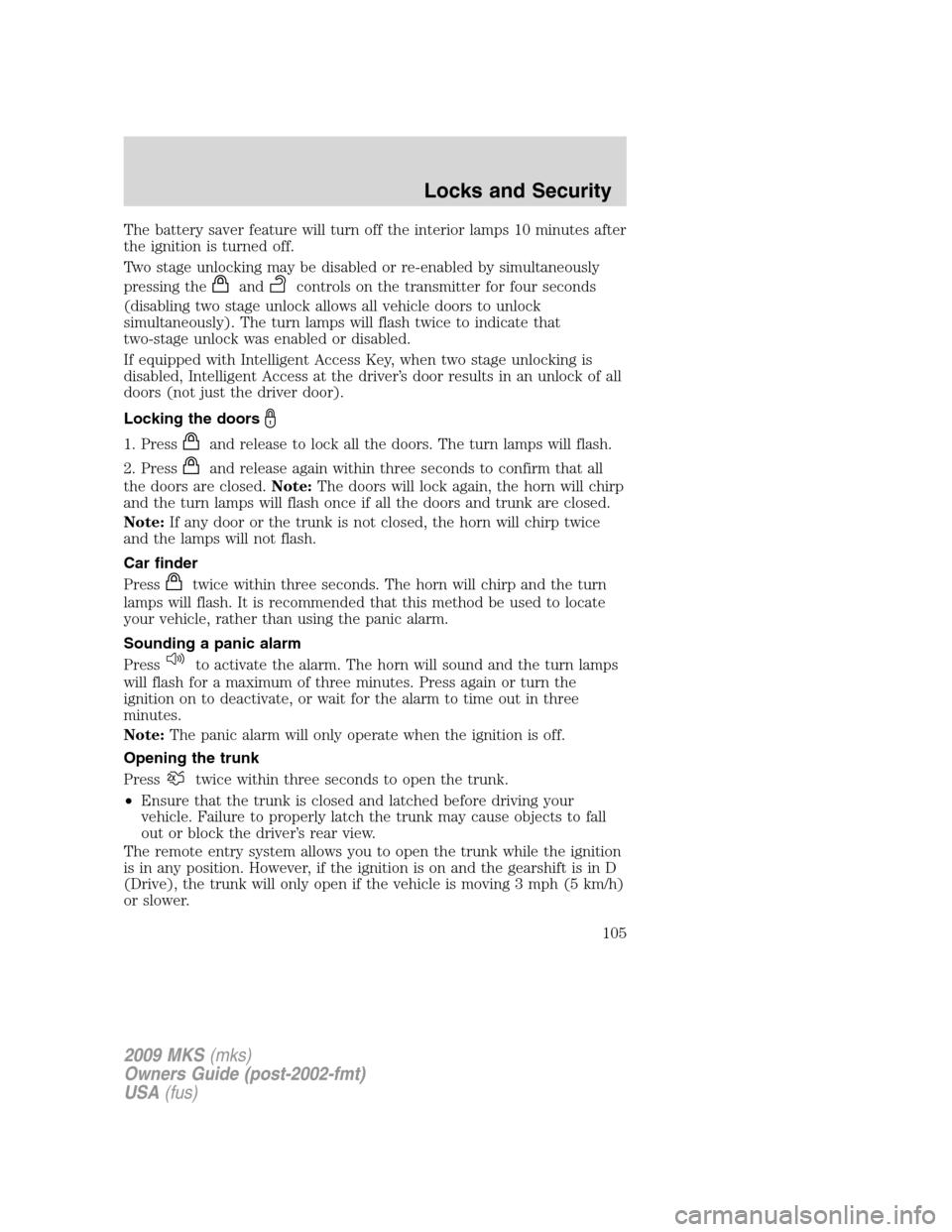

The battery saver feature will turn off the interior lamps 10 minutes after
the ignition is turned off.
Two stage unlocking may be disabled or re-enabled by simultaneously
pressing the
andcontrols on the transmitter for four seconds
(disabling two stage unlock allows all vehicle doors to unlock
simultaneously). The turn lamps will flash twice to indicate that
two-stage unlock was enabled or disabled.
If equipped with Intelligent Access Key, when two stage unlocking is
disabled, Intelligent Access at the driver’s door results in an unlock of all
doors (not just the driver door).
Locking the doors
1. Pressand release to lock all the doors. The turn lamps will flash.
2. Press
and release again within three seconds to confirm that all
the doors are closed.Note:The doors will lock again, the horn will chirp
and the turn lamps will flash once if all the doors and trunk are closed.
Note:If any door or the trunk is not closed, the horn will chirp twice
and the lamps will not flash.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition on to deactivate, or wait for the alarm to time out in three
minutes.
Note:The panic alarm will only operate when the ignition is off.
Opening the trunk
Press
twice within three seconds to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
The remote entry system allows you to open the trunk while the ignition
is in any position. However, if the ignition is on and the gearshift is in D
(Drive), the trunk will only open if the vehicle is moving 3 mph (5 km/h)
or slower.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
105

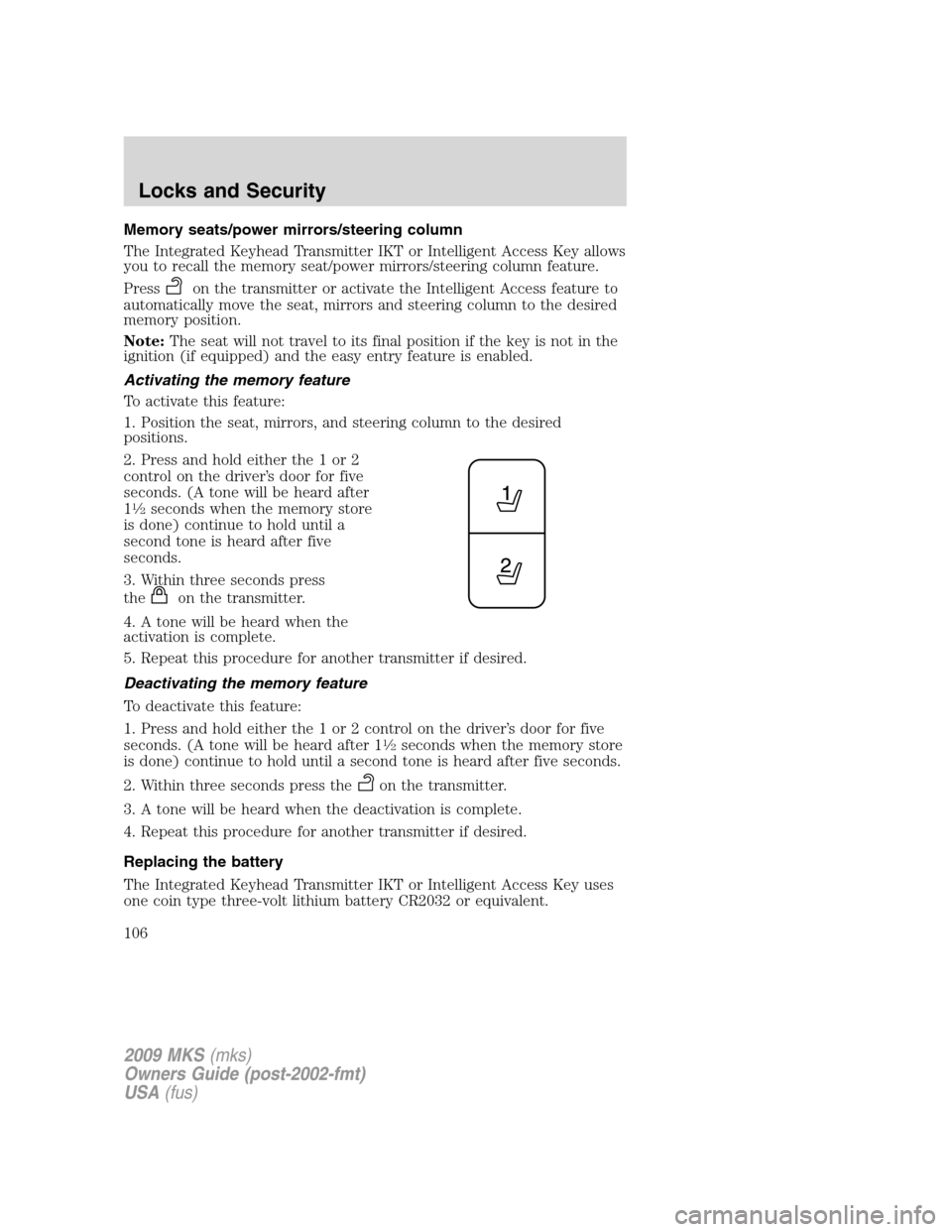

Memory seats/power mirrors/steering column
The Integrated Keyhead Transmitter IKT or Intelligent Access Key allows
you to recall the memory seat/power mirrors/steering column feature.
Press
on the transmitter or activate the Intelligent Access feature to
automatically move the seat, mirrors and steering column to the desired
memory position.
Note:The seat will not travel to its final position if the key is not in the
ignition (if equipped) and the easy entry feature is enabled.
Activating the memory feature
To activate this feature:
1. Position the seat, mirrors, and steering column to the desired
positions.
2. Press and hold either the 1 or 2
control on the driver’s door for five
seconds. (A tone will be heard after
1
12seconds when the memory store
is done) continue to hold until a
second tone is heard after five
seconds.
3. Within three seconds press
the
on the transmitter.
4. A tone will be heard when the
activation is complete.
5. Repeat this procedure for another transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press and hold either the 1 or 2 control on the driver’s door for five
seconds. (A tone will be heard after 1
12seconds when the memory store
is done) continue to hold until a second tone is heard after five seconds.
2. Within three seconds press the
on the transmitter.
3. A tone will be heard when the deactivation is complete.
4. Repeat this procedure for another transmitter if desired.
Replacing the battery
The Integrated Keyhead Transmitter IKT or Intelligent Access Key uses
one coin type three-volt lithium battery CR2032 or equivalent.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
106

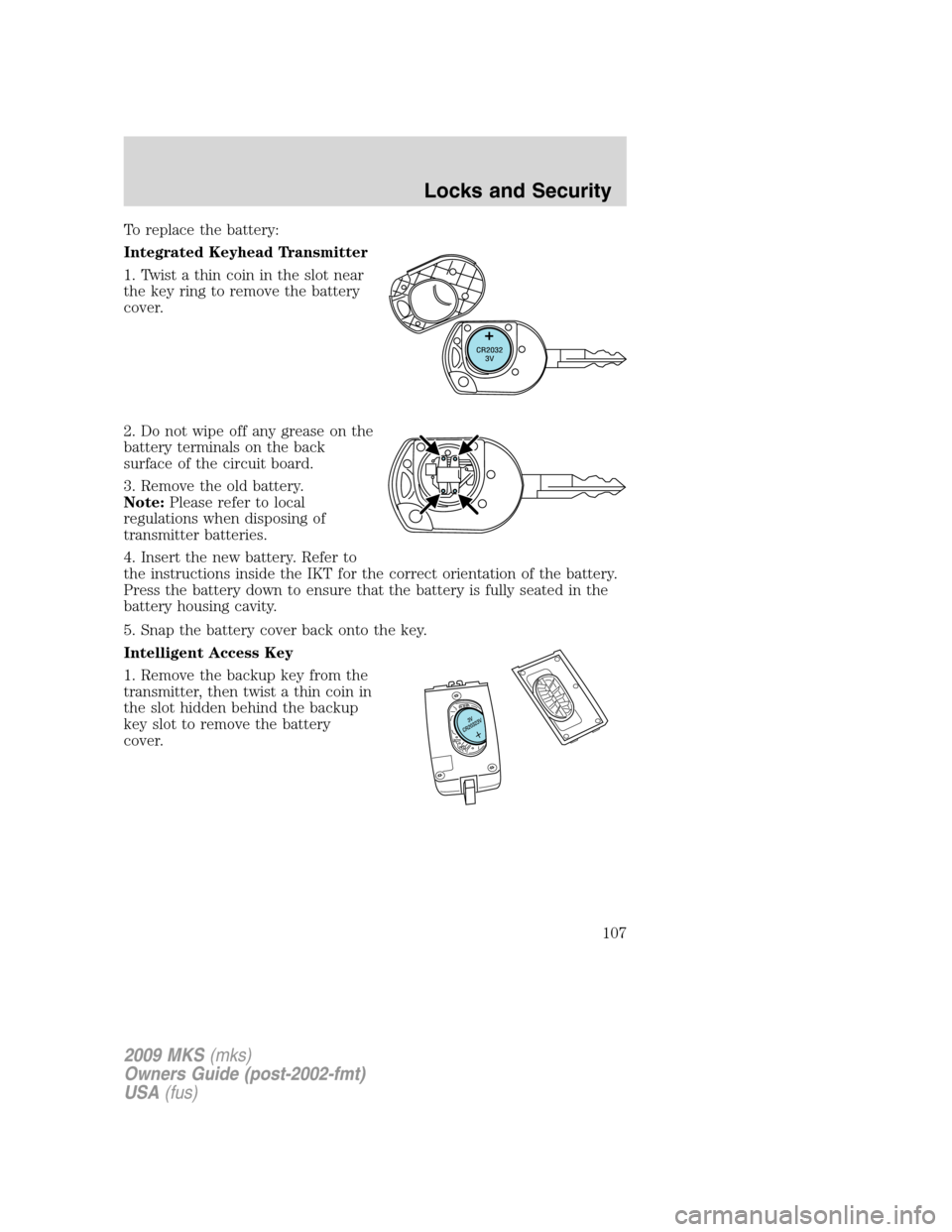

To replace the battery:
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery. Refer to
the instructions inside the IKT for the correct orientation of the battery.
Press the battery down to ensure that the battery is fully seated in the
battery housing cavity.
5. Snap the battery cover back onto the key.
Intelligent Access Key
1. Remove the backup key from the
transmitter, then twist a thin coin in
the slot hidden behind the backup
key slot to remove the battery
cover.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
107

2. Do not wipe off any grease on the
battery terminals or on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery. Refer to
the instructions inside the
Intelligent Access Key for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Note:Replacement of the battery willnotcause the Integrated Keyhead
Transmitter or Intelligent Access Key to become deprogrammed from
your vehicle. They should operate normally after battery replacement.
Replacing lost Integrated Keyhead Transmitters (IKTs) or Intelligent
Access Keys
If you would like to have your Integrated Keyhead Transmitters or
Intelligent Access Keys reprogrammed because you lost one, or would
like to buy additional transmitters you can either reprogram them
yourself, or takeall transmittersto your authorized dealer for
reprogramming.
How to reprogram your Integrated Keyhead Transmitters (IKTs) or
Intelligent Access Keys
To program a new Integrated Keyhead Transmitter or Intelligent Access
Keys yourself, refer toSecuriLock™ passive anti-theftsection of this
chapter.Note:At least two already programmed transmitters are
required to perform this procedure yourself.
Illuminated entry
The interior lamps and puddle lamps (if equipped) illuminate when the
Integrated Keyhead Transmitter or Intelligent Access Keys or the keyless
entry system keypad or Intelligent Access feature is used to unlock the
door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition is turned on, or
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
108

•thecontrol on the transmitter is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•the vehicle is locked using the key in the driver door cylinder, or
•after 25 seconds of illumination.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Perimeter lamps illuminated entry
With the remote entry system, the following items will illuminate when
the
control on the transmitter is pressed:
•Headlamps
•Park lamps
•Tail lamps
The lamps will automatically turn off:
•if the ignition switch is turned on, or
•the
control on the transmitter is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•the vehicle is locked using the key in the driver door cylinder, or
•after 25 seconds of illumination.
Note:On some vehicles, the perimeter lamps illuminated entry feature
will not activate in daylight conditions.
Deactivating/activating perimeter lamps illuminated entry
You may enable/disable this feature by having your vehicle serviced by
your authorized dealer.
You may also perform the following power door lock sequence to
enable/disable the perimeter lamps feature.Note:Before starting, ensure
the ignition is off and all vehicle doors are closed. You must complete
Steps 1–5 within 30 seconds or the procedure will have to be repeated. If
the procedure needs to be repeated, wait a minimum of 30 seconds
before beginning again.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
109

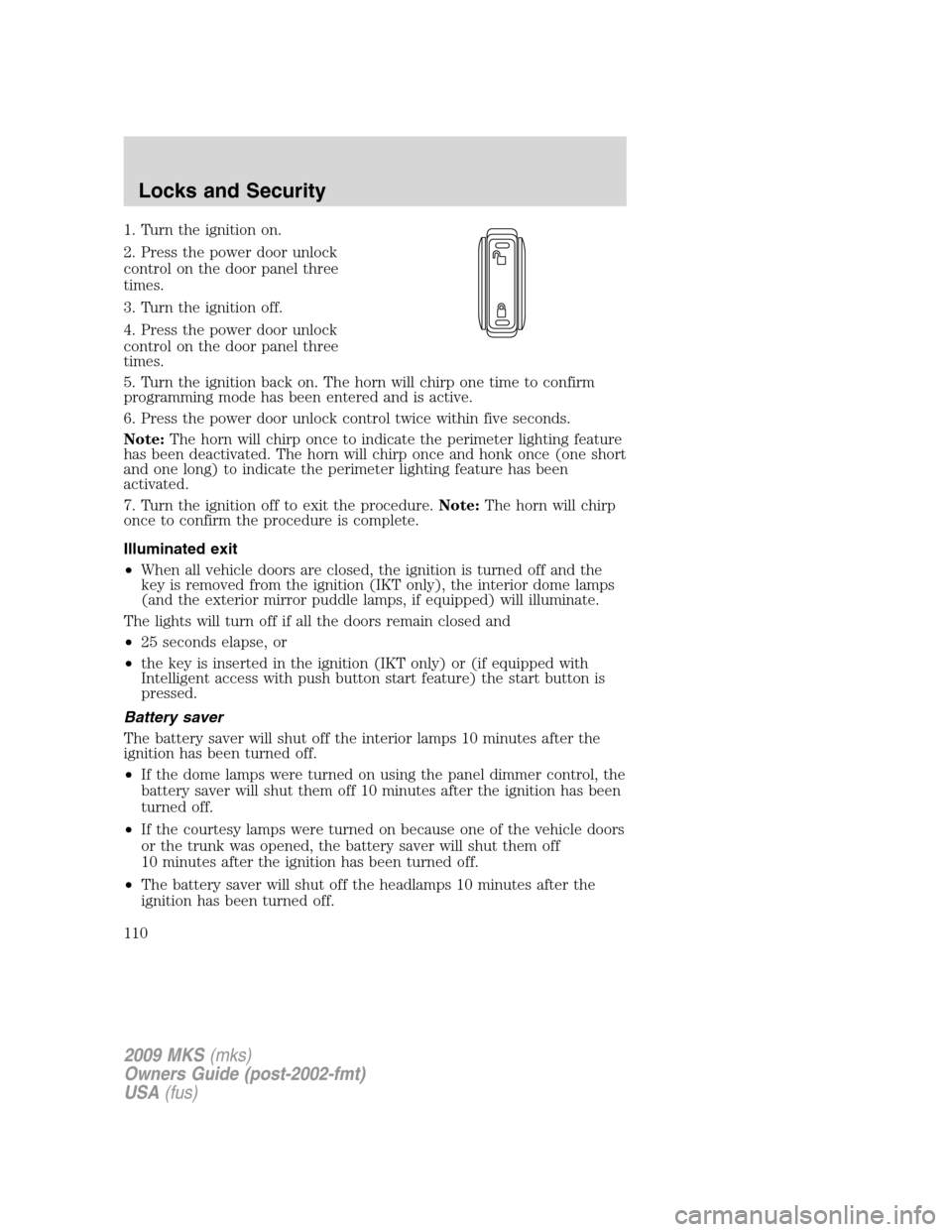

1. Turn the ignition on.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition off.
4. Press the power door unlock
control on the door panel three
times.
5. Turn the ignition back on. The horn will chirp one time to confirm
programming mode has been entered and is active.
6. Press the power door unlock control twice within five seconds.
Note:The horn will chirp once to indicate the perimeter lighting feature
has been deactivated. The horn will chirp once and honk once (one short
and one long) to indicate the perimeter lighting feature has been
activated.
7. Turn the ignition off to exit the procedure.Note:The horn will chirp
once to confirm the procedure is complete.
Illuminated exit
•When all vehicle doors are closed, the ignition is turned off and the
key is removed from the ignition (IKT only), the interior dome lamps
(and the exterior mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition (IKT only) or (if equipped with
Intelligent access with push button start feature) the start button is
pressed.
Battery saver
The battery saver will shut off the interior lamps 10 minutes after the
ignition has been turned off.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned off.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk was opened, the battery saver will shut them off
10 minutes after the ignition has been turned off.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned off.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
110
