entry code LINCOLN MKS 2009 User Guide

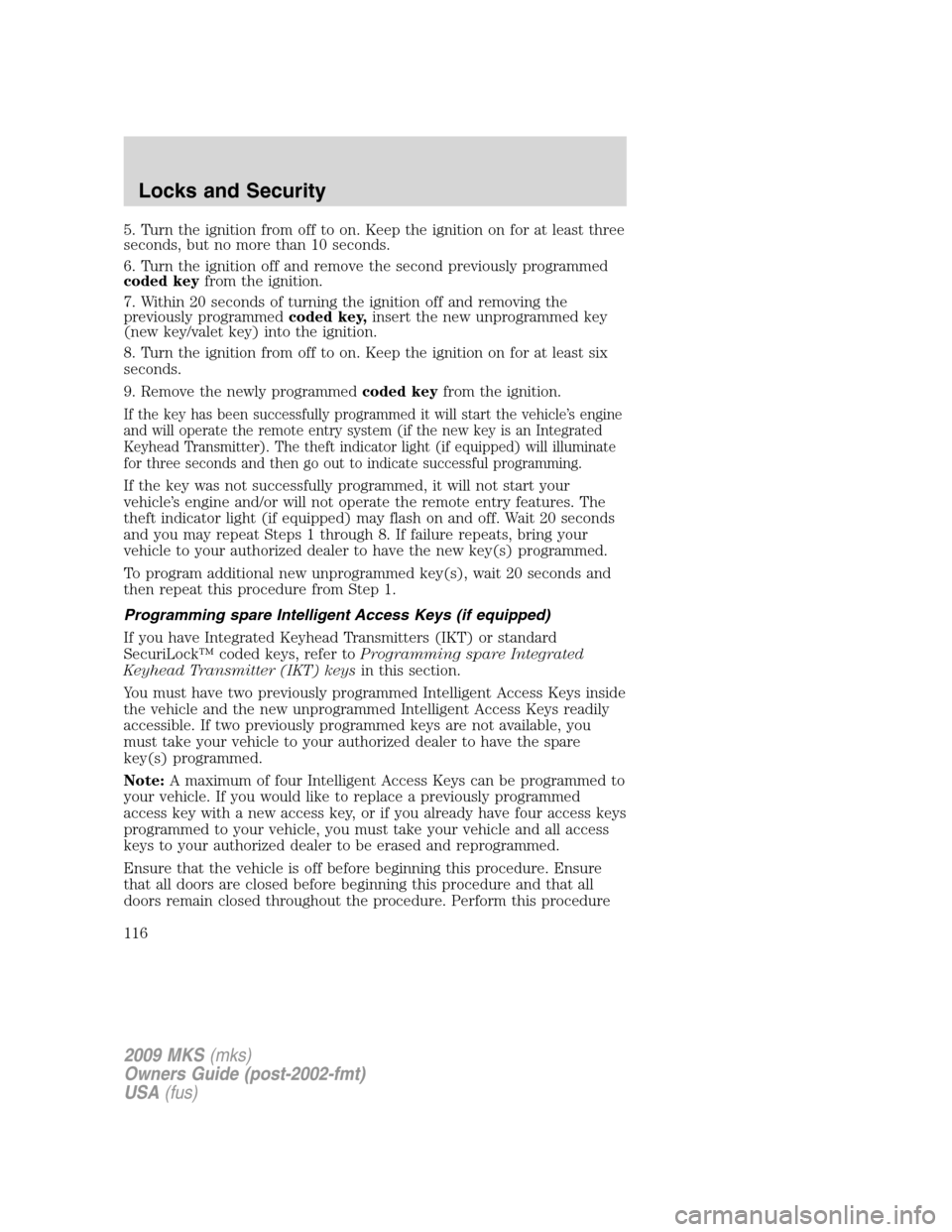

5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded keyfrom the ignition.
7. Within 20 seconds of turning the ignition off and removing the
previously programmedcoded key,insert the new unprogrammed key
(new key/valet key) into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s engine
and will operate the remote entry system (if the new key is an Integrated
Keyhead Transmitter). The theft indicator light (if equipped) will illuminate
for three seconds and then go out to indicate successful programming.
If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
theft indicator light (if equipped) may flash on and off. Wait 20 seconds
and you may repeat Steps 1 through 8. If failure repeats, bring your
vehicle to your authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Programming spare Intelligent Access Keys (if equipped)
If you have Integrated Keyhead Transmitters (IKT) or standard
SecuriLock™ coded keys, refer toProgramming spare Integrated
Keyhead Transmitter (IKT) keysin this section.
You must have two previously programmed Intelligent Access Keys inside
the vehicle and the new unprogrammed Intelligent Access Keys readily
accessible. If two previously programmed keys are not available, you
must take your vehicle to your authorized dealer to have the spare
key(s) programmed.
Note:A maximum of four Intelligent Access Keys can be programmed to
your vehicle. If you would like to replace a previously programmed
access key with a new access key, or if you already have four access keys
programmed to your vehicle, you must take your vehicle and all access
keys to your authorized dealer to be erased and reprogrammed.
Ensure that the vehicle is off before beginning this procedure. Ensure
that all doors are closed before beginning this procedure and that all
doors remain closed throughout the procedure. Perform this procedure
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
116

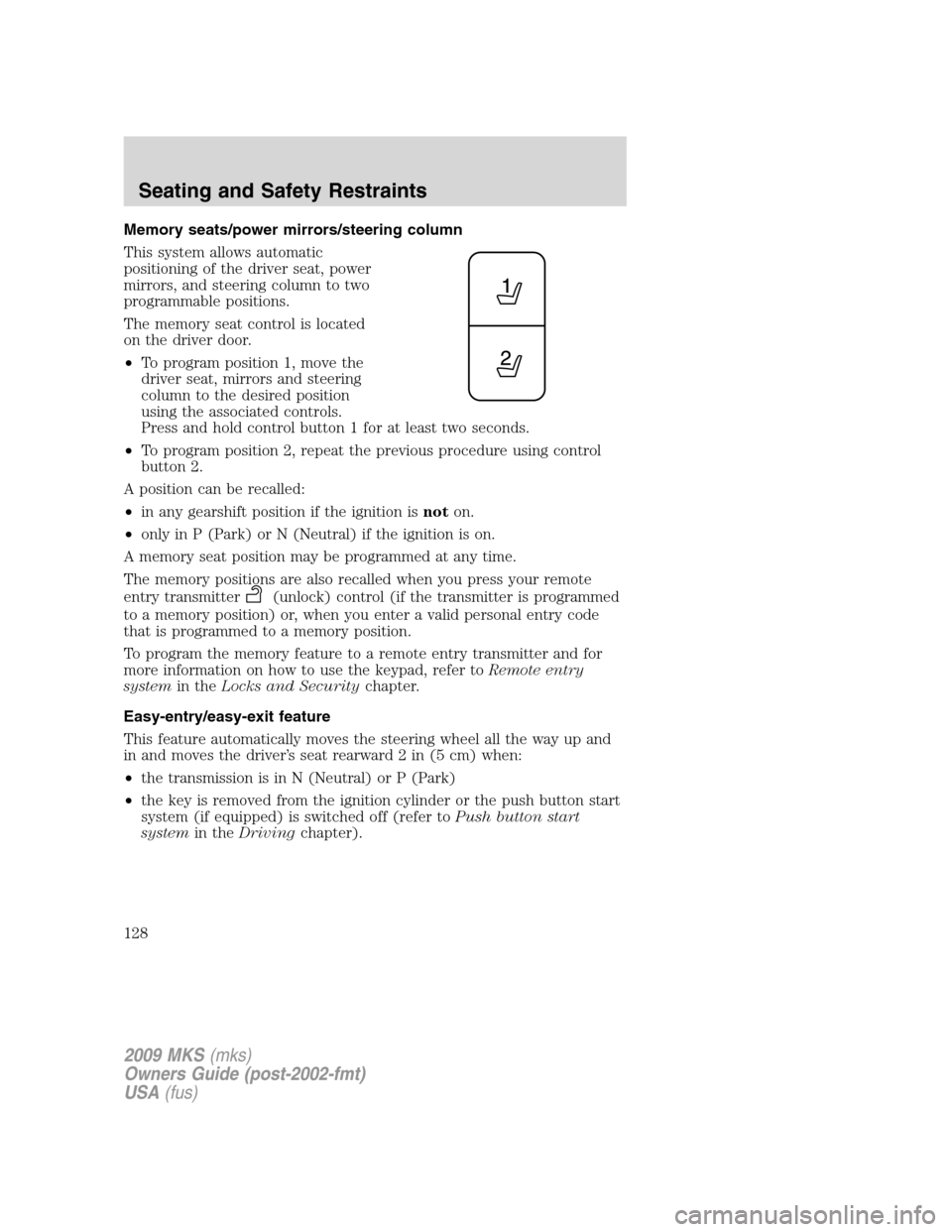

Memory seats/power mirrors/steering column
This system allows automatic
positioning of the driver seat, power
mirrors, and steering column to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors and steering
column to the desired position
using the associated controls.
Press and hold control button 1 for at least two seconds.
•To program position 2, repeat the previous procedure using control
button 2.
A position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
A memory seat position may be programmed at any time.
The memory positions are also recalled when you press your remote
entry transmitter
(unlock) control (if the transmitter is programmed
to a memory position) or, when you enter a valid personal entry code
that is programmed to a memory position.
To program the memory feature to a remote entry transmitter and for
more information on how to use the keypad, refer toRemote entry
systemin theLocks and Securitychapter.
Easy-entry/easy-exit feature
This feature automatically moves the steering wheel all the way up and
in and moves the driver’s seat rearward 2 in (5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the key is removed from the ignition cylinder or the push button start
system (if equipped) is switched off (refer toPush button start
systemin theDrivingchapter).
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
128

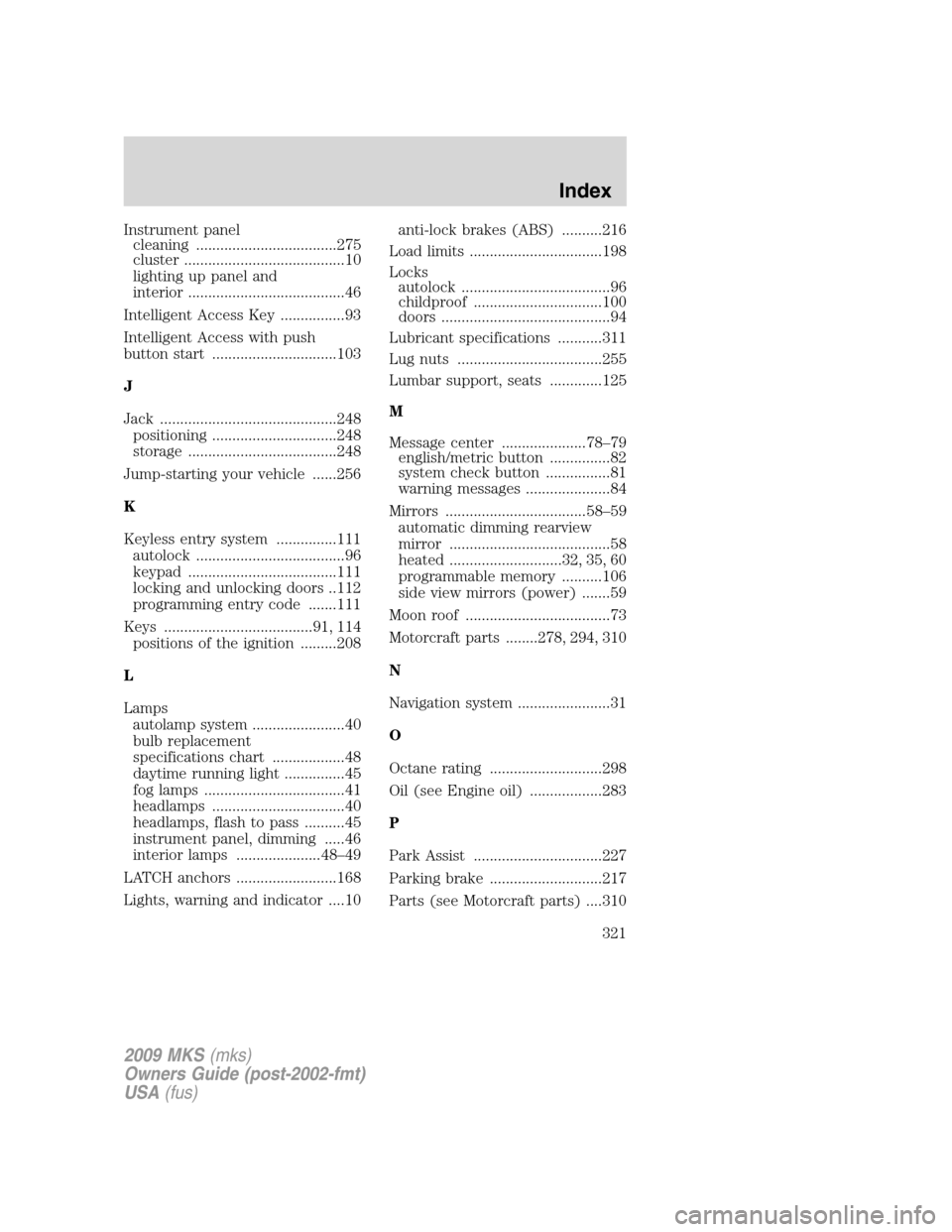

Instrument panel
cleaning ...................................275
cluster ........................................10
lighting up panel and
interior .......................................46
Intelligent Access Key ................93
Intelligent Access with push
button start ...............................103
J
Jack ............................................248
positioning ...............................248
storage .....................................248
Jump-starting your vehicle ......256
K
Keyless entry system ...............111
autolock .....................................96
keypad .....................................111
locking and unlocking doors ..112
programming entry code .......111
Keys .....................................91, 114
positions of the ignition .........208
L
Lamps
autolamp system .......................40
bulb replacement
specifications chart ..................48
daytime running light ...............45
fog lamps ...................................41
headlamps .................................40
headlamps, flash to pass ..........45
instrument panel, dimming .....46
interior lamps .....................48–49
LATCH anchors .........................168
Lights, warning and indicator ....10anti-lock brakes (ABS) ..........216
Load limits .................................198
Locks
autolock .....................................96
childproof ................................100
doors ..........................................94
Lubricant specifications ...........311
Lug nuts ....................................255
Lumbar support, seats .............125
M
Message center .....................78–79
english/metric button ...............82
system check button ................81
warning messages .....................84
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ............................32, 35, 60
programmable memory ..........106
side view mirrors (power) .......59
Moon roof ....................................73
Motorcraft parts ........278, 294, 310
N
Navigation system .......................31
O
Octane rating ............................298
Oil (see Engine oil) ..................283
P
Park Assist ................................227
Parking brake ............................217
Parts (see Motorcraft parts) ....310
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
321
