navigation LINCOLN MKS 2010 User Guide

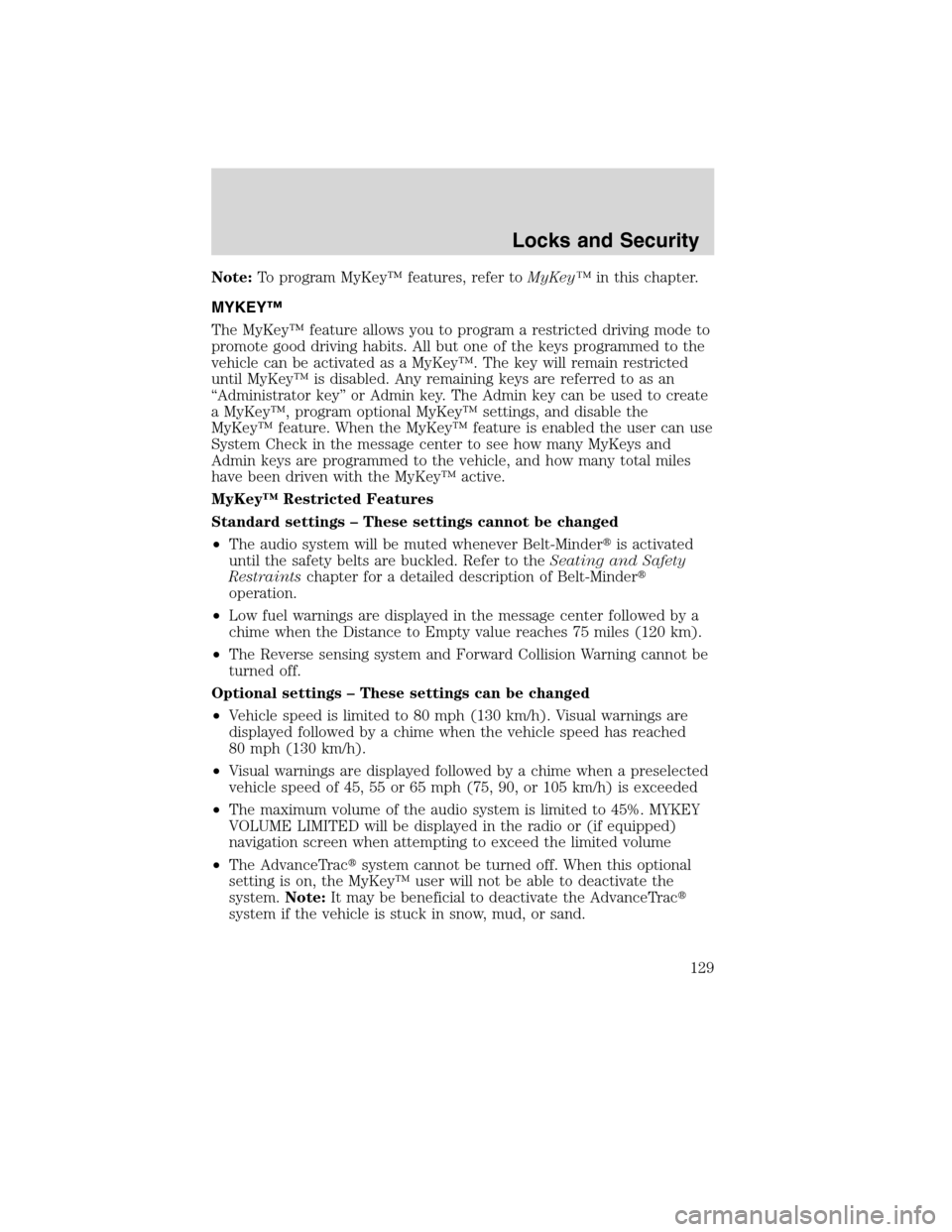

Note:To program MyKey™ features, refer toMyKey™in this chapter.
MYKEY™
The MyKey™ feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey™. The key will remain restricted
until MyKey™ is disabled. Any remaining keys are referred to as an
“Administrator key” or Admin key. The Admin key can be used to create
a MyKey™, program optional MyKey™ settings, and disable the
MyKey™ feature. When the MyKey™ feature is enabled the user can use
System Check in the message center to see how many MyKeys and
Admin keys are programmed to the vehicle, and how many total miles
have been driven with the MyKey™ active.
MyKey™ Restricted Features
Standard settings – These settings cannot be changed
•The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the Distance to Empty value reaches 75 miles (120 km).
•The Reverse sensing system and Forward Collision Warning cannot be
turned off.
Optional settings – These settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or (if equipped)
navigation screen when attempting to exceed the limited volume
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKey™ user will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Locks and Security
129
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

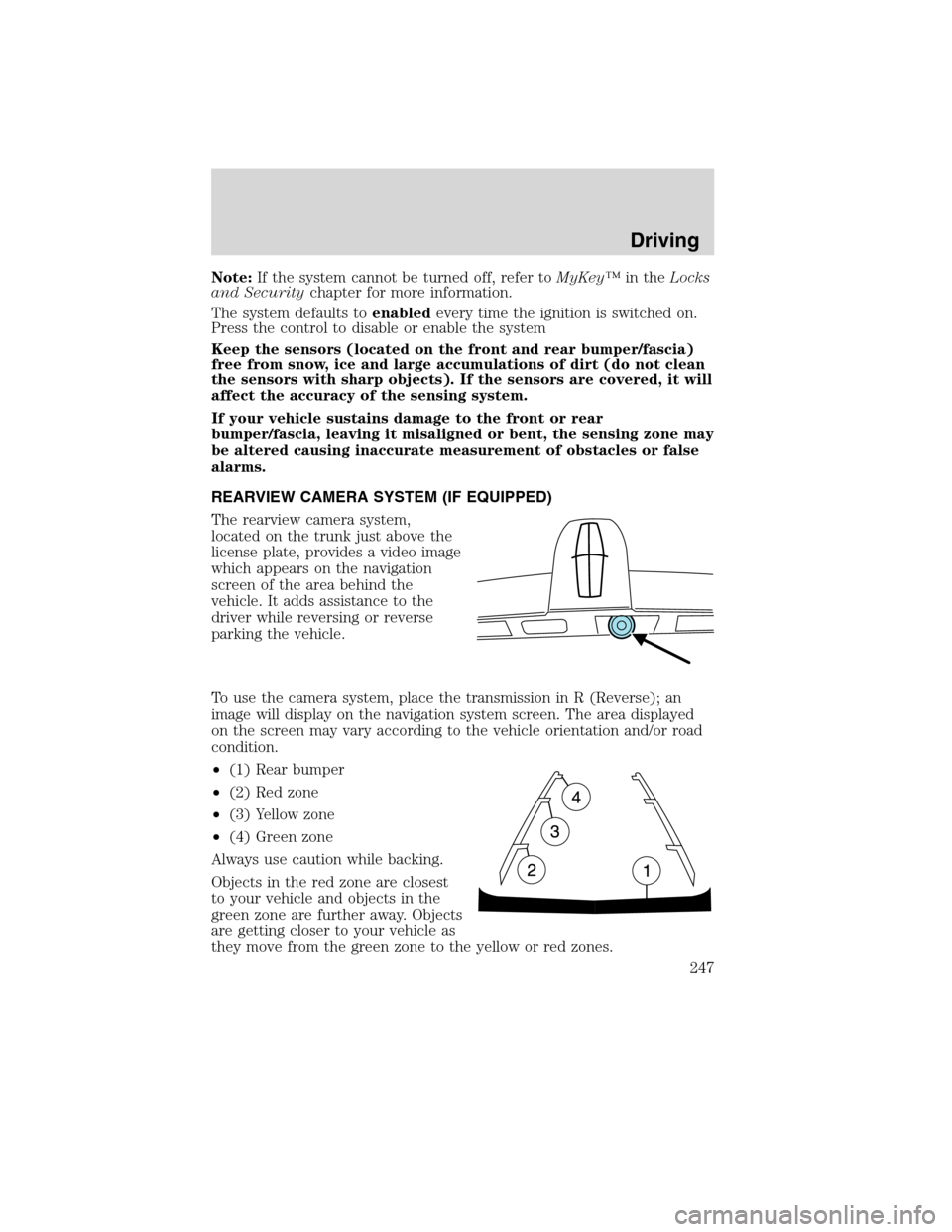

Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
The system defaults toenabledevery time the ignition is switched on.
Press the control to disable or enable the system
Keep the sensors (located on the front and rear bumper/fascia)
free from snow, ice and large accumulations of dirt (do not clean
the sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the sensing system.
If your vehicle sustains damage to the front or rear
bumper/fascia, leaving it misaligned or bent, the sensing zone may
be altered causing inaccurate measurement of obstacles or false
alarms.
REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the trunk just above the
license plate, provides a video image
which appears on the navigation
screen of the area behind the
vehicle. It adds assistance to the
driver while reversing or reverse
parking the vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the navigation system screen. The area displayed
on the screen may vary according to the vehicle orientation and/or road
condition.
•(1) Rear bumper
•(2) Red zone
•(3) Yellow zone
•(4) Green zone
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as
they move from the green zone to the yellow or red zones.
Driving
247
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

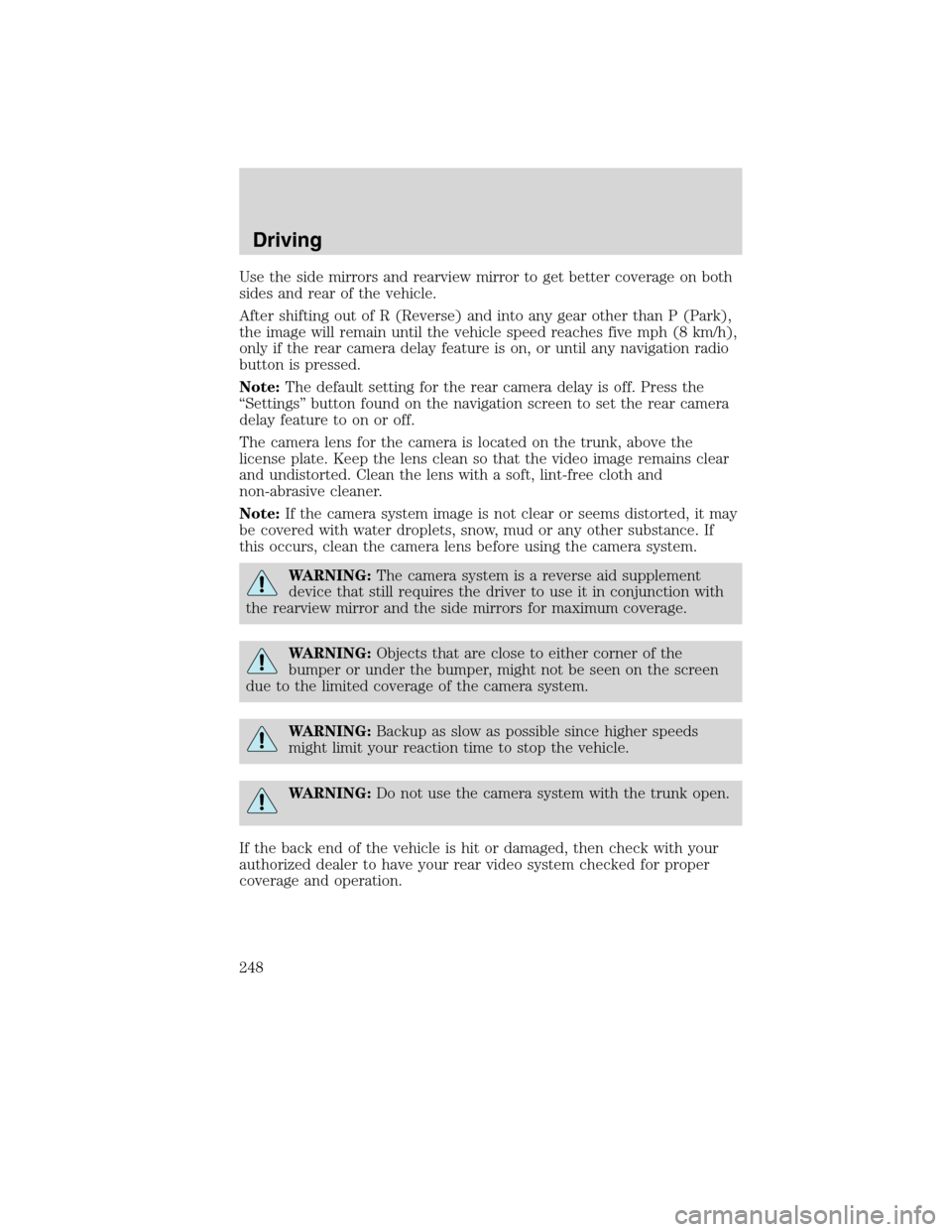

Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
After shifting out of R (Reverse) and into any gear other than P (Park),
the image will remain until the vehicle speed reaches five mph (8 km/h),
only if the rear camera delay feature is on, or until any navigation radio
button is pressed.
Note:The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen to set the rear camera
delay feature to on or off.
The camera lens for the camera is located on the trunk, above the
license plate. Keep the lens clean so that the video image remains clear
and undistorted. Clean the lens with a soft, lint-free cloth and
non-abrasive cleaner.
Note:If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the camera system.
WARNING:The camera system is a reverse aid supplement
device that still requires the driver to use it in conjunction with
the rearview mirror and the side mirrors for maximum coverage.
WARNING:Objects that are close to either corner of the
bumper or under the bumper, might not be seen on the screen
due to the limited coverage of the camera system.
WARNING:Backup as slow as possible since higher speeds
might limit your reaction time to stop the vehicle.
WARNING:Do not use the camera system with the trunk open.
If the back end of the vehicle is hit or damaged, then check with your
authorized dealer to have your rear video system checked for proper
coverage and operation.
Driving
248
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

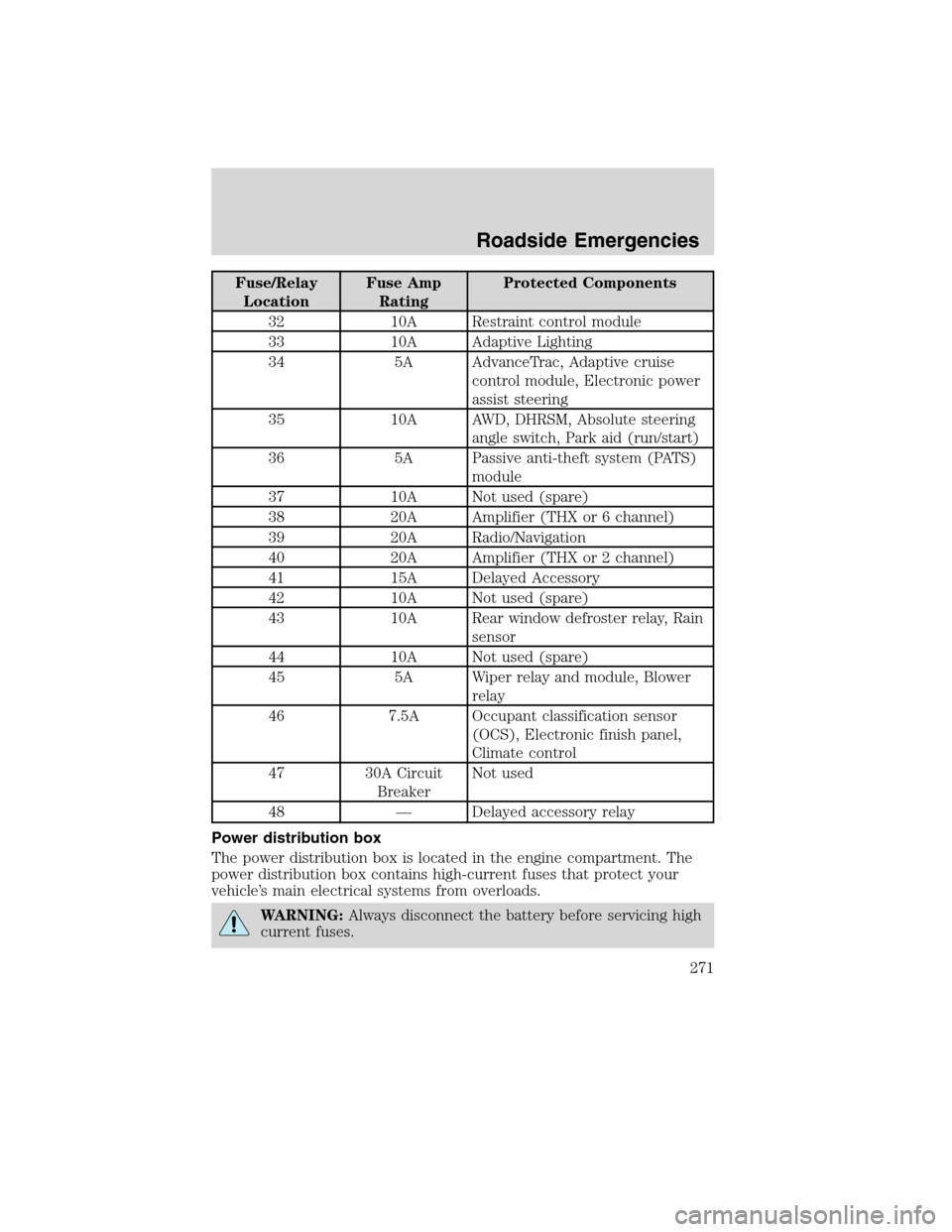

Fuse/Relay
LocationFuse Amp
RatingProtected Components
32 10A Restraint control module
33 10A Adaptive Lighting
34 5A AdvanceTrac, Adaptive cruise
control module, Electronic power
assist steering
35 10A AWD, DHRSM, Absolute steering
angle switch, Park aid (run/start)
36 5A Passive anti-theft system (PATS)
module
37 10A Not used (spare)
38 20A Amplifier (THX or 6 channel)
39 20A Radio/Navigation
40 20A Amplifier (THX or 2 channel)
41 15A Delayed Accessory
42 10A Not used (spare)
43 10A Rear window defroster relay, Rain
sensor
44 10A Not used (spare)
45 5A Wiper relay and module, Blower
relay
46 7.5A Occupant classification sensor
(OCS), Electronic finish panel,
Climate control
47 30A Circuit
BreakerNot used
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
271
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

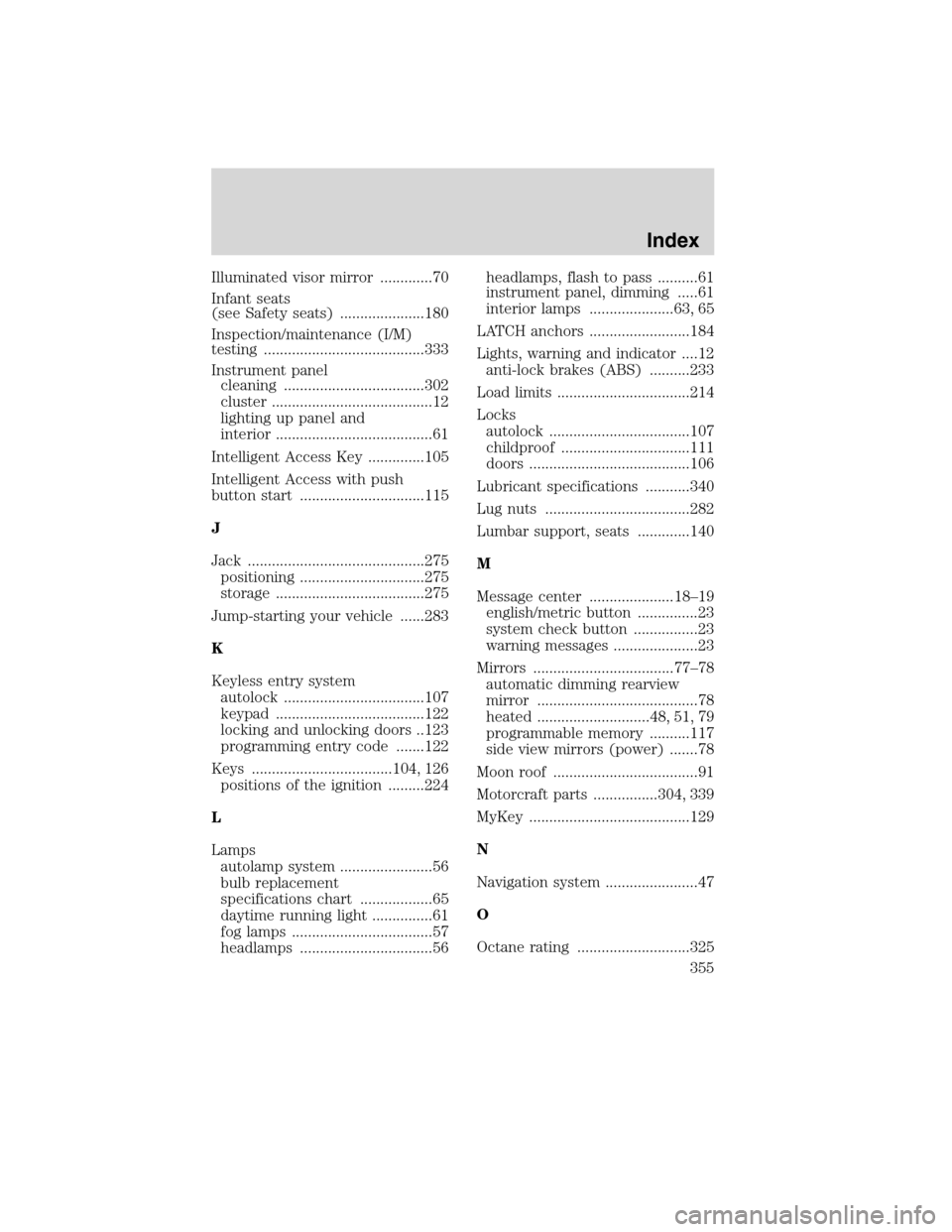

Illuminated visor mirror .............70
Infant seats
(see Safety seats) .....................180
Inspection/maintenance (I/M)
testing ........................................333
Instrument panel
cleaning ...................................302
cluster ........................................12
lighting up panel and
interior .......................................61
Intelligent Access Key ..............105
Intelligent Access with push
button start ...............................115
J
Jack ............................................275
positioning ...............................275
storage .....................................275
Jump-starting your vehicle ......283
K
Keyless entry system
autolock ...................................107
keypad .....................................122
locking and unlocking doors ..123
programming entry code .......122
Keys ...................................104, 126
positions of the ignition .........224
L
Lamps
autolamp system .......................56
bulb replacement
specifications chart ..................65
daytime running light ...............61
fog lamps ...................................57
headlamps .................................56headlamps, flash to pass ..........61
instrument panel, dimming .....61
interior lamps .....................63, 65
LATCH anchors .........................184
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........233
Load limits .................................214
Locks
autolock ...................................107
childproof ................................111
doors ........................................106
Lubricant specifications ...........340
Lug nuts ....................................282
Lumbar support, seats .............140
M
Message center .....................18–19
english/metric button ...............23
system check button ................23
warning messages .....................23
Mirrors ...................................77–78
automatic dimming rearview
mirror ........................................78
heated ............................48, 51, 79
programmable memory ..........117
side view mirrors (power) .......78
Moon roof ....................................91
Motorcraft parts ................304, 339
MyKey ........................................129
N
Navigation system .......................47
O
Octane rating ............................325
Index
355
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)
