Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 17
Message center 18
Entertainment Systems 31
AM/FM stereo with CDX6/MP3 31
Auxiliary input jack (Line in) 39
USB port 41
Satellite radio information 44
Navigation system 47
SYNC47
Climate Controls 48
Dual automatic temperature control 48
Navigation system based climate control 51
Rear window defroster 55
Lights 56
Headlamps 56
Turn signal control 63
Bulb replacement 64
Driver Controls 68
Windshield wiper/washer control 68
Steering wheel adjustment 69
Power windows 74
Mirrors 77
Speed control 79
Adaptive cruise control 81

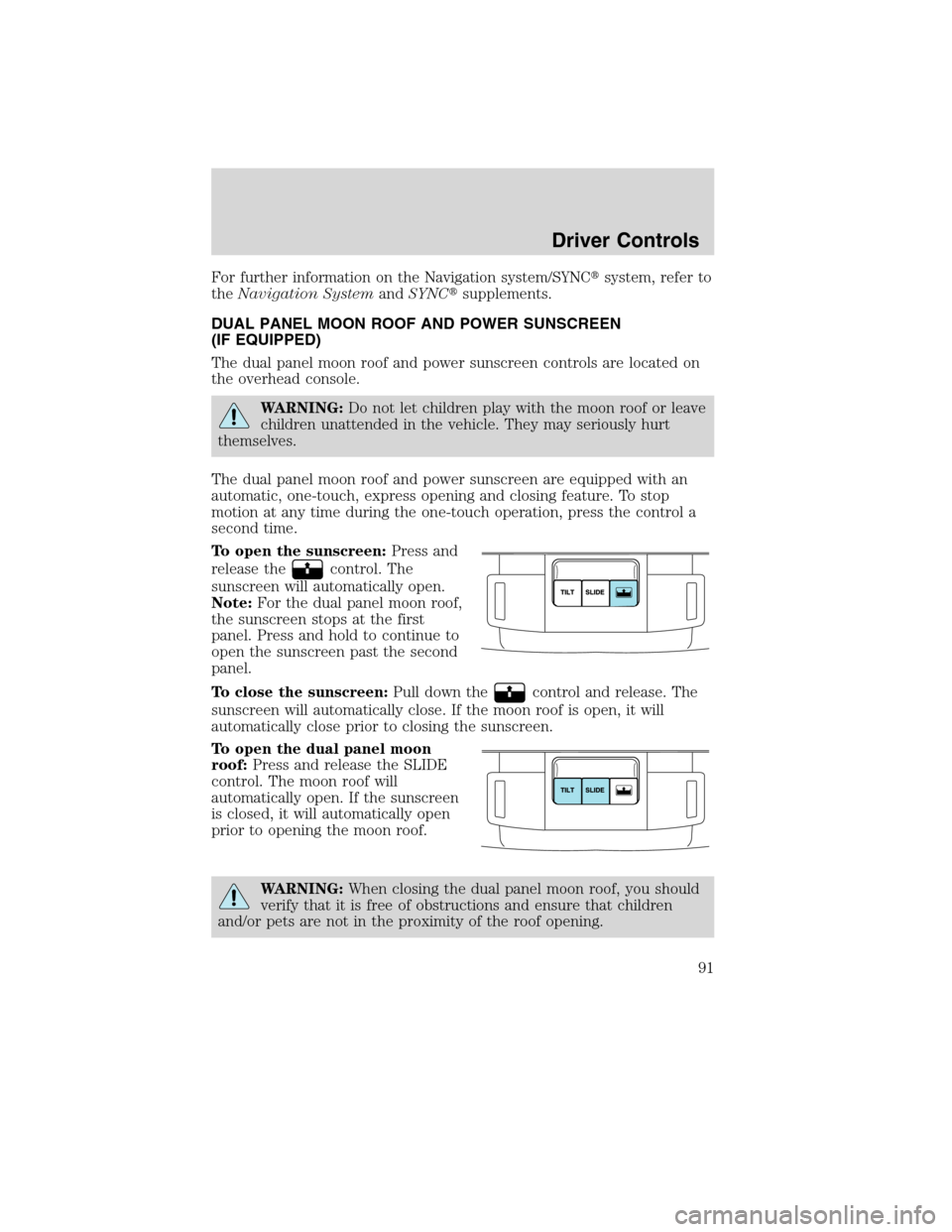

Moon roof 91
Table of Contents
1
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

FADE:PressSEEKto adjust the audio between the back (B)
and front (F) speakers.
SPEED COMPENSATED VOLUME:With this feature on, radio volume
automatically gets louder with increasing vehicle speed to compensate
for road and wind noise.
The default setting isoff.
Use
SEEKto adjust between SPEED OFF and levels1–7:
Increasing the level from 1 (lowest setting) to 7 (highest setting) allows
the radio volume to automatically change slightly with vehicle speed to
compensate for road and wind noise.
Recommended level is1–3;SPEED OFF turns the feature off and level 7
is the maximum setting.
Occupancy mode (if equipped):Press SOUND repeatedly to reach the
Occupancy mode setting. Press
SEEKto select DSP STEREO
MODE or THX SURROUND.
Extra Features
AUX:Press repeatedly to access SYNCor LINE IN (auxiliary audio
mode).
For location and further information on auxiliary audio mode, refer to
Auxiliary input jacklater in this chapter. For more information on
SYNC, refer to theSYNCsupplement.
OK
/(Play/Pause):Your vehicle is equipped with special phone
and media features which will require you to confirm commands by
pressing OK. Refer to theSYNCinformation included with your vehicle
for further information.
(Phone):Press to access SYNC PHONE features. Please refer to the
SYNCinformation included with your vehicle for further information.
Audio system–Navigation system based (if equipped)
If your vehicle is equipped with the navigation system, it will have an
integrated navigation/audio system. See theNavigation system
supplement for operating instructions on using this audio system.
Entertainment Systems
38
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

Auxiliary input jack (Line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
The Auxiliary Input Jack provides a
way to connect your portable music
player to the in-vehicle audio
system. This allows the audio from a
portable music player to be played
through the vehicle speakers with
high fidelity. To achieve optimal
performance, please observe the
following instructions when
attaching your portable music
device to the audio system.
If your vehicle is equipped with a
navigation system, refer to
Auxiliary input jacksection in the
Audio featureschapter of your
Navigation systemsupplement.
Required equipment:
1. Any portable music player designed to be used with headphones
2. An audio extension cable with stereo male 1/8 in. (3.5 mm)
connectors at each end
To play your portable music player using the auxiliary input jack:
1. Begin with the vehicle parked and the radio turned off.
2. Ensure that the battery in your portable music player is new or fully
charged and that the device is turned off.
LINE IN
Entertainment Systems
39
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

USB port
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Your vehicle is equipped with a USB
port inside your center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
Accessing and using your USB
portin theSYNCsupplement or
Navigation systemsupplement.
GENERAL AUDIO INFORMATION
Radio frequencies:
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.7, 87.9–107.7, 107.9 MHz
LINE IN
Entertainment Systems
41
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

Do not use any irregular shaped
CDs or discs with a scratch
protection film attached.
CDs with homemade paper
(adhesive) labels should not be
inserted into the CD player as
the label may peel and cause the
CD to become jammed. It is
recommended that homemade
CDs be identified with
permanent felt tip marker rather
than adhesive labels. Ballpoint pens may damage CDs. Please
contact your authorized dealer for further information.
Audio system warranty and service
Refer to theWarranty Guide/Customer Information Guidefor audio
system warranty information. If service is necessary, see your dealer or
qualified technician.
MP3 track and folder structure
Your MP3 system recognizes MP3 individual tracks and folder structure
as follows:
•There are two different modes for MP3 disc playback: MP3 track mode
(system default) and MP3 folder mode. For more information on track
and folder mode, refer toSample MP3 structurein the following
section.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.
Note:The maximum number of playable MP3 files may be less
depending on the structure of the CD and exact model of radio
present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders will help with navigation
through the disc files.
Entertainment Systems
43
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

Radio Display Condition Action Required
NO TEXT Category
information not
available.Category information not
available at this time on
this channel. The system is
working properly.
NO SIGNAL Loss of signal from
the SIRIUS satellite
or SIRIUS tower to
the vehicle antenna.You are in a location that is
blocking the SIRIUS signal
(i.e., tunnel, under an
overpass, dense foliage,
etc). The system is working
properly. When you move
into an open area, the
signal should return.
UPDATING Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
CALL SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUS Satellite
Radio.Call SIRIUS at
1–888–539–7474 to
re-activate or resolve
subscription issues.
NAVIGATION SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with a navigation system. Refer to the
Navigation Systemsupplement for further information.
SYNC
Your vehicle is equipped with SYNC, a hands-free communications and
entertainment system with special phone and media features. For more
information, please refer to theSYNCsupplement or to theSYNC
section in theNavigation Systemsupplement (if equipped).
Entertainment Systems
47
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL WITH
HEATED AND COOLED SEATS
(NAVIGATION SYSTEM BASED–IF EQUIPPED)
Temperature conversion:To switch between Fahrenheit and Celsius,
refer toMessage centerin theInstrument Clusterchapter.
1.Climate:Press to control the climate control system through the
touch display screen. SeeTouchscreen functionslater in this section.
2.Passenger temperature:Press to activate separate passenger
temperature control and turn the knob to increase/decrease the air
temperature on the passenger side of the vehicle.
3.
Passenger heated seat:Press to heat the passenger heated seat.
Refer toHeated and cooled seatsin theSeating and Safety Restraints
chapter for more information.
4.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C,
(defrost) and
(floor/defrost).
A/C
Climate Controls
51
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

VOICE COMMANDS IN CLIMATE MODE
Please refer to theVoice commands in climate modesection of the
Navigation systemsupplement for more information on using voice
commands with the climate control system.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
system off or with recirculated air engaged.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For maximum cooling performance (MAX A/C):
During extreme high ambient temperatures when idling stationary for
extended periods of time in gear, it is recommended to run the A/C in
MAX A/C, reduce blower fan speed from the highest setting and put the
vehicle’s transmission into the PARK gear position (automatic
transmission only) to continue to receive cool air from your A/C system.
In AUTO mode, press AUTO control and set to desired temperature.
In manual override mode, select
or, A/C and recirculated
air
and set the temperature to 60°F (16°C). Set the fan to the
highest speed initially, then adjust to maintain passenger comfort.
•To improve the A/C cool down, drive with the windows slightly open
for 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan to the highest speed.
5. Direct the outer instrument panel vents toward the side windows.
Climate Controls
54
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

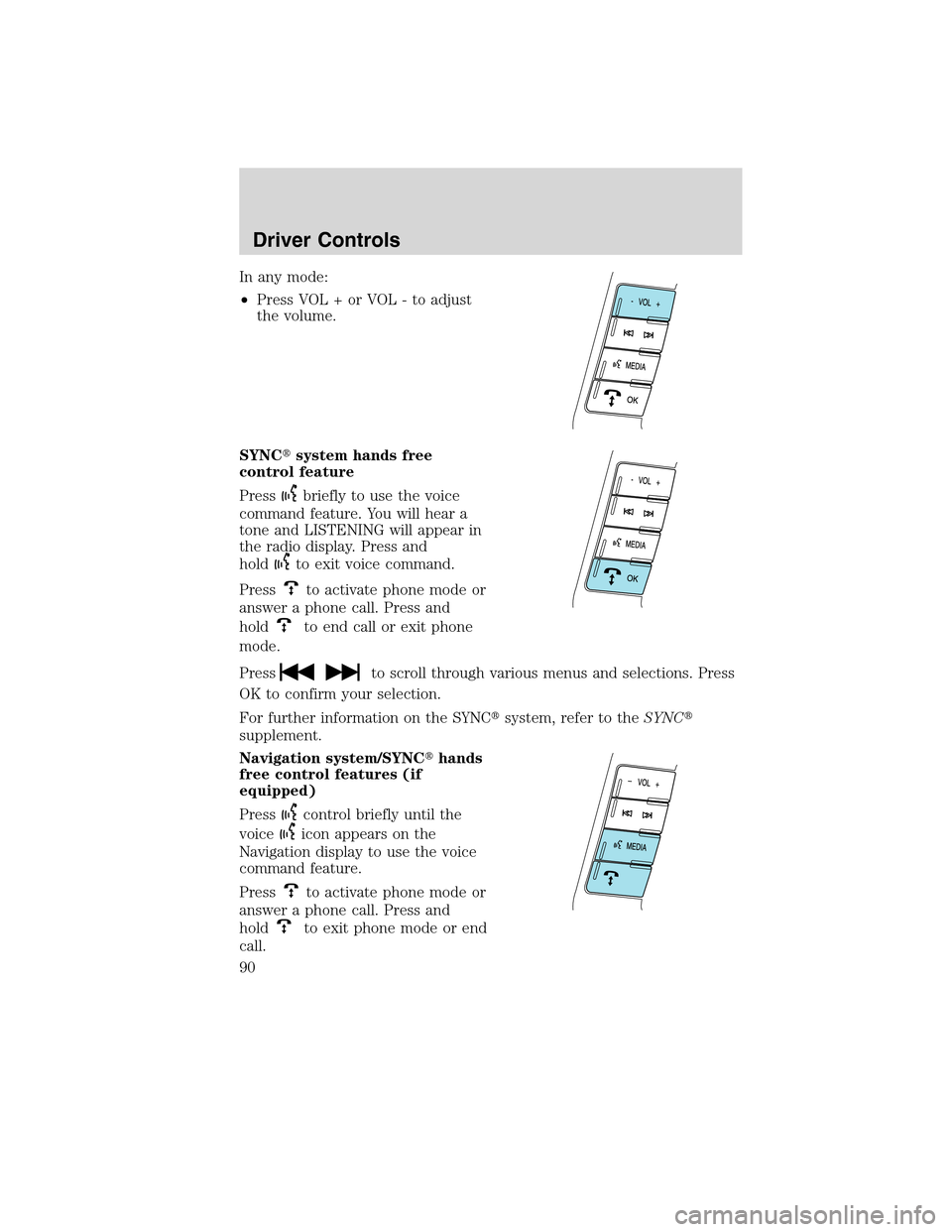

In any mode:
•Press VOL + or VOL - to adjust
the volume.
SYNCsystem hands free
control feature
Press
briefly to use the voice
command feature. You will hear a
tone and LISTENING will appear in
the radio display. Press and
hold
to exit voice command.
Press
to activate phone mode or
answer a phone call. Press and
hold
to end call or exit phone
mode.
Press
to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNCsystem, refer to theSYNC
supplement.
Navigation system/SYNChands
free control features (if
equipped)
Press
control briefly until the
voice
icon appears on the
Navigation display to use the voice
command feature.
Press
to activate phone mode or
answer a phone call. Press and
hold
to exit phone mode or end
call.
Driver Controls
90
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)

For further information on the Navigation system/SYNCsystem, refer to
theNavigation SystemandSYNCsupplements.
DUAL PANEL MOON ROOF AND POWER SUNSCREEN
(IF EQUIPPED)
The dual panel moon roof and power sunscreen controls are located on
the overhead console.
WARNING:Do not let children play with the moon roof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
The dual panel moon roof and power sunscreen are equipped with an
automatic, one-touch, express opening and closing feature. To stop
motion at any time during the one-touch operation, press the control a
second time.
To open the sunscreen:Press and
release the
control. The
sunscreen will automatically open.
Note:For the dual panel moon roof,
the sunscreen stops at the first
panel. Press and hold to continue to
open the sunscreen past the second
panel.
To close the sunscreen:Pull down the
control and release. The
sunscreen will automatically close. If the moon roof is open, it will
automatically close prior to closing the sunscreen.
To open the dual panel moon
roof:Press and release the SLIDE
control. The moon roof will
automatically open. If the sunscreen
is closed, it will automatically open
prior to opening the moon roof.
WARNING:When closing the dual panel moon roof, you should
verify that it is free of obstructions and ensure that children
and/or pets are not in the proximity of the roof opening.
Driver Controls
91
2010 MKS(mks)
Owners Guide(own2002), 1st Printing
USA(fus)
