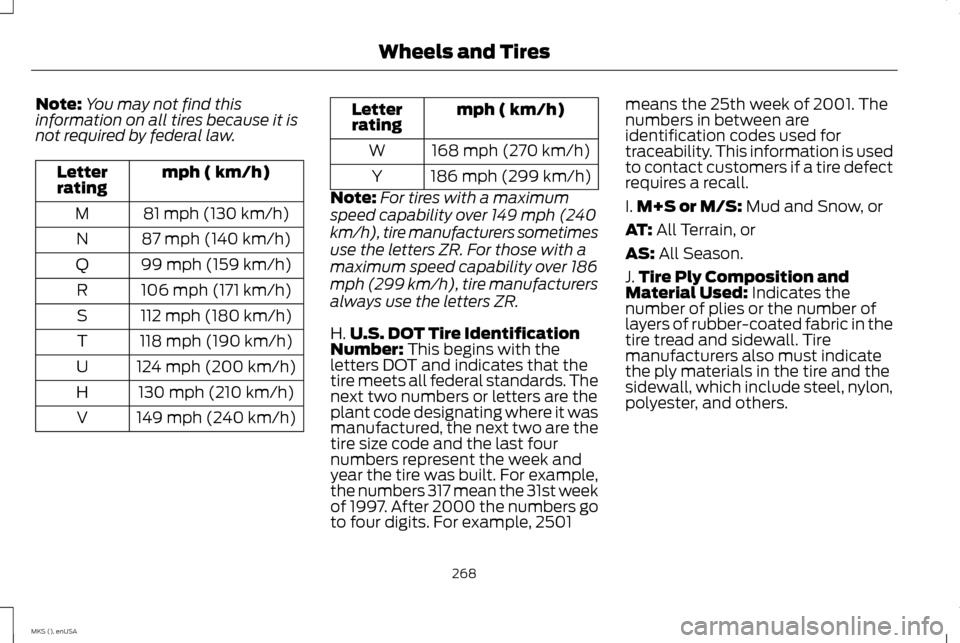

Note:
You may not find this
information on all tires because it is
not required by federal law. mph ( km/h)
Letter
rating
81 mph (130 km/h)
M
87 mph (140 km/h)
N
99 mph (159 km/h)
Q
106 mph (171 km/h)
R
112 mph (180 km/h)
S
118 mph (190 km/h)
T
124 mph (200 km/h)
U
130 mph (210 km/h)
H
149 mph (240 km/h)
V mph ( km/h)
Letter
rating
168 mph (270 km/h)
W
186 mph (299 km/h)
Y
Note: For tires with a maximum
speed capability over 149 mph (240
km/h), tire manufacturers sometimes
use the letters ZR. For those with a
maximum speed capability over 186
mph (299 km/h), tire manufacturers
always use the letters ZR.
H. U.S. DOT Tire Identification
Number: This begins with the
letters DOT and indicates that the
tire meets all federal standards. The
next two numbers or letters are the
plant code designating where it was
manufactured, the next two are the
tire size code and the last four
numbers represent the week and
year the tire was built. For example,
the numbers 317 mean the 31st week
of 1997. After 2000 the numbers go
to four digits. For example, 2501 means the 25th week of 2001. The
numbers in between are
identification codes used for
traceability. This information is used
to contact customers if a tire defect
requires a recall.
I.
M+S or M/S:
Mud and Snow, or
AT:
All Terrain, or
AS:
All Season.
J. Tire Ply Composition and
Material Used:
Indicates the
number of plies or the number of
layers of rubber-coated fabric in the
tire tread and sidewall. Tire
manufacturers also must indicate
the ply materials in the tire and the
sidewall, which include steel, nylon,
polyester, and others.
268
MKS (), enUSA Wheels and Tires

K.
Maximum Load: Indicates the
maximum load in kilograms and
pounds that can be carried by the
tire. See the Safety Compliance
Certification Label (affixed to either
the door hinge pillar, door-latch
post, or the door edge that meets
the door-latch post, next to the
driver's seating position), for the
correct tire pressure for your vehicle.
L. Treadwear, Traction and
Temperature Grades:
269
MKS (), enUSA Wheels and Tires

•

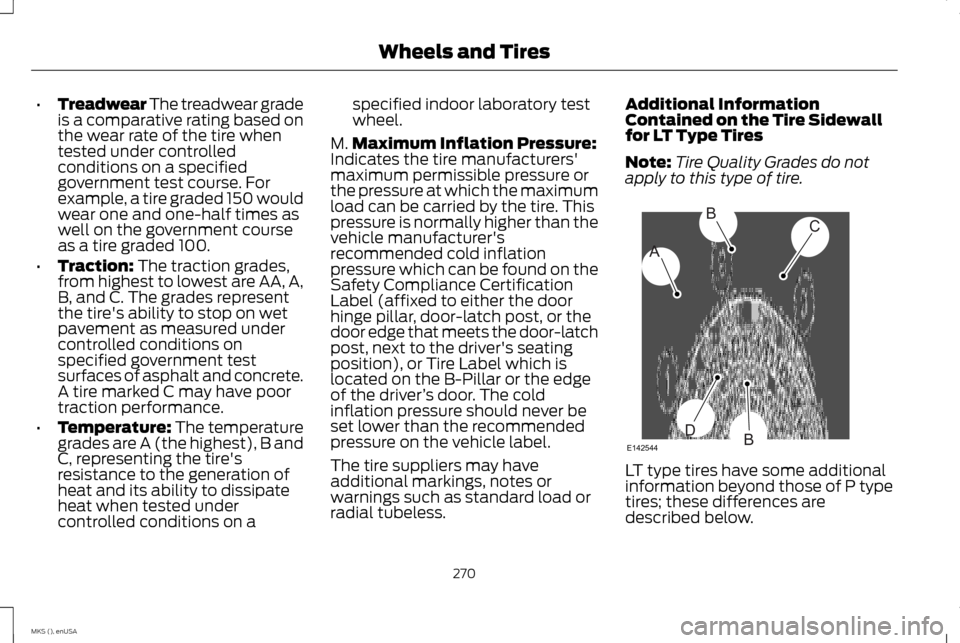

Treadwear The treadwear grade
is a comparative rating based on
the wear rate of the tire when
tested under controlled
conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half times as
well on the government course
as a tire graded 100.
• Traction: The traction grades,
from highest to lowest are AA, A,
B, and C. The grades represent
the tire's ability to stop on wet
pavement as measured under
controlled conditions on
specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor
traction performance.
• Temperature:
The temperature
grades are A (the highest), B and
C, representing the tire's
resistance to the generation of
heat and its ability to dissipate
heat when tested under
controlled conditions on a specified indoor laboratory test
wheel.
M. Maximum Inflation Pressure:
Indicates the tire manufacturers'
maximum permissible pressure or
the pressure at which the maximum
load can be carried by the tire. This
pressure is normally higher than the
vehicle manufacturer's
recommended cold inflation
pressure which can be found on the
Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or the
door edge that meets the door-latch
post, next to the driver's seating
position), or Tire Label which is
located on the B-Pillar or the edge
of the driver ’s door. The cold
inflation pressure should never be
set lower than the recommended
pressure on the vehicle label.
The tire suppliers may have
additional markings, notes or
warnings such as standard load or
radial tubeless. Additional Information
Contained on the Tire Sidewall
for LT Type Tires
Note:
Tire Quality Grades do not
apply to this type of tire. LT type tires have some additional
information beyond those of P type
tires; these differences are
described below.
270
MKS (), enUSA Wheels and TiresA
BC
BDE142544

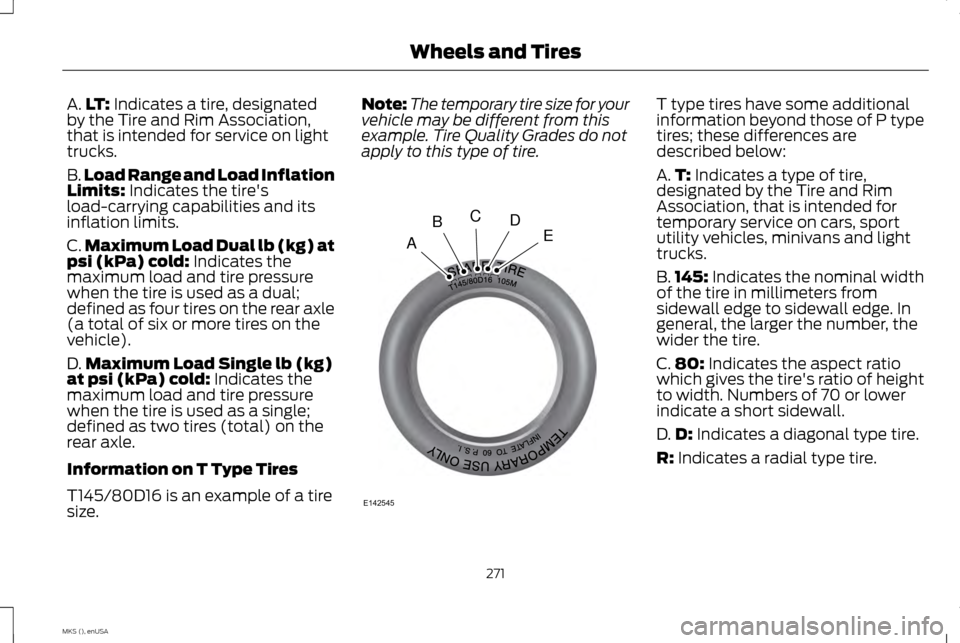

A.
LT: Indicates a tire, designated
by the Tire and Rim Association,
that is intended for service on light
trucks.
B. Load Range and Load Inflation
Limits:
Indicates the tire's
load-carrying capabilities and its
inflation limits.
C. Maximum Load Dual lb (kg) at
psi (kPa) cold:
Indicates the
maximum load and tire pressure
when the tire is used as a dual;
defined as four tires on the rear axle
(a total of six or more tires on the
vehicle).
D. Maximum Load Single lb (kg)
at psi (kPa) cold:
Indicates the
maximum load and tire pressure
when the tire is used as a single;
defined as two tires (total) on the
rear axle.
Information on T Type Tires
T145/80D16 is an example of a tire
size. Note:
The temporary tire size for your
vehicle may be different from this
example. Tire Quality Grades do not
apply to this type of tire. T type tires have some additional
information beyond those of P type
tires; these differences are
described below:
A.
T:
Indicates a type of tire,
designated by the Tire and Rim
Association, that is intended for
temporary service on cars, sport
utility vehicles, minivans and light
trucks.
B. 145:
Indicates the nominal width
of the tire in millimeters from
sidewall edge to sidewall edge. In
general, the larger the number, the
wider the tire.
C. 80:
Indicates the aspect ratio
which gives the tire's ratio of height
to width. Numbers of 70 or lower
indicate a short sidewall.
D. D:
Indicates a diagonal type tire.
R:
Indicates a radial type tire.
271
MKS (), enUSA Wheels and TiresA
BCDE
E142545

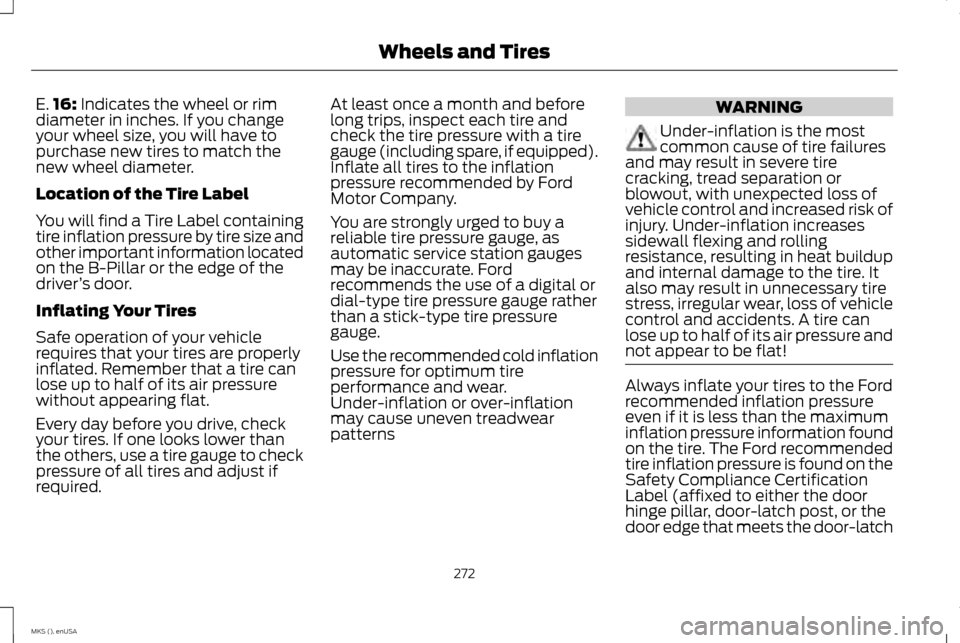

E.
16: Indicates the wheel or rim
diameter in inches. If you change
your wheel size, you will have to
purchase new tires to match the
new wheel diameter.
Location of the Tire Label
You will find a Tire Label containing
tire inflation pressure by tire size and
other important information located
on the B-Pillar or the edge of the
driver ’s door.
Inflating Your Tires
Safe operation of your vehicle
requires that your tires are properly
inflated. Remember that a tire can
lose up to half of its air pressure
without appearing flat.
Every day before you drive, check
your tires. If one looks lower than
the others, use a tire gauge to check
pressure of all tires and adjust if
required. At least once a month and before
long trips, inspect each tire and
check the tire pressure with a tire
gauge (including spare, if equipped).
Inflate all tires to the inflation
pressure recommended by Ford
Motor Company.
You are strongly urged to buy a
reliable tire pressure gauge, as
automatic service station gauges
may be inaccurate. Ford
recommends the use of a digital or
dial-type tire pressure gauge rather
than a stick-type tire pressure
gauge.
Use the recommended cold inflation
pressure for optimum tire
performance and wear.
Under-inflation or over-inflation
may cause uneven treadwear
patterns WARNING
Under-inflation is the most
common cause of tire failures
and may result in severe tire
cracking, tread separation or
blowout, with unexpected loss of
vehicle control and increased risk of
injury. Under-inflation increases
sidewall flexing and rolling
resistance, resulting in heat buildup
and internal damage to the tire. It
also may result in unnecessary tire
stress, irregular wear, loss of vehicle
control and accidents. A tire can
lose up to half of its air pressure and
not appear to be flat! Always inflate your tires to the Ford
recommended inflation pressure
even if it is less than the maximum
inflation pressure information found
on the tire. The Ford recommended
tire inflation pressure is found on the
Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or the
door edge that meets the door-latch
272
MKS (), enUSA Wheels and Tires

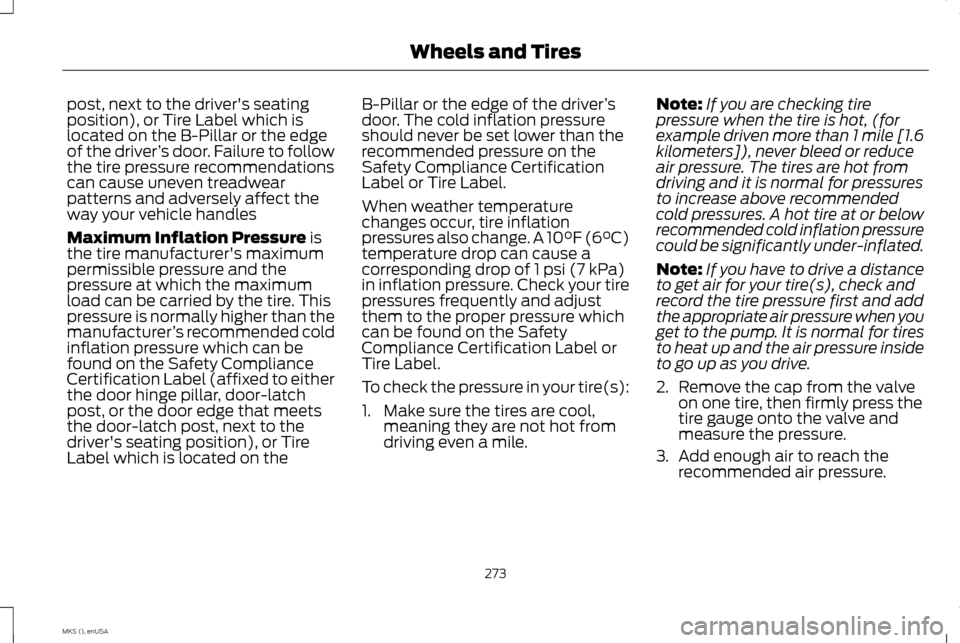

post, next to the driver's seating
position), or Tire Label which is
located on the B-Pillar or the edge
of the driver
’s door. Failure to follow
the tire pressure recommendations
can cause uneven treadwear
patterns and adversely affect the
way your vehicle handles
Maximum Inflation Pressure is
the tire manufacturer's maximum
permissible pressure and the
pressure at which the maximum
load can be carried by the tire. This
pressure is normally higher than the
manufacturer ’s recommended cold
inflation pressure which can be
found on the Safety Compliance
Certification Label (affixed to either
the door hinge pillar, door-latch
post, or the door edge that meets
the door-latch post, next to the
driver's seating position), or Tire
Label which is located on the B-Pillar or the edge of the driver
’s
door. The cold inflation pressure
should never be set lower than the
recommended pressure on the
Safety Compliance Certification
Label or Tire Label.
When weather temperature
changes occur, tire inflation
pressures also change. A 10°F (6°C)
temperature drop can cause a
corresponding drop of 1 psi (7 kPa)
in inflation pressure. Check your tire
pressures frequently and adjust
them to the proper pressure which
can be found on the Safety
Compliance Certification Label or
Tire Label.
To check the pressure in your tire(s):
1. Make sure the tires are cool, meaning they are not hot from
driving even a mile. Note:
If you are checking tire
pressure when the tire is hot, (for
example driven more than 1 mile [1.6
kilometers]), never bleed or reduce
air pressure. The tires are hot from
driving and it is normal for pressures
to increase above recommended
cold pressures. A hot tire at or below
recommended cold inflation pressure
could be significantly under-inflated.
Note: If you have to drive a distance
to get air for your tire(s), check and
record the tire pressure first and add
the appropriate air pressure when you
get to the pump. It is normal for tires
to heat up and the air pressure inside
to go up as you drive.
2. Remove the cap from the valve
on one tire, then firmly press the
tire gauge onto the valve and
measure the pressure.
3. Add enough air to reach the
recommended air pressure.
273
MKS (), enUSA Wheels and Tires

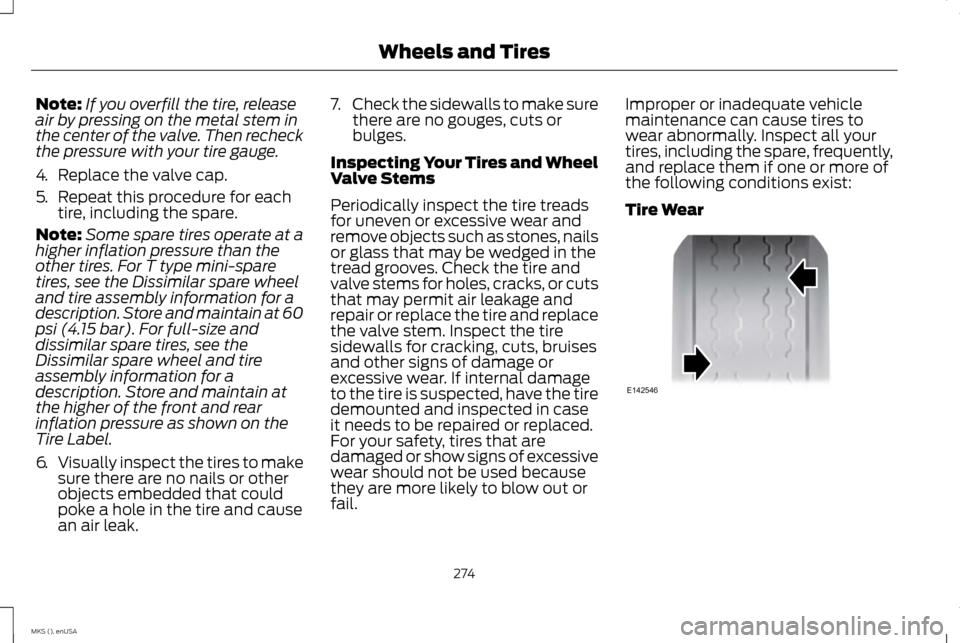

Note:
If you overfill the tire, release
air by pressing on the metal stem in
the center of the valve. Then recheck
the pressure with your tire gauge.
4. Replace the valve cap.
5. Repeat this procedure for each
tire, including the spare.
Note: Some spare tires operate at a
higher inflation pressure than the
other tires. For T type mini-spare
tires, see the Dissimilar spare wheel
and tire assembly information for a
description. Store and maintain at 60
psi (4.15 bar). For full-size and
dissimilar spare tires, see the
Dissimilar spare wheel and tire
assembly information for a
description. Store and maintain at
the higher of the front and rear
inflation pressure as shown on the
Tire Label.
6. Visually inspect the tires to make
sure there are no nails or other
objects embedded that could
poke a hole in the tire and cause
an air leak. 7.
Check the sidewalls to make sure
there are no gouges, cuts or
bulges.
Inspecting Your Tires and Wheel
Valve Stems
Periodically inspect the tire treads
for uneven or excessive wear and
remove objects such as stones, nails
or glass that may be wedged in the
tread grooves. Check the tire and
valve stems for holes, cracks, or cuts
that may permit air leakage and
repair or replace the tire and replace
the valve stem. Inspect the tire
sidewalls for cracking, cuts, bruises
and other signs of damage or
excessive wear. If internal damage
to the tire is suspected, have the tire
demounted and inspected in case
it needs to be repaired or replaced.
For your safety, tires that are
damaged or show signs of excessive
wear should not be used because
they are more likely to blow out or
fail. Improper or inadequate vehicle
maintenance can cause tires to
wear abnormally. Inspect all your
tires, including the spare, frequently,
and replace them if one or more of
the following conditions exist:
Tire Wear
274
MKS (), enUSA Wheels and TiresE142546

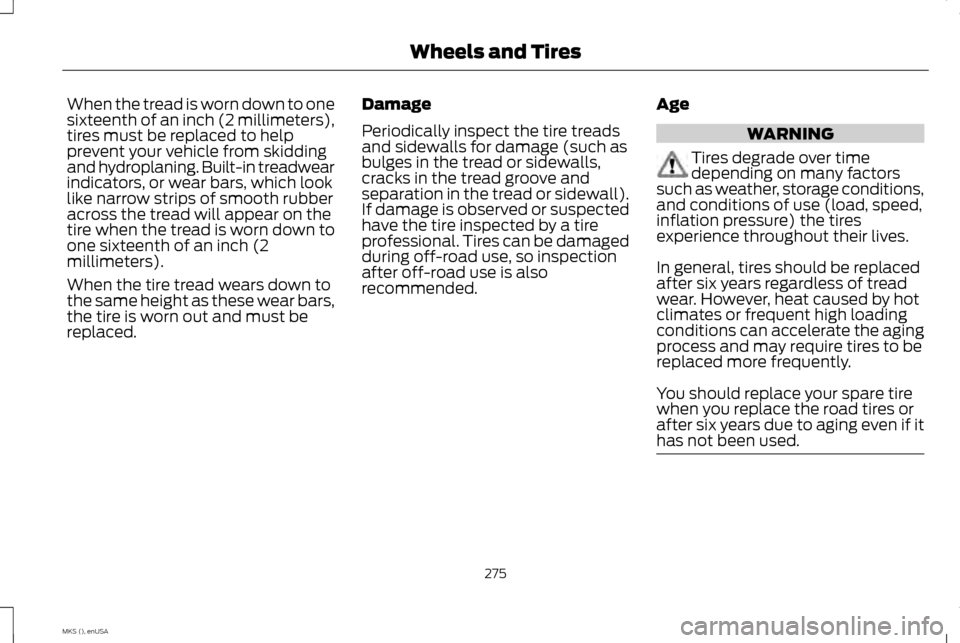

When the tread is worn down to one
sixteenth of an inch (2 millimeters),
tires must be replaced to help
prevent your vehicle from skidding
and hydroplaning. Built-in treadwear
indicators, or wear bars, which look
like narrow strips of smooth rubber
across the tread will appear on the
tire when the tread is worn down to
one sixteenth of an inch (2
millimeters).
When the tire tread wears down to
the same height as these wear bars,
the tire is worn out and must be
replaced.
Damage
Periodically inspect the tire treads
and sidewalls for damage (such as
bulges in the tread or sidewalls,
cracks in the tread groove and
separation in the tread or sidewall).
If damage is observed or suspected
have the tire inspected by a tire
professional. Tires can be damaged
during off-road use, so inspection
after off-road use is also
recommended.
Age WARNING
Tires degrade over time
depending on many factors
such as weather, storage conditions,
and conditions of use (load, speed,
inflation pressure) the tires
experience throughout their lives.
In general, tires should be replaced
after six years regardless of tread
wear. However, heat caused by hot
climates or frequent high loading
conditions can accelerate the aging
process and may require tires to be
replaced more frequently.
You should replace your spare tire
when you replace the road tires or
after six years due to aging even if it
has not been used. 275
MKS (), enUSA Wheels and Tires

U.S. DOT Tire Identification
Number
Both U.S. and Canada Federal
regulations require tire
manufacturers to place
standardized information on the
sidewall of all tires. This information
identifies and describes the
fundamental characteristics of the
tire and also provides a U.S. DOT
Tire Identification Number for safety
standard certification and in case of
a recall.
This begins with the letters DOT and
indicates that the tire meets all
federal standards. The next two
numbers or letters are the plant
code designating where it was
manufactured, the next two are the
tire size code and the last four
numbers represent the week and
year the tire was built. For example,
the numbers 317 mean the 31st week
of 1997. After 2000 the numbers go
to four digits. For example, 2501
means the 25th week of 2001. The
numbers in between are
identification codes used for
traceability. This information is used
to contact customers if a tire defect
requires a recall.
Tire Replacement Requirements
Your vehicle is equipped with tires
designed to provide a safe ride and
handling capability.
WARNINGS
Only use replacement tires and
wheels that are the same size,
load index, speed rating and type
(such as P-metric versus LT-metric
or all-season versus all-terrain) as
those originally provided by Ford.
The recommended tire and wheel
size may be found on either the
Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or the
door edge that meets the door-latch
post, next to the driver's seating
position), or the Tire Label which is WARNINGS
located on the B-Pillar or edge of
the driver ’s door. If this information
is not found on these labels then
you should contact your authorized
dealer as soon as possible. Use of
any tire or wheel not recommended
by Ford can affect the safety and
performance of your vehicle, which
could result in an increased risk of
loss of vehicle control, vehicle
rollover, personal injury and death.
Additionally the use of
non-recommended tires and wheels
could cause steering, suspension,
axle, transfer case or power transfer
unit failure. If you have questions
regarding tire replacement, contact
your authorized dealer as soon as
possible.
276
MKS (), enUSA Wheels and Tires

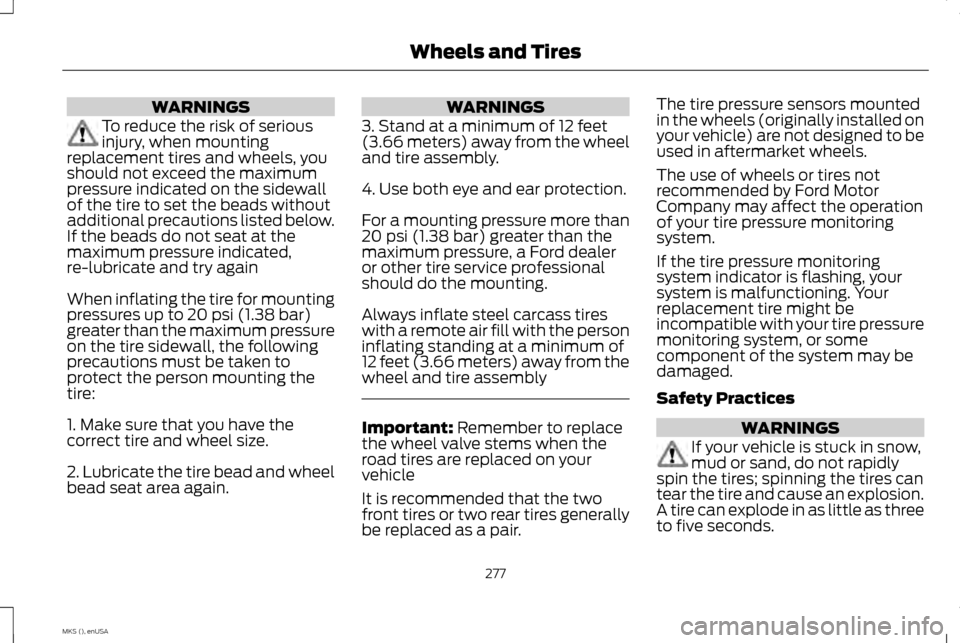

WARNINGS
To reduce the risk of serious
injury, when mounting
replacement tires and wheels, you
should not exceed the maximum
pressure indicated on the sidewall
of the tire to set the beads without
additional precautions listed below.
If the beads do not seat at the
maximum pressure indicated,
re-lubricate and try again
When inflating the tire for mounting
pressures up to 20 psi (1.38 bar)
greater than the maximum pressure
on the tire sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
1. Make sure that you have the
correct tire and wheel size.
2. Lubricate the tire bead and wheel
bead seat area again. WARNINGS
3. Stand at a minimum of 12 feet
(3.66 meters) away from the wheel
and tire assembly.
4. Use both eye and ear protection.
For a mounting pressure more than
20 psi (1.38 bar) greater than the
maximum pressure, a Ford dealer
or other tire service professional
should do the mounting.
Always inflate steel carcass tires
with a remote air fill with the person
inflating standing at a minimum of
12 feet (3.66 meters) away from the
wheel and tire assembly Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle
It is recommended that the two
front tires or two rear tires generally
be replaced as a pair. The tire pressure sensors mounted
in the wheels (originally installed on
your vehicle) are not designed to be
used in aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor
Company may affect the operation
of your tire pressure monitoring
system.
If the tire pressure monitoring
system indicator is flashing, your
system is malfunctioning. Your
replacement tire might be
incompatible with your tire pressure
monitoring system, or some
component of the system may be
damaged.
Safety Practices
WARNINGS
If your vehicle is stuck in snow,
mud or sand, do not rapidly
spin the tires; spinning the tires can
tear the tire and cause an explosion.
A tire can explode in as little as three
to five seconds.
277
MKS (), enUSA Wheels and Tires
