LINCOLN MKS 2015 Owners Manual

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting
in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
1/2 x 20
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing
a flat tire, wheel removal).
288
MKS (), enUSA Wheels and Tires

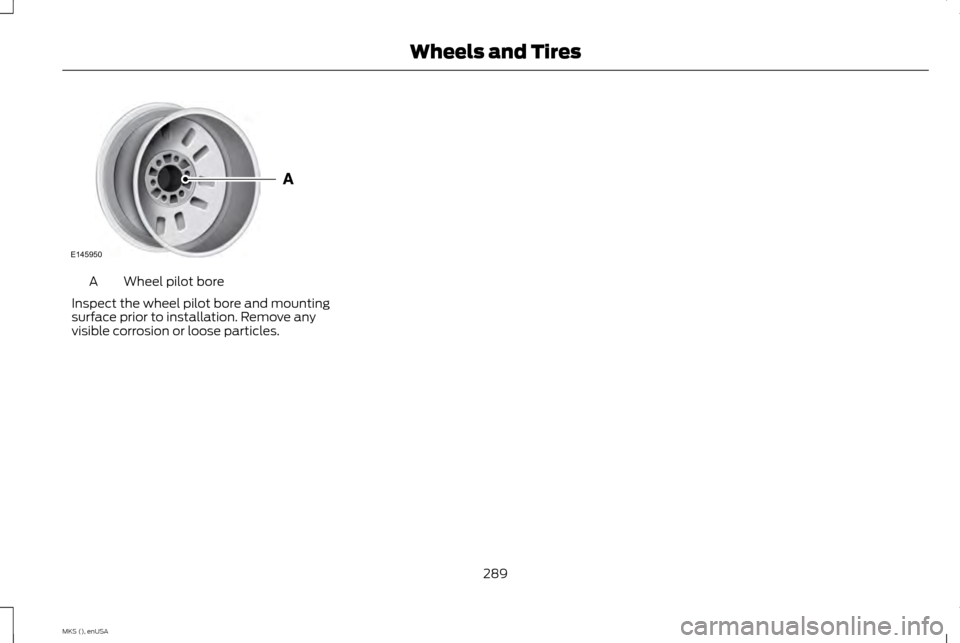

Wheel pilot bore
A
Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.
289
MKS (), enUSA Wheels and TiresE145950

ENGINE SPECIFICATIONS
3.7 V6
3.5L V6 Ecoboost
Engine
226
214
Cubic inches
Minimum 87 octane
Minimum 87 octane
Required fuel
1-4-2-5-3-6
1-4-2-5-3-6
Firing order
Coil on plug
Coil on plug
Ignition system
.049-.053 in. (1.25-1.35 mm)
.030-.033 in. (.75-.85 mm)
Spark plug gap
10.5:1
10.0:1
Compression ratio
Drivebelt Routing
3.5L and 3.7L V6 Ecoboost Engines with
A/C 290
MKS (), enUSA Capacities and SpecificationsE146428

MOTORCRAFT PARTS
3.7L V6 engine
3.5L V6 Ecoboost
Component
FA-1884
FA-1884
Air filter element
FL-500-S
FL-500-S
Oil filter
BXT-65-650
BXT-65-650
Battery
SP-520/CYFS-12F-5
SP-534/CYFS-12-YT3
Spark plugs
WW-2601-PF (driver side)
Windshield wiper blade
WW-2001-PF (passenger side)
FP68
FP68
Cabin air filter
FS-104
FS-104
Seat air filter
We recommend Motorcraft replacement
parts available at your Ford dealer or at
fordparts.com for scheduled maintenance.
These parts meet or exceed Ford Motor
Company ’s specifications and are engineered
for your vehicle. Use of other parts may
impact vehicle performance, emissions and
durability. Your warranty may be void for any
damage related to use of other parts.
If a Motorcraft oil filter is not available, use
an oil filter that meets industry performance
specification SAE/USCAR-36. For spark plug replacement, contact an
authorized dealer. Replace the spark plugs
at the appropriate intervals. See Scheduled
Maintenance (page 392).
VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is located
on the left-hand side of the instrument panel.
291
MKS (), enUSA Capacities and Specifications

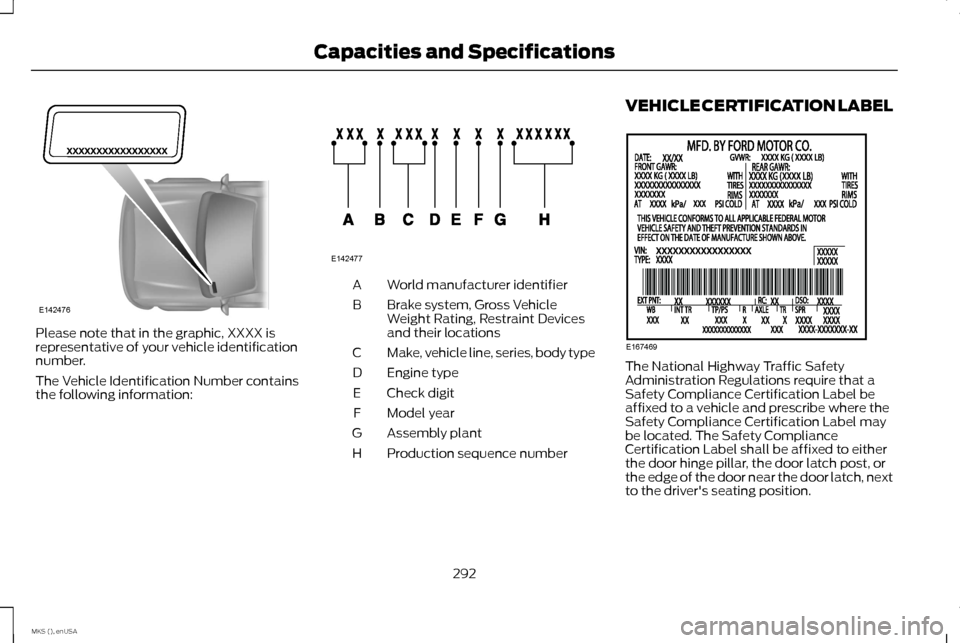

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch, next
to the driver's seating position.
292
MKS (), enUSA Capacities and SpecificationsE142476 E142477 E167469

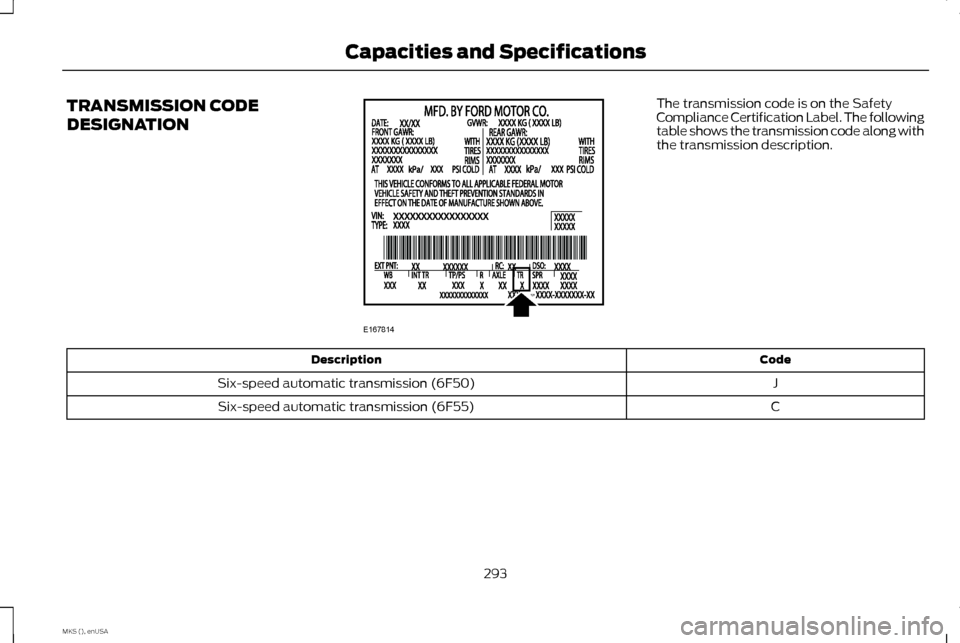

TRANSMISSION CODE
DESIGNATION The transmission code is on the Safety
Compliance Certification Label. The following
table shows the transmission code along with
the transmission description.
Code
Description
J
Six-speed automatic transmission (6F50)
C
Six-speed automatic transmission (6F55)
293
MKS (), enUSA Capacities and SpecificationsE167814

TECHNICAL SPECIFICATIONS
WARNING
The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system
can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel.
Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
XL-1 (U.S.) / --
Motorcraft Penetrating and
Lock Lubricant (U.S.)
—
Lock cylinders
CXC-51-A (Canada) / --
Motorcraft Penetrating Fluid
(Canada)
XL-5
Motorcraft Multi-Purpose
Grease Spray
—
Hinges, latches, striker plates,
fuel filler door hinge and seat tracks
PM-20 / WSS-M6C65-A2
Motorcraft DOT 4 LV High
Performance Motor Vehicle Brake Fluid
Between MIN/MAX on brake fluid
reservoir
Brake fluid 1
XO-5W30-QSP or XO-5W30-QFS (U.S.)/ WSS-M2C946-A
Motorcraft SAE 5W-30
Premium Synthetic Blend Motor Oil or Motorcraft SAE 5W-30 Full Synthetic Motor Oil
6.0 qt (5.7 L)
3.5L EcoBoost engine oil
CXO-5W30-LSP12 or CXO-5W30-LFS12
(Canada) / WSS-M2C946-A
294
MKS (), enUSA Capacities and Specifications

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
XO-5W20-QSP or XO-5W20-QFS (U.S.)/ WSS-M2C945-A
Motorcraft SAE 5W-20
Premium Synthetic Blend Motor Oil or Motorcraft SAE 5W-20 Full Synthetic Motor Oil
6.0 qt (5.7 L)
3.7L engine oil
CXO-5W20-LSP12 or CXO-5W20-LFS12
(Canada) / WSS-M2C945-A
VC-3DIL-B (U.S.) / WSS-M97B44-D2
Motorcraft Orange Antifreeze/
Coolant Prediluted
11.4 qt (10.8 L)
3.5L EcoBoost engine coolant 2
CVC-3DIL-B (Canada) / WSS-M97B44-
D2
VC-3DIL-B (U.S.) / WSS-M97B44-D2
Motorcraft Orange Antifreeze/
Coolant Prediluted
11.1 qt (10.5 L)
3.7L engine coolant 2
CVC-3DIL-B (Canada) / WSS-M97B44-
D2
XY-80W90-QL (U.S.) / WSP-M2C197-A
Motorcraft SAE 80W-90
Premium Rear Axle Lubricant
2.4 pt (1.15L)
Rear differential (AWD) fluid
CXY-80W90-1L (Canada) / WSP-M2C197-
A
XY-75W140-QL / WSP-M2C197-A
Motorcraft SAE 75W-140
Synthetic Rear Axle Lubricant
18 fl oz (0.53 L)
Power Transfer Unit (PTU)
fluid (AWD) 3
XT-10-QLVC (U.S.);
Motorcraft MERCON LV
11.6 qt (11 L)
3.5L EcoBoost engine
CXT-10-LV12 (Canada) / MERCON LV
Automatic transmission fluid
4,5
10.9 qt (10.3 L)
3.7L engine
295
MKS (), enUSA Capacities and Specifications

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
Automatic transmission fluid 4,5
ZC-32-B2 (U.S.) / WSS-M14P19-A
Motorcraft Premium Windshield
Wash Concentrate with Bitterant (U.S.)
Fill as required
Windshield washer fluid
CXC-37-(A, B, D, and F) (Canada) / WSS-M14P19-A
Premium Quality Windshield
Washer Fluid (Canada)
—
—
19.0 gal (71.9 L)
Fuel tank
YN-19 (U.S.) / WSH-M17B19-A
Motorcraft R-134a Refrigerant
1.63 lb (0.74 kg)
3.5L EcoBoost Engine A/C
refrigerant CYN-16-R (Canada) / WSH-M17B19-A
YN-19 (U.S.) / WSH-M17B19-A
Motorcraft R-134a Refrigerant
1.43 lb (0.65 kg)
3.7L Engine A/C refrigerant
CYN-16-R (Canada) / WSH-M17B19-A
YN-12-D /
Motorcraft PAG Refrigerant
Compressor Oil
5.2 fl oz (153.8 ml)
A/C refrigerant compressor oil
296
MKS (), enUSA Capacities and Specifications

Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
WSH-M1C231-B
1 Ford recommends using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid
other than the recommended fluid may cause degraded brake performance and not meet the Ford performance standards. Keep brake fluid
clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.
2 Add the coolant type originally equipped in your vehicle.
3 Contact an authorized dealer for fluid level checking or filling.
4 Make sure the correct automatic transmission fluid is used. Transmission fluid requirements are indicated on the dipstick blade or the dipstick
handle. Before adding, check the container to verify the fluid is of the correct type. Refer to your scheduled maintenance information to
determine the correct service interval.
Note: Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Use of any fluid other than the recommended fluid
may cause transmission damage.
5 Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and if equipped with an in-tank cooler. Use the
indication on the dipstick, showing the normal operating range, to determine the amount of transmission fluid and the fluid level.
Use of synthetic or synthetic blend motor oil is not mandatory. Only use fluid that meets Ford specifications. Motor oils of the recommended
viscosity grade that meet API SN requirements and display the API Certification Mark for gasoline engines are also acceptable. Do not use oil
labeled with API SN service category unless the label also displays the API certification mark.
Do not use supplemental engine oil additives because they are unnecessary and could lead to engine damage that may not be covered by
your vehicle warranty.
An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of the International
Lubricant Standardization and Approval Committee (ILSAC):
297
