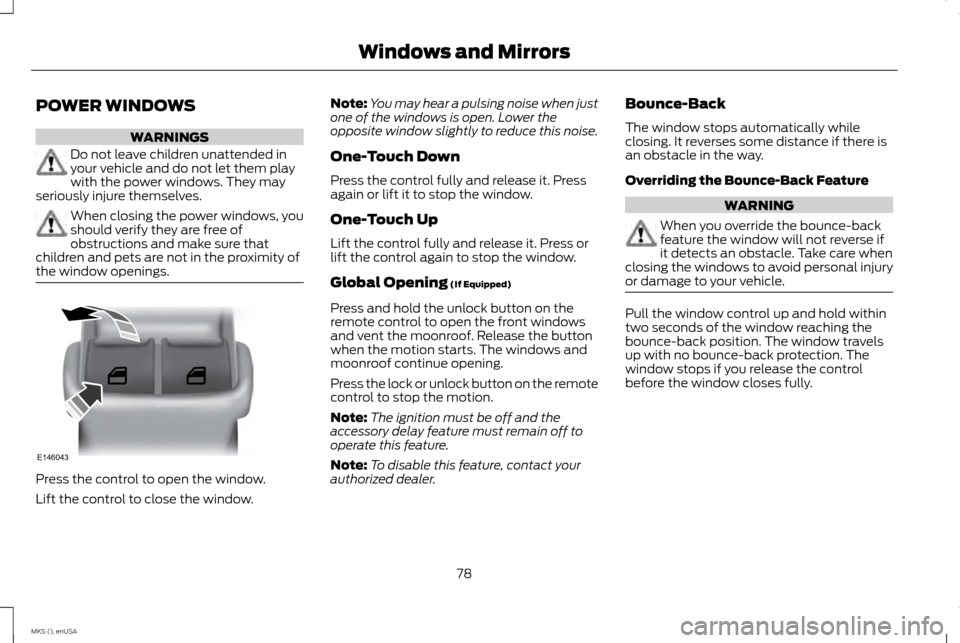

POWER WINDOWS
WARNINGS
Do not leave children unattended in
your vehicle and do not let them play
with the power windows. They may
seriously injure themselves. When closing the power windows, you
should verify they are free of
obstructions and make sure that
children and pets are not in the proximity of
the window openings. Press the control to open the window.
Lift the control to close the window. Note:
You may hear a pulsing noise when just
one of the windows is open. Lower the
opposite window slightly to reduce this noise.
One-Touch Down
Press the control fully and release it. Press
again or lift it to stop the window.
One-Touch Up
Lift the control fully and release it. Press or
lift the control again to stop the window.
Global Opening (If Equipped)
Press and hold the unlock button on the
remote control to open the front windows
and vent the moonroof. Release the button
when the motion starts. The windows and
moonroof continue opening.
Press the lock or unlock button on the remote
control to stop the motion.
Note: The ignition must be off and the
accessory delay feature must remain off to
operate this feature.
Note: To disable this feature, contact your
authorized dealer. Bounce-Back
The window stops automatically while
closing. It reverses some distance if there is
an obstacle in the way.
Overriding the Bounce-Back Feature WARNING
When you override the bounce-back
feature the window will not reverse if
it detects an obstacle. Take care when
closing the windows to avoid personal injury
or damage to your vehicle. Pull the window control up and hold within
two seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection. The
window stops if you release the control
before the window closes fully.
78
MKS (), enUSA Windows and MirrorsE146043

Window Lock
Press the control to lock or unlock the rear
window controls. It lights when you lock the
rear window controls.
Accessory Delay
You can use the window controls for several
minutes after you switch the ignition off or
until you open either front door.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING
Do not adjust the mirrors when your
vehicle is moving. Left-hand mirror
A
Adjustment control
B
Right-hand mirror
C
To adjust a mirror:
1. Select the mirror you want to adjust. The
control will illuminate.
2. Adjust the position of the mirror.
3. Press the mirror switch again.
Fold-Away Exterior Mirrors
Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position. Heated Exterior Mirrors
See Heated Windows and Mirrors (page
107).
Memory Mirrors
You can save and recall the mirror positions
through the memory function. See Memory
Function
(page 114).
Auto-Dimming Feature
The driver ’s exterior mirror will automatically
dim when the interior auto-dimming mirror
is activated.
Integrated Blind Spot Mirrors
(If
Equipped) WARNING
Objects in the blind spot mirror are
closer than they appear.
Blind spot mirrors have an integrated convex
mirror built into the upper outboard corner
of the exterior mirrors. They are designed to
increase your visibility along the side of your
vehicle.
79
MKS (), enUSA Windows and MirrorsE144072 E144073

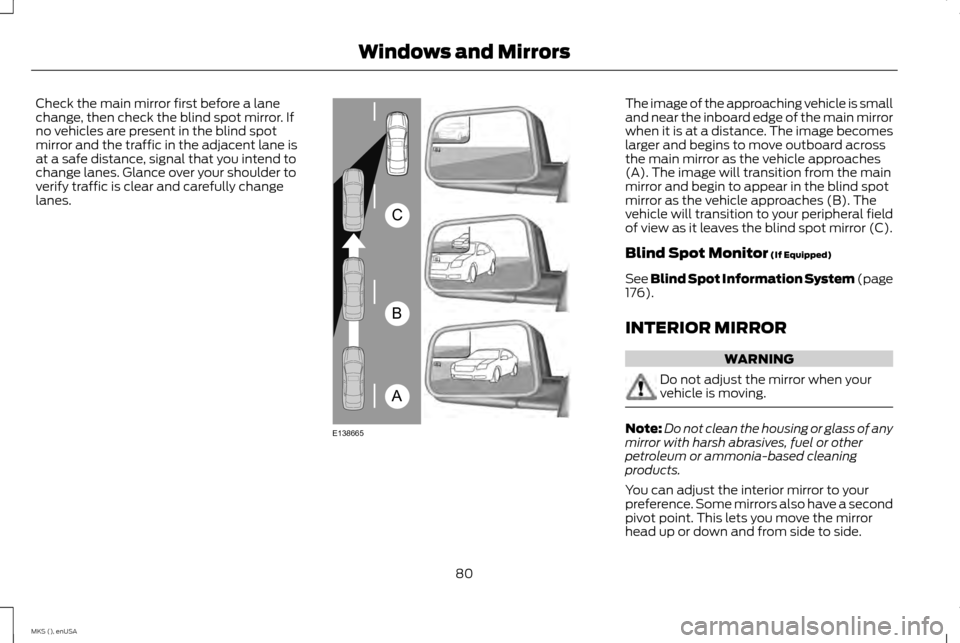

Check the main mirror first before a lane
change, then check the blind spot mirror. If
no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane is
at a safe distance, signal that you intend to
change lanes. Glance over your shoulder to
verify traffic is clear and carefully change
lanes. The image of the approaching vehicle is small
and near the inboard edge of the main mirror
when it is at a distance. The image becomes
larger and begins to move outboard across
the main mirror as the vehicle approaches
(A). The image will transition from the main
mirror and begin to appear in the blind spot
mirror as the vehicle approaches (B). The
vehicle will transition to your peripheral field
of view as it leaves the blind spot mirror (C).
Blind Spot Monitor (If Equipped)
See Blind Spot Information System (page
176
).
INTERIOR MIRROR WARNING
Do not adjust the mirror when your
vehicle is moving.
Note:
Do not clean the housing or glass of any
mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.
You can adjust the interior mirror to your
preference. Some mirrors also have a second
pivot point. This lets you move the mirror
head up or down and from side to side.
80
MKS (), enUSA Windows and MirrorsA
B
C
E138665

Auto-Dimming Mirror
Note:
Do not block the sensors on the front
and back of the mirror. Mirror performance
may be affected. A rear center passenger or
raised rear center head restraint may also
block light from reaching the sensor.
The mirror will dim automatically to reduce
glare when bright lights are detected from
behind your vehicle. It will automatically
return to normal reflection when you select
reverse gear to make sure you have a clear
view when backing up.
SUN VISORS Rotate the sun visor toward the side window
and extend it rearward for extra shade. Illuminated Vanity Mirror
Lift the cover to switch the lamp on.
SUN SHADES (If Equipped)
Note: Do not try to move the sun shade
manually.
The power rear sun shade covers the rear
window of the vehicle. The control is on the center console.
The sun shade has a one-touch up and down
feature. Press and release the control to
move the sun shade. To stop motion, press
the control a second time.
The sun shade automatically retracts when
you shift the transmission into reverse (R).
MOONROOF
(If Equipped)
WARNINGS
Do not let children play with the
moonroof or leave them unattended in
the vehicle. They may seriously hurt
themselves.
81
MKS (), enUSA Windows and MirrorsE138666 E162197 E187440

WARNINGS
When closing the dual panel moonroof,
you should verify that it is free of
obstructions and make sure that
children and pets are not in the proximity of
the roof opening. The moonroof and sunscreen controls are on
the overhead console.
The moonroof and sunscreen have a
one-touch open and close feature. To stop
the motion during a one-touch operation,
touch the control a second time.
Opening and Closing the Sunscreen
Press and release the control to open the
sunscreen. Note:
The sunscreen stops at the first panel
for the dual panel moonroof. Press and release
the control again to continue opening the
sunscreen past the second panel.
Pull and release the control to close the
sunscreen. If open, the moonroof
automatically closes prior to the sunscreen
closing.
Opening and Closing the Moonroof
Press and release the SLIDE control to open
the moonroof. The sunscreen, if closed,
automatically opens prior to the moonroof
opening.
Pull and release the SLIDE control to close
the moonroof.
Bounce-Back
The moonroof automatically stops closing
and reverses if it detects an obstacle when
closing.
To override the bounce-back function, pull
and hold the SLIDE control within two
seconds of a bounce-back event. In this case,
the closing force begins to increase each of
the next three times the moonroof closes. Venting the Moonroof
Press and release the TILT control to vent
the moonroof.
Pull and release the TILT control to close the
moonroof.
82
MKS (), enUSA Windows and MirrorsE187439

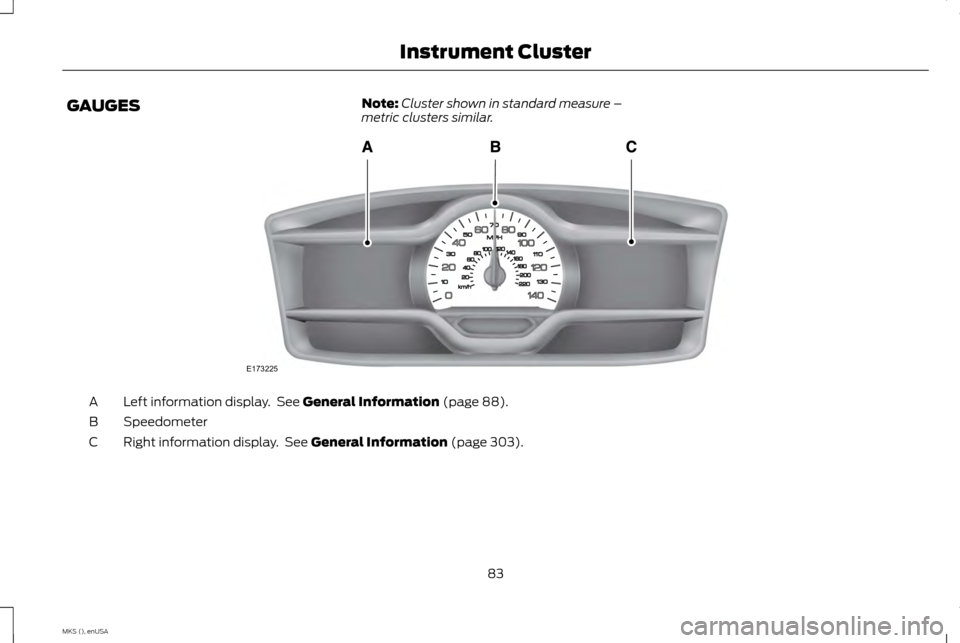

GAUGES
Note:
Cluster shown in standard measure –
metric clusters similar. Left information display. See General Information (page 88).
A
Speedometer
B
Right information display. See
General Information (page 303).
C
83
MKS (), enUSA Instrument ClusterE173225

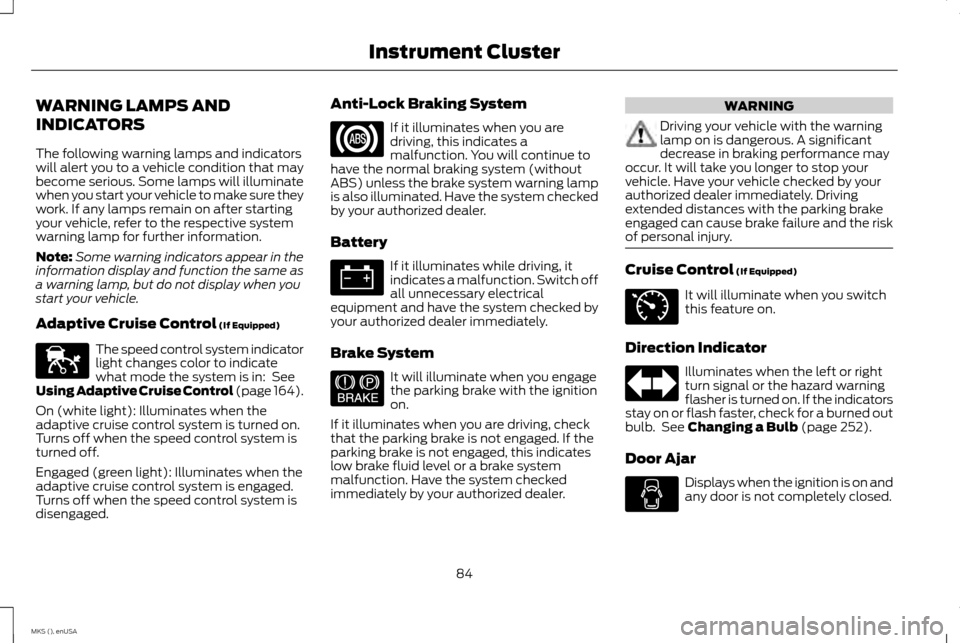

WARNING LAMPS AND
INDICATORS
The following warning lamps and indicators
will alert you to a vehicle condition that may
become serious. Some lamps will illuminate
when you start your vehicle to make sure they
work. If any lamps remain on after starting
your vehicle, refer to the respective system
warning lamp for further information.
Note:
Some warning indicators appear in the
information display and function the same as
a warning lamp, but do not display when you
start your vehicle.
Adaptive Cruise Control (If Equipped) The speed control system indicator
light changes color to indicate
what mode the system is in:
See
Using Adaptive Cruise Control (page 164).
On (white light): Illuminates when the
adaptive cruise control system is turned on.
Turns off when the speed control system is
turned off.
Engaged (green light): Illuminates when the
adaptive cruise control system is engaged.
Turns off when the speed control system is
disengaged. Anti-Lock Braking System If it illuminates when you are
driving, this indicates a
malfunction. You will continue to
have the normal braking system (without
ABS) unless the brake system warning lamp
is also illuminated. Have the system checked
by your authorized dealer.
Battery If it illuminates while driving, it
indicates a malfunction. Switch off
all unnecessary electrical
equipment and have the system checked by
your authorized dealer immediately.
Brake System It will illuminate when you engage
the parking brake with the ignition
on.
If it illuminates when you are driving, check
that the parking brake is not engaged. If the
parking brake is not engaged, this indicates
low brake fluid level or a brake system
malfunction. Have the system checked
immediately by your authorized dealer. WARNING
Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance may
occur. It will take you longer to stop your
vehicle. Have your vehicle checked by your
authorized dealer immediately. Driving
extended distances with the parking brake
engaged can cause brake failure and the risk
of personal injury. Cruise Control
(If Equipped)
It will illuminate when you switch
this feature on.
Direction Indicator Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on. If the indicators
stay on or flash faster, check for a burned out
bulb. See
Changing a Bulb (page 252).
Door Ajar Displays when the ignition is on and
any door is not completely closed.
84
MKS (), enUSA Instrument ClusterE144524 E144522 E71340

Engine Coolant Temperature
Illuminates when the engine
coolant temperature is high. Stop
the vehicle as soon as possible,
switch off the engine and let cool. See
Engine Coolant Check (page 240).
Engine Oil If it illuminates with the engine
running or when you are driving, this
indicates a malfunction. Stop your
vehicle as soon as it is safe to do so and
switch the engine off. Check the engine oil
level. See
Engine Oil Check (page 239).
Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by your authorized
dealer immediately.
Fasten Safety Belt It will illuminate and a chime will
sound to remind you to fasten your
safety belt. See
Safety Belt
Minder (page 32). Front Airbag If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates a
malfunction. Have the system checked by
your authorized dealer.
Front Fog Lamps
(If Equipped) Lights when you switch the front
fog lamps on.
Grade Assist
(If Equipped) It will illuminate when the grade
assist function has been turned on.
Heads Up Display
(If Equipped) A red beam of lights will illuminate
on the windshield in certain
instances when using adaptive
cruise control and/or the collision warning
system. It will also illuminate momentarily
when you start your vehicle to make sure the
display works. High Beam It will illuminate when you switch
the high beam headlamps on. It will
flash when you use the headlamp
flasher.
Low Fuel Level It will illuminate when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as possible.
Low Tire Pressure Warning It will illuminate when your tire
pressure is low. If the lamp remains
on with the engine running or when
driving, check your tire pressure as
soon as possible.
It will also illuminate momentarily when you
switch the ignition on to confirm the lamp is
functional. If it does not illuminate when you
switch the ignition on, or begins to flash at
any time, have the system checked by your
authorized dealer.
Low Washer Fluid It will illuminate when the
windshield washer fluid is low.
85
MKS (), enUSA Instrument Cluster E144523 E156133 E132353

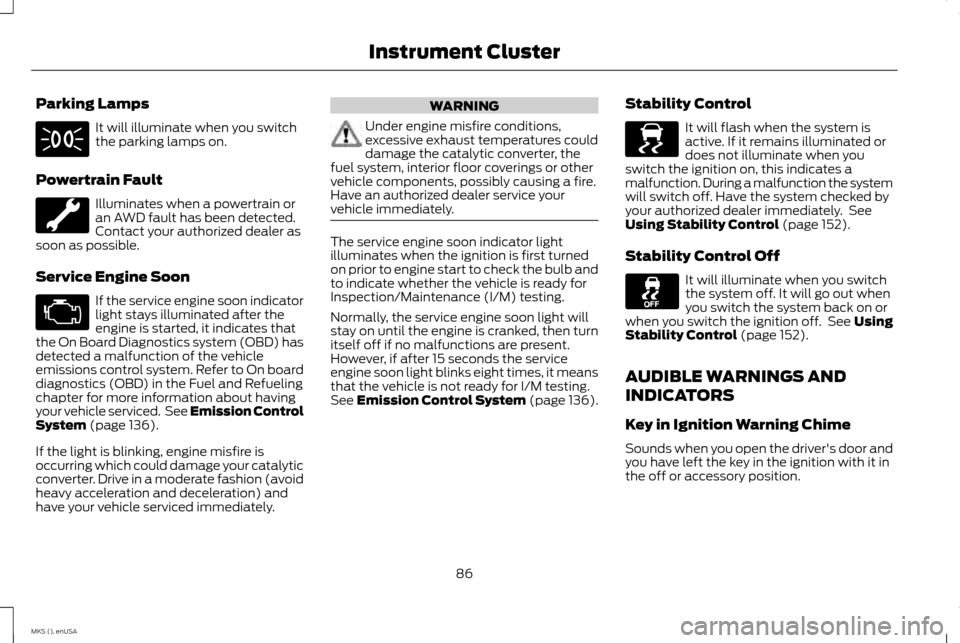

Parking Lamps
It will illuminate when you switch
the parking lamps on.
Powertrain Fault Illuminates when a powertrain or
an AWD fault has been detected.
Contact your authorized dealer as
soon as possible.
Service Engine Soon If the service engine soon indicator
light stays illuminated after the
engine is started, it indicates that
the On Board Diagnostics system (OBD) has
detected a malfunction of the vehicle
emissions control system. Refer to On board
diagnostics (OBD) in the Fuel and Refueling
chapter for more information about having
your vehicle serviced. See Emission Control
System (page 136).
If the light is blinking, engine misfire is
occurring which could damage your catalytic
converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and
have your vehicle serviced immediately. WARNING
Under engine misfire conditions,
excessive exhaust temperatures could
damage the catalytic converter, the
fuel system, interior floor coverings or other
vehicle components, possibly causing a fire.
Have an authorized dealer service your
vehicle immediately. The service engine soon indicator light
illuminates when the ignition is first turned
on prior to engine start to check the bulb and
to indicate whether the vehicle is ready for
Inspection/Maintenance (I/M) testing.
Normally, the service engine soon light will
stay on until the engine is cranked, then turn
itself off if no malfunctions are present.
However, if after 15 seconds the service
engine soon light blinks eight times, it means
that the vehicle is not ready for I/M testing.
See
Emission Control System (page 136).
Stability Control It will flash when the system is
active. If it remains illuminated or
does not illuminate when you
switch the ignition on, this indicates a
malfunction. During a malfunction the system
will switch off. Have the system checked by
your authorized dealer immediately. See
Using Stability Control
(page 152).
Stability Control Off It will illuminate when you switch
the system off. It will go out when
you switch the system back on or
when you switch the ignition off. See Using
Stability Control
(page 152).
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime
Sounds when you open the driver's door and
you have left the key in the ignition with it in
the off or accessory position.
86
MKS (), enUSA Instrument Cluster E138639

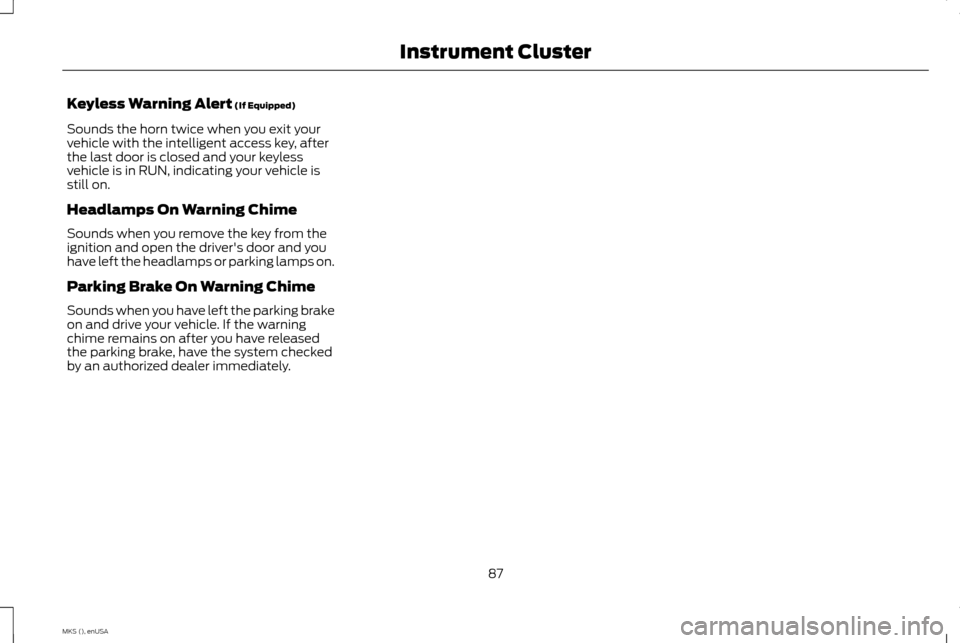

Keyless Warning Alert (If Equipped)
Sounds the horn twice when you exit your
vehicle with the intelligent access key, after
the last door is closed and your keyless
vehicle is in RUN, indicating your vehicle is
still on.
Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps on.
Parking Brake On Warning Chime
Sounds when you have left the parking brake
on and drive your vehicle. If the warning
chime remains on after you have released
the parking brake, have the system checked
by an authorized dealer immediately.
87
MKS (), enUSA Instrument Cluster
