key LINCOLN MKS 2015 Owners Manual

Introduction
About This Manual................................................7
Symbols Glossary..................................................7
Data Recording.......................................................9
California Proposition 65
...................................11
Perchlorate..............................................................11
Lincoln Automotive Financial Services........11
Replacement Parts Recommendation.........11
Special Notices
.....................................................12
Mobile Communications Equipment...........12
Export Unique Options......................................13
Child Safety
General Information...........................................14
Installing Child Seats
..........................................16
Booster Seats
........................................................21
Child Seat Positioning.......................................24
Child Safety Locks..............................................25
Safety Belts
Principle of Operation
........................................27
Fastening the Safety Belts
..............................28
Safety Belt Height Adjustment.....................30
Safety Belt Warning Lamp and Indicator Chime...................................................................31
Safety Belt Minder
..............................................32 Child Restraint and Safety Belt
Maintenance.....................................................33
Personal Safety System ™
Personal Safety System ™
...............................35
Supplementary Restraints System
Principle of Operation
.......................................36
Driver and Passenger Airbags.........................37
Front Passenger Sensing System.................38
Side Airbags
.........................................................40
Safety Canopy ™
..................................................41
Crash Sensors and Airbag Indicator............43
Airbag Disposal
...................................................44
Keys and Remote Controls
General Information on Radio Frequencies......................................................45
Remote Control
...................................................46
Replacing a Lost Key or Remote Control................................................................48
MyKey ™

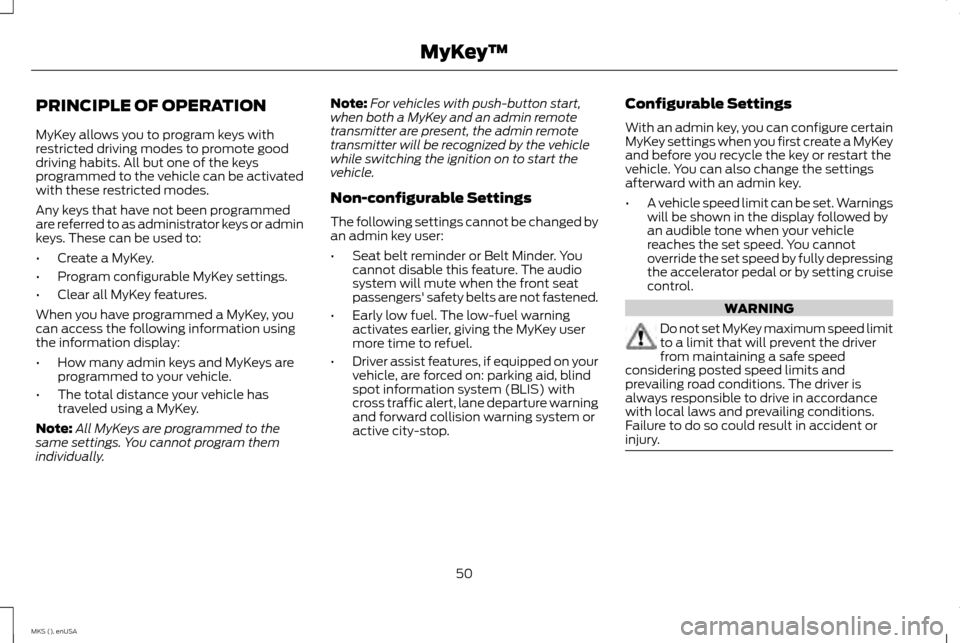

Principle of Operation.......................................50

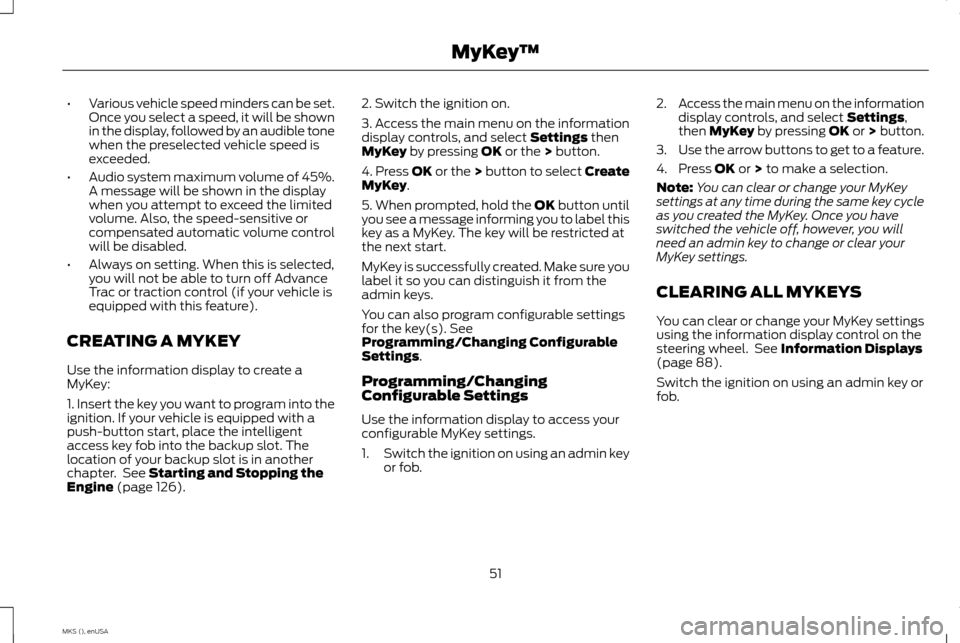

Creating a MyKey
.................................................51

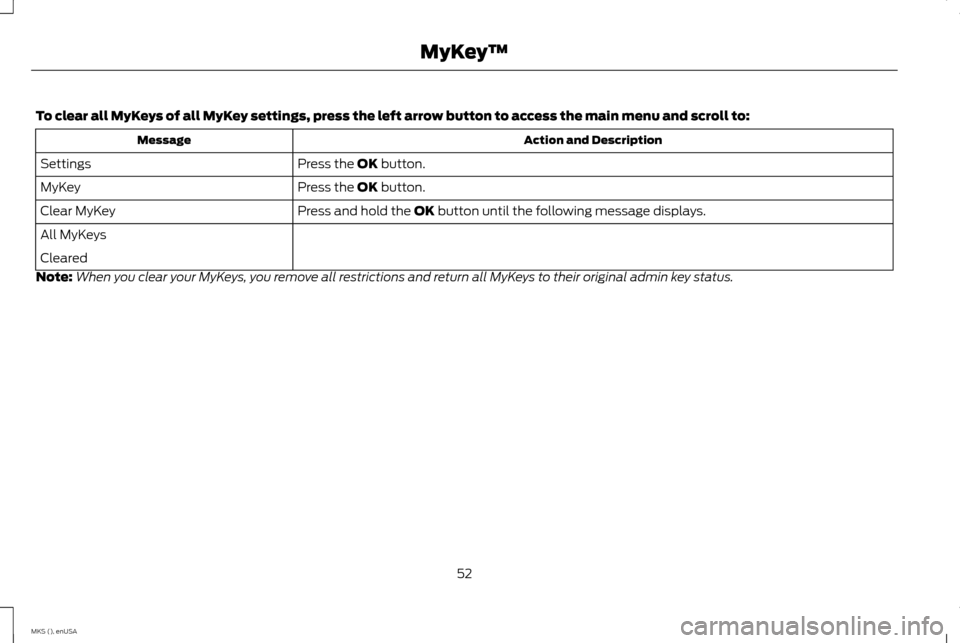

Clearing All MyKeys.............................................51 Checking MyKey System Status....................53
Using MyKey With Remote Start
Systems..............................................................54
MyKey Troubleshooting....................................54
Locks
Locking and Unlocking.....................................56
Keyless Entry........................................................59
Interior Luggage Compartment Release................................................................61
Security
Passive Anti-Theft System.............................63
Anti-Theft Alarm................................................64
Steering Wheel
Adjusting the Steering Wheel
........................65
Audio Control
.......................................................65
Voice Control
........................................................66
Cruise Control
......................................................66
Information Display Control............................67
Heated Steering Wheel....................................67
Pedals
Adjusting the Pedals.........................................68
1
MKS (), enUSA Table of Contents

Wipers and Washers
Windshield Wipers.............................................69
Autowipers............................................................69
Windshield Washers
..........................................70
Lighting
Lighting Control
....................................................71
Autolamps..............................................................71
Instrument Lighting Dimmer...........................72
Headlamp Exit Delay.........................................73
Daytime Running Lamps..................................73
Automatic High Beam Control
.......................74
Front Fog Lamps.................................................75
Adaptive Headlamps.........................................75
Direction Indicators
............................................76
Interior Lamps
......................................................76
Ambient Lighting
.................................................77
Windows and Mirrors
Power Windows
...................................................78
Exterior Mirrors.....................................................79
Interior Mirror
.......................................................80
Sun Visors
...............................................................81
Sun Shades
............................................................81
Moonroof................................................................81 Instrument Cluster
Gauges....................................................................83
Warning Lamps and Indicators.....................84
Audible Warnings and Indicators.................86
Information Displays
General Information..........................................88
Information Messages
......................................94
Climate Control
Automatic Climate Control
...........................105
Hints on Controlling the Interior Climate.............................................................106
Heated Windows and Mirrors
.......................107
Cabin Air Filter....................................................108
Remote Start......................................................108
Seats
Sitting in the Correct Position......................109
Head Restraints
.................................................109
Power Seats..........................................................111
Memory Function
...............................................114
Climate Controlled Seats
................................115
Rear Seat Armrest..............................................117 Universal Garage Door Opener
Universal Garage Door Opener.....................119
Auxiliary Power Points
Auxiliary Power Points
.....................................123
Storage Compartments
Center Console
...................................................125
Overhead Console.............................................125
Starting and Stopping the Engine
General Information
.........................................126
Keyless Starting
.................................................126
Starting a Gasoline Engine.............................127
Engine Block Heater
.........................................129
Fuel and Refueling
Safety Precautions.............................................131
Fuel Quality
..........................................................132
Running Out of Fuel..........................................132
Refueling...............................................................134
Fuel Consumption
............................................135
Emission Control System...............................136
2
MKS (), enUSA Table of Contents

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party responsible
for compliance could void the user's authority
to operate the equipment. The term IC before
the radio certification number only signifies
that Industry Canada technical specifications
were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in operating
range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your vehicle Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key.
Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
•
You touch the inside of the front exterior
door handle.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the mechanical
key blade in your intelligent access key to
open the driver door in this situation. See
Remote Control (page 46).
45
MKS (), enUSA Keys and Remote Controls

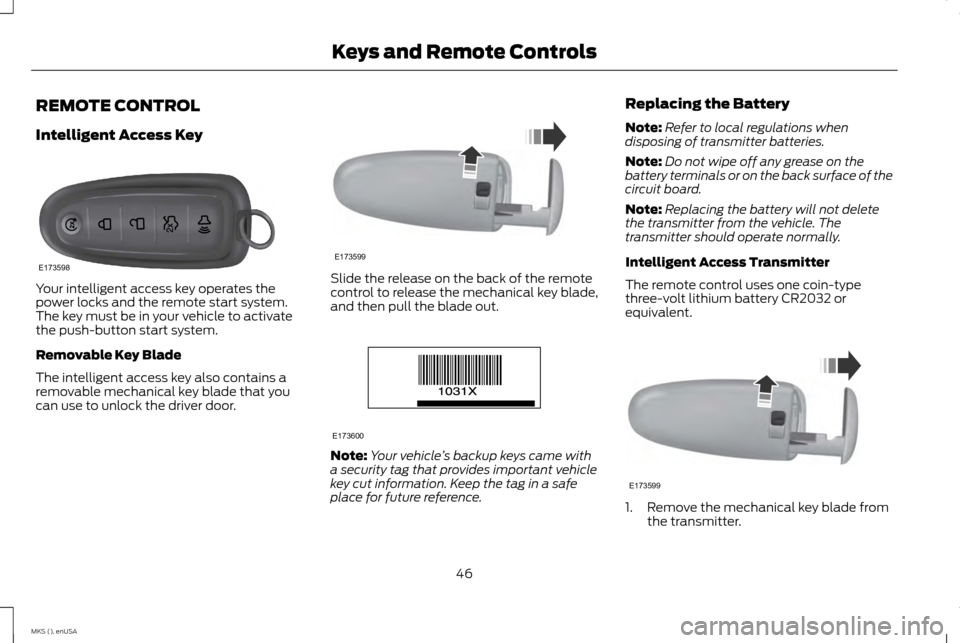

REMOTE CONTROL
Intelligent Access Key
Your intelligent access key operates the
power locks and the remote start system.
The key must be in your vehicle to activate
the push-button start system.
Removable Key Blade
The intelligent access key also contains a
removable mechanical key blade that you
can use to unlock the driver door. Slide the release on the back of the remote
control to release the mechanical key blade,
and then pull the blade out.
Note:
Your vehicle ’s backup keys came with
a security tag that provides important vehicle
key cut information. Keep the tag in a safe
place for future reference. Replacing the Battery
Note:
Refer to local regulations when
disposing of transmitter batteries.
Note: Do not wipe off any grease on the
battery terminals or on the back surface of the
circuit board.
Note: Replacing the battery will not delete
the transmitter from the vehicle. The
transmitter should operate normally.
Intelligent Access Transmitter
The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent. 1. Remove the mechanical key blade from
the transmitter.
46
MKS (), enUSA Keys and Remote ControlsE173598 E173599 E173600 E173599

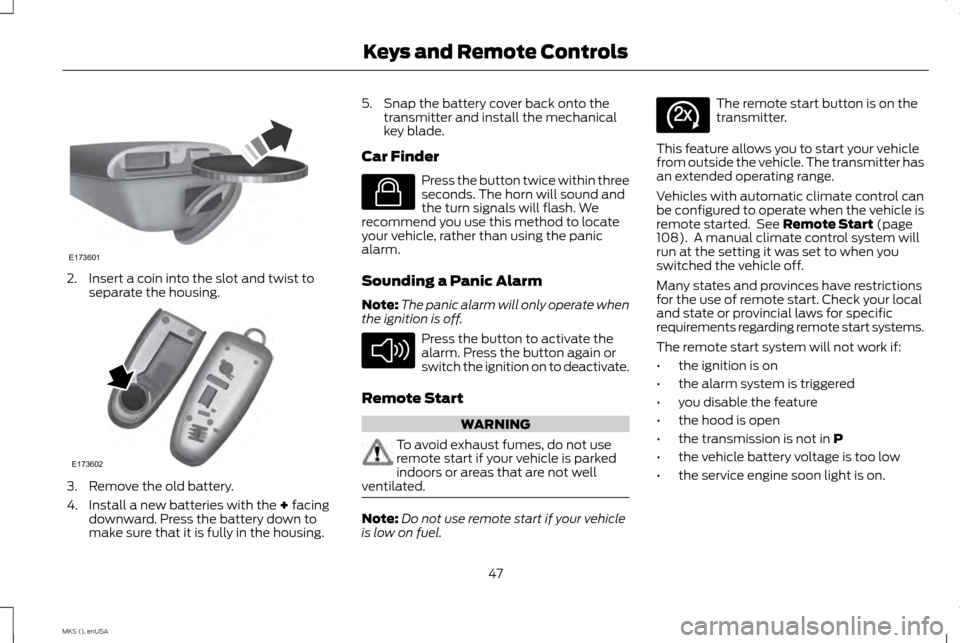

2. Insert a coin into the slot and twist to
separate the housing. 3. Remove the old battery.
4. Install a new batteries with the + facing
downward. Press the battery down to
make sure that it is fully in the housing. 5. Snap the battery cover back onto the
transmitter and install the mechanical
key blade.
Car Finder Press the button twice within three
seconds. The horn will sound and
the turn signals will flash. We
recommend you use this method to locate
your vehicle, rather than using the panic
alarm.
Sounding a Panic Alarm
Note: The panic alarm will only operate when
the ignition is off. Press the button to activate the
alarm. Press the button again or
switch the ignition on to deactivate.
Remote Start WARNING
To avoid exhaust fumes, do not use
remote start if your vehicle is parked
indoors or areas that are not well
ventilated. Note:
Do not use remote start if your vehicle
is low on fuel. The remote start button is on the
transmitter.
This feature allows you to start your vehicle
from outside the vehicle. The transmitter has
an extended operating range.
Vehicles with automatic climate control can
be configured to operate when the vehicle is
remote started. See
Remote Start (page
108). A manual climate control system will
run at the setting it was set to when you
switched the vehicle off.
Many states and provinces have restrictions
for the use of remote start. Check your local
and state or provincial laws for specific
requirements regarding remote start systems.
The remote start system will not work if:
• the ignition is on
• the alarm system is triggered
• you disable the feature
• the hood is open
• the transmission is not in
P
• the vehicle battery voltage is too low
• the service engine soon light is on.
47
MKS (), enUSA Keys and Remote ControlsE173601 E173602 E138623 E138624 E138625

Remote Starting the Vehicle
Note:
You must press each button within
three seconds of each other. Your vehicle will
not remote start if you do not follow this
sequence. The tag with your transmitter details the
starting procedure.
To remote start your vehicle:
1.
Press the lock button to lock all the doors.
2. Press the remote start button twice. The exterior lamps will flash twice.
The horn will sound if the system fails to
start, unless quiet start is on. Quiet start will
run the blower fan at a slower speed to
reduce noise. It can be switched on or off in
the information display. See General
Information (page 88). Note:
If the vehicle has been remote started
with an integrated keyhead transmitter, you
must switch the ignition on before driving your
vehicle. With an intelligent access transmitter,
you must press the
START/STOP button on
the instrument panel once while applying the
brake pedal before driving your vehicle.
The power windows will not work during the
remote start and the radio will not turn on
automatically.
The parking lamps will remain on and the
vehicle will run for 5, 10, or 15 minutes,
depending on the setting.
Extending the Vehicle Run Time
Repeat Steps 1 and 2 with the vehicle still
running to extend the run time for another
remote start duration. If you programmed
the duration to last 10 minutes, the second
10 minutes will begin after what is left of the
first activation time. For example, if the
vehicle had been running from the first
remote start for five minutes, the vehicle will
continue to run now for a total of 15 minutes.
You can extend the remote start up to a
maximum of 35 minutes.
Wait at least five seconds before remote
starting after a vehicle shutdown. Turning the Vehicle Off After Remote
Starting Press the button once. The parking
lamps will turn off.
You may have to be closer to the
vehicle than when starting due to ground
reflection and the added noise of the running
vehicle.
You can disable or enable the remote start
system through the information display. See
General Information
(page 88).
Memory Feature
You can recall the positions of the memory
seat, outside mirrors, steering column and
power pedal positions (if equipped) with your
intelligent access key if it is linked to a pre-set
position.
See Memory Function (page 114).
REPLACING A LOST KEY OR
REMOTE CONTROL
Replacement keys or remote controls can be
purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle. See
Passive
Anti-Theft System (page 63).
48
MKS (), enUSA Keys and Remote ControlsE138626 E138625

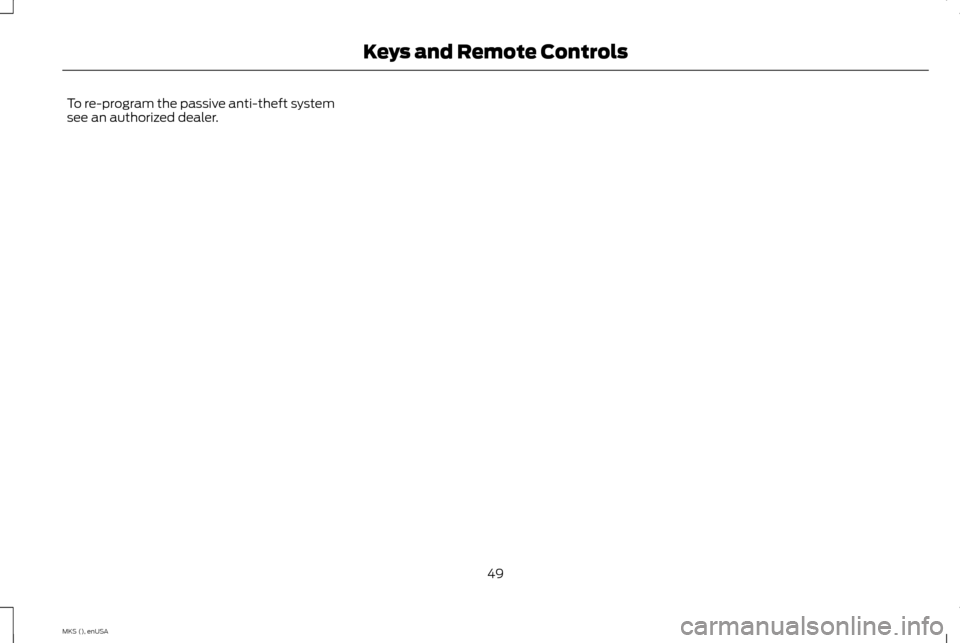

To re-program the passive anti-theft system
see an authorized dealer.
49
MKS (), enUSA Keys and Remote Controls

PRINCIPLE OF OPERATION
MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. All but one of the keys
programmed to the vehicle can be activated
with these restricted modes.
Any keys that have not been programmed
are referred to as administrator keys or admin
keys. These can be used to:
•
Create a MyKey.
• Program configurable MyKey settings.
• Clear all MyKey features.
When you have programmed a MyKey, you
can access the following information using
the information display:
• How many admin keys and MyKeys are
programmed to your vehicle.
• The total distance your vehicle has
traveled using a MyKey.
Note: All MyKeys are programmed to the
same settings. You cannot program them
individually. Note:
For vehicles with push-button start,
when both a MyKey and an admin remote
transmitter are present, the admin remote
transmitter will be recognized by the vehicle
while switching the ignition on to start the
vehicle.
Non-configurable Settings
The following settings cannot be changed by
an admin key user:
• Seat belt reminder or Belt Minder. You
cannot disable this feature. The audio
system will mute when the front seat
passengers' safety belts are not fastened.
• Early low fuel. The low-fuel warning
activates earlier, giving the MyKey user
more time to refuel.
• Driver assist features, if equipped on your
vehicle, are forced on: parking aid, blind
spot information system (BLIS) with
cross traffic alert, lane departure warning
and forward collision warning system or
active city-stop. Configurable Settings
With an admin key, you can configure certain
MyKey settings when you first create a MyKey
and before you recycle the key or restart the
vehicle. You can also change the settings
afterward with an admin key.
•
A vehicle speed limit can be set. Warnings
will be shown in the display followed by
an audible tone when your vehicle
reaches the set speed. You cannot
override the set speed by fully depressing
the accelerator pedal or by setting cruise
control. WARNING
Do not set MyKey maximum speed limit
to a limit that will prevent the driver
from maintaining a safe speed
considering posted speed limits and
prevailing road conditions. The driver is
always responsible to drive in accordance
with local laws and prevailing conditions.
Failure to do so could result in accident or
injury. 50
MKS (), enUSA MyKey
™

•
Various vehicle speed minders can be set.
Once you select a speed, it will be shown
in the display, followed by an audible tone
when the preselected vehicle speed is
exceeded.
• Audio system maximum volume of 45%.
A message will be shown in the display
when you attempt to exceed the limited
volume. Also, the speed-sensitive or
compensated automatic volume control
will be disabled.
• Always on setting. When this is selected,
you will not be able to turn off Advance
Trac or traction control (if your vehicle is
equipped with this feature).
CREATING A MYKEY
Use the information display to create a
MyKey:
1. Insert the key you want to program into the
ignition. If your vehicle is equipped with a
push-button start, place the intelligent
access key fob into the backup slot. The
location of your backup slot is in another
chapter. See Starting and Stopping the
Engine (page 126). 2. Switch the ignition on.
3. Access the main menu on the information
display controls, and select
Settings then
MyKey by pressing OK or the > button.
4. Press OK or the > button to select Create
MyKey
.
5. When prompted, hold the OK button until
you see a message informing you to label this
key as a MyKey. The key will be restricted at
the next start.
MyKey is successfully created. Make sure you
label it so you can distinguish it from the
admin keys.
You can also program configurable settings
for the key(s). See
Programming/Changing Configurable
Settings
.
Programming/Changing
Configurable Settings
Use the information display to access your
configurable MyKey settings.
1. Switch the ignition on using an admin key
or fob. 2.
Access the main menu on the information
display controls, and select
Settings,
then MyKey by pressing OK or > button.
3. Use the arrow buttons to get to a feature.
4. Press
OK or > to make a selection.
Note: You can clear or change your MyKey
settings at any time during the same key cycle
as you created the MyKey. Once you have
switched the vehicle off, however, you will
need an admin key to change or clear your
MyKey settings.
CLEARING ALL MYKEYS
You can clear or change your MyKey settings
using the information display control on the
steering wheel. See
Information Displays
(page 88).
Switch the ignition on using an admin key or
fob.
51
MKS (), enUSA MyKey
™

To clear all MyKeys of all MyKey settings, press the left arrow button to access the main menu and scroll to:
Action and Description
Message
Press the OK button.
Settings
Press the
OK button.
MyKey
Press and hold the
OK button until the following message displays.
Clear MyKey
All MyKeys
Cleared
Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status.
52
MKS (), enUSA MyKey
™
