technical specifications LINCOLN MKS 2015 Owners Manual

Changing a Fuse................................................232
Maintenance
General Information........................................234
Opening and Closing the Hood...................234
Under Hood Overview -
3.5L
Ecoboost™.....................................................236
Under Hood Overview - 3.7L........................238
Engine Oil Dipstick...........................................239
Engine Oil Check...............................................239
Oil Change Indicator Reset...........................240
Engine Coolant Check....................................240
Automatic Transmission Fluid Check.......244
Brake Fluid Check.............................................247
Power Steering Fluid Check..........................247
Washer Fluid Check
........................................248
Fuel Filter
.............................................................248
Changing the 12V Battery..............................248
Checking the Wiper Blades..........................250
Changing the Wiper Blades.........................250
Adjusting the Headlamps..............................251
Changing a Bulb
................................................252
Bulb Specification Chart................................253
Changing the Engine Air Filter
.....................255 Vehicle Care
General Information
........................................257
Cleaning Products
............................................257
Cleaning the Exterior.......................................257
Waxing ..................................................................
258
Cleaning the Engine
........................................258
Cleaning the Windows and Wiper Blades
...............................................................259
Cleaning the Interior
........................................259
Cleaning the Instrument Panel and Instrument Cluster Lens
............................260
Cleaning Leather Seats
.................................260
Repairing Minor Paint Damage
....................261
Cleaning the Alloy Wheels.............................261
Vehicle Storage
.................................................262
Wheels and Tires
Tire Care..............................................................264
Using Snow Chains..........................................279
Tire Pressure Monitoring System................279
Changing a Road Wheel
................................283
Technical Specifications
...............................288
Capacities and Specifications
Engine Specifications
.....................................290
Motorcraft Parts................................................291 Vehicle Identification Number
......................291
Vehicle Certification Label
............................292
Transmission Code Designation.................293
Technical Specifications...............................294
Audio System
General Information
........................................299
Audio Unit
...........................................................300
Media Hub
...........................................................302
MyLincoln Touch ™
General Information
........................................303
Settings.................................................................313
Entertainment...................................................325
Phone
...................................................................344
Information..........................................................351
Climate................................................................360
Navigation...........................................................364
Accessories
Accessories.........................................................373
Appendices
End User License Agreement.......................375
4
MKS (), enUSA Table of Contents

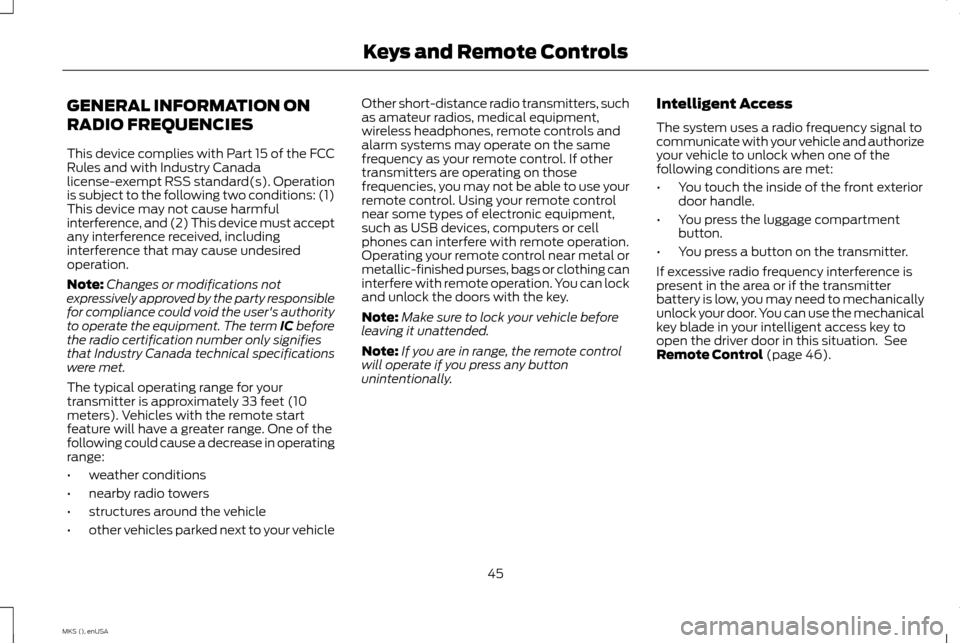

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the FCC
Rules and with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
This device may not cause harmful
interference, and (2) This device must accept
any interference received, including
interference that may cause undesired
operation.
Note:
Changes or modifications not
expressively approved by the party responsible
for compliance could void the user's authority
to operate the equipment. The term IC before
the radio certification number only signifies
that Industry Canada technical specifications
were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of the
following could cause a decrease in operating
range:
• weather conditions
• nearby radio towers
• structures around the vehicle
• other vehicles parked next to your vehicle Other short-distance radio transmitters, such
as amateur radios, medical equipment,
wireless headphones, remote controls and
alarm systems may operate on the same
frequency as your remote control. If other
transmitters are operating on those
frequencies, you may not be able to use your
remote control. Using your remote control
near some types of electronic equipment,
such as USB devices, computers or cell
phones can interfere with remote operation.
Operating your remote control near metal or
metallic-finished purses, bags or clothing can
interfere with remote operation. You can lock
and unlock the doors with the key.
Note:
Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access
The system uses a radio frequency signal to
communicate with your vehicle and authorize
your vehicle to unlock when one of the
following conditions are met:
•
You touch the inside of the front exterior
door handle.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference is
present in the area or if the transmitter
battery is low, you may need to mechanically
unlock your door. You can use the mechanical
key blade in your intelligent access key to
open the driver door in this situation. See
Remote Control (page 46).
45
MKS (), enUSA Keys and Remote Controls

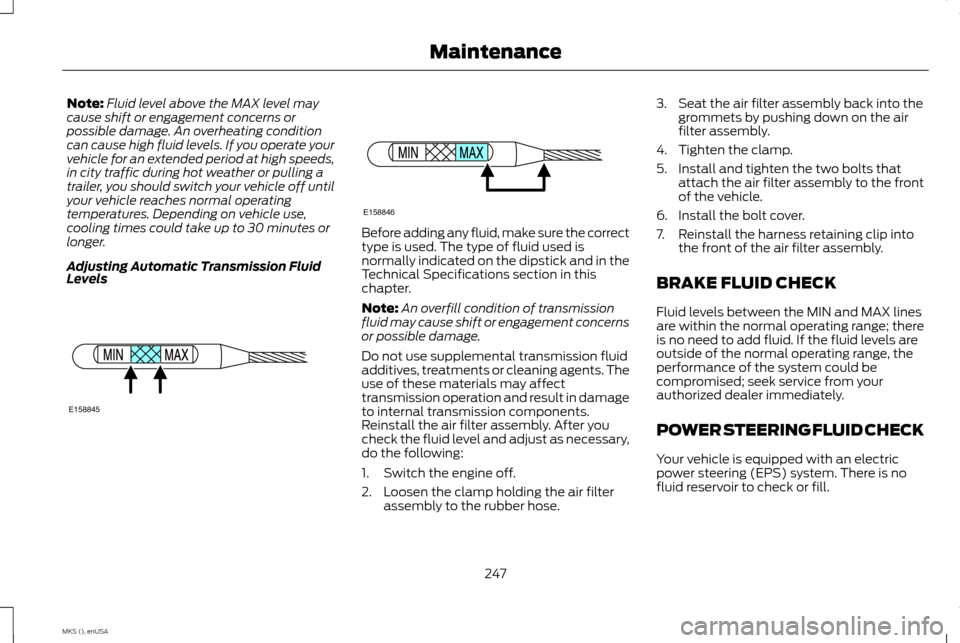

Note:
Fluid level above the MAX level may
cause shift or engagement concerns or
possible damage. An overheating condition
can cause high fluid levels. If you operate your
vehicle for an extended period at high speeds,
in city traffic during hot weather or pulling a
trailer, you should switch your vehicle off until
your vehicle reaches normal operating
temperatures. Depending on vehicle use,
cooling times could take up to 30 minutes or
longer.
Adjusting Automatic Transmission Fluid
Levels Before adding any fluid, make sure the correct
type is used. The type of fluid used is
normally indicated on the dipstick and in the
Technical Specifications section in this
chapter.
Note:
An overfill condition of transmission
fluid may cause shift or engagement concerns
or possible damage.
Do not use supplemental transmission fluid
additives, treatments or cleaning agents. The
use of these materials may affect
transmission operation and result in damage
to internal transmission components.
Reinstall the air filter assembly. After you
check the fluid level and adjust as necessary,
do the following:
1. Switch the engine off.
2. Loosen the clamp holding the air filter assembly to the rubber hose. 3. Seat the air filter assembly back into the
grommets by pushing down on the air
filter assembly.
4. Tighten the clamp.
5. Install and tighten the two bolts that attach the air filter assembly to the front
of the vehicle.
6. Install the bolt cover.
7. Reinstall the harness retaining clip into the front of the air filter assembly.
BRAKE FLUID CHECK
Fluid levels between the MIN and MAX lines
are within the normal operating range; there
is no need to add fluid. If the fluid levels are
outside of the normal operating range, the
performance of the system could be
compromised; seek service from your
authorized dealer immediately.
POWER STEERING FLUID CHECK
Your vehicle is equipped with an electric
power steering (EPS) system. There is no
fluid reservoir to check or fill.
247
MKS (), enUSA MaintenanceE158845 E158846

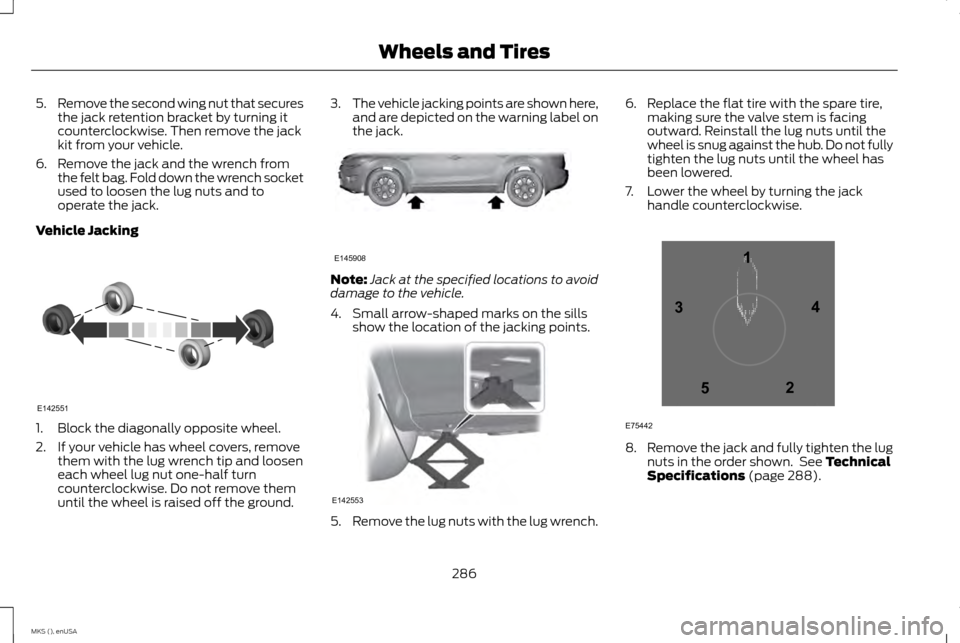

5.
Remove the second wing nut that secures
the jack retention bracket by turning it
counterclockwise. Then remove the jack
kit from your vehicle.
6. Remove the jack and the wrench from the felt bag. Fold down the wrench socket
used to loosen the lug nuts and to
operate the jack.
Vehicle Jacking 1. Block the diagonally opposite wheel.
2. If your vehicle has wheel covers, remove
them with the lug wrench tip and loosen
each wheel lug nut one-half turn
counterclockwise. Do not remove them
until the wheel is raised off the ground. 3.
The vehicle jacking points are shown here,
and are depicted on the warning label on
the jack. Note:
Jack at the specified locations to avoid
damage to the vehicle.
4. Small arrow-shaped marks on the sills show the location of the jacking points. 5.
Remove the lug nuts with the lug wrench. 6. Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not fully
tighten the lug nuts until the wheel has
been lowered.
7. Lower the wheel by turning the jack handle counterclockwise. 8.
Remove the jack and fully tighten the lug
nuts in the order shown. See Technical
Specifications (page 288).
286
MKS (), enUSA Wheels and TiresE142551 E145908 E142553 12
3
4
5
E75442

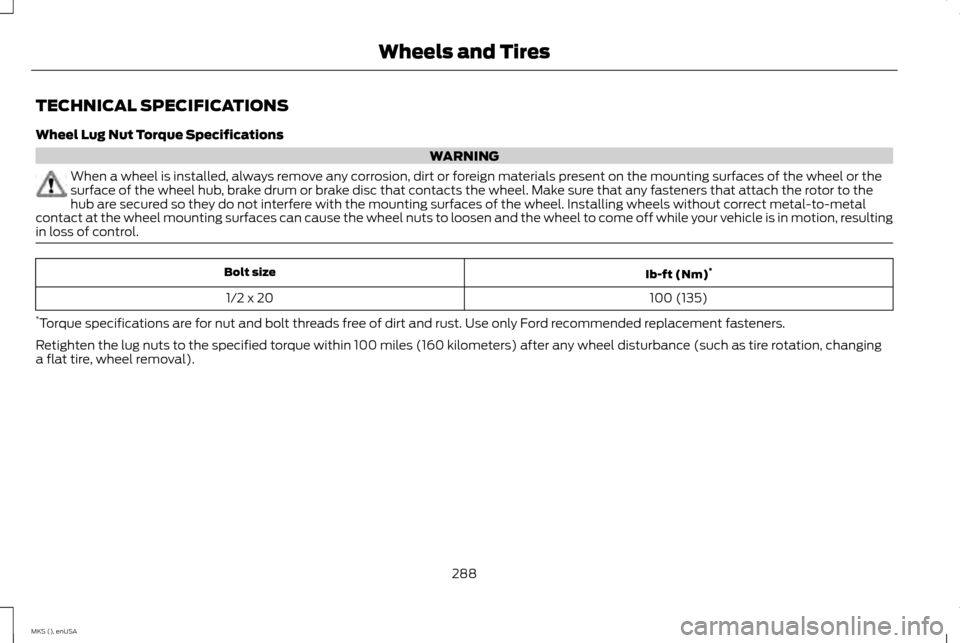

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure that any fasteners that attach the rotor to the
hub are secured so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting
in loss of control. Ib-ft (Nm)
*
Bolt size
100 (135)
1/2 x 20
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance (such as tire rotation, changing
a flat tire, wheel removal).
288
MKS (), enUSA Wheels and Tires

TECHNICAL SPECIFICATIONS
WARNING
The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system
can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel.
Ford part number / Ford specification
Recommended fluids and
lubricants
Capacity
Item
XL-1 (U.S.) / --
Motorcraft Penetrating and
Lock Lubricant (U.S.)
—
Lock cylinders
CXC-51-A (Canada) / --
Motorcraft Penetrating Fluid
(Canada)
XL-5
Motorcraft Multi-Purpose
Grease Spray
—
Hinges, latches, striker plates,
fuel filler door hinge and seat tracks
PM-20 / WSS-M6C65-A2
Motorcraft DOT 4 LV High
Performance Motor Vehicle Brake Fluid
Between MIN/MAX on brake fluid
reservoir
Brake fluid 1
XO-5W30-QSP or XO-5W30-QFS (U.S.)/ WSS-M2C946-A
Motorcraft SAE 5W-30
Premium Synthetic Blend Motor Oil or Motorcraft SAE 5W-30 Full Synthetic Motor Oil
6.0 qt (5.7 L)
3.5L EcoBoost engine oil
CXO-5W30-LSP12 or CXO-5W30-LFS12
(Canada) / WSS-M2C946-A
294
MKS (), enUSA Capacities and Specifications

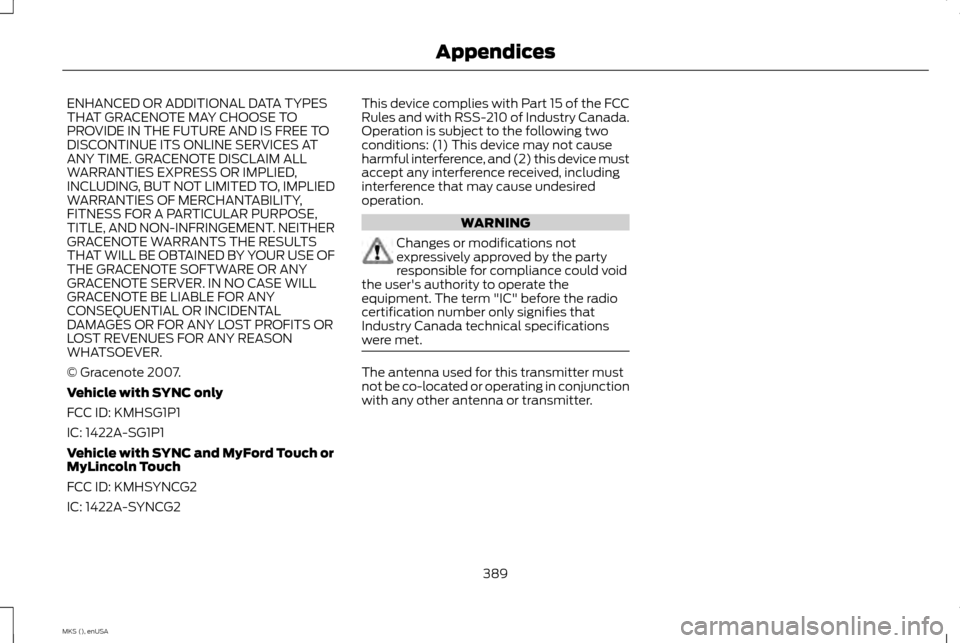

ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE TO
DISCONTINUE ITS ONLINE SERVICES AT
ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE,
TITLE, AND NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE OF
THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR
LOST REVENUES FOR ANY REASON
WHATSOEVER.
© Gracenote 2007.
Vehicle with SYNC only
FCC ID: KMHSG1P1
IC: 1422A-SG1P1
Vehicle with SYNC and MyFord Touch or
MyLincoln Touch
FCC ID: KMHSYNCG2
IC: 1422A-SYNCG2
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. The antenna used for this transmitter must
not be co-located or operating in conjunction
with any other antenna or transmitter.
389
MKS (), enUSA Appendices

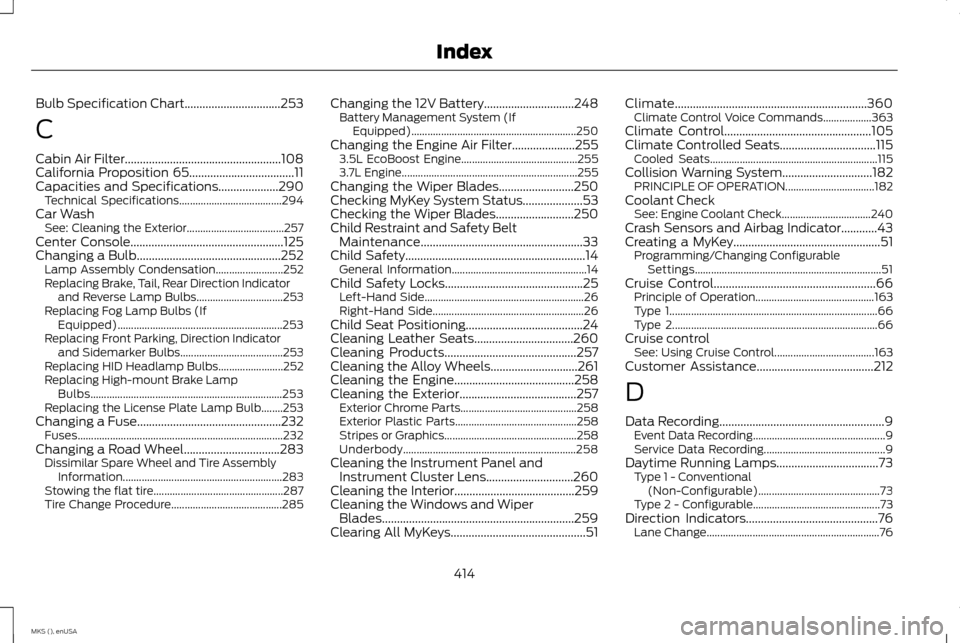

Bulb Specification Chart................................253
C
Cabin Air Filter....................................................108
California Proposition 65...................................11
Capacities and Specifications....................290 Technical Specifications...................................... 294
Car Wash See: Cleaning the Exterior.................................... 257
Center Console
...................................................125
Changing a Bulb................................................252
Lamp Assembly Condensation......................... 252
Replacing Brake, Tail, Rear Direction Indicator and Reverse Lamp Bulbs................................ 253
Replacing Fog Lamp Bulbs (If Equipped)............................................................. 253
Replacing Front Parking, Direction Indicator and Sidemarker Bulbs...................................... 253
Replacing HID Headlamp Bulbs........................ 252
Replacing High-mount Brake Lamp Bulbs....................................................................... 253
Replacing the License Plate Lamp Bulb........253
Changing a Fuse................................................232 Fuses........................................................................\
.... 232
Changing a Road Wheel
................................283
Dissimilar Spare Wheel and Tire Assembly
Information........................................................... 283
Stowing the flat tire................................................ 287
Tire Change Procedure......................................... 285Changing the 12V Battery..............................248
Battery Management System (If
Equipped)............................................................. 250
Changing the Engine Air Filter
.....................255
3.5L EcoBoost Engine........................................... 255
3.7L Engine................................................................. 255
Changing the Wiper Blades.........................250
Checking MyKey System Status....................53
Checking the Wiper Blades..........................250
Child Restraint and Safety Belt Maintenance......................................................33
Child Safety............................................................14 General Information.................................................. 14
Child Safety Locks..............................................25 Left-Hand Side........................................................... 26
Right-Hand Side........................................................ 26
Child Seat Positioning.......................................24
Cleaning Leather Seats.................................260
Cleaning Products
............................................257
Cleaning the Alloy Wheels.............................261
Cleaning the Engine
........................................258
Cleaning the Exterior.......................................257 Exterior Chrome Parts........................................... 258
Exterior Plastic Parts............................................. 258
Stripes or Graphics................................................. 258
Underbody................................................................ 258
Cleaning the Instrument Panel and Instrument Cluster Lens.............................260
Cleaning the Interior
........................................259
Cleaning the Windows and Wiper Blades................................................................259
Clearing All MyKeys.............................................51 Climate................................................................360
Climate Control Voice Commands.................. 363
Climate Control
.................................................105
Climate Controlled Seats................................115
Cooled Seats.............................................................. 115
Collision Warning System..............................182 PRINCIPLE OF OPERATION................................. 182
Coolant Check See: Engine Coolant Check................................. 240
Crash Sensors and Airbag Indicator............43
Creating a MyKey
.................................................51
Programming/Changing Configurable
Settings..................................................................... 51
Cruise Control
......................................................66
Principle of Operation............................................ 163
Type 1........................................................................\
..... 66
Type 2........................................................................\
.... 66
Cruise control See: Using Cruise Control..................................... 163
Customer Assistance
.......................................212
D
Data Recording
.......................................................9
Event Data Recording................................................. 9
Service Data Recording............................................. 9
Daytime Running Lamps..................................73 Type 1 - Conventional
(Non-Configurable)............................................. 73
Type 2 - Configurable............................................... 73
Direction Indicators
............................................76
Lane Change................................................................ 76
414
MKS (), enUSA Index

Starting a Gasoline Engine.............................127
Automatic Engine Shutdown.............................. 128
Failure to Start.......................................................... 128
Fast Restart................................................................ 127
Guarding Against Exhaust Fumes..................... 129
Important Ventilating Information.................... 129
Stopping the Engine When Your Vehicle is Moving..................................................................... 129
Stopping the Engine When Your Vehicle is Stationary.............................................................. 128
Starting and Stopping the Engine..............126 General Information............................................... 126
Steering..................................................................181 Electric Power Steering.......................................... 181
Steering Wheel....................................................65
Storage Compartments
..................................125
Sunroof See: Moonroof............................................................. 81
Sun Shades
............................................................81
Sun Visors...............................................................81
Illuminated Vanity Mirror......................................... 81
Supplementary Restraints System
..............36
Principle of Operation.............................................. 36
Symbols Glossary..................................................7
T
Technical Specifications See: Capacities and Specifications.................290
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).............................214 Tire Care..............................................................264
Glossary of Tire Terminology.............................. 265
Information About Uniform Tire Quality Grading.................................................................. 264
Information Contained on the Tire Sidewall................................................................ 266
Temperature A B C................................................. 265
Traction AA A B C.................................................... 265
Treadwear..................................................................264
Tire Pressure Monitoring System
................279
Changing Tires With a Tire Pressure Monitoring
System................................................................... 280
Understanding Your Tire Pressure Monitoring System ................................................................... 281
Tires See: Wheels and Tires.......................................... 264
Towing a Trailer
..................................................198
Load Placement...................................................... 198
Towing the Vehicle on Four Wheels..........202 Emergency Towing................................................. 202
Recreational Towing.............................................. 203
Towing...................................................................198
Traction Control
.................................................150
Principle of Operation............................................ 150
Transmission Code Designation
.................293
Transmission.......................................................139
Transmission See: Transmission................................................... 139
Transporting the Vehicle...............................202 U
Under Hood Overview - 3.5L
Ecoboost™......................................................236
Under Hood Overview - 3.7L........................238 Engine Shield............................................................ 239
Universal Garage Door Opener
.....................119
HomeLink Wireless Control System.................. 119
Using Adaptive Cruise Control
.....................164
Blocked Sensor........................................................ 169
Changing the Set Speed....................................... 167
Detection Issues...................................................... 168
Disengaging Adaptive Cruise Control..............166
Following a Vehicle................................................. 165
Hilly Condition Usage............................................. 167
Low Speed Automatic Cancellation.................167
Overriding Adaptive Cruise Control................... 167
Resuming the Set Speed....................................... 167
Setting Adaptive Cruise Control........................ 164
Setting a Speed........................................................ 164
Setting the Gap Distance..................................... 165
Switching the System Off..................................... 167
Switching to Normal Cruise Control.................170
Using All-Wheel Drive......................................142 Driving In Special Conditions With All-Wheel
Drive (AWD).......................................................... 142
Using Cruise Control........................................163 Switching Cruise Control Off............................... 163
Switching Cruise Control On............................... 163
Using MyKey With Remote Start Systems...............................................................54
Using Snow Chains
..........................................279
420
MKS (), enUSA Index

Using Stability Control....................................152
AdvanceTrac® .......................................................... 152
Using Traction Control....................................150 Switching the System Off Using a
Switch..................................................................... 150
Switching the System Off Using the Information Display Controls......................... 150
System Indicator Lights and Messages..........150
Utilizing the Mediation/Arbitration Program (Canada Only).................................................215
V
Vehicle Care
........................................................257
General Information............................................... 257
Vehicle Certification Label
............................292
Vehicle Identification Number......................291
Vehicle Storage
.................................................262
Battery........................................................................\
. 263
Body........................................................................\
..... 262
Brakes........................................................................\
.. 263
Cooling system........................................................ 262
Engine........................................................................\
.. 262
Fuel system............................................................... 262
General....................................................................... 262
Miscellaneous.......................................................... 263
Removing Vehicle From Storage....................... 263
Tires........................................................................\
...... 263
Ventilation See: Climate Control.............................................. 105
VIN See: Vehicle Identification Number.................. 291Voice Control
........................................................66
W
Warning Lamps and Indicators.....................84 Adaptive Cruise Control.......................................... 84
Anti-Lock Braking System..................................... 84
Battery........................................................................\
... 84
Brake System.............................................................. 84
Cruise Control............................................................. 84
Direction Indicator.................................................... 84
Door Ajar....................................................................... 84
Engine Coolant Temperature............................... 85
Engine Oil..................................................................... 85
Fasten Safety Belt..................................................... 85
Front Airbag................................................................. 85
Front Fog Lamps....................................................... 85
Grade Assist................................................................ 85
Heads Up Display...................................................... 85
High Beam................................................................... 85
Low Fuel Level............................................................ 85
Low Tire Pressure Warning.................................... 85
Low Washer Fluid...................................................... 85
Parking Lamps........................................................... 86
Powertrain Fault........................................................ 86
Service Engine Soon................................................ 86
Stability Control......................................................... 86
Stability Control Off................................................. 86
Washer Fluid Check
.........................................248
Washers See: Cleaning the Exterior.................................... 257
See: Wipers and Washers...................................... 69Waxing
..................................................................
258
Wheel Nuts See: Changing a Road Wheel............................. 283
Wheels and Tires.............................................264 Technical Specifications...................................... 288
Windows and Mirrors.........................................78
Windshield Washers
..........................................70
Windshield Wipers.............................................69
Wipers and Washers.........................................69
421
MKS (), enUSA Index
